JL Audio SB-CAN-G2MVX3P/10TW3 Stealthbox® for 2019 Up Can-Am Maverick X3 2-Seat (Passenger Side) – #94673

Product Descriptions

JL Audio SB-CAN-G2MVX3P/10TW3 Stealthbox® for 2019-Up Can-Am Maverick X3 2-Seat (Passenger Side) - #94673

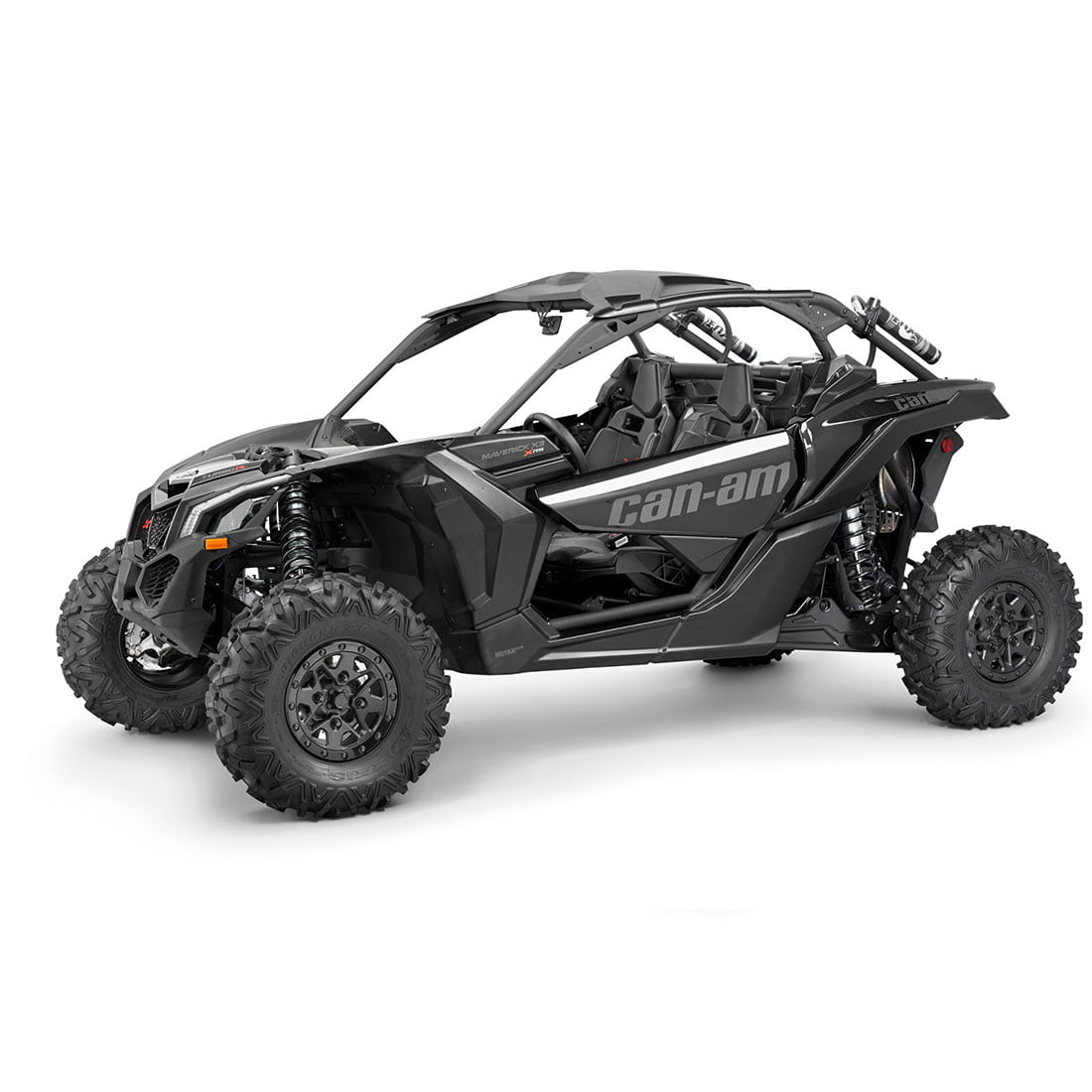

Can-Am’s maximum-performance Maverick X3 is built to deliver thrilling outdoor adventures on virtually all off-road terrains. If great audio is to be part of your journey, the X3 definitely needs a high-output, high fidelity subwoofer.

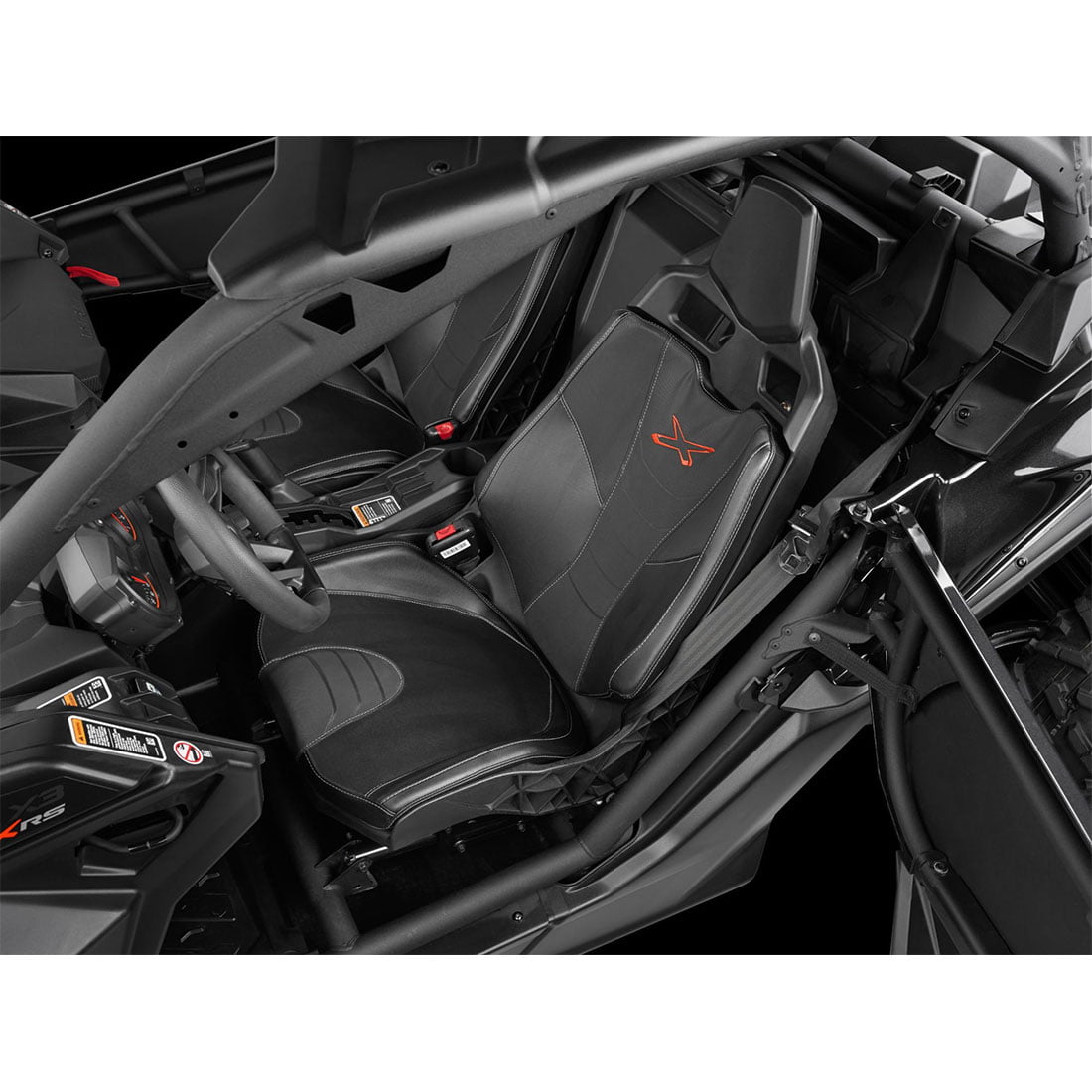

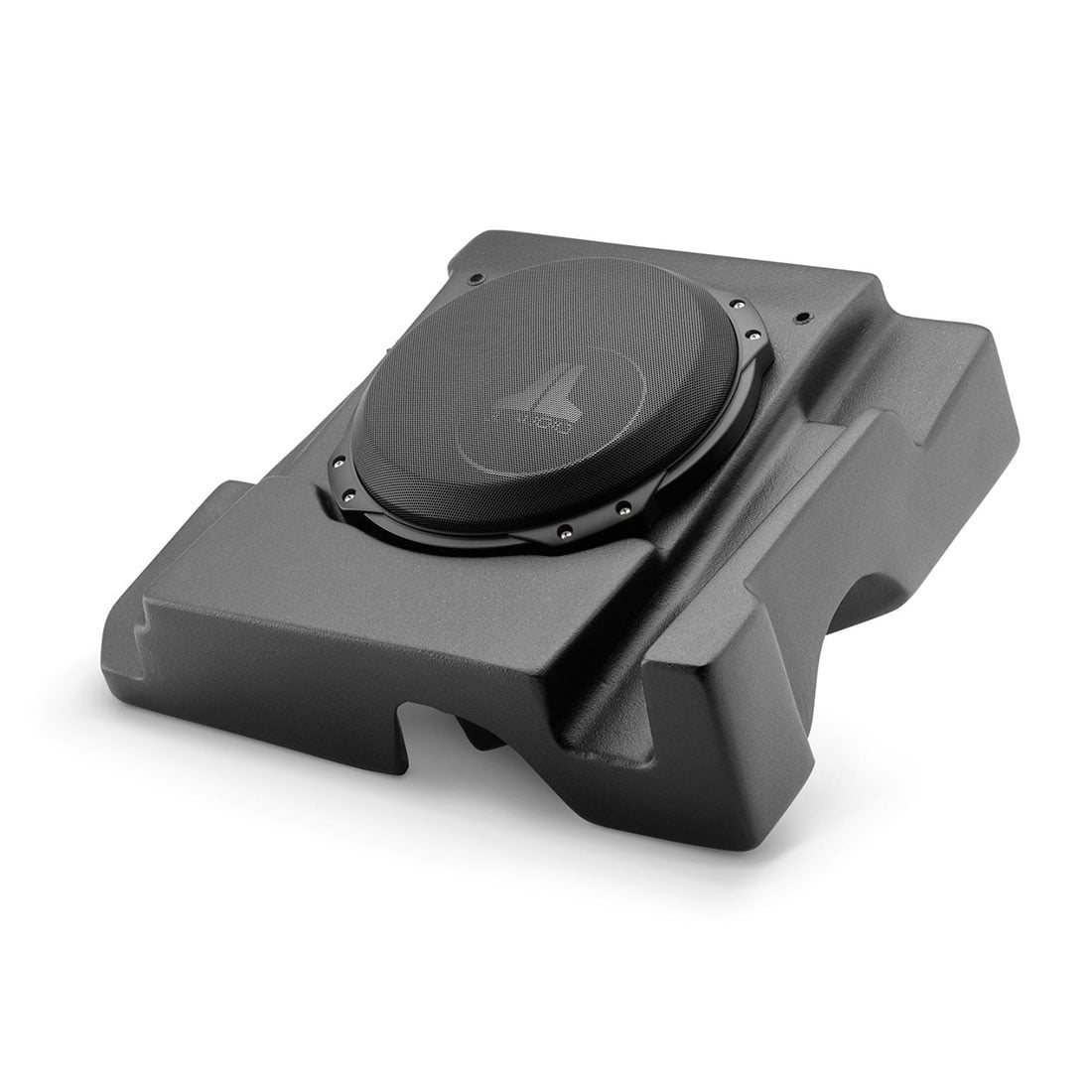

Purpose-built for the 2-seat Can-Am Maverick X3, these Stealthbox® systems mount completely out-of-sight beneath each seat, generating loads of deep, gut-shaking bass. Sold individually for the driver and passenger sides, each sealed enclosure features all-fiberglass construction with a rugged, weatherproof finish and houses a 10-inch, TW3 thin-line Subwoofer. All mounting hardware is included for a secure, great sounding installation.

The Hard Data:Contains one 10TW3-D4 in an up-firing, sealed enclosure. 400 watt power handling. Wired for 2 ohms mono. Choose from models that install beneath driver’s seat or passenger seat (or get both for maximum performance). A steel mesh woofer grille is included with each Stealthbox®. Will only fit 2019-Up Maverick X3 models!

Stealthbox® products are built to order and generally ship within 15-30 business days of receiving your order.

Features & Specs

10TW3-D4 General Specifications
-Continuous Power Handling (RMS) – 400 W
-Recommended Amplifier Power (RMS) – 200 – 400 W
-Nominal Impedance (Znom) – Dual 4 Ω

10TW3-D4 Physical Specifications
-Nominal Diameter – 10 in / 250 mm
-Overall Diameter – A1: 11.2 in / 284 mm
-A2: 10.5 in / 267 mm
-Mounting Hole Diameter – 9.625 in / 244 mm
-Bolt Hole Circle Diameter – 10.5 in / 267 mm
-Motor Outer Diameter – 5.1 in / 130 mm
-Mounting Depth – 3.25 in / 83 mm
-Driver Displacement – 0.019 cu ft / 0.54 L
-Net Weight – 10.1 lb / 4.6 kg

10TW3-D4 Parameters
-Free Air Resonance (Fs) -32.30 Hz
-Electrical “Q” (Qes) – 0.656
-Mechanical “Q” (Qms) – 11.35
-Total Speaker “Q” (Qts) – 0.62
-Equivalent Compliance (Vas) – 0.700 cu ft / 19.82 L
-One-Way Linear Excursion (Xmax)* – 0.6 in / 15.2 mm
-Reference Efficiency (no) – 0.23%
-Efficiency (1 W / 1 m)** – 82.10 dB SPL
-Effective Piston Area (Sd) – 56.532 sq in / 0.0365 sq m
-DC Resistance (Re)*** – 9.036 Ω

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** For parallel-wired voice coils, divide “Re” by 4. All other specifications remain the same.
*** Re (DC resistance) is measured with the voice coils in series, for parallel-wired specification divide Re by 4. All other specifications remain the same.

10TW3-D4 Sealed Enclosure Specifications
-Wall Thickness – 0.75 in / 19 mm
-Front Baffle Thickness – 0.75 in / 19 mm
-Volume (net int.) – 0.50 cu ft / 14.16 L
-External Width – 16 in / 406 mm
-External Height – 13.875 in / 352 mm
-External Depth – 6.5 in / 165 mm
-F3 – 40.09 Hz
-Fc – 50.04 Hz
-Qtc – 0.96

10TW3-D4 Ported Enclosure Specifications
-Wall Thickness – 0.75 in / 19 mm
-Front Baffle Thickness – 0.75 in / 19 mm
-Volume (net int.) – 0.60 cu ft / 17 L
-External Width (W) – 30 in / 762 mm
-External Height (H) – 14.625 in / 372 mm
-External Depth (D) – 5.125 in / 130 mm
-Internal Slot Port Width (SW) – 3.625 in / 92 mm
-Internal Slot Port Height (SH) – 2.125 in / 54 mm
-Internal Slot Port Length (SL) – 31.0625 in / 789 mm
-Port Extension Length (EL) – 26.375 in / 670 mm
-Tuning Frequency (Fb) – 32.14 Hz
-F3 – 32.11 Hz

Documents

Warranty

JL Audio offers a 1 year limited warranty
SKU: SB-CAN-G2MVX3P/10TW3 UPC: 699440946735
