Key Digital KDZRC300 ZigBee Wireless 2.4 GHz & IR Universal Handheld Remote Control
Product Descriptions
Product Descriptions

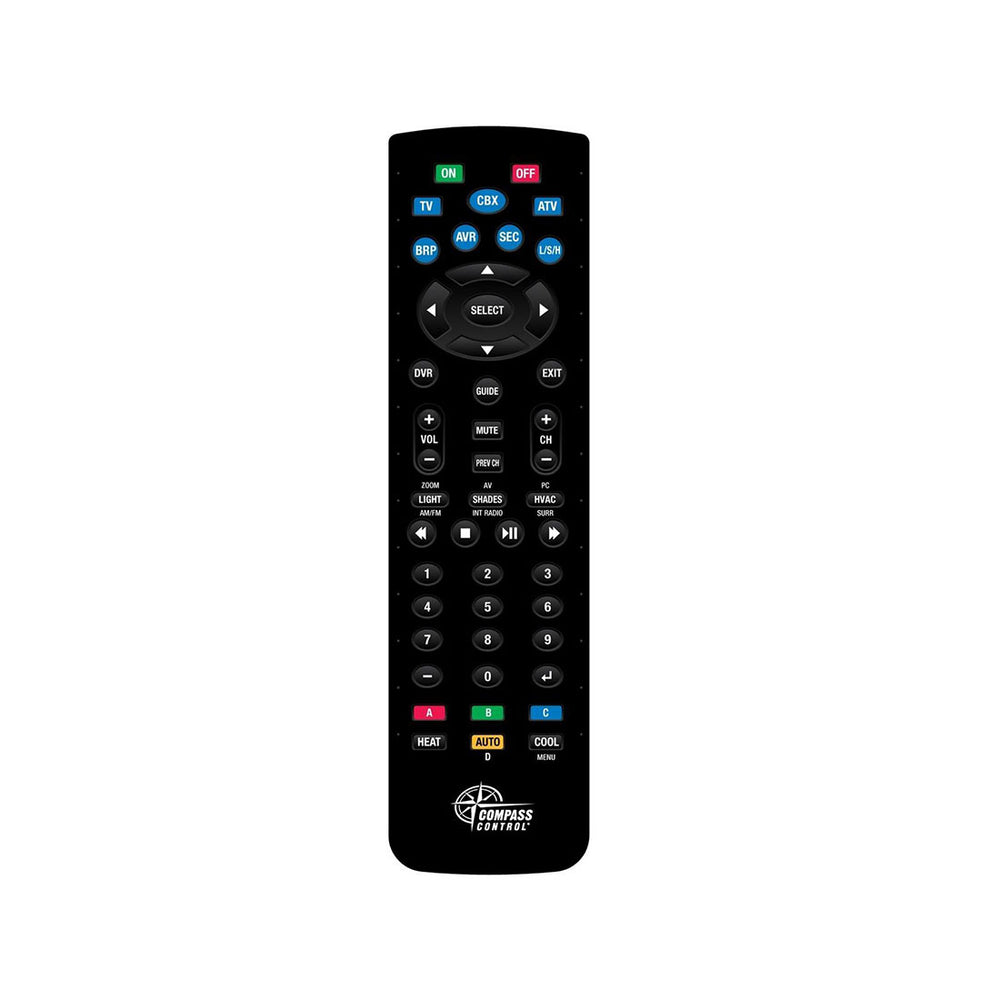

Key Digital KDZRC300 ZigBee Wireless 2.4 GHz & IR Universal Handheld Remote Control
The KDZRC300 can be used in conjunction with the Key Digital DZRX200 With 48 preset hard buttons and a USB port for programming and charging, the Key Digital KD-ZRC300 is a wireless 2.4 GHz and IR universal handheld remote control. Through walls, floors, and doors, the gadget offers ZigBee signal transmission up to 100'. With RF Wireless 2.4 GHz ZigBee control or line-of-sight IR control, you can manage up to 10 units. It includes on/off indicator keys. The selected device will continue to be displayed by the Key LED of the selected device.
KDZRC300 Features
- For IR and/or RF ZigBee commands, there are 48 programmable hard buttons that may be controlled via USB on a PC or a Mac using the Compass Navigator™ PC Software
- Support for programming: Countless macro and variable actions
- Transmission of a ZigBee signal up to 100 feet through walls, doors and floors
- Device Control: Line-of-sight IR or RF Wireless 2.4 GHz ZigBee control for up to 10 devices
- Backlight: Automatic backlighting when motion is detected. When movement is detected, the backlight turns on, and it remains on for five seconds after movement stops
- USB: Programming and Recharging
- When the remote is not in use, the device is in idle mode
- Active Mode: When a button is pressed, the device enters Active Mode. Active Mode lasts for 5 seconds
- When the battery voltage falls below 2.4V, the low battery mode is activated
- Mode of Configuration: To set up and customize the remote
- Keys for indication: (On/Off)
- Power OFF LED blinks once every second while in active mode as a low battery indicator
- Power ON LED blinks every second while in use as a battery charging indicator
- When fully charged: While in active mode, the Power ON and OFF LEDs alternately flicker once per second
- Both the Power ON and OFF LEDs are steadily lit as a configuration mode indicator
- Seven Device Keys To show which device is selected, the selected Device Key LED will continue to glow
- KD-ZRC300 - Wireless 2.4 GHz & IR Universal Handheld Remote Control is included in the set
