JL Audio Home Audio PV-FX6-Single 6.5" Pavilion Outdoor Flush-Mount In-Ceiling Coaxial Speaker - Each - #93763
Product Descriptions
Product Descriptions

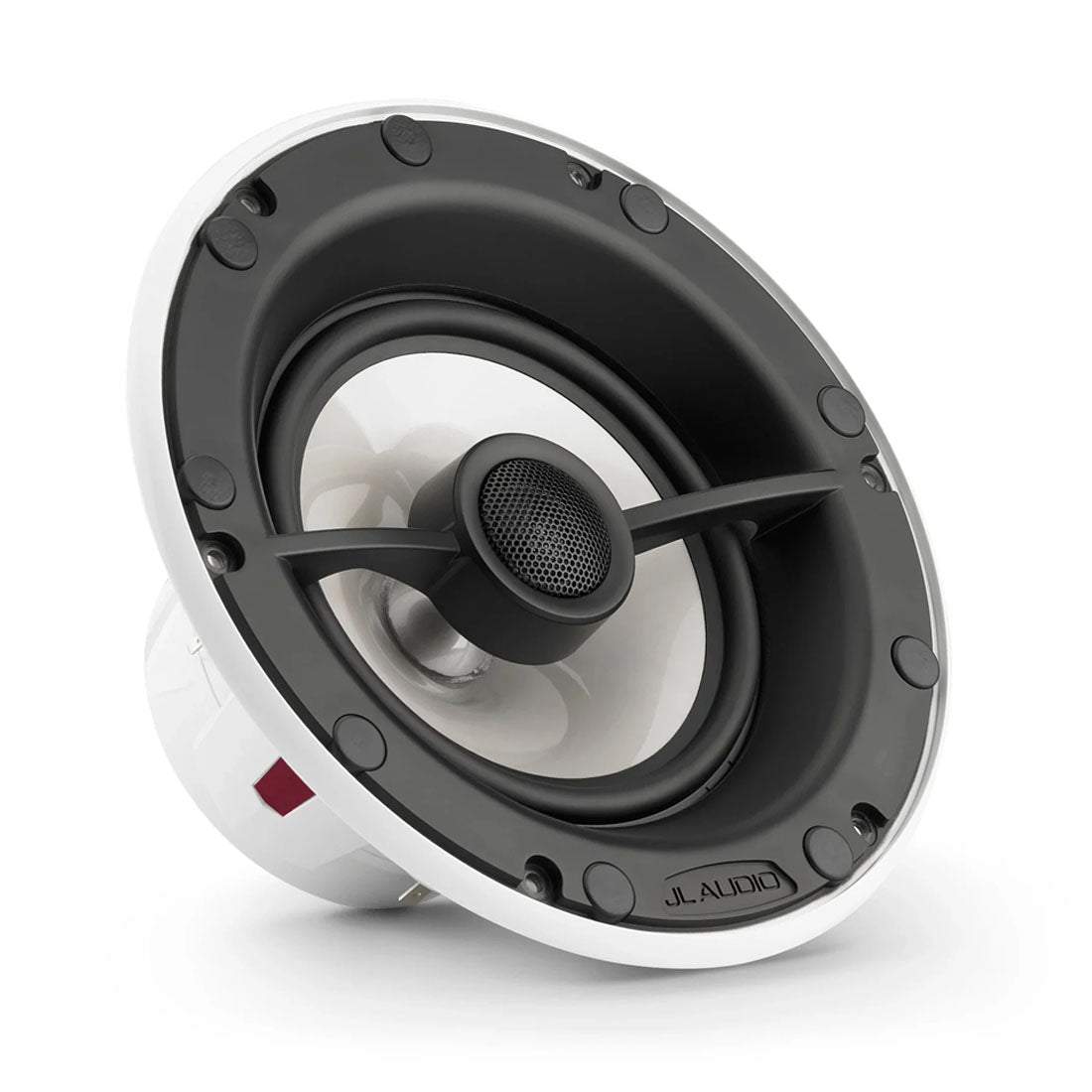

JL Audio PV-FX6-Single 6.5" (165 mm) Pavilion Outdoor In-Ceiling Speaker - Each - #93763
PV-FX6-Single Pavilion Outdoor In-Ceiling Speaker - 6.5-inch Coaxial (60 W, 4 Ohm) - White Trim Ring, Flush-Mount Grille

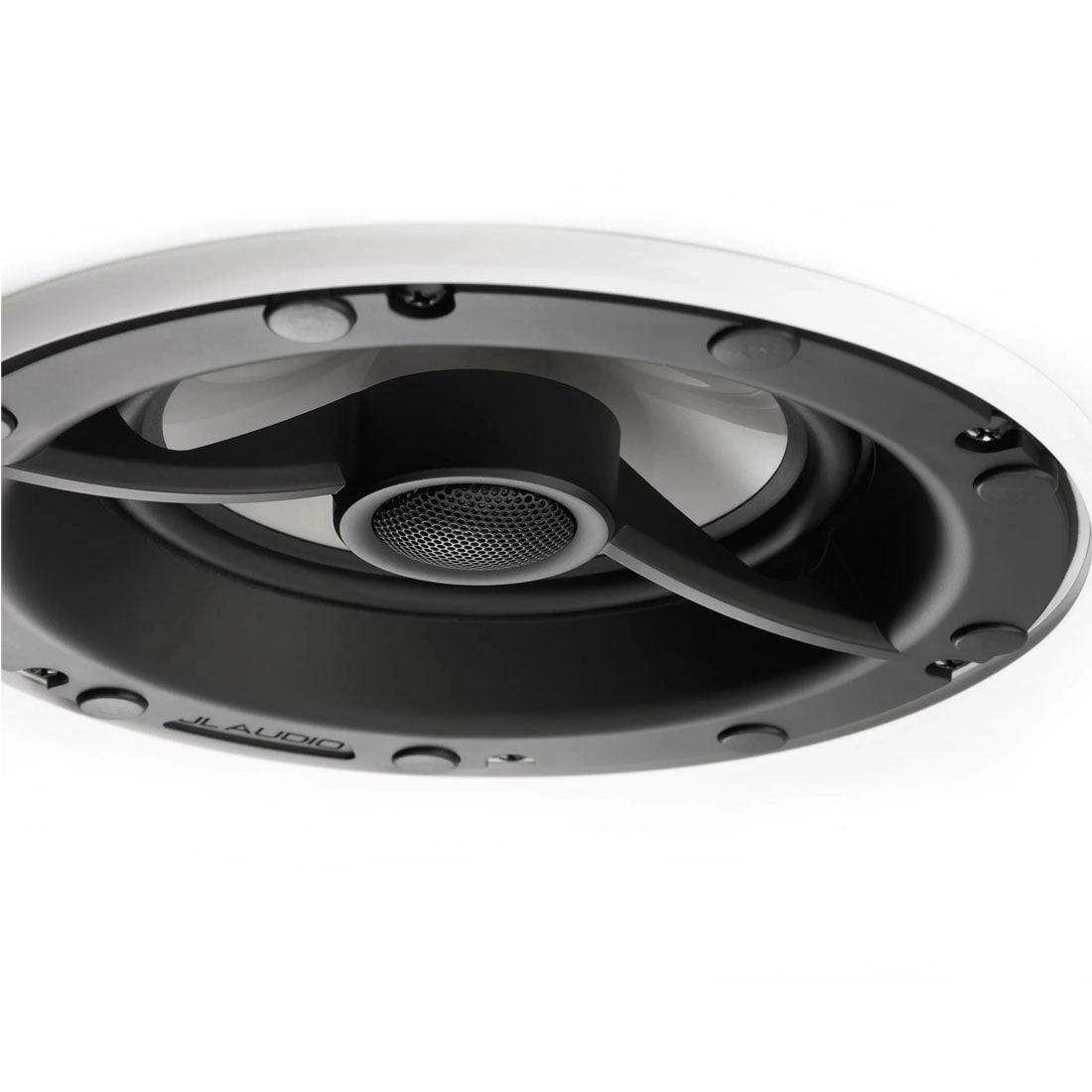

Pavilion in-ceiling speakers are engineered to deliver remarkable audio performance and durability in outdoor residential applications. Each model features a low-profile mounting bezel with an integrated tweeter bridge and a flush-mount grille for a discreet visual appearance.

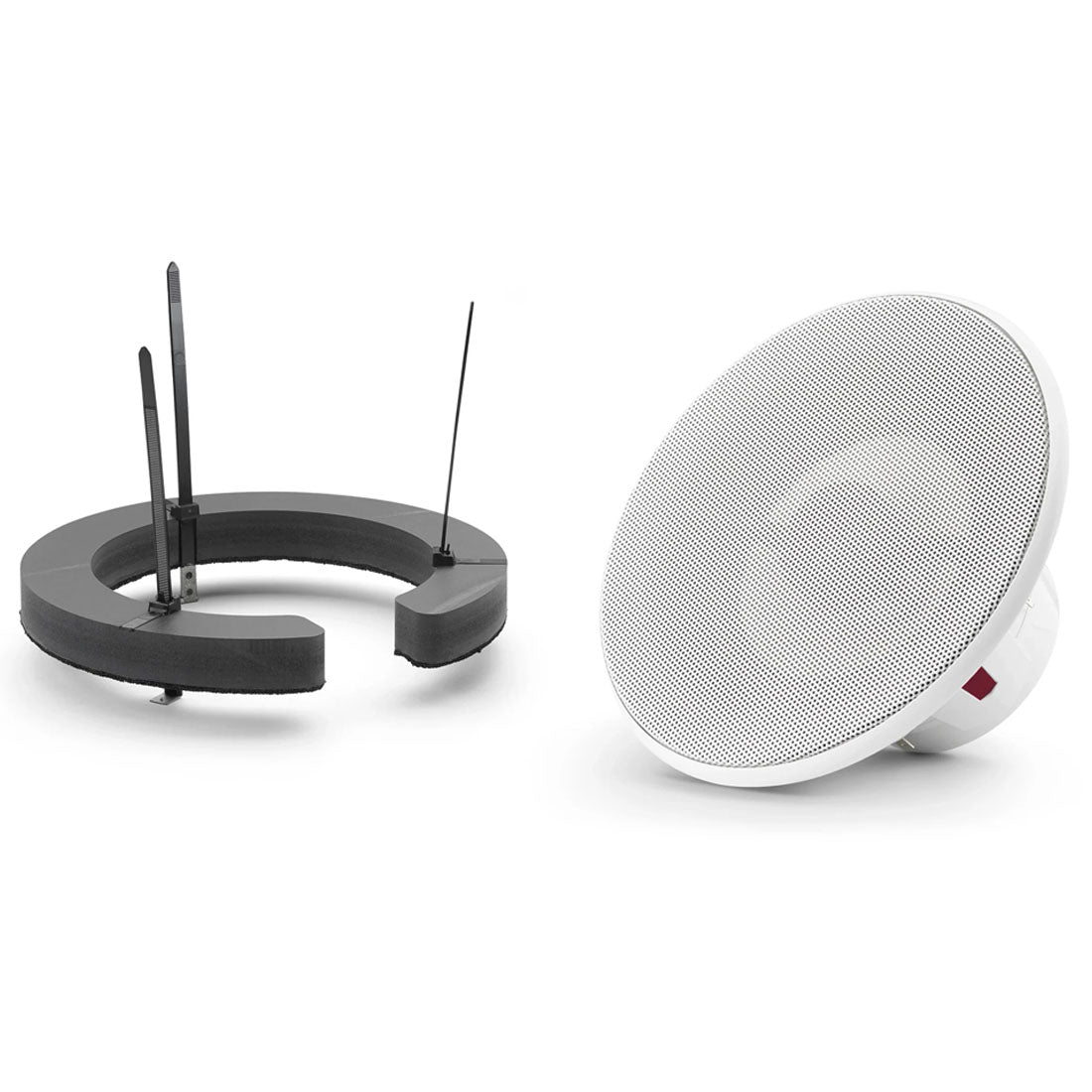

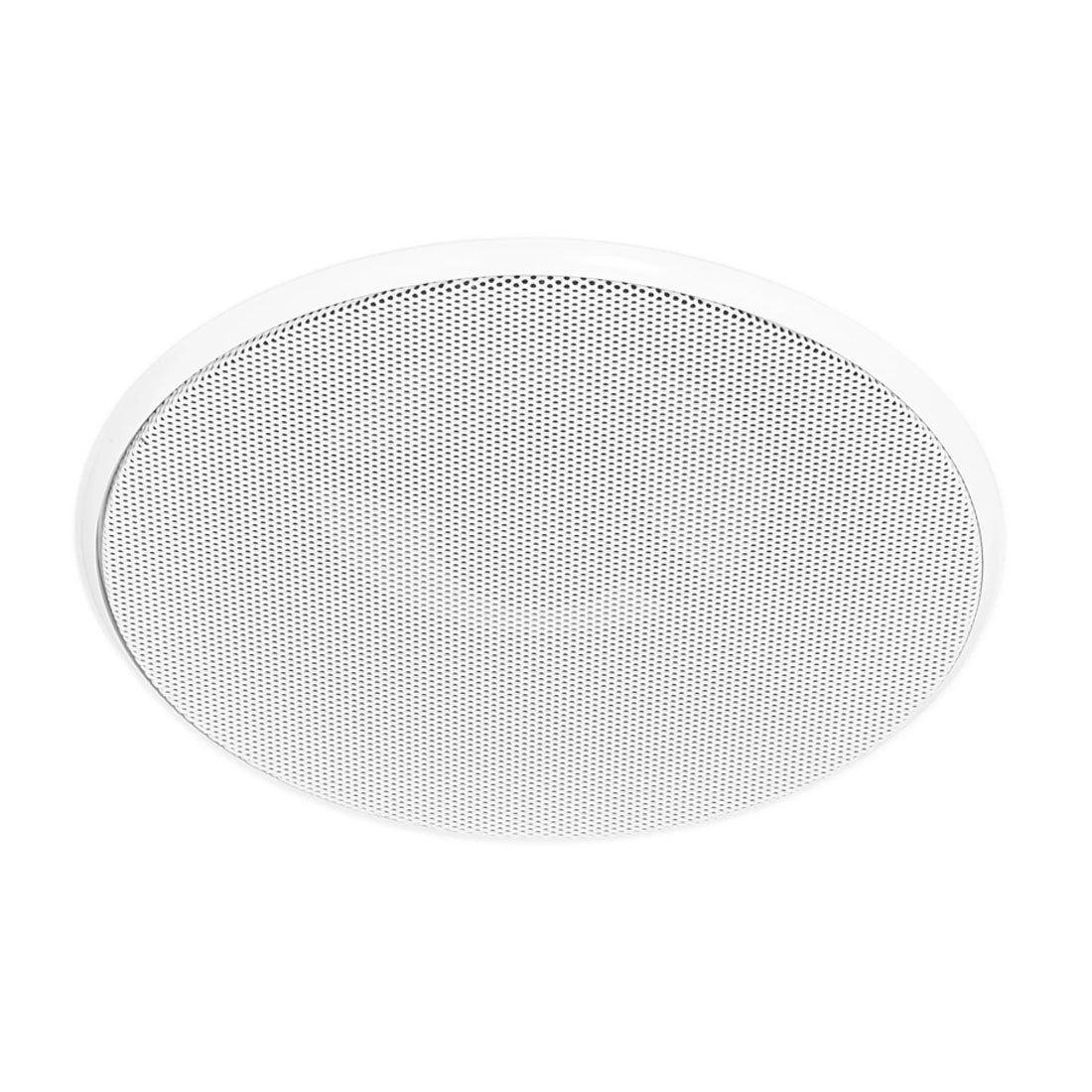

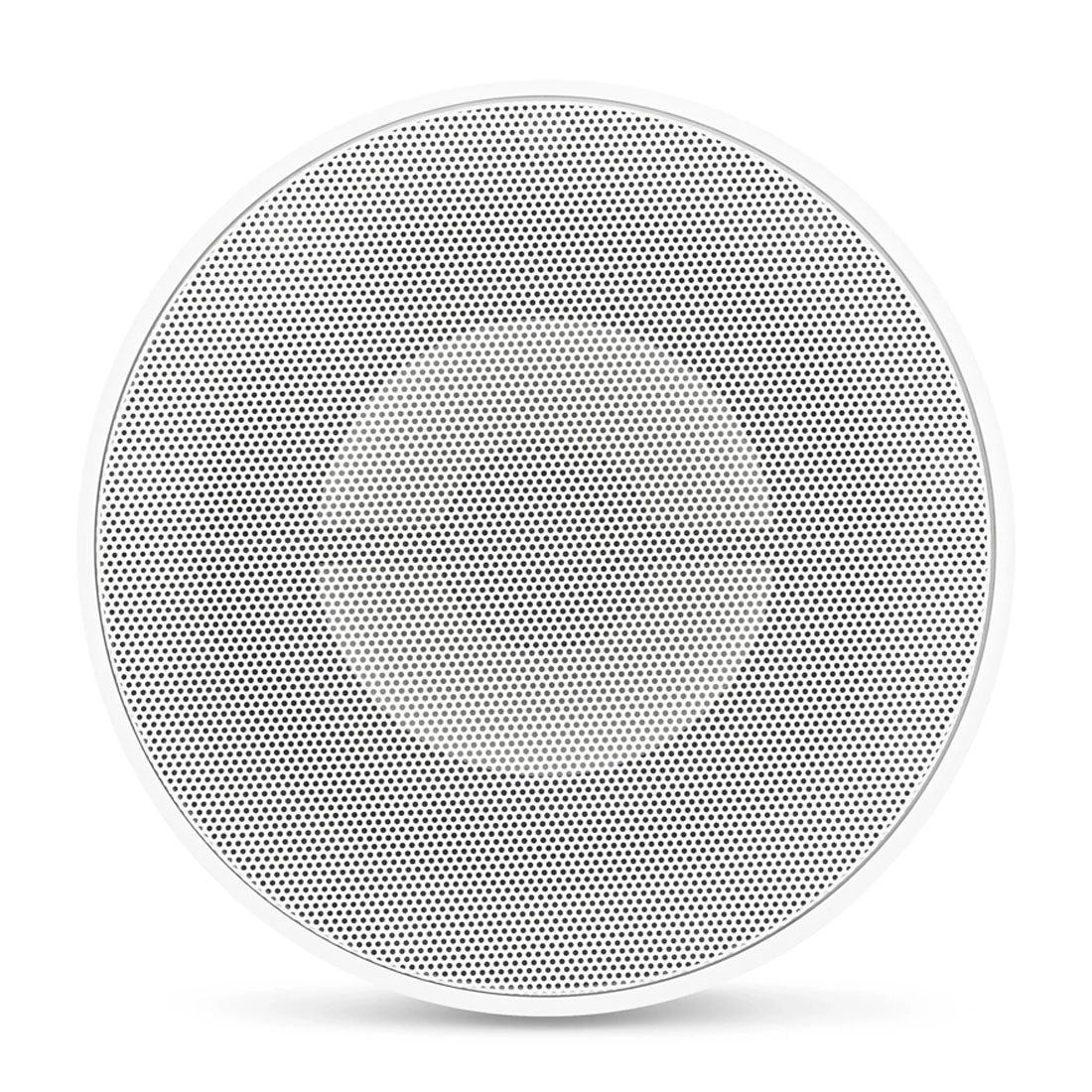

For ease of installation, all Pavilion™ speakers utilize an innovative mounting system that permits a rock-solid installation in a wide range of ceiling materials. The fine mesh grille securely attaches with embedded magnets and is paintable to further blend in with your décor.
A DMA-optimized, long excursion woofer design ensures excellent power handling and a 0.8-inch (20 mm) pure silk dome tweeter, specially treated to withstand the harshest outdoor environments, delivers crystal-clear high-frequency sound, especially at higher volume levels.

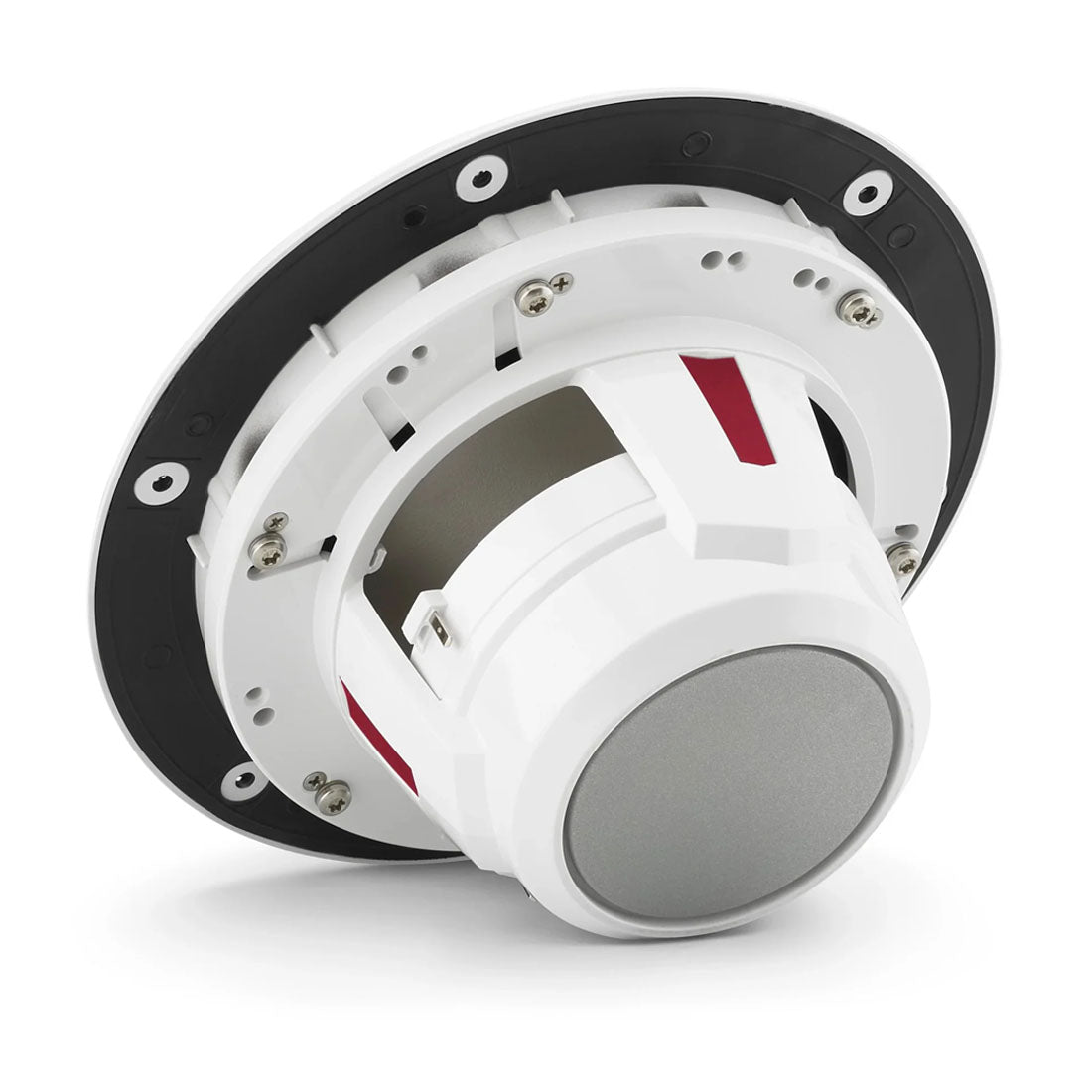

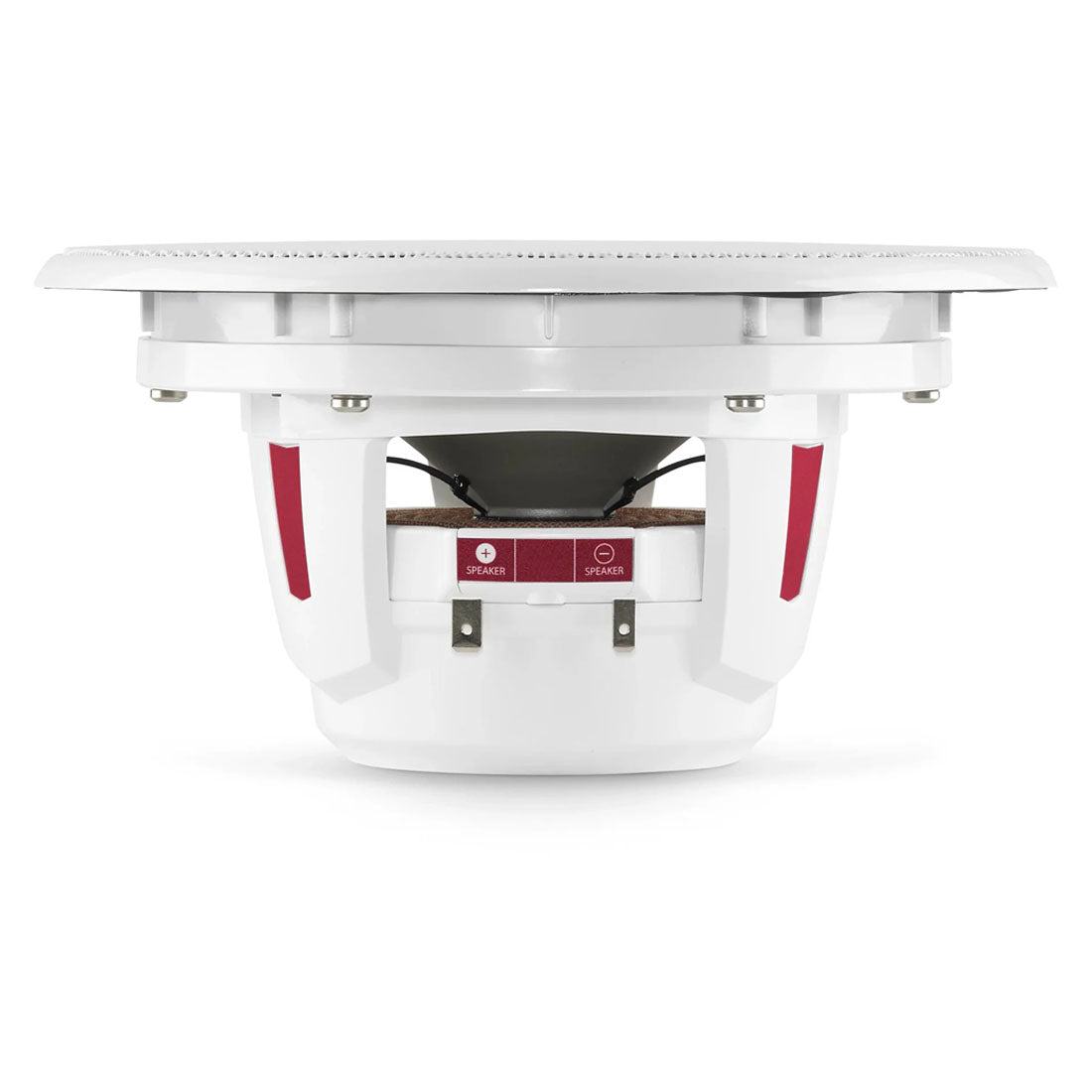

A multi-order, true 2-way passive crossover is concealed within the woofer chassis, guarded against the elements. Also included, is an automatic, solid-state tweeter protection circuit to minimize the possibility of tweeter failure.
Although PV-FX6-Single Coaxial Speakers can be used with as little as 30 W per channel, for best audio performance we recommend amplifiers capable of between 60-120 W of continuous power per channel.
PV-FX6-Single Physical Specifications:
| Frame Outer Diameter (A) | 8.34 in / 212 mm |
| Bolt Hole Circle Diameter (B) | 7.39 in / 188 mm |
| Frontal Grille Protrusion* (C) | 0.37 in / 9 mm |
| Mounting Hole Diameter (D) | 6.875 in / 175 mm |
| Mounting Depth (E) | 3.87 in. / 98 mm |
| Net Weight | 3.21 lb / 1.45 kg |
| *Frontal grille protrusion measured from mounting surface | |
