JL Audio Home Audio PV-FX7-Single 7.7" Pavilion Outdoor Flush-Mount Coaxial In-Ceiling Speaker - Each - #93764
Product Descriptions
Product Descriptions
JL Audio PV-FX7-Single 7.7" (196 mm) Pavilion Outdoor Flush-Mount Coaxial In-Ceiling Speaker - Each - #93764
PV-FX7-Single Pavilion Outdoor In-Ceiling Speaker - 7.7-inch Coaxial (80 W, 4 Ohm) - White Trim Ring, Flush-Mount Grille
Pavilion in-ceiling speakers are engineered to deliver remarkable audio performance and durability in outdoor residential applications. Each model features a low-profile mounting bezel with an integrated tweeter bridge and a flush-mount grille for a discreet visual appearance.

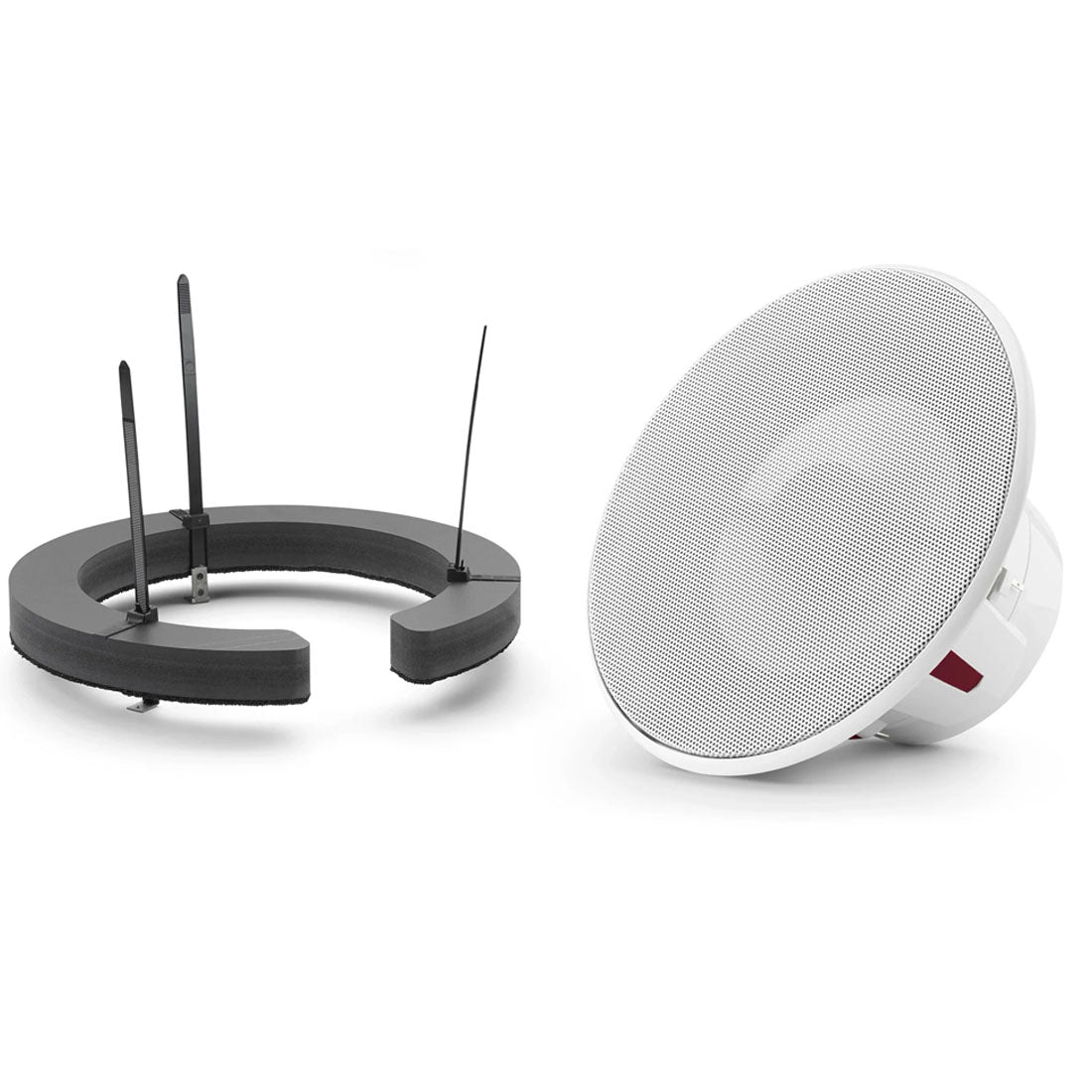

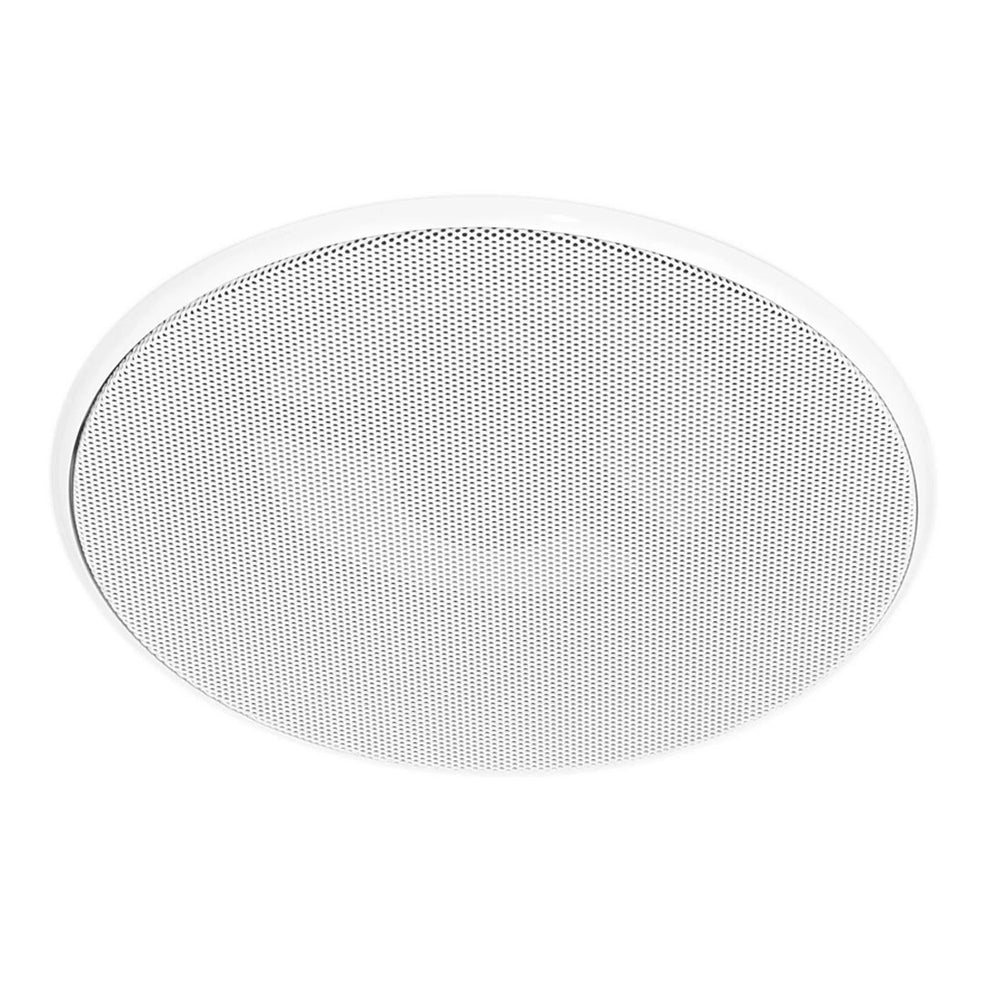

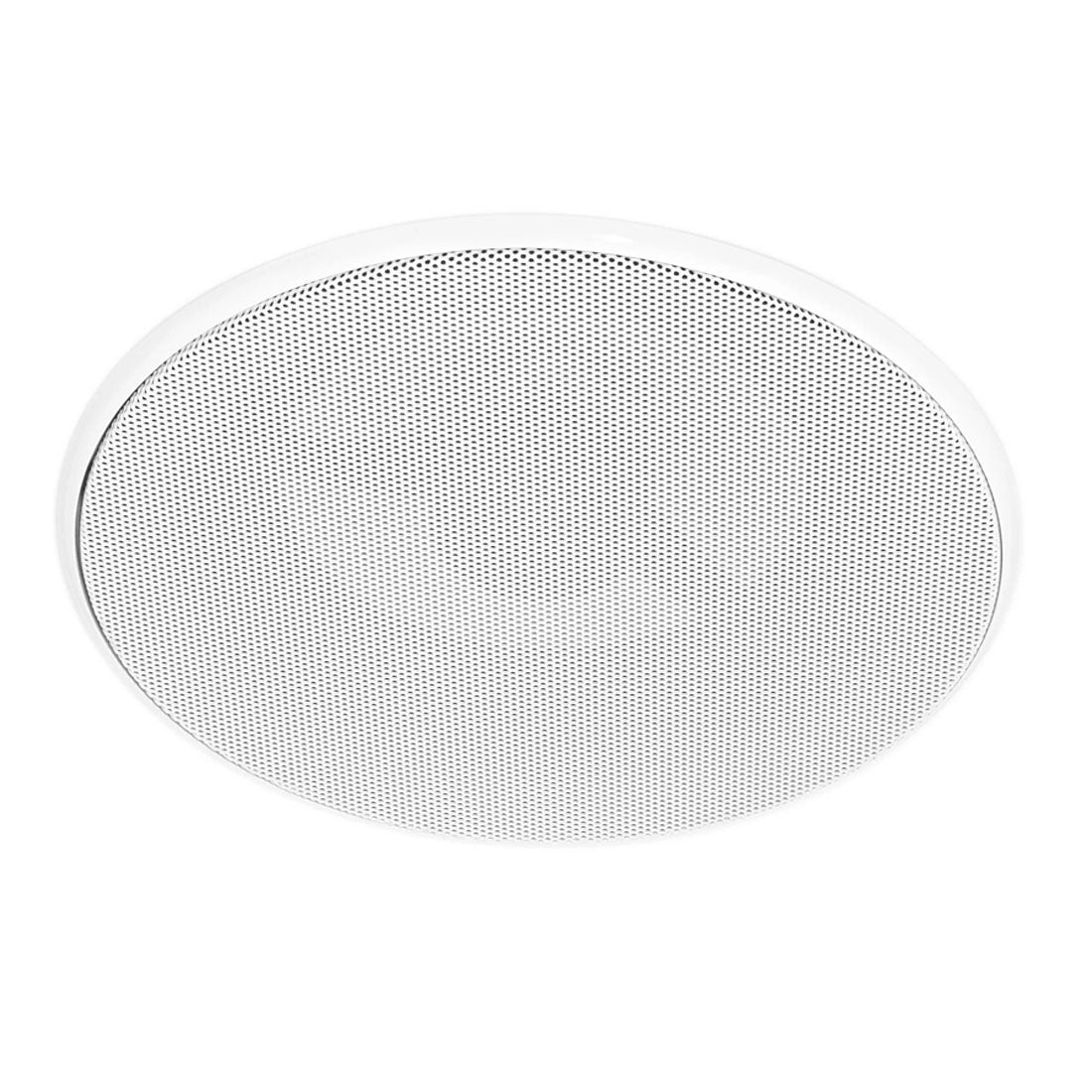

For ease of installation, all Pavilion™ speakers utilize an innovative mounting system that permits a rock-solid installation in a wide range of ceiling materials. The fine mesh grille securely attaches with embedded magnets and is paintable to further blend in with your décor.
An oversized 7.7-inch, DMA-optimized, long excursion woofer design delivers increased output and a 1.0-inch (25 mm) pure silk dome tweeter, specially treated to withstand the harshest outdoor environments, delivers crystal-clear high-frequency sound, especially at higher volume levels.
A multi-order, true 2-way passive crossover is concealed within the woofer chassis, guarded against the elements. Also included, is an automatic, solid-state tweeter protection circuit to minimize the possibility of tweeter failure.
Although PV-FX7-Single Coaxial Speakers can be used with as little as 40 W per channel, for best audio performance we recommend amplifiers capable of between 80-160 W of continuous power per channel.
PV-FX7-Single Physical Specifications:
| Frame Outer Diameter (A) | 9.13 in / 232 mm |
| Bolt Hole Circle Diameter (B) | 8.18 in / 208 mm |
| Frontal Grille Protrusion* (C) | 0.38 in. / 10 mm |
| Mounting Hole Diameter (D) | 7.625 in / 194 mm |
| Mounting Depth (E) | 4.26 in. / 108 mm |
| Net Weight | 5.35 lb / 2.43 kg |
| *Frontal grille protrusion measured from mounting surface | |
