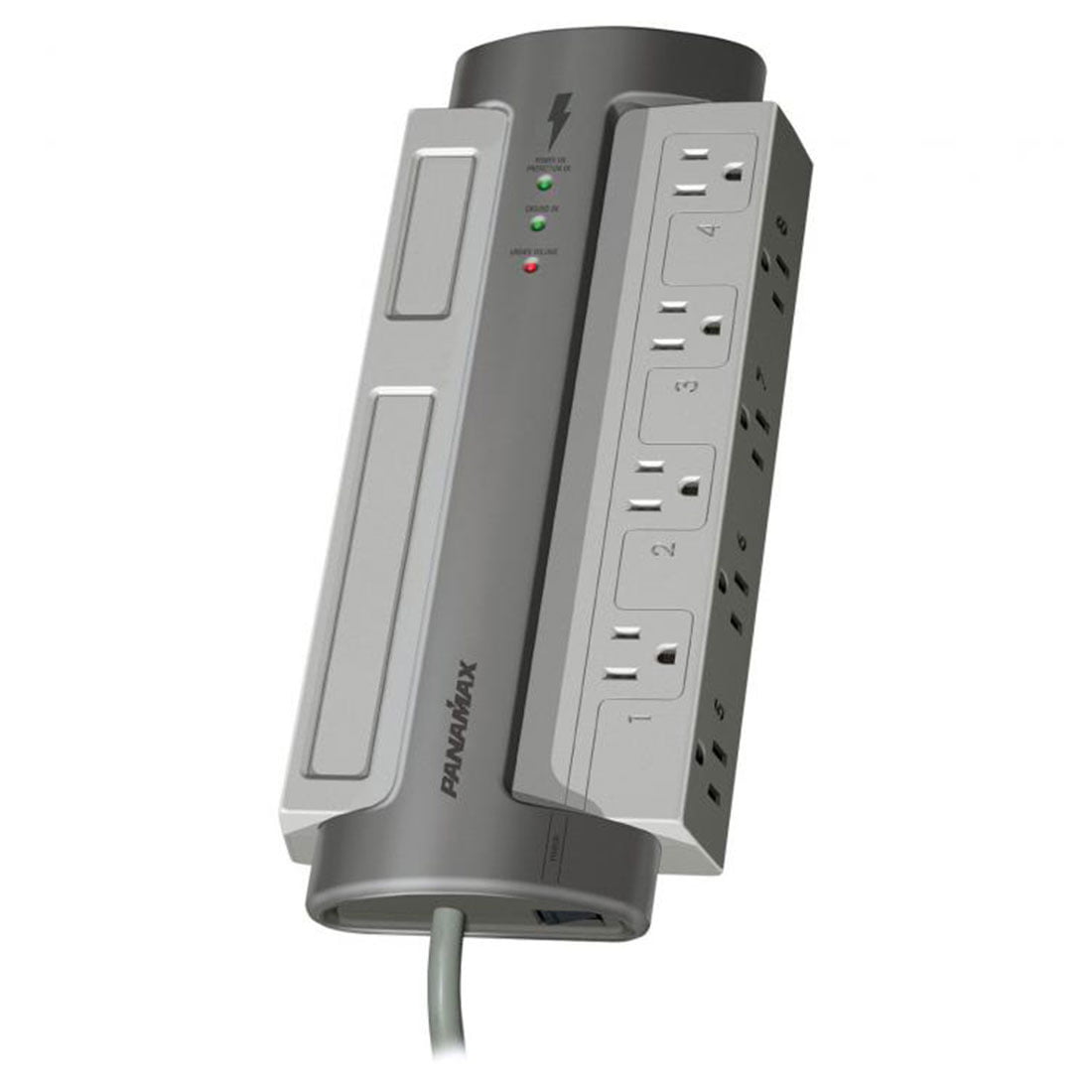

Panamax M8-EX 8-Outlet Surge Protector

Product Descriptions

Panamax M8-EX 8-Outlet Surge Protector

Provides clean and safe power for all home/office equipment

Noise Filtration/Surge Protection for All Home/Office Equipment

  • Eight AC Outlets with Transformer Spacing
  • Accepts Add-on Signal Line Modules to Accommodate System Expansion

Specifications:

  • Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 500V
  • Thermal Fusing: Yes
  • Single Pulse Energy Dissipation: 1650 Joules
  • Response Time: 1ns
  • Peak Impulse Current: 52,000 Amps
  • Patented Power Management Circuit: Yes

Features & Specs

General Specifications
-Family: Floor Models
-Line Voltage: 120 (Volts)
-Number of Outlets: 8
-Outlet Descriptions: All 8 outlets filtered and surge protected
-Control: On/Off control to all outlets through power switch.
-USB Charging: N/A
-Low Voltage Trigger: N/A
-AC Power Cord: 8 ft. captive cord
-Dimensions: 12" L x 5" W x 1.75" H (12.5" L Including brackets)
-Weight: 3.5 lbs

AC Protection
-AC Protection Technology: Protect or Disconnect; Automatic Voltage Monitoring; L-N, L-G, N-G Protection Modes; Thermal Fusing
-Undervoltage Shutoff: 90 VAC ± 6 VAC
-Over-Voltage Shutoff: 144 VAC ± 8 VAC
-Maximum Current Rating: 15 (Amps)
-Initial Clamping Level: 200V Peak

Filtration
-Filtration Technology: RFI/EMI Filtration
-Filtration Rating: 50 dB @ 100 KHz – 1 MHz
-Signal Line Protection: No

Shipping Info
-Length: 13 (Inches)
-Width: 10 (Inches)
-Height: 2.2 (Inches)
-Weight: 2.9 (Lbs)
-Unit of Measure: Each
-UPC: 050616007498
-Master Pack Qty: 6

Power Protection - Cord Length
8′

Power Protection - # of Outlets
8

Documents

Warranty

Panamax Canada Limited Lifetime Warranty
SKU: M8-EX UPC: 050616007498
