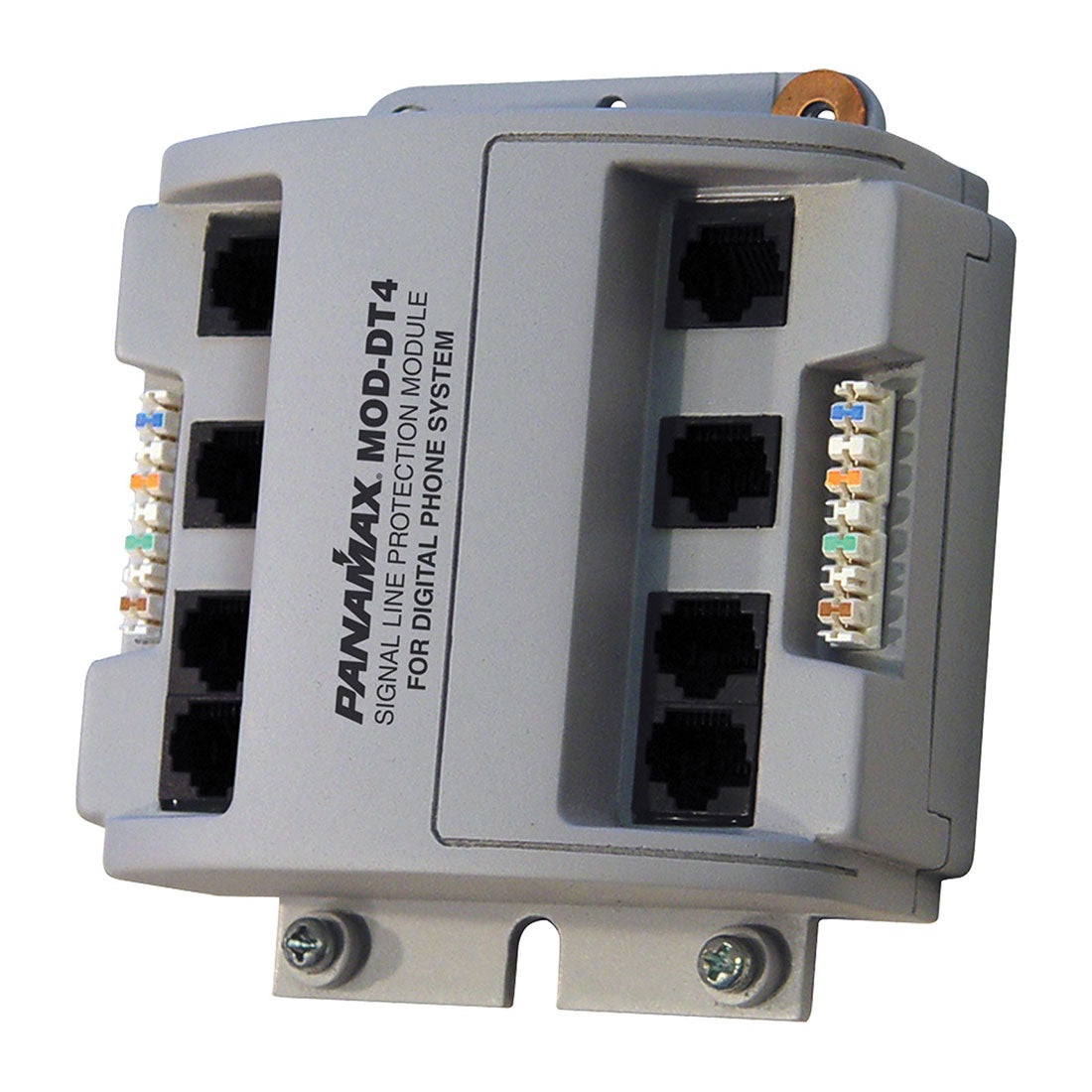

Panamax MOD-DT4 Signal Line Module for Digital Phone System

This is a no web sale item
Please call to enquire

Product Descriptions

Panamax MOD-DT4 Signal Line Module for Digital Phone System

Digital Station (DS) configured phone lines are protected by the panamax MOD-DT4. Surges (backdoor) can infiltrate the phone system through station set lines that leave the building., multiple input and output jacks allow you maximum flexibility in installation and to suit a range of installations, different cables/connections can be divided or merged.

Specifications:

General
  • Family: Signal Protection Modules
  • Line Voltage: 120 (Volts)
  • Number of Outlets: 0
  • USB Charging: N/A
  • Low Voltage Trigger: N/A
  • AC Power Cord: N/A
  • Weight: .71 lbs
AC Protection
  • Initial Clamping Level: 70V Peak
Filtration
  • Filtration Technology: N/A
  • Signal Line Protection: 4 Tel
Shipping Info
  • Length: 5.8 (Inches)
  • Width: 2.3 (Inches)
  • Height: 4.4 (Inches)
  • Weight: 0.75 (Lbs)
  • Unit of Measure: Each

Features & Specs

-Mounting Hardware Included: Yes
-Wires Protected: 8
-Suppression Modes: Metallic & Longitudinal
-Fuseless / Auto-reseting: Yes
-Connectors: RJ-45, RJ-14, RJ-11 and S110D
-Clamping Level: 70V
-Capacitance: 50 pf (approx.)
-Family: Signal Protection Modules
-Line Voltage: 120 (Volts)
-Number of Outlets: 0
-USB Charging: N/A
-Low Voltage Trigger: N/A
-AC Power Cord: N/A
-Weight: .71 lbs
-Initial Clamping Level: 70V Peak
-Filtration Technology: N/A
-Signal Line Protection: 4 Tel
-Length: 5.8 (Inches)
-Width: 2.3 (Inches)
-Height: 4.4 (Inches)
-Weight: 0.75 (Lbs)
-Unit of Measure: Each

Documents

Warranty

Panamax Canada Lifetime Manufacturer Warranty
SKU: MOD-DT4 UPC: 050616007726

Save $7.00

$105.00
$112.00

Lowest Price GuaranteeLowest Price Guarantee*

Call us at at 1-866-696-7189 to Order

This is a no web sale item. Give us a call at +1 (866) 696-7189 (toll-free) or use the instant chat at the bottom right of the page to inquire.

  • Designed to protect Digital Station (DS) set phone lines. Station Set lines that leave the building are a pathway for surges (backdoor) to enter the phone system.
  • Multiple input & output jacks provide complete installation flexibility.
  • Different cables/connections can be split or combined to accommodate a variety of installations.
Phone icon

Call 1-866-696-7189

Call for Expert AdviceCall for Expert Advice
Info icon

Does not apply to special order items.

60-day Return Policy
Lowest Price Guarantee*

Product Descriptions

Panamax MOD-DT4 Signal Line Module for Digital Phone System

Digital Station (DS) configured phone lines are protected by the panamax MOD-DT4. Surges (backdoor) can infiltrate the phone system through station set lines that leave the building., multiple input and output jacks allow you maximum flexibility in installation and to suit a range of installations, different cables/connections can be divided or merged.

Specifications:

General
  • Family: Signal Protection Modules
  • Line Voltage: 120 (Volts)
  • Number of Outlets: 0
  • USB Charging: N/A
  • Low Voltage Trigger: N/A
  • AC Power Cord: N/A
  • Weight: .71 lbs
AC Protection
  • Initial Clamping Level: 70V Peak
Filtration
  • Filtration Technology: N/A
  • Signal Line Protection: 4 Tel
Shipping Info
  • Length: 5.8 (Inches)
  • Width: 2.3 (Inches)
  • Height: 4.4 (Inches)
  • Weight: 0.75 (Lbs)
  • Unit of Measure: Each

Features & Specs

-Mounting Hardware Included: Yes
-Wires Protected: 8
-Suppression Modes: Metallic & Longitudinal
-Fuseless / Auto-reseting: Yes
-Connectors: RJ-45, RJ-14, RJ-11 and S110D
-Clamping Level: 70V
-Capacitance: 50 pf (approx.)
-Family: Signal Protection Modules
-Line Voltage: 120 (Volts)
-Number of Outlets: 0
-USB Charging: N/A
-Low Voltage Trigger: N/A
-AC Power Cord: N/A
-Weight: .71 lbs
-Initial Clamping Level: 70V Peak
-Filtration Technology: N/A
-Signal Line Protection: 4 Tel
-Length: 5.8 (Inches)
-Width: 2.3 (Inches)
-Height: 4.4 (Inches)
-Weight: 0.75 (Lbs)
-Unit of Measure: Each

Documents

Warranty

Panamax Canada Lifetime Manufacturer Warranty
Panamax MOD-DT4 Signal Line Module for Digital Phone System

Panamax MOD-DT4 Signal Line Module for Digital Phone System

$105.00 $112.00

Key Points

  • Designed to protect Digital Station (DS) set phone lines. Station Set lines that leave the building are a pathway for surges (backdoor) to enter the phone system.
  • Multiple input & output jacks provide complete installation flexibility.
  • Different cables/connections can be split or combined to accommodate a variety of installations.
