SKU:
PXL8-CBH05
$54.00
Unit price /
Unavailable
Lowest Price Guarantee
Special Order
This is a no web sale item. Give us a call at +1 (866) 696-7189 (toll-free) or use the instant chat at the bottom right of the page to inquire.
This product is backordered and will ship as soon as it is back in stock.
Product Descriptions
Product Descriptions

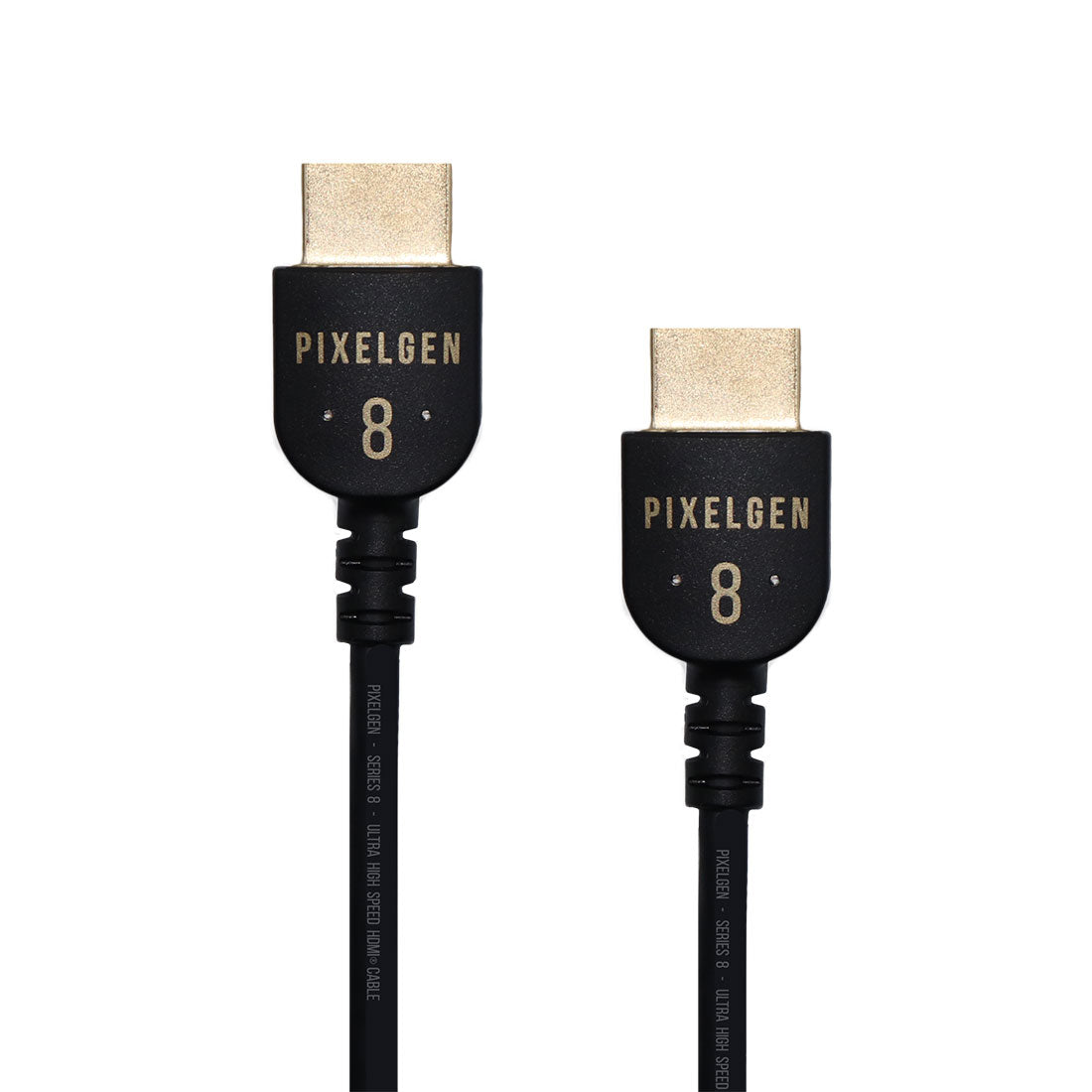

Pixelgen PXL8-CBH05 8K Ultra High Speed HDMI Cable - Copper - 0.5m/1.6ft
The Pixelgen SERIES 8 PXL8-CBH05 - Ultra High Speed HDMI® Cable is the industry's first short-range THX® Certified 8K Interconnect, carefully engineered to ensure the highest level of signal integrity from a high-speed, low-speed, and DC power perspective while maintaining the industry's thinnest and most flexible cable construction. The HDMI-certified SERIES 8 cable supports all HDMI 2.1 features, including FRL 48Gbps, 8K-10K, Dynamic HDR, eARC, and the all-new gaming-centric enhancements of VRR, ALLM, QFT, and QMS. The SERIES 8 cable ensures uncompressed 8K/48Gbps signal delivery whether striving for perfect symmetry within a professional rack design or simply connecting to inputs of an AV receiver or display.PXL8-CBH05 Specifications
- Available in lengths of 0.5m/1.6ft, 1.0m/3.3ft, 1.5m/4.9ft, and 2.0m/6.5ft.
- 8K Interconnect THX® Certified
- Certified Ultra High Speed HDMI® Cable
- Video: BT.2020 formats up to 8K-10K (Bandwidth/Format Comparison on back page)
- HDR: High Dynamic Range (and Static) Dolby Vision, HDR, HDR10, HDR10+, SBTM (Source-Based Tone Mapping)
- Audio features include Dolby Atmos, Dolby TrueHD, DTS:X, and DTS Master.
- Control Features: CEC (Consumer Electronics Control), HEC (Home Electronics Control) (HDMI Ethernet Channel)
- HDCP 2.2/2.3 (High-bandwidth Digital Content Protection): (backwards compatible HDCP 1.4)
- VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and QFT are all terms used in gaming (Quick Frame Transport)
- QMS (Quick Media Switching) (Quick Media Switching)
PXL8-CBH05 Mechanical / Construction
- Cable Diameter: 4.5mm (OD)
- HDMI Plugs: Gold-plated
- HDMI Casing: Molding PVC Black
- Retention Force (max): 3kg/6.6lbs
- Bend Radius: 25mm/1.0 inches
- 8C/34AWG (4 x High-speed FRL pairs)
- 2C/34AWG (1 x HEAC/eARC differential pair)
- 3C/34AWG (3 x DDC-SDA, DDC-SCL & CEC)
- 1C/28AWG (1 x 5V)
PXL8-CBH05 Regulatory Compliance
- EMI/EMC/Safety: CE, UL
- Environmental: RoHS, WEEE
- Lead-free (Pb-free)
