Pixelgen PXL8-CBH10 8K Ultra High Speed HDMI Cable - Copper - 1m/3.3ft
Loading...
Product Descriptions
Product Descriptions

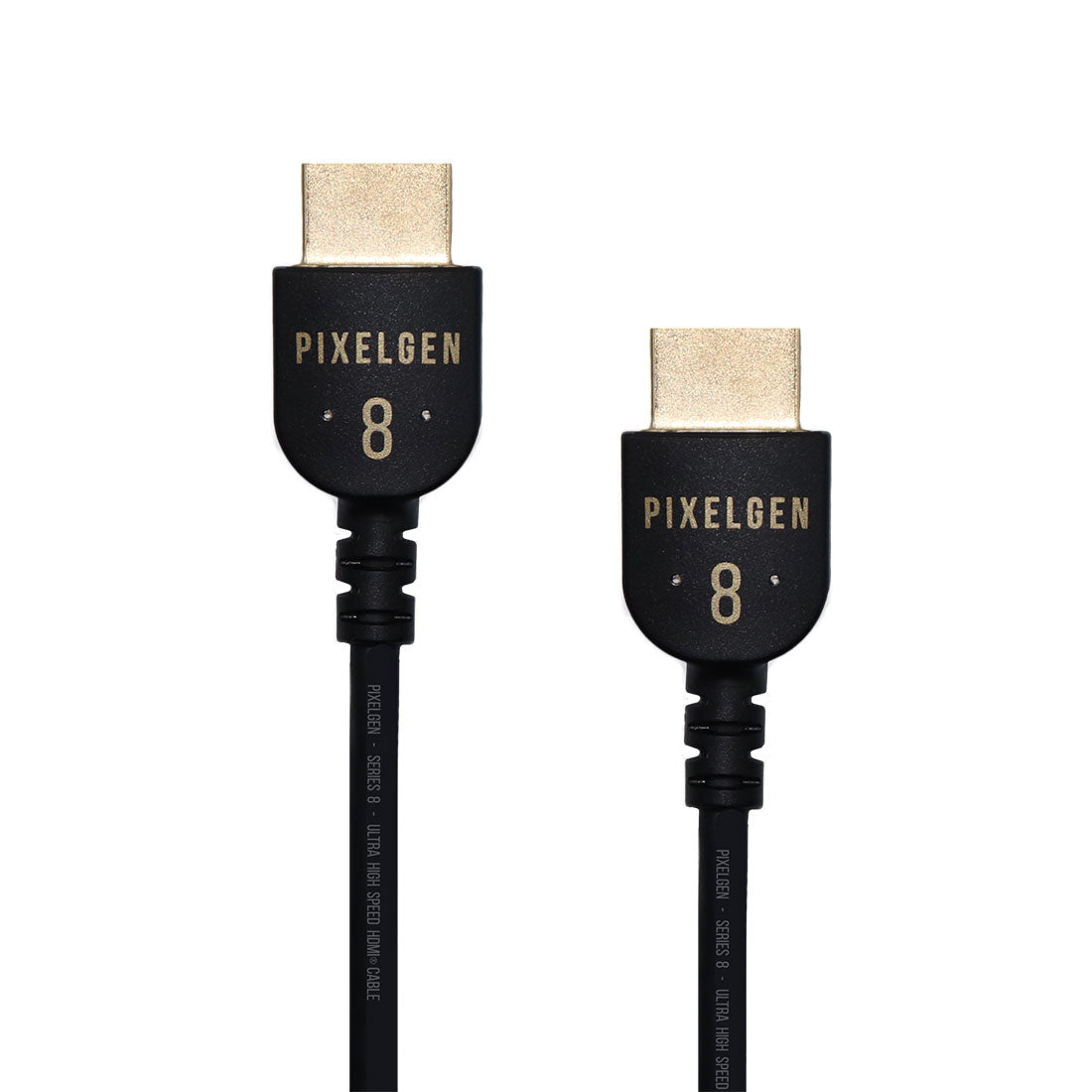

Pixelgen PXL8-CBH10 8K Ultra High Speed HDMI Cable - Copper - 1m/3.3ft
The Pixelgen SERIES 8 PXL8-CBH10 – Ultra High Speed HDMI® Cable is the industry’s first short-range THX® Certified 8K Interconnect, carefully engineered to ensure the highest level of signal integrity from a high-speed, low-speed, and DC power perspective while maintaining the industry’s thinnest and most flexible cable construction. The HDMI-certified SERIES 8 cable supports all HDMI 2.1 features, including FRL 48Gbps, 8K-10K, Dynamic HDR, eARC, and the all-new gaming-centric enhancements of VRR, ALLM, QFT, and QMS. The SERIES 8 cable ensures uncompressed 8K/48Gbps signal delivery whether striving for perfect symmetry within a professional rack design or simply connecting to inputs of an AV receiver or display.PXL8-CBH10 Specifications
- Available in lengths of 0.5m/1.6ft, 1.0m/3.3ft, 1.5m/4.9ft, and 2.0m/6.5ft.
- 8K Interconnect THX® Certified
- Certified Ultra High Speed HDMI® Cable
- Video: BT.2020 formats up to 8K-10K (Bandwidth/Format Comparison on back page)
- HDR: High Dynamic Range (and Static) Dolby Vision, HDR, HDR10, HDR10+, SBTM (Source-Based Tone Mapping)
- Audio features include Dolby Atmos, Dolby TrueHD, DTS:X, and DTS Master.
- Control Features: CEC (Consumer Electronics Control), HEC (Home Electronics Control) (HDMI Ethernet Channel)
- HDCP 2.2/2.3 (High-bandwidth Digital Content Protection): (backwards compatible HDCP 1.4)
- VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and QFT are all terms used in gaming (Quick Frame Transport)
- QMS (Quick Media Switching) (Quick Media Switching)
PXL8-CBH10 Mechanical / Construction
- Cable Diameter: 4.5mm (OD)
- HDMI Plugs: Gold-plated
- HDMI Casing: Molding PVC Black
- Retention Force (max): 3kg/6.6lbs
- Bend Radius: 25mm/1.0 inches
- 8C/34AWG (4 x High-speed FRL pairs)
- 2C/34AWG (1 x HEAC/eARC differential pair)
- 3C/34AWG (3 x DDC-SDA, DDC-SCL & CEC)
- 1C/28AWG (1 x 5V)
PXL8-CBH10 Regulatory Compliance
- EMI/EMC/Safety: CE, UL
- Environmental: RoHS, WEEE
- Lead-free (Pb-free)
Features & Specs
Features & Specs
Documents
Documents
Warranty
Warranty
SKU:
PXL8-CBH10
$59.00
Unit price /
Unavailable
Lowest Price Guarantee
Special Order
This is a no web sale item. Give us a call at +1 (866) 696-7189 (toll-free) or use the instant chat at the bottom right of the page to inquire.
This product is backordered and will ship as soon as it is back in stock.
30-day Return Policy
Does not apply to special order items.
Product Descriptions
Product Descriptions
Pixelgen PXL8-CBH10 8K Ultra High Speed HDMI Cable - Copper - 1m/3.3ft
The Pixelgen SERIES 8 PXL8-CBH10 – Ultra High Speed HDMI® Cable is the industry’s first short-range THX® Certified 8K Interconnect, carefully engineered to ensure the highest level of signal integrity from a high-speed, low-speed, and DC power perspective while maintaining the industry’s thinnest and most flexible cable construction. The HDMI-certified SERIES 8 cable supports all HDMI 2.1 features, including FRL 48Gbps, 8K-10K, Dynamic HDR, eARC, and the all-new gaming-centric enhancements of VRR, ALLM, QFT, and QMS. The SERIES 8 cable ensures uncompressed 8K/48Gbps signal delivery whether striving for perfect symmetry within a professional rack design or simply connecting to inputs of an AV receiver or display.PXL8-CBH10 Specifications
- Available in lengths of 0.5m/1.6ft, 1.0m/3.3ft, 1.5m/4.9ft, and 2.0m/6.5ft.
- 8K Interconnect THX® Certified
- Certified Ultra High Speed HDMI® Cable
- Video: BT.2020 formats up to 8K-10K (Bandwidth/Format Comparison on back page)
- HDR: High Dynamic Range (and Static) Dolby Vision, HDR, HDR10, HDR10+, SBTM (Source-Based Tone Mapping)
- Audio features include Dolby Atmos, Dolby TrueHD, DTS:X, and DTS Master.
- Control Features: CEC (Consumer Electronics Control), HEC (Home Electronics Control) (HDMI Ethernet Channel)
- HDCP 2.2/2.3 (High-bandwidth Digital Content Protection): (backwards compatible HDCP 1.4)
- VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and QFT are all terms used in gaming (Quick Frame Transport)
- QMS (Quick Media Switching) (Quick Media Switching)
PXL8-CBH10 Mechanical / Construction
- Cable Diameter: 4.5mm (OD)
- HDMI Plugs: Gold-plated
- HDMI Casing: Molding PVC Black
- Retention Force (max): 3kg/6.6lbs
- Bend Radius: 25mm/1.0 inches
- 8C/34AWG (4 x High-speed FRL pairs)
- 2C/34AWG (1 x HEAC/eARC differential pair)
- 3C/34AWG (3 x DDC-SDA, DDC-SCL & CEC)
- 1C/28AWG (1 x 5V)
PXL8-CBH10 Regulatory Compliance
- EMI/EMC/Safety: CE, UL
- Environmental: RoHS, WEEE
- Lead-free (Pb-free)
