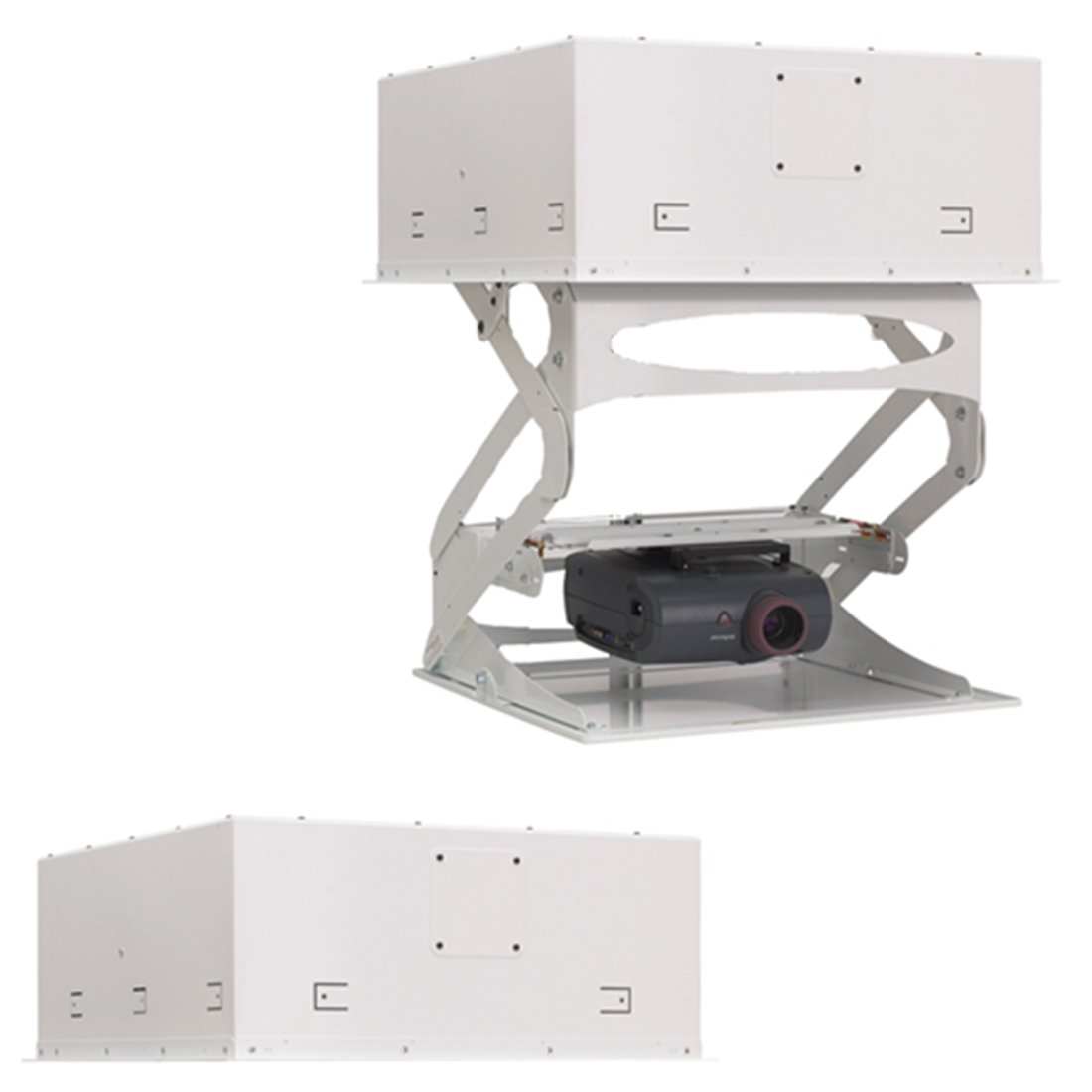

Chief Mounts SL-236FD Smart-Lift Automated Projector Mount

Chief Mounts SL-236FD Smart-Lift Automated Projector Mount for Fixed Ceiling Installations

The Chief Mounts SL-236FD provides Extended Travel with exceptionally smooth and quiet movement and is a great option for fixed ceilings in homes and corporate offices.

Must order SLB interface bracket separately

Use Chief's Mount Finder to determine which model number matches your specific projector

Key Features

• Two internal outlets, one is switched on 110V units
• Fits most installation requirements, needing only 11" of clearance above the ceiling
• Easily accommodates multiple control options
• Extended Downward Travel up to 36" with 3 stopping positions
• UL Listed
• UL evaluated for use in Other Environmental Air Spaces as defined by Article 300.22, Sub-clause (C) of the NEC
• For fixed ceiling installations
• TAA compliant

Installation Requirements

NOTE: Throughout this document, reference to SL236 refers to both SL236FD and SL236SP models. The SL236 has been designed to be mounted recessed into a ceiling.

Power Requirements

The SL236 requires 120VAC, 60 Hz and 12 amps power to operate. IMPORTANT ! : Installation and maintenance of this product must be completed by a qualified service technician.

Chief Mounts SL-236FD Pre-Test Lift before Installation

1. Carefully inspect the SL236 for any shipping damage. If any damage is apparent, do NOT continue with the installation. Instead, contact Chief for further instructions. 2. Attach supports (not provided) to the top of lift.
