Chief Mounts SL151 Smart-Lift Automated Projector Lift

New Store Special Discount
Give us feedback and save $10

Product Descriptions

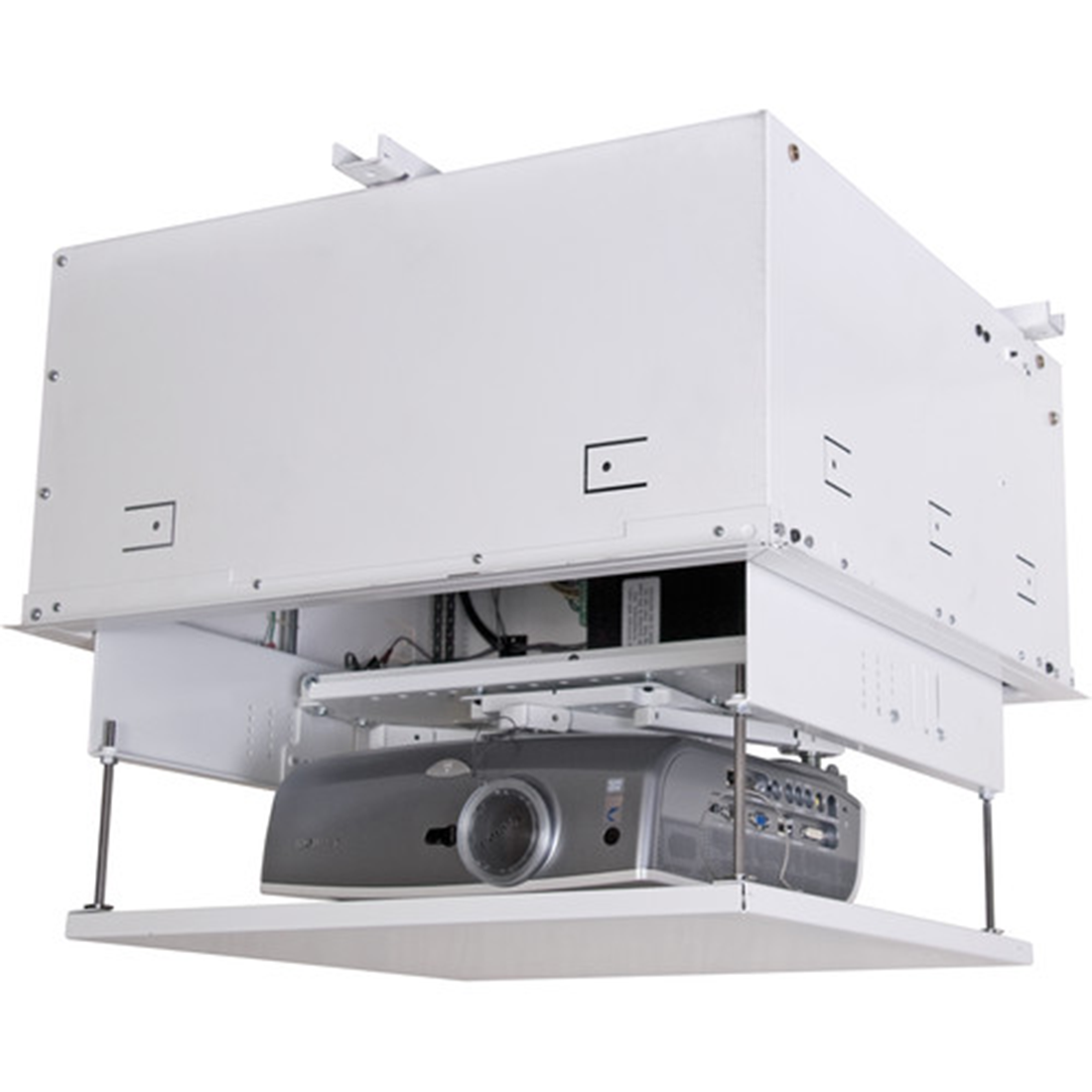

Chief Mounts SL151 Smart-Lift Automated Projector Lift

The Chief Mounts SL151 Smart-Lift Automated Projector Mount adds a touch of elegance and functionality to offices - both educational and business oriented. This smooth running mount gently and efficiently raises and lowers your projector with the touch of a button.

Installing in a Suspended Ceiling

The SL151 may be suspended from three 3/8 in. diameter x 8 in. length (minimum) Grade 2 or better threaded rods (not provided) which are secured to a 1-5/8" x 1-5/8" 12ga metal framing channel (spanning a maximum of 5 feet--not provided) by Grade 2 or better 3/8" channel nuts(not provided).

Installing in a Wood Framework (Joists)

Use 1/4" x 1-1/2" (minimum) Grade 2 lag screws (not provided) to secure SL151 to the joists or wood framework, using the mounting tabs located on the sides of the SL151 housing.

Specifications:

  • Precise positioning including vertical projector cradle adjustment and fore/aft projector positioning
  • Quick connect/disconnect for convenient lamp and filter access on most projectors
  • Maintains registration even when disconnected
  • Independent roll, pitch and yaw
  • Low profile, requires minimal clearance above the ceiling
  • Easy installation, fits into a 2 x 2' suspended ceiling
  • Multiple installation options: three 0.38" (10 mm) threaded rods, 1.5" NPT threaded extension column with SMA602 accessory, or side mount with built-in joist tabs

Features & Specs

Lift Type: Automated

Depth From Mounting Source: Not Specified by Manufacturer

Mounting Source Opening (WxD): Ceiling Opening: 11.25 x 23 x 22.75" (286 x 584 x 578 mm) (HWD)

Closure Panel Dimension (WxD): Ceiling Closure: 20.25 x 20.25" (514 x 514 mm) (WD)

Max Equipment Size: Height: 8.4" (21.3 cm), Width: 18.25" (46.4 cm), Depth: 18.25" (46.4 cm)

Adjustments: Roll: +/-2° , Pitch: +/-20°, Yaw: +/-5° Control Option: Choose from single momentary push button, low voltage controller, and internal and external wiring options. Also accepts 5-30 VAC/VDC for triggering commands. AMX/Crestron control compatibility

Integrated Control: Push button

Low Voltage: Not Applicable Construction: Steel

Power Requirements: 120 VAC, 60 Hz

Maximum Current Draw: 12 A

Dimensions: Height: 23.5" (59.7 cm) , Width: 23.5" (59.7 cm)

Weight Capacity: 35 lb (15.9 kg) Package Weight: 76.25 lb

Box Dimensions (LxWxH): 31 x 31 x 17"

Documents

Warranty

Chief Canada offers a 10 year limited warranty
SKU: SL151 UPC: 841872120003

Save $605.00

$5,928.00
$6,533.00
or

Payment as low as

$494.00/mo
Info icon

This monthly payment does not include any applicable tax or interest

Free ShippingFree Shipping |

Lowest Price GuaranteeLowest Price Guarantee

Special Order
  • Smooth Movement
  • Quiet Operation
  • UL Listed

This product is backordered and will ship as soon as it is back in stock.

30-day Return Policy
Info icon

Does not apply to special order items.

Lowest Price Guarantee

Product Descriptions

Chief Mounts SL151 Smart-Lift Automated Projector Lift

The Chief Mounts SL151 Smart-Lift Automated Projector Mount adds a touch of elegance and functionality to offices - both educational and business oriented. This smooth running mount gently and efficiently raises and lowers your projector with the touch of a button.

Installing in a Suspended Ceiling

The SL151 may be suspended from three 3/8 in. diameter x 8 in. length (minimum) Grade 2 or better threaded rods (not provided) which are secured to a 1-5/8" x 1-5/8" 12ga metal framing channel (spanning a maximum of 5 feet--not provided) by Grade 2 or better 3/8" channel nuts(not provided).

Installing in a Wood Framework (Joists)

Use 1/4" x 1-1/2" (minimum) Grade 2 lag screws (not provided) to secure SL151 to the joists or wood framework, using the mounting tabs located on the sides of the SL151 housing.

Specifications:

  • Precise positioning including vertical projector cradle adjustment and fore/aft projector positioning
  • Quick connect/disconnect for convenient lamp and filter access on most projectors
  • Maintains registration even when disconnected
  • Independent roll, pitch and yaw
  • Low profile, requires minimal clearance above the ceiling
  • Easy installation, fits into a 2 x 2' suspended ceiling
  • Multiple installation options: three 0.38" (10 mm) threaded rods, 1.5" NPT threaded extension column with SMA602 accessory, or side mount with built-in joist tabs

Features & Specs

Lift Type: Automated

Depth From Mounting Source: Not Specified by Manufacturer

Mounting Source Opening (WxD): Ceiling Opening: 11.25 x 23 x 22.75" (286 x 584 x 578 mm) (HWD)

Closure Panel Dimension (WxD): Ceiling Closure: 20.25 x 20.25" (514 x 514 mm) (WD)

Max Equipment Size: Height: 8.4" (21.3 cm), Width: 18.25" (46.4 cm), Depth: 18.25" (46.4 cm)

Adjustments: Roll: +/-2° , Pitch: +/-20°, Yaw: +/-5° Control Option: Choose from single momentary push button, low voltage controller, and internal and external wiring options. Also accepts 5-30 VAC/VDC for triggering commands. AMX/Crestron control compatibility

Integrated Control: Push button

Low Voltage: Not Applicable Construction: Steel

Power Requirements: 120 VAC, 60 Hz

Maximum Current Draw: 12 A

Dimensions: Height: 23.5" (59.7 cm) , Width: 23.5" (59.7 cm)

Weight Capacity: 35 lb (15.9 kg) Package Weight: 76.25 lb

Box Dimensions (LxWxH): 31 x 31 x 17"

Documents

Warranty

Chief Canada offers a 10 year limited warranty
