PSB PWM Sat On-Wall Speakers - Pair
Product Description
Product Description

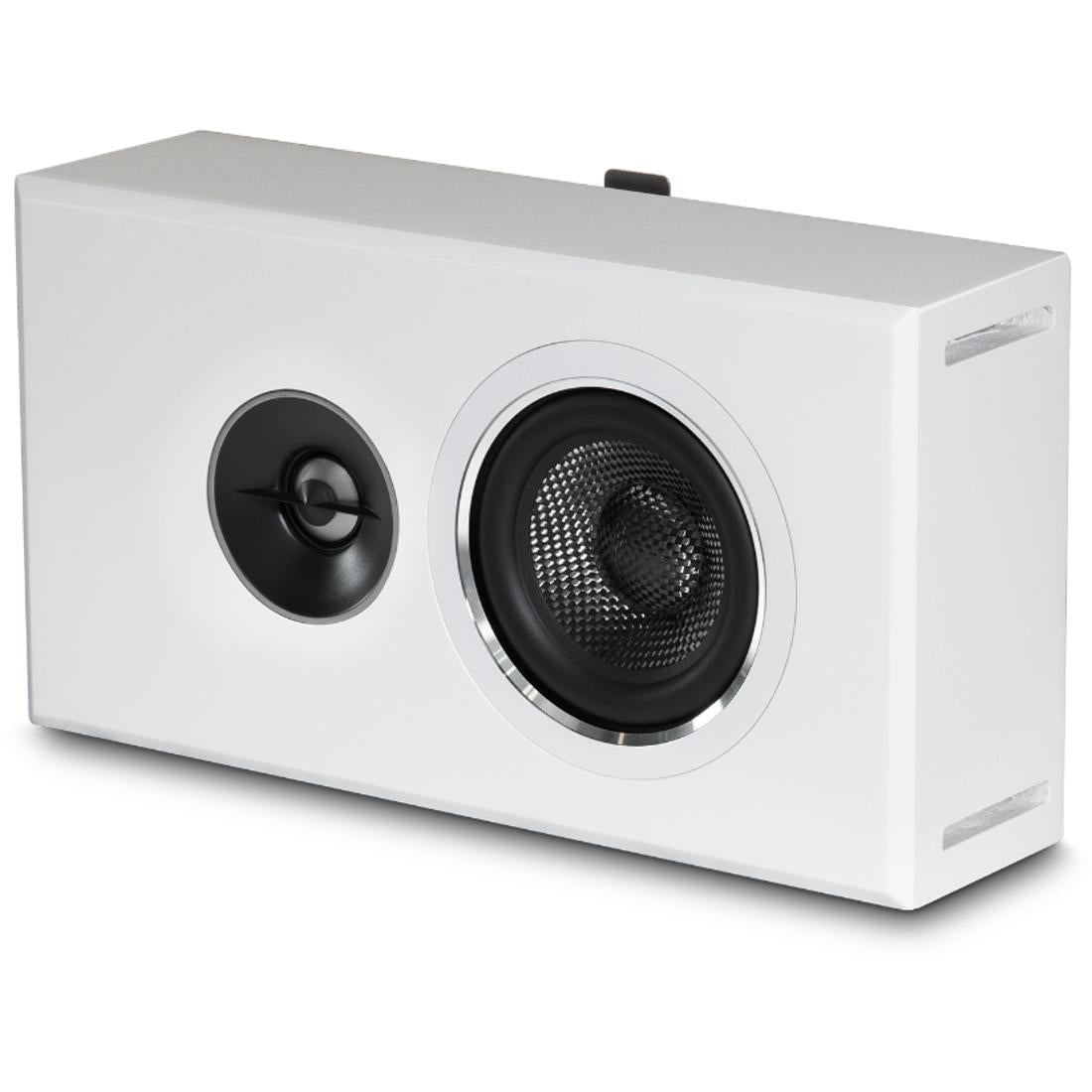

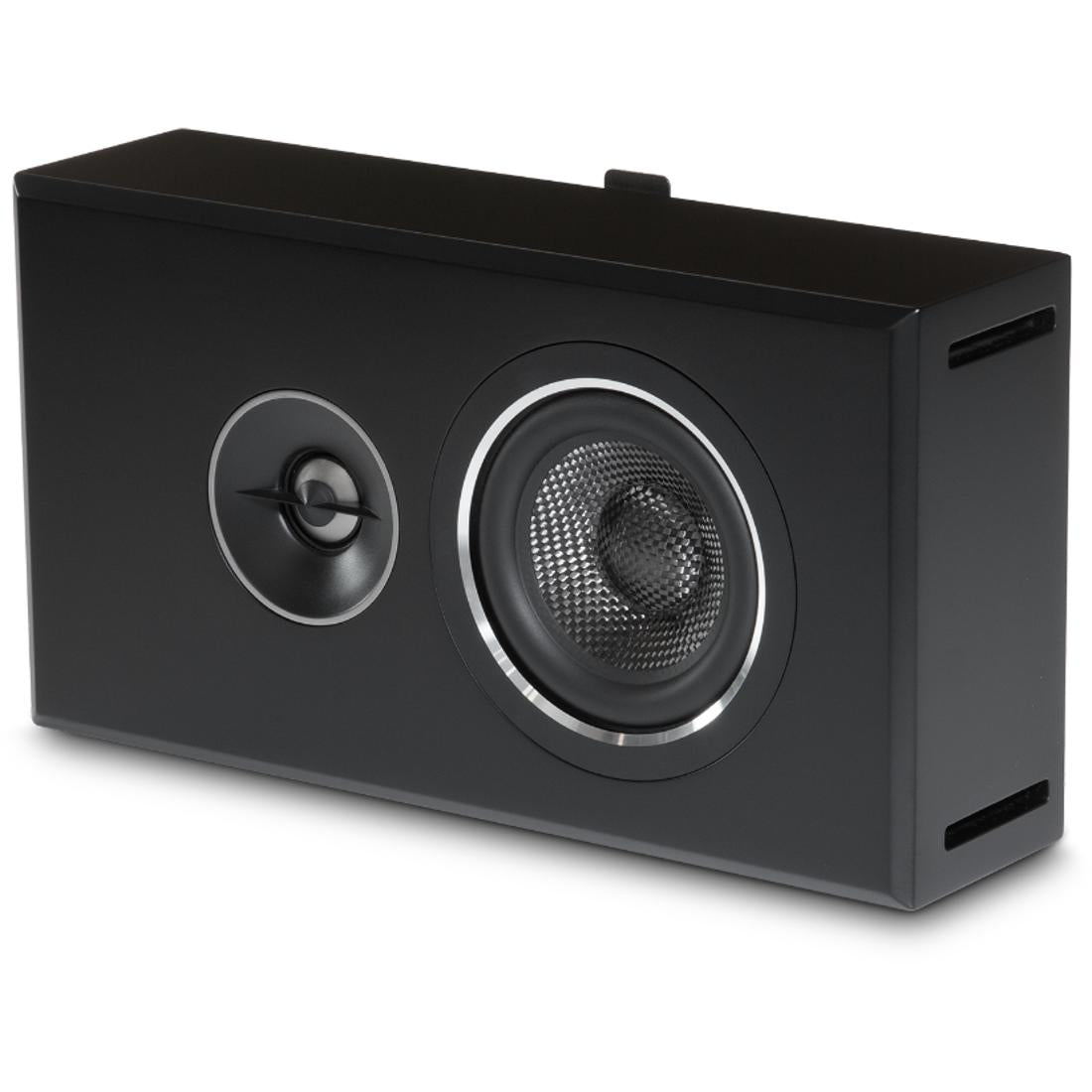

PSB PWM Sat On-Wall Speakers
The PSB PWM Sat On-Wall Speaker is the most compact model in the PWM Series, designed to deliver detailed, dynamic, and tonally accurate sound in a slim, installation-friendly form factor. This PSB PWM Sat On-Wall Speaker offers flexible mounting options and consistent sound that integrates easily into a wide range of residential or commercial spaces.
Compact Design with Flexible Installation

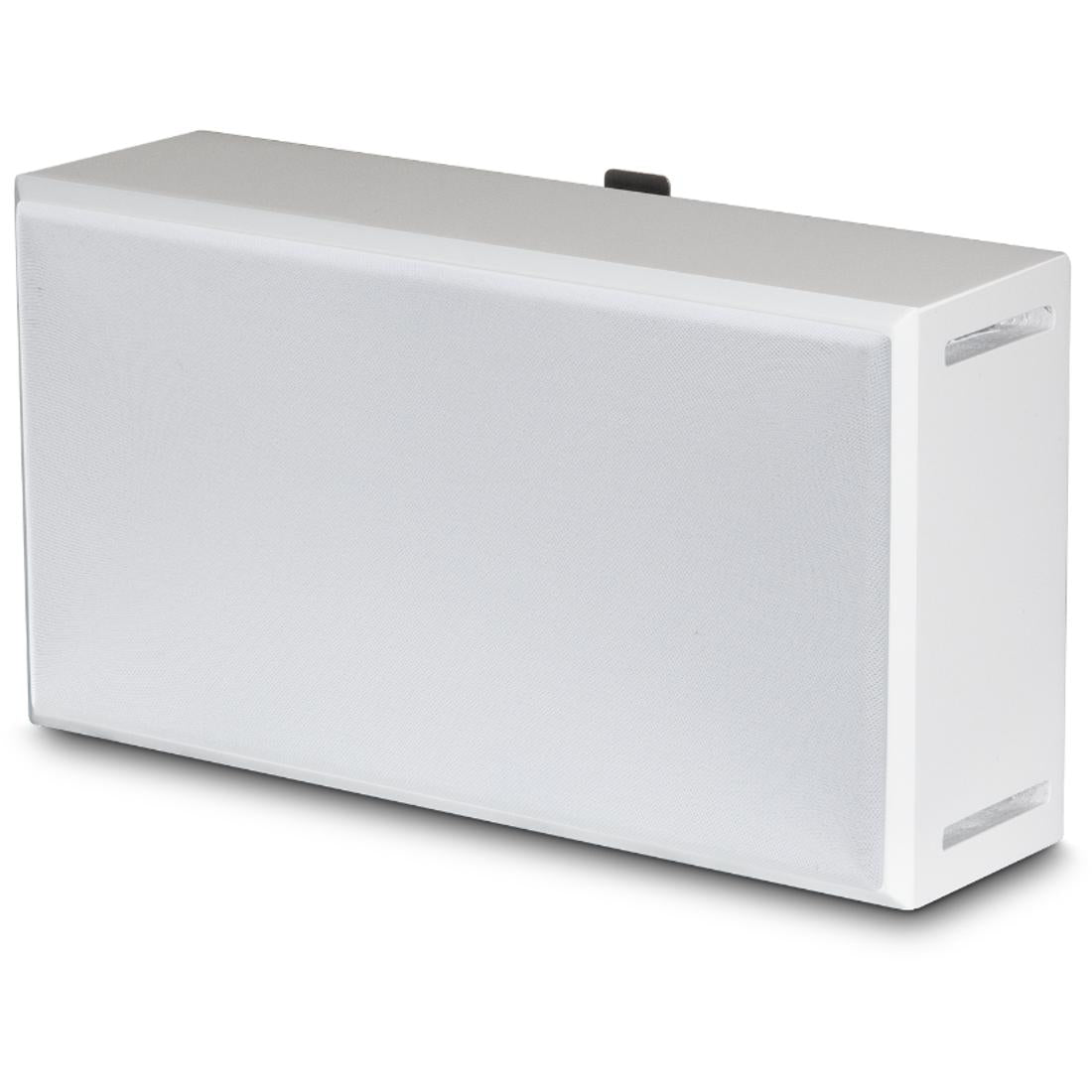

The PWM Sat On-Wall Speaker expands the PWM range with a smaller form factor while maintaining performance consistent with the series. Because of its compact cabinet and slim profile, it fits easily into a variety of room layouts.

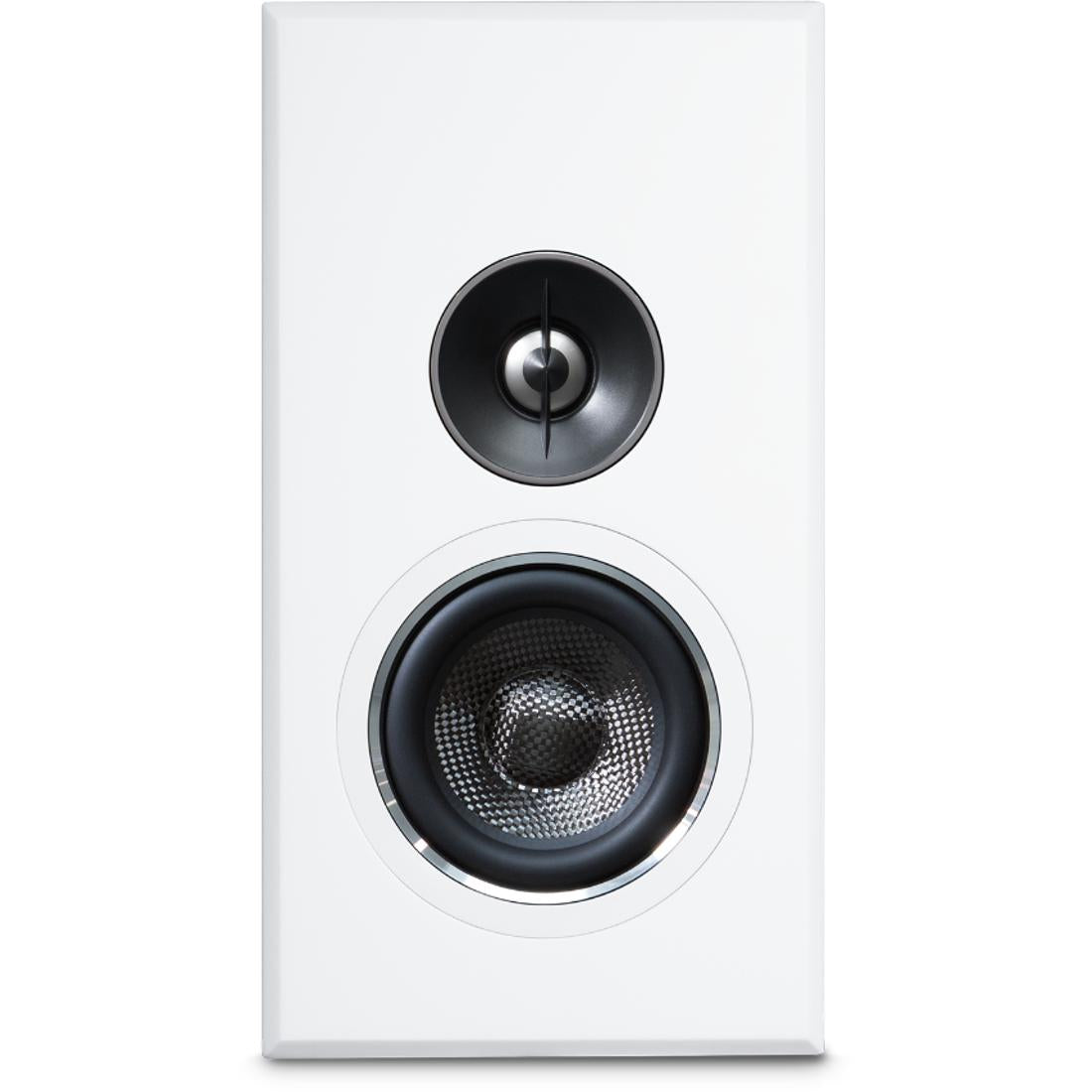

- Two-piece locking bracket supports horizontal or vertical installation
- Can be inverted for near-ceiling placement
- Works as a front left or right, surround, height channel, or compact 2-channel solution with a subwoofer
The included wall mount bracket simplifies installation and supports both vertical and horizontal mounting positions.
Consistent Sound Across PSB Families
The PWM Sat is voiced to match PSB’s on-wall, in-room, and architectural speakers. Therefore, it simplifies mixing and matching models across a project while maintaining a cohesive listening experience.
- Voiced to align with other PSB on-wall, in-room, and architectural speakers
- Delivers a consistent sonic signature when combined with other PSB models
- Supports integrators who need a real-world solution that fits modern spaces
In multi-speaker systems, this consistent voicing helps deliver a uniform sound character from channel to channel.
Synchrony-Based Driver Technology

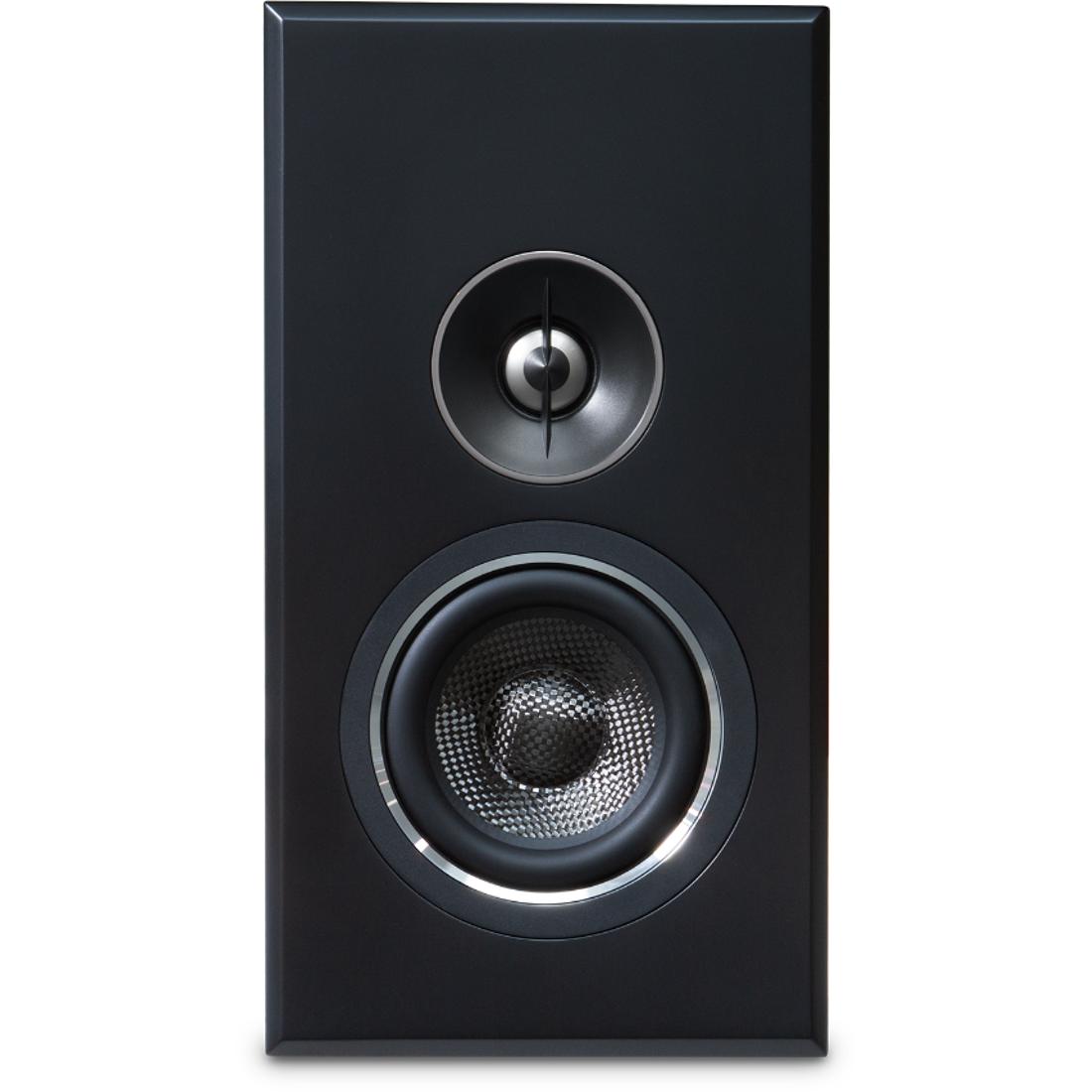

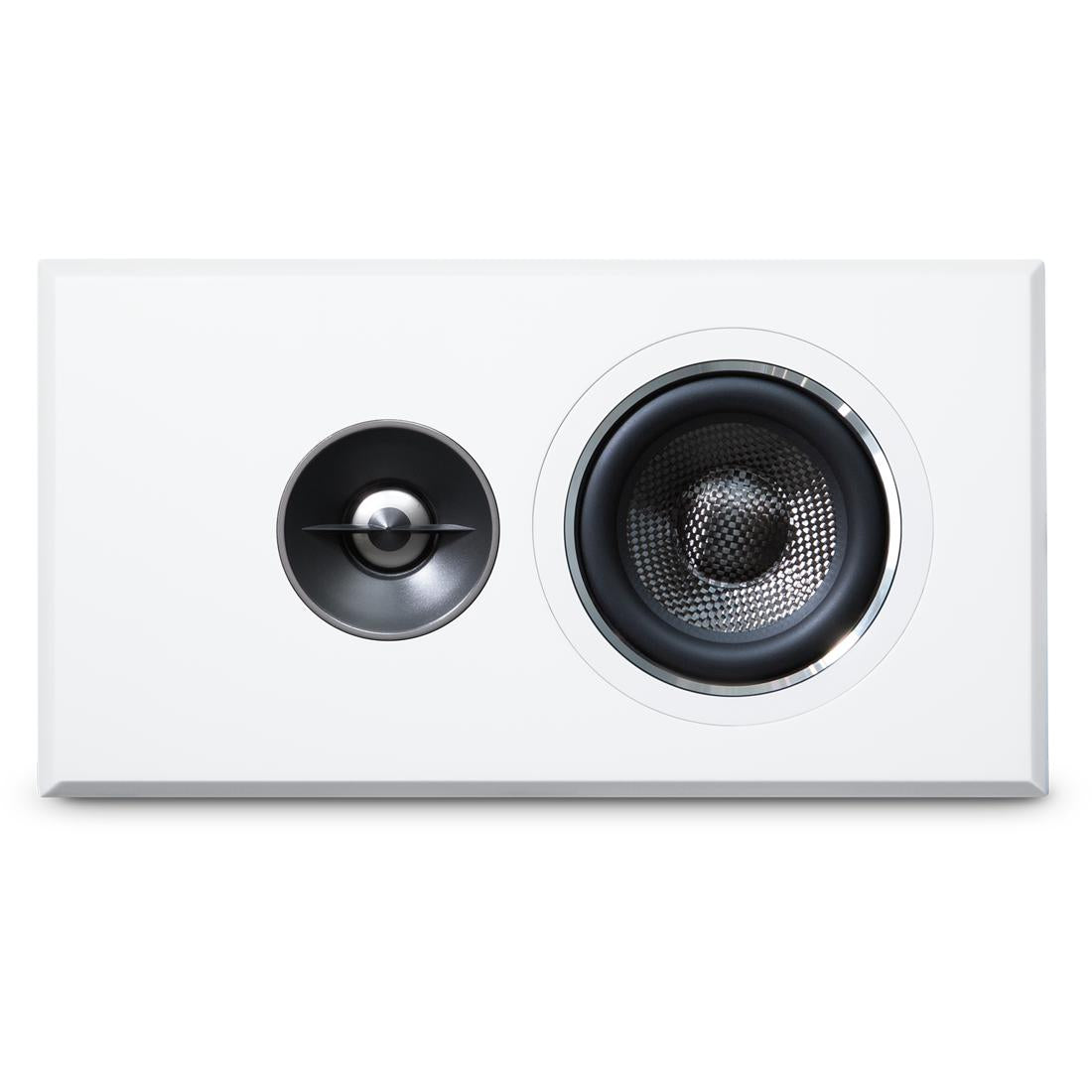

The PWM Sat On-Wall Speaker uses drivers based on PSB’s flagship Synchrony platform, which allows it to deliver the same sonic signature as its larger PWM siblings.

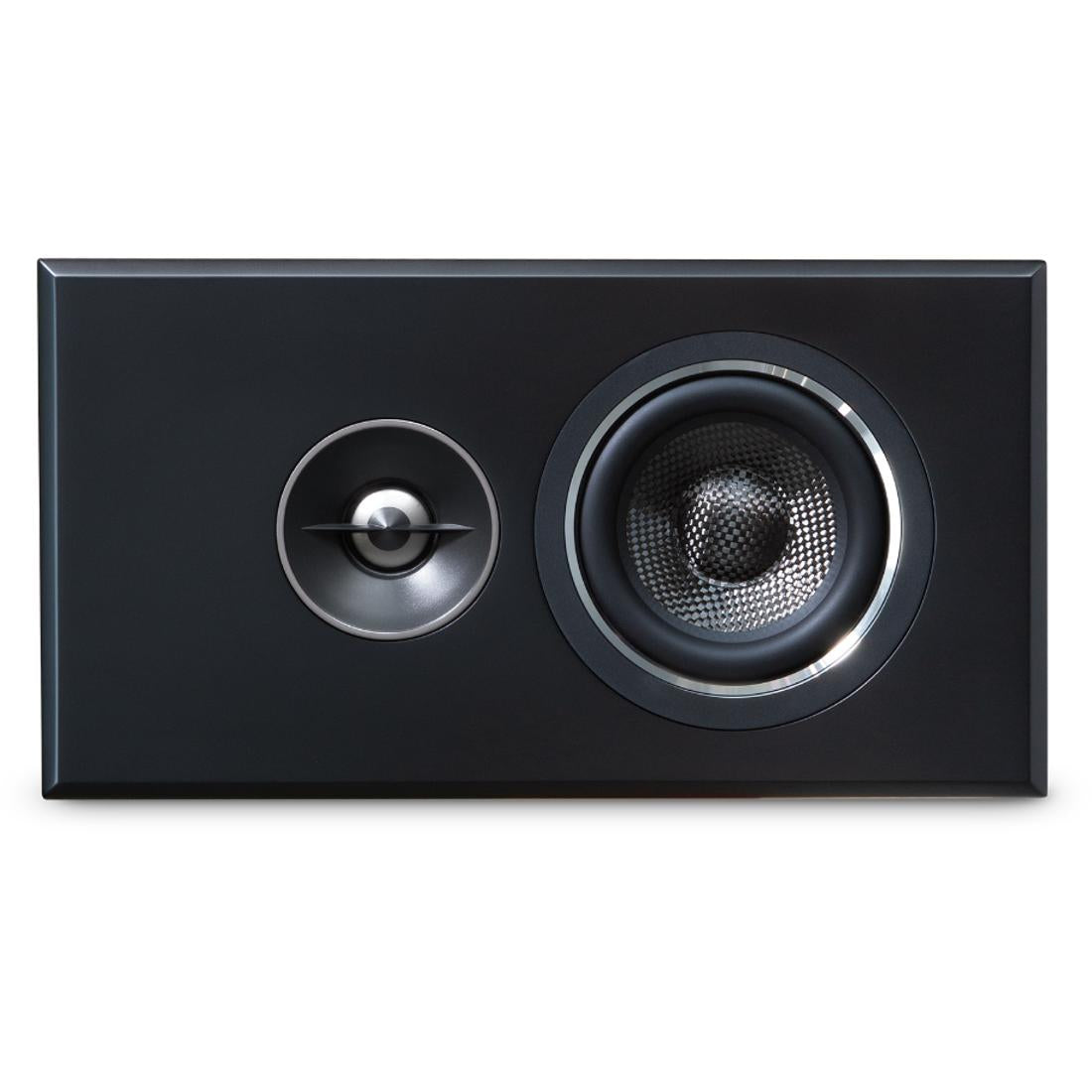

- 1" (25mm) titanium dome tweeter with ferrofluid
- 1 x 4" (100mm) carbon fiber cone woofer with rubber surround and cast basket
- Bass reflex acoustic design
This driver complement is described as providing lifelike clarity, natural detail, and dynamic performance, maintaining intelligibility at low volumes and room-filling impact at higher levels.
Discreet Aesthetics and Build
The smallest member of the PWM Series, the PWM Sat is designed to blend into its surroundings without drawing attention.
- Slim profile suited to modern interiors
- Available finishes: Satin Black and Satin White
- MDF cabinet construction with MDF grille frame

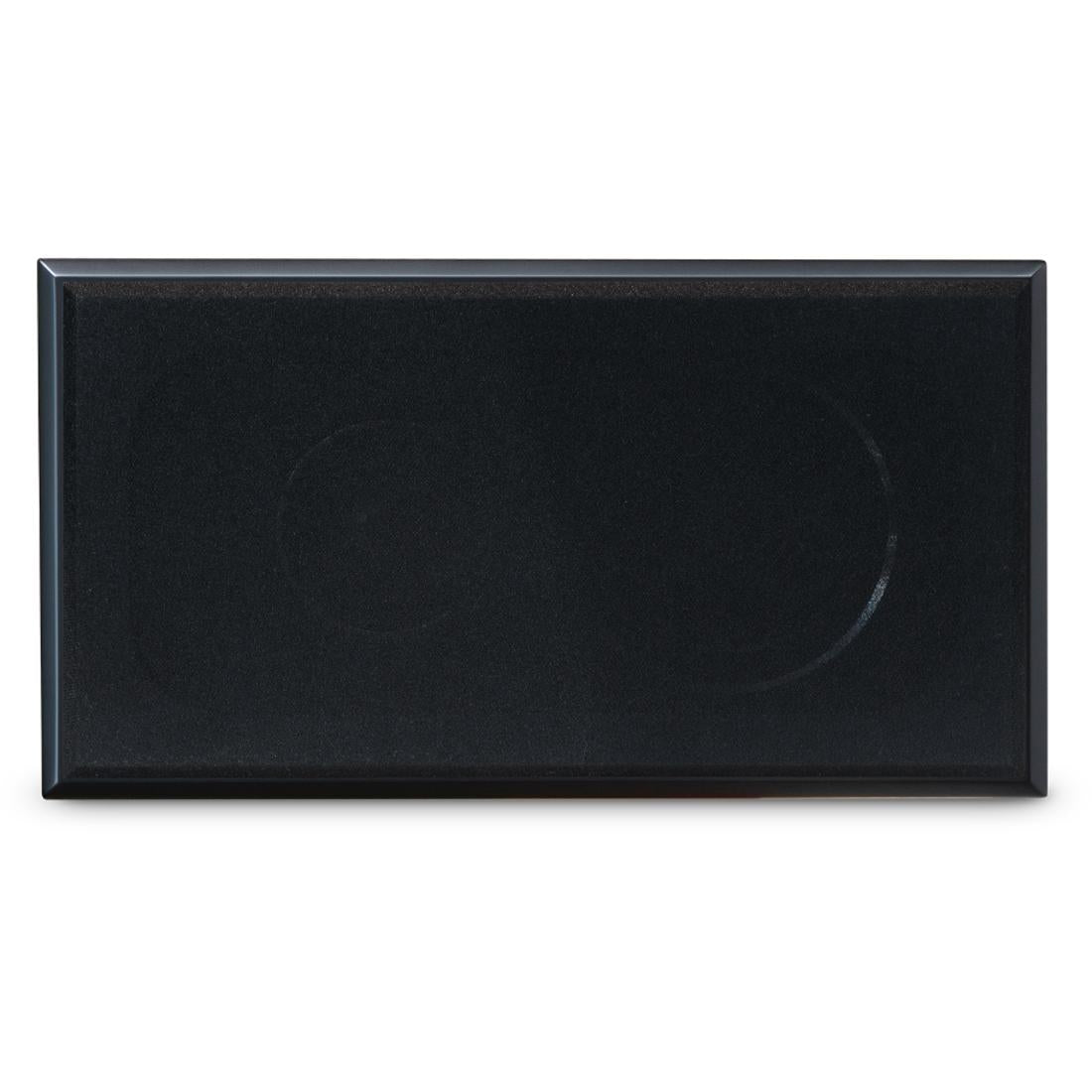

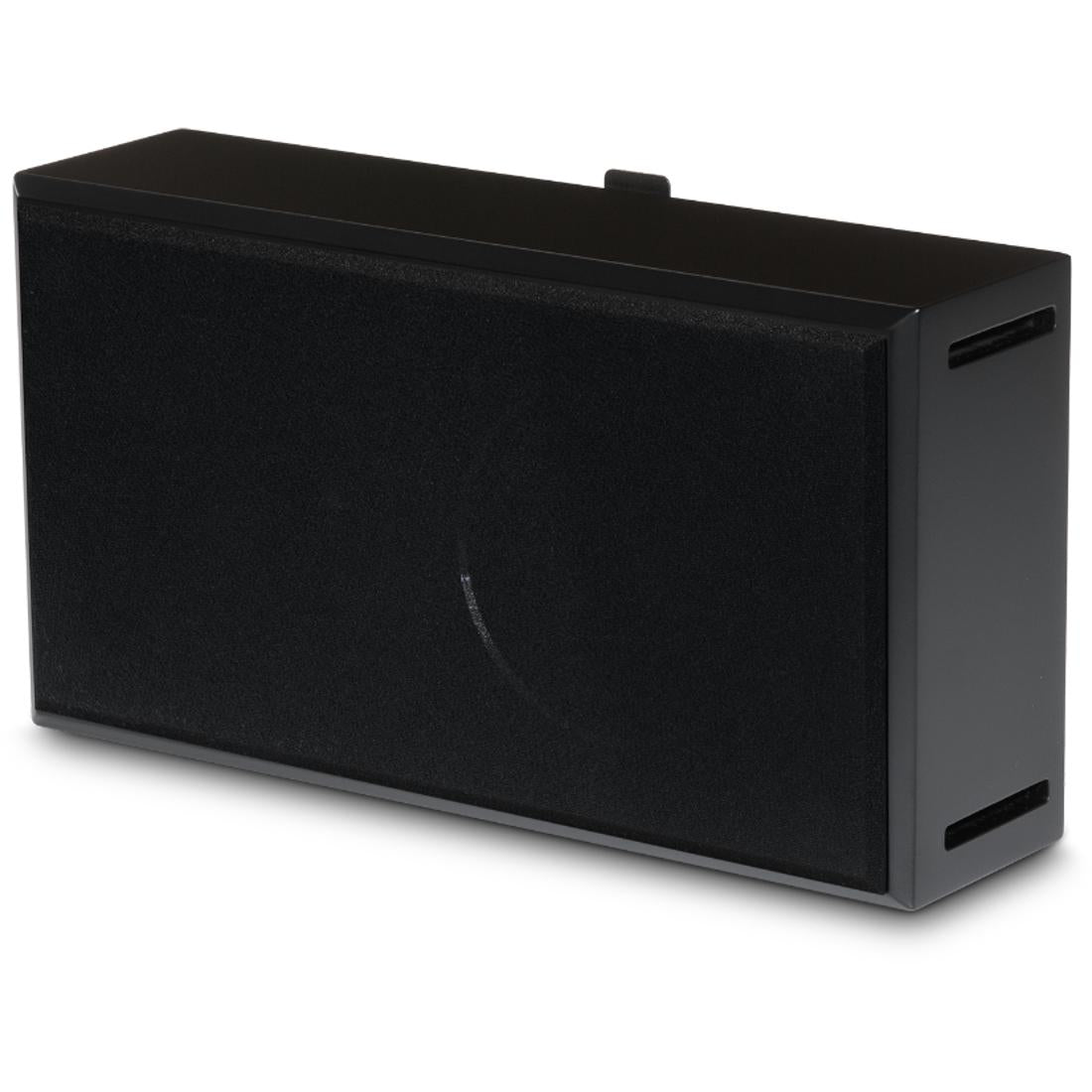

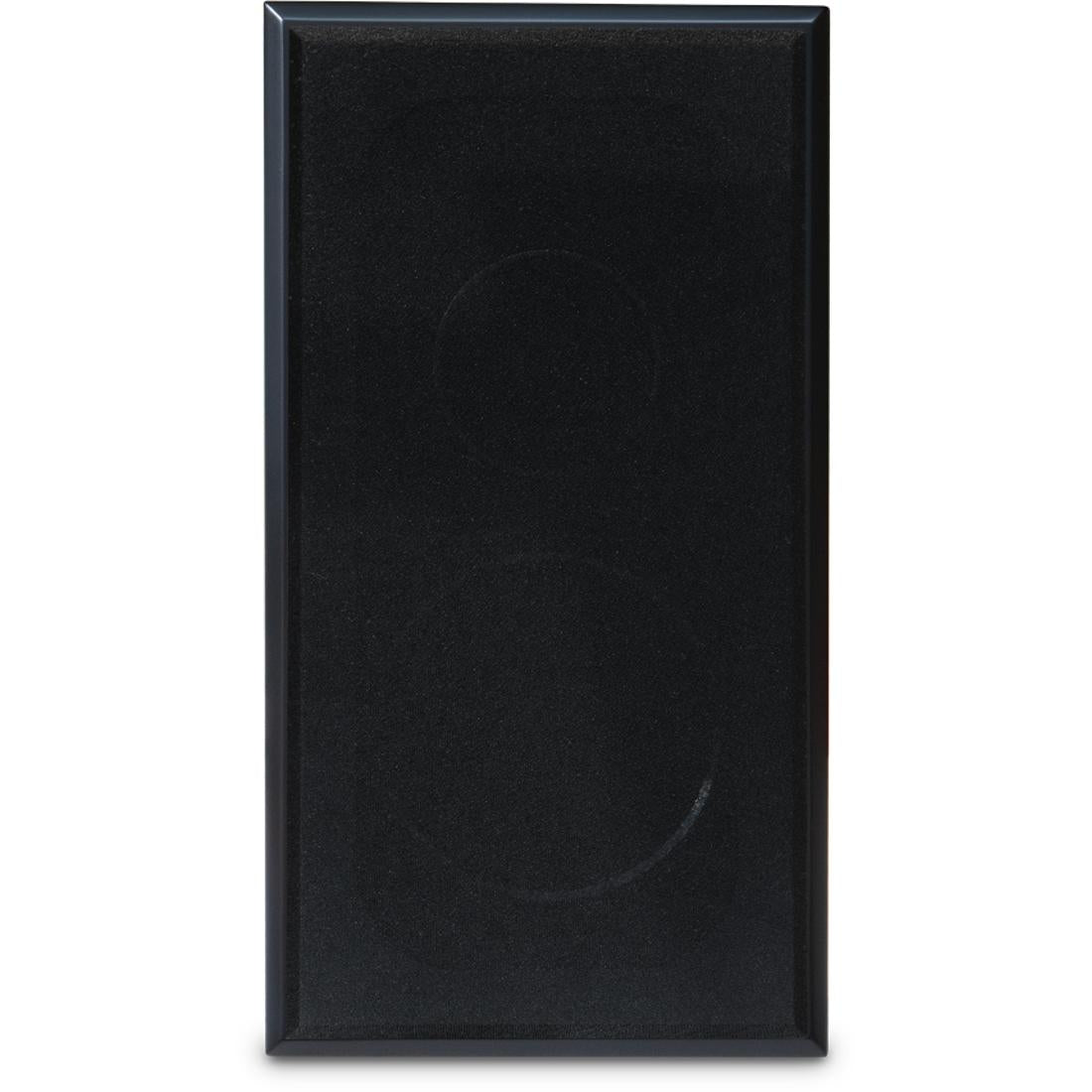

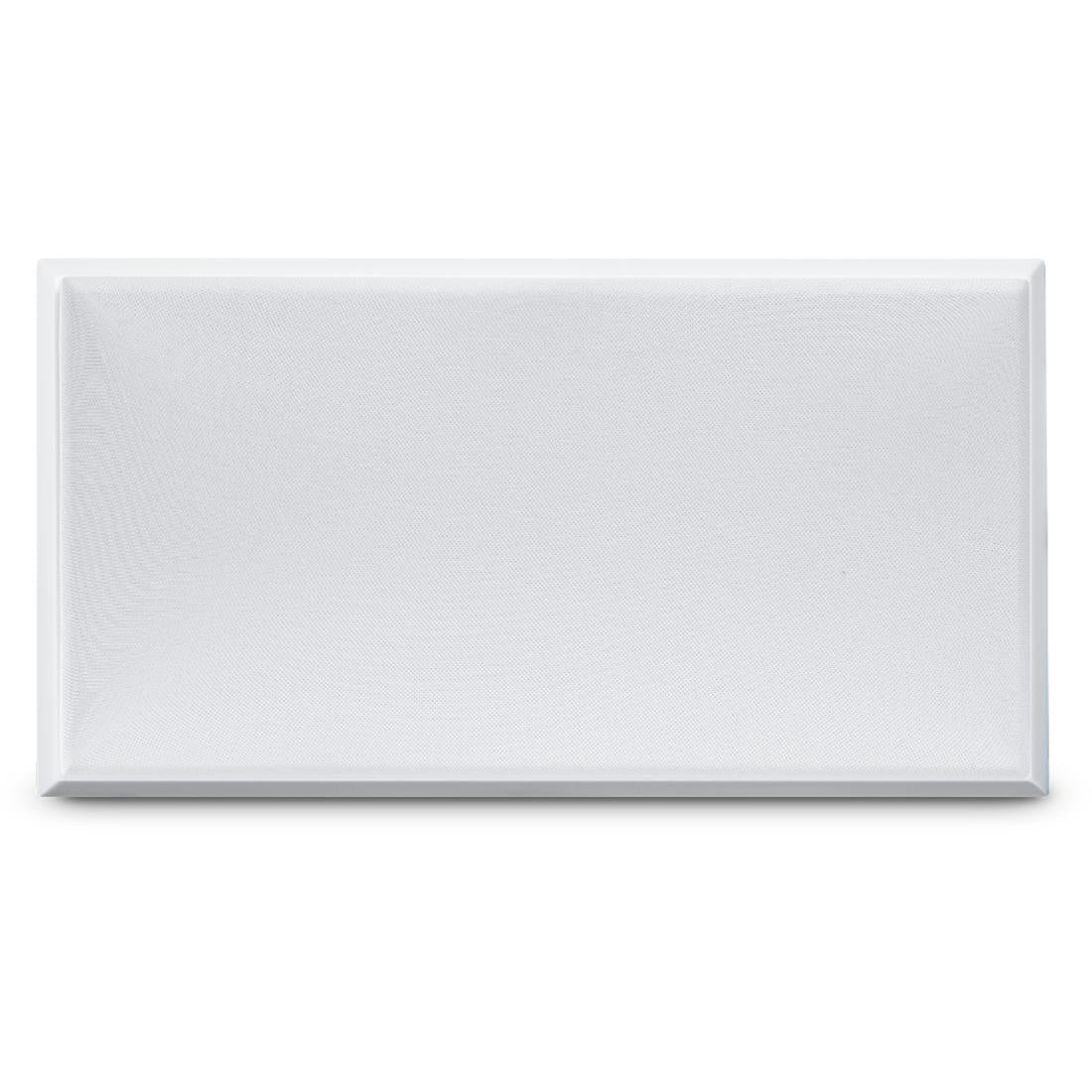

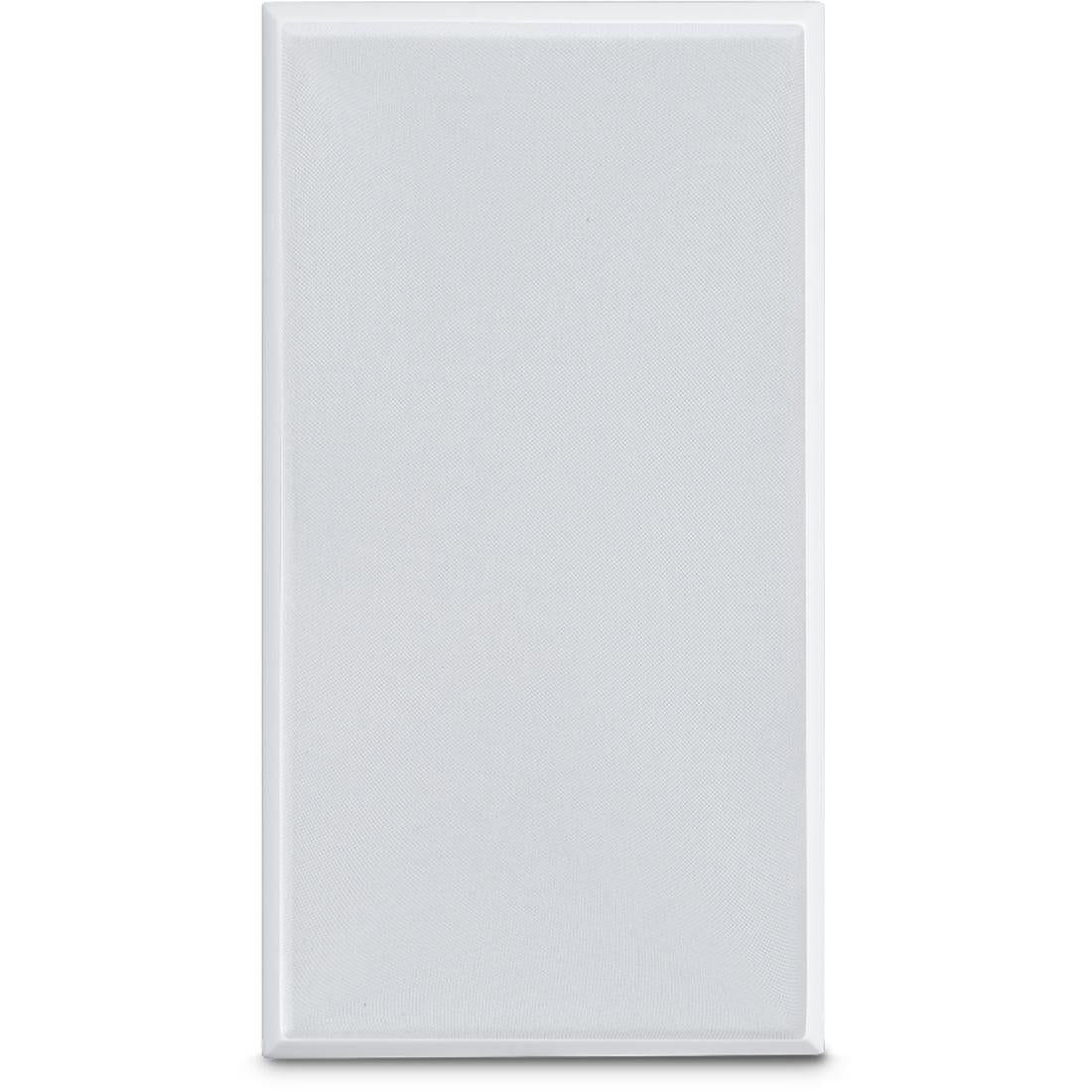

- Magnetic cloth grille with acoustic transparent cloth
These design choices allow the speaker to integrate visually into both residential and commercial installations.
Thoughtful Acoustic and Physical Design
The PWM Sat On-Wall Speaker combines its compact form with carefully specified acoustic behavior and dimensions.
- Frequency response on axis (±3dB): 90Hz – 23,000Hz
- LF cutoff (-10dB): 62Hz
- Nominal impedance: 8 ohms (minimum 6 ohms)
- Sensitivity: 83dB (anechoic), 85dB (listening room)
- Net size (W x H x D): 12" x 6.5" x 3.38" (305mm x 165mm x 85mm)
- Net weight: 20 lbs (9.1 kg)
Add the PSB PWM Sat On-Wall Speaker to your cart to create a compact, installation-friendly on-wall system, and contact or visit Gibbys for expert advice on matching the PSB PWM Sat On-Wall Speaker with the right electronics, subwoofers, and additional speakers for your specific setup.
