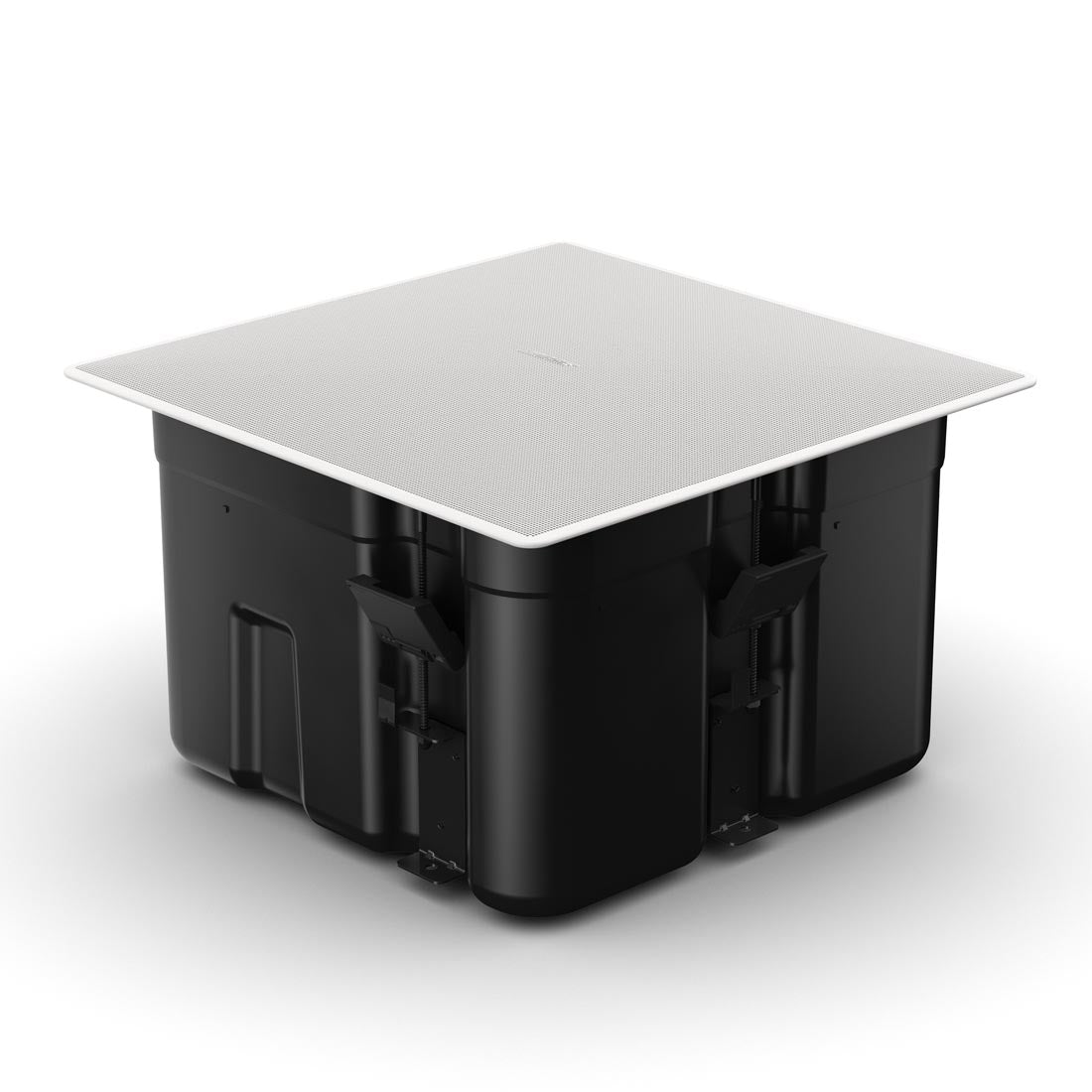

Bose Professional EM180 EdgeMax In-Ceiling Loudspeaker - Each - White (7771890220)

Bose Professional EM180 EdgeMax In-Ceiling Loudspeaker - Each - White

The Bose EM180 is not your typical in-ceiling loudspeaker. It blends the power of large, bulky surface-mount speakers with a discreet design that fits seamlessly into your space. With dual drivers and patented PhaseGuide® technology, it delivers clear, focused sound from the room’s edges to the center so every listener hears the same exceptional audio no matter where they are standing. Covering 180 degrees horizontally and 75 degrees vertically, it is designed to reach every corner with impressive clarity.

Designed for Demanding Spaces

Larger rooms with higher sound pressure level needs such as fitness clubs, performance venues, or busy restaurants are where the Bose EM180 truly excels. Its deep 9-inch cans handle high ceilings with ease, producing a frequency range from 45 Hz to 20 kHz for rich bass and detailed highs. With a maximum output of 114 dB continuous and 120 dB peak, it can fill large areas with ease while maintaining clarity. Whether it is immersive music or crystal-clear speech, the EM180 delivers powerful, distortion-free sound even at high volumes.

Clarity That Cuts Through the Noise

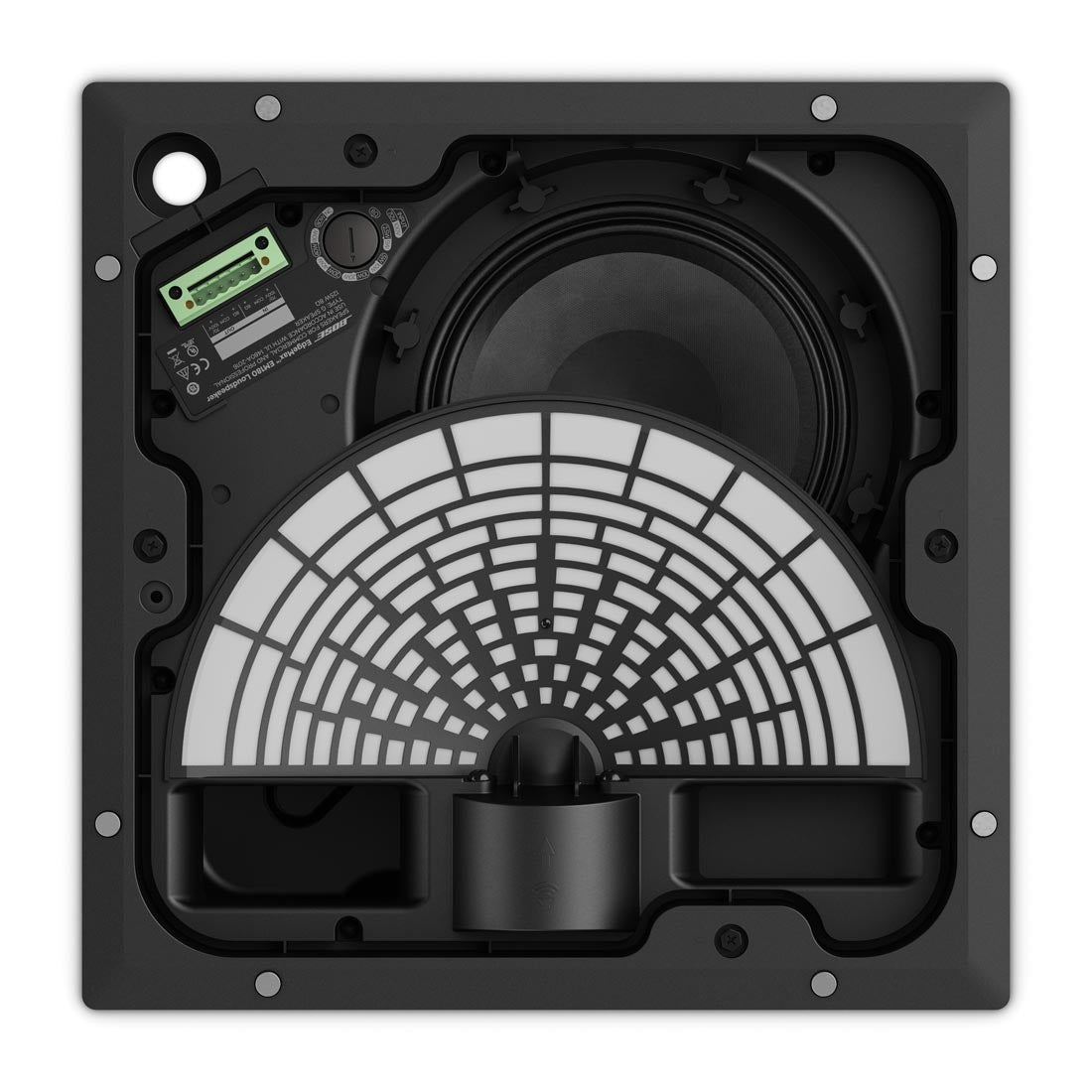

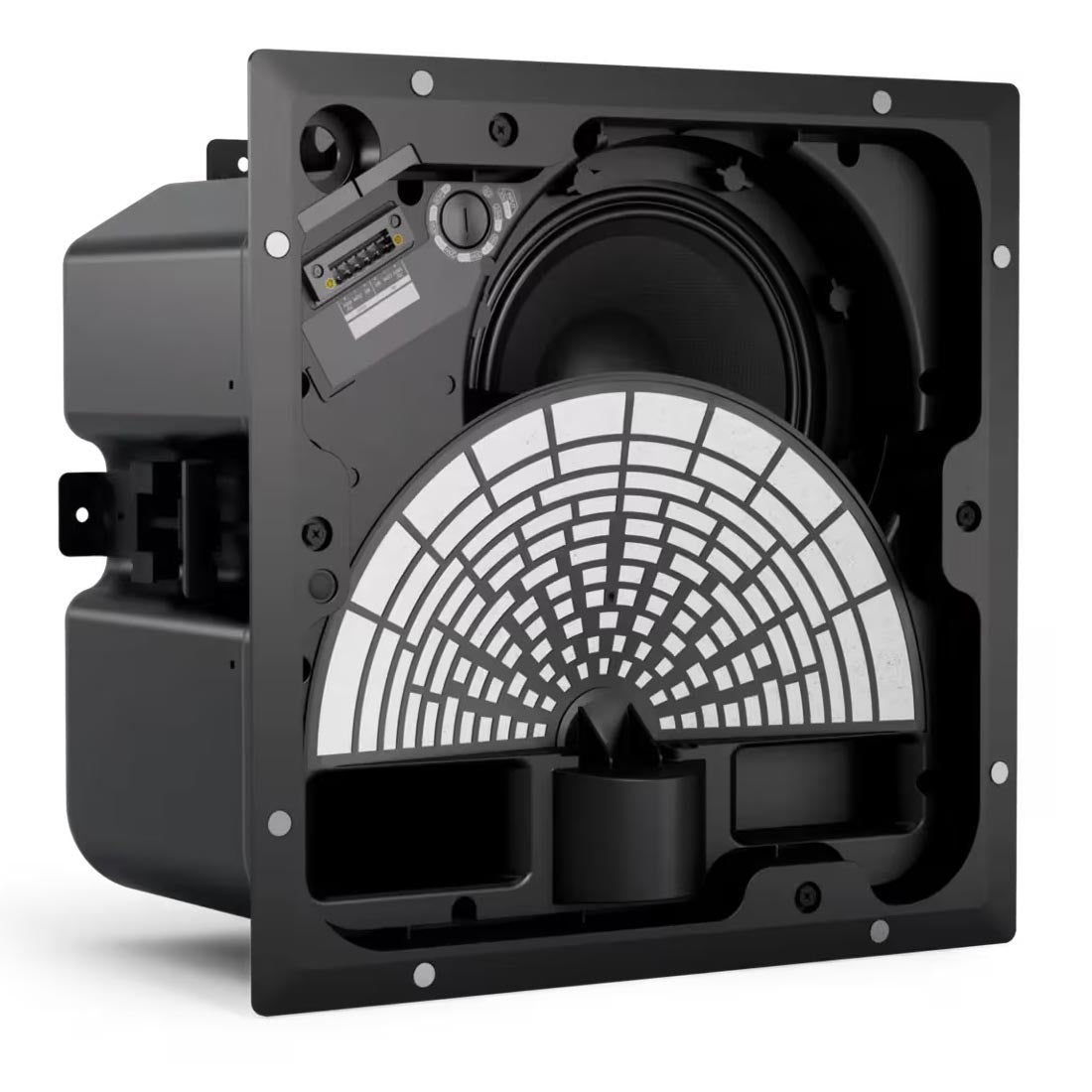

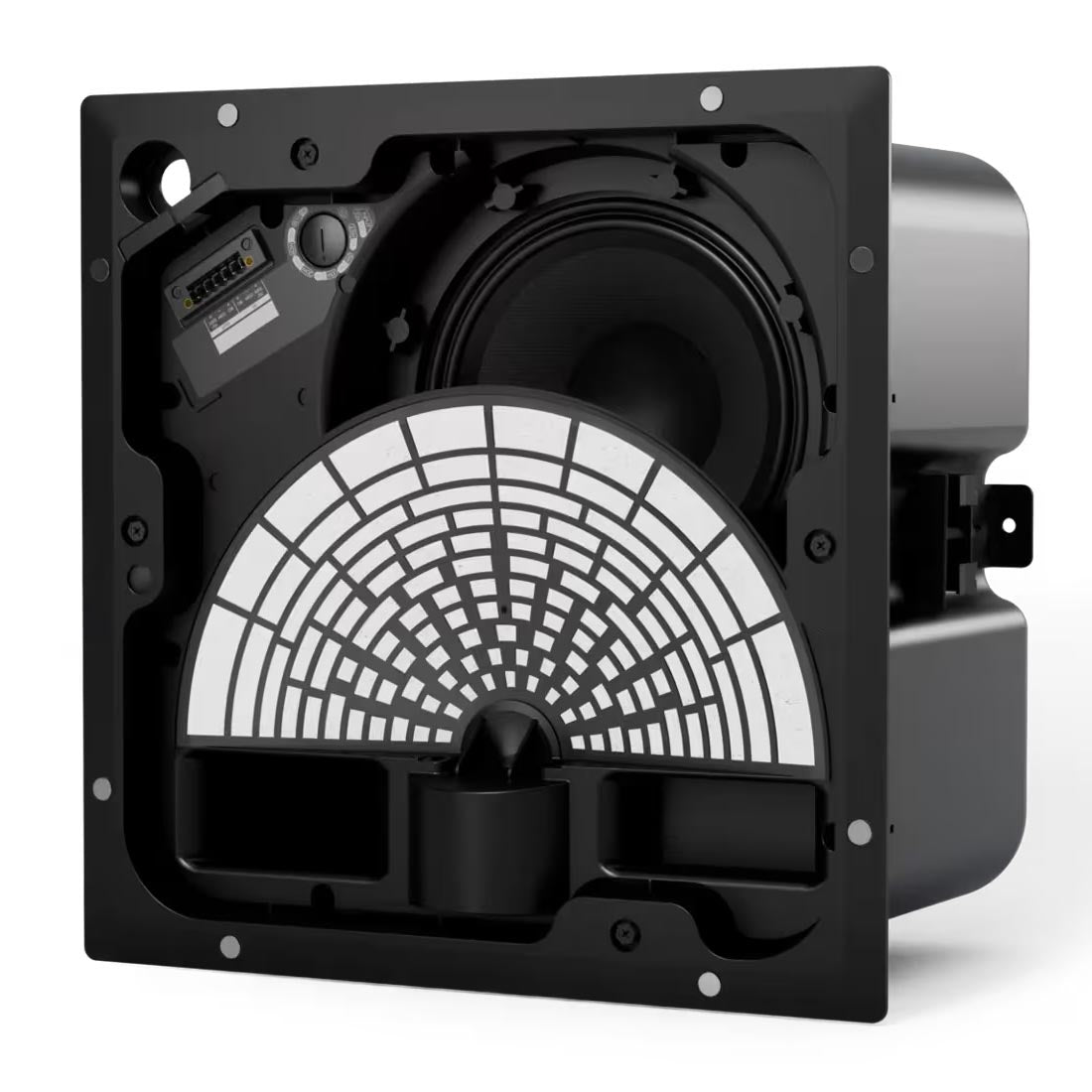

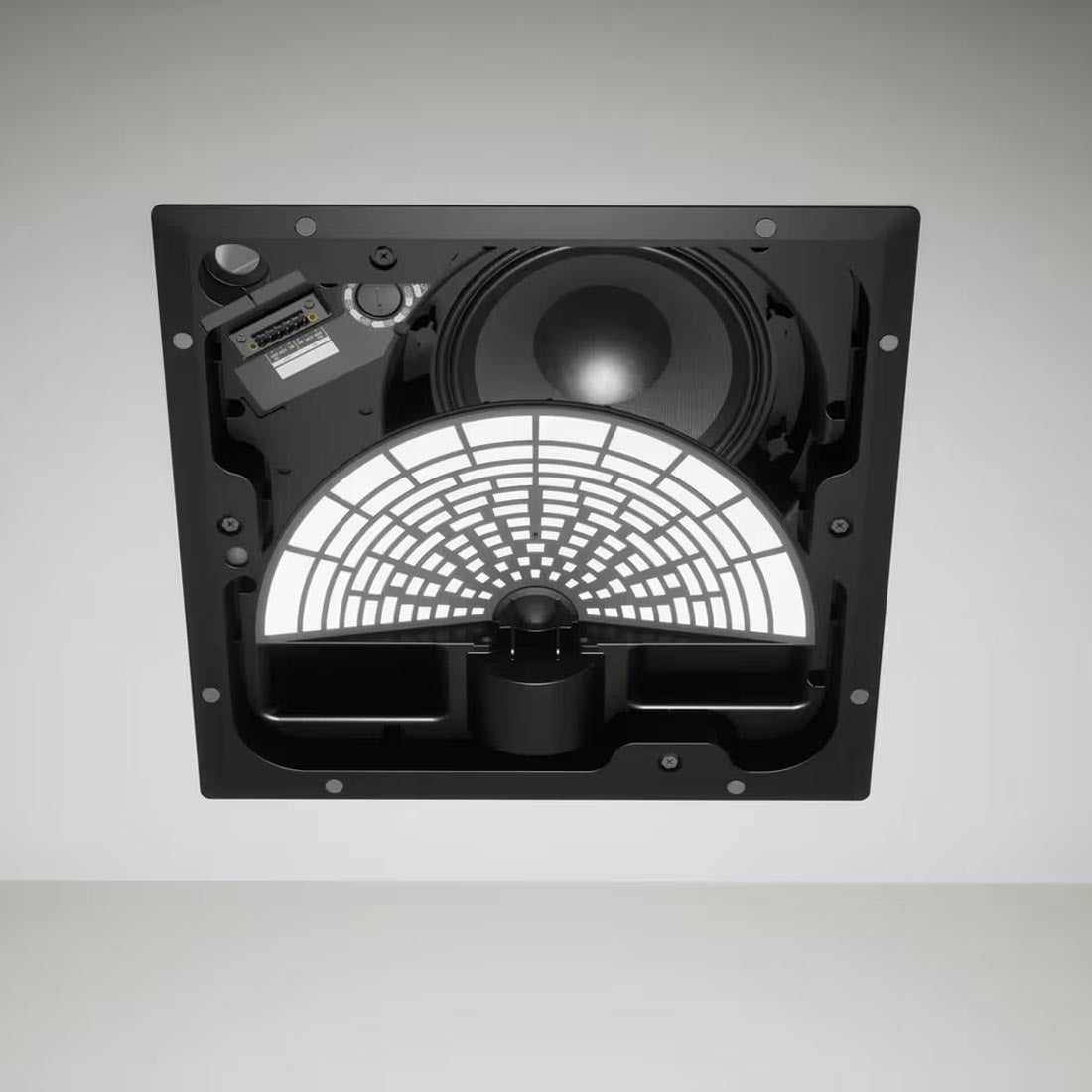

Thanks to its high-frequency compression driver and high-excursion woofer, the Bose EM180 produces full-frequency sound that feels balanced and natural. Voices remain intelligible, music stays detailed, and bass benefits from wall-boundary loading for added depth. The 8-ohm nominal impedance with a bypassable 70/100V transformer provides flexibility for different setups. It offers consistent voicing across the entire EdgeMax family, making it easy to pair with other models while maintaining the same tonal quality.

Smart, Minimal Impact Design

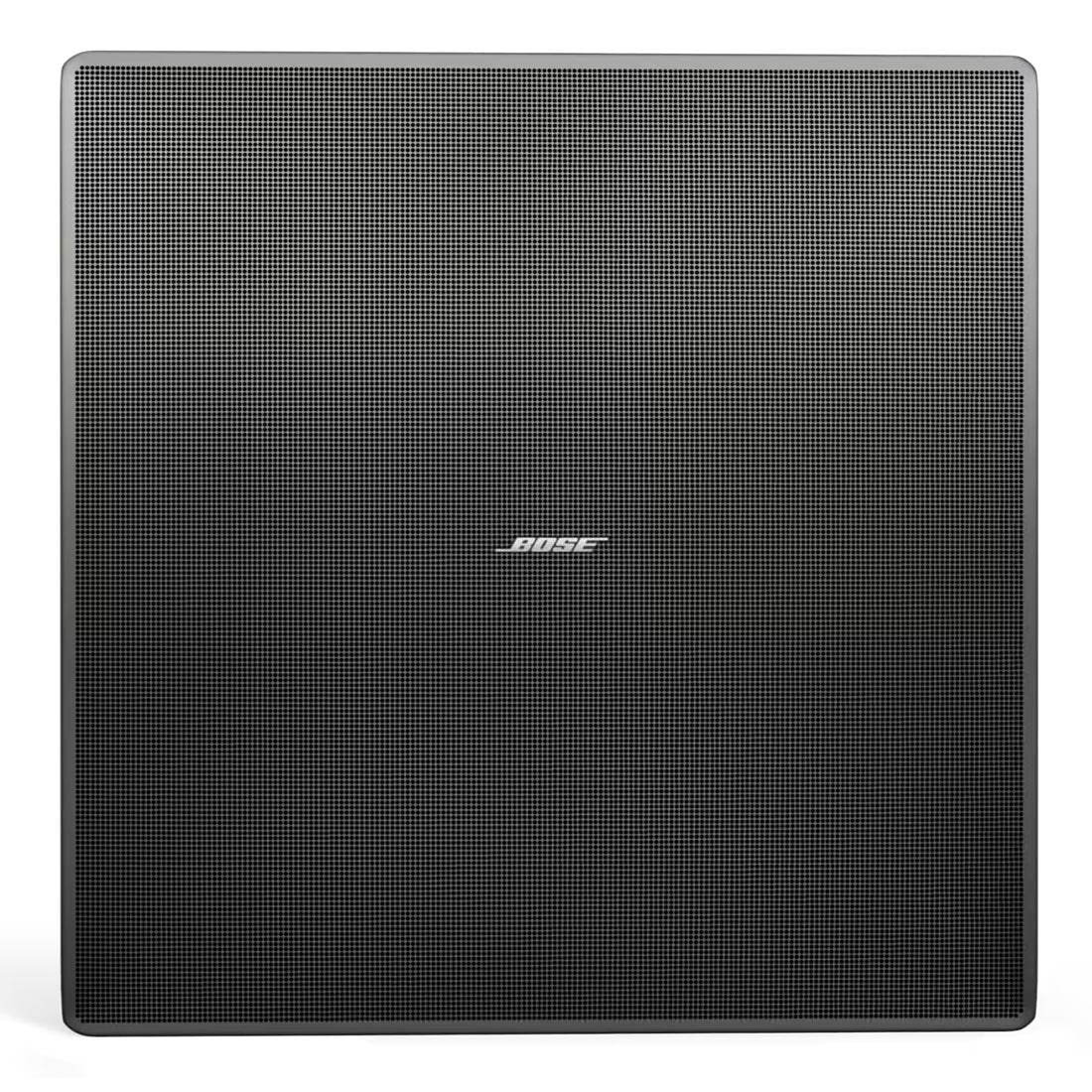

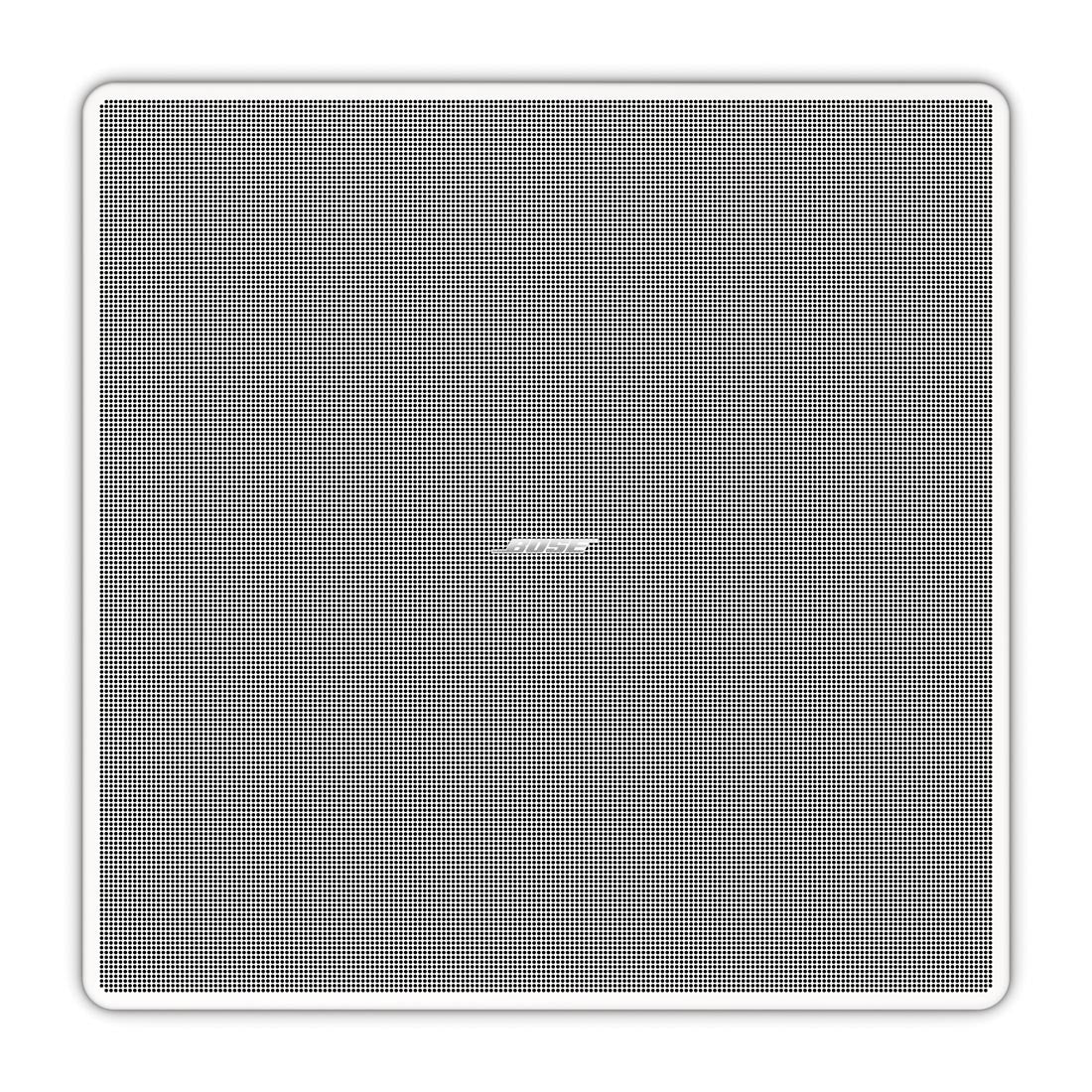

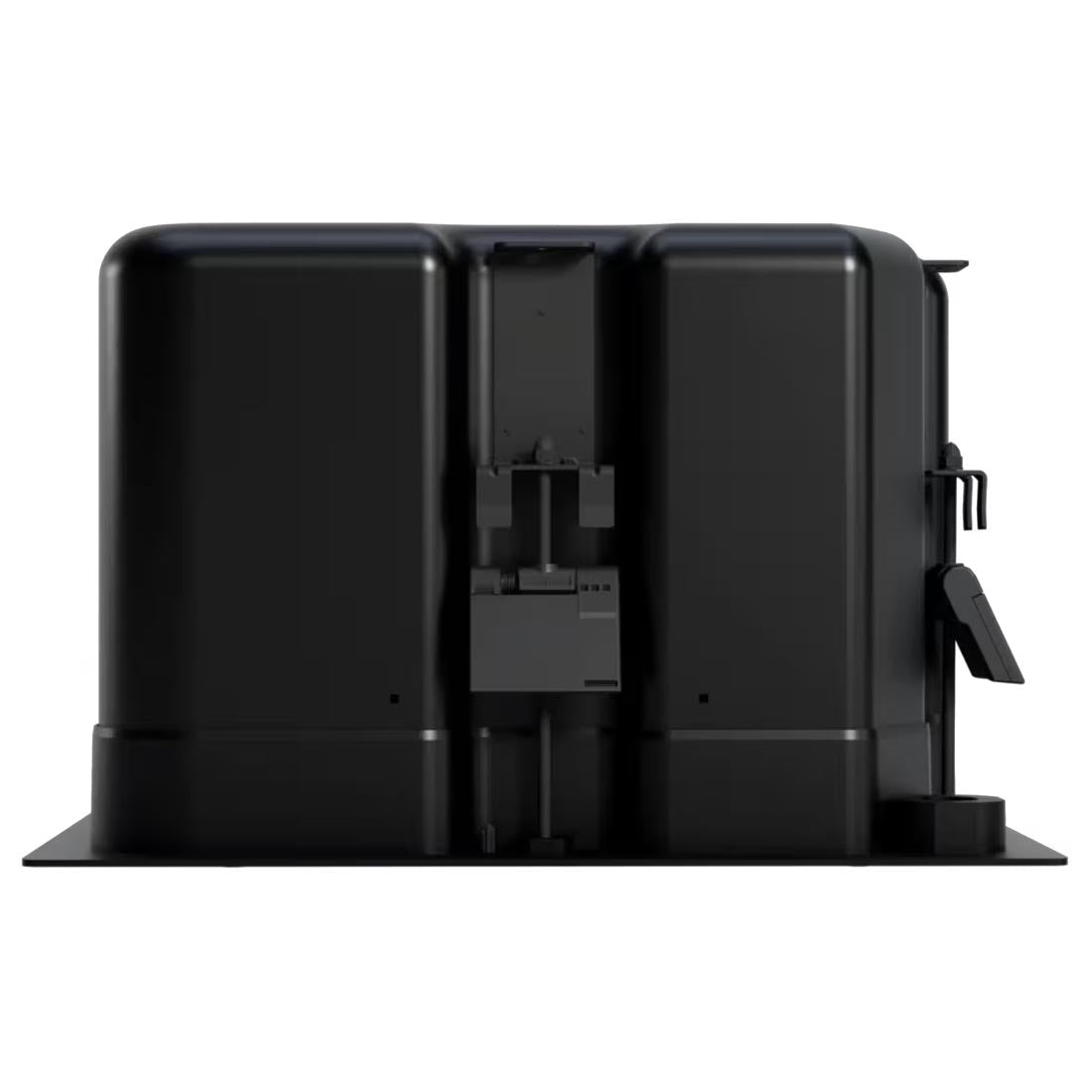

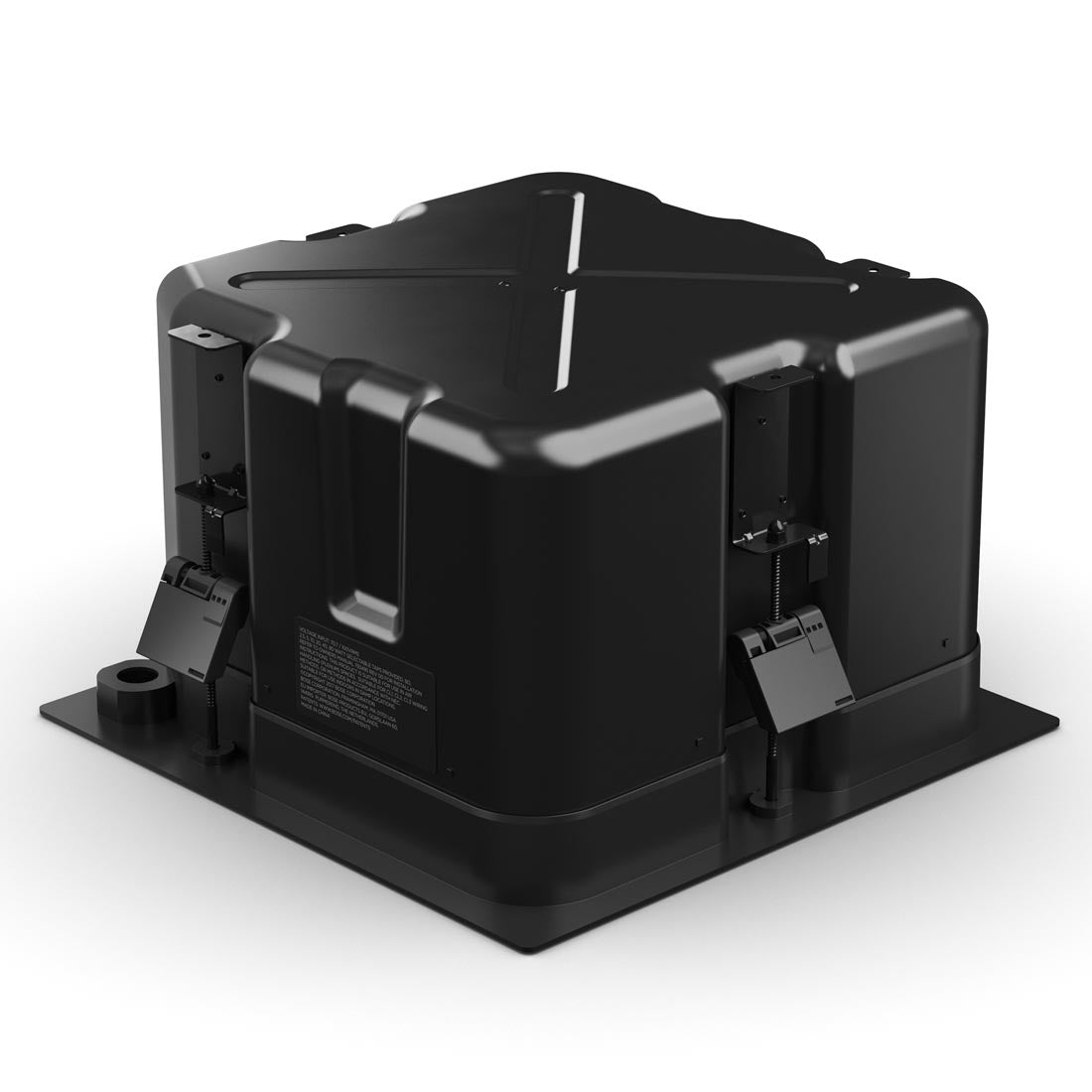

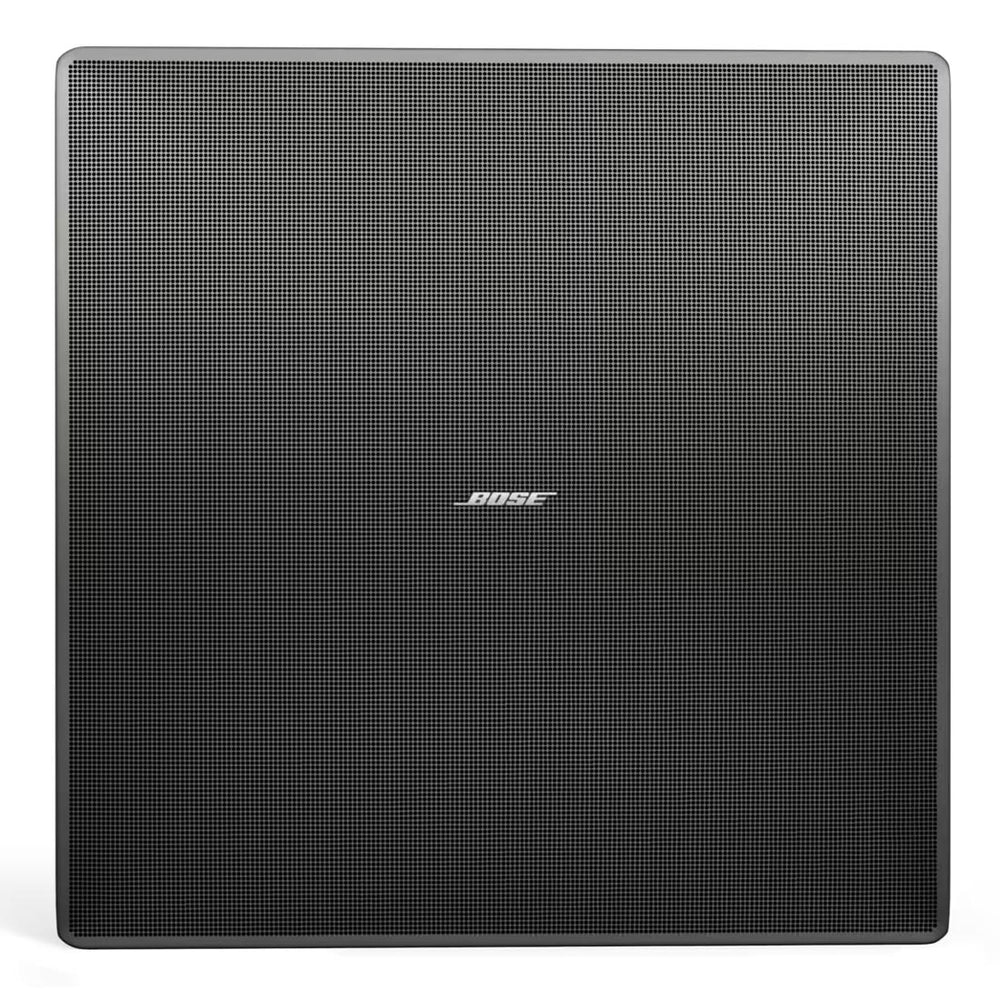

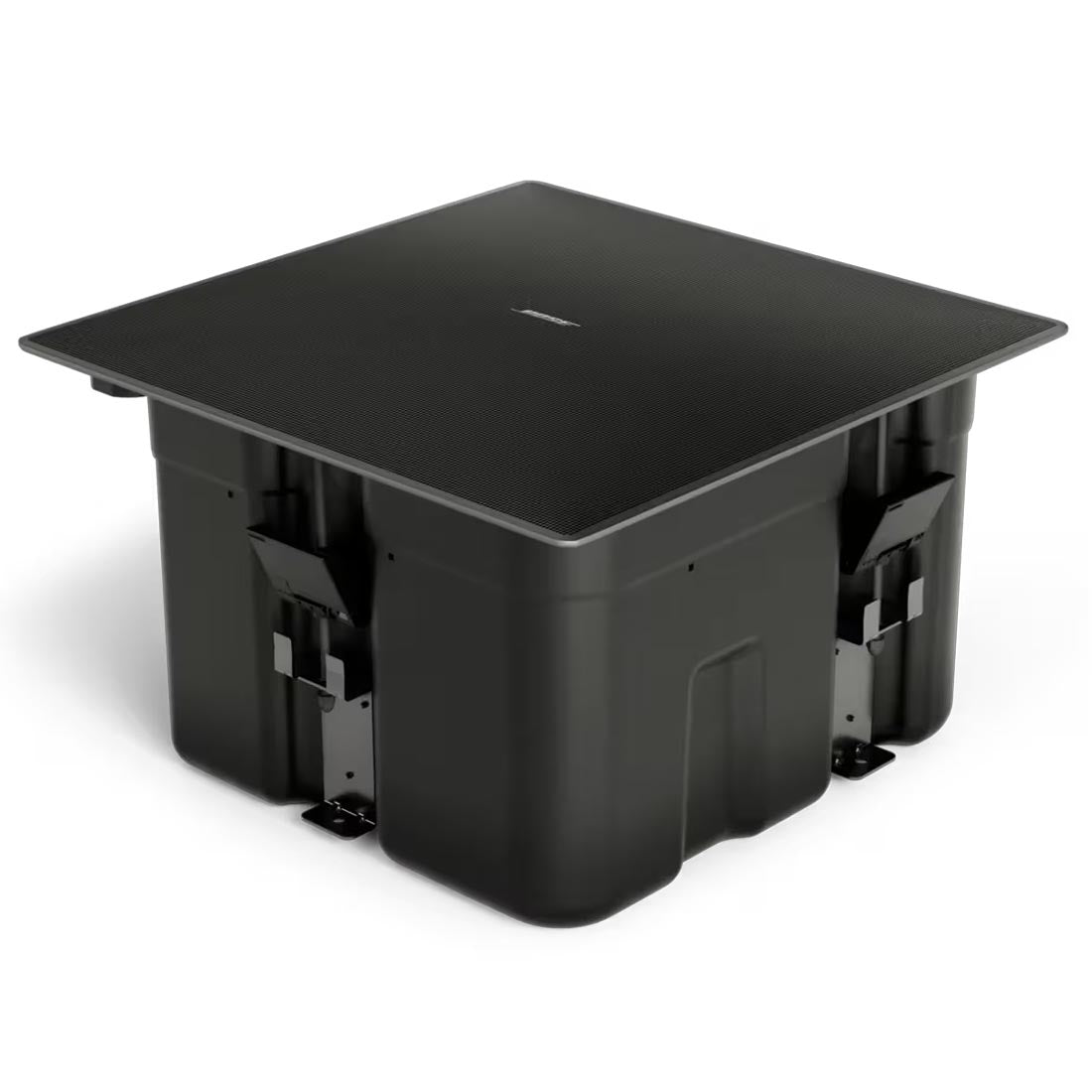

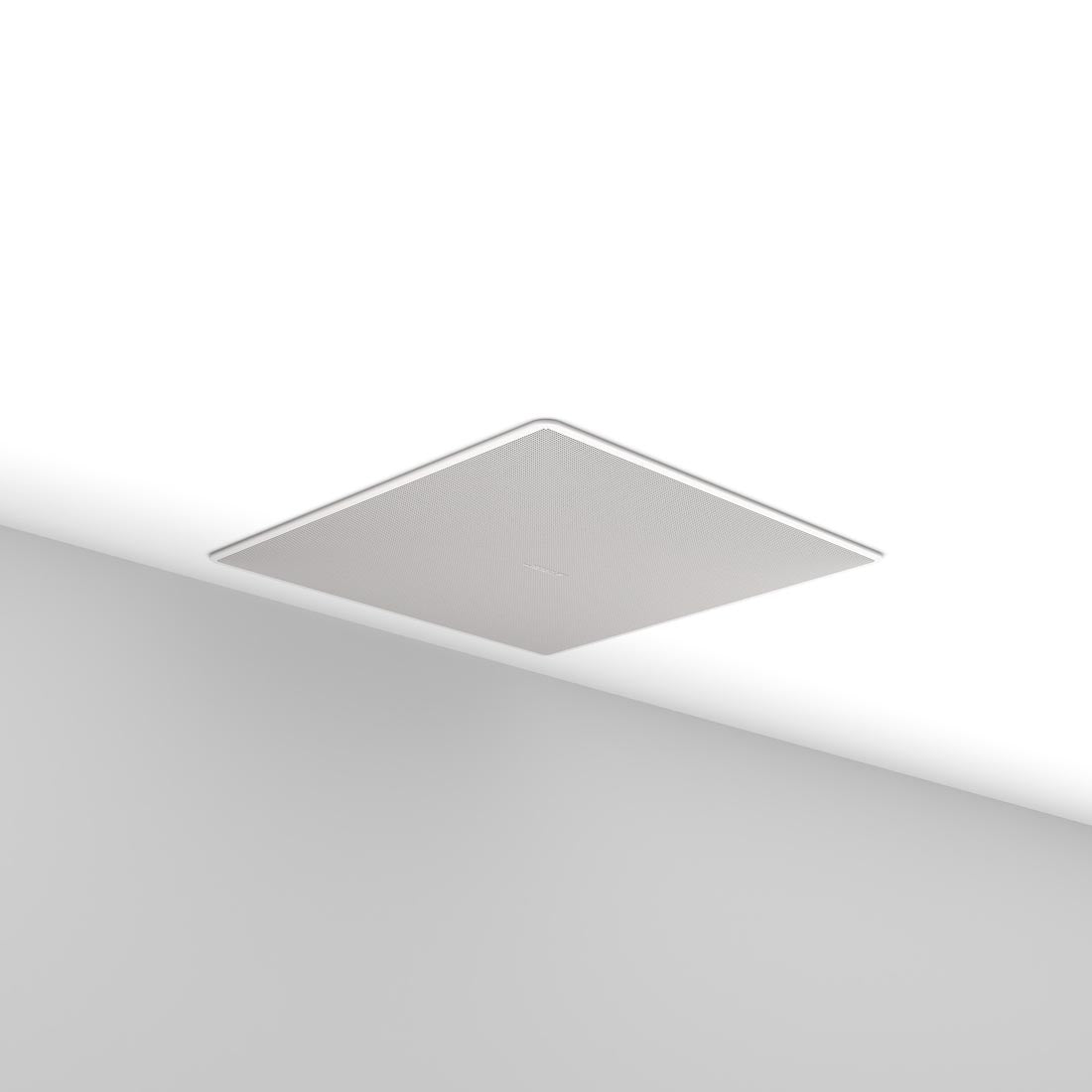

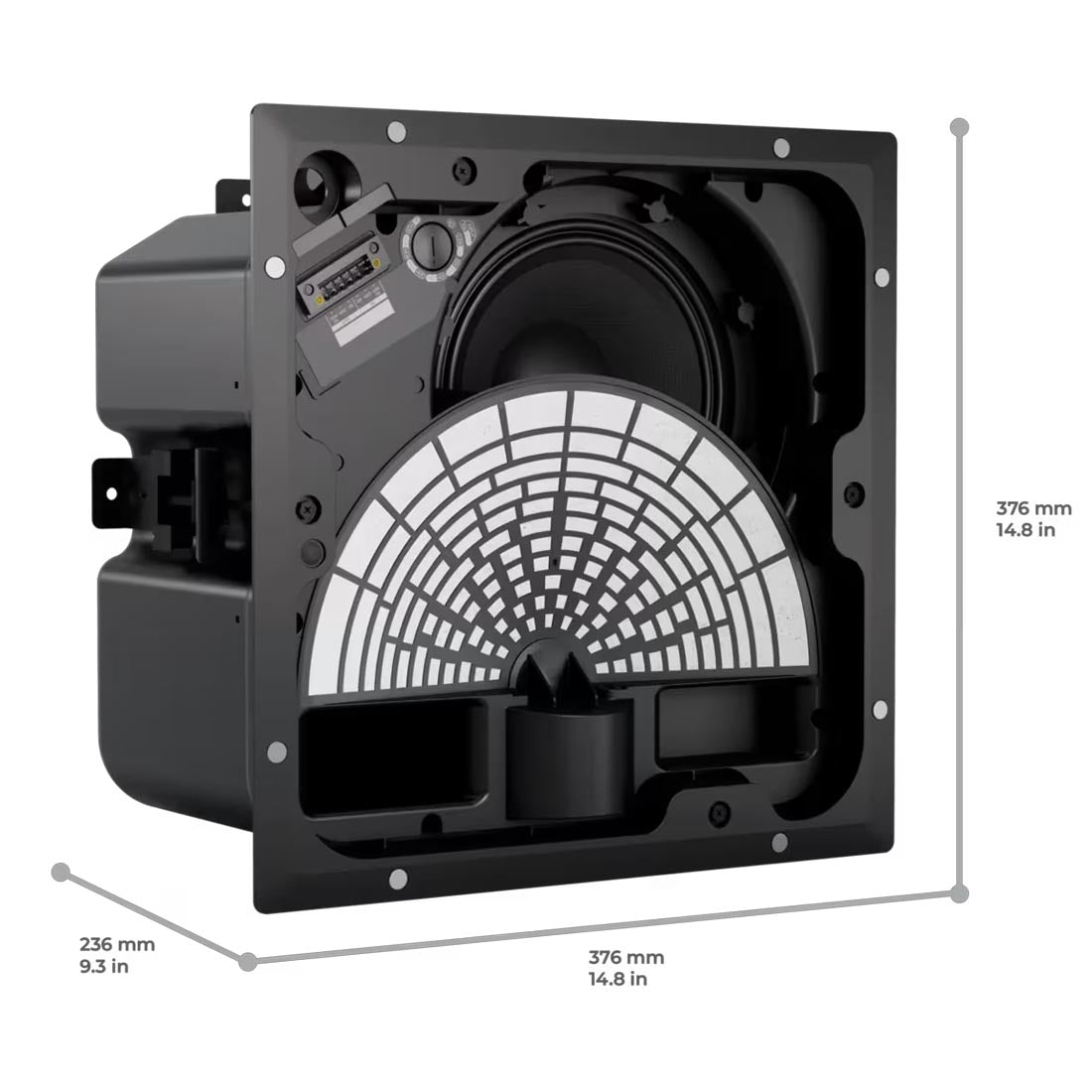

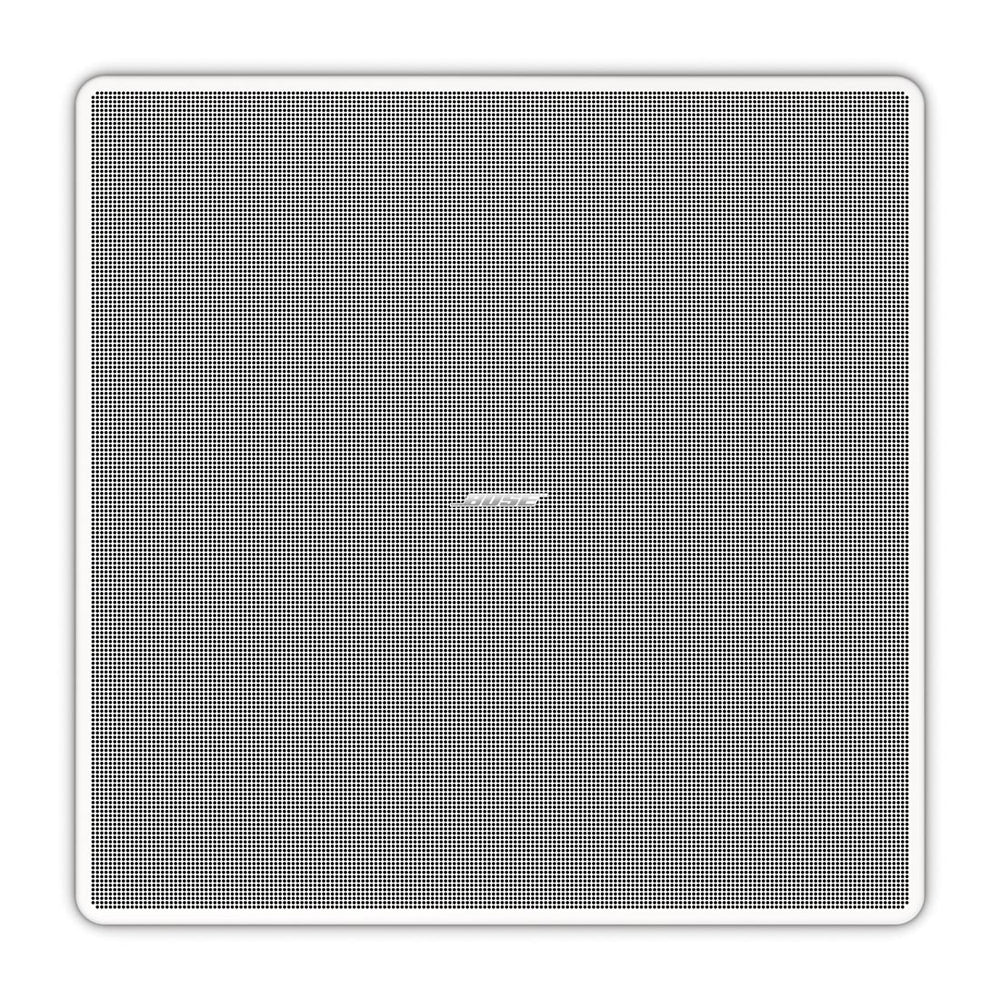

Its in-ceiling mount keeps the visual footprint low, and the magnetically attached grille allows quick access to wiring and tap settings. The QuickHold spring-loaded mounting system speeds up the process, and the paintable finish along with an optional black grille (sold separately) ensures it blends perfectly with any décor. Measuring 13.4 inches square and weighing 22.2 pounds with the grille, it feels solid and professional while remaining unobtrusive in any space.

Built to Professional Standards

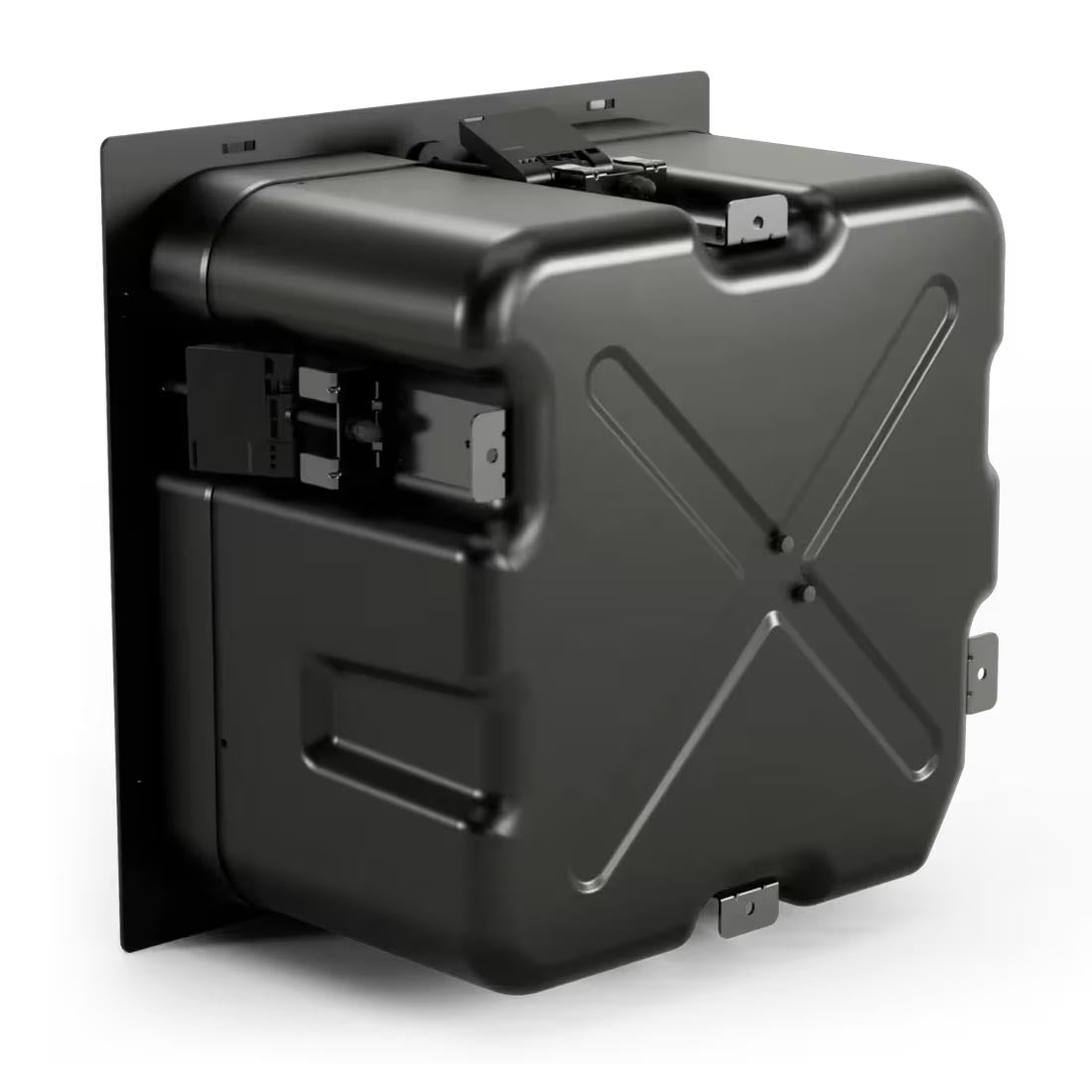

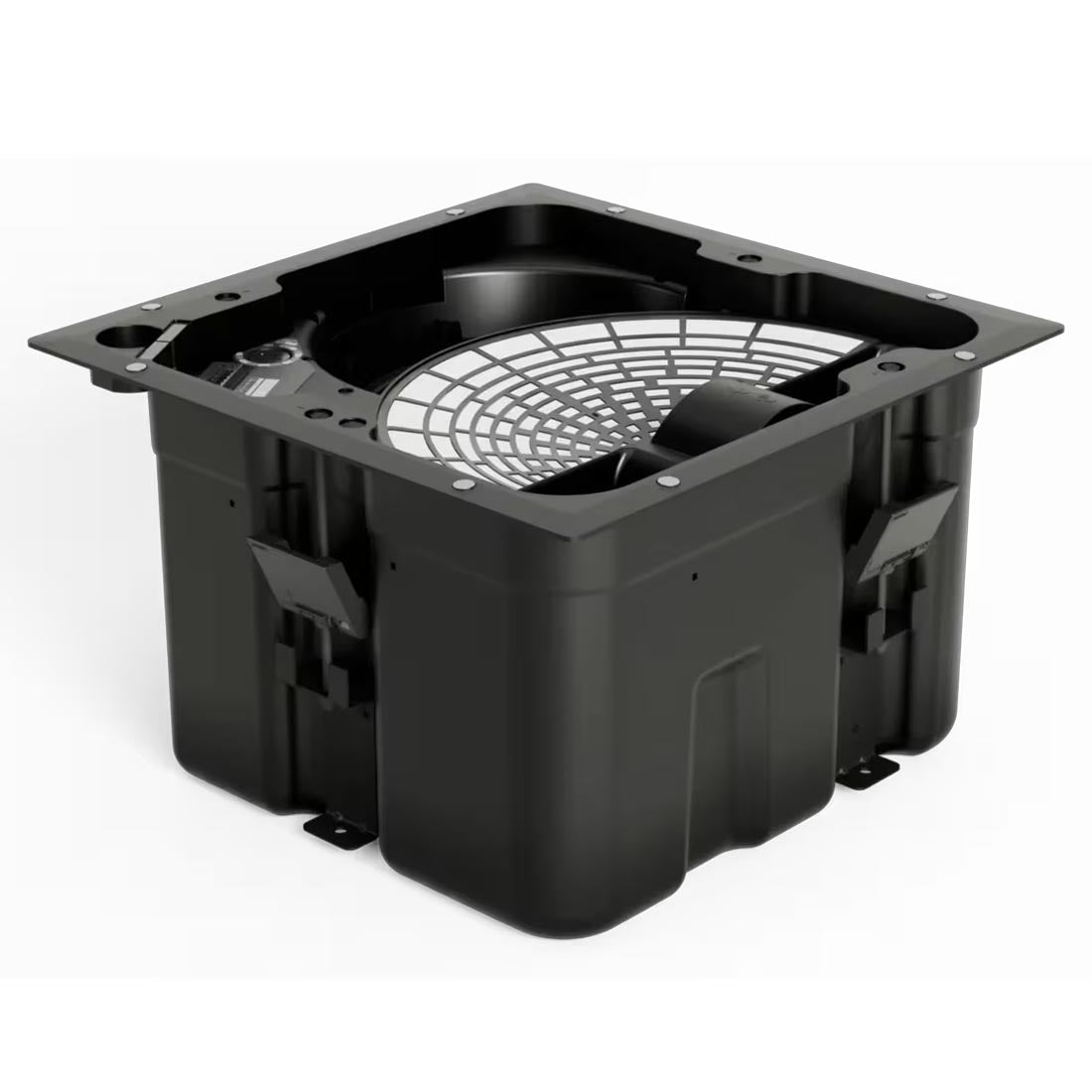

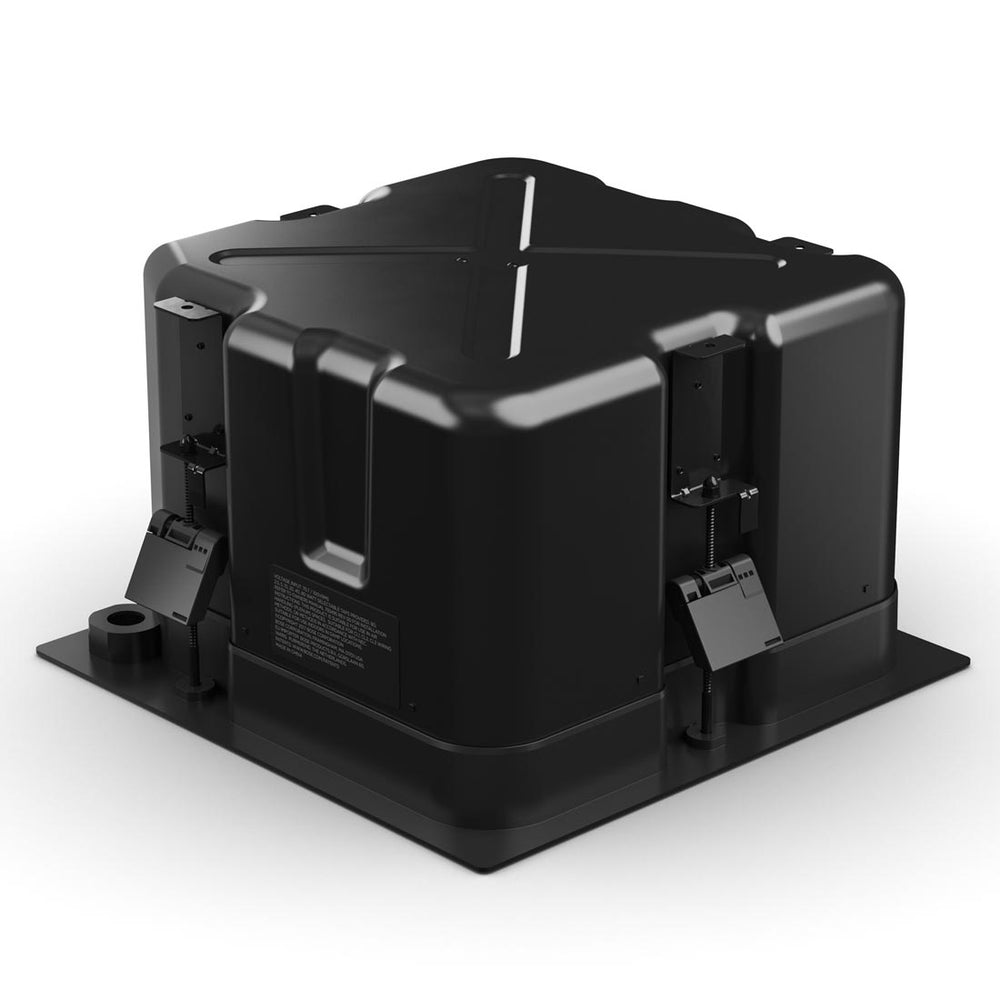

The Bose EM180 meets UL 1480A and UL 2043 safety standards and is approved for plenum-space installations. Constructed with engineered plastics and an integrated steel enclosure, it is built to last in indoor commercial environments such as bars, hospitality venues, performance spaces, and houses of worship.

The Bose EM180 is the go-to choice when you want exceptional coverage, consistent sound, and a discreet design that does not compromise on performance. Built for the most demanding commercial spaces, it delivers the clarity and power needed to keep your audience engaged from every corner.

Want to know how the Bose EM180 can enhance your space? Call or visit us today to speak with an audio specialist and design your ideal audio setup.

FAQs

1. What is the power handling capability of the Bose EM180? It supports 125 watts continuous and 500 watts peak, delivering strong performance without sacrificing clarity.
2. How does the PhaseGuide® technology improve sound? It projects audio from the edges of the room toward the center, ensuring every listener hears the same quality sound.
3. Is the Bose EM180 suitable for high-ceiling spaces? Yes, its 75° vertical coverage, deep 9-inch cans, and strong SPL capabilities make it ideal for rooms with higher ceilings.
4. What types of venues benefit most from the EM180? It is great for fitness clubs, hospitality venues, bars, restaurants, and performance spaces needing even and powerful sound.
5. Does the Bose EM180 offer consistent sound with other EdgeMax models? Yes, it has consistent voicing across the EdgeMax family, making it easy to use in multi-model setups.
