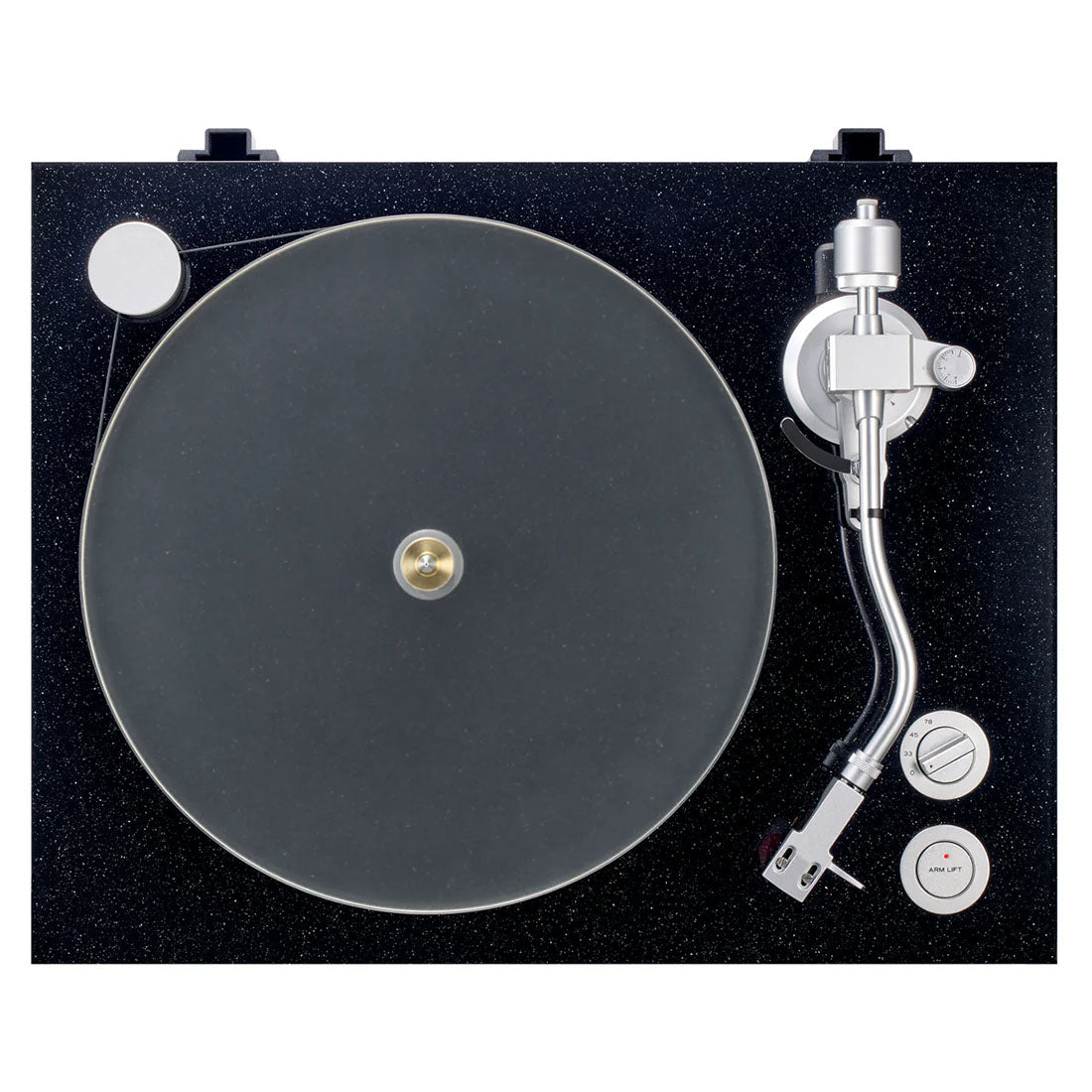

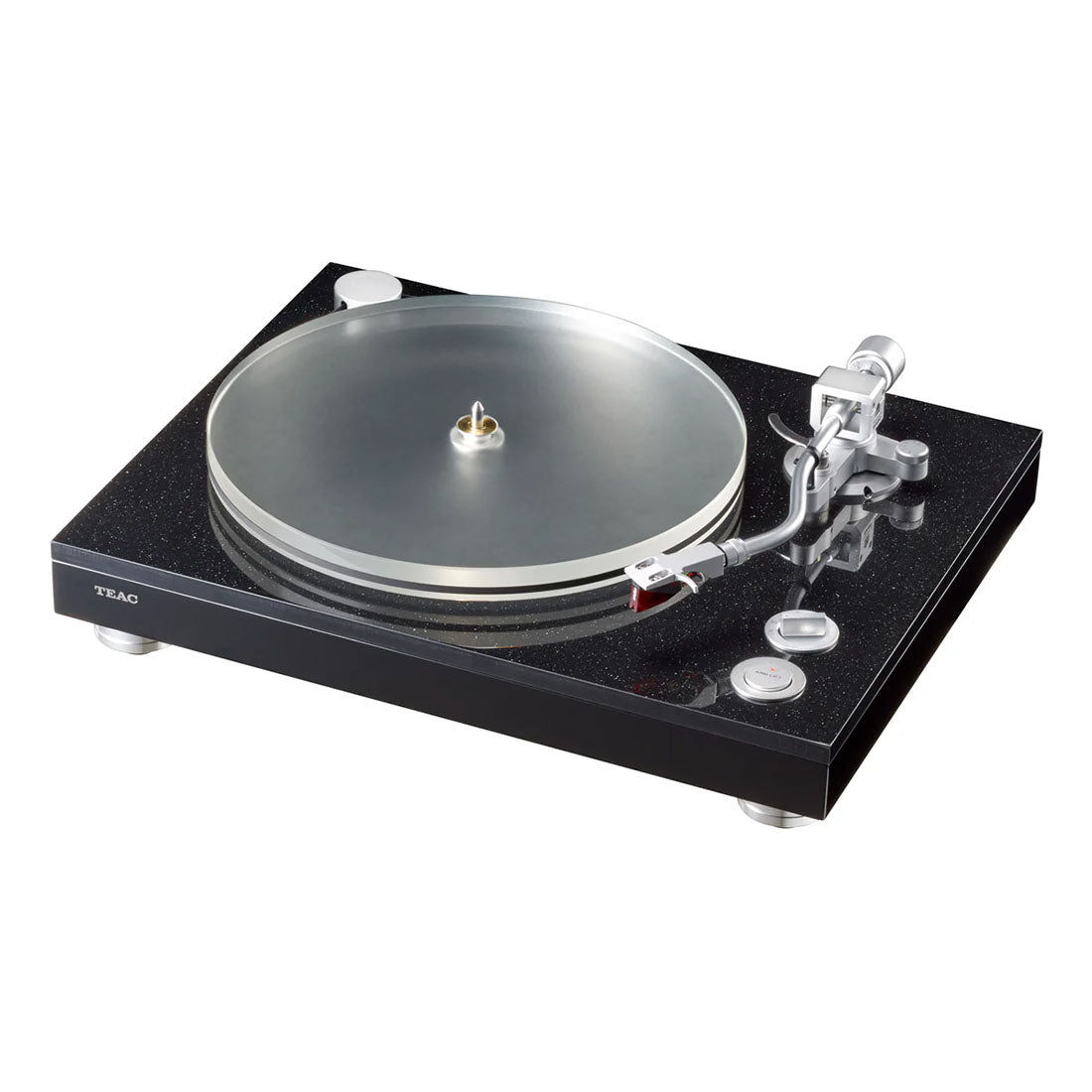

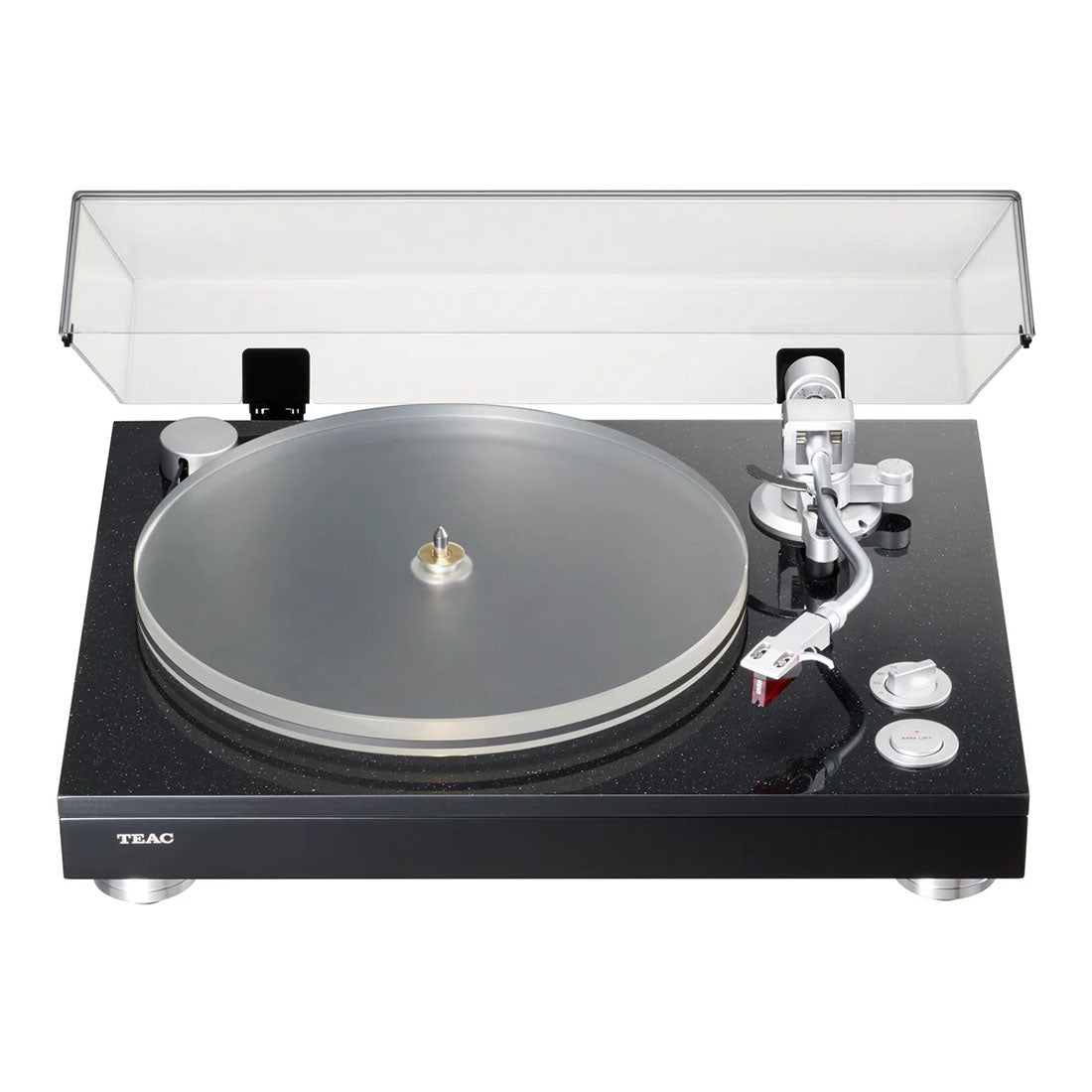

TEAC TN5BBMB Manual Belt-Drive Turntable - Black

TEAC TN5BBMB Manual Belt-Drive Turntable - Black

The Teac TN5BBMB Manual Belt-Drive Turntable is a masterpiece for vinyl enthusiasts who demand both style and performance. With its hybrid chassis and attention to detail, this turntable offers a rich, immersive listening experience that stands out in a crowded market. Let’s dive into the features that make the Teac TN5BBMB an excellent choice for audiophiles.

Hybrid Chassis for Vibration Suppression

One of the standout features of the Teac TN5BBMB is its sophisticated hybrid chassis. This turntable incorporates a multi-material structure that’s designed to reduce unwanted vibrations, a crucial factor in maintaining sound clarity. The chassis is built with a heavy 36mm MDF baseplate combined with a 12mm synthetic marble top plate, both contributing to exceptional rigidity and sound isolation.

The unique design isolates the tonearm and motor by mounting them on separate materials—synthetic marble for the tonearm and MDF for the motor. This setup effectively reduces any transmission of vibrations from the motor to the tonearm, ensuring cleaner sound reproduction. The result is a turntable that offers superior stillness and a distortion-free playback.

PRS3 Belt Drive System for Stable Rotation

The Teac TN5BBMB uses a PRS3 belt drive system, a key component that enhances platter rotation precision. Powered by a DC motor, this system utilizes a flat belt to transfer power to the platter. An optical sensor detects the platter’s speed, and an automatic adjustment mechanism corrects any deviations. This ensures the platter maintains consistent rotation at speeds of 33-⅓, 45, and 78 rpm—perfect for both modern and vintage records. Whether you're playing 78 rpm records or your favorite vinyl, the Teac TN5BBMB ensures a high level of accuracy and stability.

20mm Thick Acrylic Platter for Excellent Sound Quality

A 20mm thick acrylic platter weighs 1.7kg, offering the ideal balance between mass and inertia for stable rotation. Acrylic’s properties make it an excellent material for minimizing static electricity, which can interfere with the sound. It shares similar electrical characteristics to vinyl records, ensuring that the record and platter don't create unwanted charges when they come into contact. The result? Clear, unblemished sound every time you play a record.

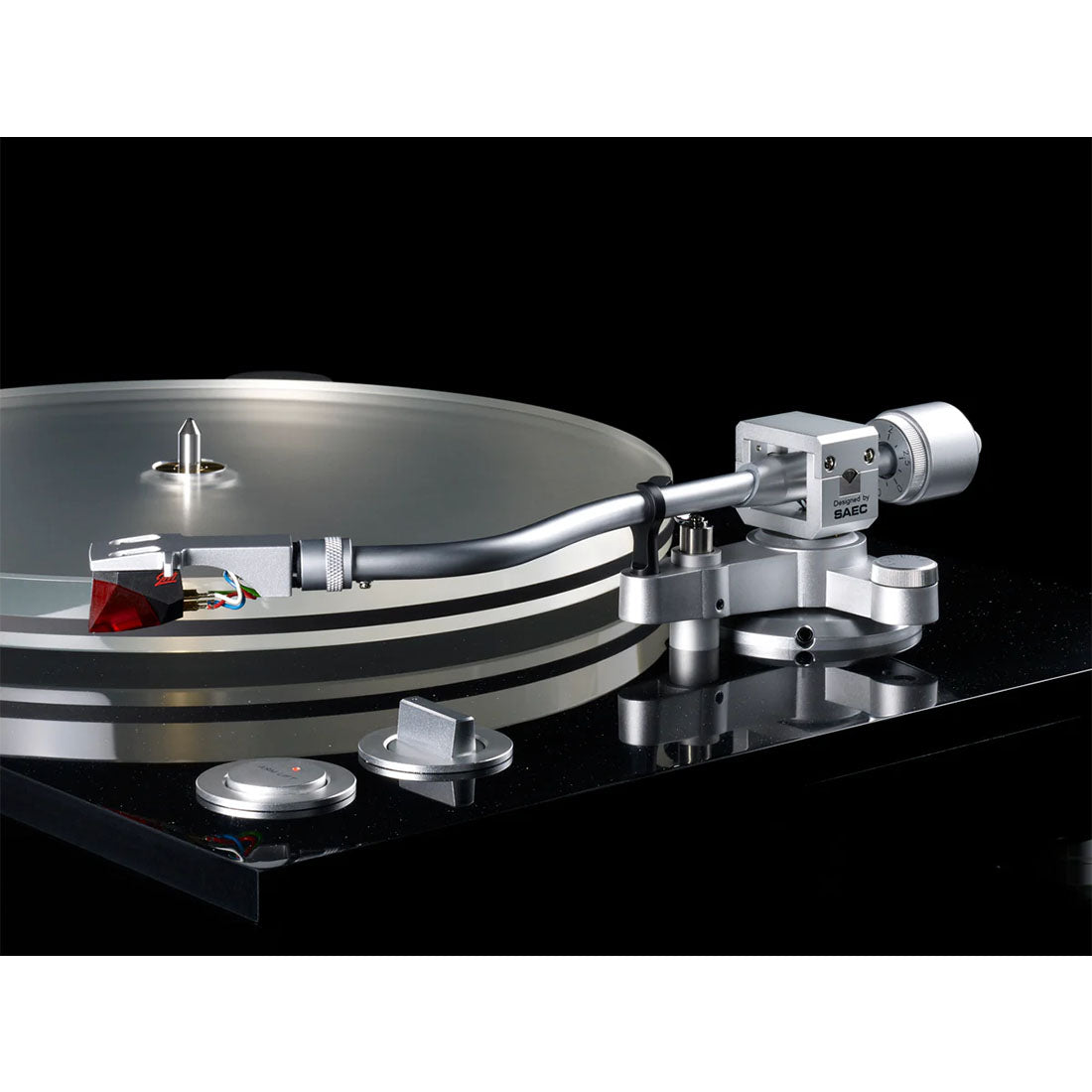

Collaboration with SAEC for a Superior Tonearm

The tonearm on the Teac TN5BBMB is a product of a special collaboration with SAEC, a renowned Japanese brand with decades of expertise in tonearm design. The knife-edge bearing structure, featuring stainless steel for vertical movement, ensures highly sensitive and precise tracking of your records. The lateral movement utilizes high-precision Japanese-made ball bearings, offering excellent reliability and minimizing distortion.

What’s more, the tonearm features an adjustable base, allowing you to fine-tune the Vertical Tracking Angle (VTA), which helps optimize playback for different cartridges.

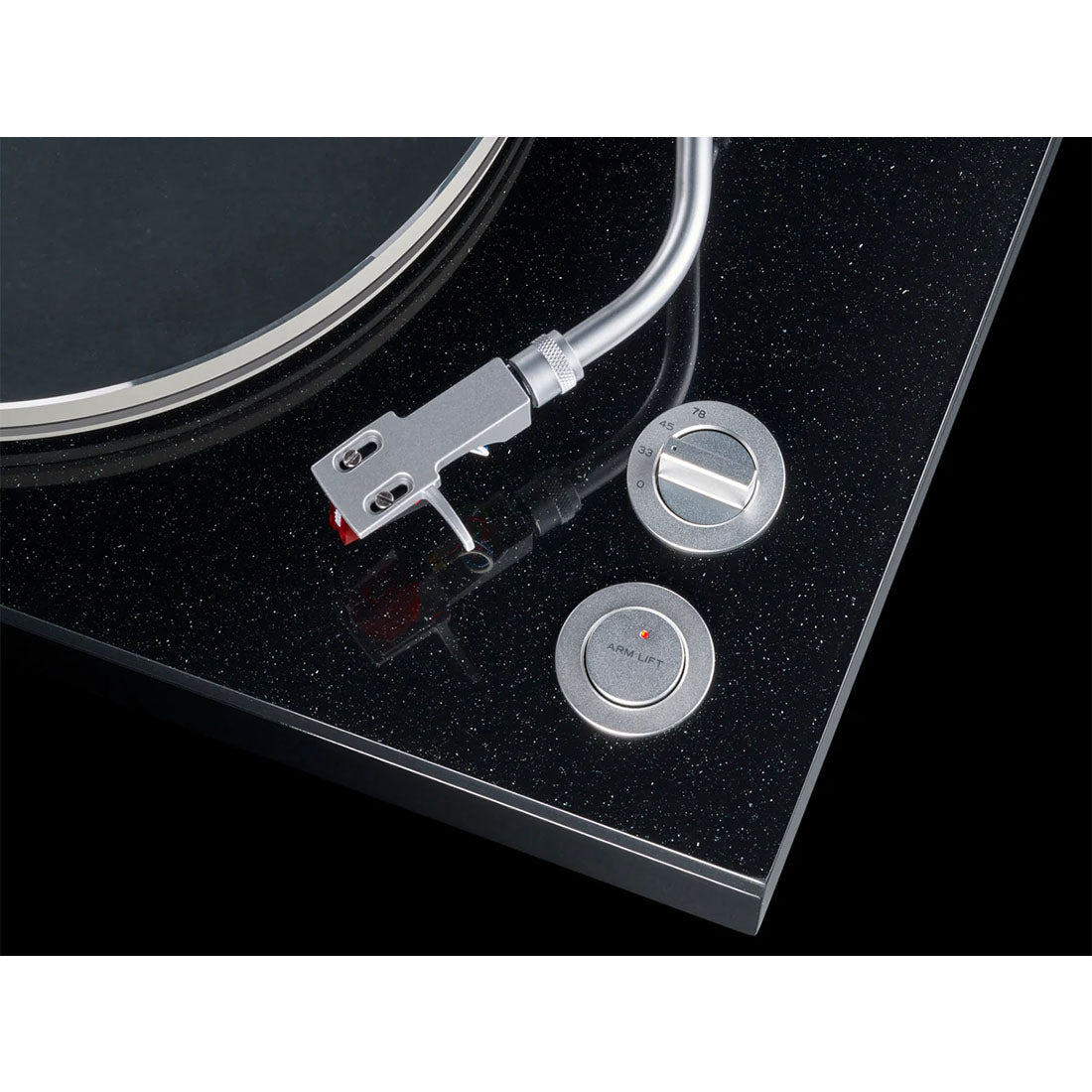

Automatic Arm Lifter and Easy Operation

The Teac TN5BBMB goes beyond high-quality sound with practical features like its automatic arm lifter. After the last track ends, an optical sensor lifts the arm without any manual intervention. This ensures your stylus won’t accidentally damage your vinyl. Plus, the arm lifting function can be disabled when playing non-standard records, giving you flexibility when needed.

Ortofon 2M RED Cartridge Included

The Ortofon 2M RED cartridge is included with the Teac TN5BBMB, making setup incredibly easy. This highly regarded moving magnet (MM) cartridge is pre-installed and aligned with the headshell, allowing you to enjoy your records right out of the box.

Sleek and Elegant Design

In terms of design, the Teac TN5BBMB is a visual delight. Its piano black finish and synthetic marble top plate combine to create a sleek, modern aesthetic. The contrast of pearl black and piano black accents adds a touch of elegance to any room, while the extruded aluminum components provide a luxurious feel for the operation knobs and arm lift switch.

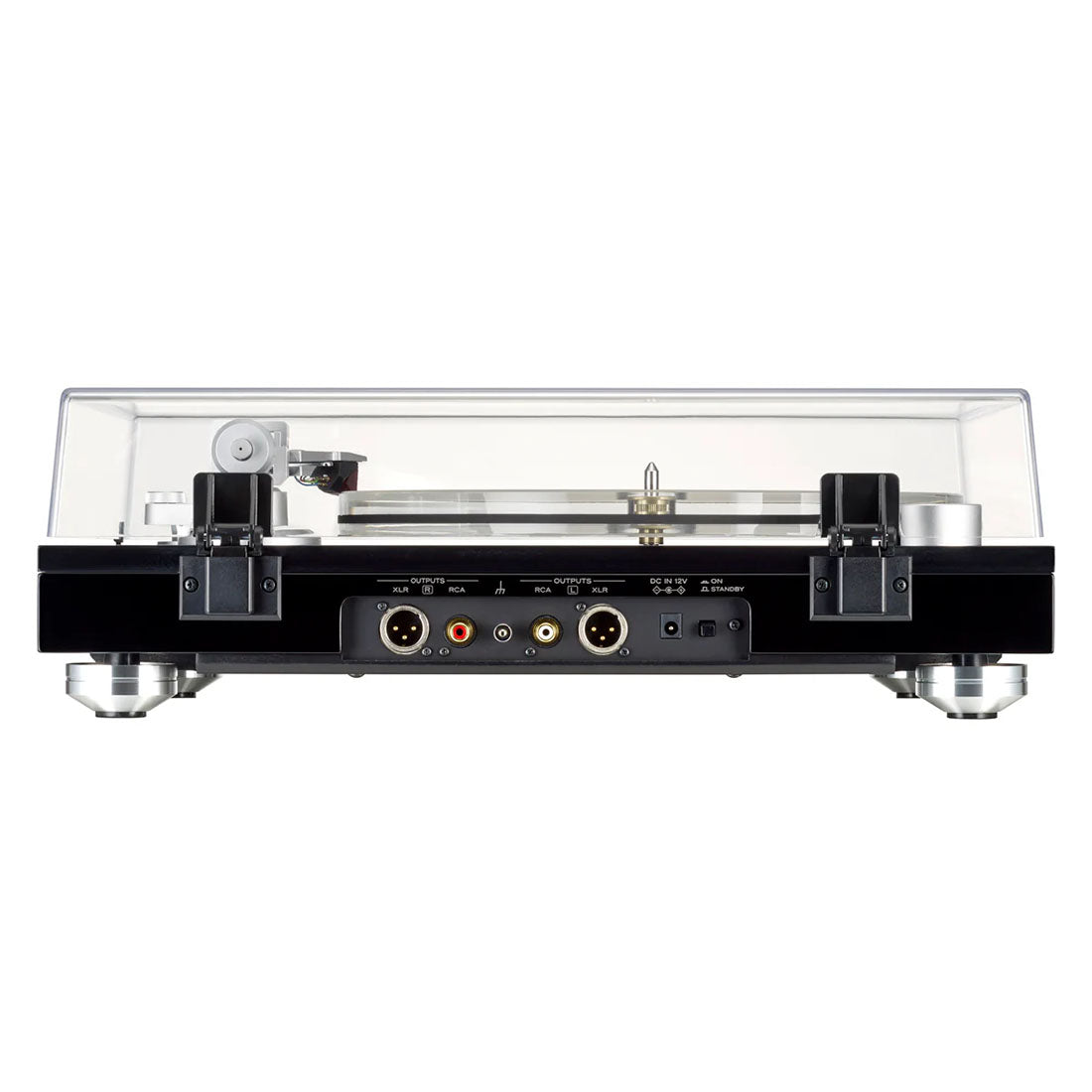

Versatile Output Options

The Teac TN5BBMB doesn’t just excel in sound; it also offers flexibility in output options. With both RCA connectors and XLR balanced output connectors, this turntable is compatible with a wide range of audio equipment. Whether you’re connecting to a traditional receiver or a high-end phono preamp, the Teac TN5BBMB has you covered.

This turntable isn’t just about looks or technical features—it’s about creating the perfect audio experience. The Teac TN5BBMB strikes a delicate balance between modern engineering, classic design, and exceptional sound quality, making it an excellent choice for any vinyl lover.

Frequently Asked Questions

How does the Teac TN5BBMB reduce vibrations?
The turntable features a multi-material hybrid chassis that combines a 36mm MDF baseplate and a 12mm synthetic marble top plate. This design isolates the tonearm and motor to prevent vibrations from affecting sound quality.

What makes the PRS3 belt drive system special?
The PRS3 system ensures precise platter rotation by using a flat belt and an optical sensor to monitor speed. It provides consistent and accurate rotation for a high-quality listening experience.

Can the Teac TN5BBMB play 78 rpm records?
Yes, the turntable supports 33-⅓, 45, and 78 rpm speeds, allowing you to play both modern and vintage records with optimal sound quality.

What is the benefit of the Ortofon 2M RED cartridge?
The Ortofon 2M RED is a highly regarded MM cartridge that provides excellent sound reproduction. It comes pre-installed and aligned, so you can start listening to your records right away.

Is the Teac TN5BBMB compatible with different audio equipment?
Yes, the turntable features both RCA and XLR balanced output connectors, allowing you to connect it to a variety of audio systems and phono preamps.
