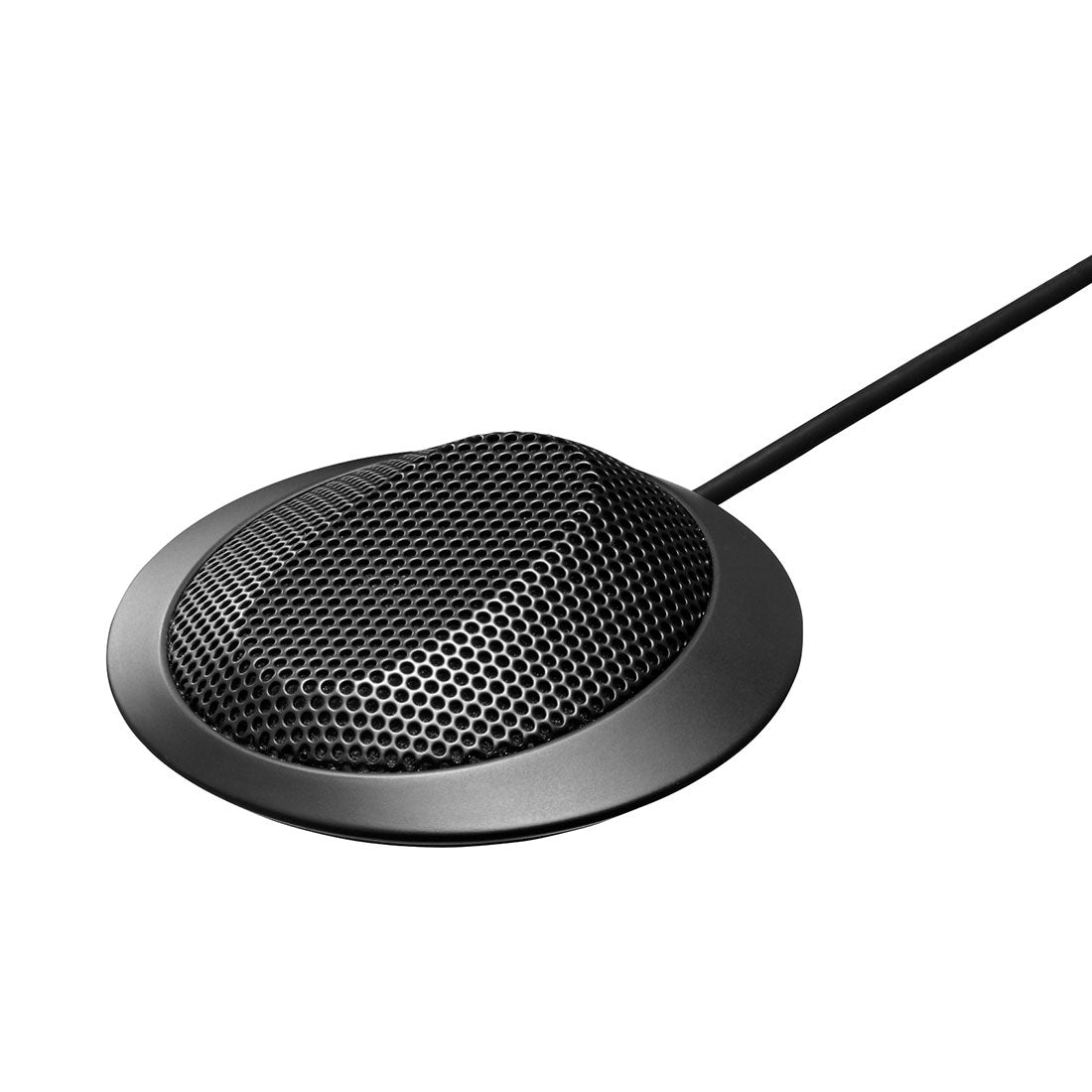

TOA EM-700 Boundary Microphone

TOA EM-700 Boundary Microphone

The EM-700 is a low-profile, premium cardioid condenser microphone that may be mounted on a conference room table top or lecture desk. When put on a flat surface, it has the best acoustic properties for sound pickup applications, resulting in clean, natural sound quality. The EM-700 requires 9 - 52 V DC phantom power for operation.

Specifications

• Element: Electret condenser
• Polar Pattern: Cardioid
• Rated Impedance: 120 ?, balanced
• Rated Sensitivity: -33 dB (1 kHz 0 dB=1 V/Pa)
• Phantom Power: 9 - 52 V DC
• Frequency Response: 35 Hz - 20 kHz
• Low Cut: 100 Hz, -12 dB/oct
• Output Connector: XLR-3-12 equivalent
• Cord Length: 7.5 m (24.61 ft)
• Operating Temperature: 0 ? to +40 ? (32 ?F to 104 ?F)
• Finish: Body: Die-cast aluminum, black, mat finish, paint, Punched net: Surface-treated steel plate, black, mat finish, paint
• Dimensions: 83 (W) × 23 (H) × 83 (D) mm (3.27" × 0.91" × 3.27") (cord excluded)
• EM-700 weight: 290 g (0.64 lb)
