TOA FB-120W 12" 600W Subwoofer
Product Descriptions
Product Descriptions

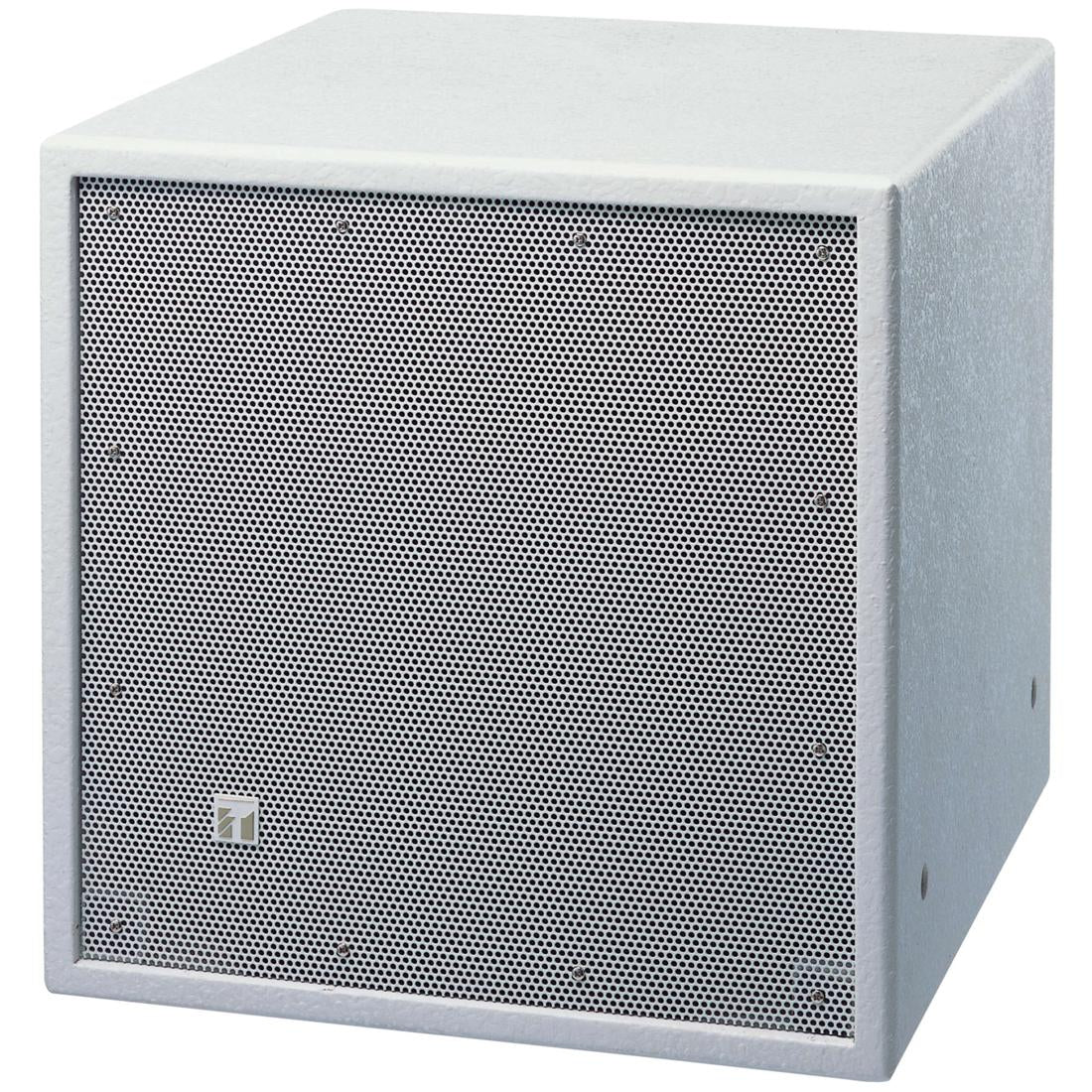

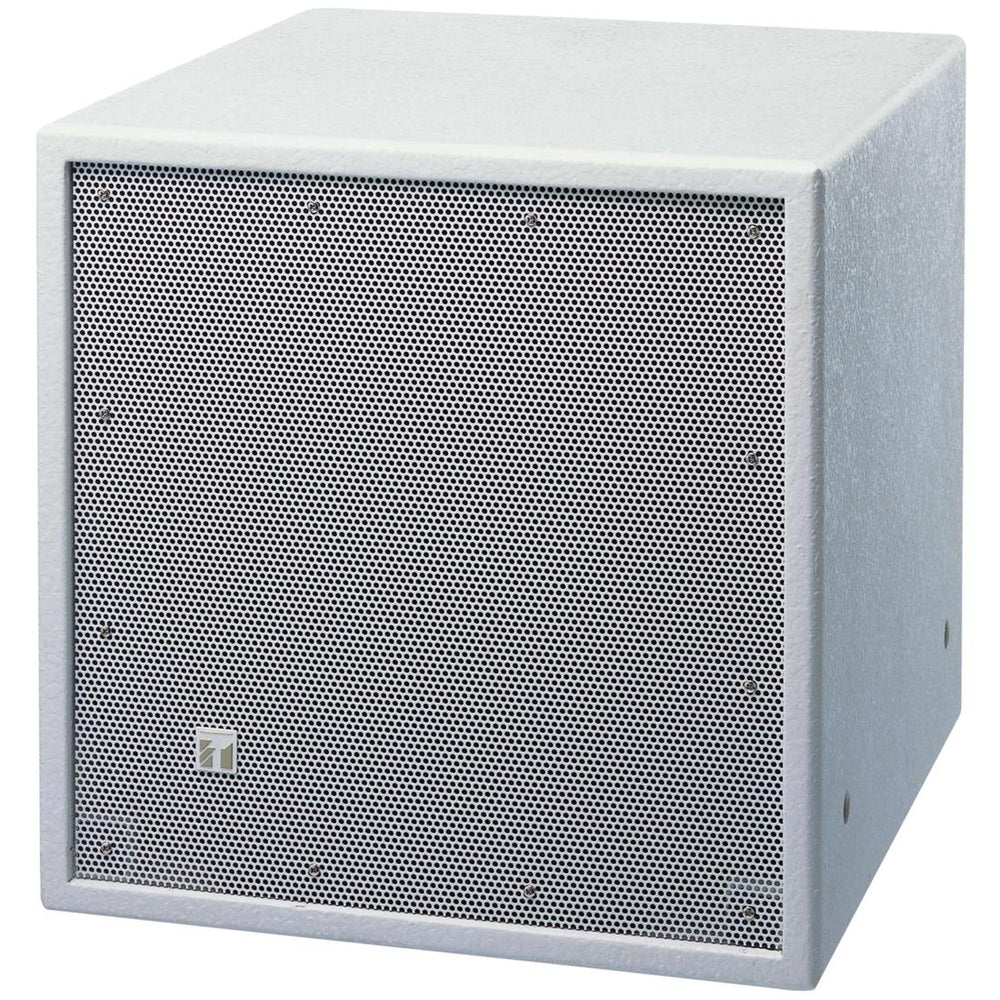

TOA FB-120W 12-Inch 600 W Installation Subwoofer
The TOA FB-120 is a compact, indoor-use subwoofer system that combines a high-power 12-inch driver with flexible mounting options, giving venues reliable low-frequency reinforcement without taking up floor space.
Deliver Tight, Controlled Bass with 600 W Power
A 30 cm (12") cone transducer handles up to 600 watts of program material, extending response down to 40 Hz. The result is punchy, dynamic low end that adds impact to music or spoken word systems in houses of worship, schools, arenas, and corporate spaces.
- Continuous pink-noise rating of 200 W ensures dependable day-to-day operation.
- 90 dB sensitivity (1 W/1 m, free field) means high output without demanding amplifier power.
- 8 Ω nominal impedance pairs easily with common installation amplifiers or active processors.
Integrate Seamlessly with TOA HX-5 or Other Full-Range Speakers
The FB-120 subwoofer is designed for use with the TOA HX-5 speaker system or other full-range speakers, and is particularly ideal for reproducing dynamic low-frequency sound. Parallel Speakon connectors and M4 screw terminals allow for cascading multiple units for straightforward, powerful bass reinforcement in larger rooms.
Mount It Your Way—Floor, Wall, Corner, Ceiling, or Rigging Frame
At only 408 × 408 × 450 mm and 15 kg, the plywood enclosure fits where larger boxes cannot. Built-in carry handles simplify temporary setups, while an optional HY-PF1W frame supports permanent flown or wall installations. A surface-treated steel grille protects the driver.
Frequently Asked Questions
-
Can the FB-120W be flown overhead?
Yes (by professionals with the requisite technical knowledge and experience). Use M8 eyebolts or the optional HY-PF1W rigging frame to suspend the subwoofer.
-
What amplifier power do I need?
An amplifier that delivers 200 W RMS to an 8 Ω load is sufficient for continuous operation, while up to 600 W provides full program headroom.
-
How do I connect multiple subwoofers?
Link FB-120W units in parallel using the dual Speakon NL4MP connectors. Ensure the combined impedance matches your amplifier’s rating.
Add the TOA FB-120W to your cart today to bring controlled, room-filling bass to your next installation. For guidance on amplifier matching or system design, call or visit Gibbys Electronic Supermarket and speak with one of our audio specialists.
