Kanto MBC211T Menu Board Ceiling Mount System
Product Descriptions
Product Descriptions

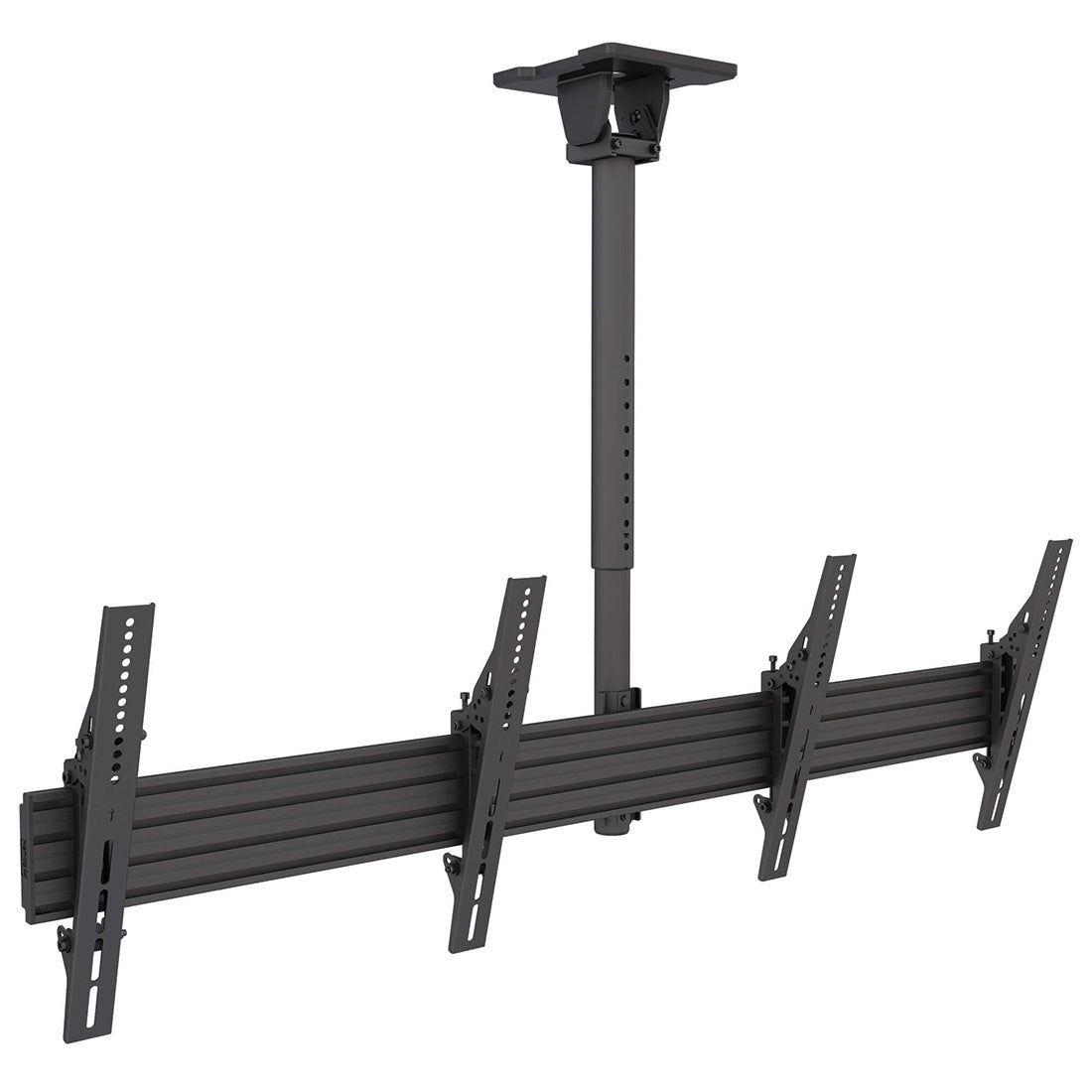

Kanto MBC211T Menu Board Ceiling Mount System
The Kanto MBC211T MB Series telescoping ceiling mount system is ideal for displaying menu boards and other digital signage in commercial applications with limited wall space. The MBC211T Menu Board Ceiling Mount System's modular rails allow three screens to be placed next to each other in portrait or landscape orientation, and precision levelling screws ensure perfect alignment. You can achieve proper line-of-sight with simple height adjustments and four distinct tilt settings. This all-in-one mounting system includes everything you need for wood and concrete installations, and it can swing up to 90 degrees to accommodate sloped ceilings and support beams.

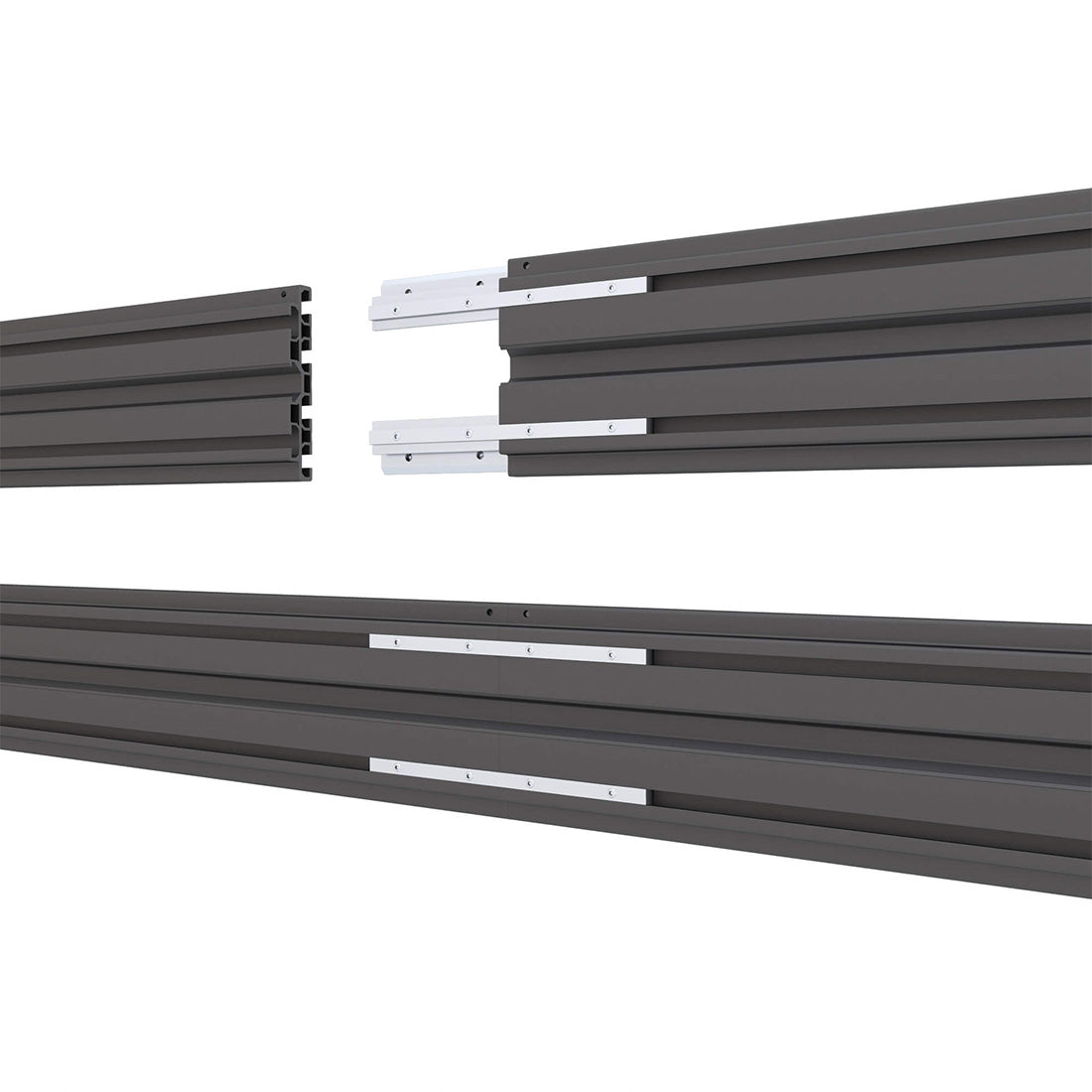

Modular Design
Available in three models, MB ceiling mounts support two to four screens weighing up to 66 pounds each. Their modular design allows for additional extrusions to be added to accommodate TVs with wider VESA patterns, or to connect multiple units together.

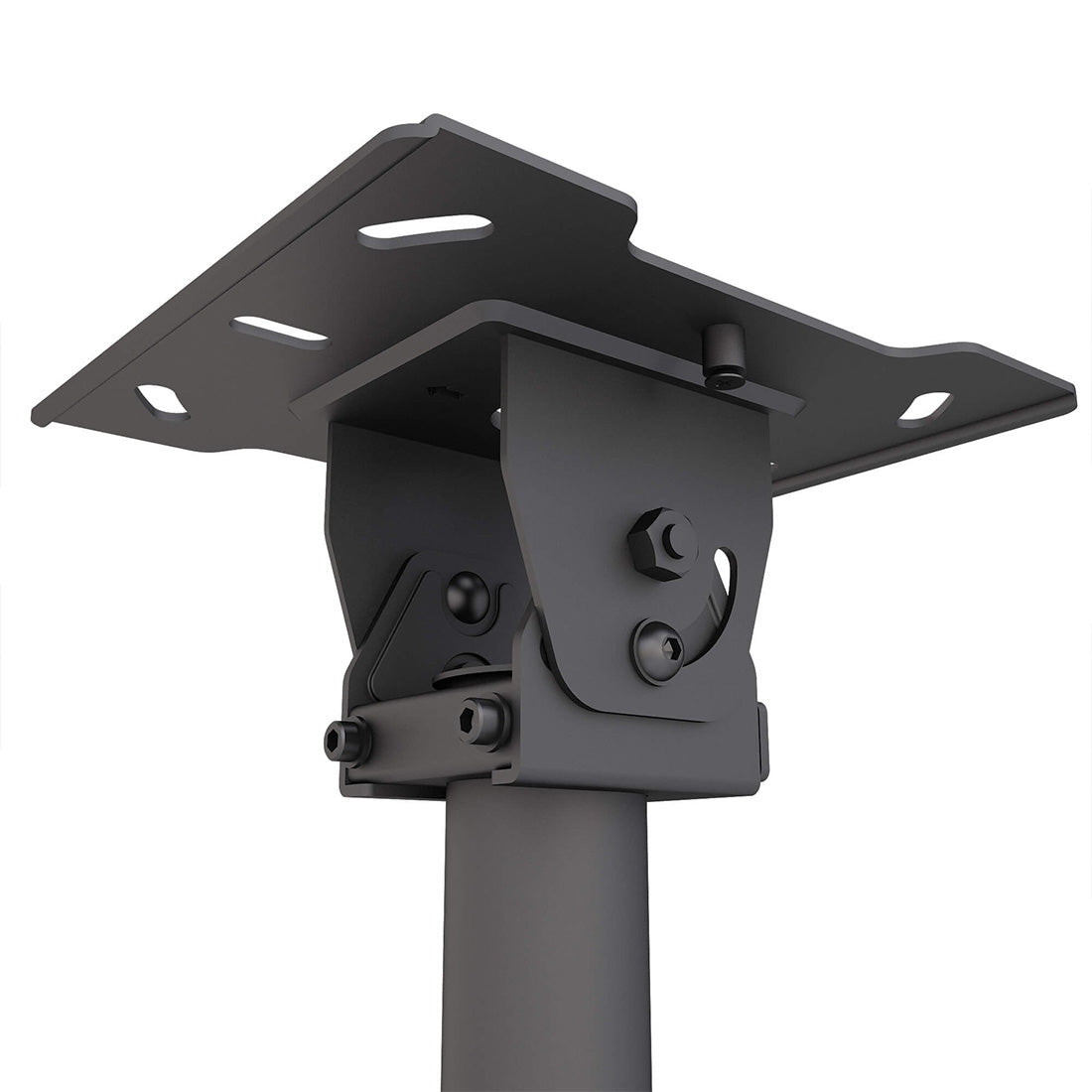

Easy Installation
To reduce strain, the MB series uses lightweight ceiling plates that are installed independent of the rest of the mounting system. Simply slide each extension pole into place and secure it to complete the installation. The ceiling plates also provide up to 90° of swing to account for sloped ceilings and support beams, or to secure the mount to a wall.
Precision Leveling
Each mounting bracket allows for micro height adjustments to be made to ensure your TVs are level and perfectly aligned.

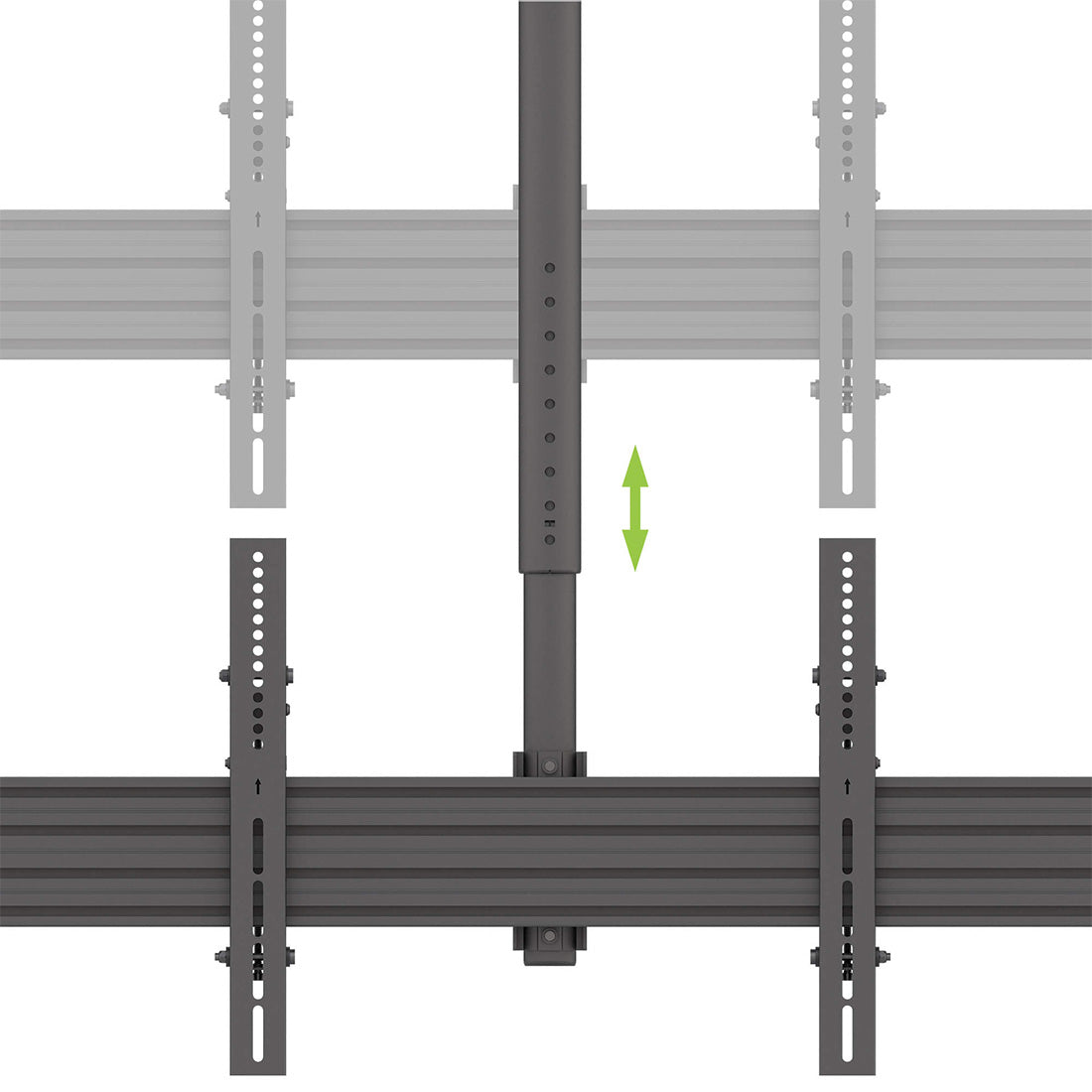

Adjustable Height
The telescoping extension pole allows you to position the center of the TV mounting plate between 24.3” and 39.3” from the ceiling. For tighter spaces, remove the inner pole to achieve a distance of 12.7" to 17".

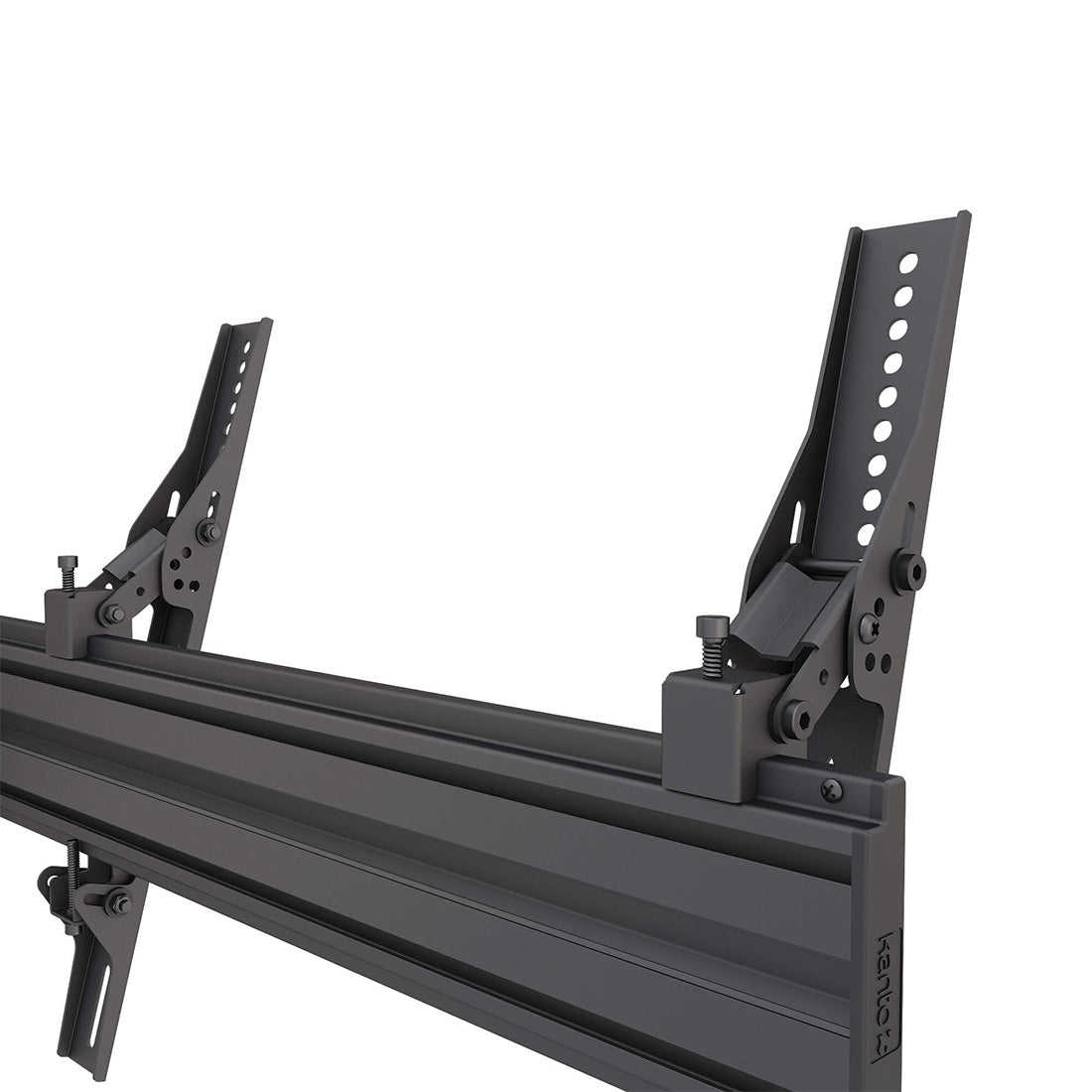

Easy Tilt
Tilt the mounting brackets 5°, 10° or 15° forward to improve line-of-sight while maintaining alignment between your screens. To compensate for potential lean, the brackets can also be angled up to 6° backward.

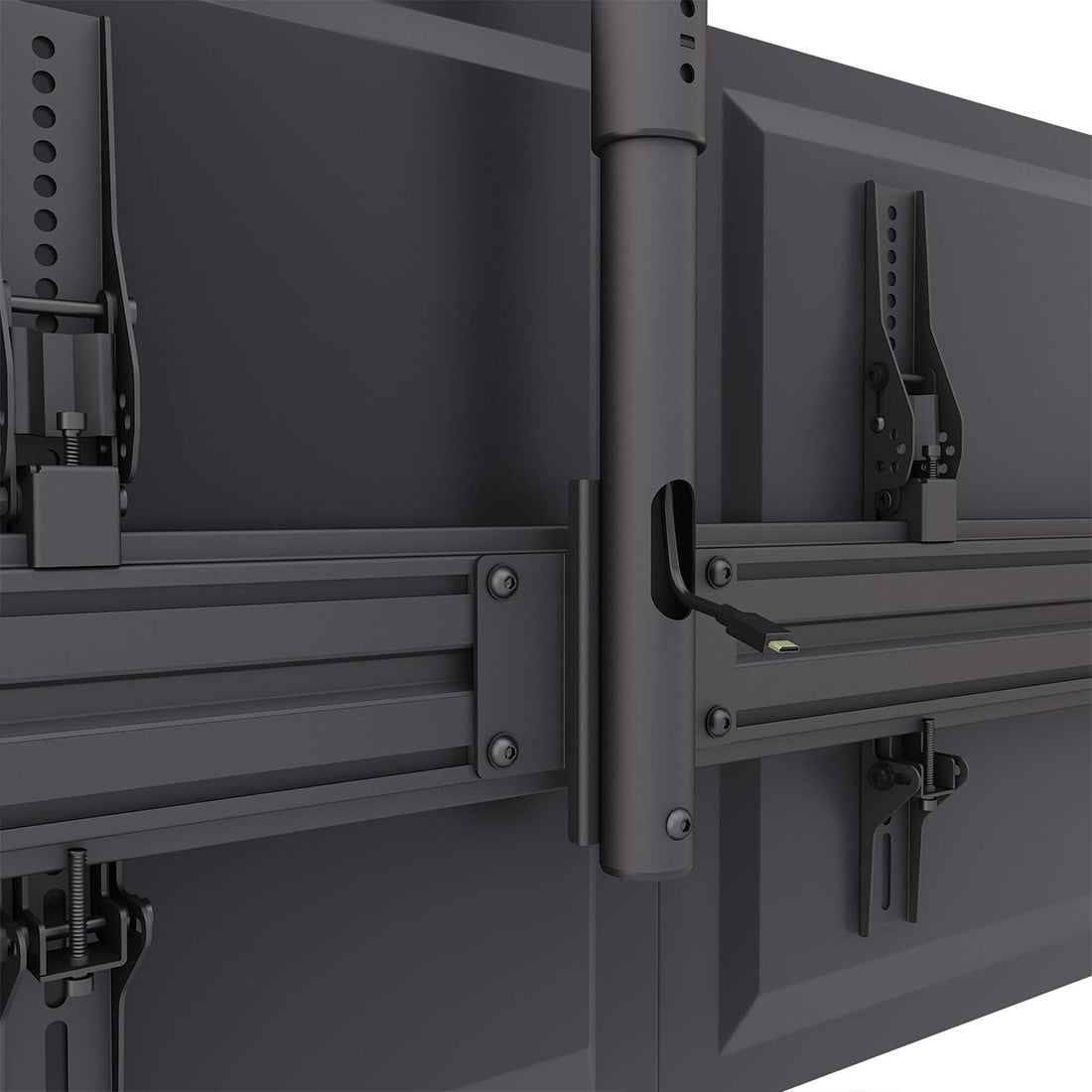

Cable Management
The extension pole’s hollow core provides an unobstructed path to route your cables, while an opening in the mounting plate allows them to continue through the ceiling for a truly professional setup.
