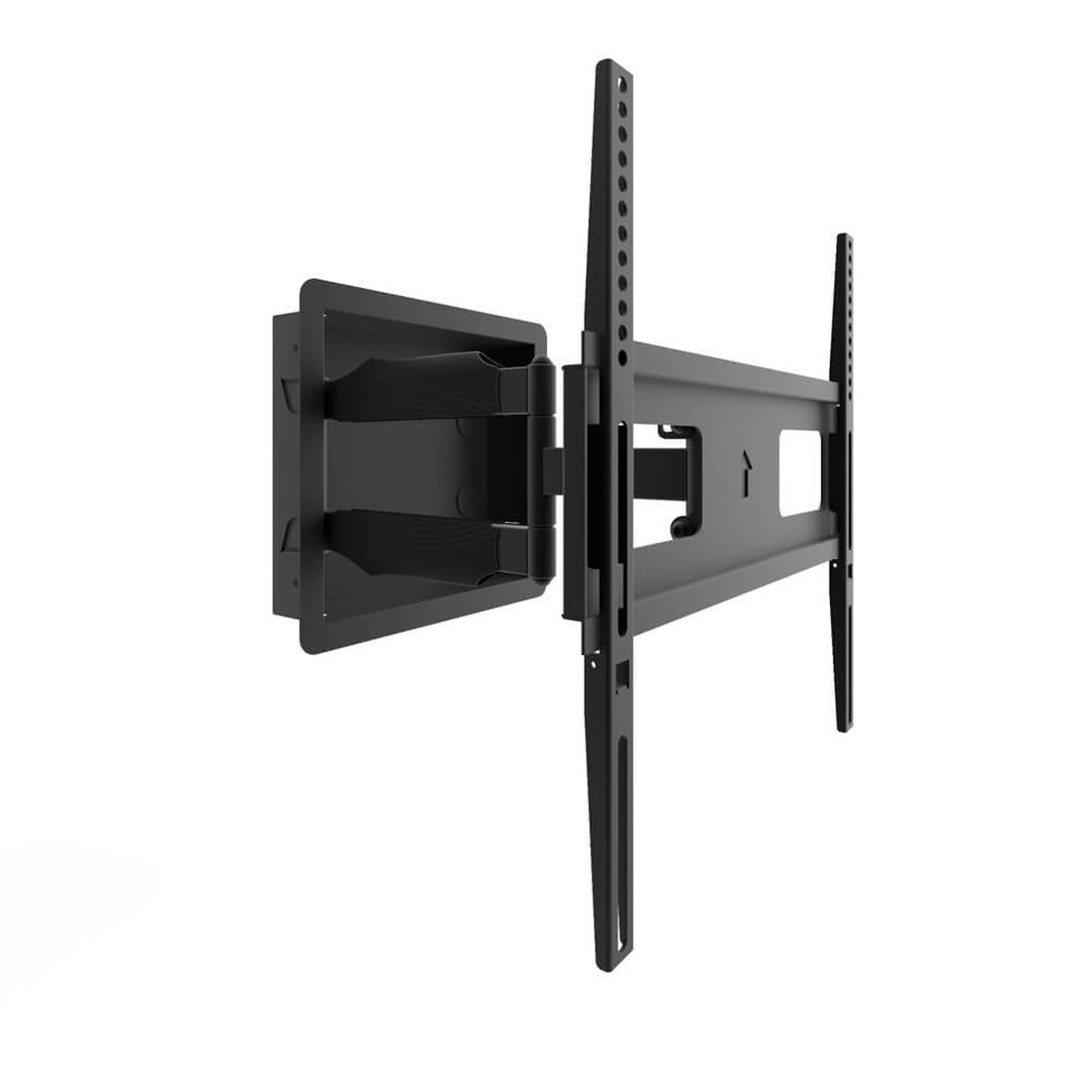

Kanto R300 Recessed Articulating TV Wall Mount with 18.5" Extension

Kanto R300 Recessed Articulating TV Wall Mount with 18.5" Extension

The Kanto R300 gives you a clean, low-profile way to mount your TV while keeping full-motion viewing flexibility. Designed for 32-inch to 55-inch TVs, this recessed wall mount fits between 16-inch stud centers and lets your screen sit just 1.25 inches from the wall when fully retracted. Need a different viewing angle? Simply extend, tilt, or swivel the TV to suit your space.

Recessed Design for a Low-Profile Setup

Unlike a traditional wall mount that sits entirely on the wall surface, the Kanto R300 uses an in-wall box designed to fit between 16-inch stud centers. This recessed design allows the articulating arm assembly to tuck neatly into the wall.

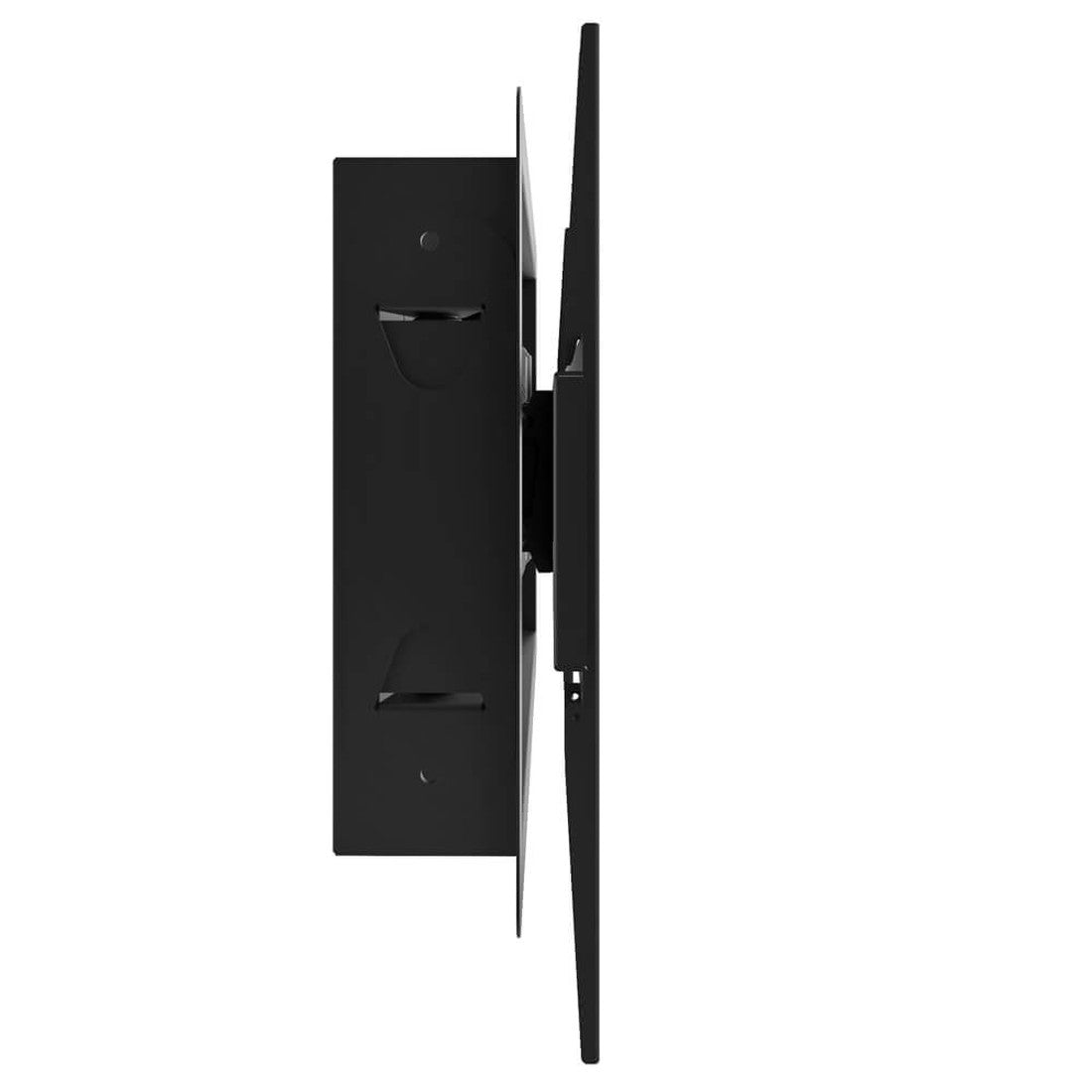

When fully retracted, your TV can sit approximately 1.25 inches from the wall. It gives you the flexibility of a full-motion mount without leaving a bulky arm assembly sitting behind the screen.

Designed for 32-Inch to 55-Inch TVs

The Kanto R300 supports TVs ranging from 32 inches to 55 inches and weighing up to 80 lb, or 36 kg. Its adjustable mounting brackets accommodate VESA patterns from 100 x 100 to 400 x 400, making it compatible with a broad range of televisions that meet its listed requirements.

The solid steel construction provides the strength needed to support your display while maintaining the mount's recessed, space-conscious design.

Extend Your TV Up to 18.5 Inches

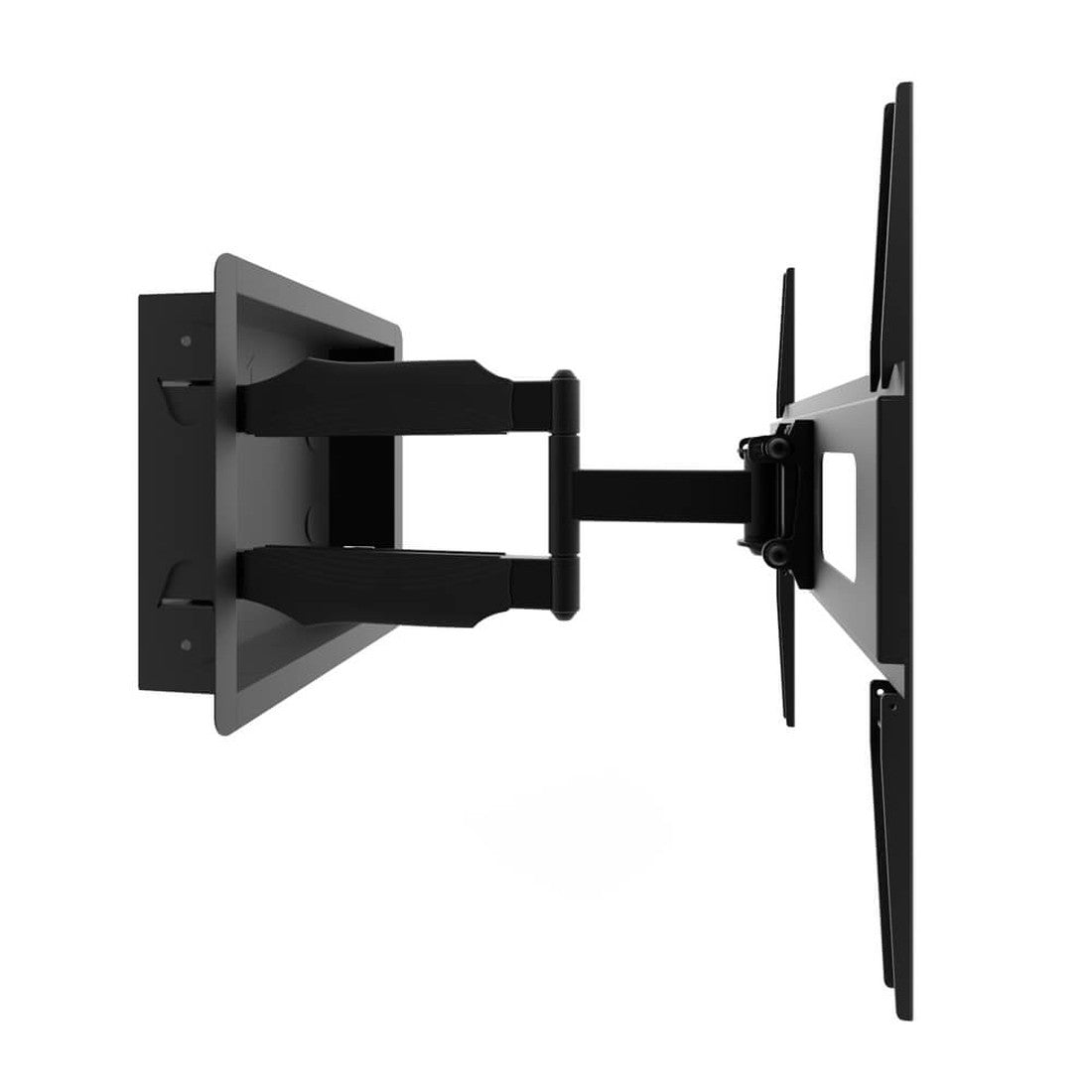

Sometimes the best viewing position is not directly against the wall. The articulating arm on the Kanto R300 extends up to 18.5 inches, or 46.9 cm, giving you extra room to reposition the screen.

Want to angle your TV toward another part of the room? Pulling the display forward creates space for the mount's tilt and swivel adjustments while making it easier to adapt the screen to different viewing positions.

Full-Motion Tilt and Swivel Adjustment

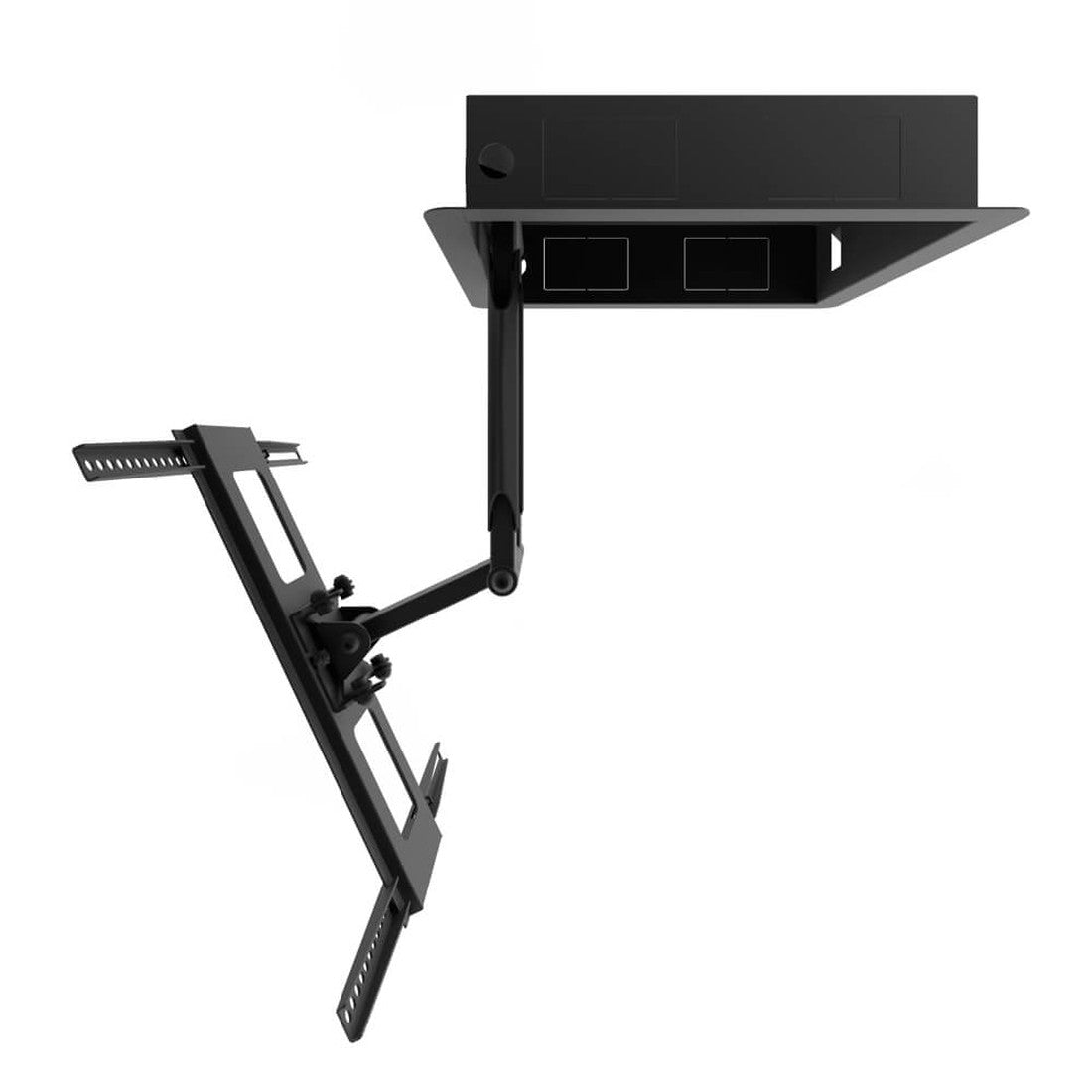

The Kanto R300 offers +10° to -5° of tilt along with up to 180° of swivel. These adjustments help you fine-tune the screen instead of being locked into one fixed viewing direction.

Think of the articulating arm like a movable hinge between your TV and the wall. You can extend the screen, adjust its direction, and then move it back toward the wall when you want a cleaner profile.

Integrated Cable Management

A clean TV setup is not only about how close the screen sits to the wall. The Kanto R300 also includes integrated cable management to help keep connected cables organized around the mount.

This feature works alongside the recessed structure to create a more organized mounting setup without changing the mount's full-motion functionality.

Built Around 16-Inch Stud Centers

The recessed box measures 14.4 inches wide, 13 inches tall, and 3.5 inches deep. It is specifically designed to fit between wall studs positioned 16 inches apart.

Because the Kanto R300 uses an in-wall design, these measurements are an important part of determining whether the mount suits your intended location.

Mounting Hardware and Wall Template Included

The Kanto R300 comes packaged with the components needed for wood stud mounting. Kanto also includes a paper wall template and an installation manual to help guide the mounting process.

An online installation video is also available. Included mounting hardware consists of the lag bolts, washers, spacers, and related hardware supplied for wood stud installation.

Kanto R300 Key Features

• Supports 32-inch to 55-inch TVs
• Maximum weight allowance of 80 lb (36 kg)
• VESA compatibility from 100 x 100 to 400 x 400
• Recessed design fits between 16-inch stud centers
• Sits approximately 1.25 inches from the wall when fully retracted
• Extends up to 18.5 inches (46.9 cm)
• +10° to -5° tilt adjustment
• Up to 180° of swivel
• Full-motion articulating arm
• Solid steel construction
• Integrated cable management
• Paper wall template included
• Installation manual included
• Mounting hardware for wood stud installation included

Dimensions and Product Details

• In-wall box: 14.4" W x 13" H x 3.5" D (36.5 x 33 x 8.9 cm)
• Product weight: 20.5 lb (9.3 kg)
• Shipping box weight: 22 lb (10 kg)
• Shipping box dimensions: 19.3" x 16.5" x 5.5" (49 x 42 x 14 cm)
• UPC: 800152717456

A Flexible Mount Without the Bulk

The Kanto R300 combines a recessed design with full-motion flexibility, while keeping your compatible TV close to the wall. Additionally, it extends up to 18.5 inches, giving you more freedom to adjust your viewing position. Moreover, it supports TVs up to 55 inches and 80 pounds for dependable compatibility. Finally, tilt, swivel, cable management, and solid steel construction complete this low-profile mounting solution.

Frequently Asked Questions

What TV sizes does the Kanto R300 support? The Kanto R300 is designed for TVs ranging from 32 inches to 55 inches.

How much weight can the Kanto R300 hold? It supports compatible televisions weighing up to 80 lb, or 36 kg.

How far does the Kanto R300 extend from the wall? The articulating arm extends up to 18.5 inches, or 46.9 cm, from the wall.

How close does the TV sit to the wall when the mount is retracted? When fully retracted, the Kanto R300 allows the TV to sit approximately 1.25 inches from the wall.

What VESA patterns are compatible with the Kanto R300? The mount supports VESA patterns ranging from 100 x 100 to 400 x 400.
