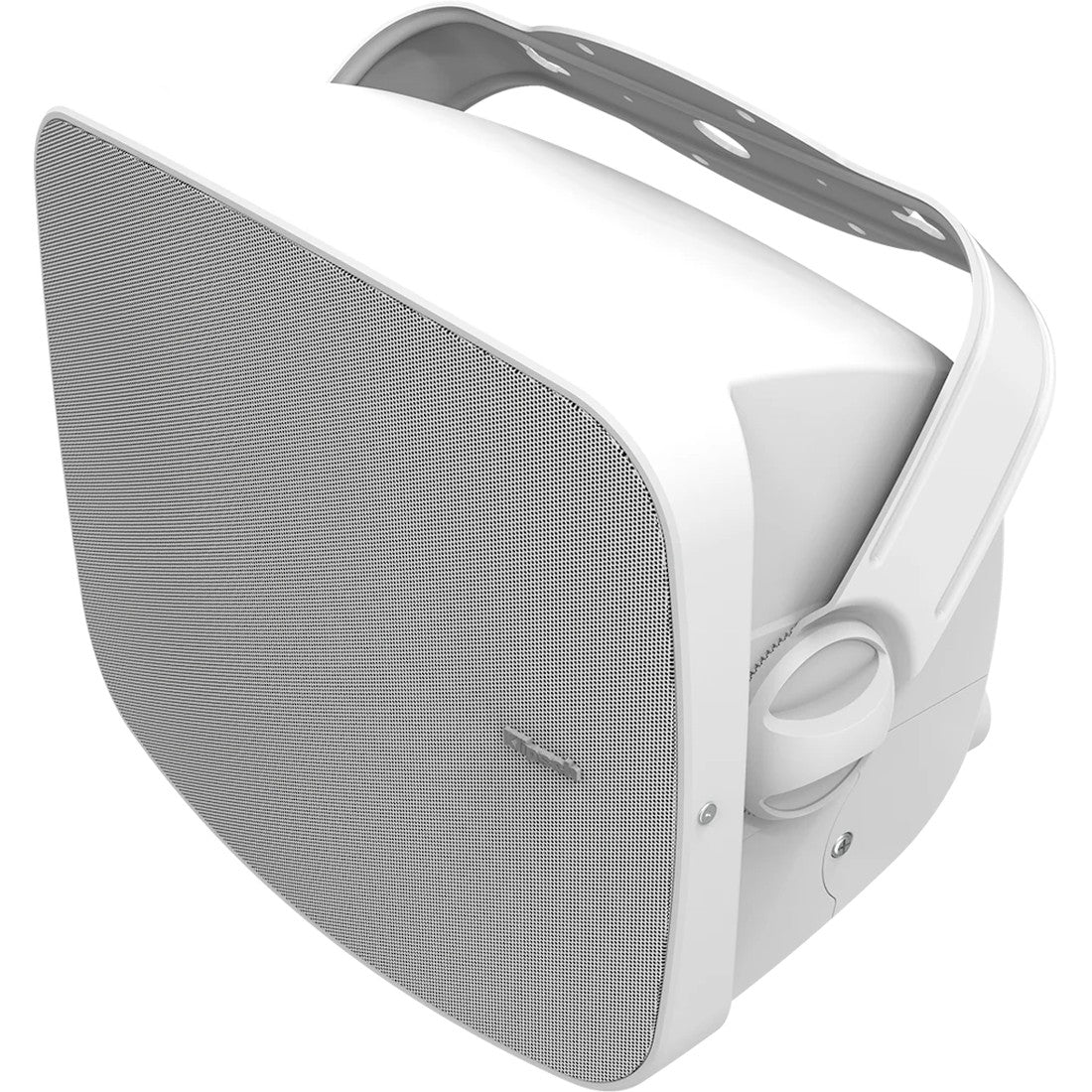

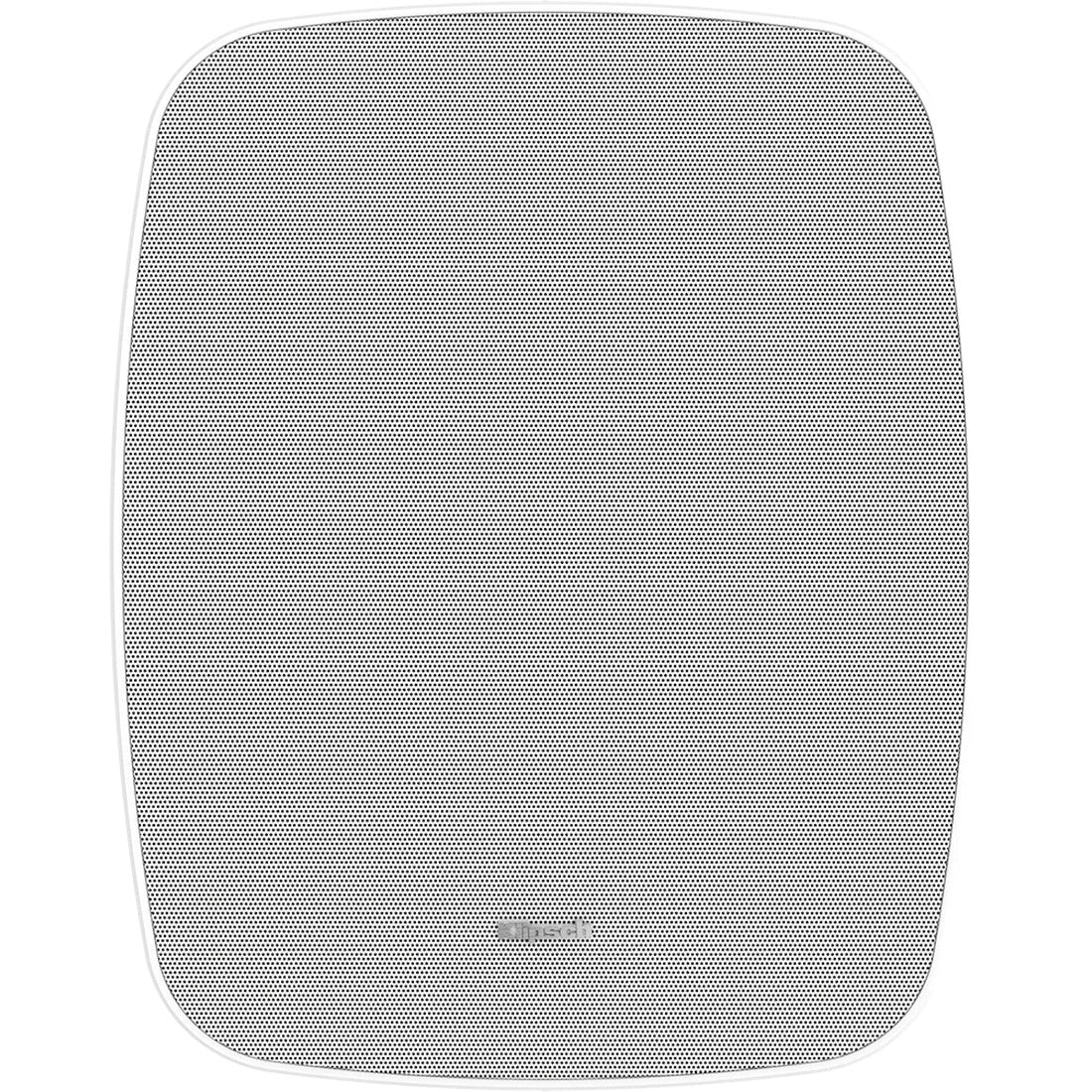

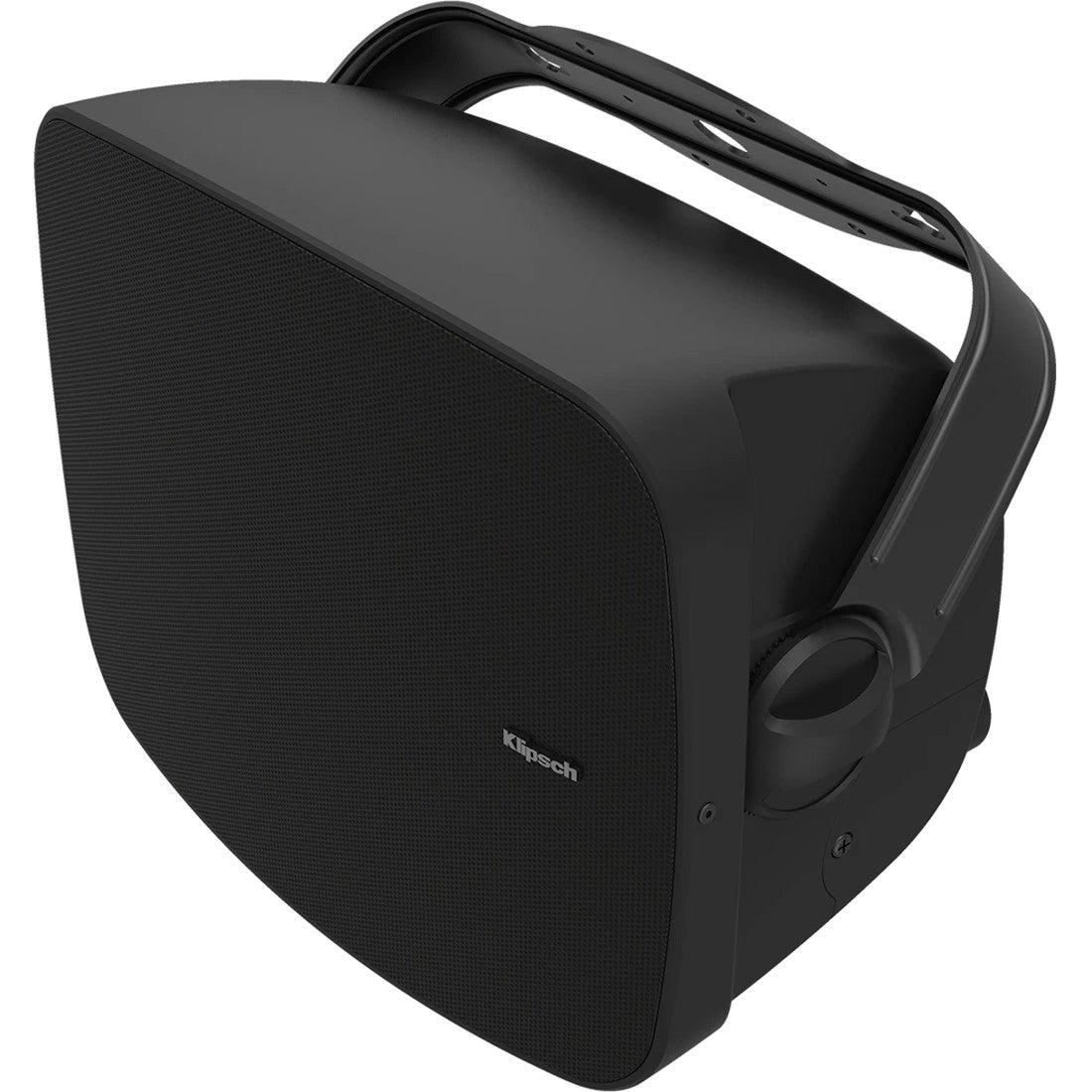

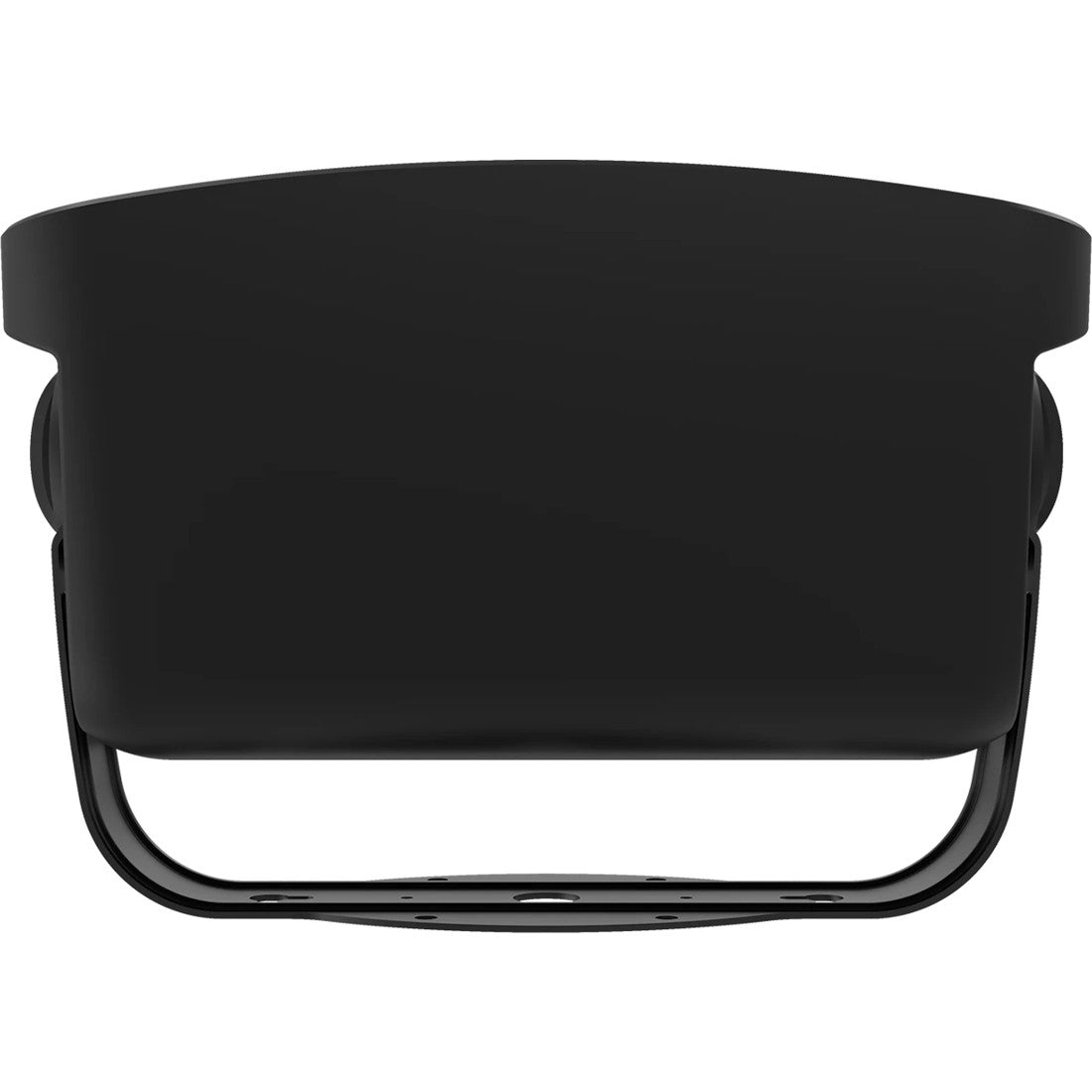

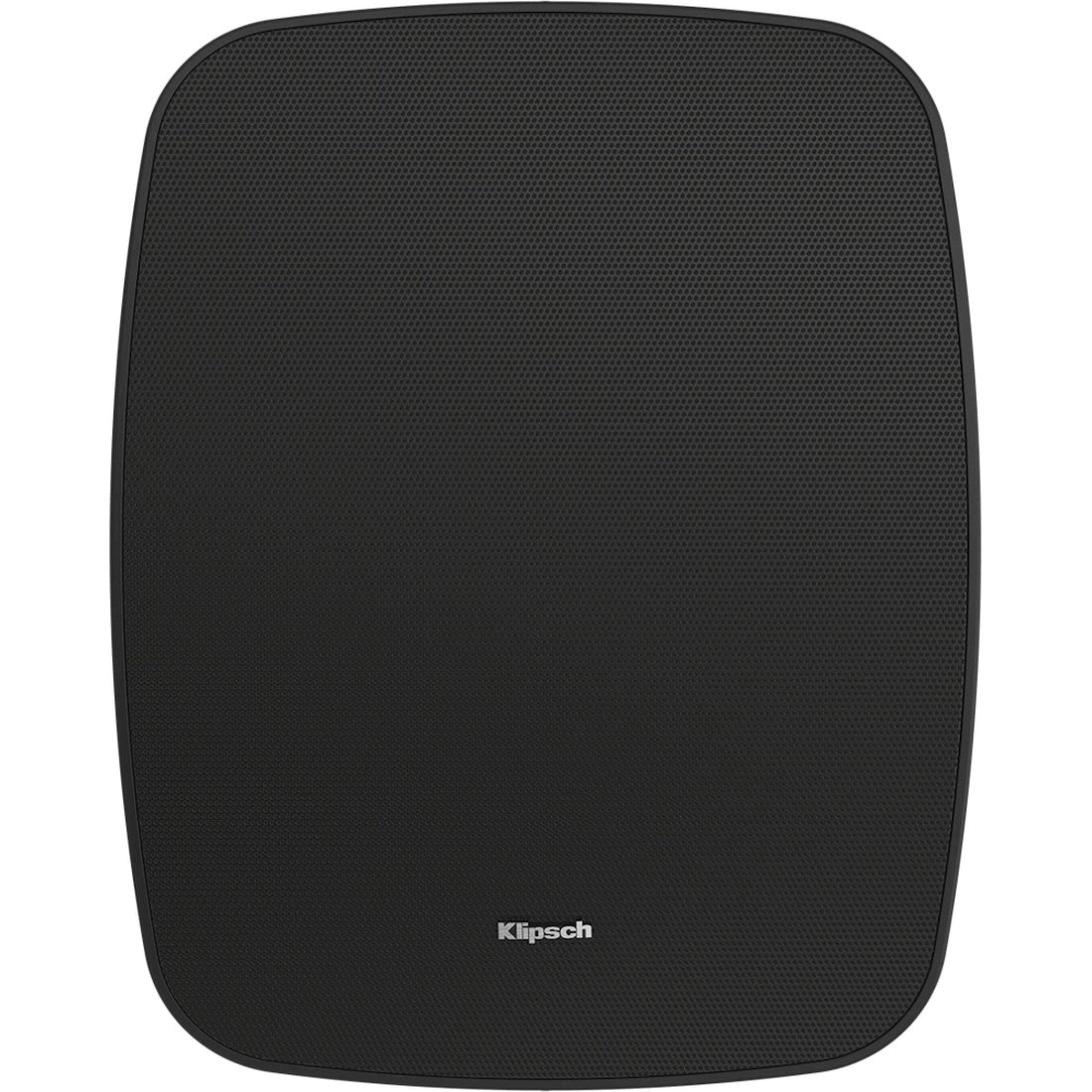

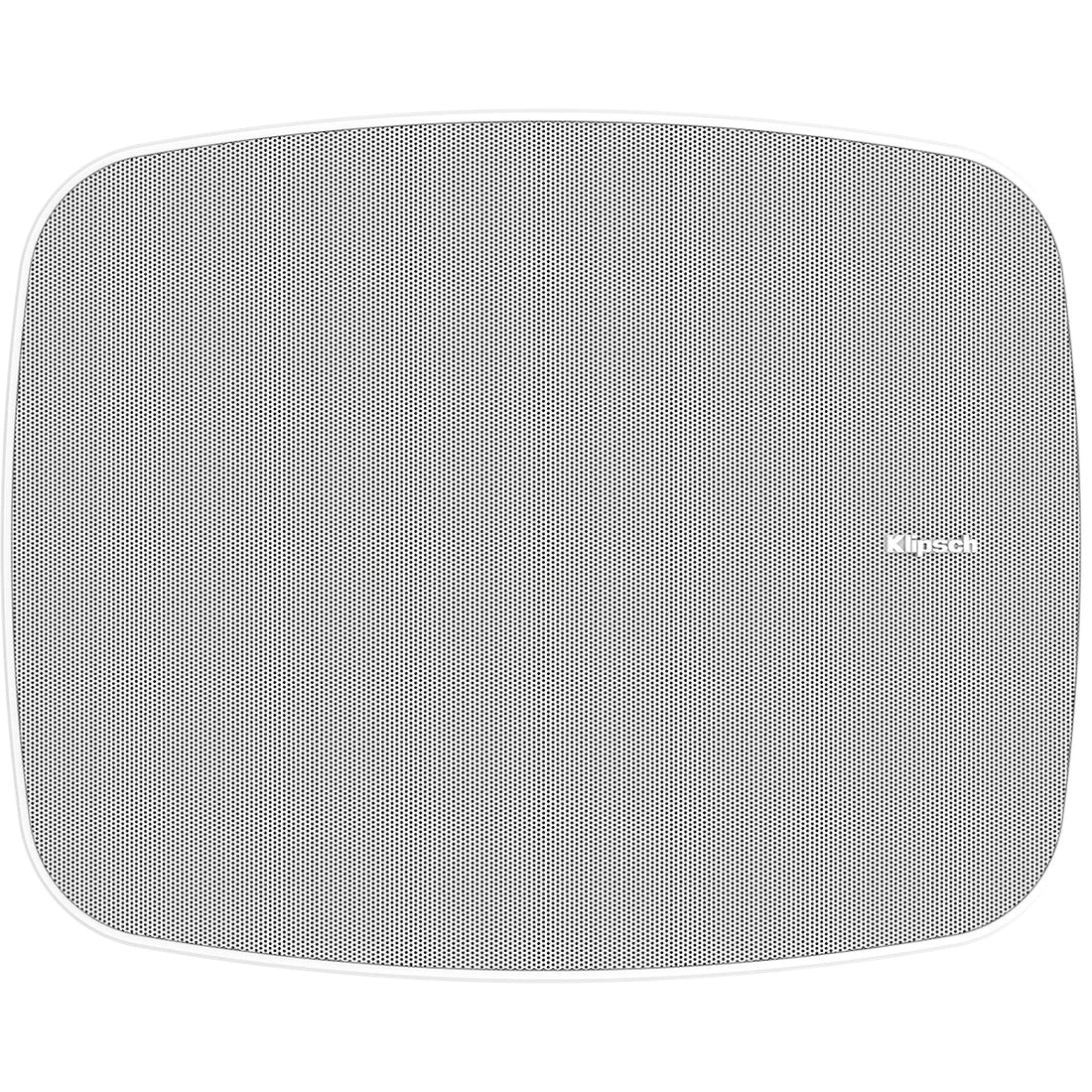

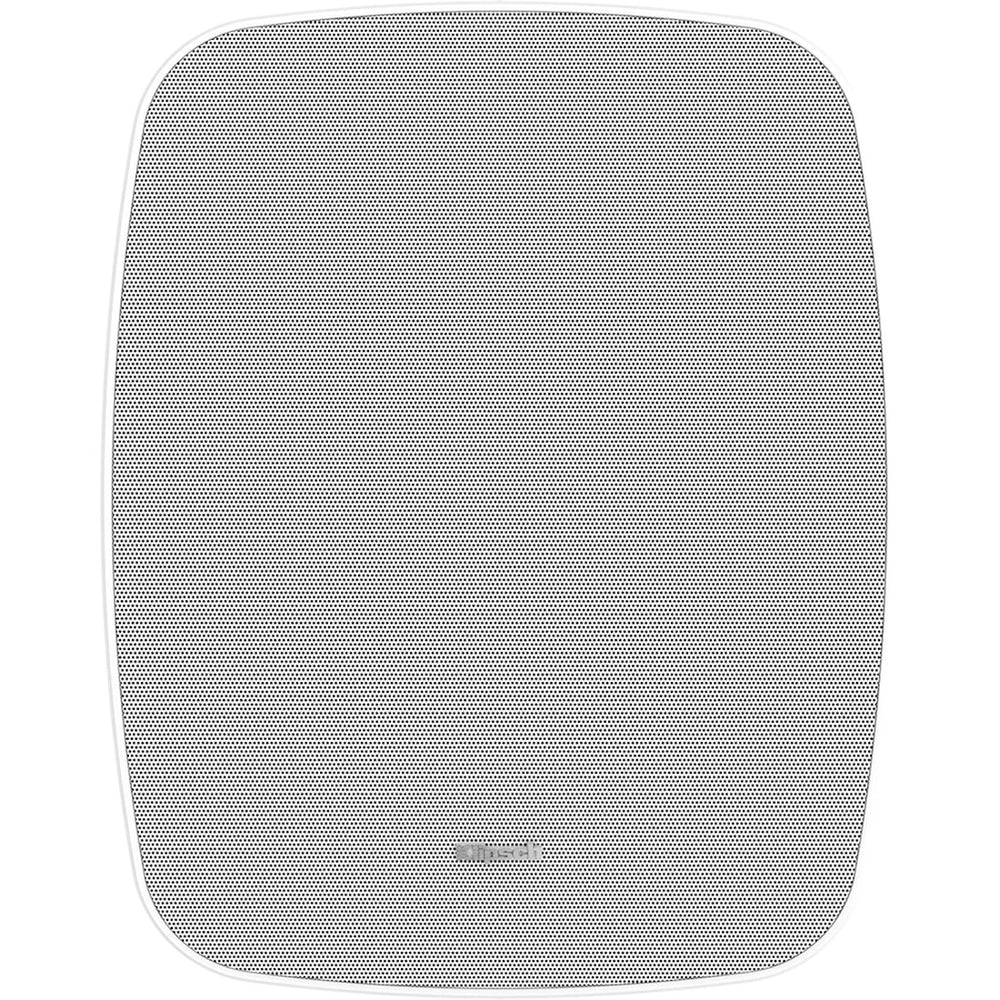

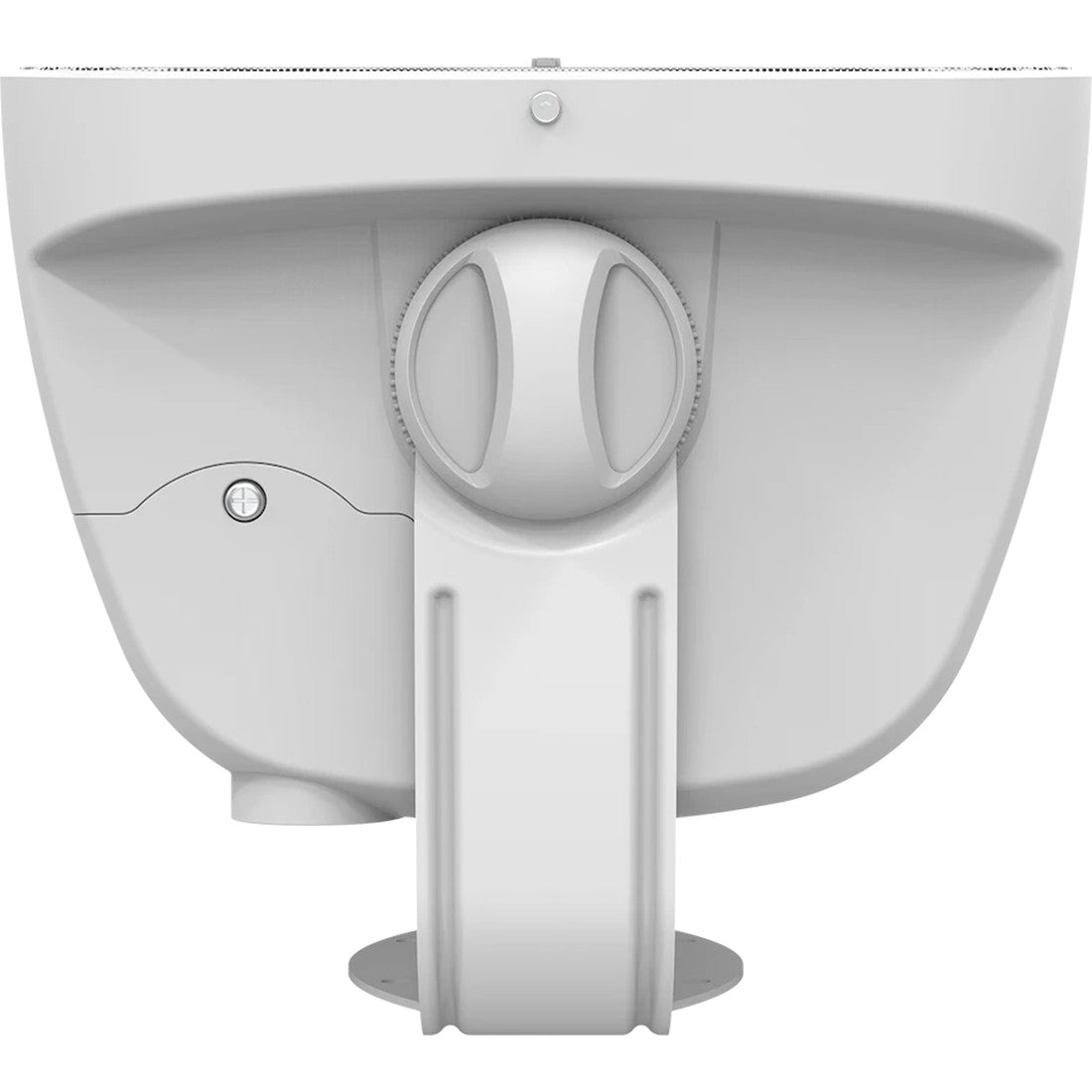

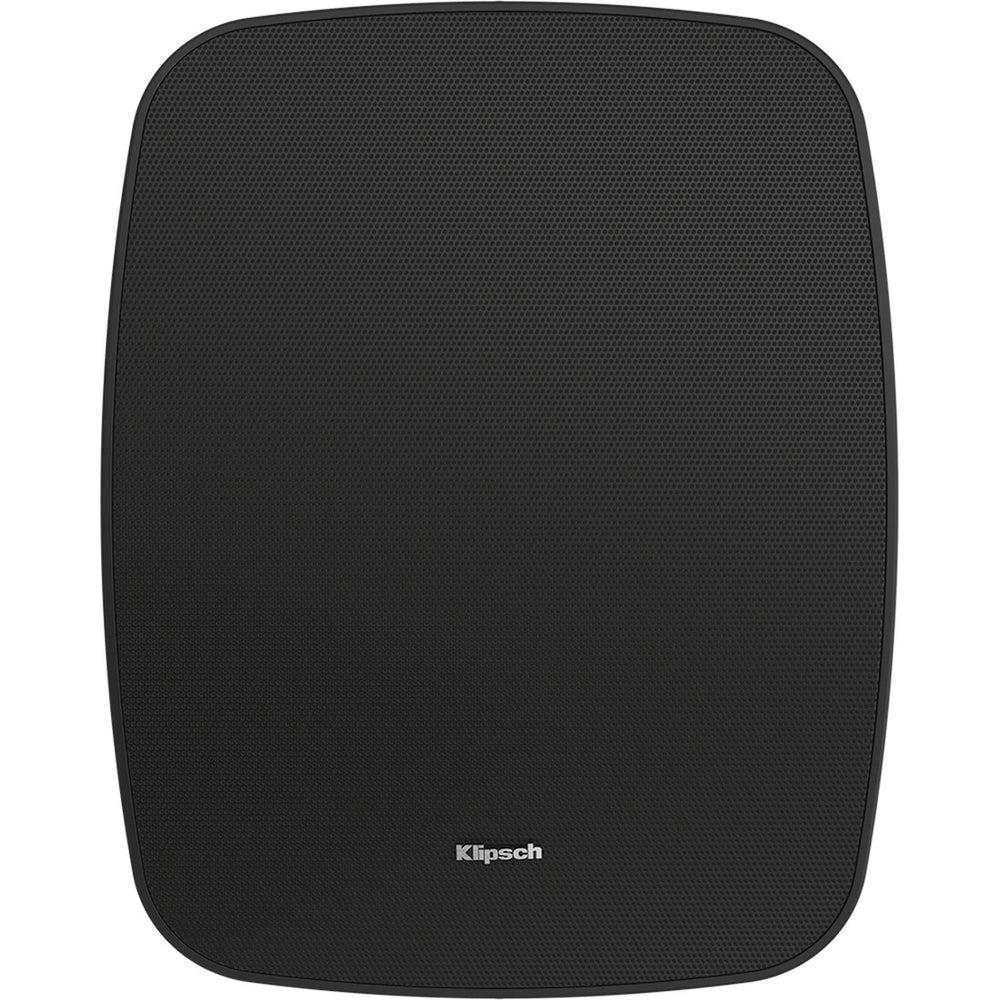

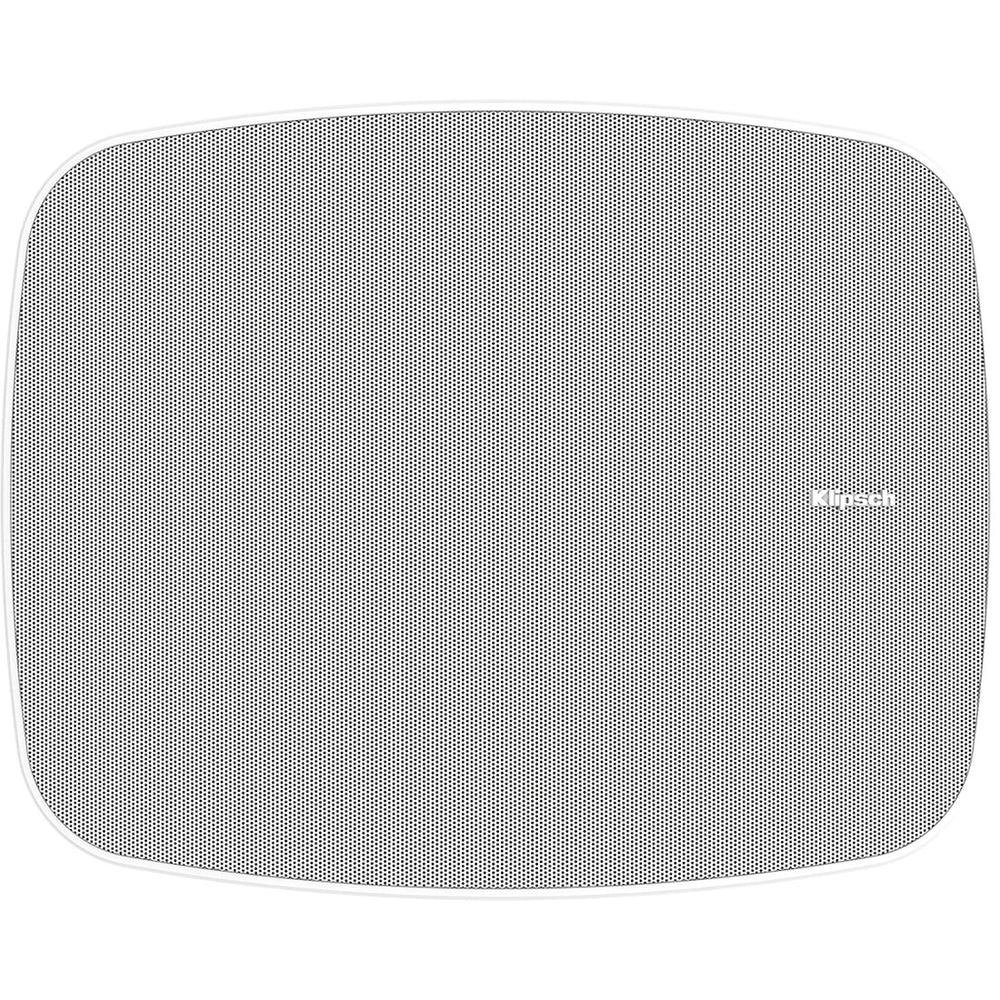

Klipsch PSM525T Full-Range 5.25" Indoor / Outdoor Loudspeaker - Each

Klipsch PSM-525-T Full-Range Surface Mount Loudspeaker with Tractrix® Hyperfold Port™

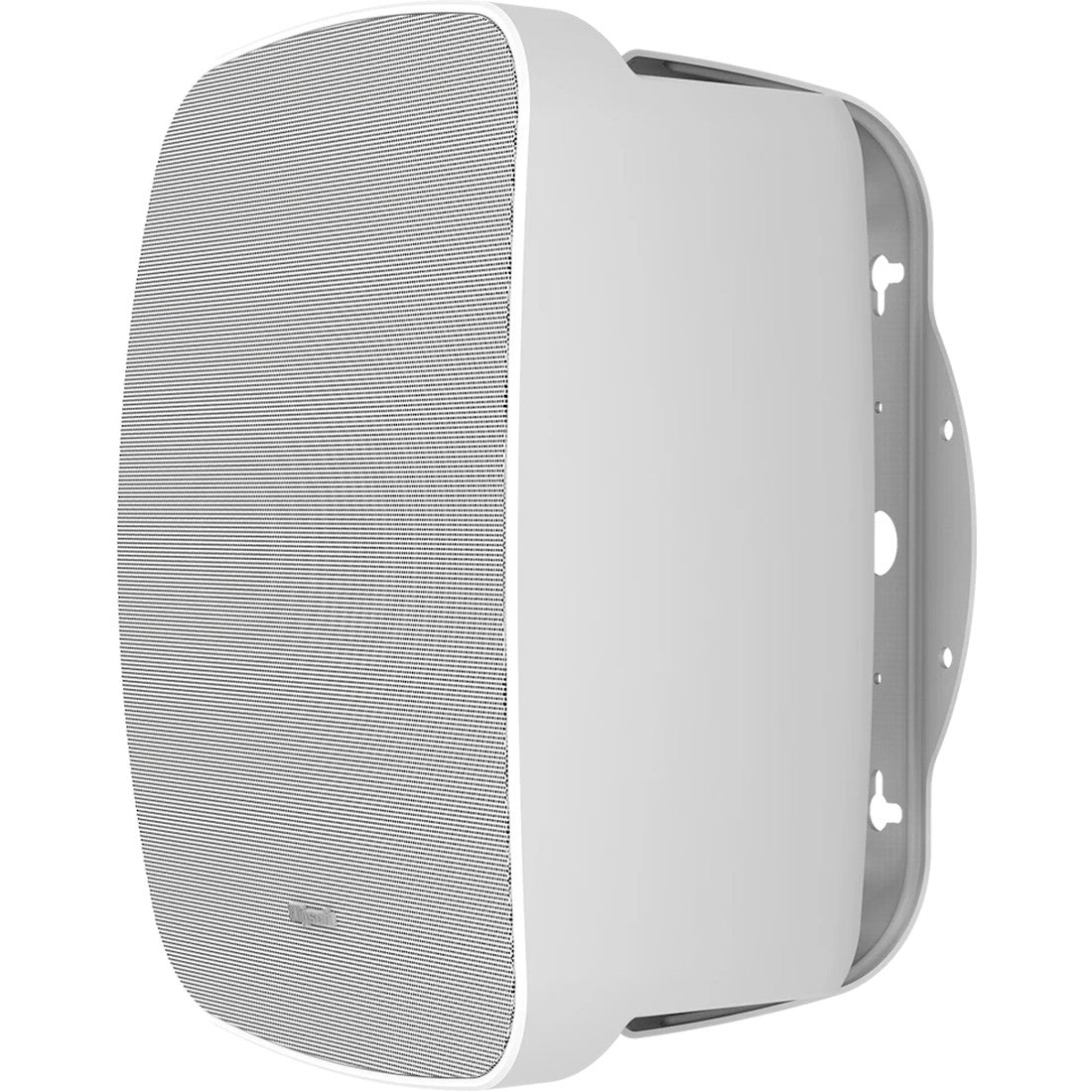

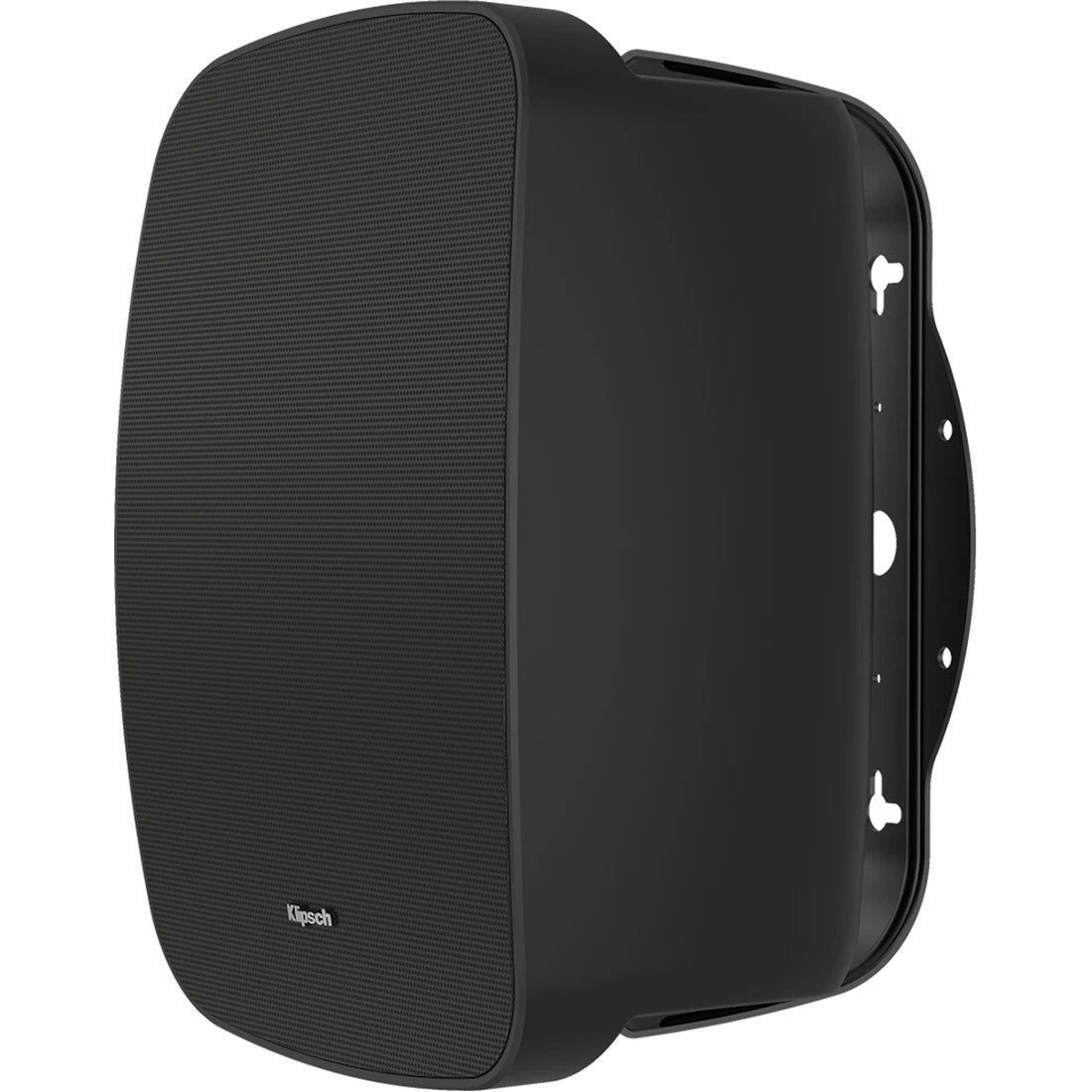

The Klipsch PSM-525-T is a full-range 5.25" indoor/outdoor professional surface mount loudspeaker built with an All Weather ABS Plastic enclosure and IPX6 rating. Its 5.25" woofer, 1" titanium compression driver, and patented Tractrix® Hyperfold Port™ deliver maximum bass power, high-clarity detail, and extra-wide coverage.

Note: The Klipsch PSM525T outdoor loudspeaker is sold individually.

More Bass, Less Space with Tractrix® Hyperfold Port™

The all-new patented Tractrix® Hyperfold Port™ uses a proprietary five-step folded design to extend port length for maximum bass power. Increased airflow eliminates chuffing and port noise while providing a greater dispersion pattern for coverage areas.

• Vented enclosure via 3 folded Tractrix ports
• 58Hz–20kHz frequency response, ±4dB
• 48Hz low-frequency extension at -10dB

IPX6 Rated for Commercial Environments

The PSM-525-T is IPX6 rated for indoor and outdoor commercial installations. Its All Weather ABS Plastic enclosure is water-resistant and rainproof for challenging commercial environments.

• IPX6 rating
• Paintable All Weather ABS Plastic enclosure
• Included grille set screws provide a secure fit between the speaker and grille

Wide Coverage and High-Clarity Detail

A 1" titanium compression driver on a K-1200M horn/tweeter bridge uses a wide dispersion phase plug and patented mumps technology. This design provides extra-wide coverage with even and consistent energy for your project.

• 5.25" woofer
• 1" titanium compression driver
• 100° ±20° coverage from 1kHz–20kHz
• 104dB calculated maximum continuous output

Flexible 70V, 100V, and 8-Ohm Installation

The PSM-525-T features a multi-tap transformer for 70V or 100V installations, along with a bypass position for normal 8-ohm operation when a transformer is not required. A Phoenix connector provides quick and intuitive connection.

• 70V transformer taps: 30W, 15W, 7.5W, and 3.8W
• 100V transformer taps: 30W, 7.5W, and 3.8W
• Bypass position: 8 ohms nominal
• 4-pin euro block / Phoenix connector

Frequently Asked Questions

• Is the Klipsch PSM-525-T suitable for outdoor commercial installations?

  Yes. It is IPX6 rated with a water-resistant and rainproof All Weather ABS Plastic enclosure.

• Can the PSM-525-T be used with 70V or 100V audio systems?

  Yes. Its multi-tap transformer supports 70V and 100V installations.

• Can this loudspeaker operate in a normal 8-ohm installation?

  Yes. The transformer has a bypass position for normal 8-ohm operation.

• What type of connector does the PSM-525-T use?

  It employs a Phoenix connector with a 4-pin euro block connection.
