Pixelgen PXLDRIVE Max 4K Extender Passive HDMI Cable > 15m Retrofit Achieve 18Gbps

Product Description

Pixelgen PXLDRIVE Max 4K Extender Passive HDMI cable > 15m Retrofit Achieve 18Gbps

Pixelgen PXLDRIVE MAX4 Extender for 18G UHD (placed at the display end of an Ultra HD link) is used to revive uncompressed Ultra HD signals up to the maximum 18Gbps bitrate over new or pre-existing passive long reach Ultra HD cables.

Standalone Dongle Retrofit Application >15m

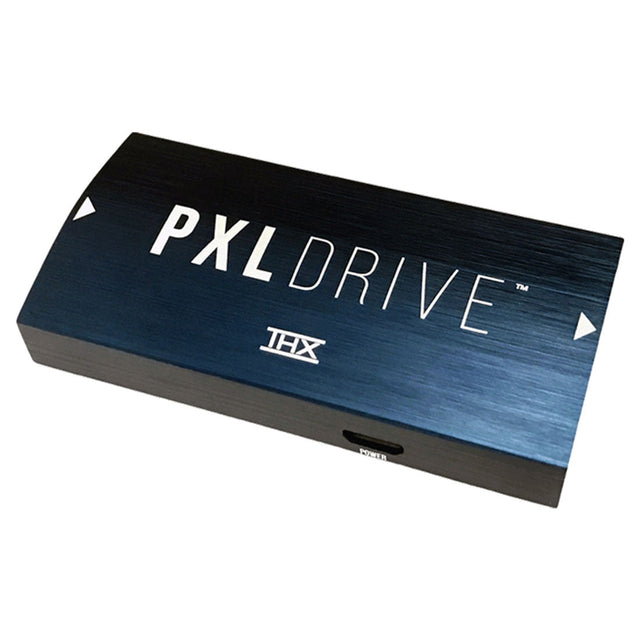

PXLDRIVE™ Standalone Plug & Play Extender is a detachable dongle placed at the display end of a Ultra HD link with the ability to revive 100% truly uncompressed Ultra HD signals up to the maximum 18Gbps bitrate over new or pre-existing long reach passive cables that are 15m / 50 ft or greater Ultra HD cables. Proudly Made and Designed from the ground up in Canada. PXLDRIVE™ works by using an adaptive equalizer and re-timing block to maximize its effectiveness as a highly reliable, robust and interoperable Ultra HD signal extender.

Features & Specs

  • Maximum TMDS Data Rate : 17.91Gbps/5.94Gbps per CH (4K60 8bit 4:4:4)
  • 4K Formats Supported : 4K60 8bit 4:4:4, 4K60 12bit 4:2:2 (WCG), 4K60 10bit 4:2:0 (HDR10), 4K60 8bit 4:2:0 (SDR) (Supports all other formats within the Ultra HD 2.0b specification.)
  • Resolution Range : 480i, 576i, 1080i, 480p, 576p, 720p, 1080p, 1440p, 4Kx2K

Connections

  • Video Input Connection : (1) Ultra HD Connector – Female 19 pin (Ultra HD 2.0b, HDCP 2.2, ARC)
  • Video Output Connection : (1) Ultra HD Connector – Female 19 pin (Ultra HD 2.0b, HDCP 2.2, ARC)
  • USB 2.0 Power Connection : (1) MicroUSB Type-B – Female
  • Range : Up to 15m
  • Standards Certification : THX® Certified 4K Interconnect
  • Operating Temperature : 0°C ~ 70°C
  • Storage Temperature : -20°C ~ 70°C
  • Operating Humidity : 10% ~ 90%, RH, non-condensing
  • Power Consumption : 2.5W via 5V/0.5A USB Supply
  • Material Construction : Aluminum
  • Mounting : 3M Dual Lock Low Profile™

Environmental & Regulatory

  • Safety : CE, UL
  • EMI/EMC : CE, FCC Class B – Section 15
  • Environmental : RoHS, WEEE
  • ESD Rating : 8kV contact (IEC 61000-4-2 Level 2)
  • CMG Rated

Documents

Warranty

Pixelgen Canada Offers Lifetime Limited warranty
SKU: PXLDRIVE UPC: 5060147602791
