Blustream DA22OPT Optical To Dante Audio Converter
Product Description
Product Description
Blustream DA22OPT Optical To Dante Audio Converter
The Blustream DA22OPT encodes 2ch optical S/PDIF audio to a Dante digital signal and decodes a Dante digital signal to 2ch optical S/PDIF audio. It is a plug & play device powered using PoE and also supports AES67 RTP audio transport.
Bidirectional optical S/PDIF and Dante conversion
This converter enables two-way audio signal flow between optical S/PDIF and Dante networks.
- Encodes 2ch optical S/PDIF audio to a Dante digital signal.
- Decodes a 2ch Dante digital signal to optical S/PDIF audio.
- Optical S/PDIF signal can be routed from Input to Output by binding the connection in Dante Controller.
Plug & play power and control
Deployment and management are supported by built-in power and configuration capabilities.
- Plug & play device powered using PoE (Power Over Ethernet).
- Features Class 0 802.3af PoE for powering from any PoE switch.
- In-built web-GUI for configuration and control.
- Local 12V power supply input for when a network switch does not support PoE (PS121PH power supply sold separately).
Audio format support and latency options
The DA22OPT accommodates common sample rates and provides adjustable settings for device performance.
- Supports 44.1, 48, 88.2 & 96kHz sample rates at 16, 24 & 32-bit.
- Configurable Dante device latency: 2, 3, 4, 5 or 10ms (configurable using Dante Controller).
- +6dB / -24dB input sensitivity and output gain control adjustment.
Connectivity
Network and audio connections are provided for Dante and optical S/PDIF.

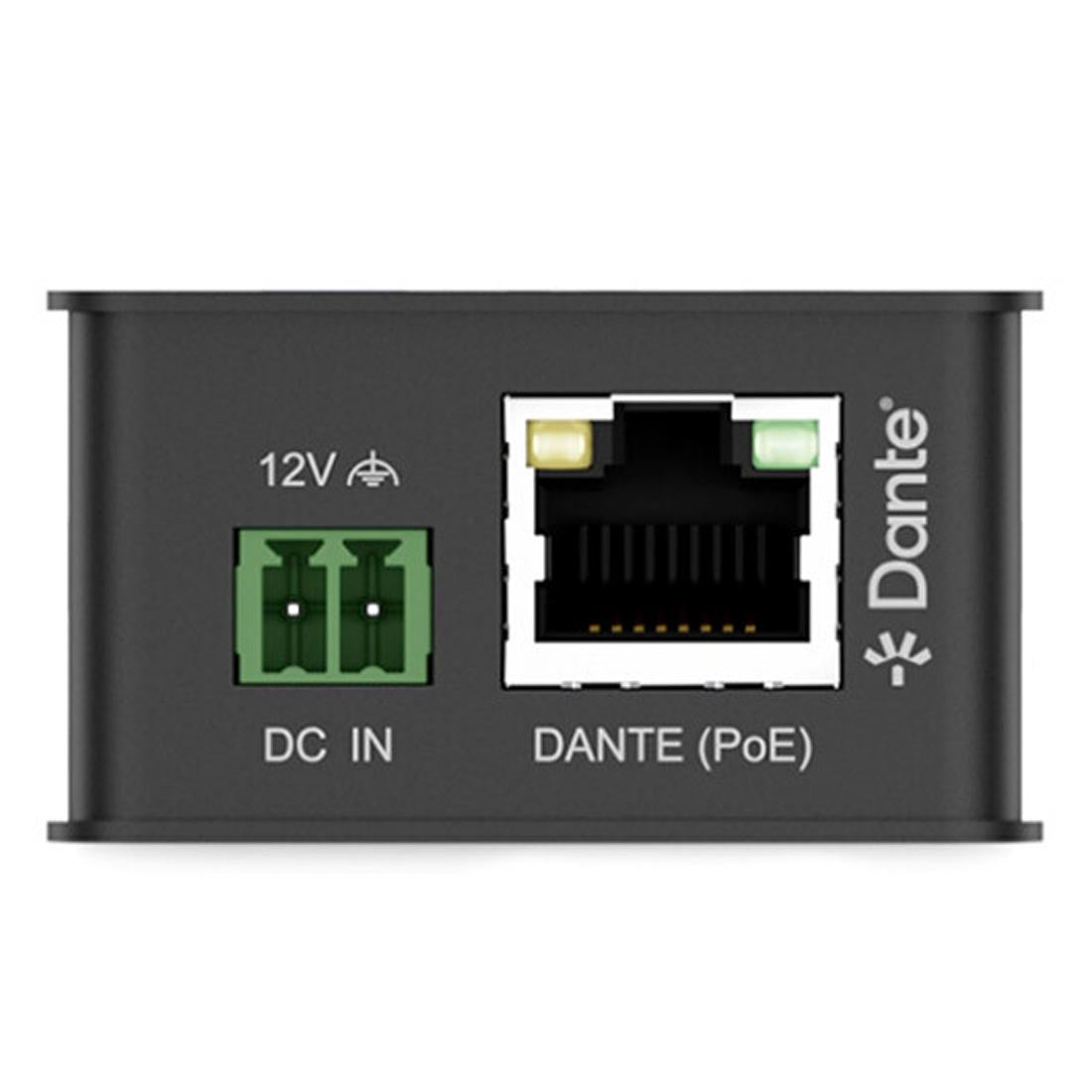

- 1 x RJ45, female (100 Mbps Dante network).

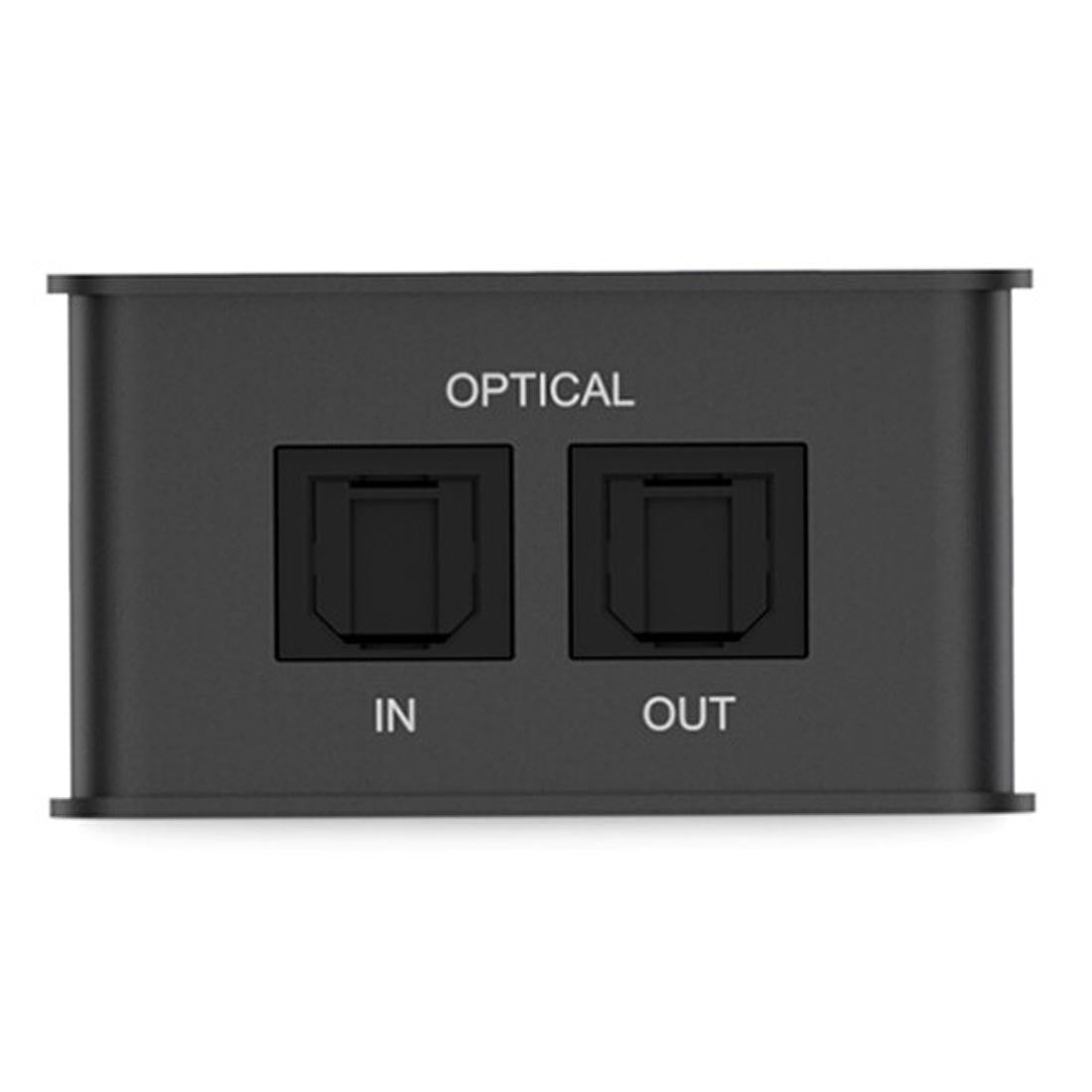

- 2 x Optical Toslink (S/PDIF).
- Supports AES67 RTP audio transport.
Frequently Asked Questions
-
What does the DA22OPT do?
It encodes 2ch optical S/PDIF audio to a Dante digital signal and decodes a Dante digital signal to 2ch optical S/PDIF audio.
-
How is the device powered?
It features Class 0 802.3af PoE for powering from any PoE switch, and it also has a local 12V power supply input for when a network switch does not support PoE (PS121PH power supply sold separately).
-
Which audio formats are supported?
Supported sample rates are 44.1, 48, 88.2 and 96kHz at 16, 24 and 32-bit.
-
Can latency be configured?
Yes. Dante device latency is configurable to 2, 3, 4, 5 or 10ms using Dante Controller.
-
Does it support AES67?
Yes. It supports AES67 RTP audio transport.
-
What connectors are available?
It provides 1 x RJ45, female (100 Mbps Dante network) and 2 x Optical Toslink (S/PDIF).
-
What is included in the box?
1 x DA22OPT and 1 x Quick Reference Guide.
-
Can the optical S/PDIF input be routed to output?
Yes. The optical S/PDIF signal can be routed from Input to Output by binding the connection in Dante Controller.
Add to Cart to deploy the DA22OPT in your system, and contact or visit Gibbys Electronic Supermarket for personalized system-matching and setup advice from our team.
