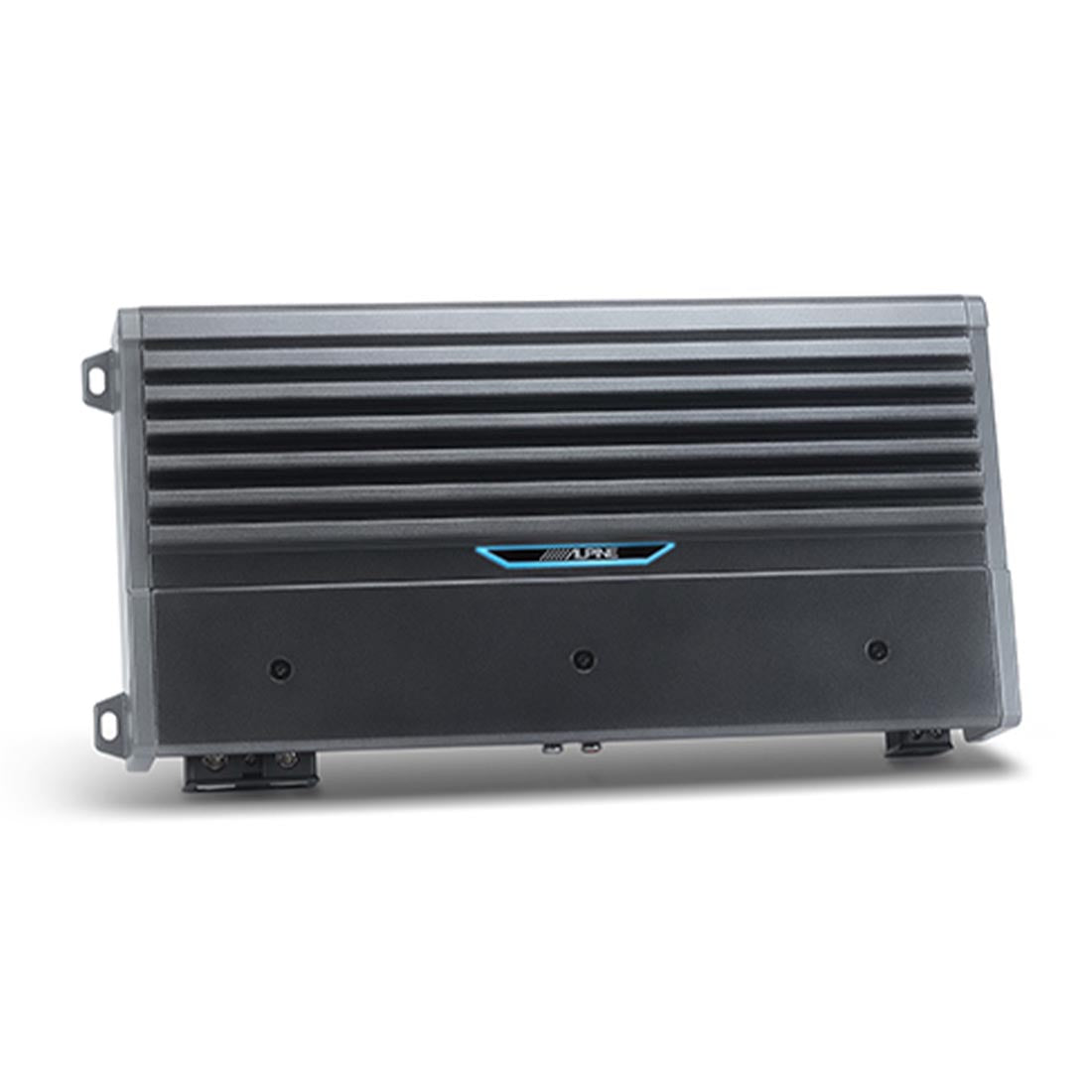

Alpine M-A120M 1200W Mono Marine Amplifier with IPX6 Waterproof Chassis

Alpine M-A120M 1200W Mono Marine Amplifier with IPX6 Waterproof Chassis - 2026

The Alpine M-A120M is built to deliver powerful, controlled bass that stands up to life on the water. Designed specifically for marine audio systems, this mono subwoofer amplifier produces up to 1,200 watts RMS while offering advanced tuning controls and rugged protection against harsh marine conditions. Whether you're cruising across open water or relaxing at the dock, this amplifier provides the low-frequency performance needed to make every playlist sound bigger and more immersive.

Built to Deliver Powerful Marine Bass

Open water creates unique challenges for any sound system. Wind, waves, and engine noise can quickly overpower weak bass, making your music lose its impact. The Alpine M-A120M is engineered to solve that problem with impressive power output that keeps low frequencies strong and controlled.

It delivers:

• 1,200 watts RMS at 2 ohms
• 1,200 watts RMS at 1 ohm
• 600 watts RMS at 4 ohms

Its 1-ohm stable design provides flexibility when powering different subwoofer configurations without sacrificing performance. Whether you're running a single subwoofer or a pair of compatible 4-ohm models, this amplifier provides the output needed to bring depth and energy to your entire audio system.

Designed for Harsh Marine Conditions

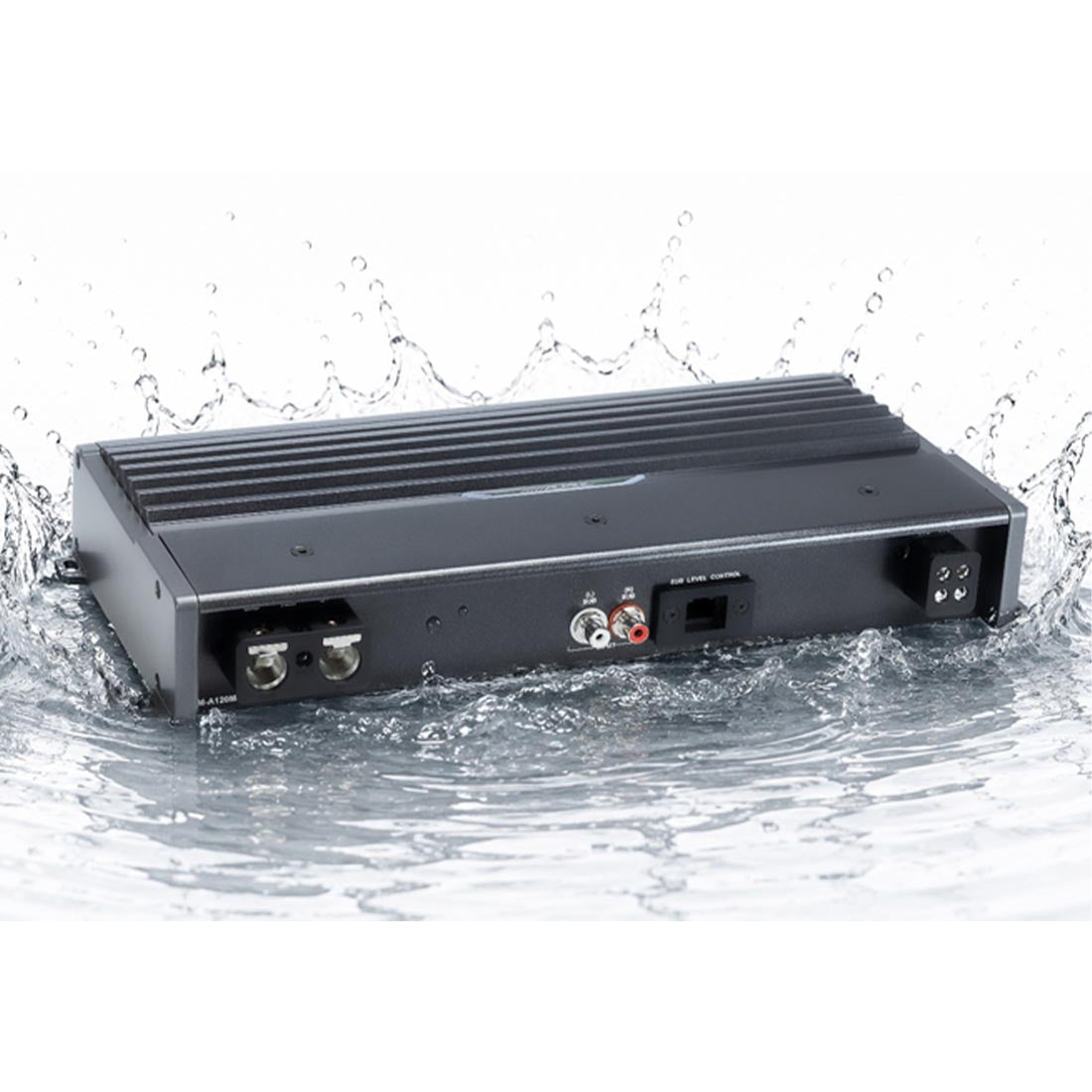

A marine amplifier has to do much more than produce great sound. It also needs to withstand the environment around it. The Alpine M-A120M features an IPX6-rated waterproof chassis that helps protect against powerful water spray, making it well suited for demanding boating conditions.

Additional protection includes:

• Salt and fog resistance tested to ASTM B117 standards
• UV resistance tested to ASTM G154 standards
• Watertight top-panel control cover
• Included power and speaker terminal boots
• Remote-port cover when the optional bass knob is not installed

Like a sturdy hull protecting everything inside a boat, the amplifier's rugged construction helps safeguard its internal components while you enjoy long days on the water.

Fine-Tune Every Bass Note

Power alone doesn't create great bass. Proper tuning allows your subwoofer to perform at its best, and the Alpine M-A120M offers a wide range of adjustment options to help dial in the perfect sound.

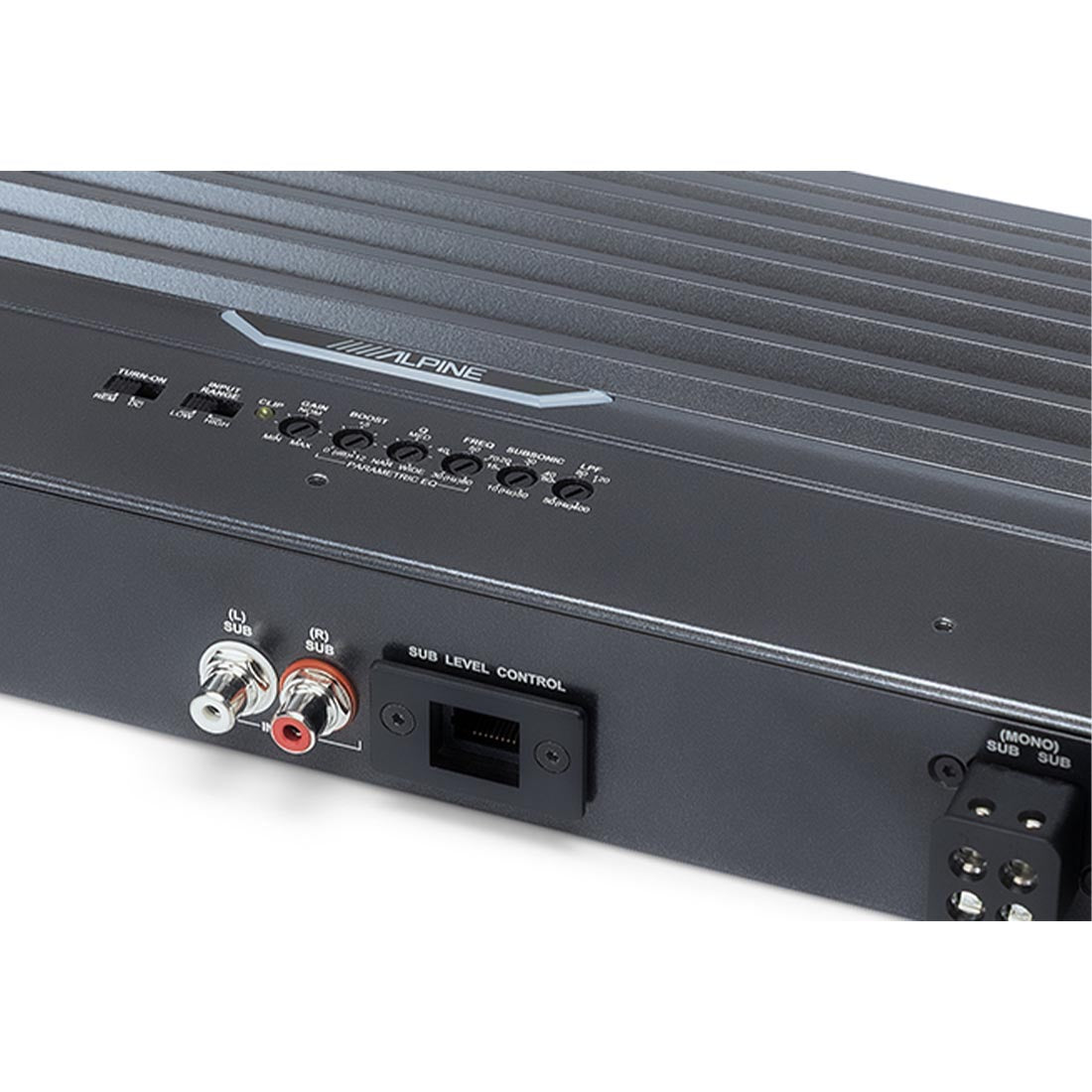

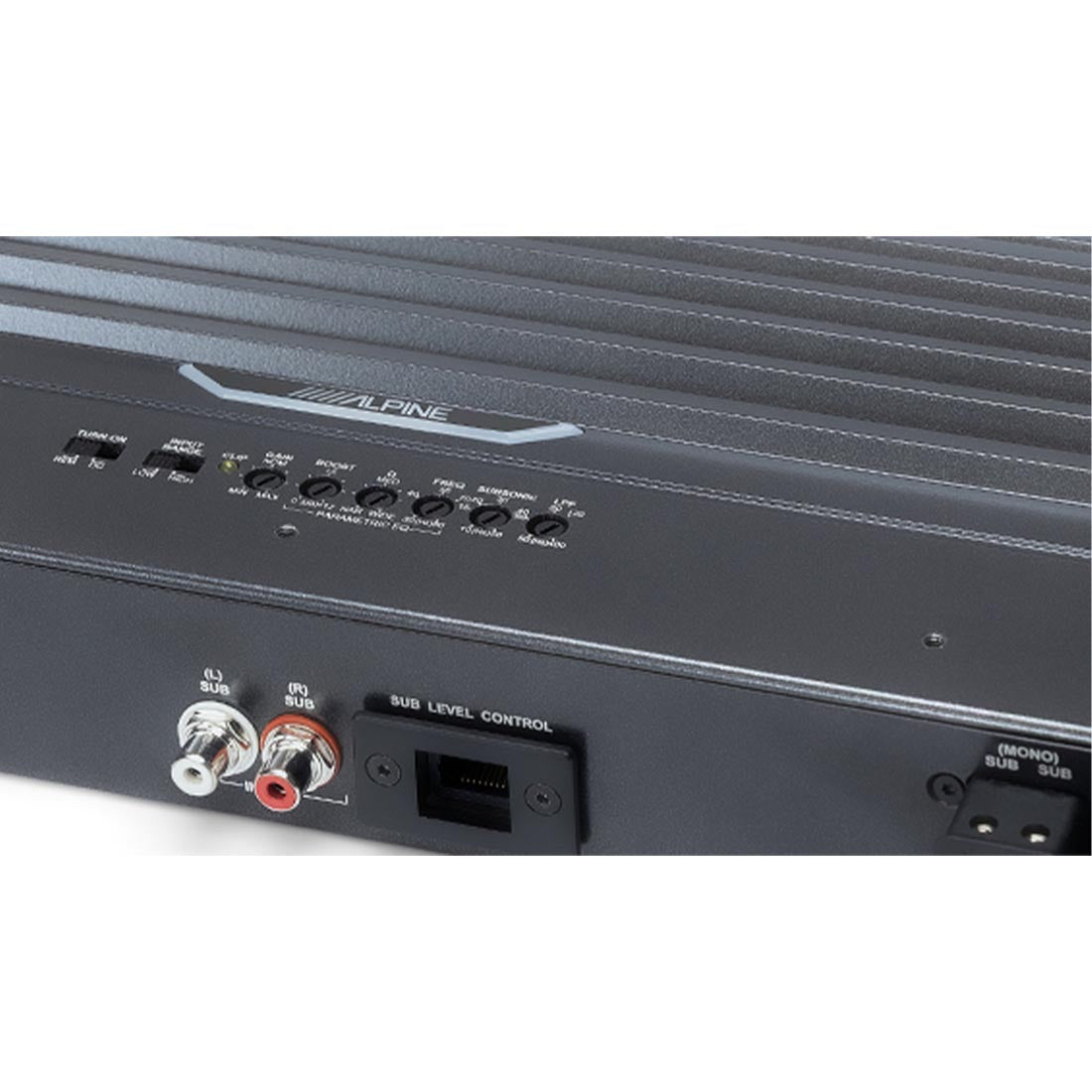

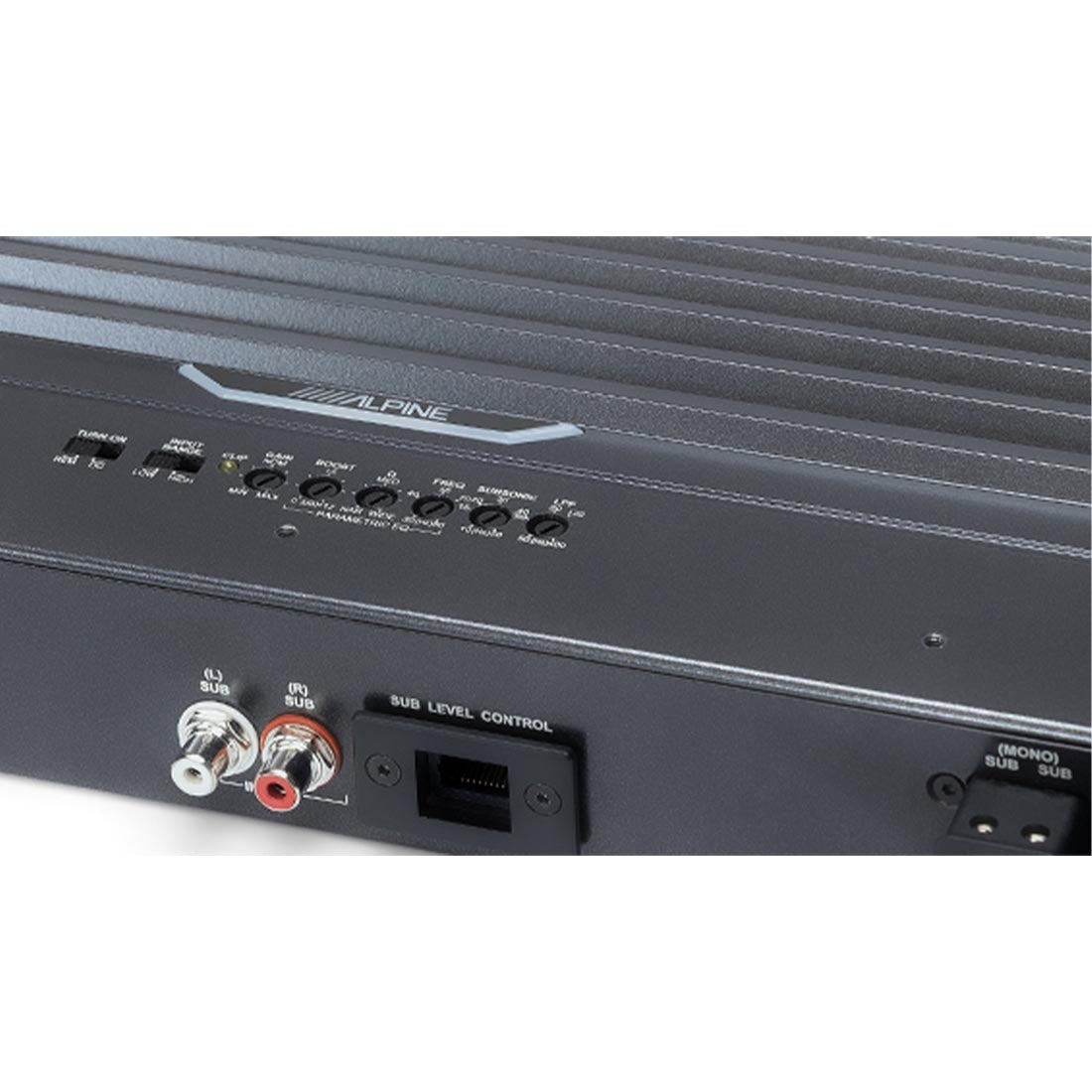

Tuning features include:

• Adjustable low-pass filter from 50 Hz to 400 Hz
• Adjustable subsonic filter from 10 Hz to 50 Hz
• Parametric bass EQ with adjustable frequency, width, and boost
• Gain-setting clip indicator for easier amplifier setup

These controls allow installers to tailor bass performance to the enclosure, subwoofer, and listening environment, creating bass that stays clean and controlled instead of muddy or overpowering.

Reliable Performance During Long Listening Sessions

Marine adventures don't always end after a few songs. Extended listening sessions require an amplifier that can manage heat efficiently while maintaining consistent performance.

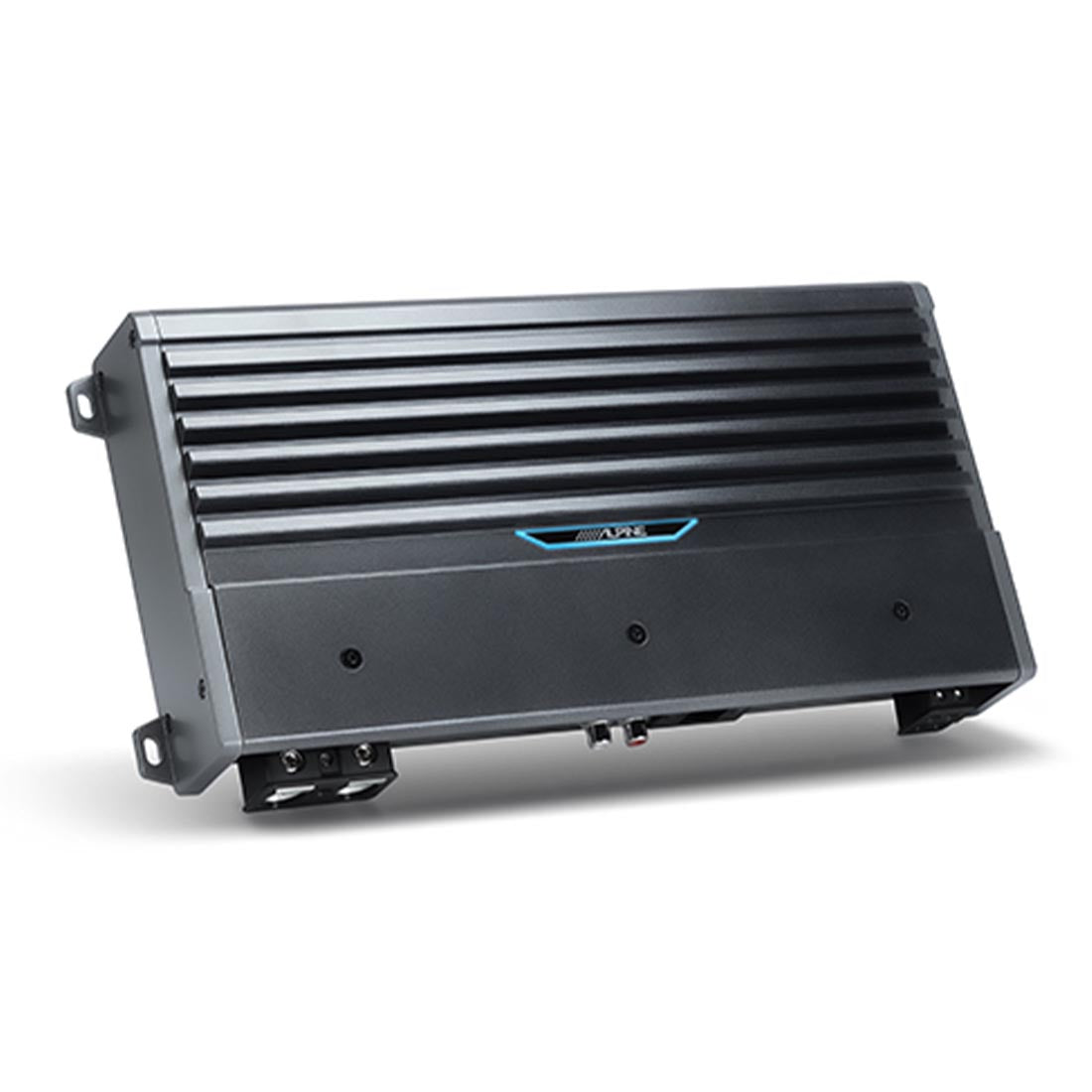

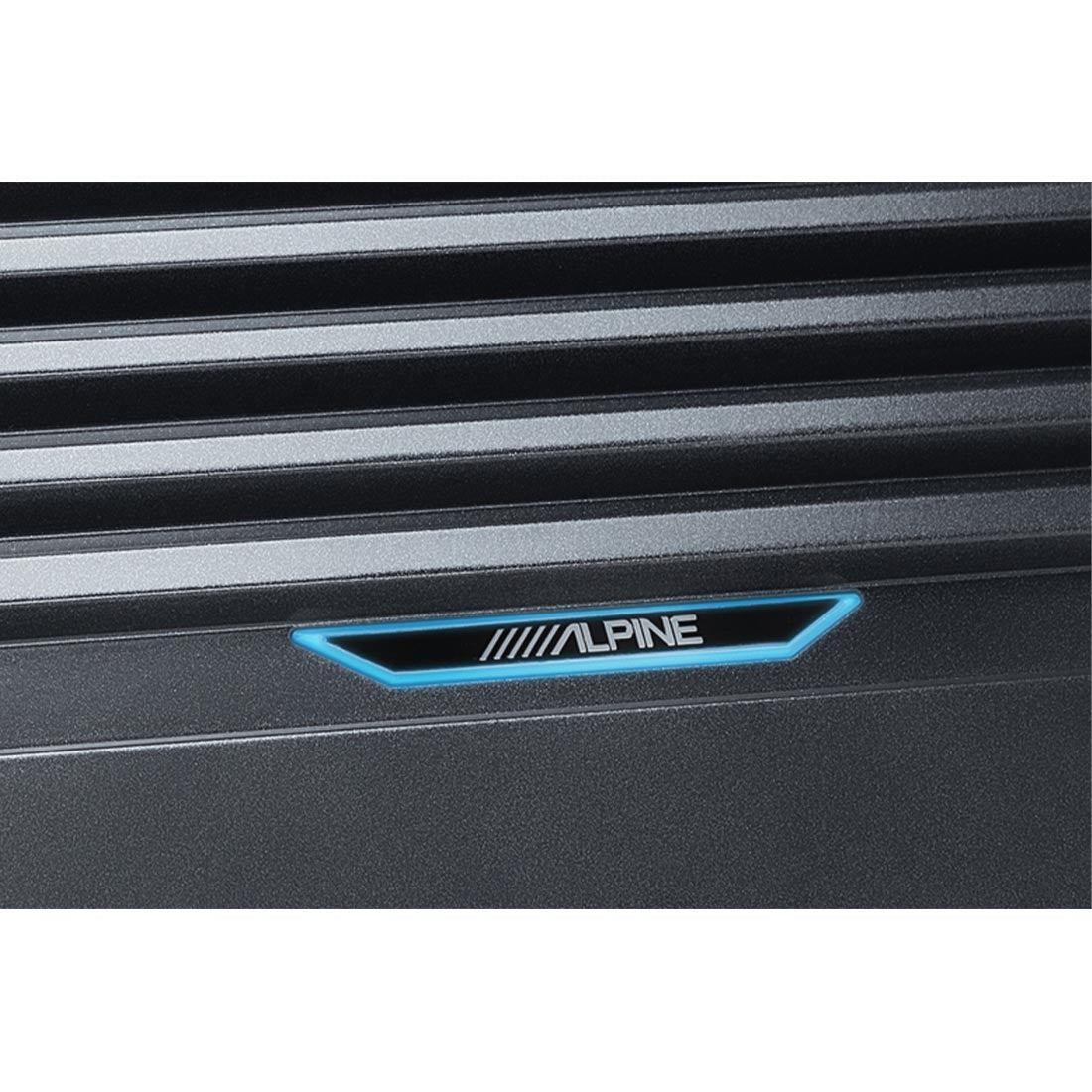

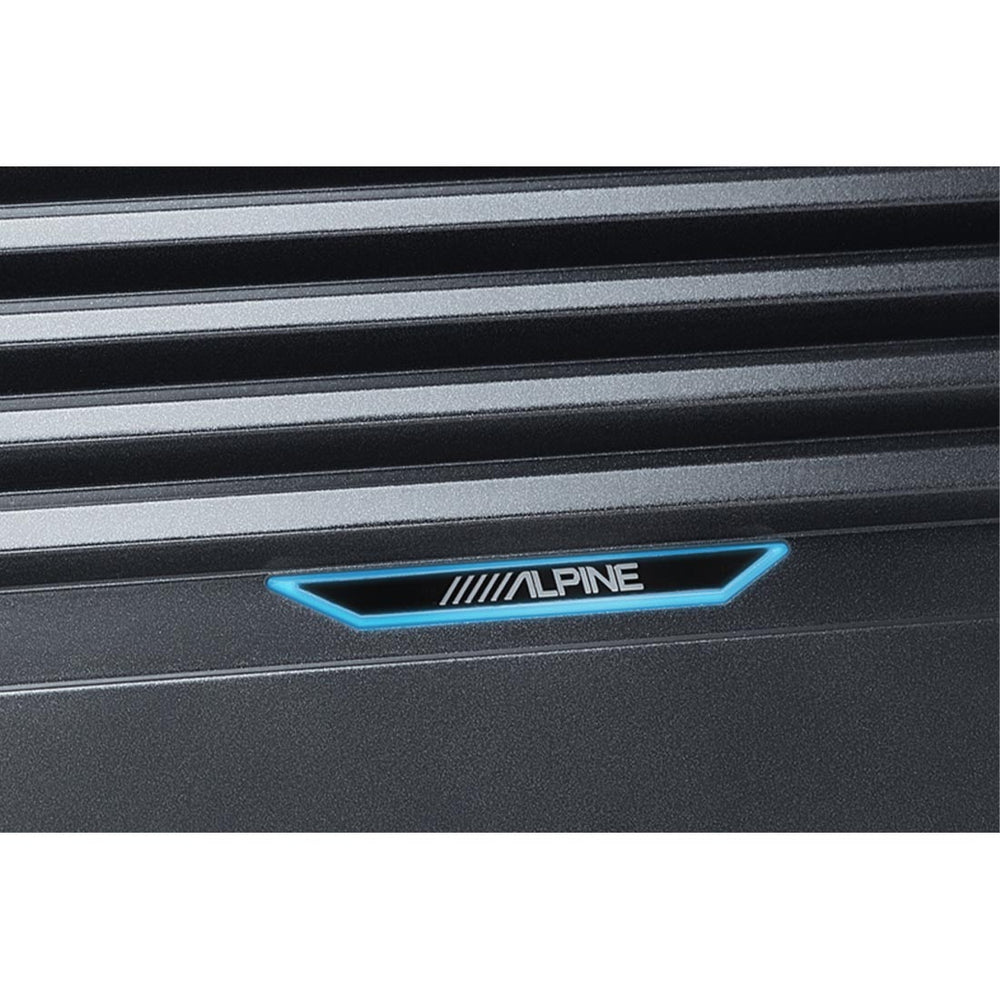

The Alpine M-A120M uses a large finned heat sink combined with best-in-class thermal handling and an advanced thermal protection circuit. As operating temperatures increase, the amplifier can automatically manage output to reduce heat and help prevent sudden shutdowns. Once temperatures return to normal, full output is automatically restored, allowing the music to continue without unnecessary interruption.

Easy System Integration

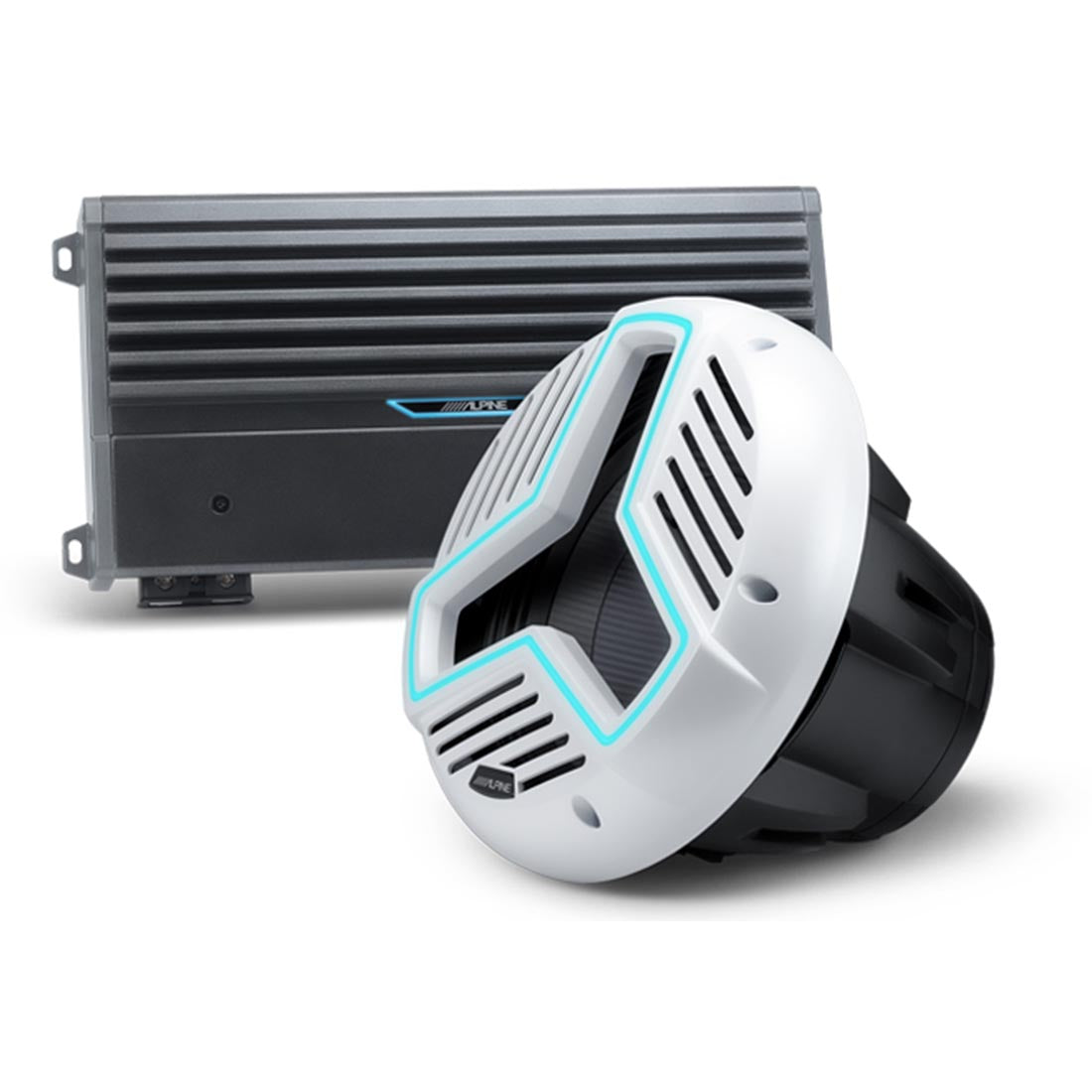

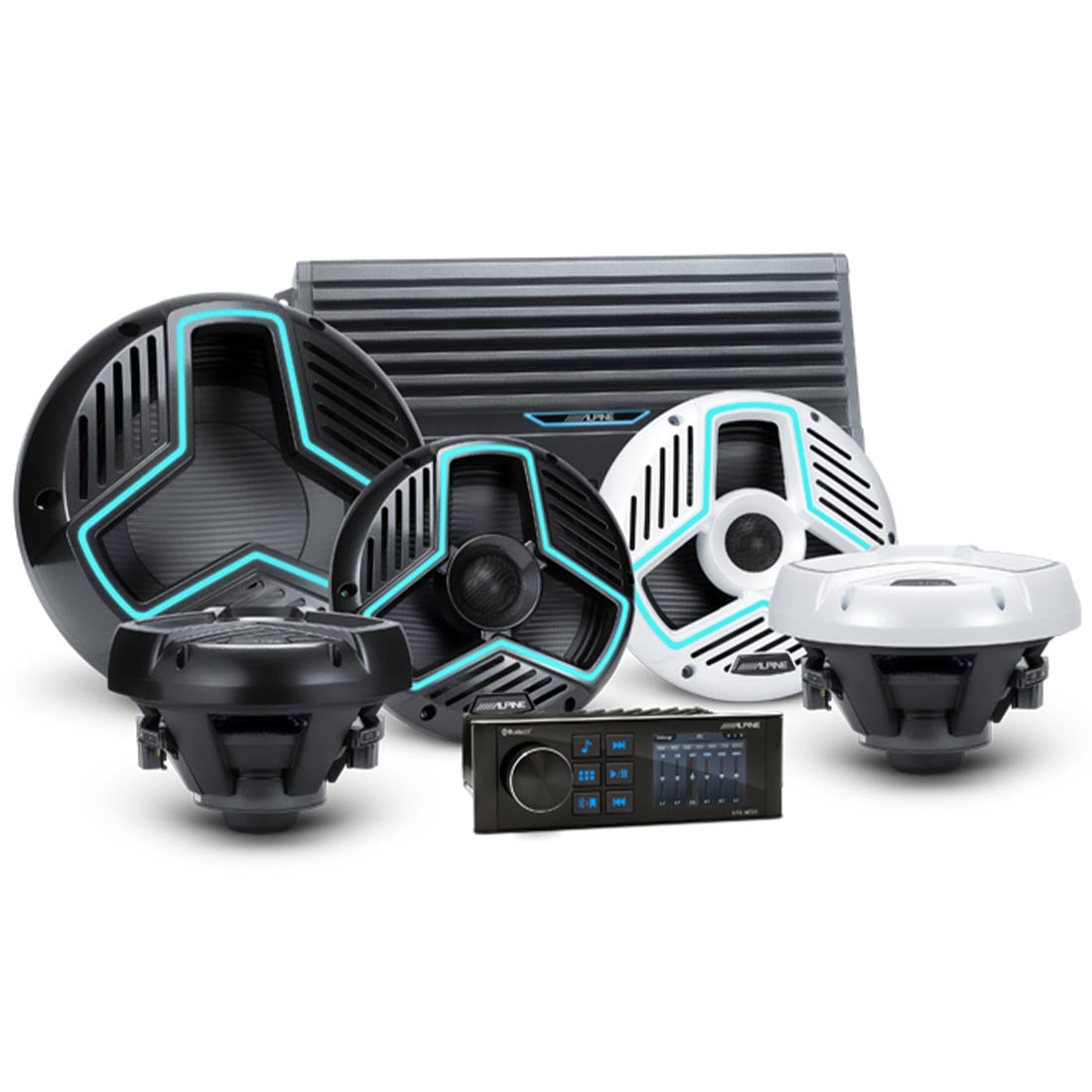

Building an Alpine marine audio system is straightforward with the Alpine M-A120M. It can be paired with compatible Alpine Marine receivers, allowing the receiver's built-in amplifier to power the speakers while the M-A120M is dedicated entirely to bass duties.

The amplifier supports:

• One 10-inch or 12-inch subwoofer at 600 watts RMS
• Two compatible 4-ohm subwoofers producing 1,200 watts RMS at 2 ohms

This dedicated approach keeps the entire system balanced, allowing speakers to stay clear while the subwoofer delivers deep, powerful low frequencies.

Flexible Connections for Cleaner Installation

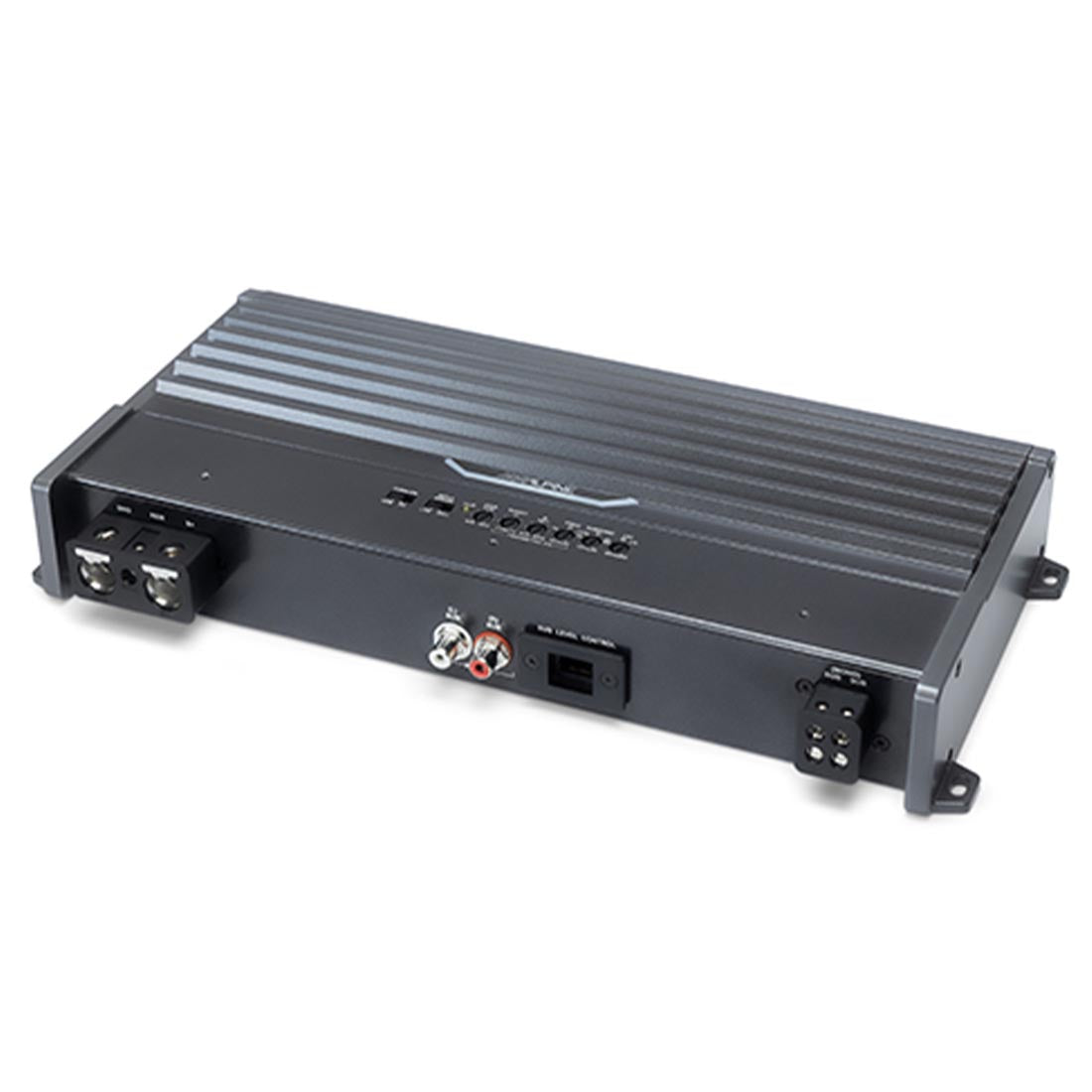

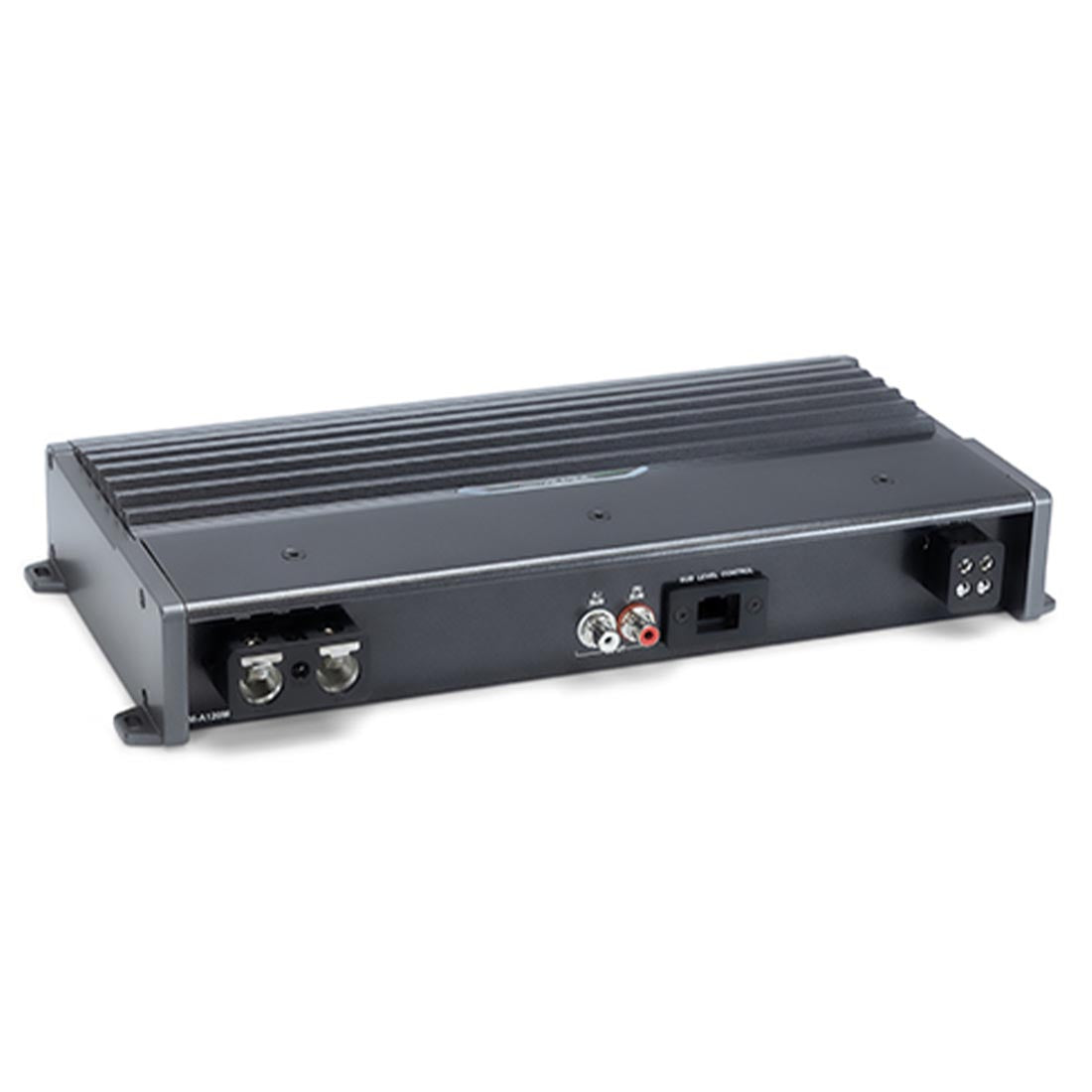

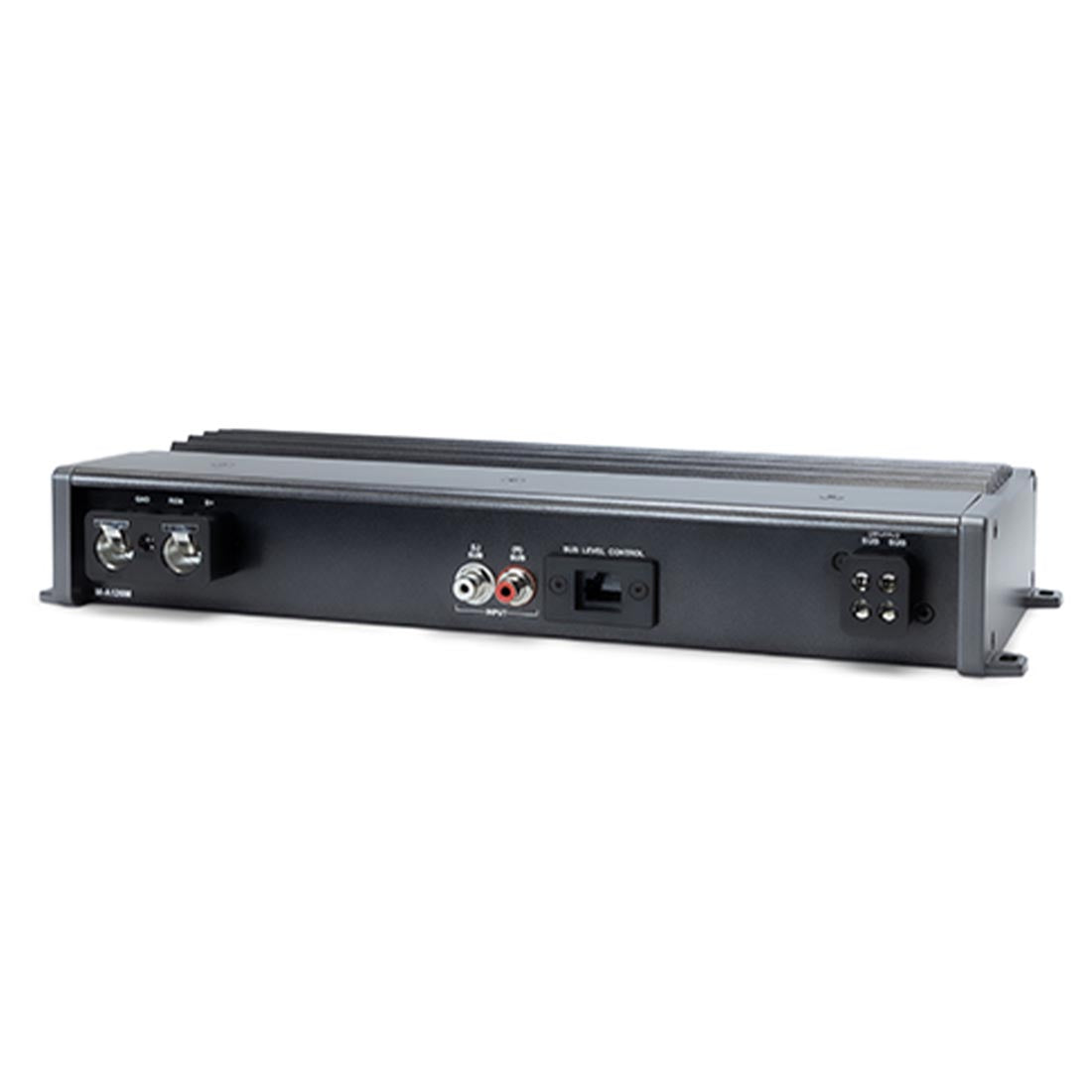

Thoughtful design makes installation simpler and more organized. All power, speaker, and signal connections are positioned along one side of the amplifier, helping create a cleaner wiring layout.

Additional installation-friendly features include:

• Dual mono subwoofer outputs
• Detachable ABYC-compliant terminals

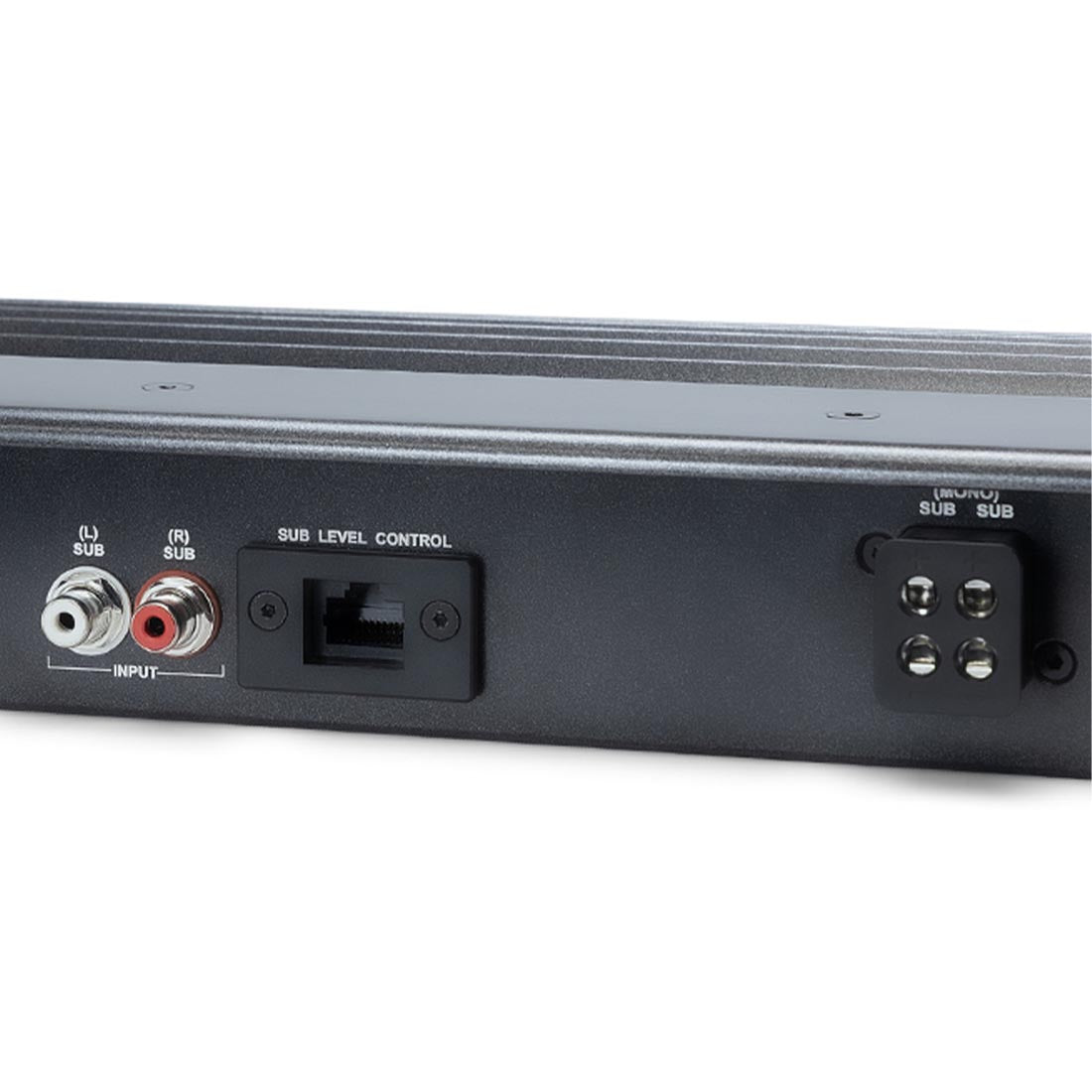

• High-level and low-level inputs

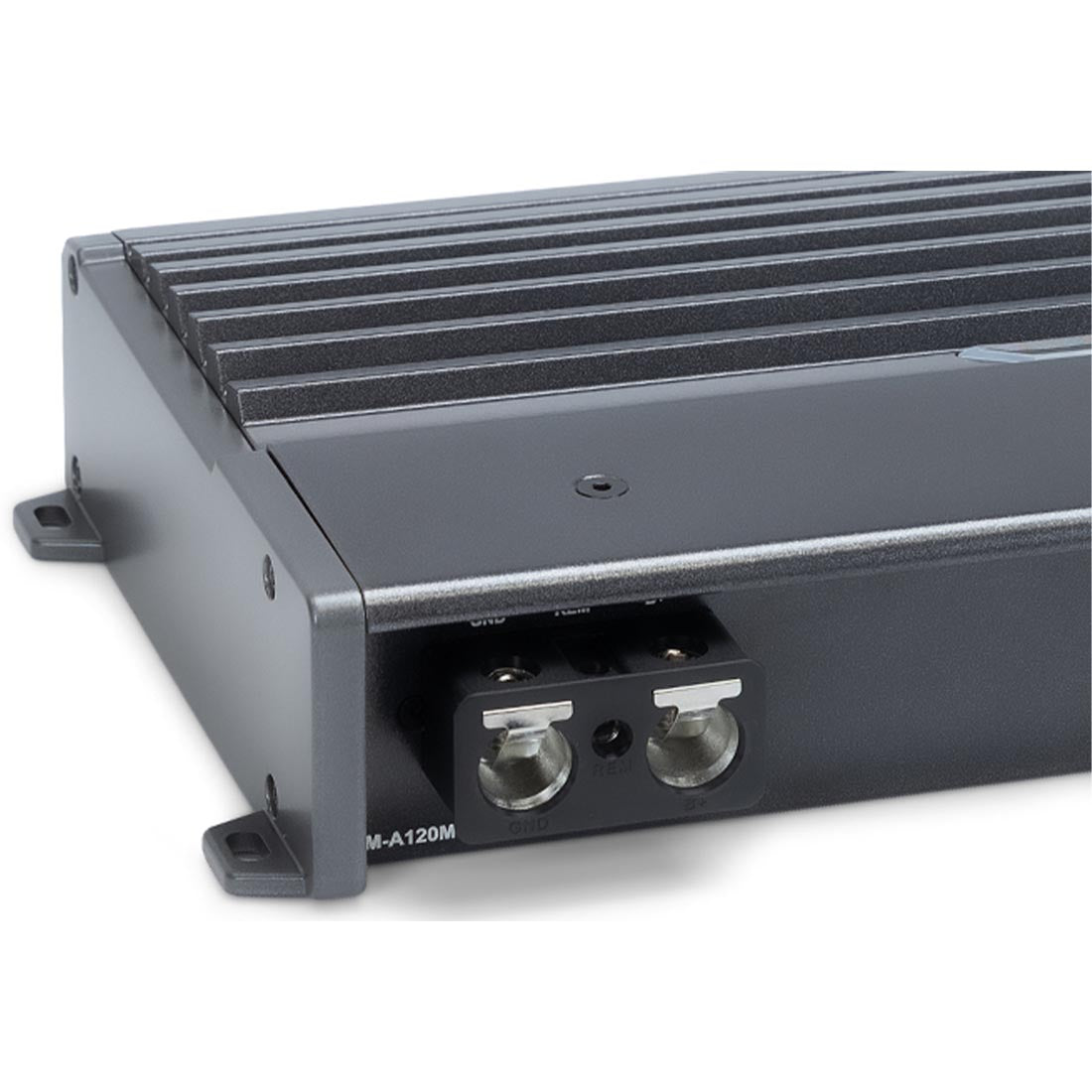

• 0 AWG power terminals with included 4 AWG reducers
• 10 AWG speaker output terminals
• Compatibility with the optional RUX-M-UNIV Bass Knob for remote bass level adjustment

Whether connecting one subwoofer, two subwoofers, or a dual-voice-coil subwoofer with the proper configuration, the amplifier provides the flexibility needed for a wide variety of marine audio systems.

The right marine amplifier should do more than produce loud bass—it should continue performing when conditions become challenging. The Alpine M-A120M combines high power, flexible tuning, dependable thermal management, and marine-ready durability into a single amplifier that's designed to keep your bass strong from launch until sunset. If your goal is deep, controlled low-end performance that can handle life on the water, this amplifier is built to meet that challenge.

FAQ

1. What power does the Alpine M-A120M produce? The amplifier delivers 600 watts RMS at 4 ohms and 1,200 watts RMS at both 2 ohms and 1 ohm.
2. Is the Alpine M-A120M designed for marine use? Yes. It features an IPX6-rated waterproof chassis along with salt, fog, and UV resistance for demanding marine environments.
3. Can this amplifier power two subwoofers? Yes. It can power two compatible 4-ohm subwoofers at 1,200 watts RMS when wired to a 2-ohm load.
4. What tuning controls are included? The amplifier includes an adjustable low-pass filter, adjustable subsonic filter, adjustable parametric bass EQ, and a gain-setting clip indicator for precise tuning.
5. Does the Alpine M-A120M support remote bass level adjustment? Yes. It is compatible with the optional RUX-M-UNIV Bass Knob, allowing convenient subwoofer level adjustment from the listening position.
