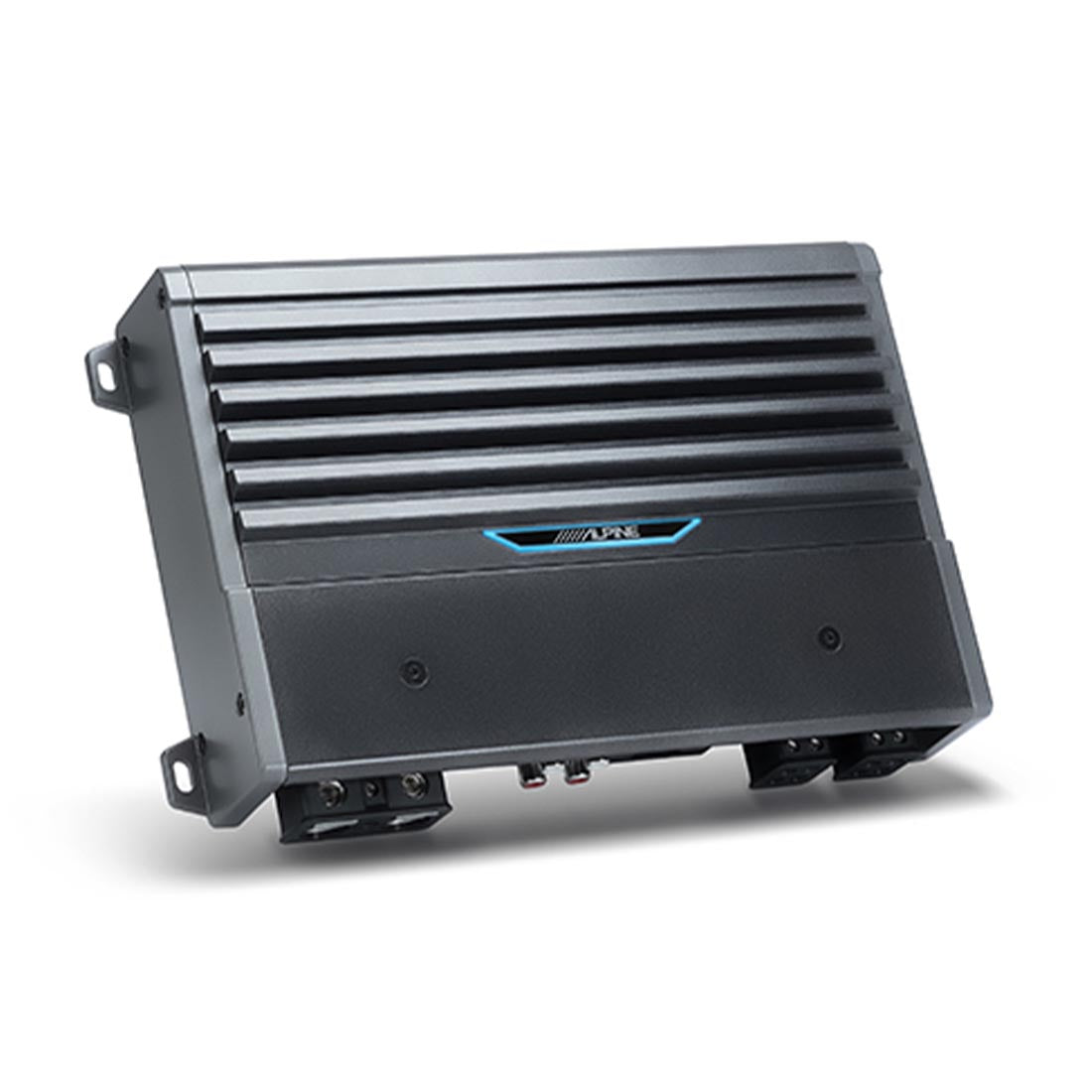

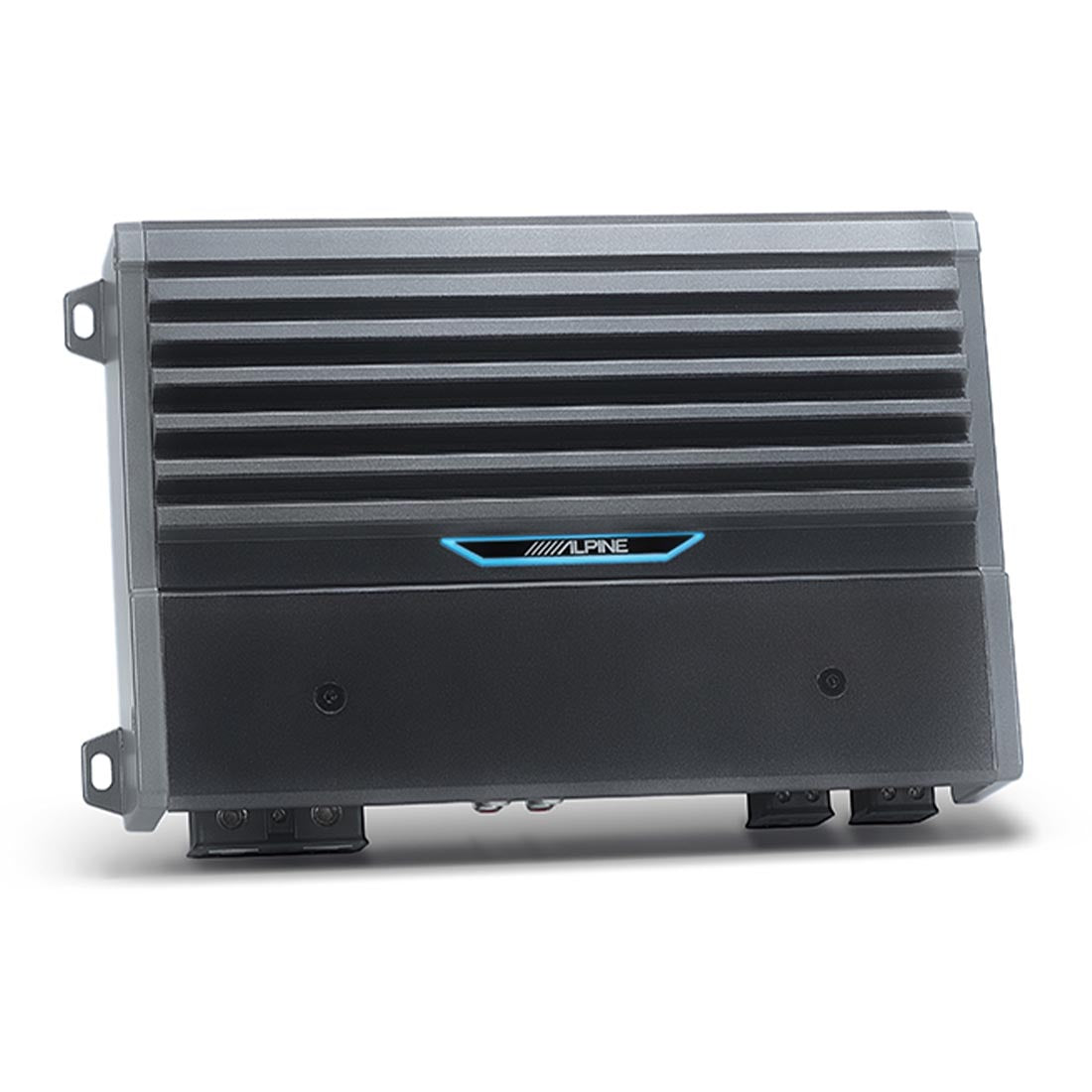

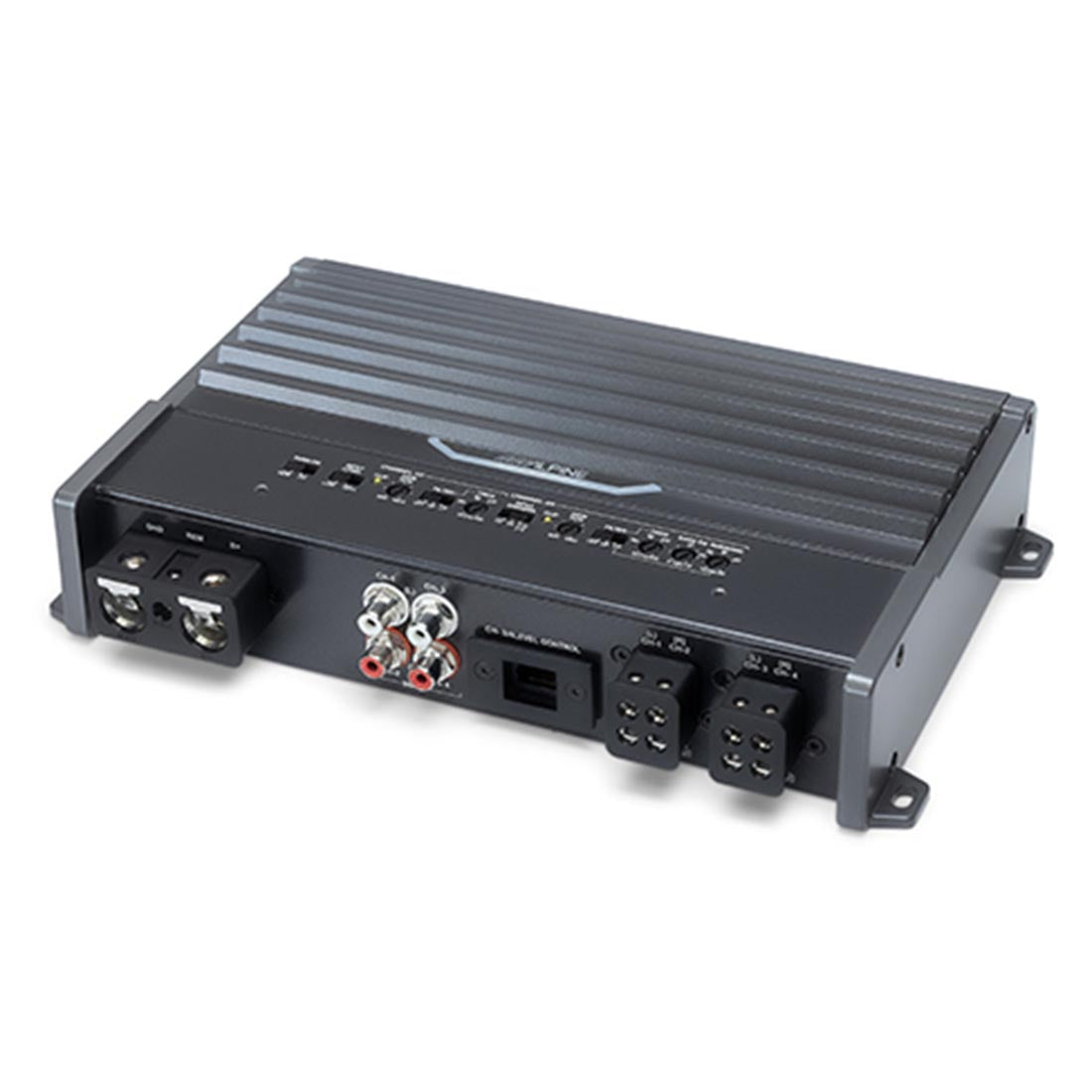

Alpine M-A60F 4-Channel Marine Amplifier

Alpine M-A60F 4-Channel Marine Amplifier with 600W of Flexible System Power and IPX6 Waterproof Chassis - 2026

The Alpine M-A60F is built for boaters who want powerful, dependable audio that keeps up with every trip on the water. Delivering 600 watts of combined rated system power in a compact, IPX6-rated waterproof chassis, this 4-channel marine amplifier gives you the flexibility to power four speakers, bridge channels for a speaker and subwoofer combination, or configure it to suit your system. Why settle for a one-size-fits-all amplifier when your boat deserves a setup tailored to the way you listen?

Flexible Power for Your Marine Audio System

The Alpine M-A60F offers the versatility to support a wide range of marine audio configurations without compromising performance. It delivers:

• 150 watts RMS x 4 at 4 ohms
• 150 watts RMS x 4 at 2 ohms
• 300 watts RMS x 2 when bridged at 4 ohms

Because the amplifier maintains its rated output at both 2 and 4 ohms, you have greater freedom when choosing speakers and planning your system. Run four speakers for balanced sound throughout the boat, bridge one pair to power a subwoofer while driving two speakers, or bridge both channel pairs for two high-output 300-watt channels. It adapts to your setup like a captain adjusting course to changing waters.

Built for Marine Conditions

Life on the water demands equipment that can handle more than just great sound, and the Alpine M-A60F is designed with that in mind.

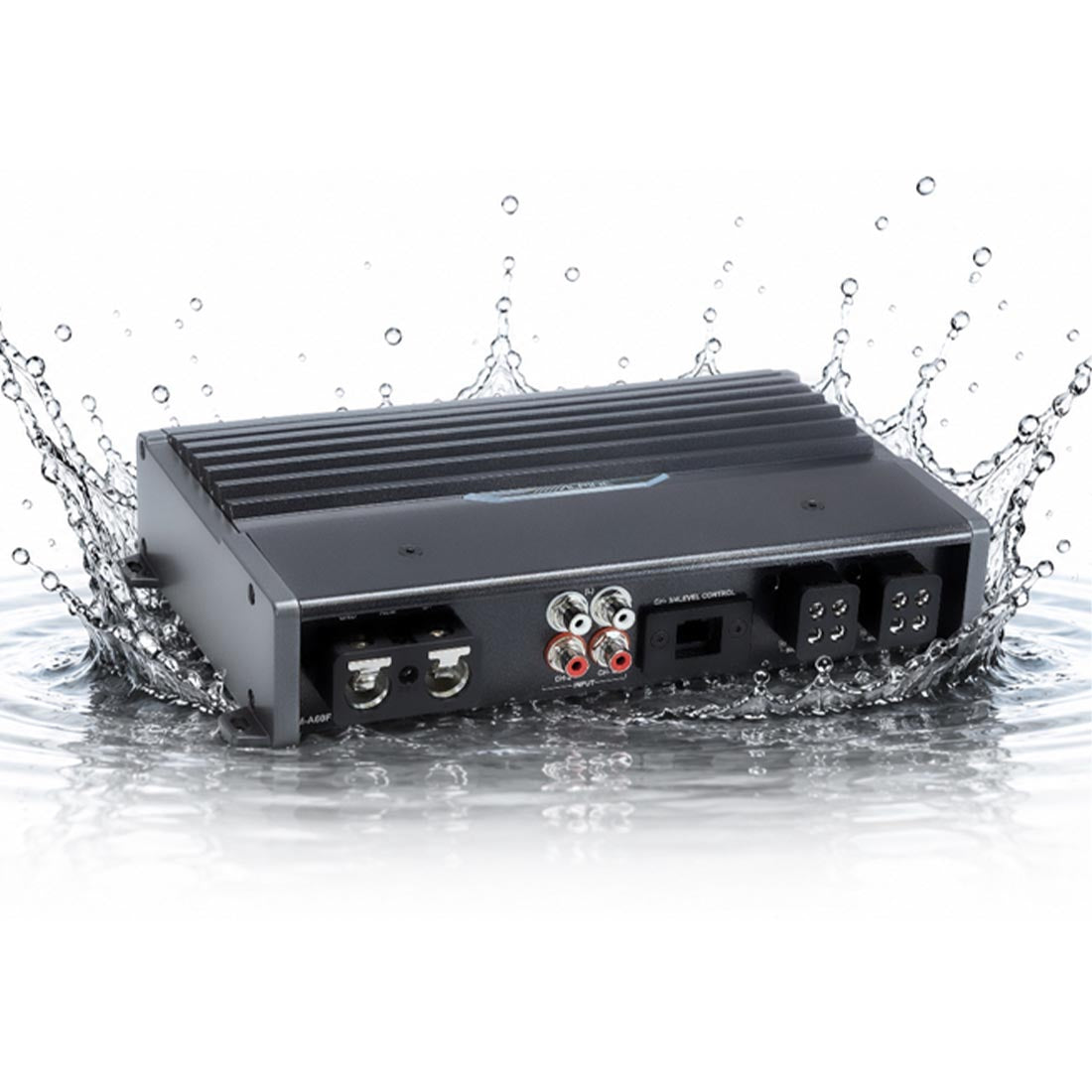

Its IPX6-rated waterproof chassis helps defend against powerful water spray, while resistance to salt, fog, and UV exposure supports long-lasting durability in harsh marine environments. A watertight top-panel control cover keeps tuning controls protected, and the included terminal boots help shield power and speaker connections from the elements.

Whether you're cruising through calm mornings or spending the entire day on open water, this amplifier is engineered to stay protected.

Fine-Tune Every Listening Experience

No two boats are arranged the same, which is why the Alpine M-A60F includes flexible tuning features to help you optimize your sound.

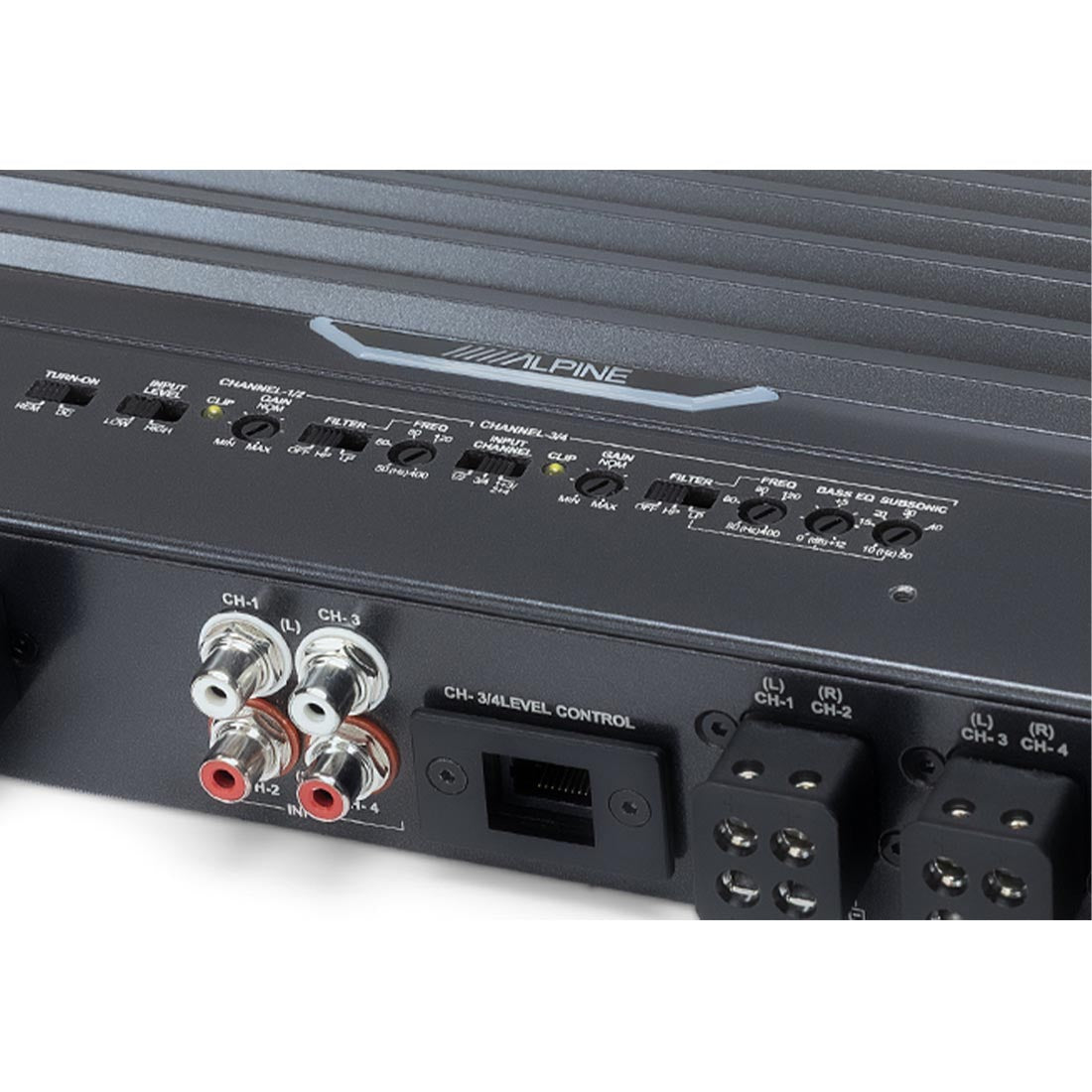

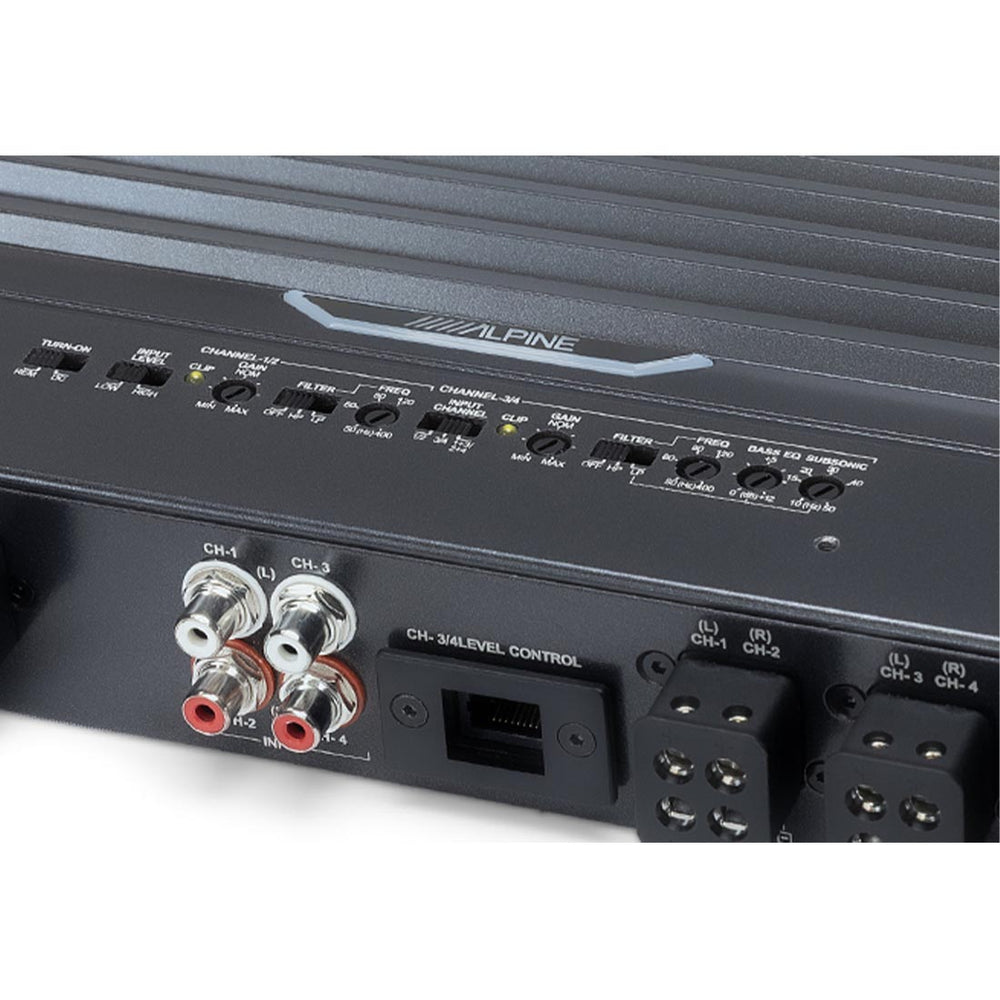

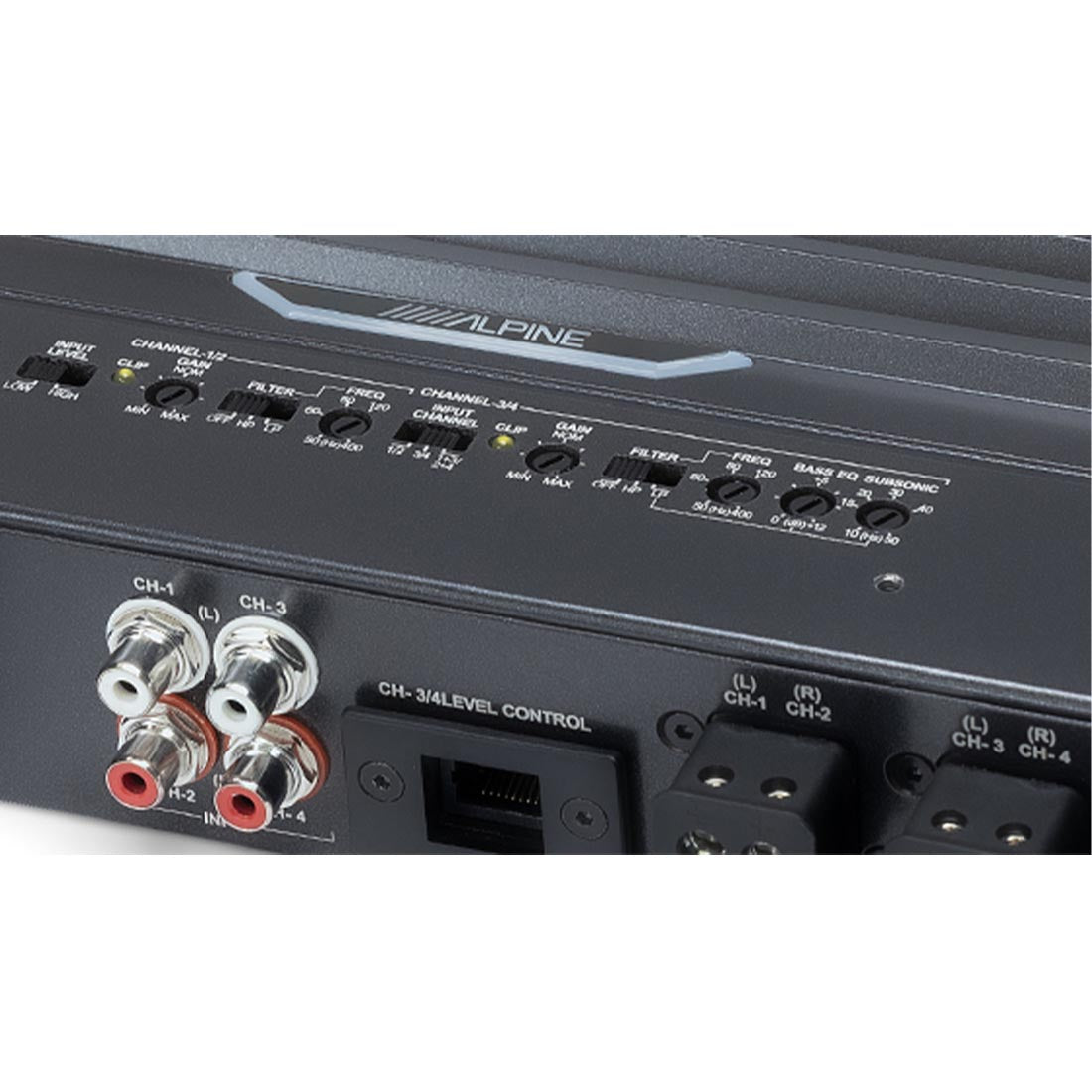

Channels 1 through 4 include selectable Off, High-Pass, and Low-Pass crossovers adjustable from 50 Hz to 400 Hz with a 12 dB/octave slope. Channels 3 and 4 also feature:

• Adjustable subsonic filter from 10 Hz to 50 Hz
• Bass EQ adjustable from 0 to +12 dB at 45 Hz
• Independent gain controls with clip indicators

If Channels 3 and 4 are powering a subwoofer, the amplifier is also compatible with the optional RUX-M-UNIV Bass Knob, allowing convenient bass level adjustment from the listening position.

Designed to Play All Day

Long days on the water often mean hours of continuous music. The Alpine M-A60F is built to handle those extended listening sessions with best-in-class thermal handling and an automatic two-stage thermal protection circuit.

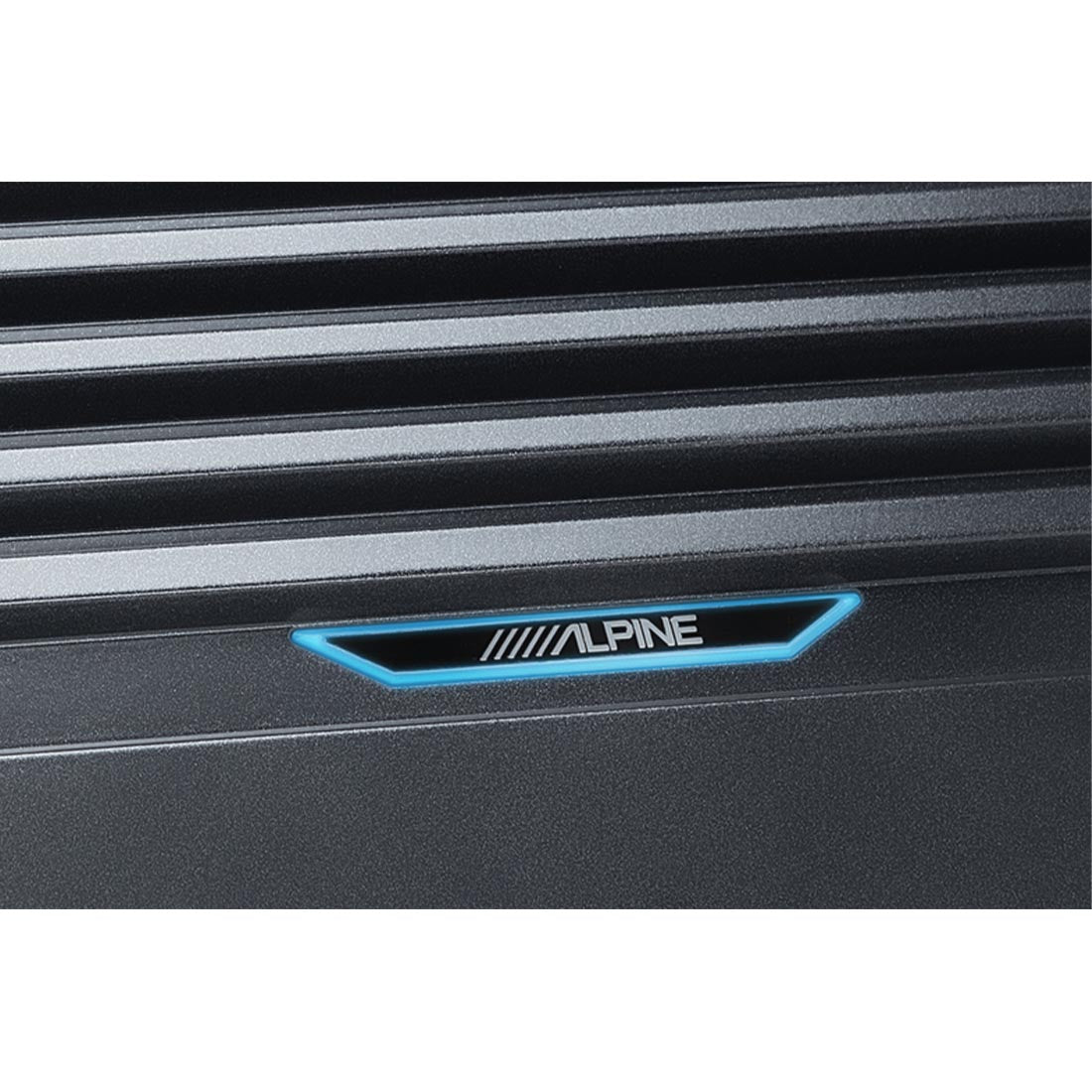

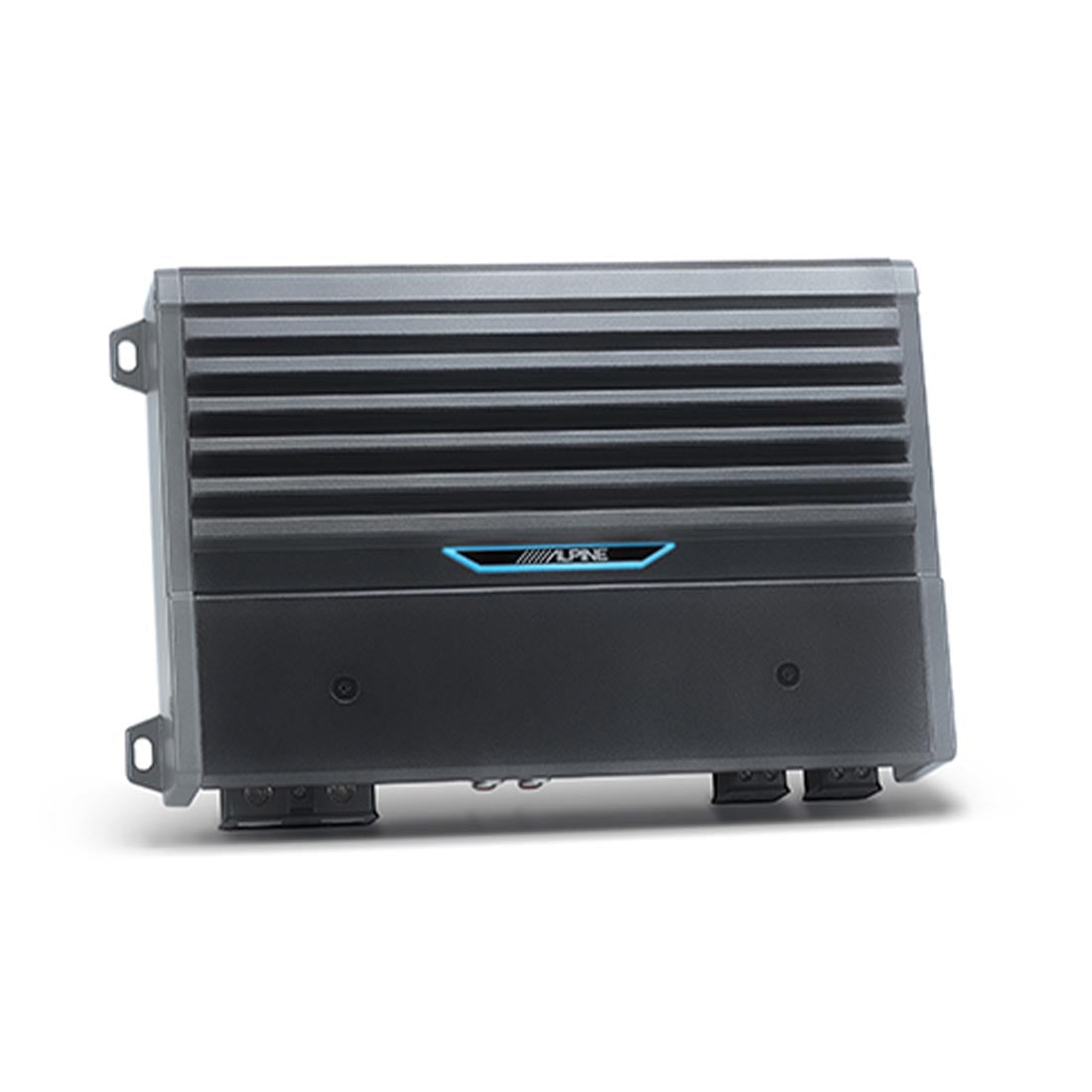

A large finned heat sink helps manage heat, while the amplifier automatically adjusts output if temperatures climb too high. Once normal operating temperatures return, full power is restored automatically. Think of it as a cooling system that quietly works behind the scenes so the music keeps playing.

Cleaner Wiring and Easier Integration

A clean installation makes future maintenance and upgrades much easier, and the Alpine M-A60F is designed with convenience in mind.

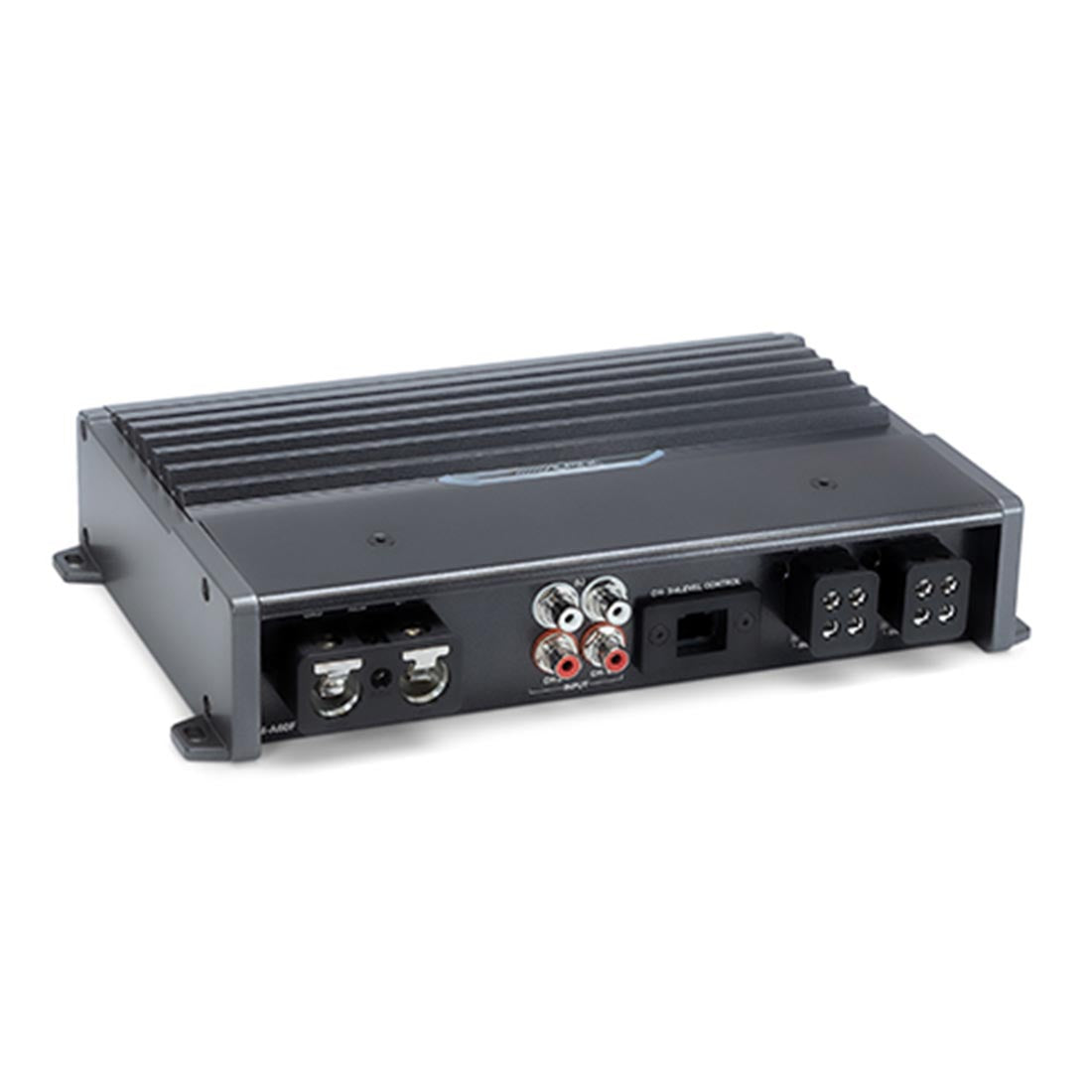

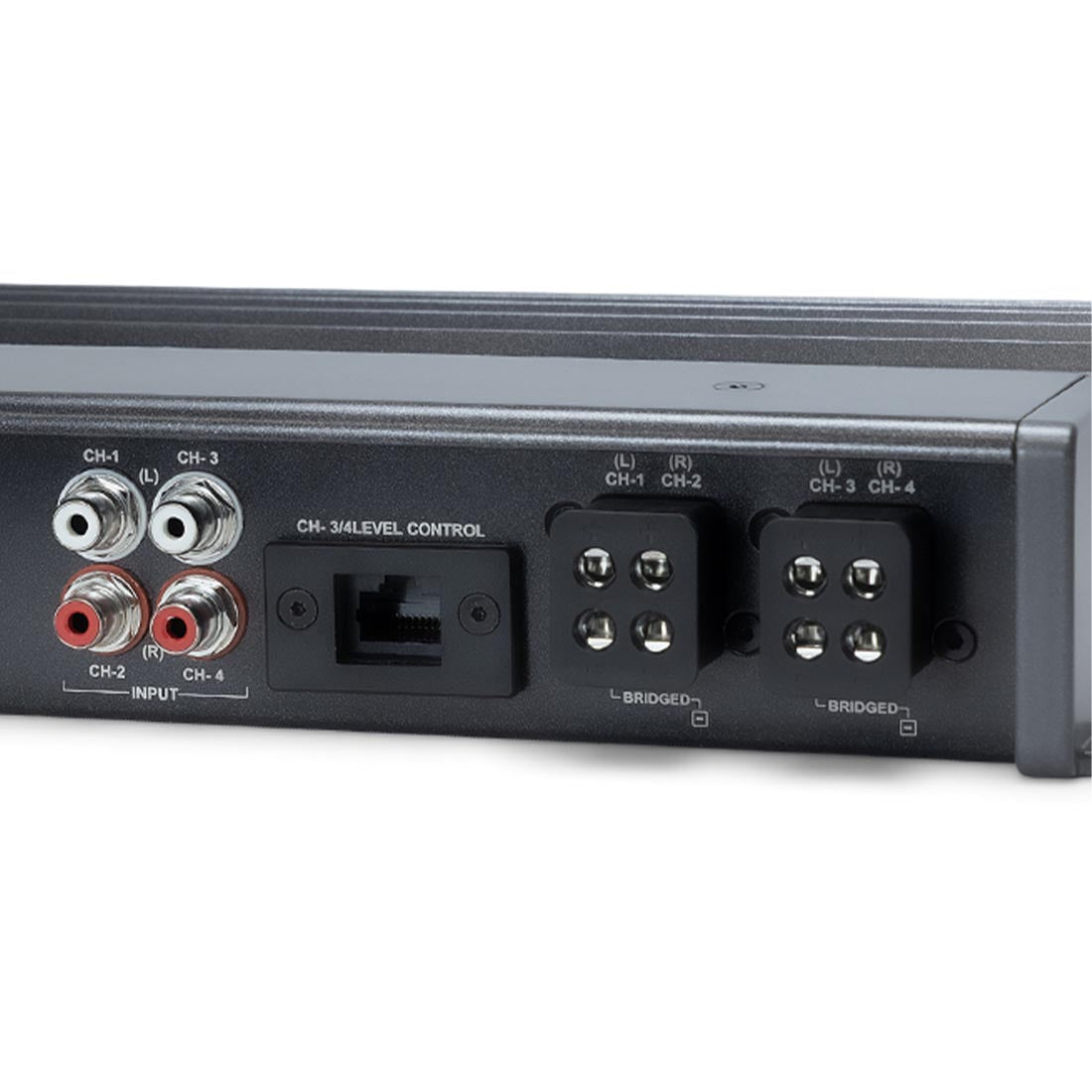

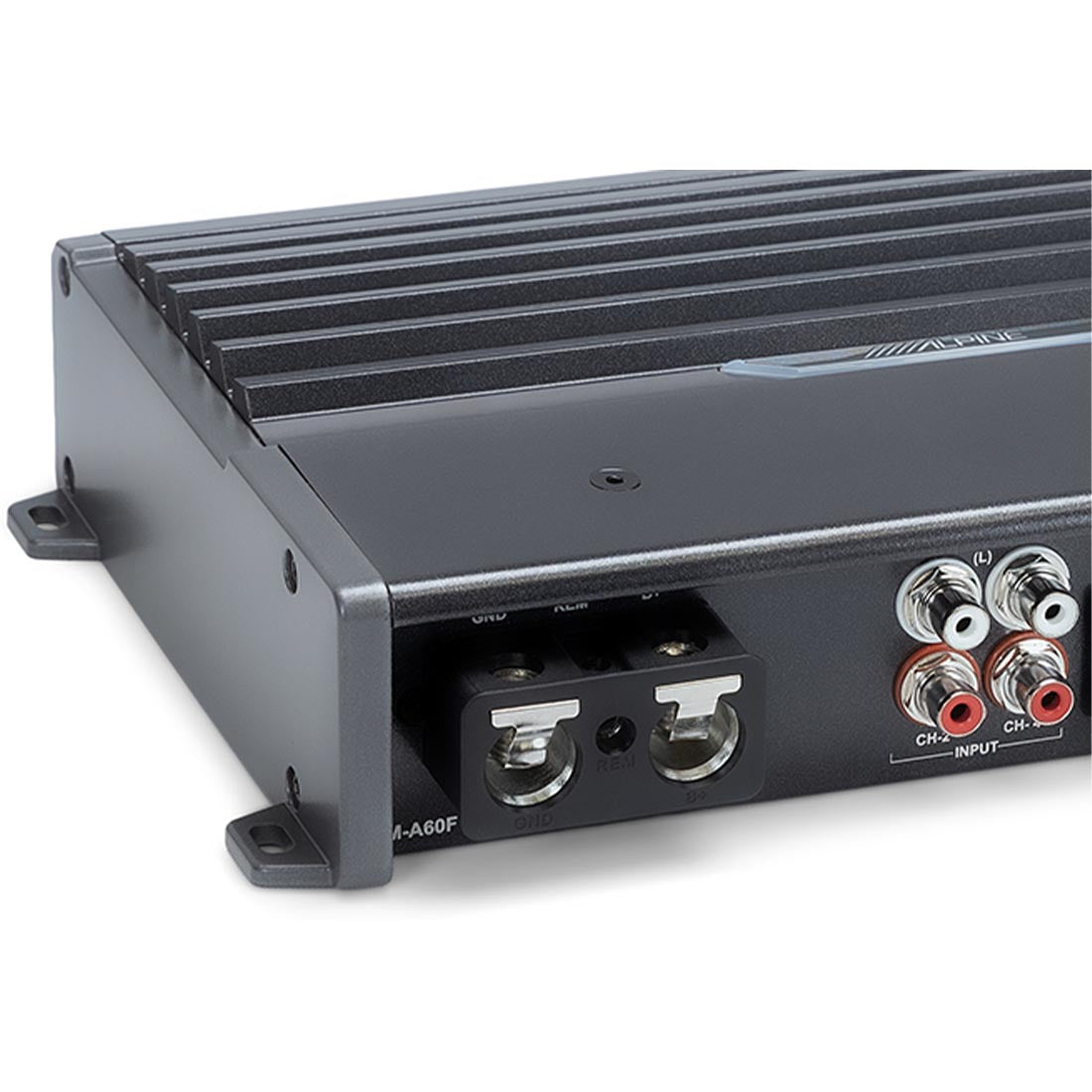

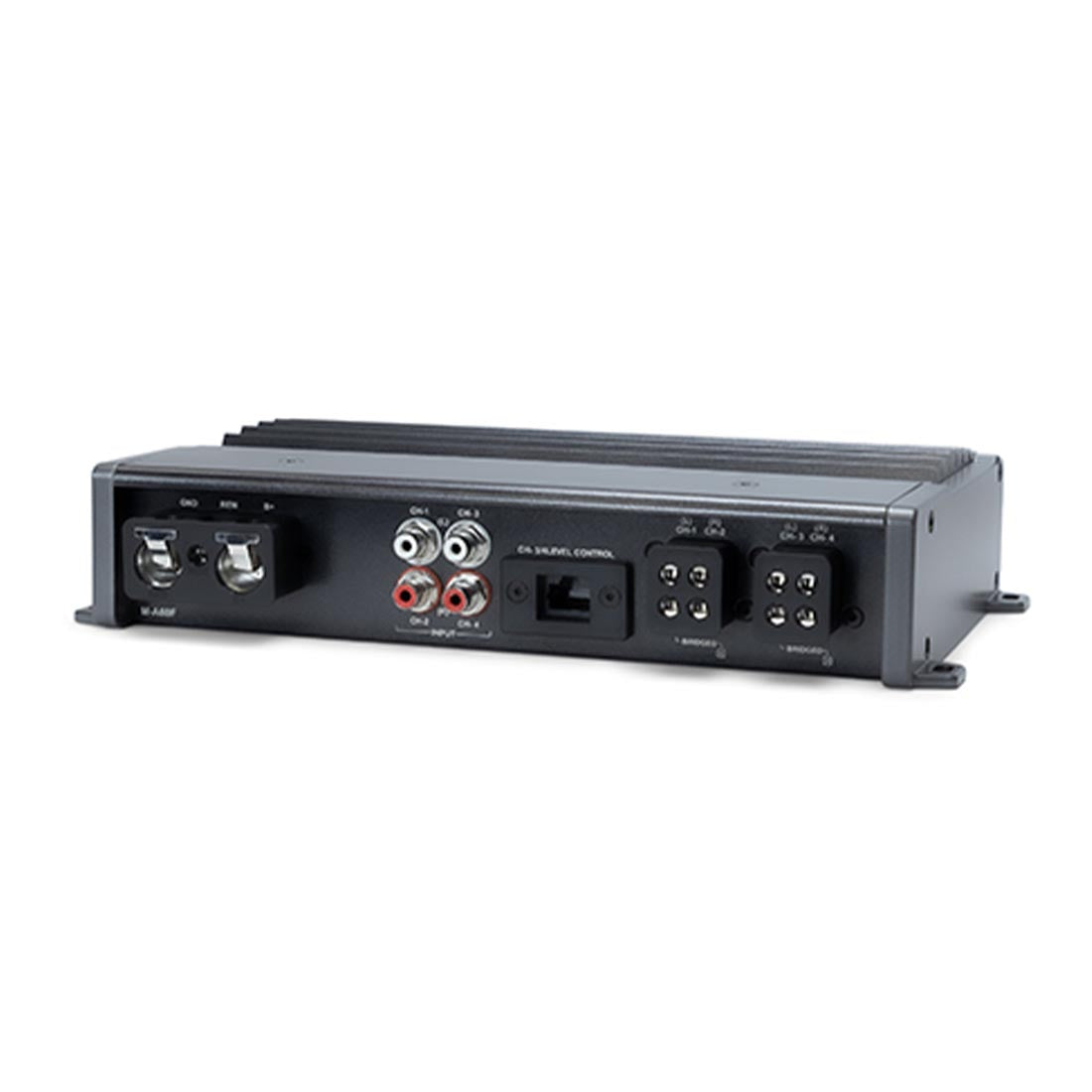

All power, signal, and speaker connections are positioned on one side for an organized layout, while the tuning controls are hidden beneath a removable top cover for a clean finished appearance.

Additional installation-friendly features include:

• Detachable ABYC-compliant terminals
• High- and low-level input compatibility
• Included terminal boots
• Included wire reducers
• Stainless mounting hardware
• Mounting spacers
• Installation tools

These thoughtful design elements help simplify wiring while creating a professional-looking installation.

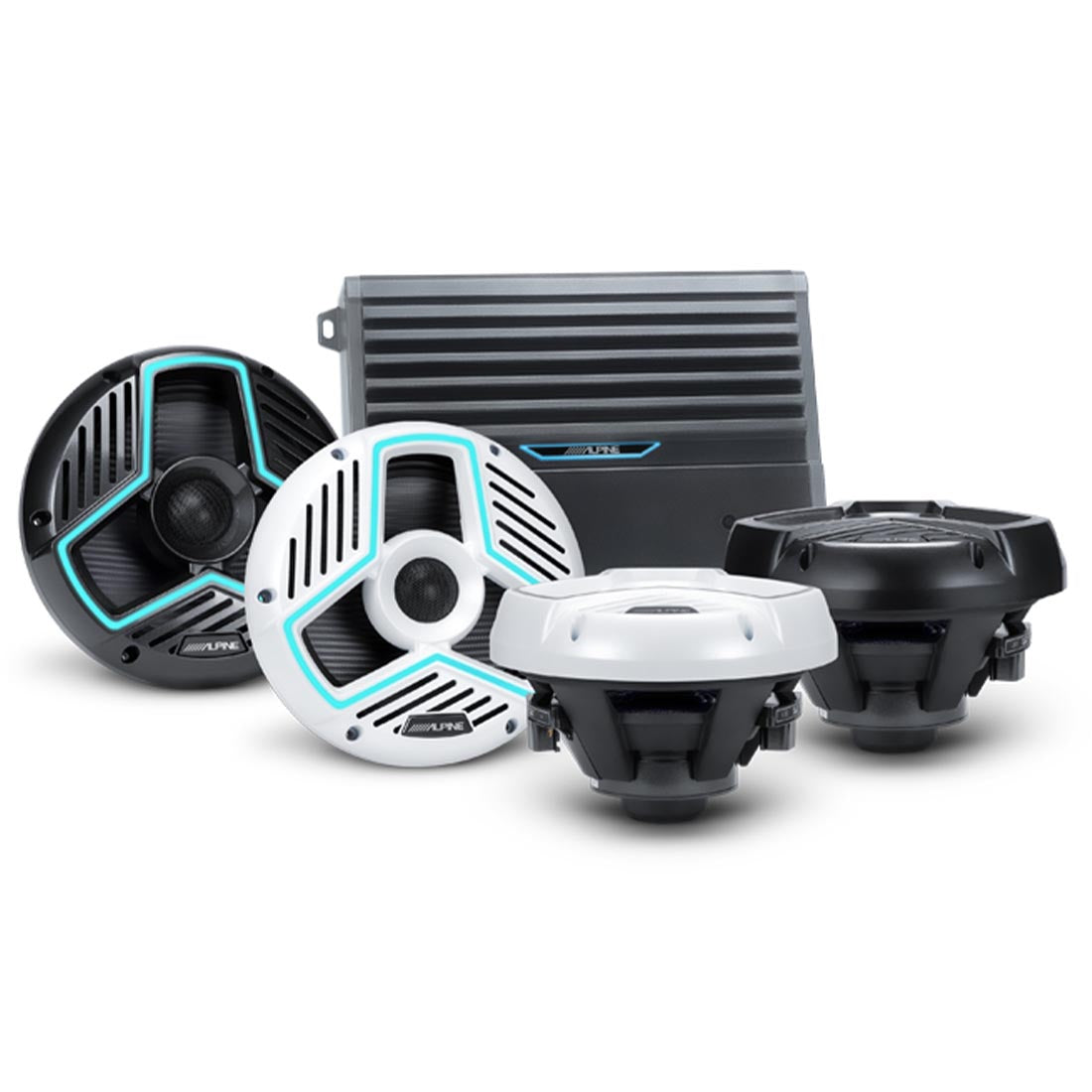

Complete Your Alpine Marine Audio System

The Alpine M-A60F provides a strong foundation for a complete Alpine Marine audio system. It is designed to power four Alpine Marine speakers while offering flexible tuning for each speaker pair. It also supports expansion with an Alpine Marine subwoofer and mono amplifier, making it easy to build a system that delivers balanced sound from bow to stern.

Every component is designed to work together, giving you the flexibility to choose the speaker sizes, locations, and system layout that best complement your boat.

The Alpine M-A60F combines flexible power, advanced tuning, dependable thermal management, and marine-ready protection into one compact amplifier. Whether you're powering four speakers or creating a speaker and subwoofer system, it delivers the adaptability and durability needed for life on the water. With thoughtful installation features and protection against water, salt, fog, and UV exposure, it's built to provide reliable performance trip after trip.

FAQ

1. What is the total power output of the Alpine M-A60F? The Alpine M-A60F delivers 600 watts of combined rated system power, with up to 150W RMS per channel or 300W RMS per bridged channel.
2. Can the Alpine M-A60F power both speakers and a subwoofer? Yes. You can bridge one pair of channels for a 300W RMS subwoofer while using the remaining channels to power two speakers, or configure the amplifier in several other speaker and subwoofer combinations.
3. Is the Alpine M-A60F designed for marine environments? Yes. It features an IPX6-rated waterproof chassis along with salt, fog, and UV resistance to help withstand demanding marine conditions.
4. Does the Alpine M-A60F include tuning controls? Yes. It includes selectable high-pass and low-pass crossovers, independent gain controls with clip indicators, adjustable bass EQ, and a subsonic filter on Channels 3 and 4.
5. Can I control the bass level from my seating position? Yes. When Channels 3 and 4 are configured to power a subwoofer, the amplifier is compatible with the optional RUX-M-UNIV Bass Knob for convenient remote bass level adjustment.
