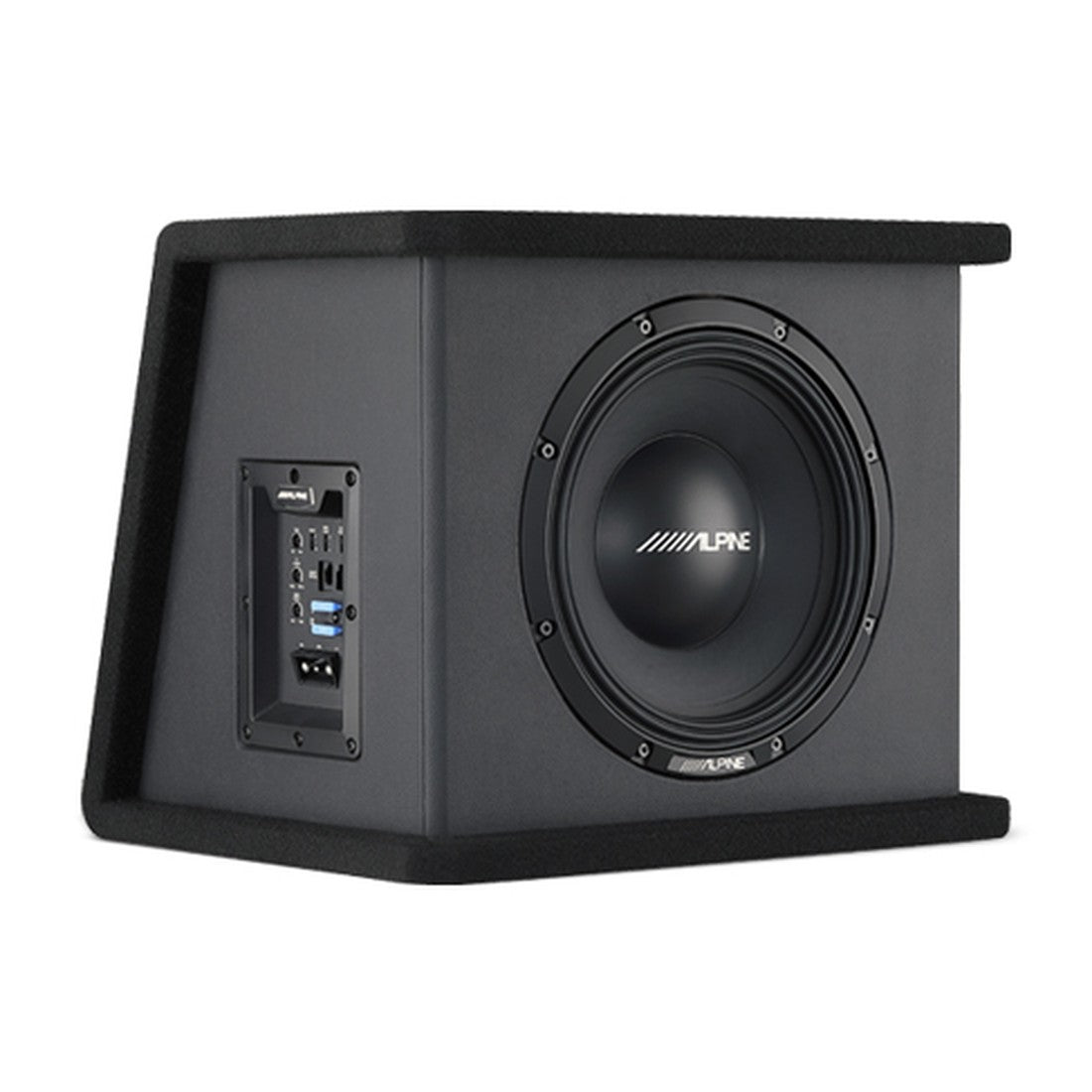

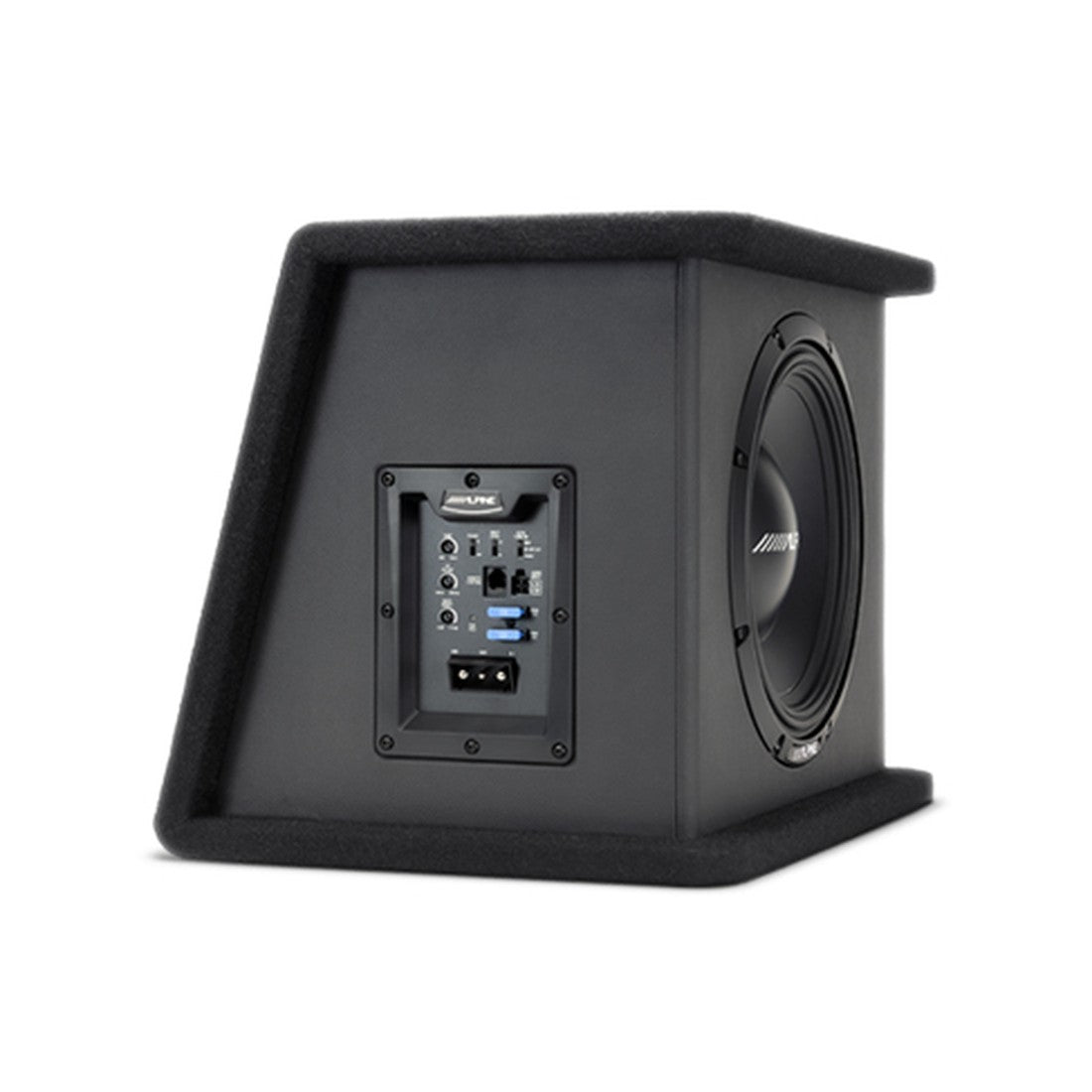

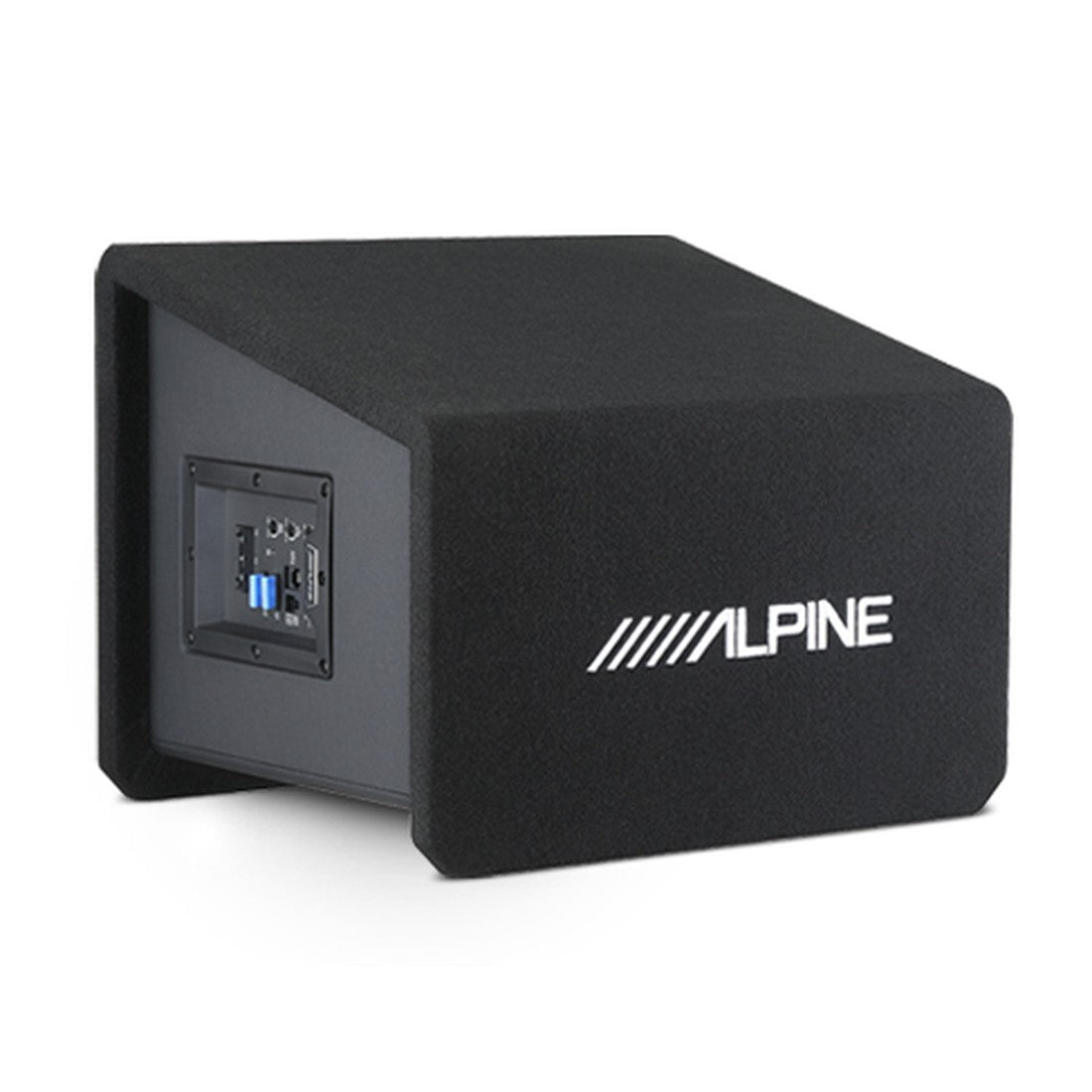

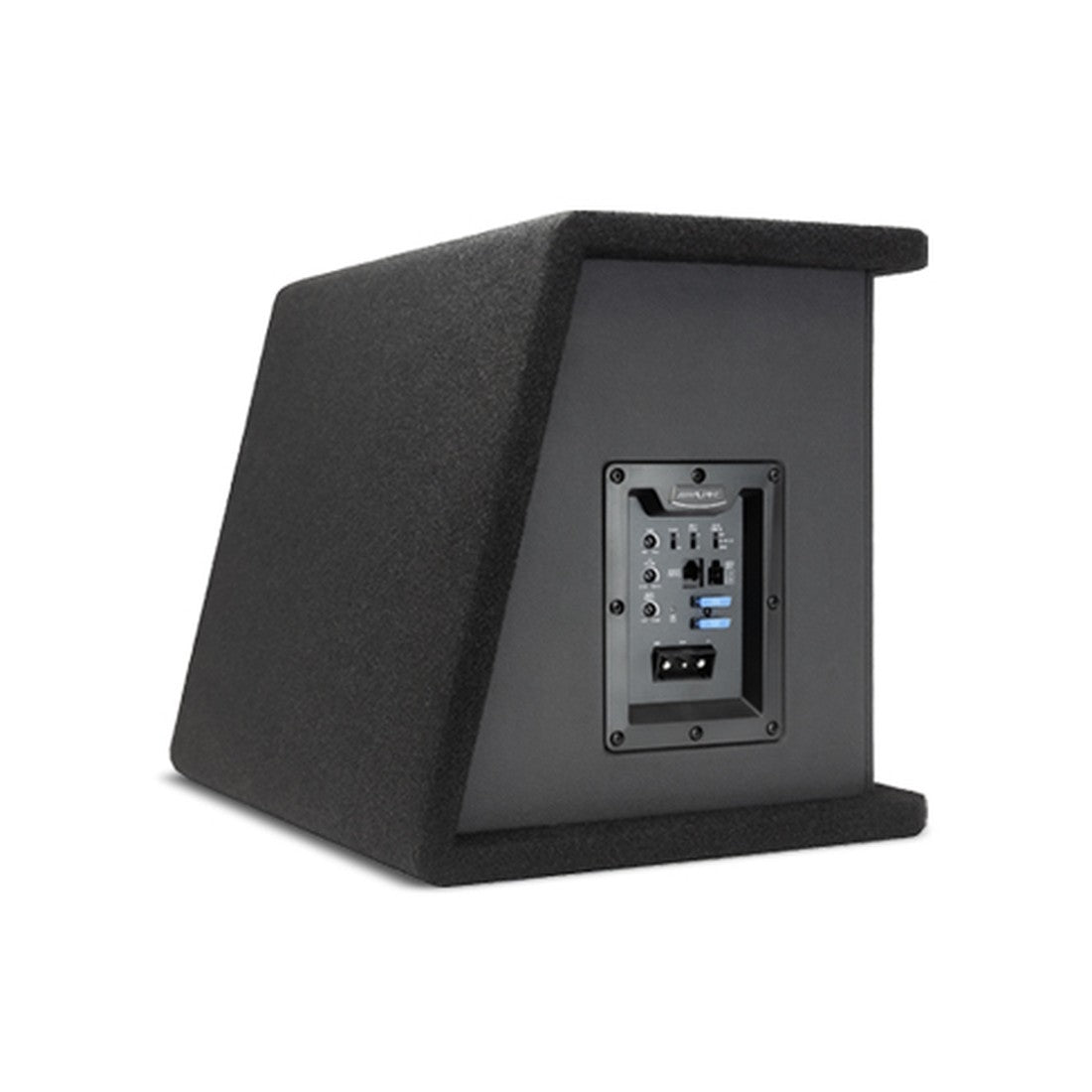

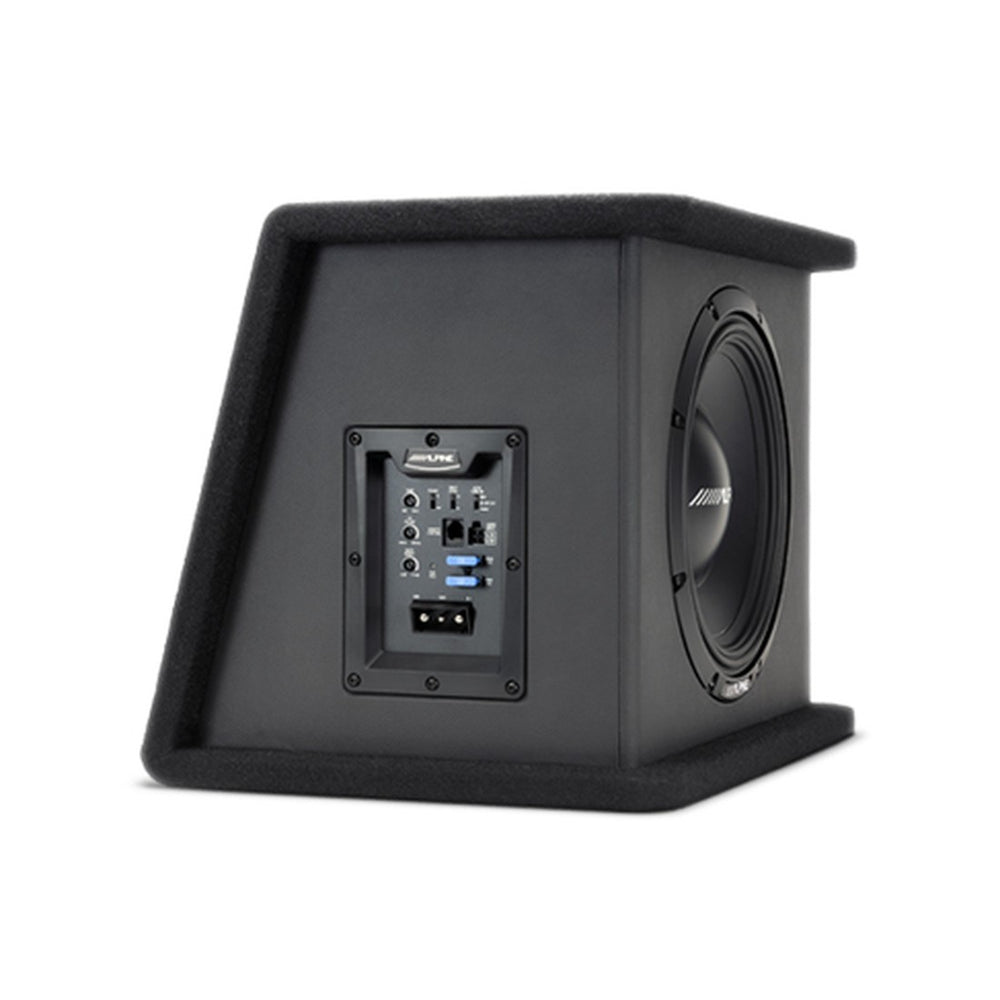

Alpine PWE-SB10 10" Powered Sealed Wedge Subwoofer Enclosure
Product Description
Product Description
Alpine PWE-SB10 10" Powered Sealed Wedge Subwoofer Enclosure with 300W RMS
The Alpine PWE-SB10 powered wedge subwoofer enclosure combines a preloaded 10" subwoofer with a built-in amplifier engineered specifically for its enclosure. Its compact wedge-shaped design adds powerful bass to almost any vehicle while fitting easily in trunks, cargo areas, or behind seats.
Integrated Bass Performance
The built-in amplifier delivers 300W RMS and 450W peak, with power carefully matched to the 10" dual 3Ω voice coil subwoofer configuration. This optimized pairing allows the Alpine PWE-SB10 to operate efficiently while maintaining tight, controlled bass and dynamic low-frequency performance.
- Preloaded 10" powered wedge-style subwoofer enclosure
- 300W RMS (450W peak power)
- Dual 3Ω voice coil subwoofer
- 35Hz – 200Hz frequency response
- Adjustable 50Hz – 150Hz low-pass filter
- 0° / 180° phase control

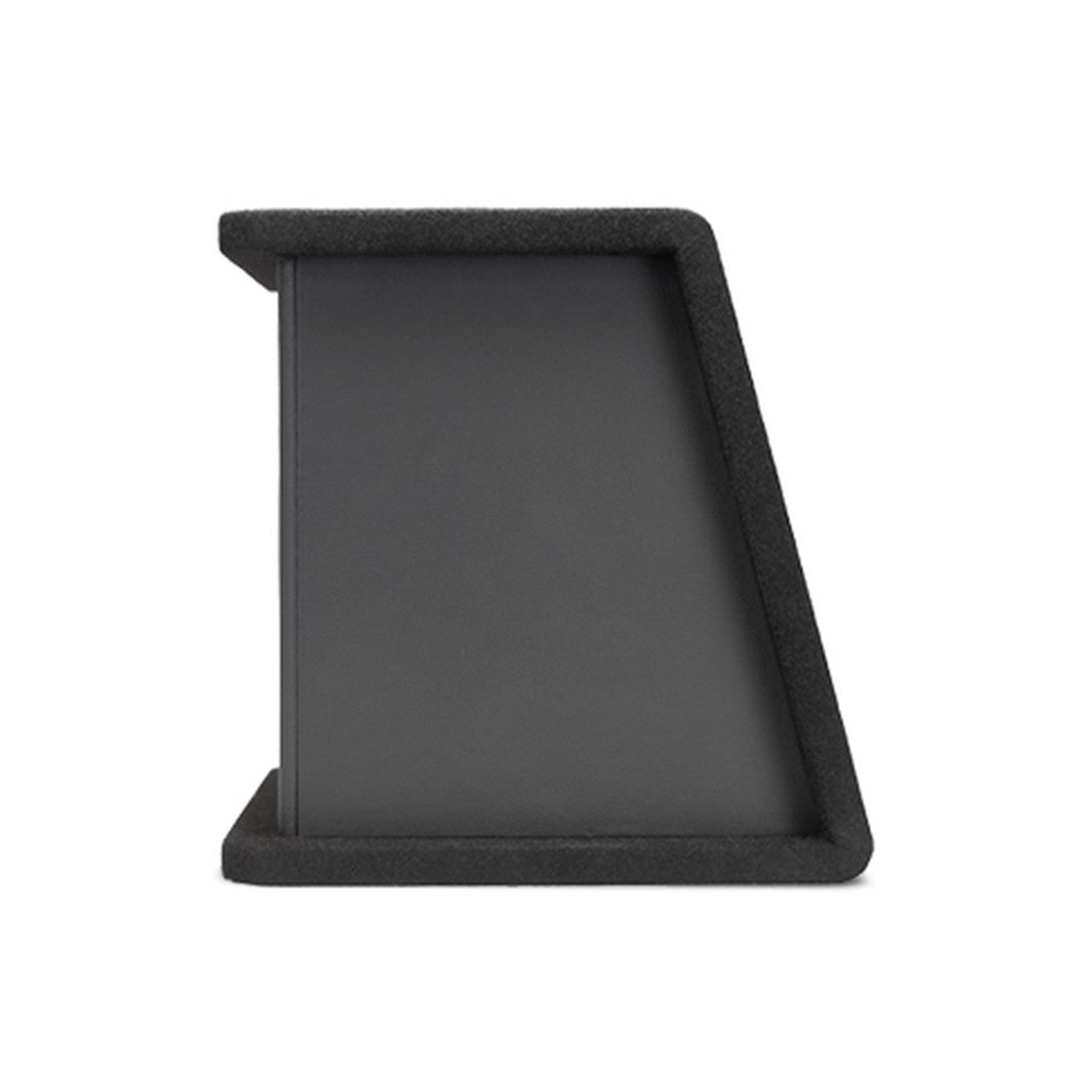

Compact, Flexible Wedge Design
The angled enclosure helps maximize available space while directing bass output efficiently into the cabin. A durable carpeted exterior, premium black leather wrap, and embroidered Alpine logo provide a refined appearance.
- Sealed wedge enclosure
- 16-3/4" W × 13-1/3" D × 13-1/2" H
- 30.5 lbs (13.83 kg)
Convenient System Integration and Control

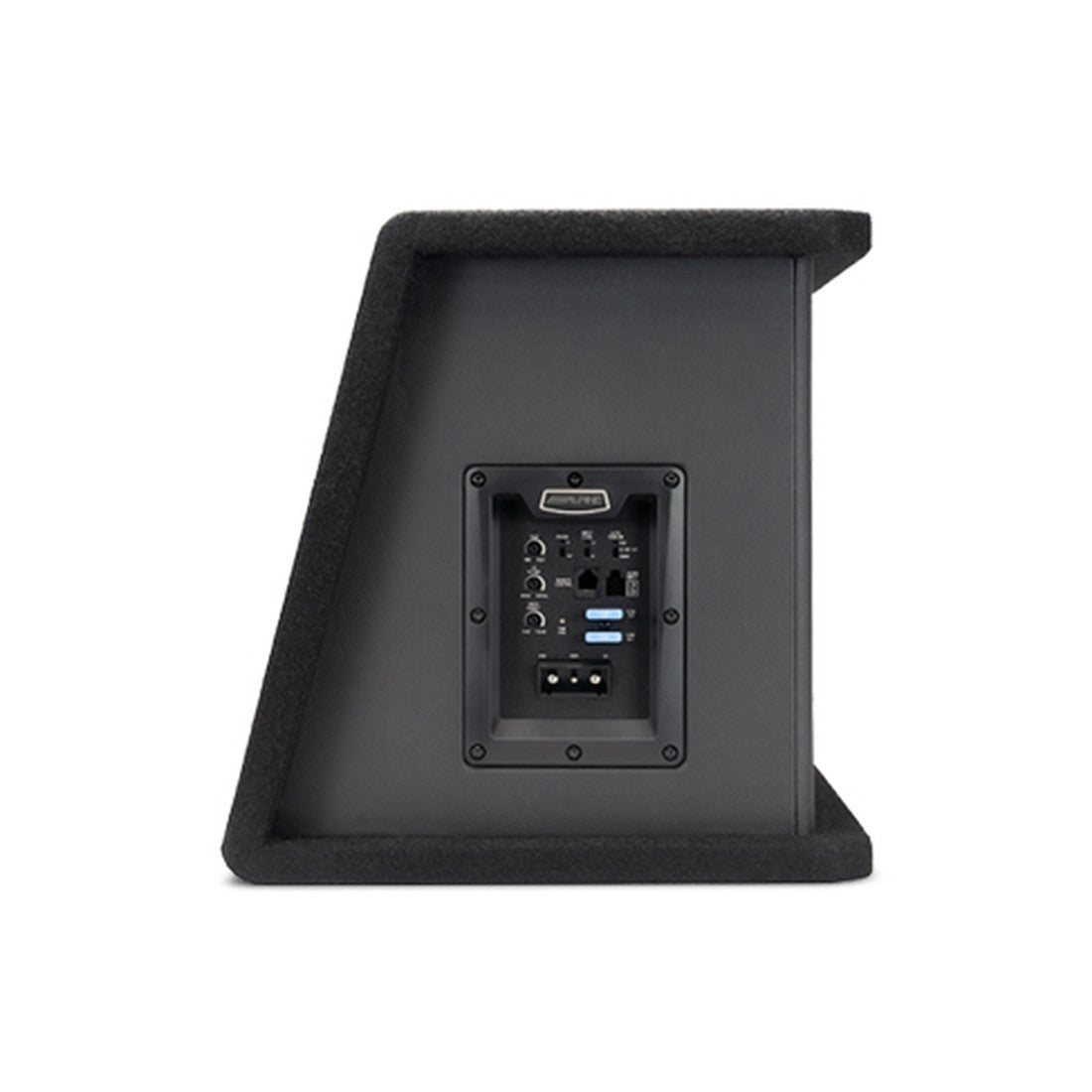

Selectable low-level and high-level inputs allow the Alpine PWE-SB10 to integrate with both aftermarket and factory head units. Accessible amplifier connections on the side of the enclosure allow quick wiring and clean cable management, while Auto Turn-On mode simplifies installation.
- Selectable low-level and high-level inputs
- Auto Turn-On mode
- Remote level control included with 0 to -12 dB adjustment
FAQs
- Can the Alpine PWE-SB10 connect to a factory head unit? Yes. It has selectable high-level inputs for integration with factory head units, along with low-level inputs for aftermarket head units.
- Is a remote bass level control included? Yes. The included remote level control provides 0 to -12 dB bass adjustment from the driver’s seat.
- Where can this wedge enclosure be installed? Its compact wedge-shaped enclosure is designed to fit in a variety of locations, including trunks, cargo areas, or behind seats.
