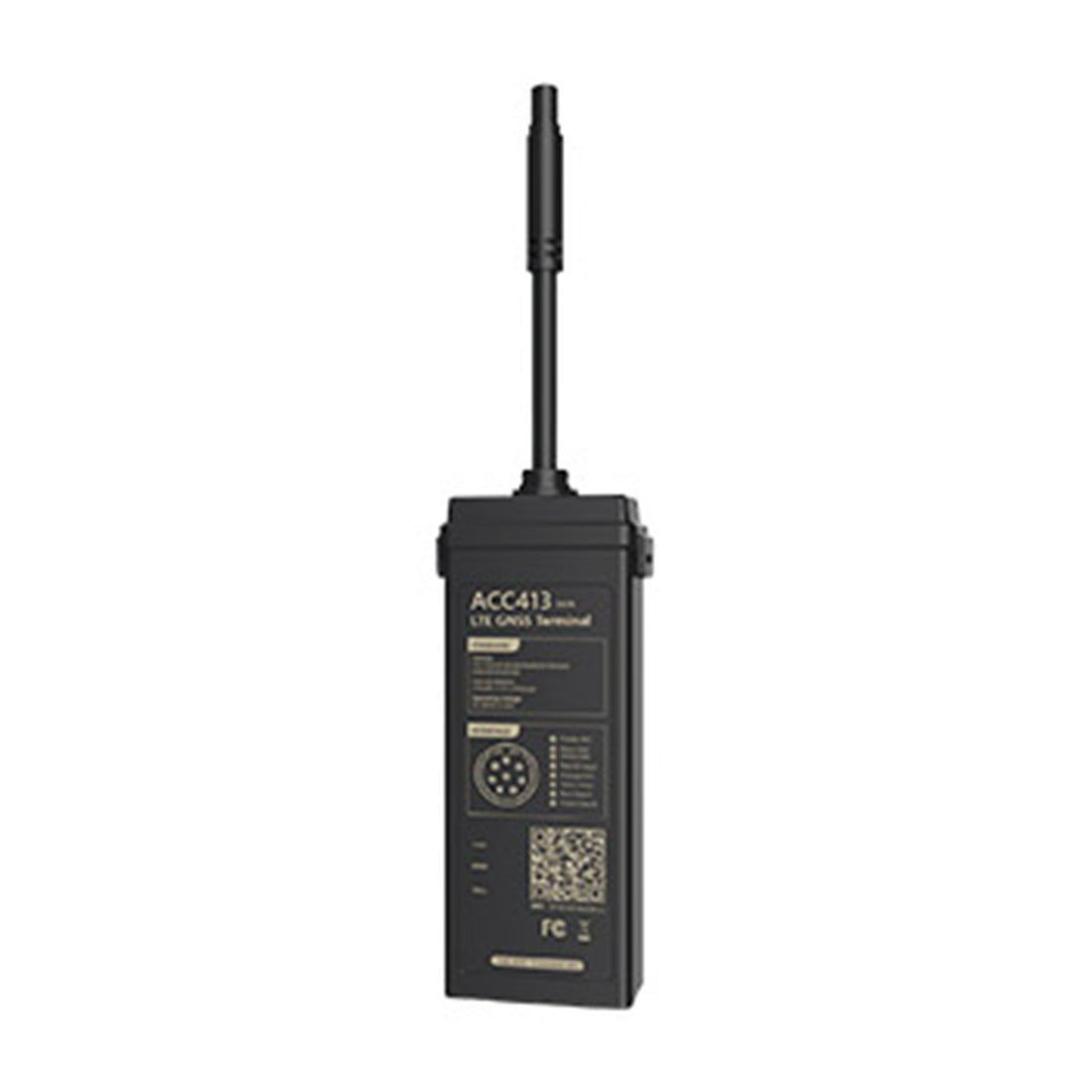

Amber Connect AC413 Concert GPS Tracking Device with 1 Year Subscription (C413)

Amber Connect AC413 Concert GPS Tracking Device with 1 Year Subscription (C413)

The Amber Connect AC413 is a compact 4G GPS tracking device designed for discreet vehicle monitoring, real-time tracking, and dependable fleet management. Its small design makes it easy to keep out of sight, while features like smart alerts, driving behavior analysis, geo-fencing, and remote immobilization help provide better control over your vehicle.

Compact GPS Tracking for Discreet Monitoring

When you want reliable vehicle tracking without a bulky device, the Amber Connect AC413 keeps things compact. Think of it as a small monitoring hub that stays in the background while providing useful tracking and vehicle information.

The device supports 4G LTE communication with 2G GSM fallback, helping maintain connectivity for tracking and data transmission. It also uses a Micro SIM card and supports 2.4GHz Wi-Fi.

Real-Time Tracking and Smart Alerts

The Amber Connect AC413 is built around GPS tracking and vehicle monitoring. Its smart alert capabilities help keep you informed when certain driving behaviors are detected, while the basic driving behavior analysis system can identify four types of dangerous driving behavior.

Need to monitor a vehicle more closely? The device also supports features such as geo-fencing and remote immobilization, giving you additional ways to manage and protect a vehicle.

4G LTE and GSM Connectivity

Reliable communication is an important part of any GPS tracking system. The Amber Connect AC413 uses 4G LTE connectivity with GSM fallback to support consistent communication.

The supported LTE and GSM bands vary by the ACC411-L and ACC411-E configurations. This gives the device broad network compatibility while allowing it to communicate through supported cellular networks.

Built for Vehicle Protection

The Amber Connect AC413 includes car battery protection to help prevent unnecessary battery drain. When the vehicle battery drops near its threshold, the device can automatically stop drawing power from the battery.

It also features an industrial-grade 270mAh/3.7V Li-Polymer battery, adding an internal power source to the compact tracking unit.

IP66 Dust and Water Resistance

Vehicle tracking equipment can face dust, moisture, and changing conditions. The AC413 features an IP66 rating for dust and water resistance, helping it maintain reliable operation in demanding environments.

Its operating temperature range is -20°C to +70°C, while the device supports a 9-30V DC working voltage and a 9-90V DC input voltage range.

RS485 and ADC Connectivity

The Amber Connect AC413 isn't limited to basic GPS tracking. An RS485 interface expands its connectivity options, while the 0-5V ADC input allows voltage monitoring within that range.

These additional interfaces give the device more flexibility for different vehicle monitoring and tracking applications.

Discreet SOS Panic Button Support

For situations that require quick communication, the AC413 supports a discreet in-cabin SOS panic button. This can be used to contact dispatch or emergency support when needed.

Small Size, Practical Design

The compact enclosure measures just 92.0 x 40.0 x 20.0 mm and weighs 55g. LED indicators make it easy to identify the device status, with separate indicators for GNSS, cellular connectivity, and power.

Storage is provided through 16 Mb + 16 Mb, and the device carries FCC, CE, and RoHS certifications.

Specifications

• Communication Network: LTE/GSM
• Network Frequency – ACC411-L: LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28; GSM B2/B3/B5/B8
• Network Frequency – ACC411-E: LTE-FDD B1/B3/B7/B8/B20/B28; LTE-TDD B34/B38/B39/B40/B41; GSM B2/B3/B5/B8
• Wi-Fi: 2.4GHz
• SIM Card: Micro SIM
• Battery: 270mAh/3.7V industrial-grade Li-Polymer
• LED Indicators: GNSS Blue, Cellular Green, Power Red
• Input Voltage: 9-90V DC
• Operating Temperature: -20°C to +70°C
• Working Voltage/Current: 9-30V DC
• ADC Input: 0-5V ADC detection
• Serial Protocol: RS485
• Dimensions: 92.0 x 40.0 x 20.0 mm (L x W x H)
• Weight: 55g
• IP Rating: IP66
• Certifications: FCC/CE/RoHS
• Storage: 16 Mb + 16 Mb

The Amber Connect AC413 combines a compact design with 4G LTE/GSM connectivity, GPS tracking, smart alerts, battery protection, and flexible monitoring features. With its IP66-rated construction, RS485 interface, ADC input, and discreet SOS support, it provides a practical solution for vehicle monitoring and fleet management. The included 1-year subscription makes this package ready for customers looking for a complete tracking solution.

FAQs

1. What type of connectivity does the Amber Connect AC413 use? It uses 4G LTE connectivity with 2G GSM fallback.
2. Does the Amber Connect AC413 support Wi-Fi? Yes, it supports 2.4GHz Wi-Fi.
3. What SIM card does the AC413 use? The device uses a Micro SIM card.
4. Is the Amber Connect AC413 water resistant? Yes, it has an IP66 dust and water resistance rating.
5. What is the operating temperature range of the AC413? The device operates from -20°C to +70°C.
