BlackVue CM100GLTE LTE Connectivity Module with CAT 4 LTE - Black

BlackVue CM100GLTE LTE Connectivity Module with CAT 4 LTE - Black

The BlackVue CM100GLTE keeps your compatible BlackVue dashcam connected wherever you drive. It plugs directly into your dashcam, while requiring only a compatible Nano SIM card. Moreover, the module provides reliable 4G LTE access without external routers. Finally, it keeps your dashcam connected to BlackVue Cloud even when you're away.

Stay Connected to Your Vehicle Anytime

Have you ever wondered what's happening around your parked vehicle when you're not nearby? The BlackVue CM100GLTE helps answer that question by providing dependable 4G LTE connectivity for compatible BlackVue dashcams. Once connected, the module automatically accesses BlackVue Cloud, allowing you to remotely view your dashcam's live feed and receive notifications whenever events are detected.

Because the module is powered directly by the dashcam, there's no separate battery to maintain or recharge. It simply works alongside your compatible camera, offering continuous cloud connectivity whenever a valid data plan is available.

Simple USB Plug-and-Play Design

The BlackVue CM100GLTE connects through the dashcam's Micro USB connection using the included harness cable. No additional wiring is required, helping create a clean installation while reducing unnecessary clutter inside your vehicle.

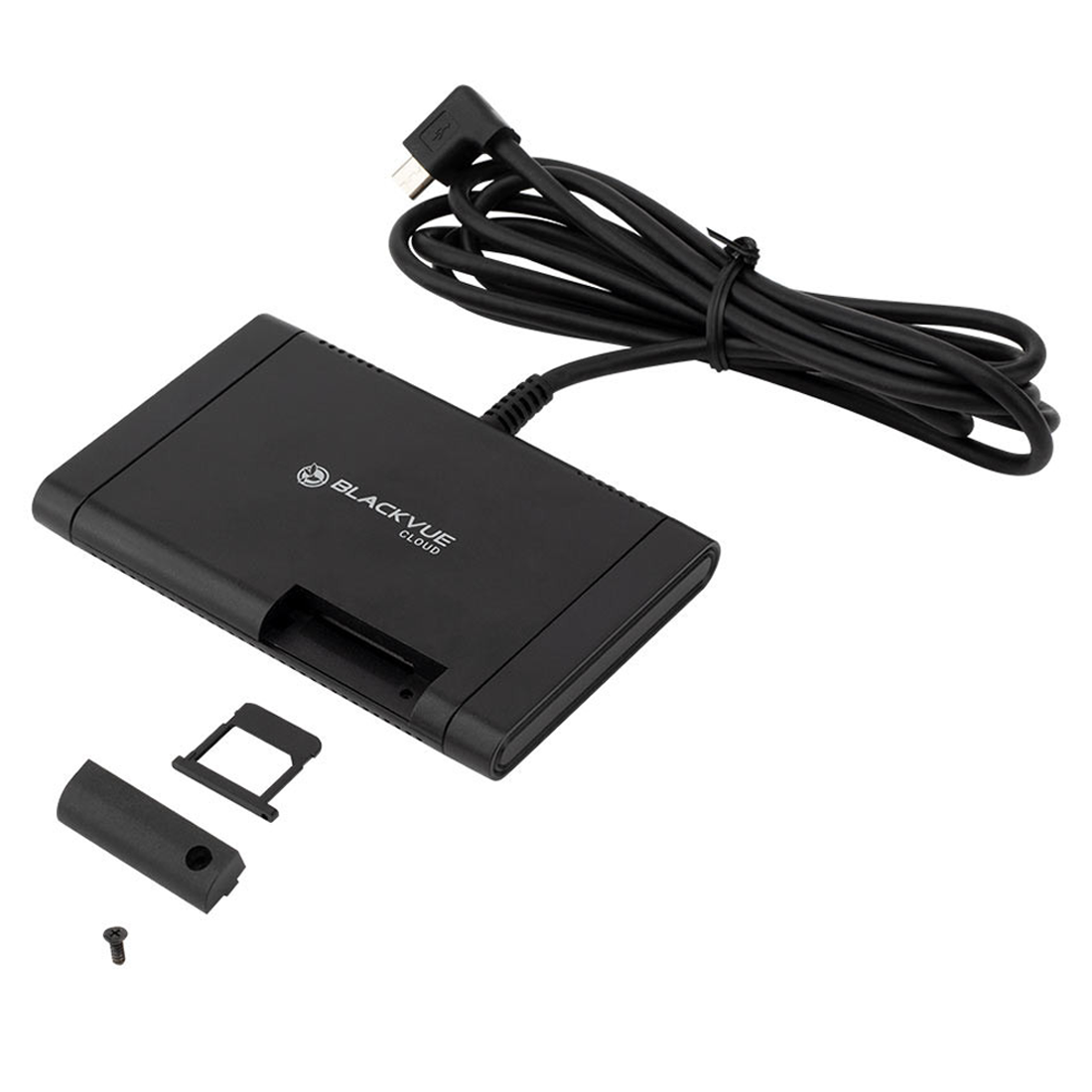

Simply insert a supported Nano SIM card, connect the module to your compatible BlackVue dashcam, and the system automatically establishes its Cloud connection.

Reliable CAT 4 LTE Performance

The BlackVue CM100GLTE uses the Quectel EC25 LTE module for dependable CAT 4 LTE connectivity. Additionally, it supports download speeds up to 150Mbps and upload speeds up to 50Mbps. Furthermore, multiple regional versions support different LTE bands. Therefore, choose the version that matches your mobile carrier's network.

The USB 2.0 interface supports data transfer speeds up to 480Mbps, providing fast communication between the module and your compatible dashcam.

Cloud Features That Keep You Informed

Once connected to BlackVue Cloud, the BlackVue CM100GLTE expands what your dashcam can do. You can remotely monitor your vehicle through Live View, receive push notifications when events occur, and stay connected to your vehicle even while you're miles away.

Rather than acting like a separate accessory, the module becomes part of your dashcam system, working behind the scenes like a bridge between your vehicle and your smartphone.

Mobile Hotspot for Compatible X Plus Models

Compatible BlackVue X Plus Series dashcams gain an additional advantage with Mobile Hotspot functionality. The BlackVue CM100GLTE allows your dashcam to function as a mobile internet router, supporting up to five connected devices simultaneously.

Passengers can connect laptops, tablets, mobile phones, or portable gaming devices using the dashcam's Wi-Fi network, provided an active mobile data plan is available.

Built for Everyday Driving Conditions

The BlackVue CM100GLTE is designed to perform across a wide range of temperatures, operating from -35°C to +75°C and supporting storage temperatures between -40°C and +85°C. A ceramic patch GNSS antenna provides positioning support using GPS, GLONASS, Galileo, and BeiDou satellite systems.

The compact black enclosure measures approximately 90 × 60 × 10 mm and weighs about 110 grams, making it easy to integrate into your existing dashcam setup.

Compatible BlackVue Dashcams

The BlackVue CM100GLTE is compatible with a wide selection of BlackVue dashcams, including:

• BlackVue ELITE Series
• DR970X Series and DR970X Plus
• DR970X Box Plus
• DR900X Series and DR900X Plus
• DR770X Series
• DR770X Box and DR770X Box Pro
• DR750X Series and DR750X Plus
• BlackVue X Plus Series models with Mobile Hotspot support

It is not compatible with the DR590X Series.

What's Included

The BlackVue CM100GLTE package includes the standard components supplied with the connectivity module. Before use, verify that all included accessories are present in the box.

Specifications

• Model: CM100GLTE
• Color: Black
• Dimensions: 90 × 60 × 10 mm
• Weight: 110 g
• LTE Module: Quectel EC25
• LTE Category: Non-CA CAT 4 FDD
• Maximum Download Speed: 150 Mbps
• Maximum Upload Speed: 50 Mbps
• Supported RF Bandwidth: 1.4 / 3 / 5 / 10 / 15 / 20 MHz
• LTE Transmit Power: Class 3 (23 dBm ±2 dBm)
• SIM Type: Nano USIM (3.0V)
• GNSS Support: GPS L1, GLONASS G1, Galileo E1, BeiDou B1
• GNSS Protocol: NMEA 0183
• Connector: Micro USB Type-B with harness cable
• USB Interface: USB 2.0 (up to 480 Mbps)
• LTE Antennas: Fixed Main and Diversity
• GNSS Antenna: Ceramic Patch
• USB Harness Cable Length: 3.0 m
• Typical Supply Voltage: 5.0V / 1A
• Input Voltage: 3.3V to 5.5V
• Maximum Current: 2A
• Power Consumption: 30mA (Idle), 620mA (Traffic Mode)
• Operating Temperature: -35°C to +75°C
• Storage Temperature: -40°C to +85°C
• Certifications: CE, UKCA, FCC, ISED, RCM, TELEC, KC, WEEE, RoHS
• SIM Card: Not included

A Smarter Way to Keep Your Dashcam Connected

The BlackVue CM100GLTE adds dependable LTE connectivity without adding unnecessary complexity. By connecting directly to compatible BlackVue dashcams, it provides seamless access to BlackVue Cloud, remote monitoring, event notifications, and Mobile Hotspot functionality on supported X Plus models. If staying connected to your vehicle matters, this compact module becomes the link that keeps everything within reach.

FAQs

Does the BlackVue CM100GLTE include a SIM card? No. A compatible Nano SIM card and active data plan are required and sold separately.

Can I remotely view my vehicle using the BlackVue CM100GLTE? Yes. When connected to BlackVue Cloud, you can remotely access your compatible dashcam's live view and receive event notifications.

Which BlackVue dashcams are compatible with the BlackVue CM100GLTE? It supports compatible ELITE, DR970X, DR970X Plus, DR970X Box Plus, DR900X, DR900X Plus, DR770X, DR770X Box, DR770X Box Pro, DR750X, DR750X Plus, and compatible X Plus Series models. It is not compatible with the DR590X Series.

Can the BlackVue CM100GLTE provide Wi-Fi internet access? Yes. Compatible BlackVue X Plus Series models can use the Mobile Hotspot function to share internet access with up to five connected devices.

Why should I verify LTE compatibility before purchasing? The module is available in different LTE band versions, so you should select the model that matches your mobile carrier's supported network.
