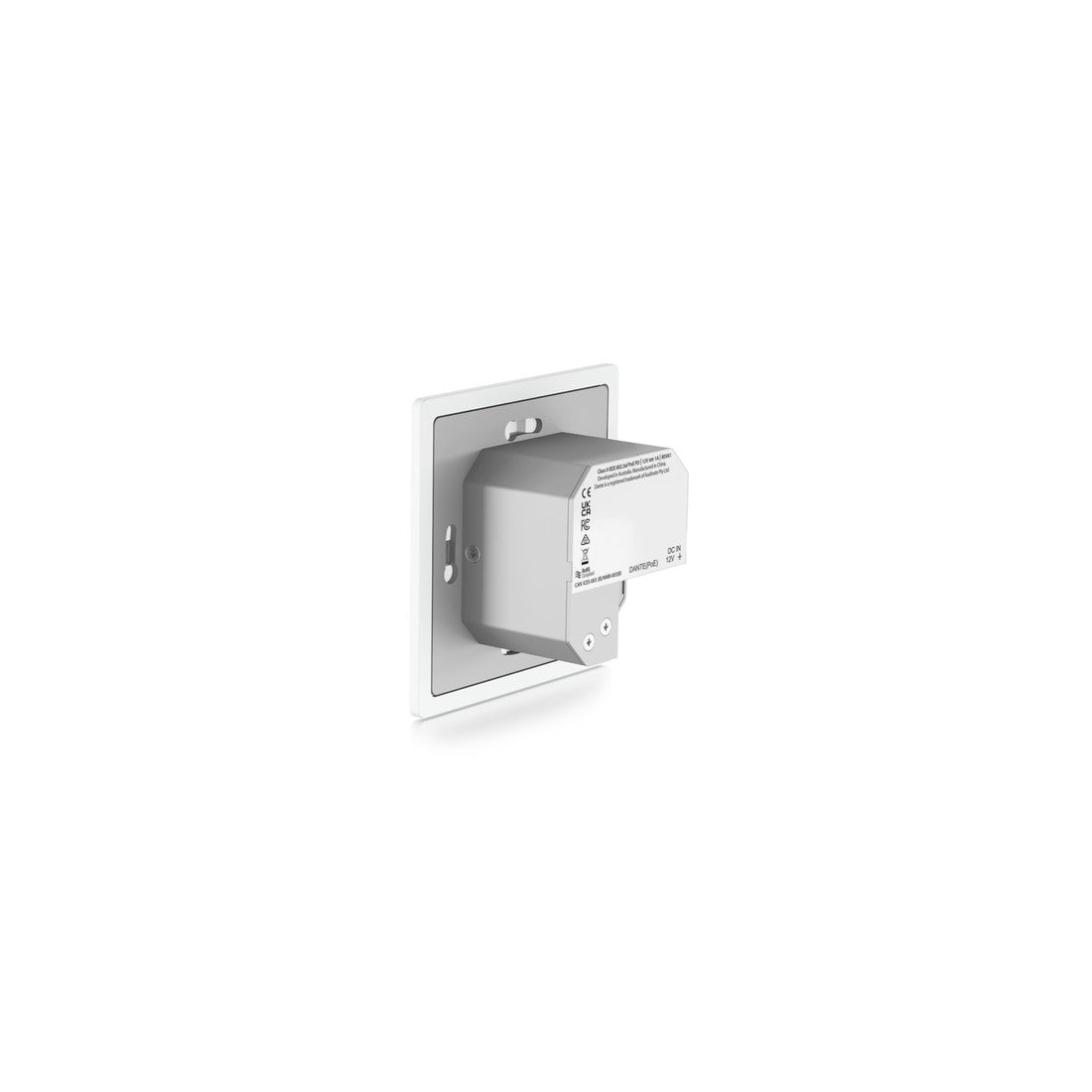

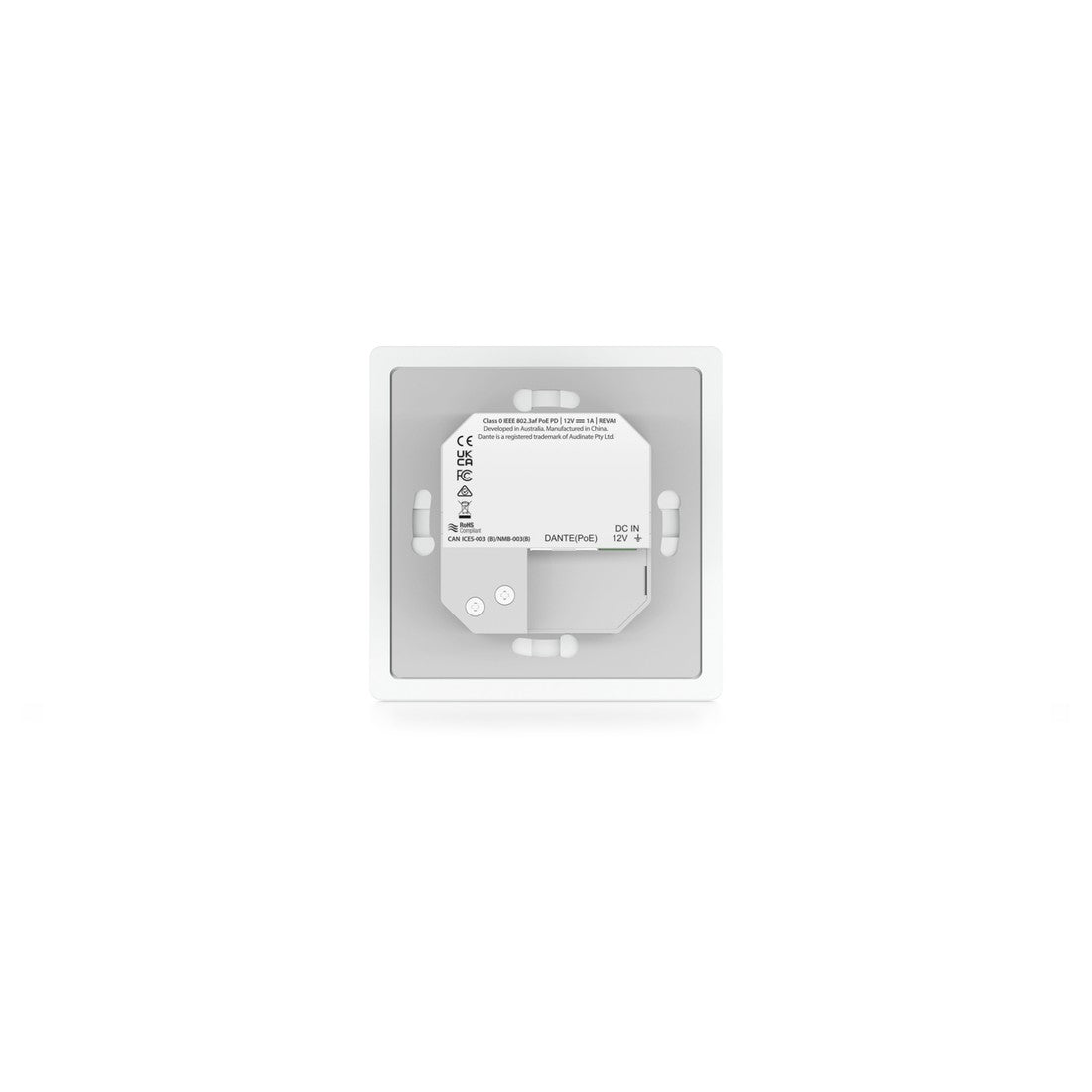

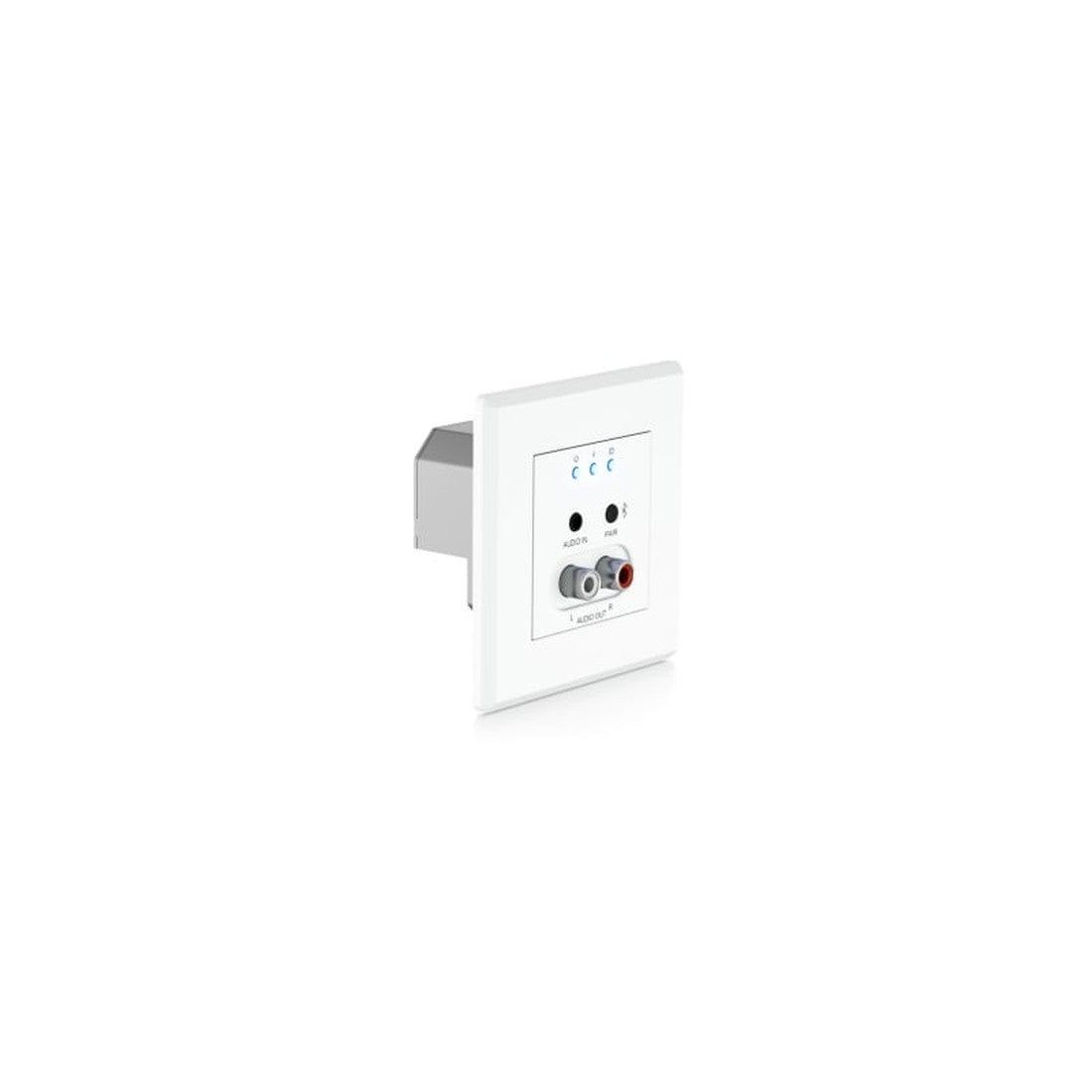

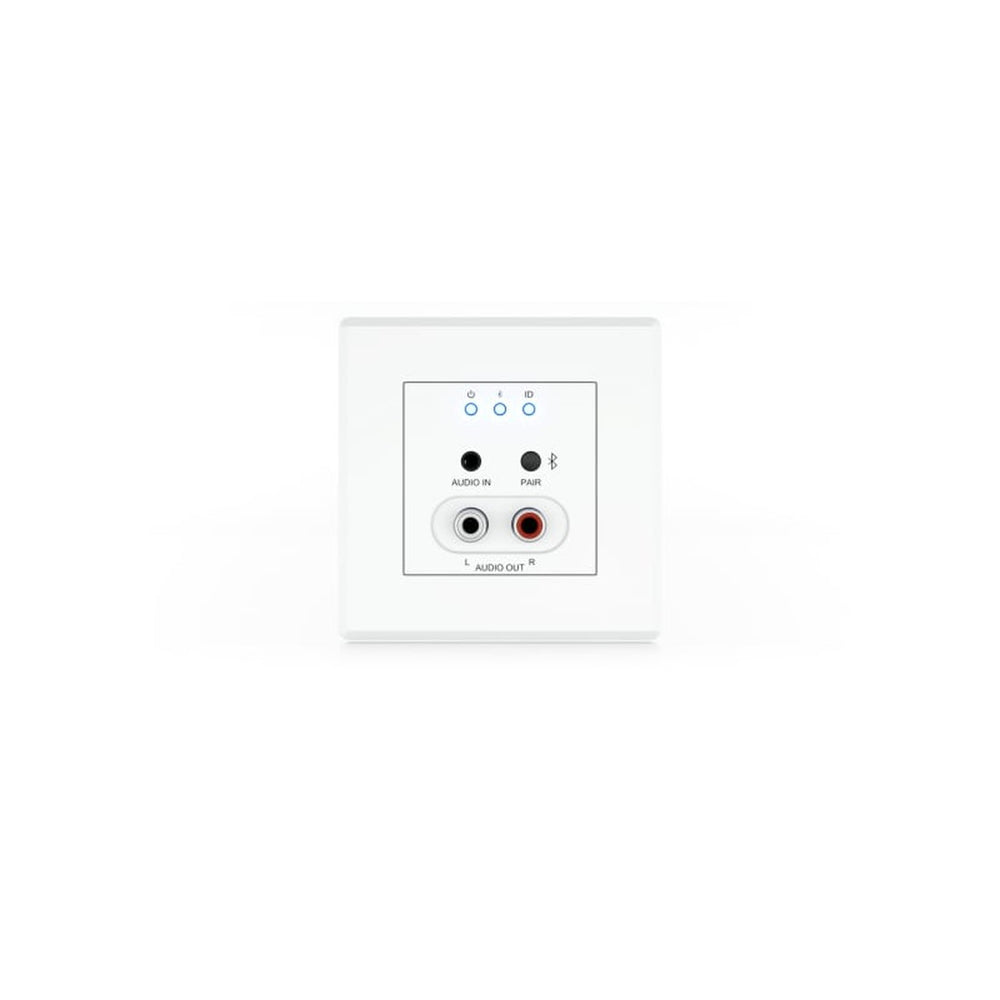

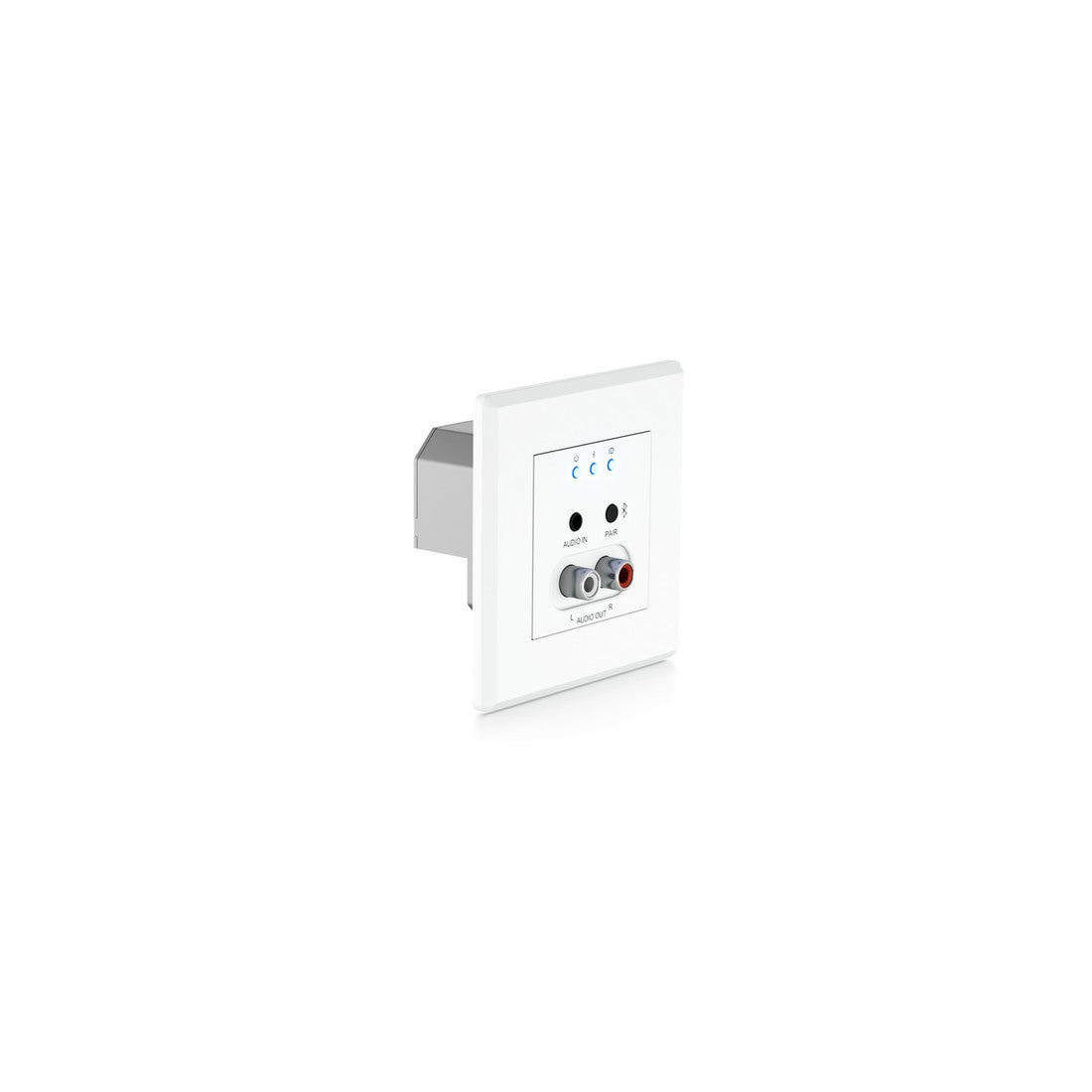

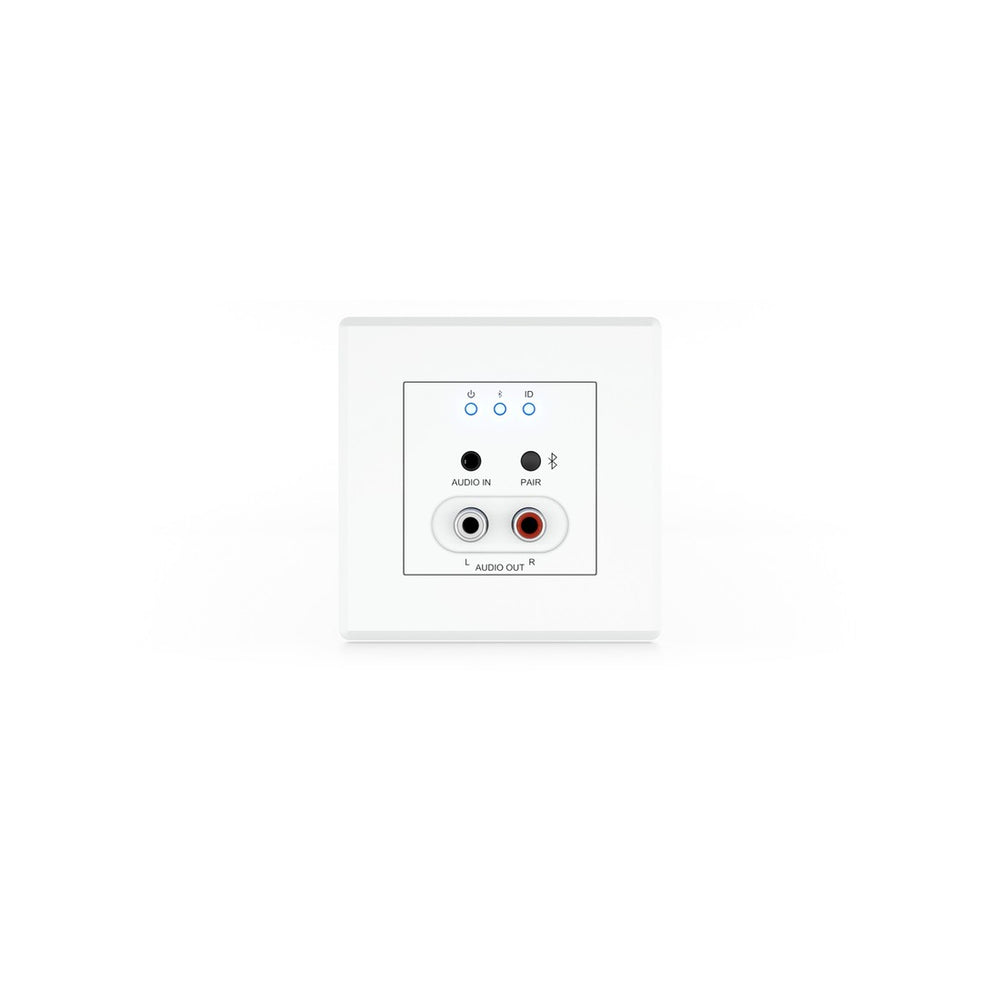

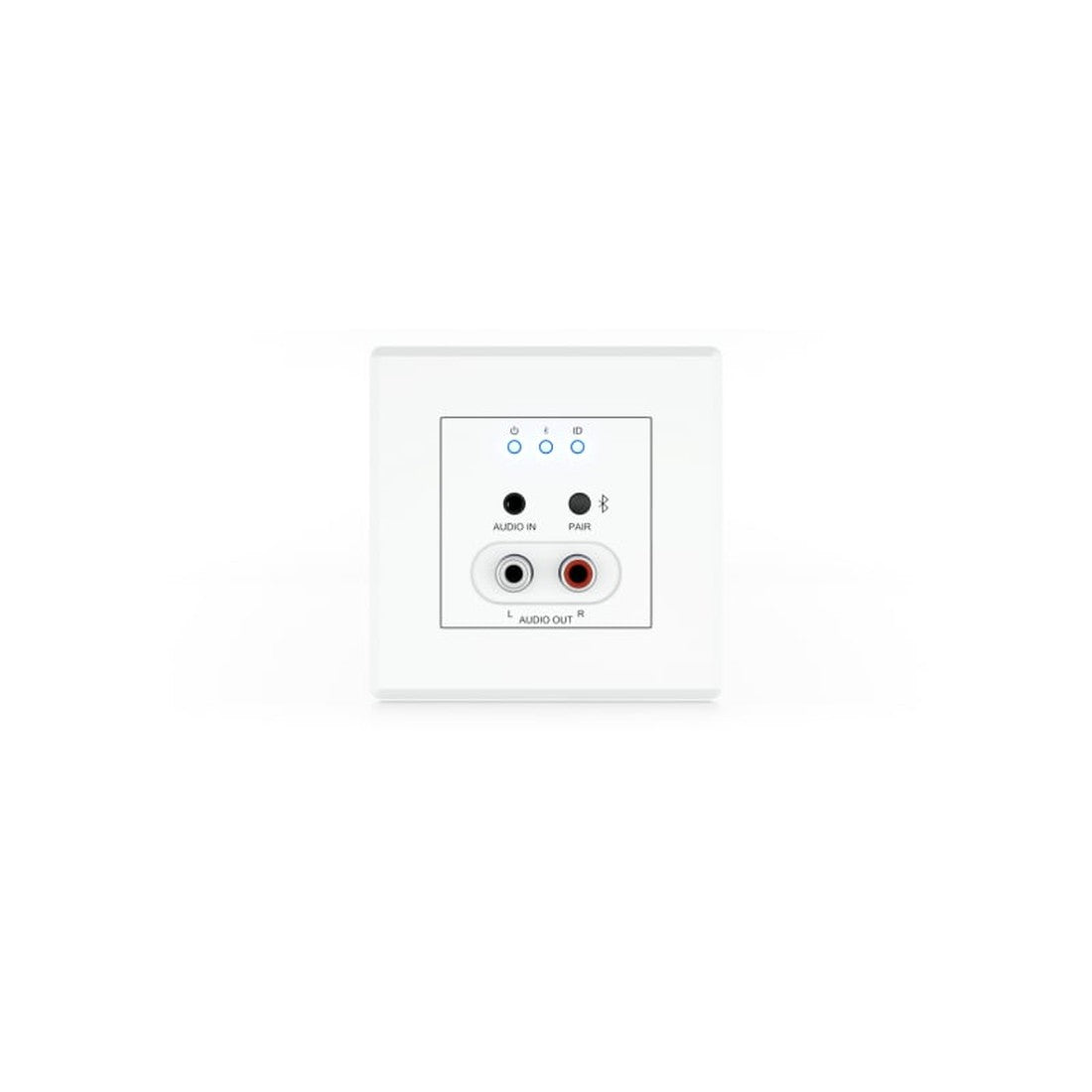

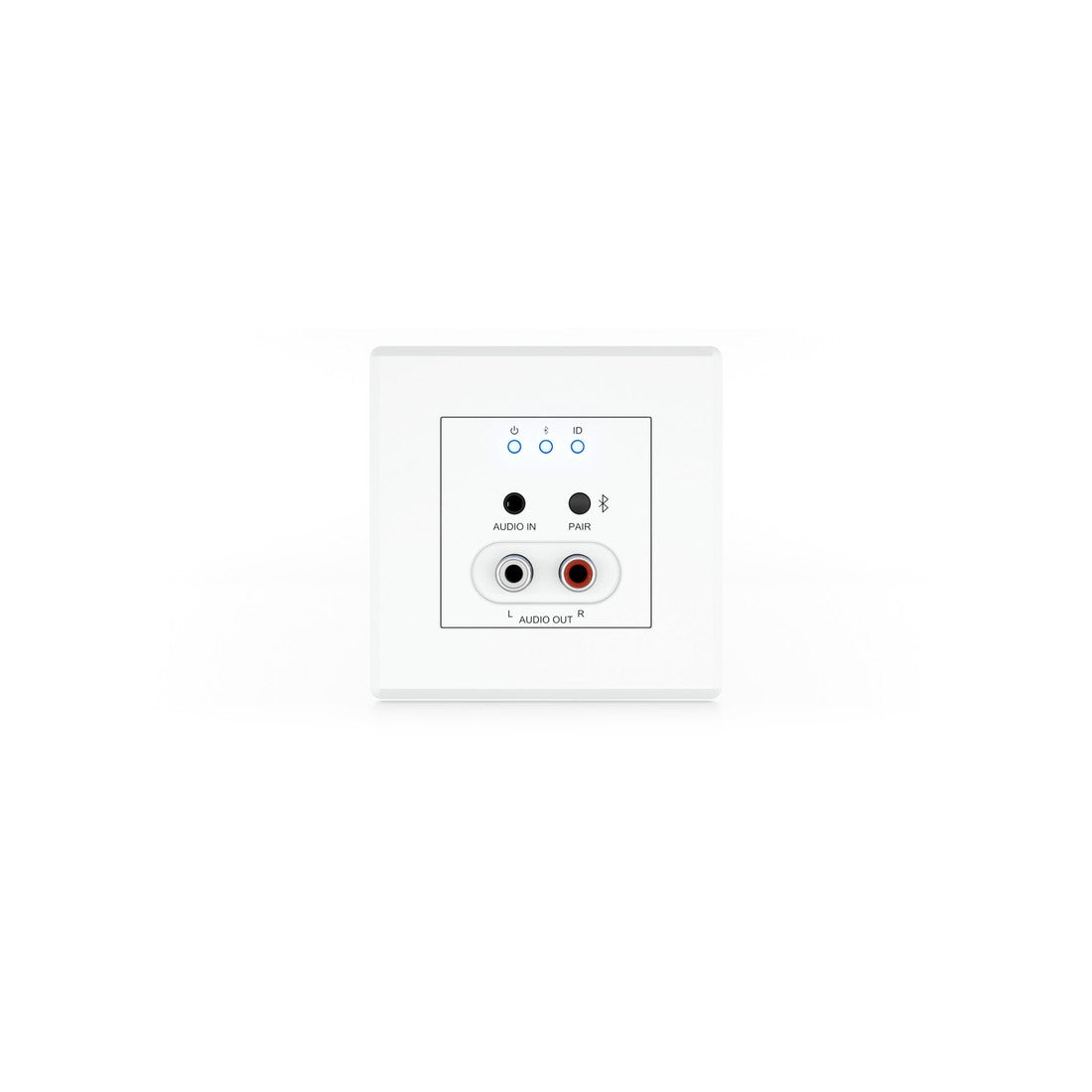

Blustream DA11ABL-WP-EU-V2 Dante Audio Wall Plate with Bluetooth

Blustream DA11ABL-WP-EU-V2 Dante Audio Wall Plate with Bluetooth

The Blustream DA11ABL-WP-EU-V2 Bluetooth & Analogue Audio Dante Wall Plate is engineered to convert Bluetooth and analogue audio within a digital Dante networked audio system. This multi-input / output wall plate provides 2-channel Bluetooth or unbalanced audio to Dante conversion, while also converting 2 channels of Dante audio to unbalanced audio outputs for flexible system integration.

Bluetooth and Analogue Audio to Dante Conversion

The DA11ABL-WP-EU-V2 is designed to bring Bluetooth and analogue audio sources directly into a Dante audio network. As an ideal BYOD interface, it allows any Bluetooth device to stream audio wirelessly to a Dante audio system.

• Converts 2ch Bluetooth to Dante audio
• Converts un-balanced analogue audio sources to Dante audio
• Bluetooth V5.0 support
• Bluetooth codec support: SBC / MP3 / AAC / APT-X / APTX-LL / APTX-HD

Dante Audio to Analogue Output

In addition to input conversion, this wall plate converts 2 channels of Dante audio to 2 x output channels of unbalanced audio. This makes it suitable for feeding analogue audio destinations from a Dante network.

• Converts 2x Dante audio channels to un-balanced audio outputs
• Audio output connectors: 2 x Analogue RCA (Left / Right)
• Audio input connector: 1 x Analogue Left / Right audio (3.5mm stereo jack)

Configurable for System Setup

The DA11ABL-WP-EU-V2 includes an in-built web-GUI for configuration and control, with adjustable input sensitivity and output gain available via web GUI or API. It also supports configurable Dante device latency using Dante Controller.

• Adjustable input sensitivity from +24dBu to -28dBV (analogue input only)
• Adjustable output gain from +20dBu to -28 dBV
• Dante Audio supports 44.1, 48, 88.2 & 96KHz sample rates @ 16, 24 & 32-bit
• Configurable Dante latency: 2, 3, 4, 5 or 10ms
• Supports AES67 RTP audio transport

Installation Flexibility

This plug & play wall plate is powered using PoE (Power over Ethernet), or via a 12V power supply when the network switch does not support PoE. Its white magnetic faceplate surround allows for both UK & EU backbox compatibility.

• Features Class 0 IEEE 802.3af PoE for powering from any PoE switch
• Supports power via 12V DC adapter (not included)
• White magnetic faceplate surround
• Backbox requirements: UK single gang backbox / EU single gang backbox
• Mounting hole spacing: UK 60mm CTC, EU 60mm CTC

Frequently Asked Questions

1. Can this wall plate stream Bluetooth audio to a Dante audio system? Yes. The DA11ABL-WP-EU-V2 converts 2ch Bluetooth audio to Dante digital audio and is described as an ideal BYOD interface for streaming audio wirelessly to a Dante audio system.
2. Can it convert Dante audio to analogue audio outputs? Yes. It converts 2 channels of Dante audio to 2 x output channels of unbalanced audio.
3. How is the DA11ABL-WP-EU-V2 powered? It can be powered by Class 0 IEEE 802.3af PoE or by a 12V DC adapter. The 12V DC adapter is not included.
4. Is it compatible with UK and EU backboxes? Yes. The magnetic faceplate design allows for both UK & EU backbox compatibility, and it supports UK single gang backbox / EU single gang backbox installation.

Add the Blustream DA11ABL-WP-EU-V2 Dante wall plate to your cart today for Bluetooth and analogue audio conversion within a digital Dante networked audio system. Contact the audio experts at Gibbys Electronic Supermarket for advice on matching Dante components and installation accessories!
