Blustream DA11XLR Analog XLR Audio to Dante Encoder

Blustream DA11XLR Analog XLR Audio to Dante Encoder

The Blustream DA11XLR Dante encoder is a multi-input XLR to Dante networked audio system designed to convert analogue audio into Dante digital audio. With support for 2 input channels of balanced / unbalanced / MIC audio, switchable 48V Phantom power, and PoE or 12V powering, it is built for flexible audio integration.

Convert Analogue XLR Audio to Dante

The DA11XLR converts 2 x balanced / unbalanced / MIC audio sources to Dante audio channels, making it suitable for integrating analogue XLR sources into a Dante networked audio system. Its 2 x XLR input design supports a range of source types through a single compact unit.

• Dante network interface for 2 x XLR audio inputs
• Converts 2 x balanced / unbalanced / MIC audio sources to Dante audio channels

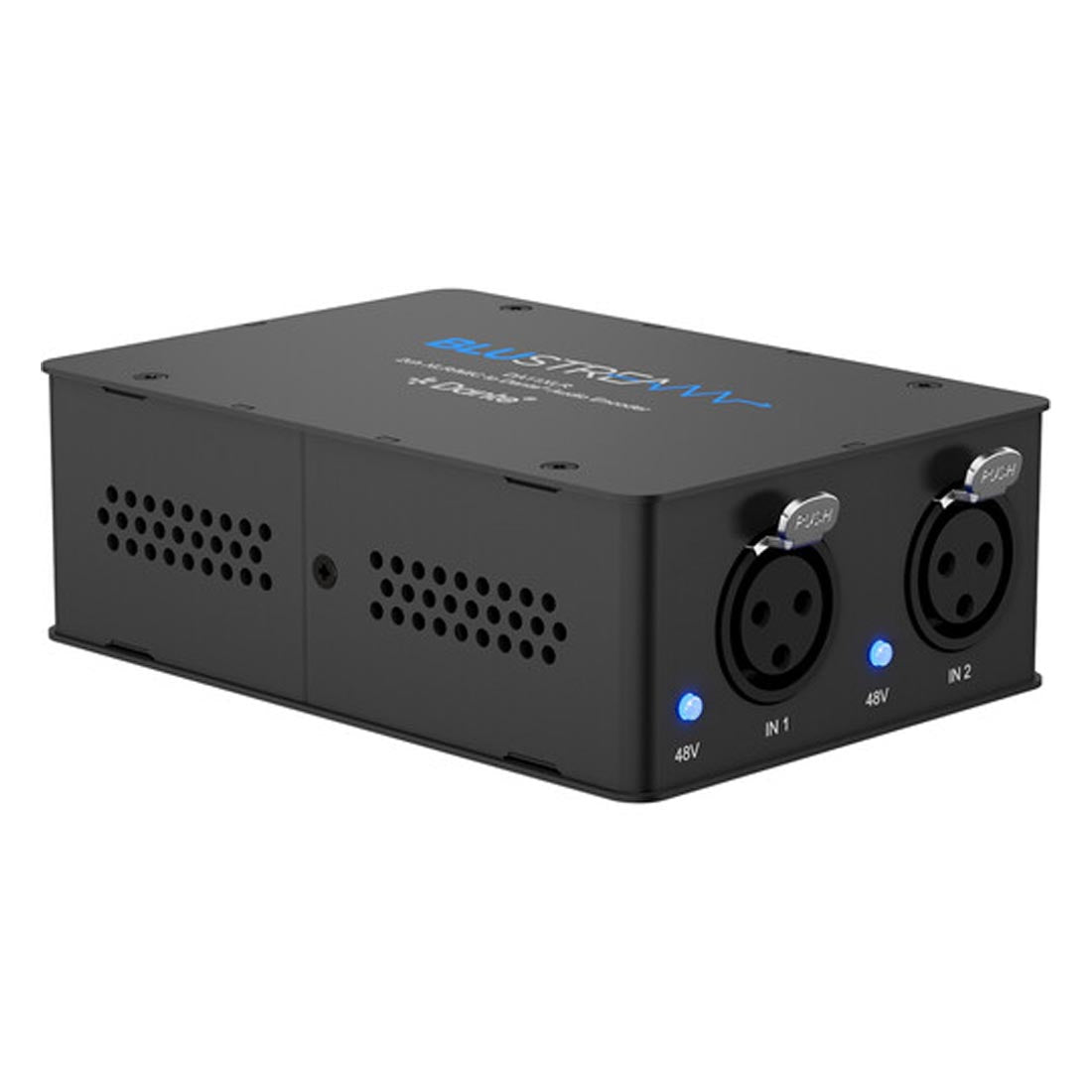

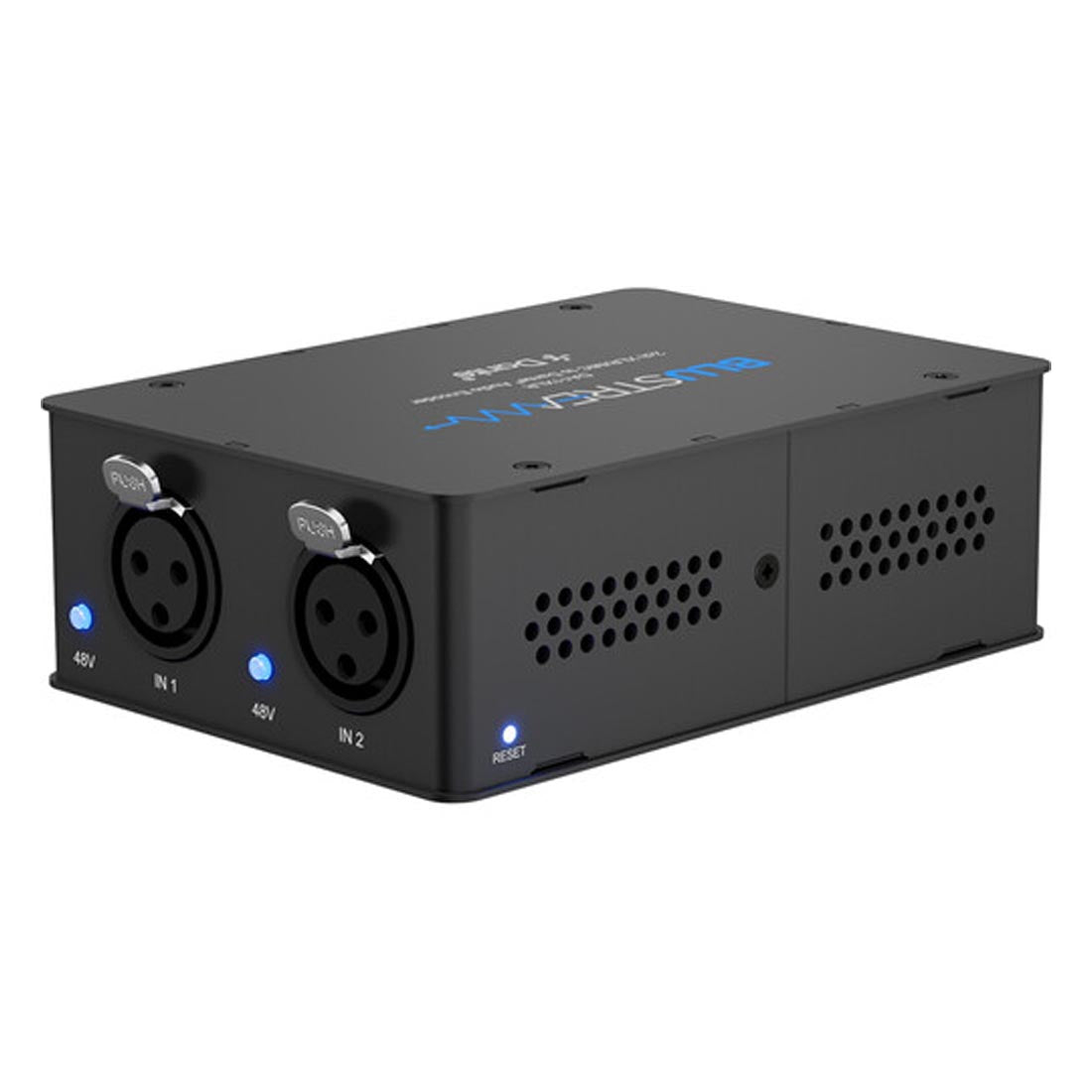

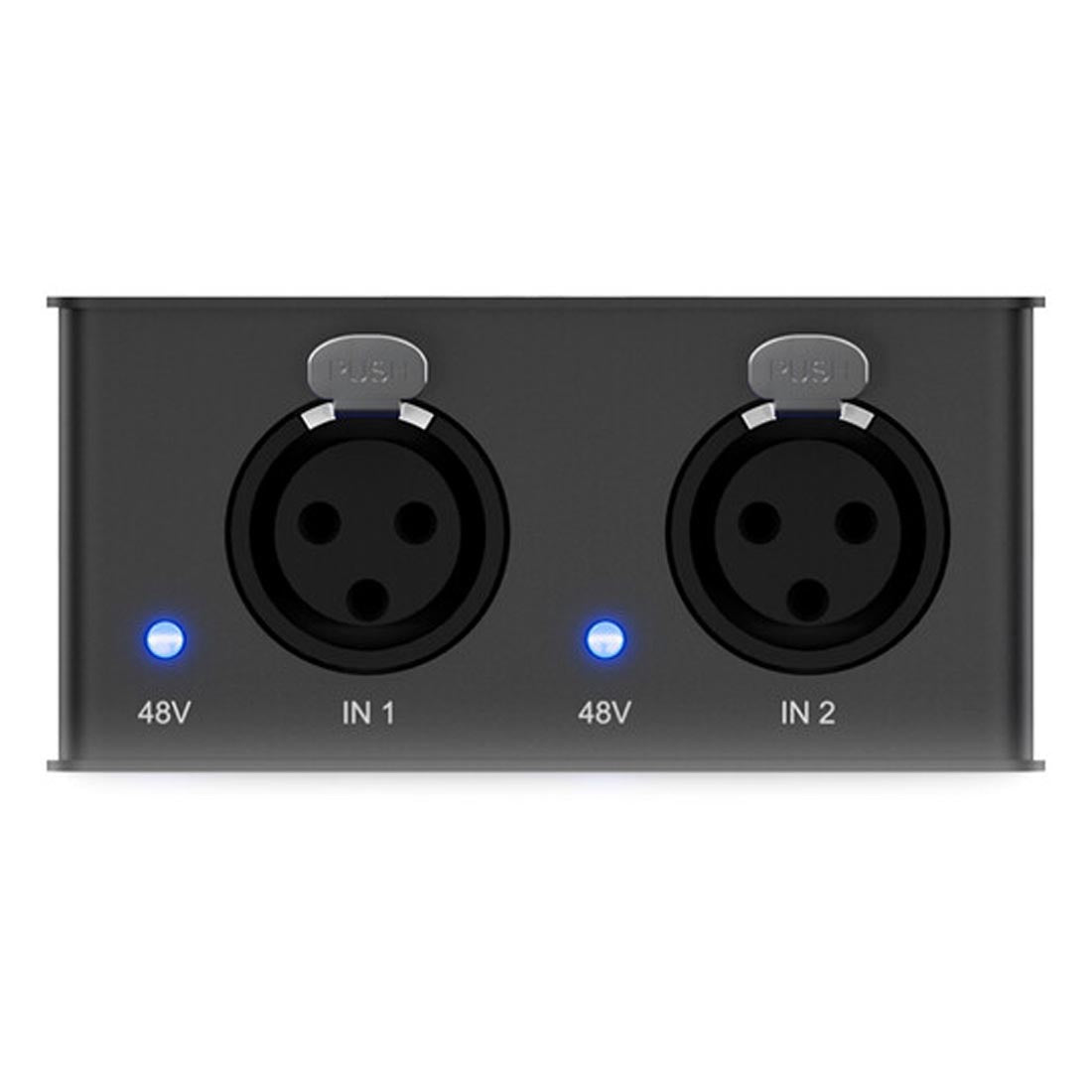

• Audio input connectors: 2 x Analogue Balanced / Unbalanced 3-Pin XLR connector
• Audio output connector: 1 x RJ45, female (100 Mbps Dante network)

Support MIC Sources with Switchable Phantom Power

For microphone applications, each MIC XLR input features switchable 48V/0.5mA Phantom power. Adjustable MIC / line sensitivity from +24dBu to -28dBV for each XLR input also allows the unit to be configured for different source levels.

• Switchable 48V/0.5mA Phantom power for each MIC XLR input
• Adjustable MIC / line sensitivity from +24dBu to -28dBV for each XLR input

Flexible Audio and Network Configuration

The DA11XLR supports 44.1, 48, 88.2 & 96 KHz sample rates at 16, 24 & 32 Bit, along with configurable Dante device latency using Dante Controller. It also supports AES67 RTP audio transport and includes an in-built web-GUI for configuration and control.

• Supports: 44.1, 48, 88.2 & 96 KHz sample rates @ 16, 24 & 32 Bit
• Configurable Dante® device latency: 2, 3, 4, 5 or 10ms
• Supports AES67 RTP audio transport
• In-built web-GUI for configuration and control

PoE or Local 12V Powering

This plug & play device can be powered using Class 0 802.3af PoE from a PoE switch, or via a local 12V power supply input when the network switch does not support PoE. This gives installers two verified powering options depending on the system design.

• Features Class 0 802.3af PoE for powering of product from any PoE switch
• Local 12V power supply input for when network switch does not support PoE

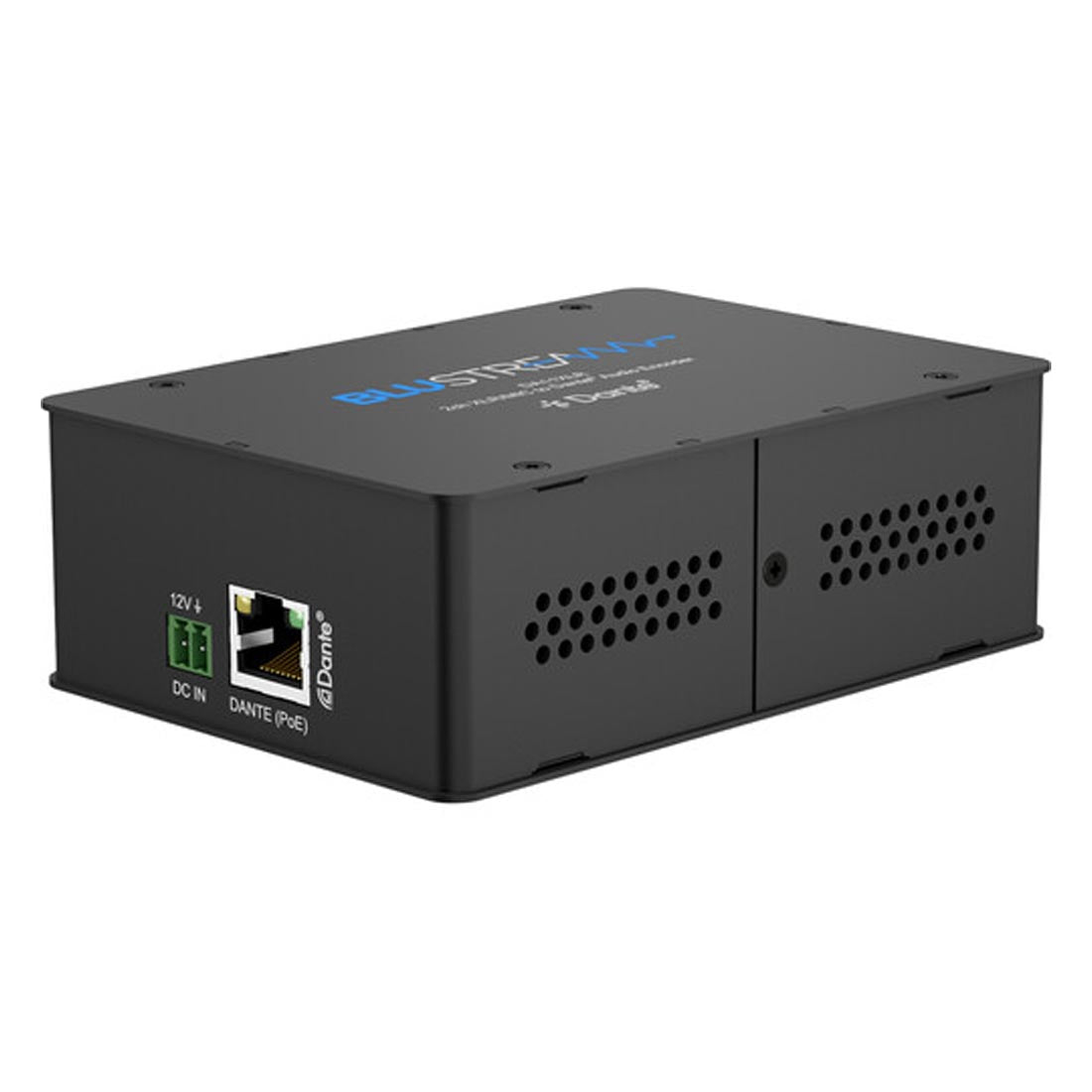

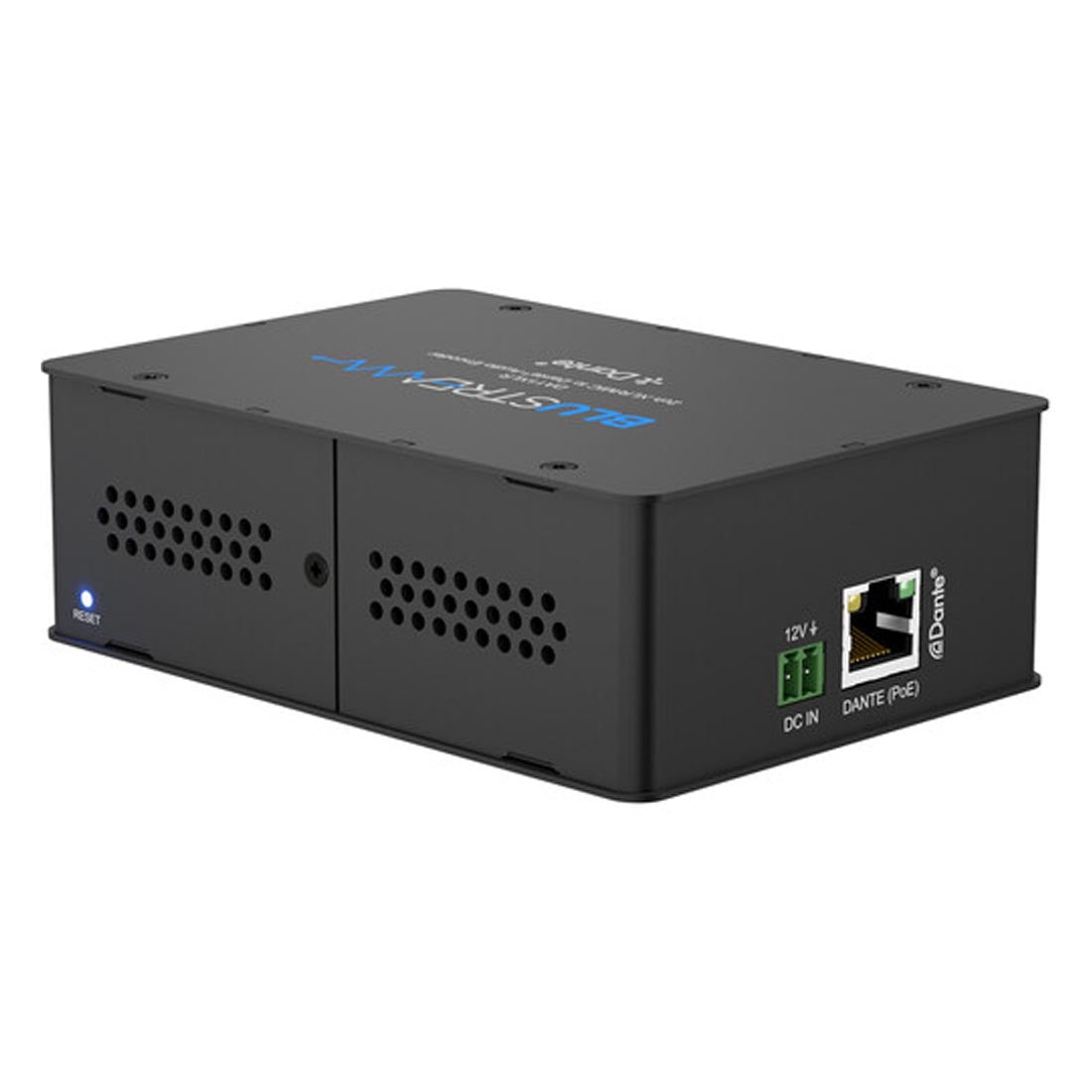

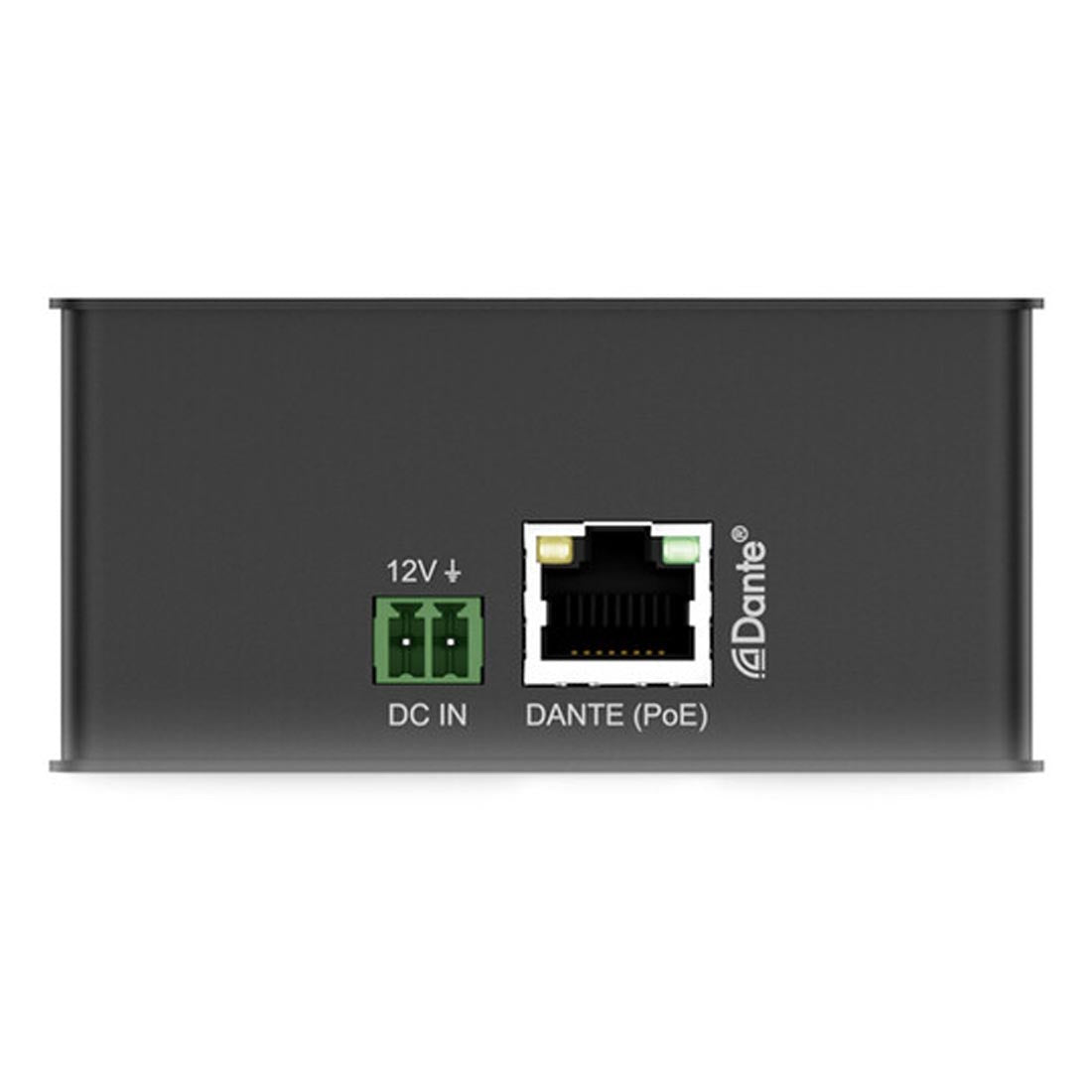

• Power Supply: Class 0 IEEE 802.3af POE PD or 12V/1A DC 2-Pin Phoenix connector
• PS121PH power supply sold separately

Frequently Asked Questions

1. What audio sources can the DA11XLR accept? It accepts 2 x balanced / unbalanced / MIC audio sources through 3-Pin XLR connectors.
2. Does the DA11XLR provide phantom power for microphones? Yes. Each MIC XLR input features switchable 48V/0.5mA Phantom power.
3. How is the DA11XLR powered? It can be powered using Class 0 IEEE 802.3af PoE or with a 12V/1A DC 2-Pin Phoenix connector.
4. Is the 12V power supply included? The PS121PH power supply is sold separately.
5. Does it support AES67 RTP audio transport? Yes. The DA11XLR supports AES67 RTP audio transport.
