Blustream HD12DB-V2 2-Way HDMI Splitter and Scaler (HD12DBV2)
Product Description
Product Description

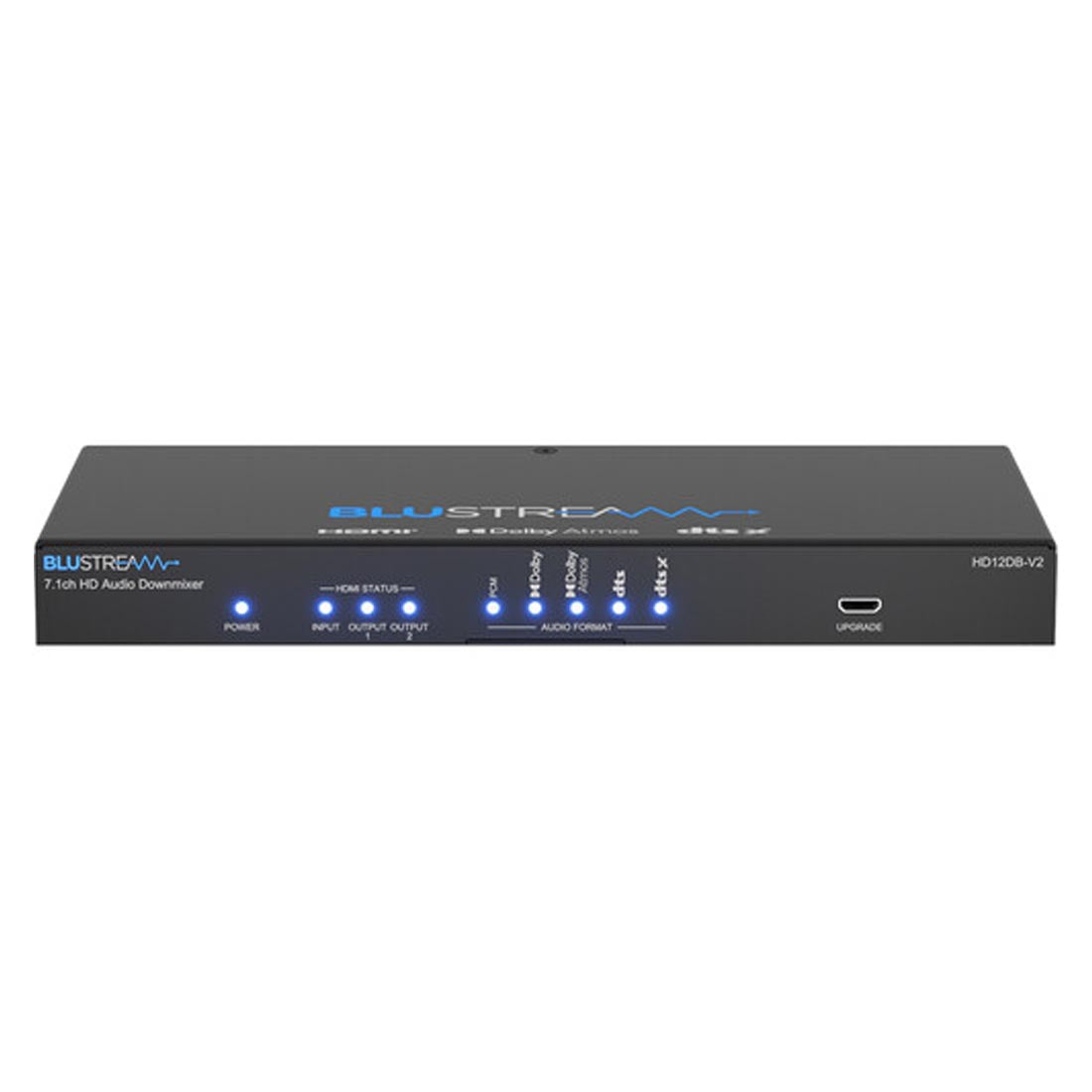

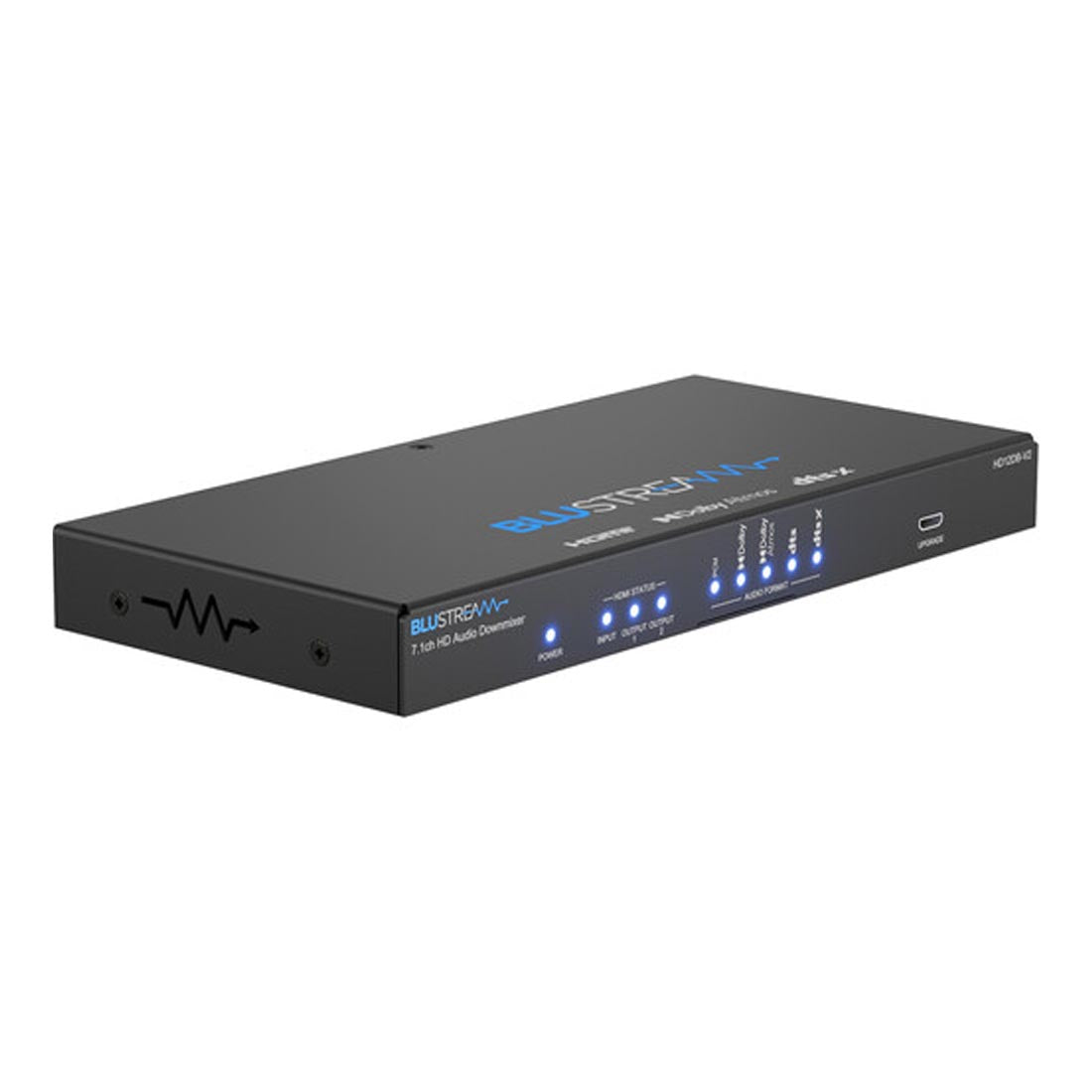

Blustream HD12DB-V2 2-Way HDMI Splitter and Scaler
The Blustream HD12DB-V2 converts and downmixes embedded 7.1ch Dolby or DTS audio in an HDMI signal to stereo on HDMI, optical, and analogue outputs, while splitting video to two HDMI outputs. With a 4K60 4:4:4 loop-out and a second output that down‑converts 4K to 1080p, it enables distribution of 4K UHD video and multi‑channel audio across multi‑room systems with mixed 2ch and 7.1ch zones and varied resolution requirements.
Distribute 4K UHD Video and Multi‑Channel Audio in Mixed Zones
This device provides a cost‑effective way to ensure 4K UHD video and multi‑channel audio can be shared in systems that combine 2ch and 7.1ch zones with different output resolutions.
- In‑built DAC converts embedded 7.1ch Dolby Audio or DTS Audio to stereo 2ch.
- Stereo is available concurrently on HDMI, optical, and analogue audio outputs.
- Supports multi‑channel audio input formats up to Dolby Atmos and DTS:X.
Two HDMI Outputs for Pass‑Through and 4K‑to‑1080p Scaling
Send the original video and multi‑channel audio to compatible equipment while simultaneously providing a 1080p feed where needed.
- HDMI loop out replicates the input up to 4K 60Hz 4:4:4 with 7.1ch Dolby & DTS audio.
- HDMI output 2 provides video down‑conversion from 4K to 1080p.
4K 60Hz 4:4:4 with HDR / Dolby Vision Support
The HDMI input supports 4K UHD video (4K 60Hz 4:4:4), including HDR and Dolby Vision at 60Hz, with distribution to two HDMI outputs—one of which can be scaled to 1080p.
Installation and Integration
Engineered for compatibility and flexible system design.
- HDCP 2.2 compliant with advanced EDID management.
- EDID selection and Output 2 scaler/optical output selection via 4‑pin DIP switches.

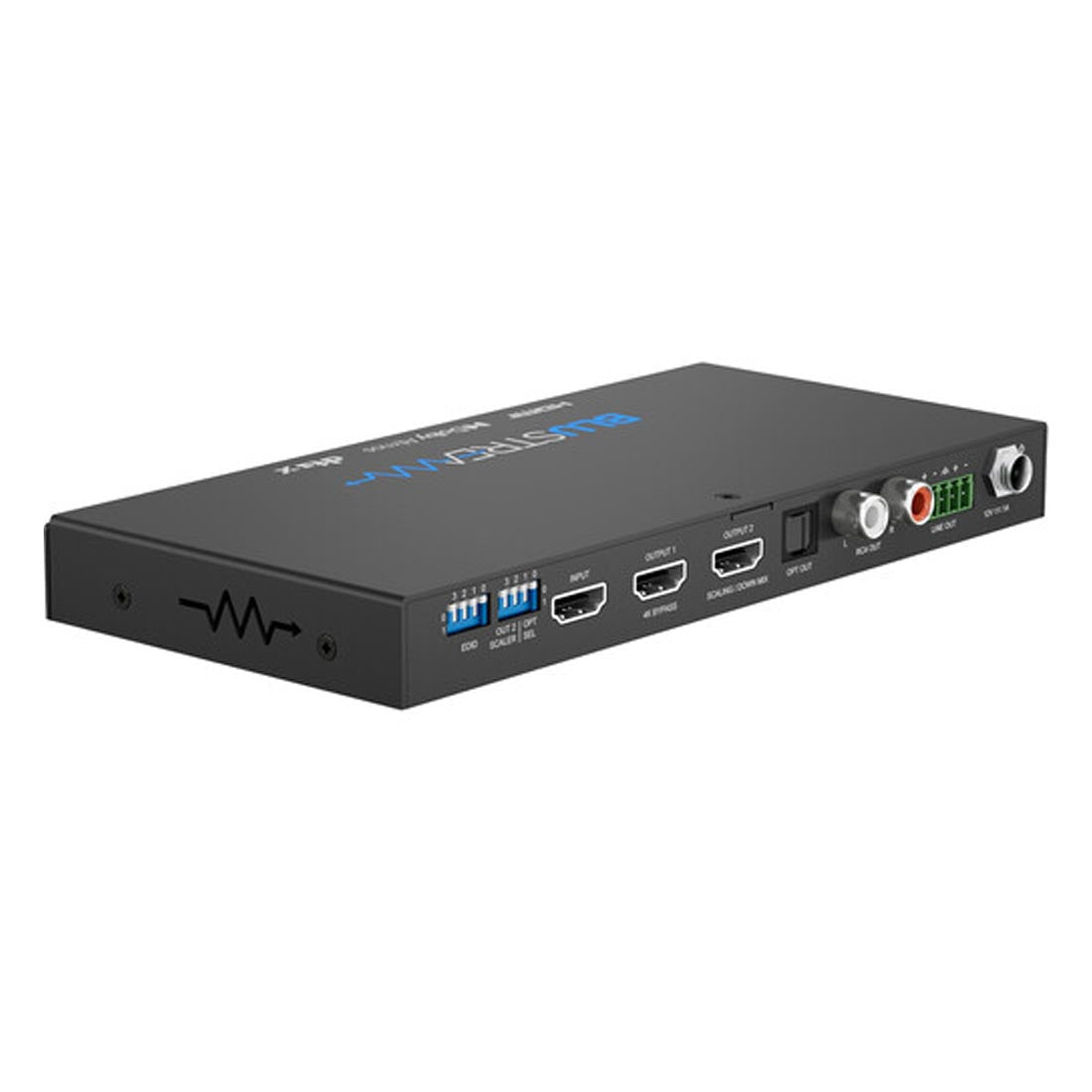

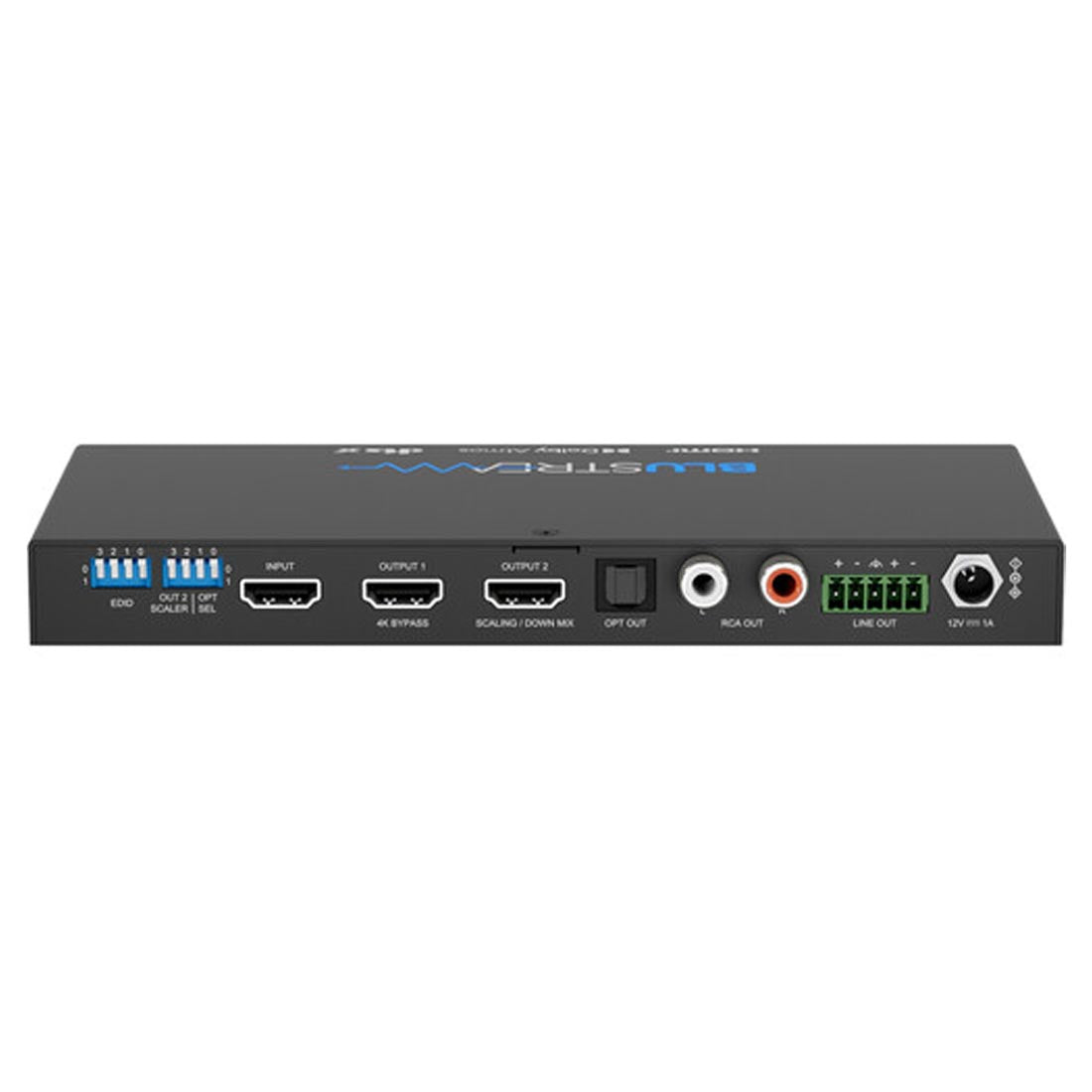

- Audio outputs include optical (Toslink), RCA L/R, and 5‑pin Phoenix balanced/unbalanced left/right.
- Micro USB port for product upgrade.
Frequently Asked Questions
-
Does the Blustream HD12DB‑V2 support Dolby Atmos and DTS:X?
Yes. It supports multi‑channel audio input formats up to Dolby Atmos and DTS:X.
-
What does each HDMI output do?
The HDMI loop out replicates the input signal up to 4K 60Hz 4:4:4 with 7.1ch Dolby and DTS audio, while HDMI output 2 down‑converts 4K video to 1080p.
-
What stereo outputs are available after downmixing?
Stereo 2ch audio is available concurrently on HDMI, optical, and analogue outputs, including optical (Toslink) and RCA L/R connections.
-
Is HDR and Dolby Vision supported?
Yes. The HDMI input supports 4K UHD video (4K 60Hz 4:4:4), including HDR and Dolby Vision at 60Hz, which can be distributed to two HDMI outputs.
-
How is EDID handled?
The unit is HDCP 2.2 compliant and provides advanced EDID management with 4‑pin DIP switch selection. Output 2 scaler selection and optical output selection are also controlled via a 4‑pin DIP switch.
-
What is included in the box?
HD12DB‑V2 unit, 12V/1A DC power supply, mounting kit, four rubber feet, and a Quick Reference Guide.
Add the Blustream HD12DB‑V2 to your cart to streamline mixed‑zone video and audio distribution. For personalized system‑matching or setup advice, contact or visit Gibbys Electronic Supermarket for expert assistance.
