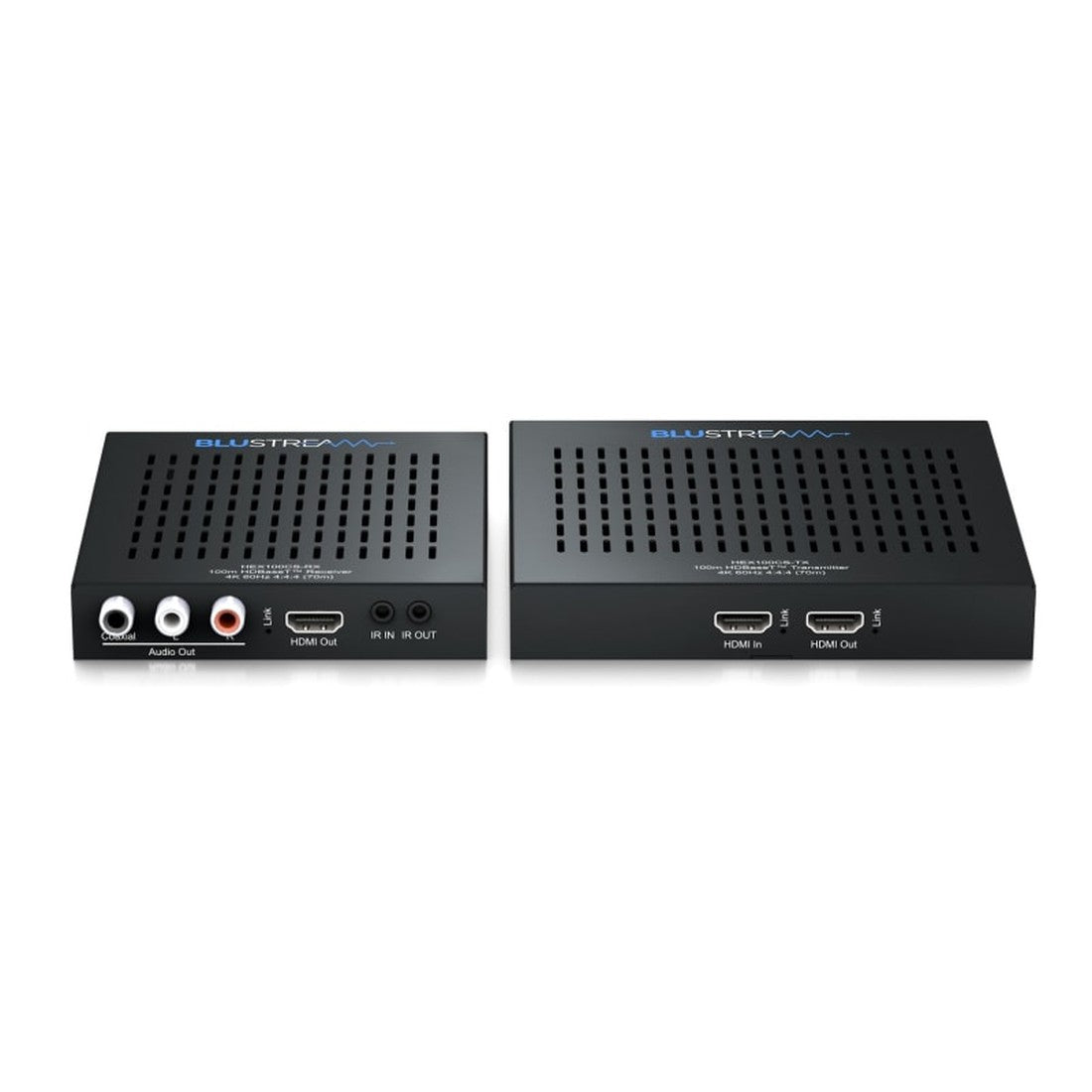

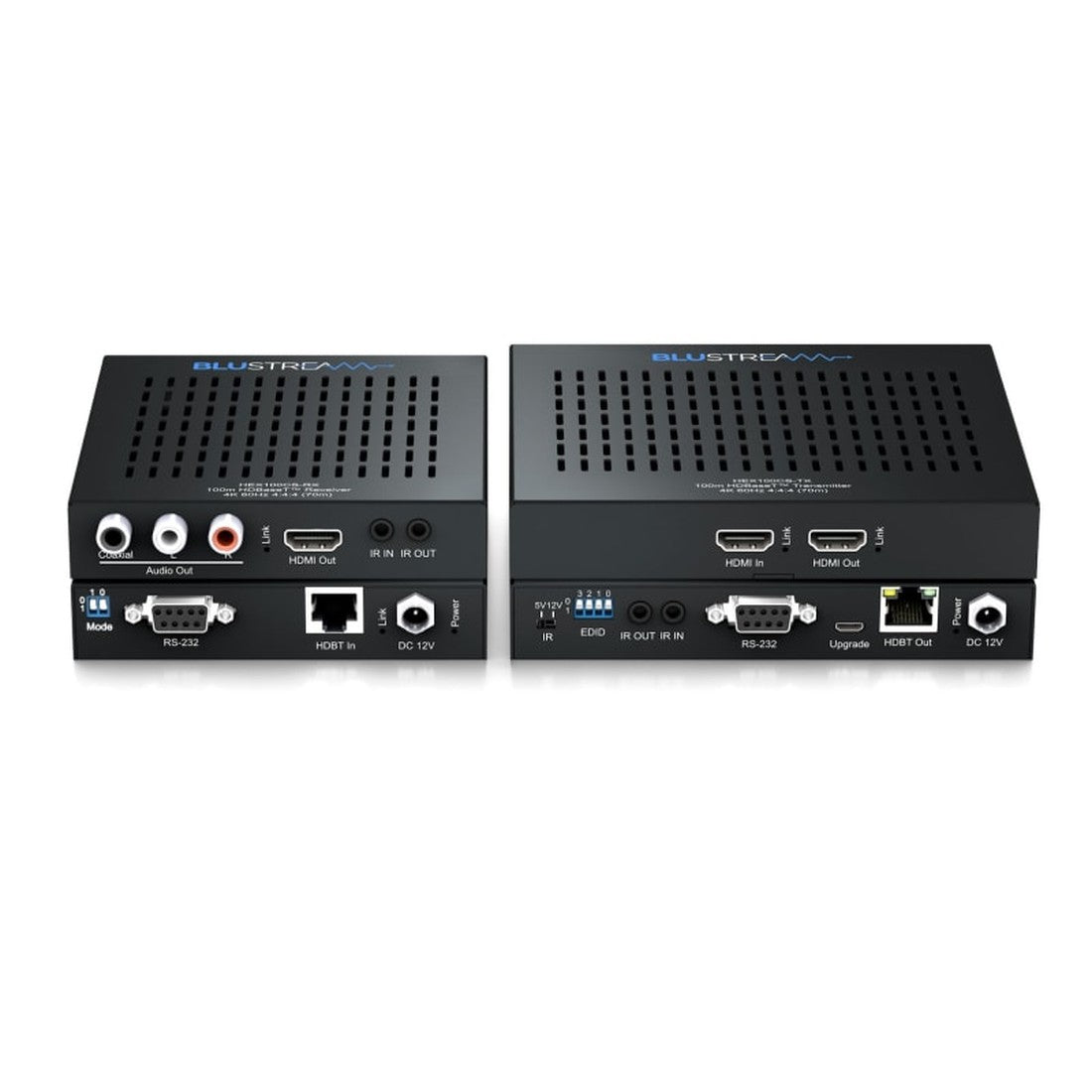

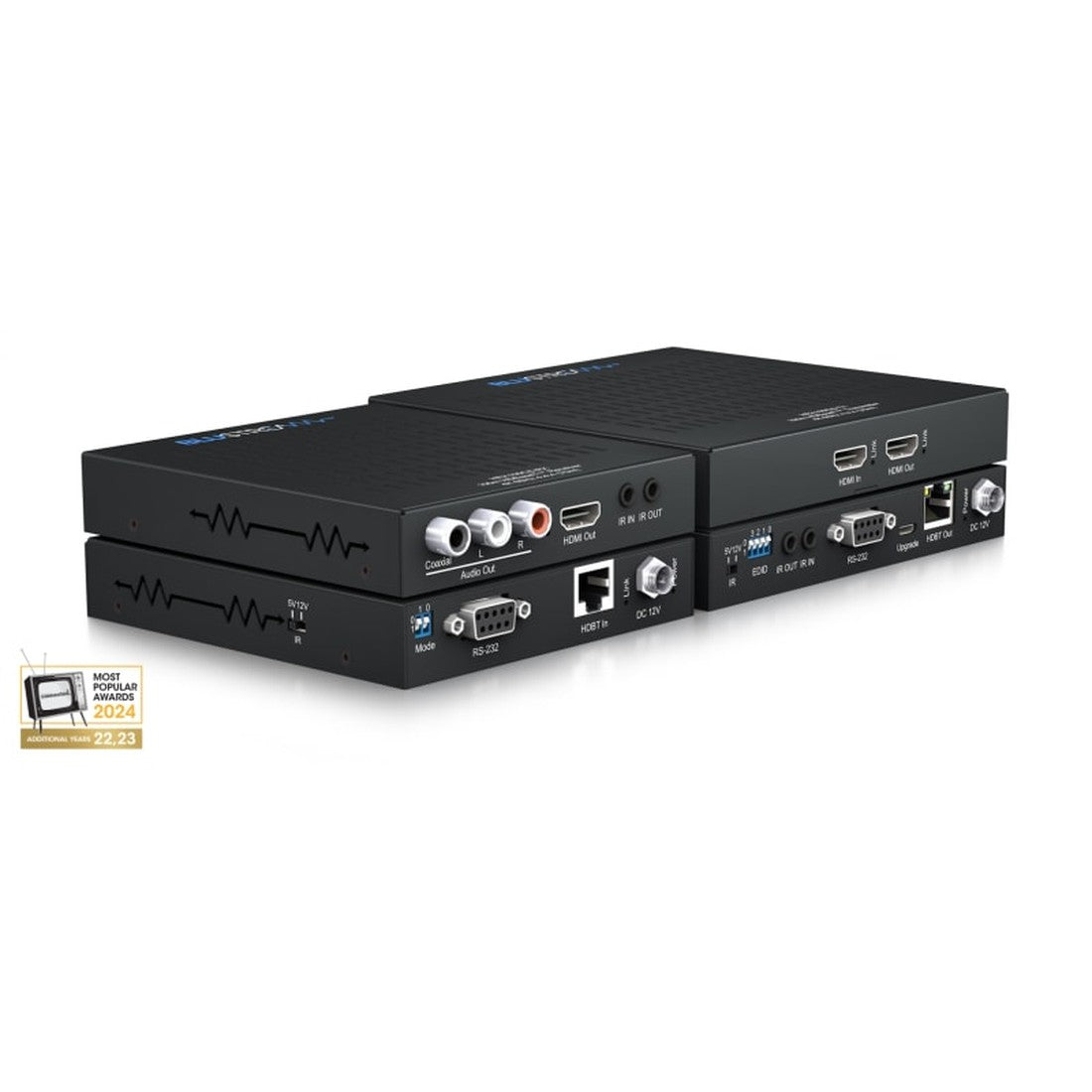

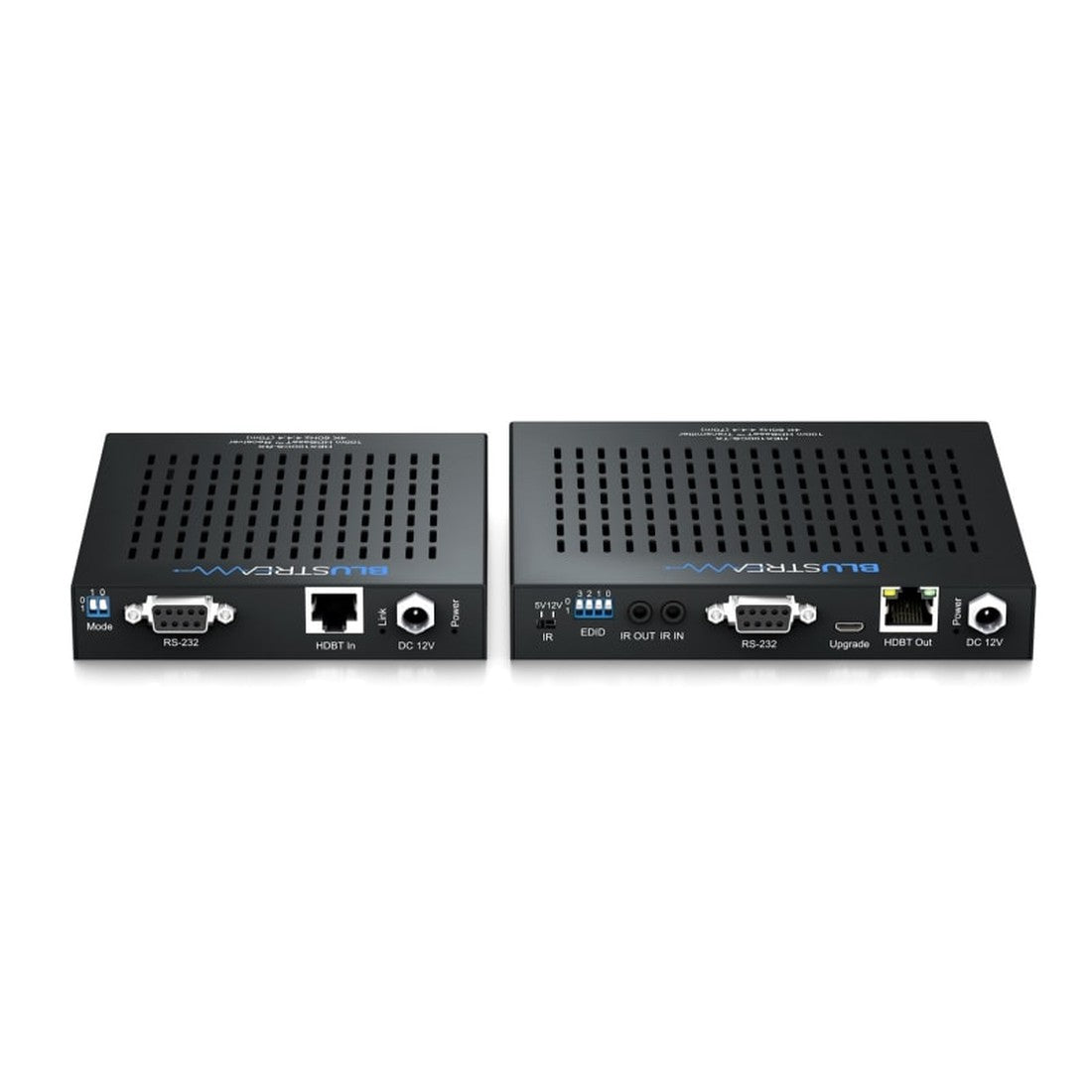

The Blustream HEX100CS-KIT HDBaseT extender set gives you a clean way to send full-bandwidth HDMI over a single CAT cable without sacrificing the performance modern sources demand. This Blustream HEX100CS-KIT extender set supports HDMI 2.0 4K 60Hz 4:4:4 at up to 70 metres and 1080p at up to 100 metres, while CSC down-conversion helps mixed-display systems work more smoothly when one screen cannot handle the source’s native signal.

Long-distance HDMI distribution with fewer compromises

When your source and display cannot live in the same rack or room, this extender set keeps the installation tidy and dependable. It carries video and audio over a single CAT cable, making it easier to build a polished AV system while still delivering the high-resolution performance needed for premium displays and source components.

• HDBaseT transmission over a single CAT cable
• Supports 4K 60Hz 4:4:4 UHD video up to 70m
• Extends HDMI 1080p video up to 100m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• HDCP 2.2 compliant

Smart CSC down-conversion for mixed-display systems

One of the biggest headaches in distributed video is dealing with displays that do not support the same resolution formats. The built-in colour space conversion and receiver-side down-conversion let a lower-capability display receive a compatible signal, while the transmitter loop-out can still show the original maximum 4K UHD resolution locally.

• Advanced Colour Space Conversion supports HDMI 2.0 18Gbps specification including HDR
• Video down-conversion on the receiver HDMI output supports displays limited to 4K 60Hz 4:2:0 or 1080p
• Transmitter HDMI loop-out maintains maximum original 4K UHD resolution for the local display

Flexible integration for control and audio breakaway

This kit does more than extend a picture. It also helps tie your system together with pass-through control, local display integration, and simultaneous audio breakout at the receiver, which is especially useful when feeding an AVR, amplifier, or separate audio system alongside the display.

• 1 x HDMI loop-out on the transmitter for a local display or cascading to multiple devices
• Bi-directional IR pass-through
• Bi-directional RS-232 pass-through
• Simultaneous analogue stereo and coaxial digital audio breakout on the receiver
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Supplied with Blustream 5V IR receiver and emitter

Built for more dependable system handshaking

Stable signal management matters just as much as headline resolution support. With advanced EDID management and HDMI re-clocking at the receiver, this extender set helps smooth out HDCP, compatibility, and handshaking issues that can slow down installation and troubleshooting.

• Advanced EDID management
• HDMI re-clocking on the receiver to help solve HDMI HDCP, compatibility and handshaking issues
• Bi-directional PoC support
• Mounting kits included

Frequently Asked Questions

1. Can this extender send 4K 60Hz 4:4:4 video? Yes. It supports 4K 60Hz 4:4:4 UHD video up to 70 metres.
2. How far can it extend 1080p video? It can extend HDMI 1080p up to 100 metres.
3. Does it support IR and RS-232 control? Yes. It includes bi-directional IR and RS-232 pass-through.
4. Can I connect a local display at the transmitter? Yes. The transmitter includes an HDMI loop-out for a local display or cascading.
5. Does the receiver provide audio breakout? Yes. It offers concurrent analogue L/R and coaxial digital audio outputs.

Add the Blustream HEX100CS-KIT extender set to your cart to enjoy reliable long-distance 4K HDMI distribution with smarter mixed-display compatibility. Contact Gibbys Electronic Supermarket for expert advice on planning your AV distribution system and choosing the right extenders, matrices, and control solutions.
