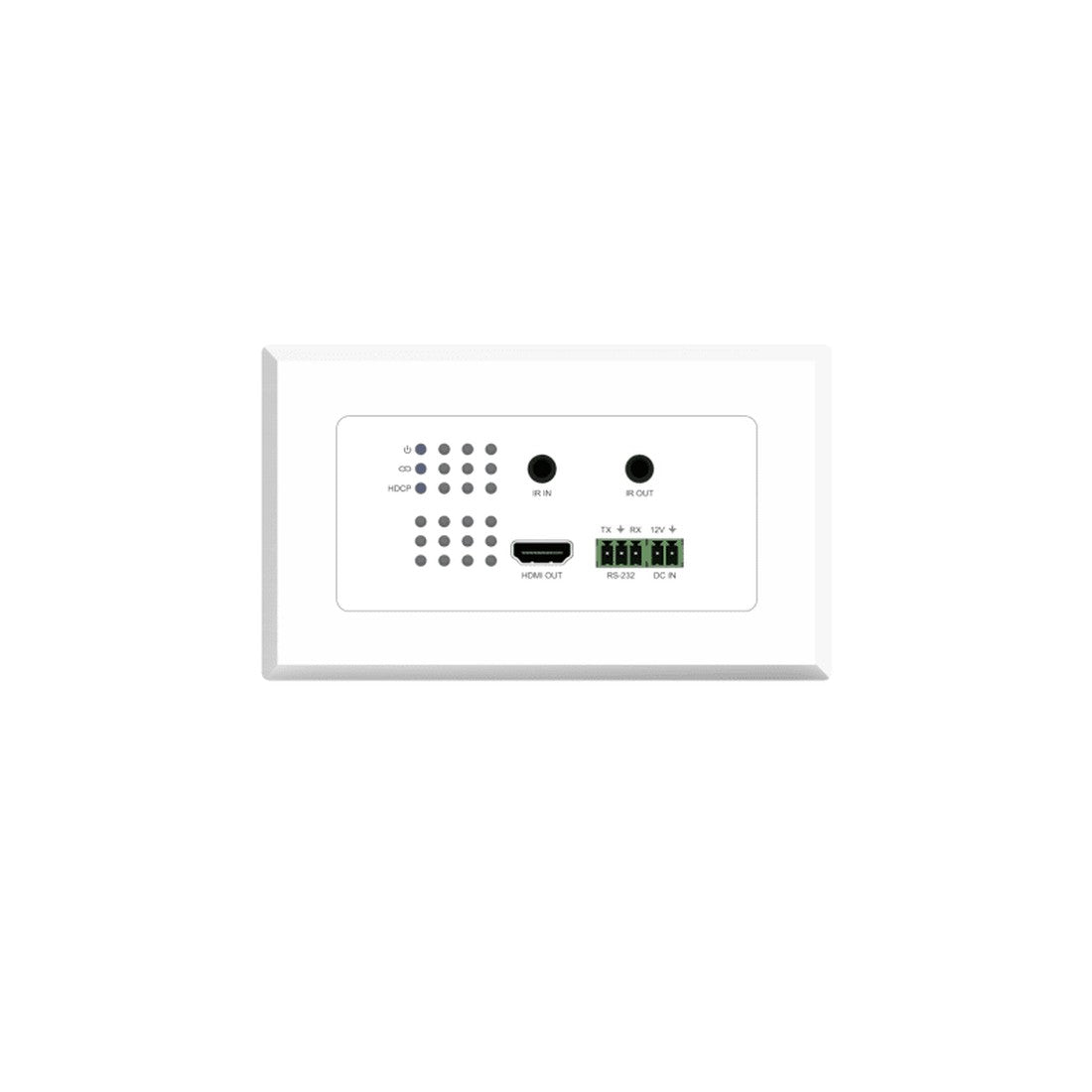

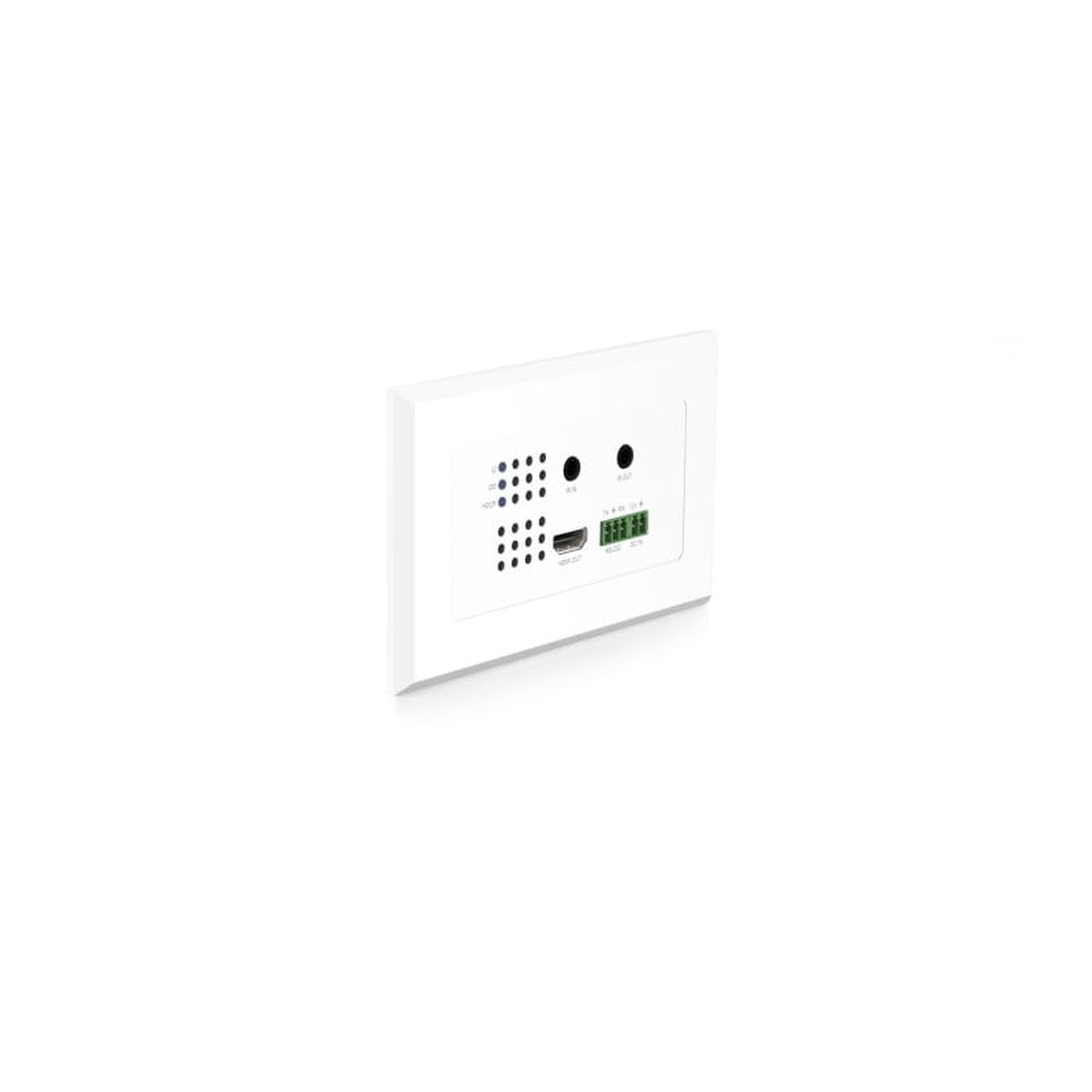

Blustream HEX11WPW-RX HDMI Wall Plate HDBaseT Receiver
Product Description
Product Description
Blustream HEX11WPW-RX HDMI Wall Plate HDBaseT Receiver
The Blustream HEX11WPW-RX HDMI Wall Plate HDBaseT receiver is a 4K solution designed to receive HDMI signals up to 70m at 1080p and 40m at 4K 60Hz 4:2:0. Built around advanced HDBaseT technology, it distributes video and audio over a single CAT cable and is designed to work with all Blustream HDBaseT transmitter and matrix solutions.
Long-Distance HDMI and 4K UHD Signal Reception
The HEX11WPW-RX is designed for reliable HDMI extension in installed AV environments, supporting 1080p transmission up to 70m and 4K UHD video up to 40m depending on format. This gives installers a wall plate receiver solution for extending high-resolution video over CAT cabling.
- Extends HDMI at 1080p up to 70m
- Supports 4K UHD video up to 40m
- Supports 3840 x 2160 @30Hz 4:4:4
- Supports 4096 x 2160 @24Hz 4:4:4
- Supports 4K @60Hz 4:2:0
- HDCP 2.2 support
Video, Audio, and Control Over a Single CAT Cable
With advanced HDBaseT technology, the receiver distributes video and audio over a single CAT cable while also supporting control integration. It supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications, along with CEC, RS-232, and bi-directional IR pass-through to compatible HDBaseT devices.
- Distribution of video and audio over a single CAT cable
- Bitstream passthrough of multichannel surround sound
- Supports object-based audio formats in line with HDMI specifications
- Supports CEC and RS-232 pass through
- Supports bi-directional IR pass-through to compatible HDBaseT device
Flexible Installation and Power Options
The HEX11WPW-RX has been designed for integration into both UK and European installations thanks to its magnetic faceplate surround and backbox compatibility. It can be powered locally or from compatible Blustream HDBaseT products, offering flexibility for system design and installation.
- Magnetic faceplate surround allowing both UK & EU backbox compatibility
- Backbox mounting depth: 40mm minimum
- Supports 12V-48V PoC from compatible Blustream HDBaseT transmitter / matrix products
- Local power input via 2-pin phoenix connector
- Compatible with all Blustream HDBaseT transmitter / matrix products*
Frequently Asked Questions
- How far can the HEX11WPW-RX extend HDMI signals? It is designed to receive HDMI signals up to 70m at 1080p and up to 40m at 4K 60Hz 4:2:0.
- Will this wall plate fit UK and European backboxes? Yes. It features a magnetic faceplate surround allowing both UK & EU backbox compatibility.
- Can it be powered from a compatible Blustream transmitter or matrix? Yes. It supports 12V-48V PoC from compatible Blustream HDBaseT transmitter / matrix products, and it can also be powered locally.
- Does it support control pass-through? Yes. The receiver supports CEC and RS-232 pass through, as well as bi-directional IR pass-through to compatible HDBaseT devices.
Add the Blustream HEX11WPW-RX HDBaseT receiver to your cart today for long-distance video, audio, and control distribution over a single CAT cable. Contact the audio experts at Gibbys Electronic Supermarket for advice on matching HDBaseT transmitters, matrix solutions, and installation accessories!
