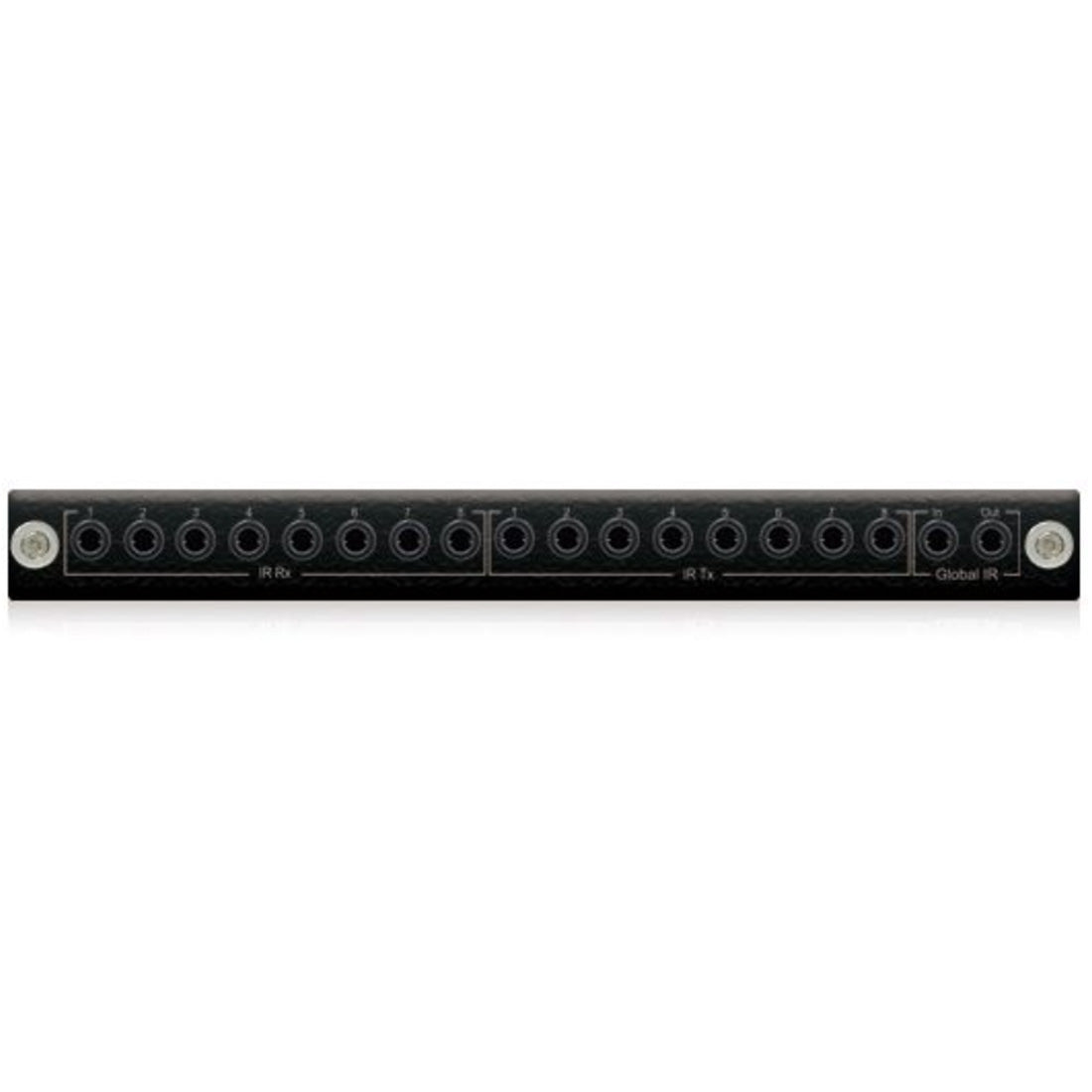

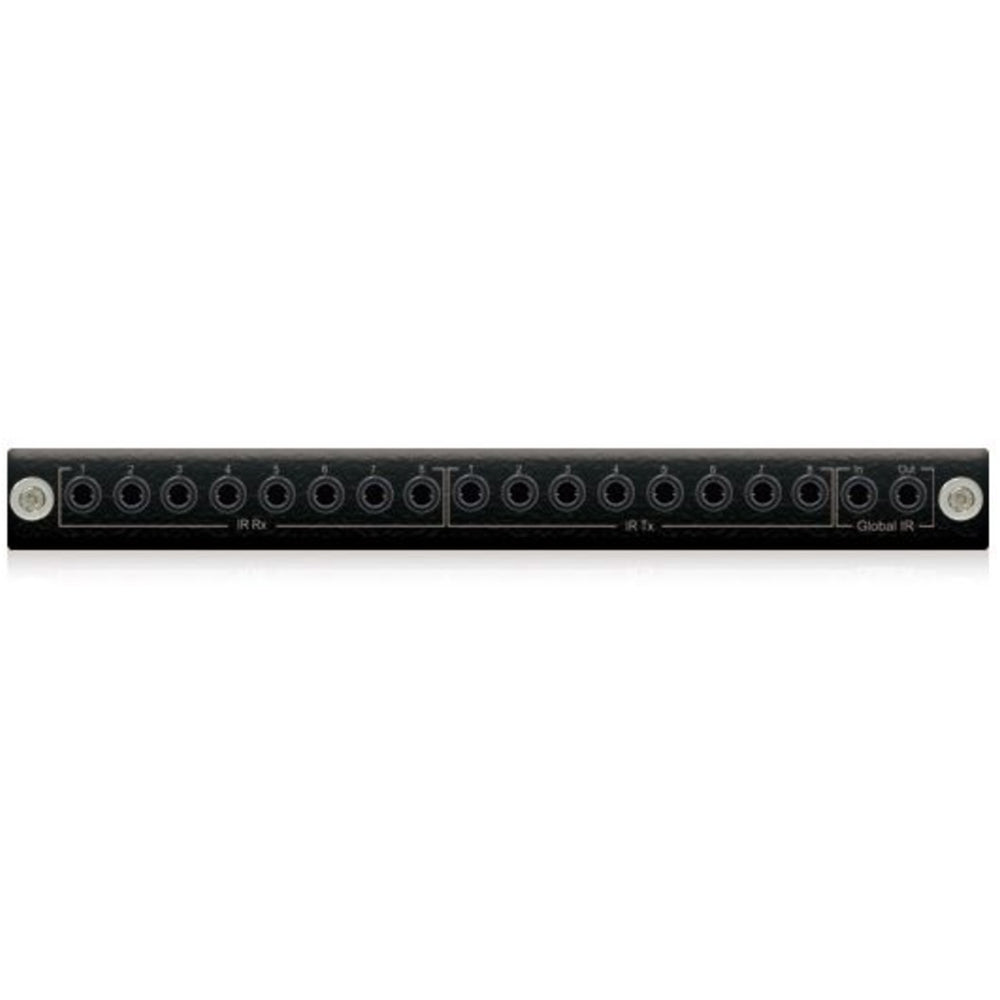

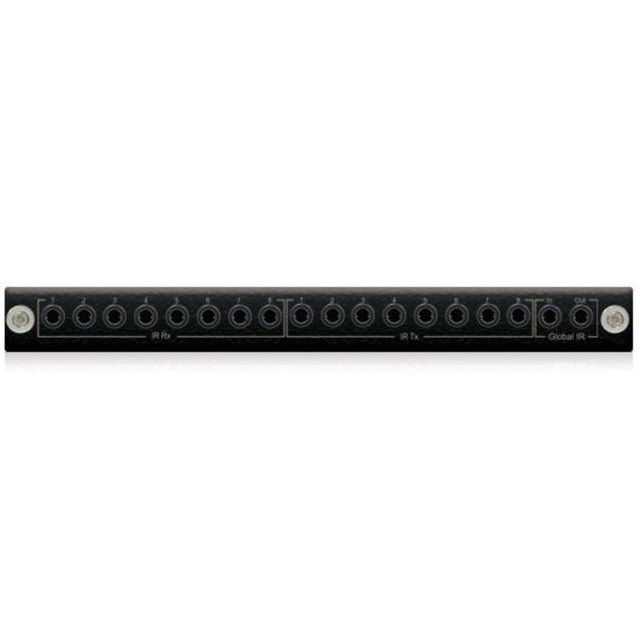

Blustream PRO-8IR-V2 8-Way IR Control Board

Blustream PRO-8IR-V2 8-Way IR Control Board

The Blustream PRO-8IR-V2 gives your AV system a practical way to route infrared control signals between local source equipment and compatible Blustream HDBaseT receivers. Think of it as a traffic director for remote-control commands, helping signals reach the right equipment through dedicated IR input and output connections.

Flexible IR Signal Routing

Managing several IR control connections can quickly become complicated. The Blustream PRO-8IR-V2 keeps things organized with 8 x 5V IR outputs for routed control of local source equipment and 8 x 5V IR inputs for distributing signals to compatible Blustream HDBaseT receivers.

Why manage everything through a single path when dedicated connections can keep signal routing more organized? Separate input and output paths give you a straightforward approach to IR distribution within a compatible AV system.

8 IR Inputs for Signal Distribution

The Blustream PRO-8IR-V2 provides eight 5V IR inputs designed to distribute infrared signals to compatible Blustream HDBaseT receivers. These inputs use 5V 3.5mm stereo jack connections, providing clearly defined connection points for managing incoming IR signals.

8 IR Outputs for Local Source Control

Eight 5V IR outputs provide routed control for local source equipment. Combined with the dedicated input connections, the Blustream PRO-8IR-V2 creates separate pathways for incoming and outgoing IR commands, helping keep control distribution focused and manageable.

Quick-Release Card Design

The Blustream PRO-8IR-V2 uses quick-release card module fittings designed for simple population of input and output cards within the Custom Pro Matrix Hub. Its card-based format keeps the module compact while still providing the connections required for IR signal routing.

Compact Custom Pro Matrix Hub Integration

Space matters when you're organizing AV hardware. The Blustream PRO-8IR-V2 measures 202mm wide and 22mm high, while its depth including connections reaches 188mm. The card itself measures 202mm x 22mm x 177mm (W x H x D), giving it a compact profile for integration into the Custom Pro Matrix Hub.

With a shipping weight of just 0.5kg, the board maintains a manageable physical footprint while still providing dedicated connections for distributing IR control signals.

Defined Operating Temperature Range

The Blustream PRO-8IR-V2 operates from 32°F to 104°F (0°C to 40°C), while importantly, providing clearly defined temperature limits. Additionally, its specified storage range extends from -4°F to 140°F (-20°C to 60°C). Therefore, these ranges provide clear guidelines for operating and storing the IR control board.

Key Features

• 8 x 5V IR outputs for routed control of local source equipment
• 8 x 5V IR inputs for distribution to compatible Blustream HDBaseT™ receivers
• 5V 3.5mm stereo jack IR input connections
• Quick-release card module fittings
• Designed for use with the Custom Pro Matrix Hub
• Card dimensions of 202mm x 22mm x 177mm
• 188mm depth including connections
• 0.5kg shipping weight
• Operating temperature range of 32°F to 104°F (0°C to 40°C)
• Storage temperature range of -4°F to 140°F (-20°C to 60°C)

Focused IR Control for Compatible AV Systems

The Blustream PRO-8IR-V2 delivers dedicated IR signal routing while, importantly, keeping compatible Custom Pro Matrix Hub systems organized. Additionally, its IR inputs and outputs provide straightforward control between local source equipment and compatible Blustream HDBaseT receivers. Finally, quick-release fittings and compact dimensions further support practical AV system integration.

Frequently Asked Questions

1. What does the Blustream PRO-8IR-V2 do? The Blustream PRO-8IR-V2 routes IR control signals between local source equipment and compatible Blustream HDBaseT receivers.

2. How many IR outputs does the Blustream PRO-8IR-V2 provide? It features 8 x 5V IR outputs for routed control of local source equipment.

3. What connections are used for the IR inputs? The IR inputs use 5V 3.5mm stereo jack connections.

4. What are the dimensions of the Blustream PRO-8IR-V2? The card measures 202mm x 22mm x 177mm (W x H x D), with a depth of 188mm when including connections.

5. What is the operating temperature range of the Blustream PRO-8IR-V2? It operates from 32°F to 104°F (0°C to 40°C) and has a storage range of -4°F to 140°F (-20°C to 60°C).
