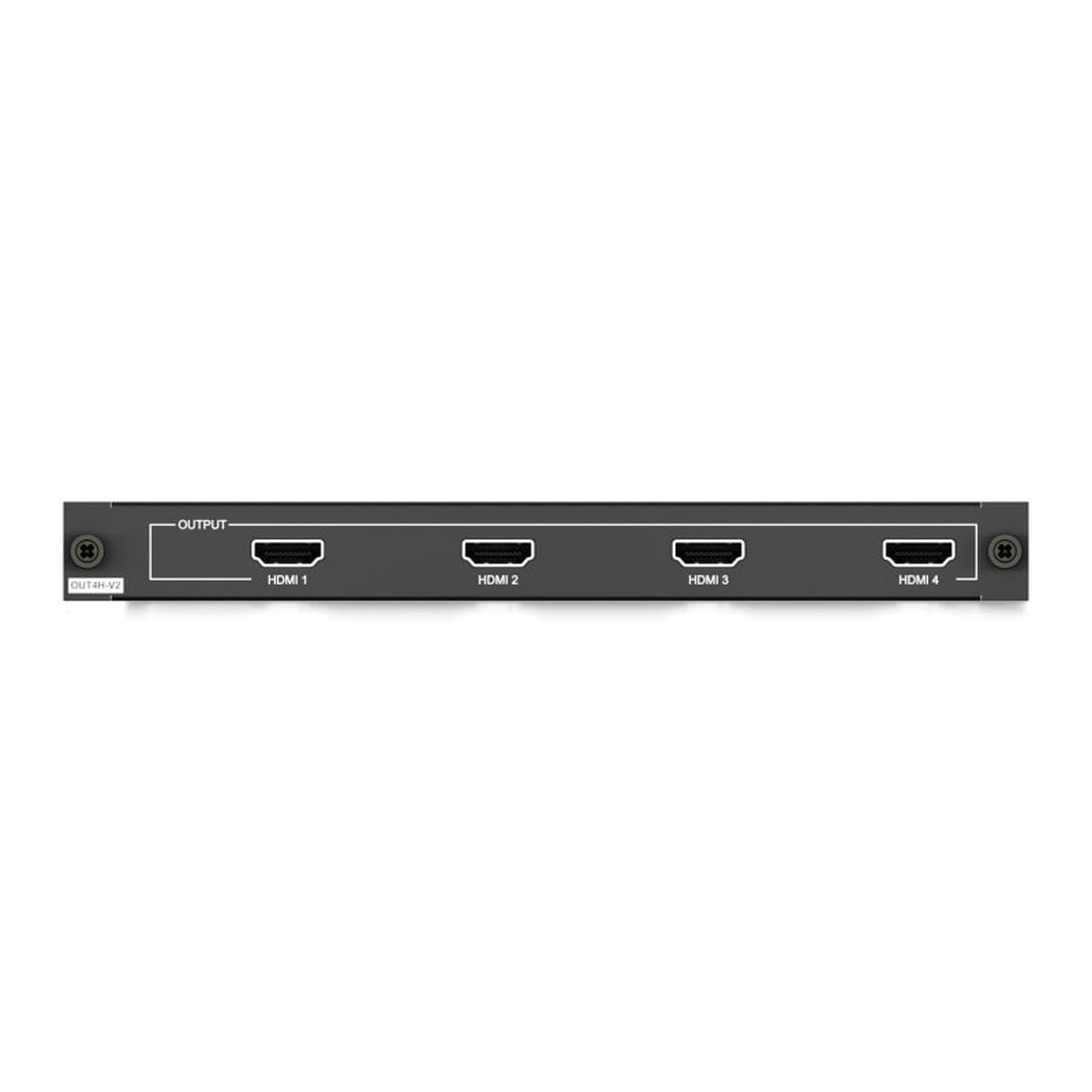

Blustream PRO-OUT4H-V2 4-Way HDMI 2.0 Output Board 18Gbps

Blustream PRO-OUT4H-V2 4-Way HDMI 2.0 Output Board 18Gbps

The Blustream PRO-OUT4H-V2 4-Way HDMI 2.0 Output Board - 18Gbps is designed for the Custom Pro Modular 4k 60Hz 4:4:4 Matrix platform, delivering HDMI distribution to four independent displays. With support for HDMI 2.0 18Gbps, HDCP 2.2, HDR, and up to 4K UHD 60Hz 4:4:4, it is engineered for high-bandwidth AV distribution within a Custom Pro Matrix hub.

Distribute to Four Independent HDMI Displays

The PRO-OUT4H-V2 features 4 x HDMI outputs for connection to HDMI displays, allowing distribution of inputs to four independent displays. This makes it a practical output solution for Custom Pro Matrix installations that require multiple display connections from a single modular hub.

• 4 x HDMI Type A, 19-pin, female outputs
• Designed for connection to HDMI displays
• Supports four independent display outputs

Support for HDMI 2.0 18Gbps, HDR, and 4K UHD 60Hz 4:4:4

Built to support HDMI 2.0 18Gbps specification including HDR, the PRO-OUT4H-V2 handles up to 4K UHD 60Hz 4:4:4 video distribution. This output board is suited to installations where full-bandwidth HDMI 2.0 signal support is required within the Custom Pro Matrix system.

• Supports HDMI 2.0 18Gbps specification
• Supports HDR
• Supports up to 4K UHD 60Hz 4:4:4
• HDCP 2.2 support

Bitstream Audio Passthrough for Multichannel Formats

The PRO-OUT4H-V2 supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications. This allows compatible audio formats to pass through the system without altering the original bitstream.

• Supports multichannel surround sound bitstream passthrough
• Supports object-based audio formats in line with HDMI specifications

Quick Release Installation in the Custom Pro Matrix Hub

Quick release card module fittings allow simple population of input and output cards in the Custom Pro Matrix Hub. This design supports simple installation and integration as part of a modular Custom Pro Matrix configuration.

• Quick release card module fittings
• Simple installation into the Custom Pro Matrix hub
• Card dimensions: 182mm x 22mm x 177mm
• Dimensions including connections: 202mm x 22mm x 188mm

Frequently Asked Questions

1. How many displays can the PRO-OUT4H-V2 connect to? It features 4 x HDMI outputs and allows distribution of inputs to four independent displays.
2. Does this board support 4K UHD 60Hz 4:4:4 and HDR? Yes. It supports HDMI 2.0 18Gbps specification including HDR and supports up to 4K UHD 60Hz 4:4:4.
3. Is anything else required for HDMI 2.0 18Gbps video distribution? Yes. For HDMI 2.0 18Gbps video distribution, the PRO-OUT4H-V2 must be used with a HDMI 2.0 18Gbps Custom Pro input board.
4. Does it support surround sound formats? Yes. It supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications.
