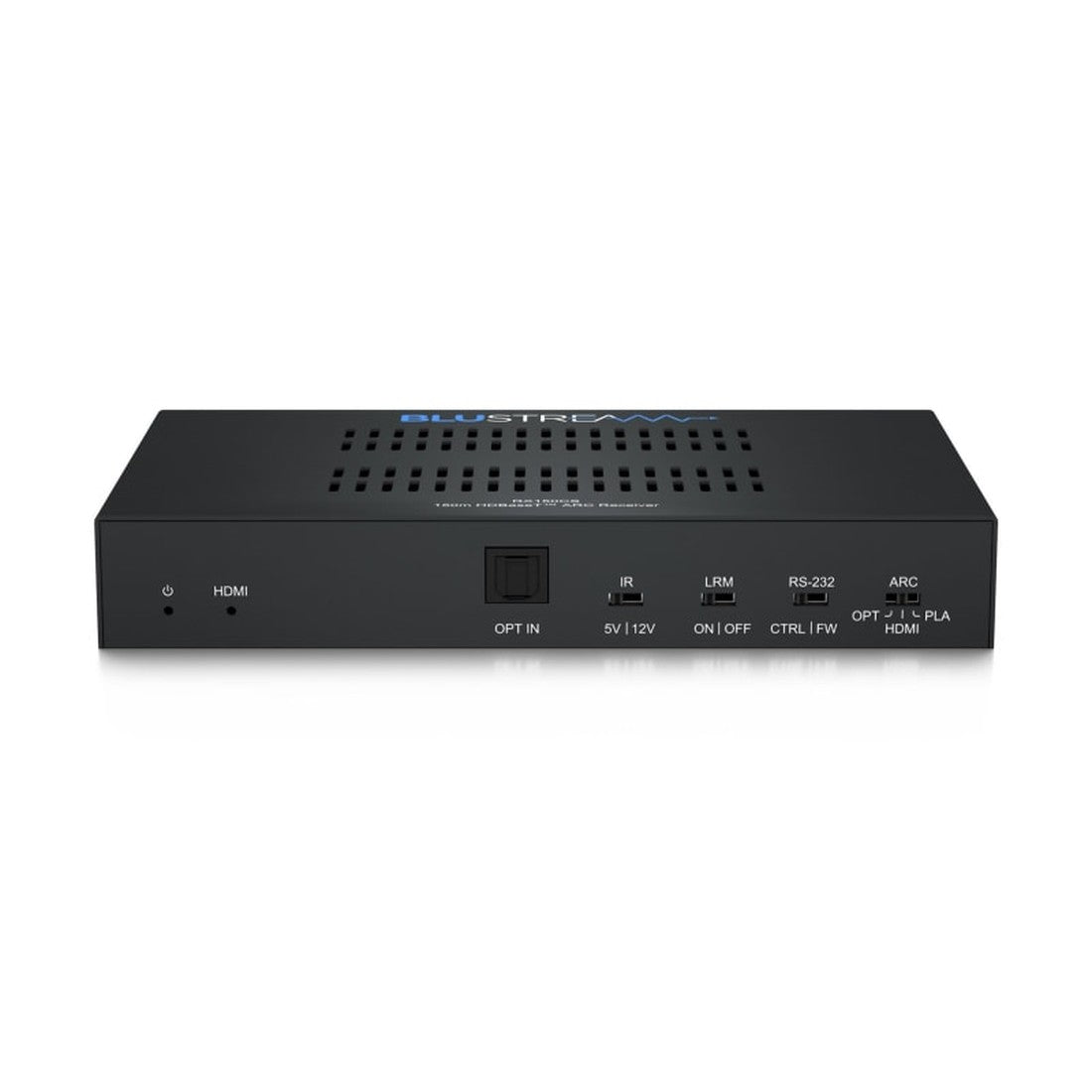

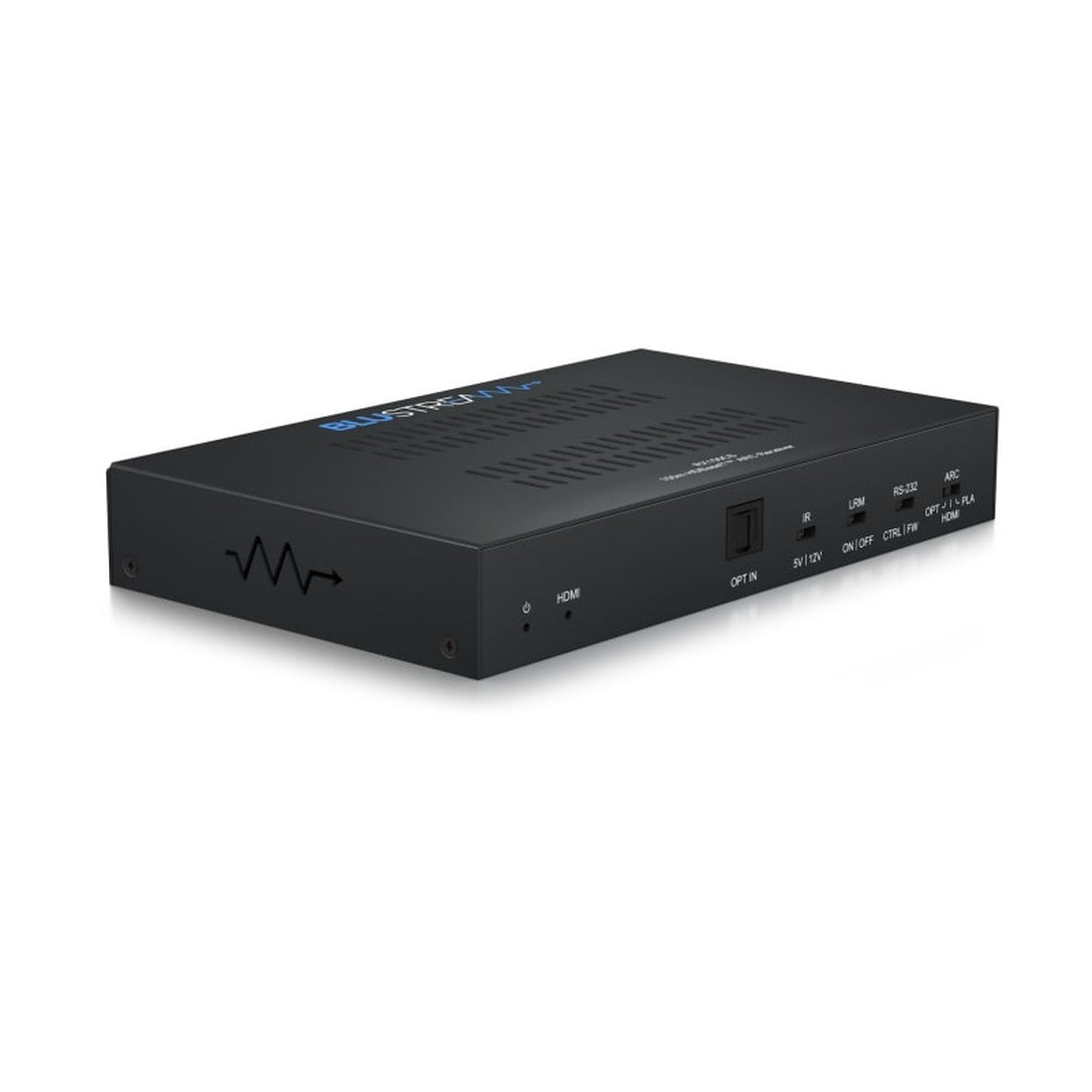

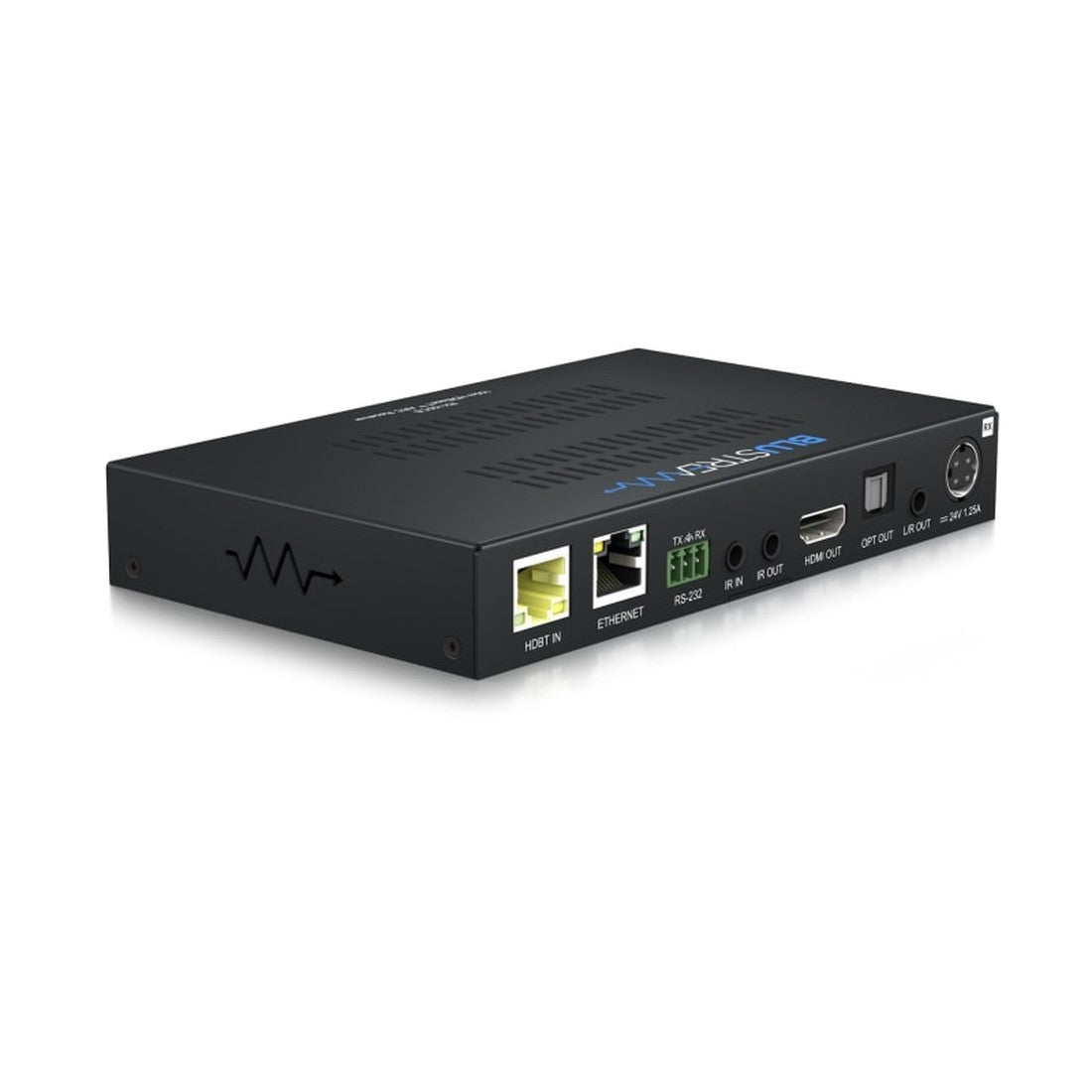

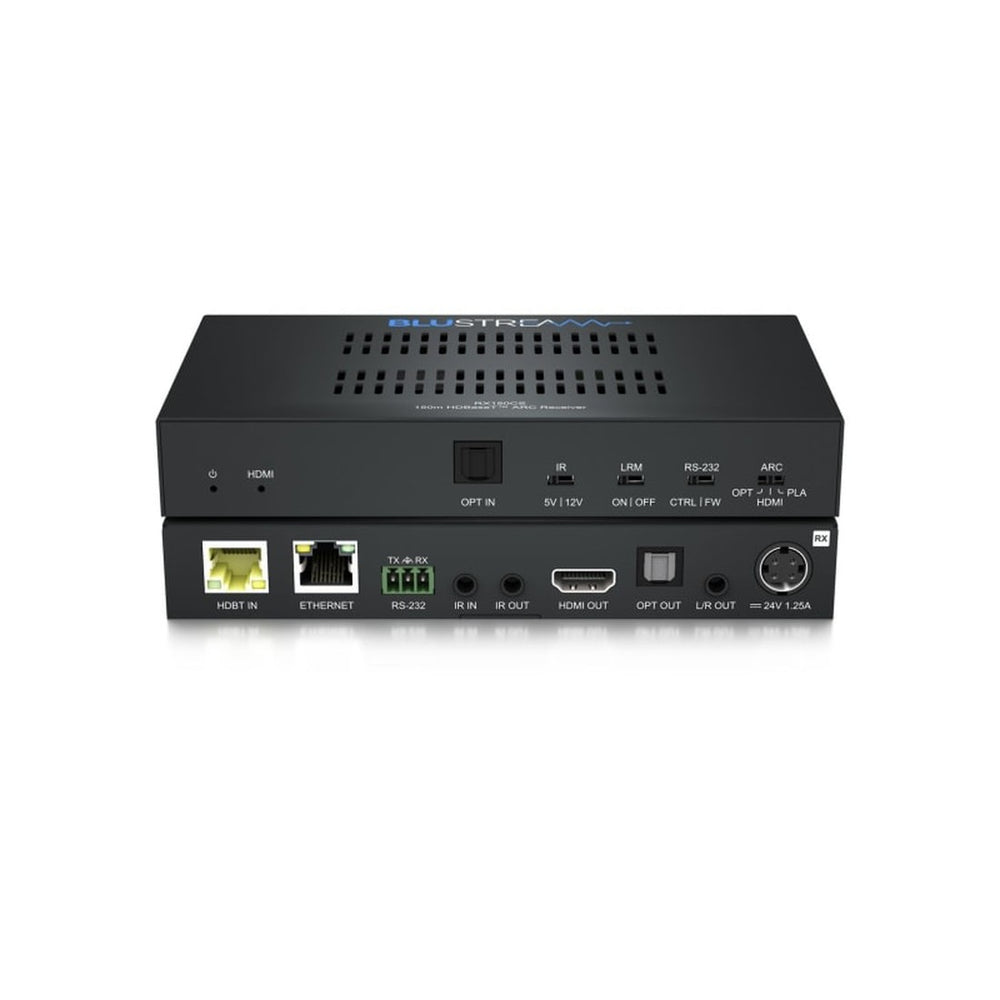

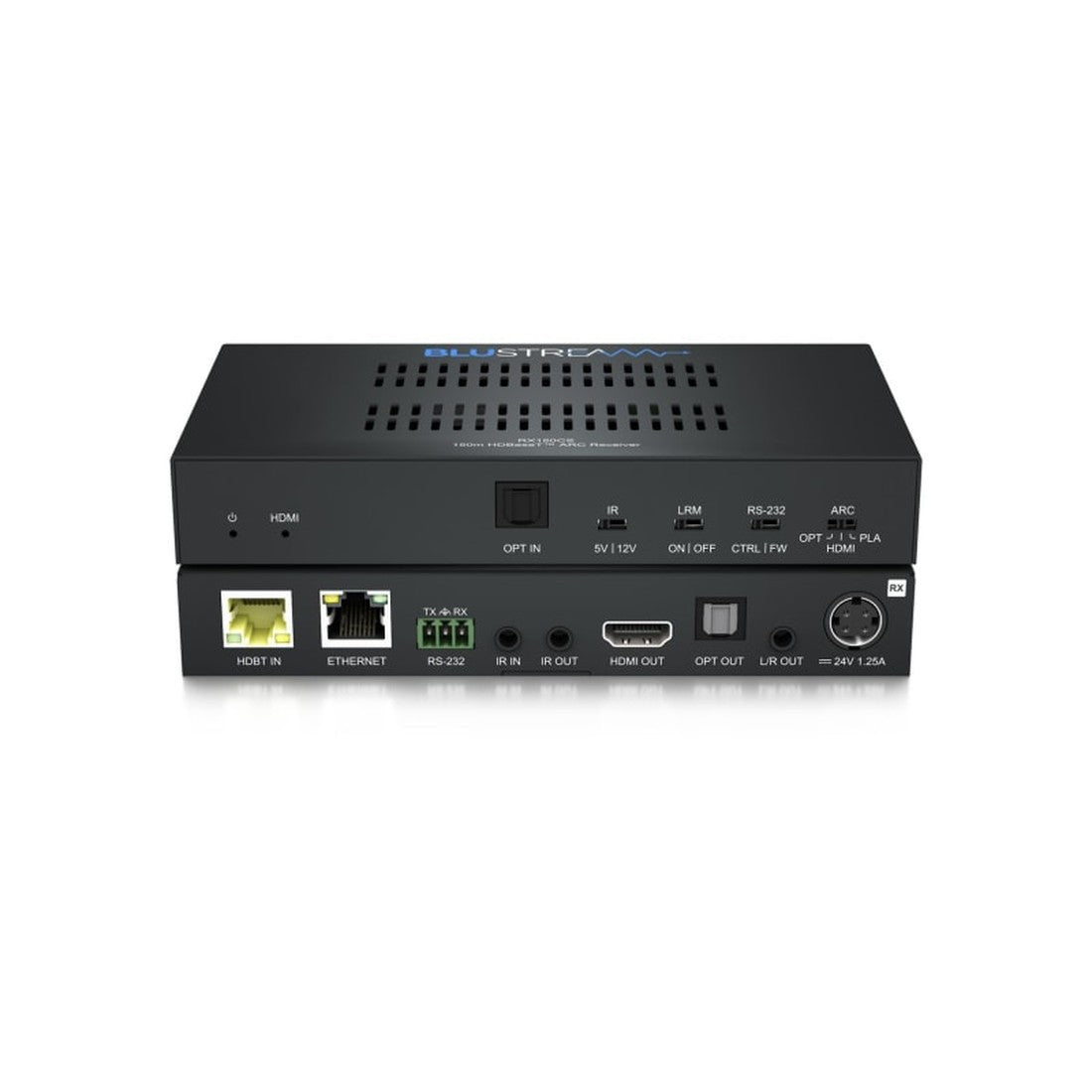

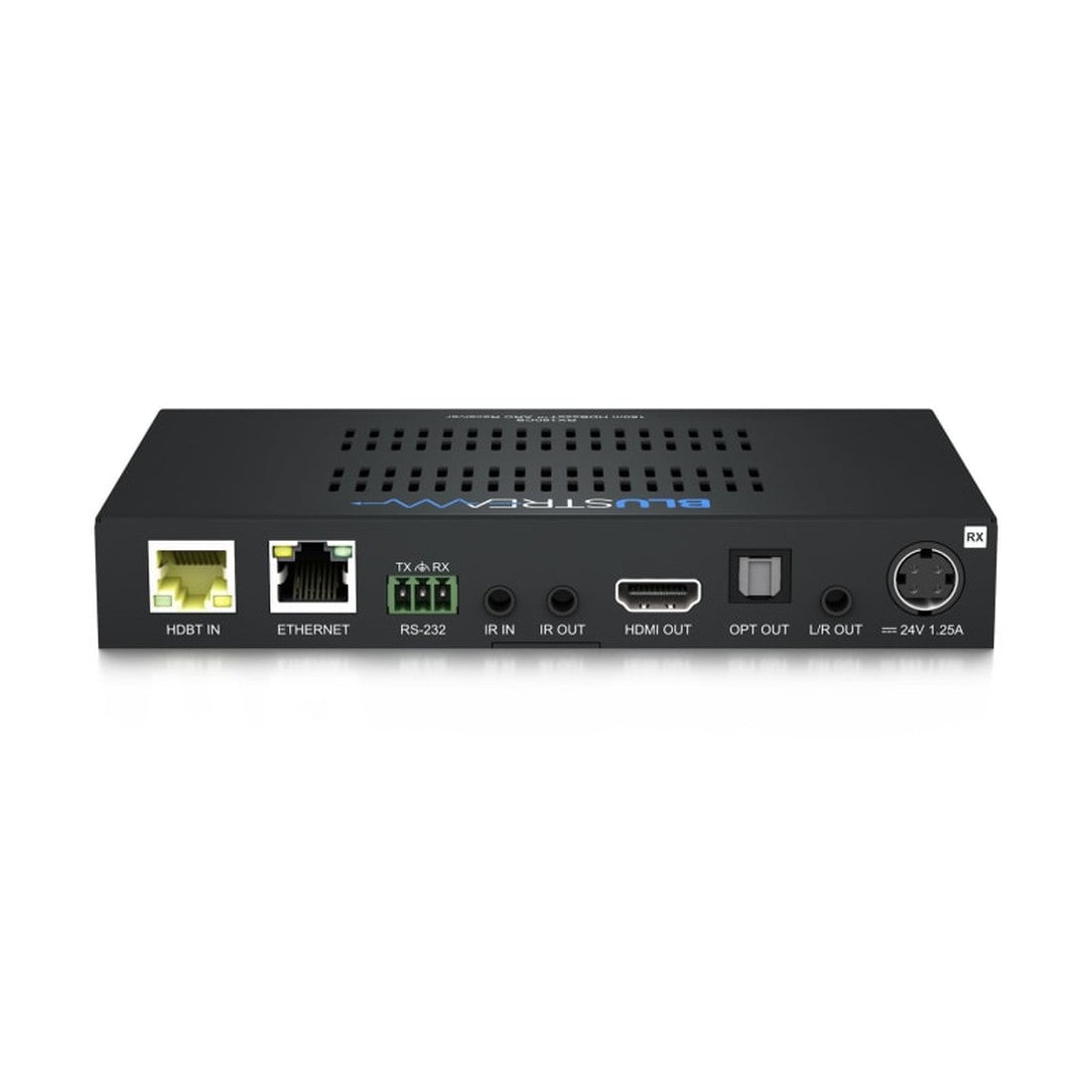

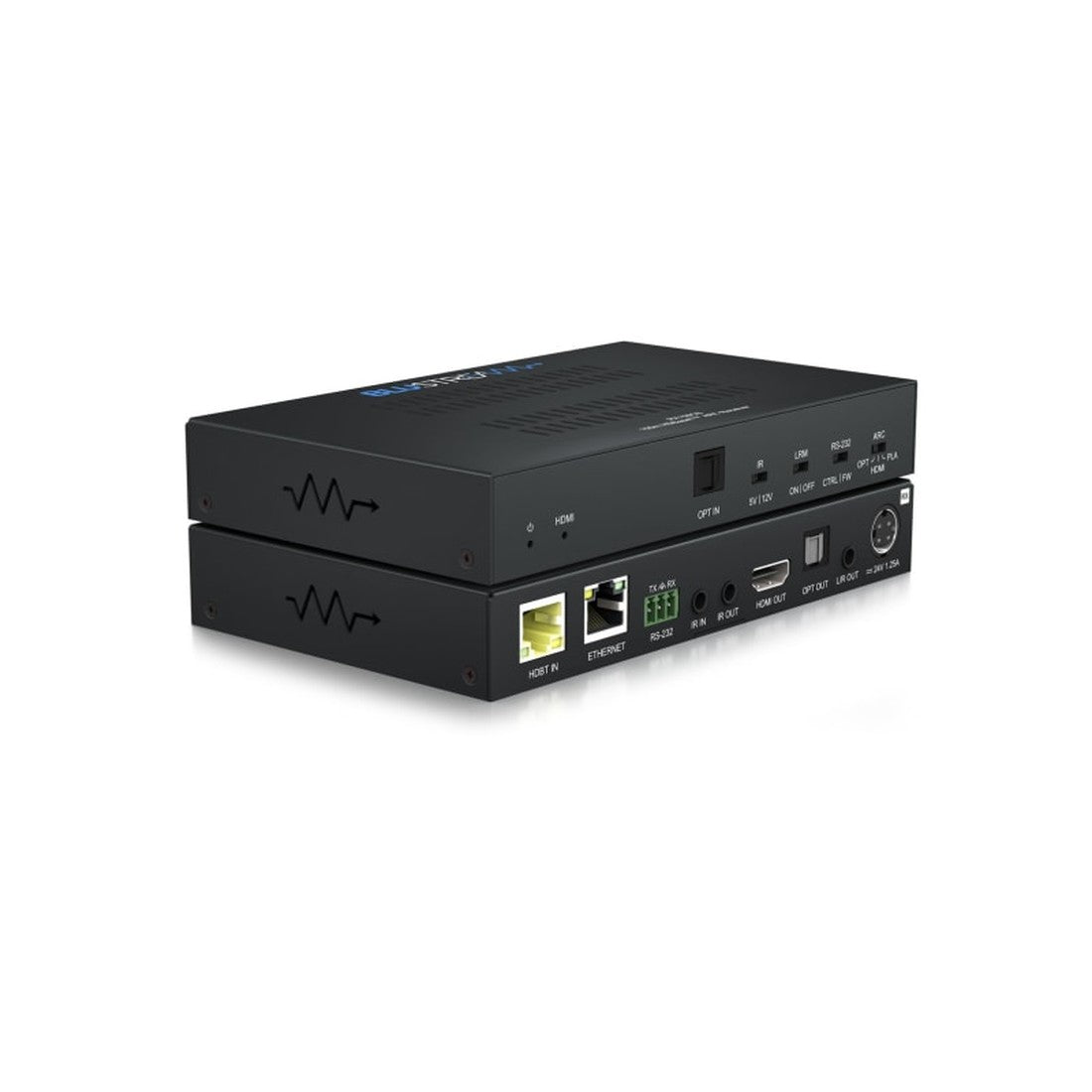

Blustream RX150CS HDBaseT Long Range CSC Receiver - 150m

Blustream RX150CS HDBaseT Long Range CSC Receiver - 150m

The Blustream RX150CS HDBaseT Long Range CSC Receiver - 150m is engineered to extend HDMI, Bi-directional IR & RS-232 over a single CAT cable with support for HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) and HDCP 2.2. Utilising CSC technology, it also supports ARC, Ethernet pass through with compatible Blustream hardware, and simultaneous analogue stereo and Optical Toslink audio breakout.

Long Range HDMI Extension with CSC Technology

Advanced HDBaseT technology allows distribution of video and audio over a single CAT cable, helping simplify AV system installation. The RX150CS supports HDMI2.0 18Gbps specification including HDR through Advanced Colour Space Conversion (CSC), with 4K 60Hz 4:4:4 UHD video transmission up to 100m and HDMI 1080P video up to 150m in HDBaseT long-reach mode.

• Supports 4K 60Hz 4:4:4 UHD video up to 100m
• Extends HDMI 1080P video up to 150m (HDBaseT long-reach mode)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
• HDCP 2.2 support

Flexible Display and Audio Integration

For mixed-resolution systems, the RX150CS features automatic downscaling of up to 4K 60Hz 4:4:4 video input to 1080p. It also supports ARC (Audio Return Channel) from a connected display via HDMI or Optical digital inputs when used with a compatible Blustream transmitter or matrix, while simultaneous analogue stereo and Optical Toslink audio breakout adds local audio connectivity.

• Automatic downscaling of up to 4K 60Hz 4:4:4 video input to 1080p
• Supports ARC from connected display via HDMI or Optical digital inputs
• Simultaneous analogue stereo and Optical Toslink audio breakout
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications

Control, Ethernet, and Power over Cable

The RX150CS is designed for integrated AV installations with support for bi-directional RS-232 pass-through and bi-directional IR pass-through to a compatible HDBaseT device. It also supports bi-directional Ethernet pass through and PoC (Power over Cable) from compatible Blustream matrix or transmitter products, reducing the need for local power at the receiver end.

• Bi-directional RS-232 pass-through
• Supports bi-directional IR pass-through to compatible HDBaseT device
• Bi-directional Ethernet pass through when used with compatible Blustream transmitter or matrix solution
• Supports PoC (Power over Cable) from Blustream matrix or transmitter products
• Recommended receiver for the Blustream PLA88CS product

Frequently Asked Questions

1. How far can the Blustream RX150CS extend video? It supports 4K 60Hz 4:4:4 UHD video up to 100m and extends HDMI 1080P video up to 150m in HDBaseT long-reach mode.
2. Does the RX150CS support ARC? Yes. It supports ARC (Audio Return Channel) from a connected display via HDMI or Optical digital inputs when used with a compatible Blustream transmitter or matrix.
3. Can it downscale a 4K source for a 1080p display? Yes. The receiver supports automatic downscaling of up to 4K 60Hz 4:4:4 video input to 1080p.
4. Does it support Ethernet, IR, and RS-232 pass-through? Yes. It supports bi-directional Ethernet pass through with compatible Blustream transmitter or matrix solutions, along with bi-directional IR and RS-232 pass-through.
5. What is included in the box? The box includes 1 x RX150CS, 1 x Mounting kit, and 1 x Quick Reference Guide.
