Blustream UEX3D-WP-US USB 3.2 Gen 1 HDBaseT Wall Plate Device (UEX3DWPUS)

Blustream UEX3D-WP-US USB 3.2 Gen 1 HDBaseT Wall Plate Device (UEX3DWPUS)

The Blustream UEX3D-WP-US USB 3.2 Gen1 HDBaseT Extender US Wall Plate - Device is engineered to deliver remote USB device connectivity to a compatible USB 3.2 Gen1 Host over HDBaseT. Designed in a dual Decora wall plate format, it extends USB 3.2 Gen1 signals up to 100m over a single CAT6A cable while supporting up to four connected USB devices.

Long-Distance USB 3.2 Gen1 Extension

The UEX3D-WP-US utilises HDBaseT technology to allow for remote connectivity to a USB 3.2 Gen1 Host at distances of up to 100m over a single CAT6A cable. With a combined transmission data bandwidth of up to 5Gbps, it is built for USB 3.2 Gen1 data transfer in professional AV environments.

• Supports USB 3.2 Gen1 signal extension up to 100m over HDBaseT
• Combined USB 3.2 Gen1 data transfer rate up to 5Gbps
• Recommended minimum CAT6A cabling
• USB 3.2 data transfer only; does not support DP Alt Mode video pass-through

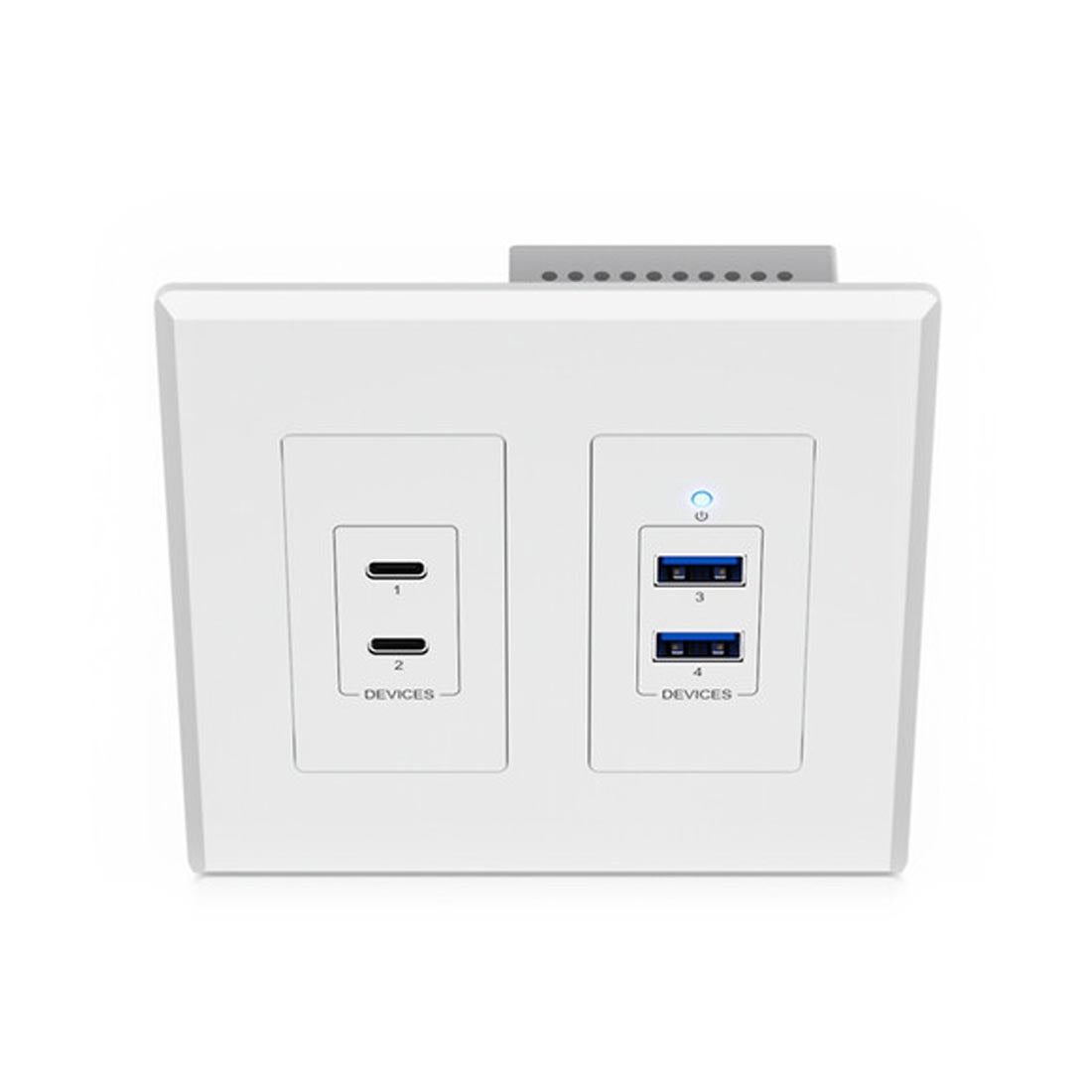

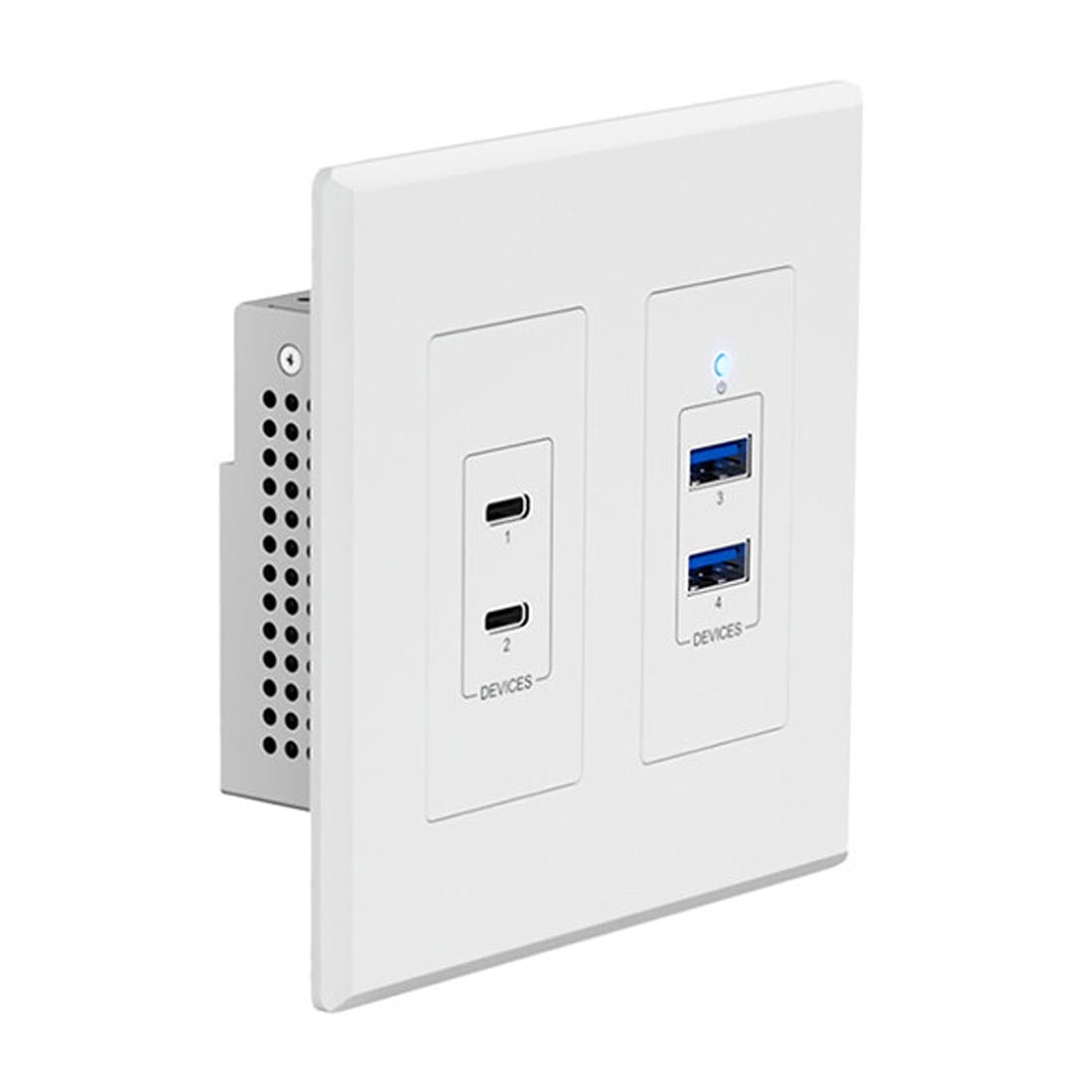

Connect Up to Four USB Devices

This wall plate device supports connection for up to four USB devices, using 2 x USB Type A and 2 x USB Type C ports. It is ideal for applications requiring extension of USB 3.2 Gen1 conferencing cameras, video capture devices, flash/hard drives, KVM devices, audio devices and other USB 3.2 Gen1 devices.

• 2 x USB Type C female ports
• 2 x USB Type A female ports
• Backwards compatible with USB 2.0 and 1.1 devices
• Compatible with Blustream UEX3H and UEX3H-WP

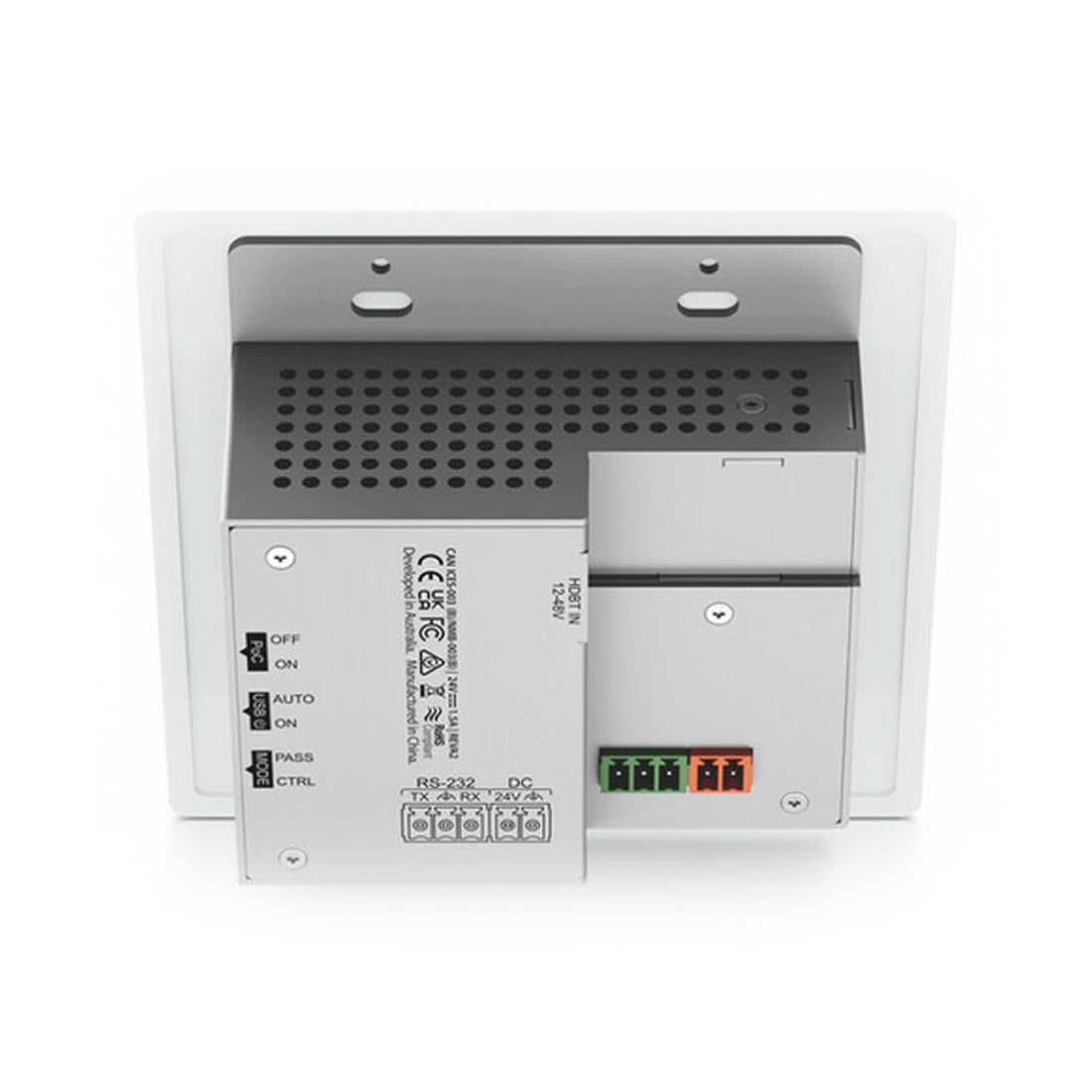

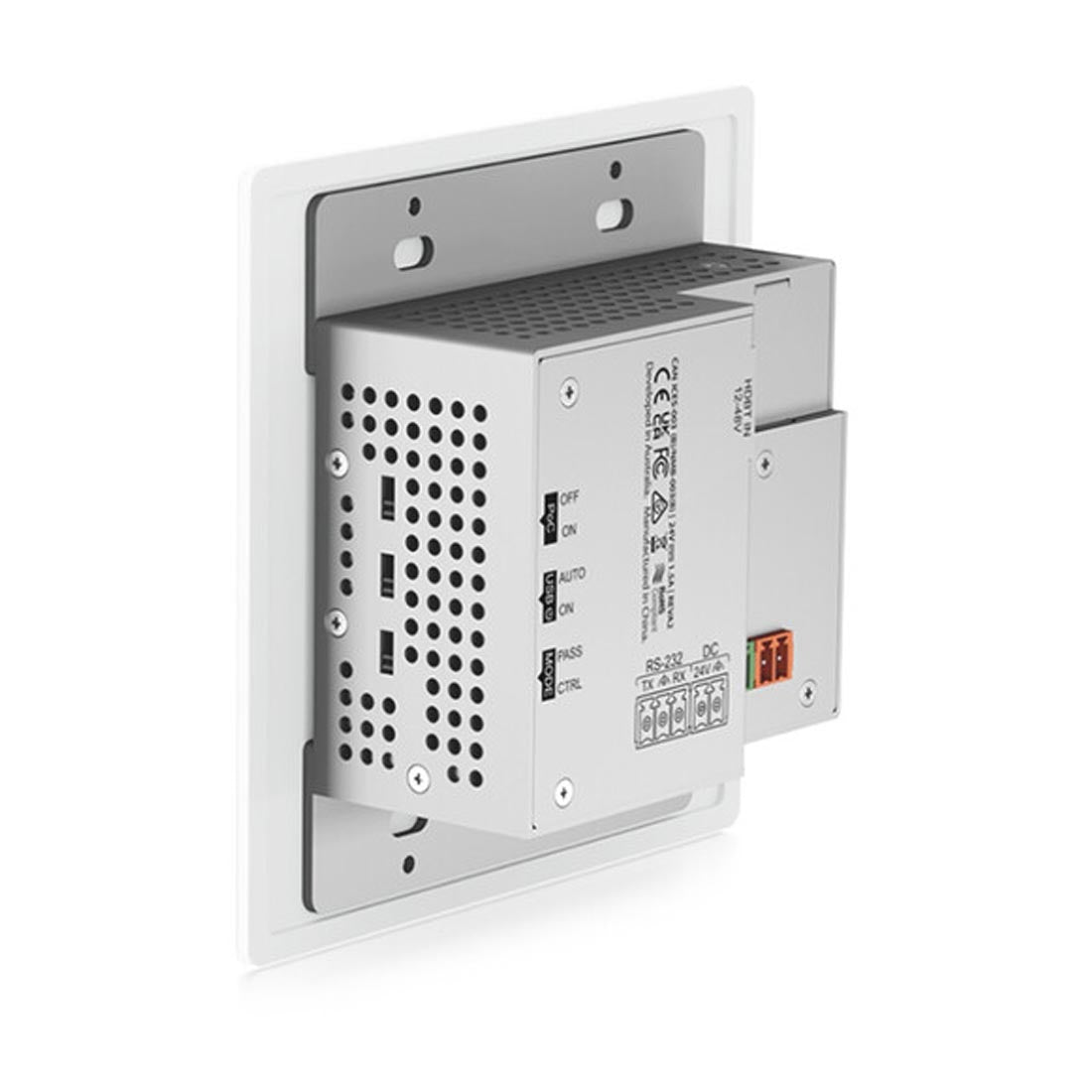

Power and Control Flexibility

The UEX3D-WP-US utilises bi-directional Power over Cable (PoC) to power extenders from either the host or device unit, helping simplify installation. It also provides configurable USB device power management via API commands and supports bi-directional RS-232 when used with compatible HDBaseT products.

• Bi-directional PoC supports 12-48V PoC
• PSU supplied with the Device end of the link only
• Provides up to 3A combined power to USB devices
• Up to 1.7A per single USB port
• Supports bi-directional RS-232 with compatible HDBaseT products

Wall Plate Installation Made Simple

Built for clean integration, the UEX3D-WP-US features a magnetic faceplate surround and US Decora style backbox compatibility. Its plug and play design means no driver installation or setup is required, making deployment straightforward.

• Dual Decora wall plate format
• Magnetic faceplate surround
• US Decora style backbox compatibility
• Simple plug and play operation
• No driver installation or setup required

Frequently Asked Questions

1. How far can the UEX3D-WP-US extend USB 3.2 Gen1 signals? It supports USB 3.2 Gen1 signal extension up to 100m over HDBaseT using a single CAT6A cable.
2. What devices can I connect to this wall plate extender? You can connect up to four USB devices using 2 x USB Type A and 2 x USB Type C ports, including conferencing cameras, video capture devices, flash/hard drives, KVM devices, and audio devices.
3. Does this extender work with older USB devices? Yes. It is backwards compatible with USB 2.0 and 1.1 devices.
4. Does it require software or driver installation? No. The UEX3D-WP-US is plug and play, with no driver installation or setup required.
5. Does it support USB-C video pass-through or DP Alt Mode? No. This product is for USB 3.2 data transfer only and does not support DP Alt Mode video pass-through.
6. Do I need a matching host unit? Yes. It requires a compatible Blustream USB 3.2 HDBaseT Host product, including compatibility with Blustream UEX3H and UEX3H-WP.
