Cerwin Vega SRPM1100.5D 5-Channel SRPM Stroker Full Range Class-D Amplifier

Cerwin Vega SRPM1100.5D 5-Channel SRPM Stroker Full Range Class-D Amplifier

Cerwin Vega SRPM1100.5D gives you a powerful way to run your entire car audio system from one compact 5-channel Class-D amplifier. Built as part of the Cerwin-Vega RPM Stroker Series, this full-range amplifier is designed to power speakers and subwoofers while delivering efficient performance, precise audio control, and dynamic sound.

One Amplifier for Your Complete Audio System

The Cerwin Vega SRPM1100.5D is designed for enthusiasts who want to power their complete sound system from a single amplifier. Its 5-channel configuration brings multi-channel performance into one compact chassis, giving you a practical solution for systems that include both speakers and subwoofers.

Why use separate amplifiers when one purpose-built unit can handle your full-range system? The SRPM1100.5D keeps the setup centered around a single amplifier while providing the power and control needed for a high-output car audio system.

Efficient Class-D Full-Range Performance

The Cerwin Vega SRPM1100.5D uses an advanced high-efficiency Class-D full-range digital topology. This design produces impressive power while maintaining energy efficiency and minimizing heat buildup.

The result is dynamic, distortion-free sound across the audio spectrum. Whether you're listening to your speakers or driving your subwoofer, the amplifier is designed to deliver consistent performance during high-output listening sessions.

Built with Precision Components

Inside the Cerwin Vega SRPM1100.5D, advanced surface-mount components are paired with a durable 4-layer PCB architecture. This engineered design supports signal accuracy, reliability, and stable operation in demanding car audio environments.

The 4-layer PCB works like the foundation beneath the amplifier's internal components, providing the structure needed to support consistent performance while the surface-mount components help maintain precise signal handling.

Compact Chassis with Flexible Inputs

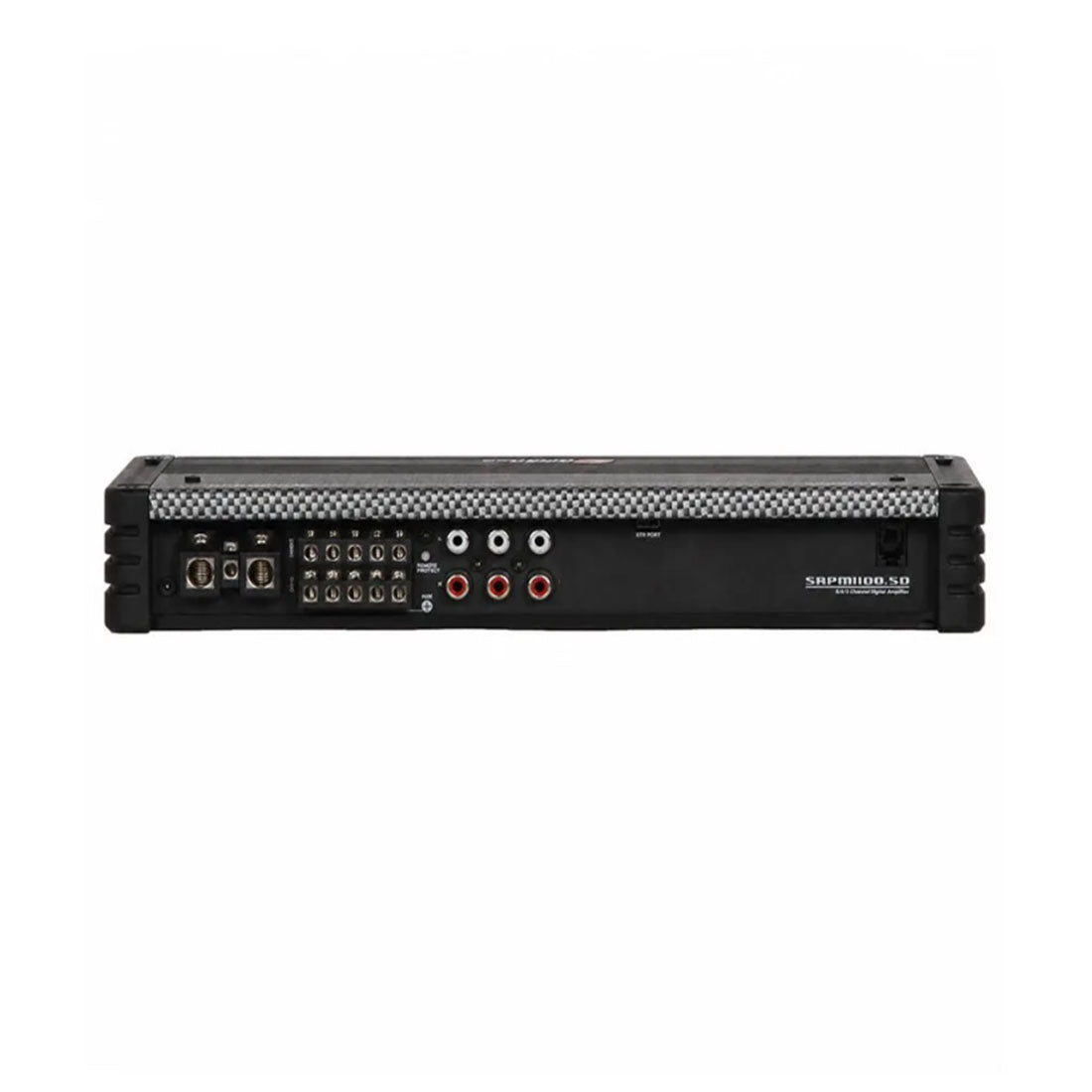

The Cerwin Vega SRPM1100.5D features a compact chassis with single-sided connections, making it a practical choice for systems where space is limited. Its streamlined design helps keep connections organized while fitting into tight vehicle spaces.

For added system compatibility, the amplifier accepts both high-level and low-level inputs up to 12 volts. This allows it to work with factory head units as well as aftermarket head units.

Precise Control for Speakers and Subwoofers

The Cerwin Vega SRPM1100.5D includes fully variable crossovers ranging from 35Hz to 350Hz with 12dB per octave filtering. These adjustable controls give you the ability to fine-tune the frequencies going to your speakers and subwoofer.

Think of the crossover as a traffic controller for your audio frequencies. It helps direct the appropriate range where you want it, giving you greater control over how your complete system performs.

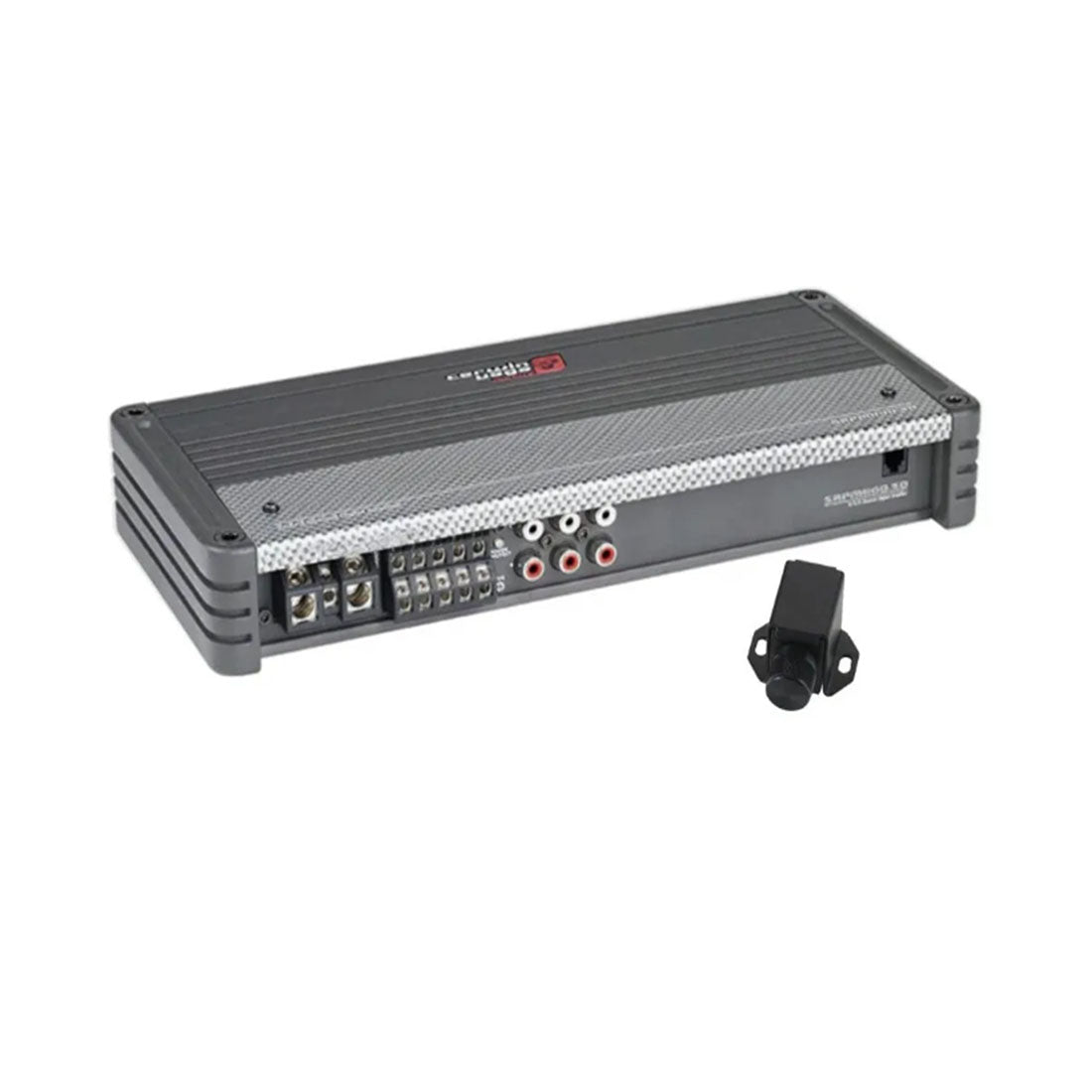

A bass remote control with optional in-dash mounting is also included. From the driver's seat, you can adjust subwoofer output when you want to change the bass level on the fly.

Multiple Turn-On Options

The Cerwin Vega SRPM1100.5D offers multiple turn-on options, including VOX signal sensing, DC offset, and remote turn-on. These choices provide flexibility when integrating the amplifier into different vehicle audio systems.

Having several turn-on methods gives you more freedom when matching the amplifier to the configuration of your system, whether you're working with a factory or aftermarket head unit.

Key Features of the Cerwin Vega SRPM1100.5D

• 5-channel full-range Class-D amplifier for complete audio systems
• High-efficiency digital topology for powerful output
• Advanced surface-mount components
• Durable 4-layer PCB design
• Compact chassis with single-sided connections
• High-level and low-level inputs up to 12V
• Fully variable 35Hz–350Hz crossovers
• 12dB per octave filtering
• Remote bass level control with optional in-dash mounting
• Multiple turn-on options including VOX signal sensing, DC offset, and remote turn-on

Designed for High-Output Full-Range Systems

The Cerwin Vega SRPM1100.5D combines 5-channel versatility with efficient Class-D technology, giving you a single amplifier solution for speakers and subwoofers. Its high-efficiency design minimizes heat buildup while delivering powerful output and dynamic sound across the full audio spectrum.

The combination of high-level and low-level inputs up to 12 volts, variable crossovers, bass remote control, and multiple turn-on options gives you plenty of flexibility when shaping your car audio system.

Power and Control in One Compact Package

The Cerwin Vega SRPM1100.5D brings together powerful multi-channel performance, efficient digital amplification, and precise tuning controls in one compact design. The advanced 4-layer PCB and surface-mount components support reliable signal performance, while the adjustable crossover range gives you control over the frequencies reaching your speakers and subwoofer.

For anyone building a high-output full-range car audio system, the SRPM1100.5D provides a practical way to bring speakers and subwoofer performance together under one amplifier. Its combination of power, efficiency, and tuning flexibility makes it a focused upgrade for demanding vehicle audio systems.

A Complete Audio System Solution

The Cerwin Vega SRPM1100.5D is built to simplify a powerful car audio system without sacrificing control. Its 5-channel Class-D design can power the complete system, while flexible inputs, variable crossovers, multiple turn-on options, and remote bass control give you the tools to shape the sound.

With its compact chassis and performance-focused internal design, the SRPM1100.5D offers a strong foundation for a high-output system with clear full-range audio and deep, powerful bass.

Specifications

Power Rating (RMS)

• Power @ 2Ω: 120W X 4/500W X 1
• Power @ 4Ω: 100W X 4/300W X 1
• Power Bridged @ 4Ω: 200W X 2/300W X 1

Power Supply

• Power Supply: Full WPM
• Power Supply Threshold: 10.0V-17.0V (DC)
• Idle Current: (0.7A)

Distortion

• THD 4 (1KHZ @4Ω): 0.03%
• S/N Ratio (A weighted @1W): 76.7dBA
• S/N Ratio (A weighted @FP): 96.7 dBA

Input Sensitivity

• Low Level Input: 0.2mV-10.0V
• High Level Input: Up to 25W RMS

Input Impedance

• Low Level Input: 22KΩ

Output Stage

• Output Impedance: 0.051Ω
• Damping Factor (50Hz@4Ω): >70
• Bandwidth (-3db): 10Hz-35Hz

Crossover (1-12dB/Oct)

• Variable High-Pass: 40Hz-400Hz
• Variable low-Pass: 30Hz-300Hz

Dimensions

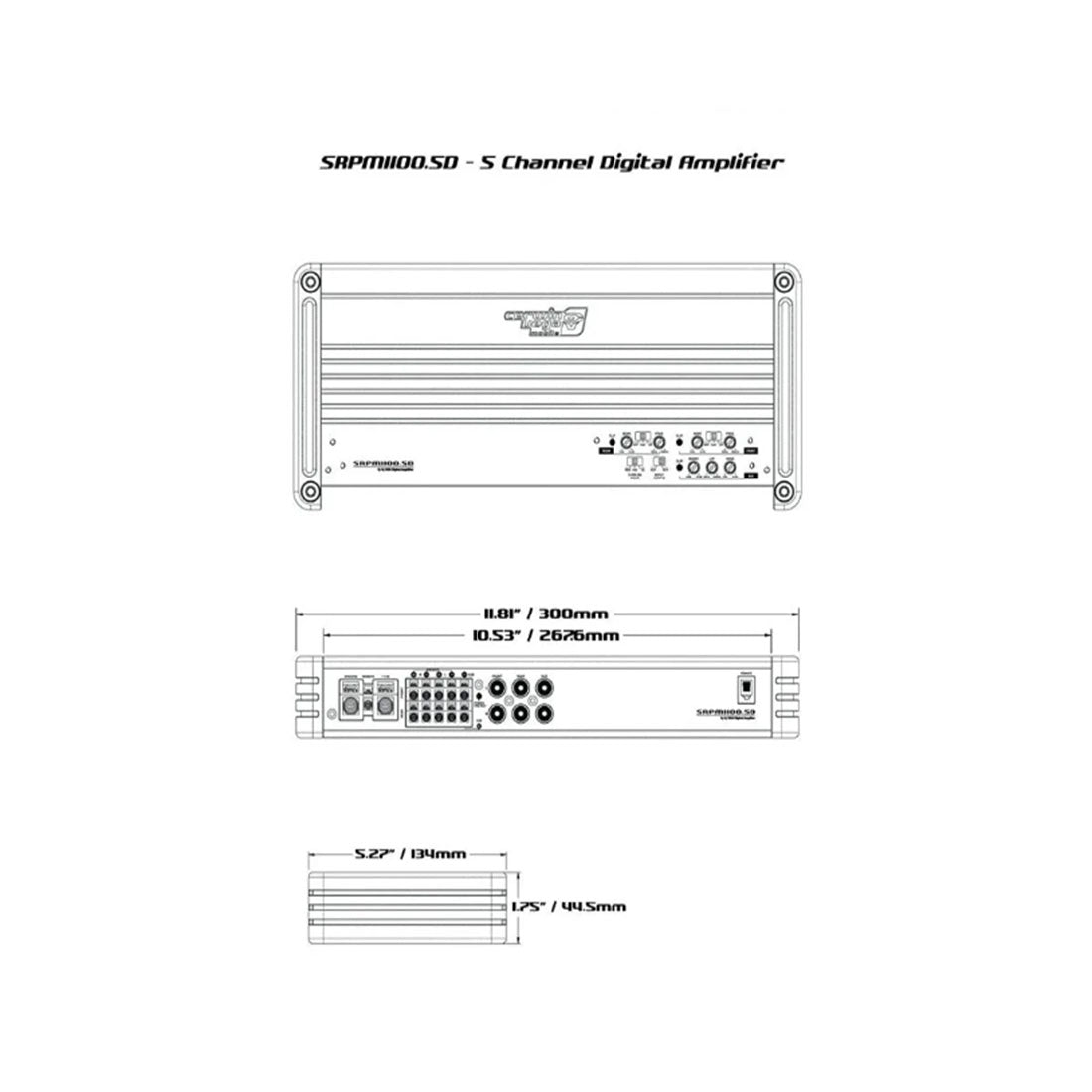

• Length x Width x Height: 10.25”x5.25”x1.75” (260mm x 134mm x 44.5 mm)

FEATURES

• Selectable X-over: Low Pass/Flat/High Pass
• Selectable Turn On Mode: REM/VOX/DC
• Selectable Input Configuration: 4CH or 5CH Mode
• LED Power/Protect Light Indicator
• Output Clipping Indicator - Helps Set Gains
• MFR #: SRPM1100.5D

Frequently Asked Questions

1. What type of amplifier is the Cerwin Vega SRPM1100.5D? The Cerwin Vega SRPM1100.5D is a 5-channel full-range Class-D amplifier designed to power speakers and subwoofers in a complete car audio system.
2. Can the Cerwin Vega SRPM1100.5D power speakers and subwoofers? Yes. Its 5-channel configuration is designed to power an entire audio system, including speakers and subwoofers.
3. What crossover range does the Cerwin Vega SRPM1100.5D offer? It features fully variable crossovers ranging from 35Hz to 350Hz with 12dB per octave filtering.
4. Does the Cerwin Vega SRPM1100.5D support factory and aftermarket head units? Yes. The amplifier accepts both high-level and low-level inputs up to 12 volts, allowing compatibility with factory and aftermarket head units.
5. Does the Cerwin Vega SRPM1100.5D include bass control? Yes. It includes a bass remote control with optional in-dash mounting for adjusting subwoofer output from the driver's seat.
