Cerwin Vega SRPM700.2D 2-Channel SRPM Stroker Full Range Class-D Amplifier

Cerwin Vega SRPM700.2D 2-Channel SRPM Stroker Full Range Class-D Amplifier

Cerwin Vega SRPM700.2D delivers powerful output, clear full-range sound, and efficient Class-D performance in a compact 2-channel design. Built as part of the Cerwin-Vega RPM Stroker Series, this amplifier gives you the control and consistent power needed to upgrade a vehicle audio system without adding unnecessary bulk.

Powerful Full-Range Class-D Performance

The Cerwin Vega SRPM700.2D uses an advanced high-efficiency full-range Class-D digital topology. This design produces impressive power while minimizing energy loss and heat buildup, helping your speakers receive consistent, clean power during everyday listening and higher-volume sessions.

Why choose an amplifier that only focuses on output when you can also have efficient performance and precise control? The SRPM700.2D is designed to provide dynamic sound with minimal distortion, making it a strong choice for full-range car audio applications.

Precision Components and 4-Layer PCB Design

Inside the Cerwin Vega SRPM700.2D, advanced surface-mount components work with a rugged 4-layer PCB architecture. This carefully engineered combination supports signal accuracy, durability, and stable performance in demanding car audio environments.

The 4-layer PCB serves as the backbone of the amplifier, helping support the consistent operation and signal performance you expect from a purpose-built RPM Stroker amplifier.

Compact Design with Flexible Inputs

The Cerwin Vega SRPM700.2D features a compact chassis with single-sided connections, making it well suited to vehicle audio systems where available space is limited. The practical layout keeps the amplifier's connections organized while maintaining a space-conscious design.

For system compatibility, the amplifier accepts both high-level and low-level signals up to 12 volts. That allows it to work with factory radios as well as aftermarket head units.

Adjustable Crossover Control

The Cerwin Vega SRPM700.2D gives you control over the frequency range sent to your speakers with fully variable crossovers from 40Hz to 400Hz. The 12dB per octave filtering lets you fine-tune the amplifier to suit your particular audio setup.

Think of the crossover as a gatekeeper for your speakers. Instead of sending every frequency their way, you can adjust the range to help the system work with the frequencies you want.

Flexible Turn-On Options and Easy Controls

The Cerwin Vega SRPM700.2D provides multiple speaker-level turn-on options, including VOX signal sensing, DC offset, and remote turn-on. This gives you added flexibility when working with different vehicle audio system configurations.

Top-mounted controls make adjustments quick and convenient during system tuning. Whether you're fine-tuning crossover settings or making other adjustments, the controls are positioned for easy access.

Key Features of the Cerwin Vega SRPM700.2D

• 2-channel full-range Class-D car amplifier
• High-efficiency digital topology for powerful output
• Advanced surface-mount components
• Rugged 4-layer PCB architecture
• Compact chassis with single-sided connections
• High-level and low-level inputs up to 12V
• Fully variable 40Hz–400Hz crossovers
• 12dB per octave filtering
• Multiple turn-on options including VOX, DC offset, and remote turn-on
• Top-mounted controls for convenient adjustments

Built for Clear, High-Output Car Audio

The Cerwin Vega SRPM700.2D combines efficient Class-D technology, precision construction, flexible inputs, and adjustable crossover controls in a compact 2-channel amplifier. Its full-range design makes it suitable for systems where powerful output and clear sound reproduction are both important.

With support for high-level and low-level signals up to 12 volts, the SRPM700.2D can integrate with factory radios or aftermarket head units. Add in the adjustable 40Hz–400Hz crossover and multiple turn-on options, and you have a flexible amplifier designed around practical car audio tuning.

A Compact Upgrade for Full-Range Sound

The Cerwin Vega SRPM700.2D brings together high-efficiency power, precision components, and useful tuning controls in a compact 2-channel package. Its full-range Class-D topology provides powerful output while minimizing energy loss and heat buildup, while the 4-layer PCB and surface-mount components support accurate, stable performance.

For a car audio system that needs powerful full-range output, efficient operation, and straightforward tuning flexibility, the SRPM700.2D offers a focused solution from the RPM Stroker Series.

Specifications

Power Rating (RMS)

• Power @ 2Ω: 350W x 2
• Power @ 4Ω: 200W x 2
• Power Bridged @ 4Ω: 700W x 1

Power Supply

• Power Supply: Full WPM
• Power Supply Threshold: 10.0V-17.0V (DC)
• Idle Current: (0.7A)

Distortion

• THD 4 (1KHZ @4Ω): 0.05%
• S/N Ratio (A weighted @1W): 77.2 dBA
• S/N Ratio (A weighted @FP): 98.9 dBA

Input Sensitivity

• Low Level Input: 0.2mV-10.0V
• High Level Input: Up to 25W RMS

Input Impedance

• Low Level Input: 22KΩ

Output Stage

• Output Impedance: 0.047Ω
• Damping Factor (50Hz@4Ω): >250
• Bandwidth (-3db): 10Hz-35Hz

Crossover (1-12dB/Oct)

• Variable High-Pass: 40Hz-400Hz
• Variable low-Pass: 40Hz-400Hz

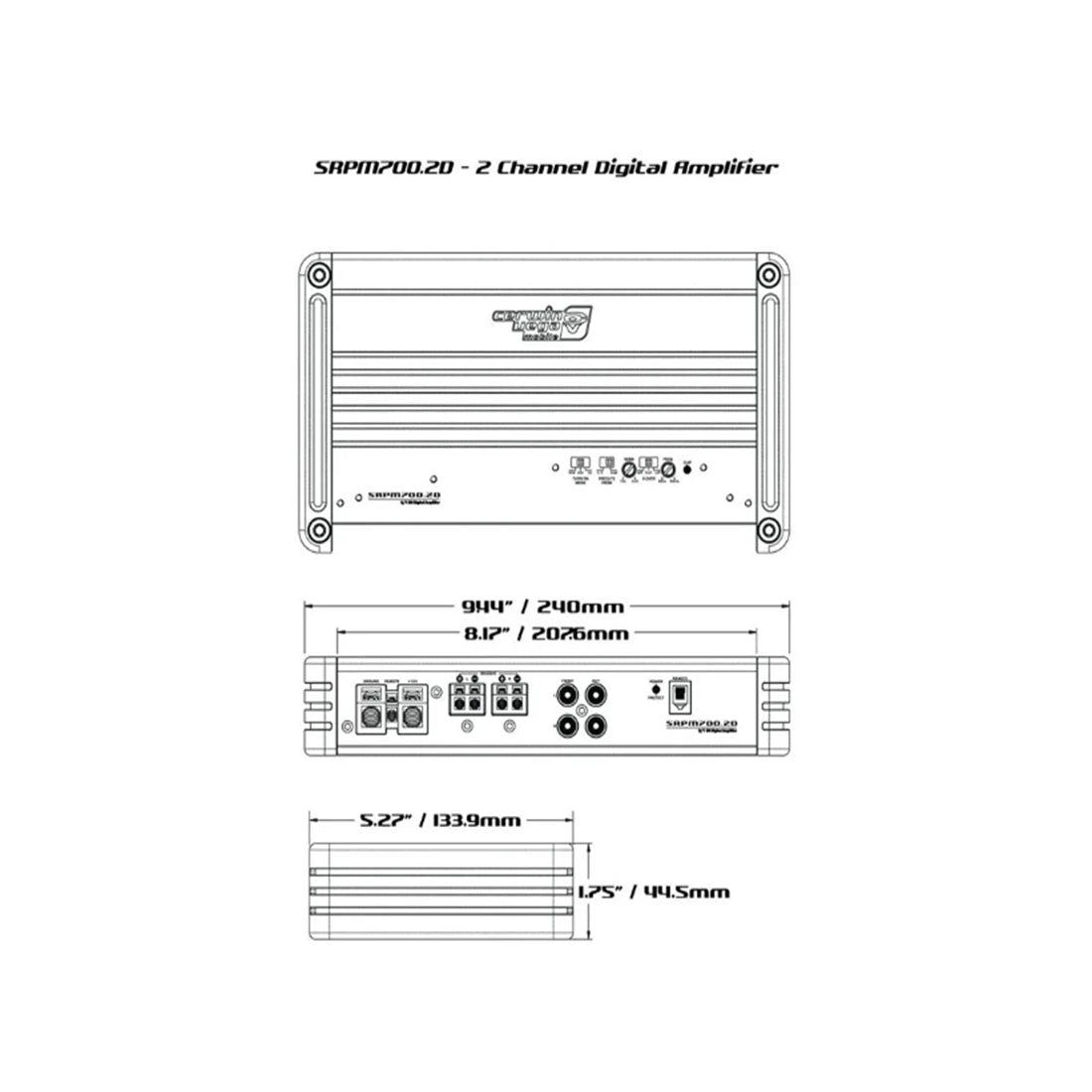

Dimensions

• Length x Width x Height: 8.66”x5.28”x1.75” (220mm x 134mm x 44.5 mm)

FEATURES

• Selectable X-over: Low Pass/Flat/High Pass
• Selectable Turn On Mode: REM/VOX/DC
• LED Power/Protect Light Indicator
• Output Clipping Indicator - Helps Set Gains
• MFR #: SRPM700.2D

Frequently Asked Questions

1. What type of amplifier is the Cerwin Vega SRPM700.2D? The Cerwin Vega SRPM700.2D is a 2-channel full-range Class-D car amplifier designed to provide powerful output and clear full-range audio.
2. What input signals does the Cerwin Vega SRPM700.2D support? It accepts both high-level and low-level signals up to 12 volts, allowing compatibility with factory radios and aftermarket head units.
3. What is the crossover range of the Cerwin Vega SRPM700.2D? The amplifier features fully variable crossovers ranging from 40Hz to 400Hz with 12dB per octave filtering.
4. Does the Cerwin Vega SRPM700.2D use Class-D technology? Yes. It uses a high-efficiency full-range Class-D digital topology designed to provide powerful output while minimizing energy loss and heat buildup.
5. What turn-on options are available on the Cerwin Vega SRPM700.2D? The amplifier supports VOX signal sensing, DC offset, and remote turn-on options.
