Euphoria EA8.600 8-Channel Full Range Class D Car Amplifier (EA8600)

Euphoria EA8.600 8-Channel Full Range Class D Car Amplifier (EA8600)

The Euphoria EA8.600 is built for drivers who want serious control over their sound without cluttering their system with multiple amplifiers. Designed as a high-efficiency, full range Class D solution, it delivers clean power, flexible tuning, and rock-solid performance for both detailed listening and everyday driving.

Premium Power Where It Counts

The Euphoria EA8.600 delivers consistent, usable power across all eight channels. With 65 watts per channel at 4 ohms and 100 watts per channel at 2 ohms, it keeps speakers clear and controlled even at higher volumes. When bridged, it pushes up to 150 watts at 4 ohms, making it easy to dedicate channels to stronger low-frequency output without adding extra hardware.

Flexible Channel Control and Bridging

An 8-channel layout gives the Euphoria EA8.600 the flexibility to run complex systems with ease. Channels can be bridged to support different speaker configurations, letting you balance mids, highs, and low-end response like adjusting the mix on a studio board.

Advanced Adaptive Crossover Tuning

Precise sound shaping comes from ACT adaptive filtering across multiple channel pairs. High-pass, low-pass, and band-pass options allow fine control over frequencies, so each speaker plays exactly where it should. With variable ranges extending up to 5 kHz, tuning feels deliberate rather than forced.

Built for Clean Signal Integrity

Signal quality is a priority in the Euphoria EA8.600. Audiophile-grade Tiffany RCA connectors, a 4-layer PCB design, and metal potentiometers work together to keep the signal stable and accurate. The result is sound that stays composed, not brittle, even when pushed.

Efficient Class D Performance

High-efficiency full range Class D technology keeps current draw manageable while maintaining output. Operating within a 9–16 volt range, the Euphoria EA8.600 is well-suited for modern electrical systems that demand efficiency without sacrificing clarity.

Smart Protection and Monitoring

Features like APC audio circuit protection and the SESI signal evaluation status indicator act as a safety net. They help maintain stable operation while giving visual feedback on signal health, adding confidence to long listening sessions.

Compact, Purpose-Driven Design

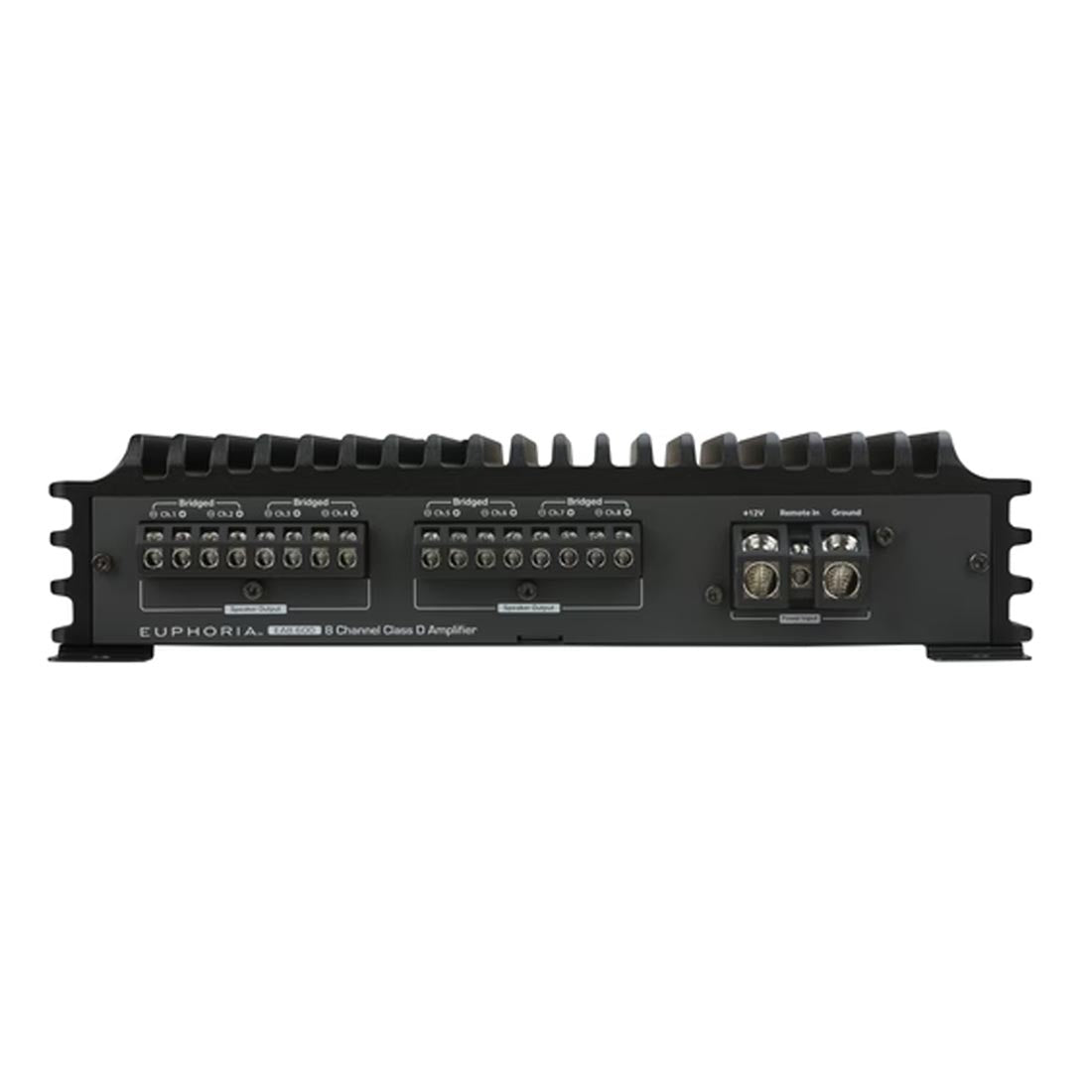

Despite its power and channel count, the Euphoria EA8.600 keeps a compact footprint. Large gauge power wire inputs, direct-connect speaker outputs, and a clean layout reflect a design focused on performance rather than excess.

The Euphoria EA8.600 brings together power, flexibility, and precision in a single amplifier. It’s designed for listeners who want control over every channel and expect their system to respond with clarity, balance, and consistency every time they turn the key.

FAQs

1. What type of amplifier is the Euphoria EA8.600? It is an 8-channel full range Class D car amplifier designed for high efficiency and clean audio performance.
2. How much power does the Euphoria EA8.600 produce per channel? It delivers 65 watts x 8 at 4 ohms and 100 watts x 8 at 2 ohms, with up to 150 watts x 4 at 4 ohms when bridged.
3. Does the Euphoria EA8.600 support advanced crossover control? Yes, it includes ACT adaptive high-pass, low-pass, and band-pass filters across different channel groups for detailed tuning.
4. What voltage range does the Euphoria EA8.600 operate within? It operates between 9 and 16 volts, making it compatible with modern vehicle electrical systems.
5. What features help protect the amplifier and signal quality? APC audio circuit protection, a SESI signal evaluation status indicator, a 4-layer PCB, and audiophile-grade RCA connectors all contribute to stable, clean performance.
