Euphoria EW3-12D4 12" 4-Ohm DVC Subwoofer - Each

Euphoria EW3-12D4 12" 4-Ohm DVC Subwoofer - Each

Euphoria EW3-12D4 brings serious low-end performance with a 12-inch design, dual 4-ohm voice coils, and up to 750 watts of dynamic power handling. Built around an optimized drive motor, this subwoofer is designed to deliver tight, accurate bass while handling the demands of powerful music.

Built for Strong, Controlled Bass

The EW3-12D4 uses an optimized magnetic drive motor and a precise motor ventilation design to support accurate frequency response and strong bass output. With 250 watts of RMS power handling and 750 watts of dynamic power handling, it gives your system plenty of room to deliver hard-hitting low frequencies.

Its power range runs from 50 to 250 watts RMS, making it a flexible choice when matching the subwoofer to your audio system. Why settle for bass that sounds loose when the goal is tight, controlled performance?

12-Inch DVC Design

The 12.18-inch woofer diameter gives the EW3-12D4 the size needed for a powerful low-frequency presence. Its dual 4-ohm voice coil configuration adds flexibility for system matching, while the high-temperature voice coil wire is wrapped around a vented KSV former for dependable performance.

Radial basket vents help cool the voice coil during operation. Think of the ventilation design as giving the subwoofer a way to let heat escape while it keeps working through demanding bass.

Durable Cone and Suspension

The EW3-12D4 combines an injection-molded polypropylene cone with an Acu-linear foam surround for a sturdy, responsive design. A high-excursion butyl rubber surround is also specified, along with an extended linear roll progressive dampener to support controlled movement.

The anti-resonance heavy-gauge solid steel frame adds a strong foundation for the woofer structure, while the proprietary protective magnet band helps protect the motor assembly.

Designed for Reliable Performance

Heavy-duty screw-on speaker terminals provide a secure connection point, while large-gauge push-button speaker wire terminals are also featured in the design. The stealth gasket is made for custom mounting applications and helps maintain a clean finished look.

From the vented KSV former to the reinforced steel frame, each part of the EW3-12D4 is designed around maintaining strong and accurate bass performance.

Compact Measurements for a 12-Inch Subwoofer

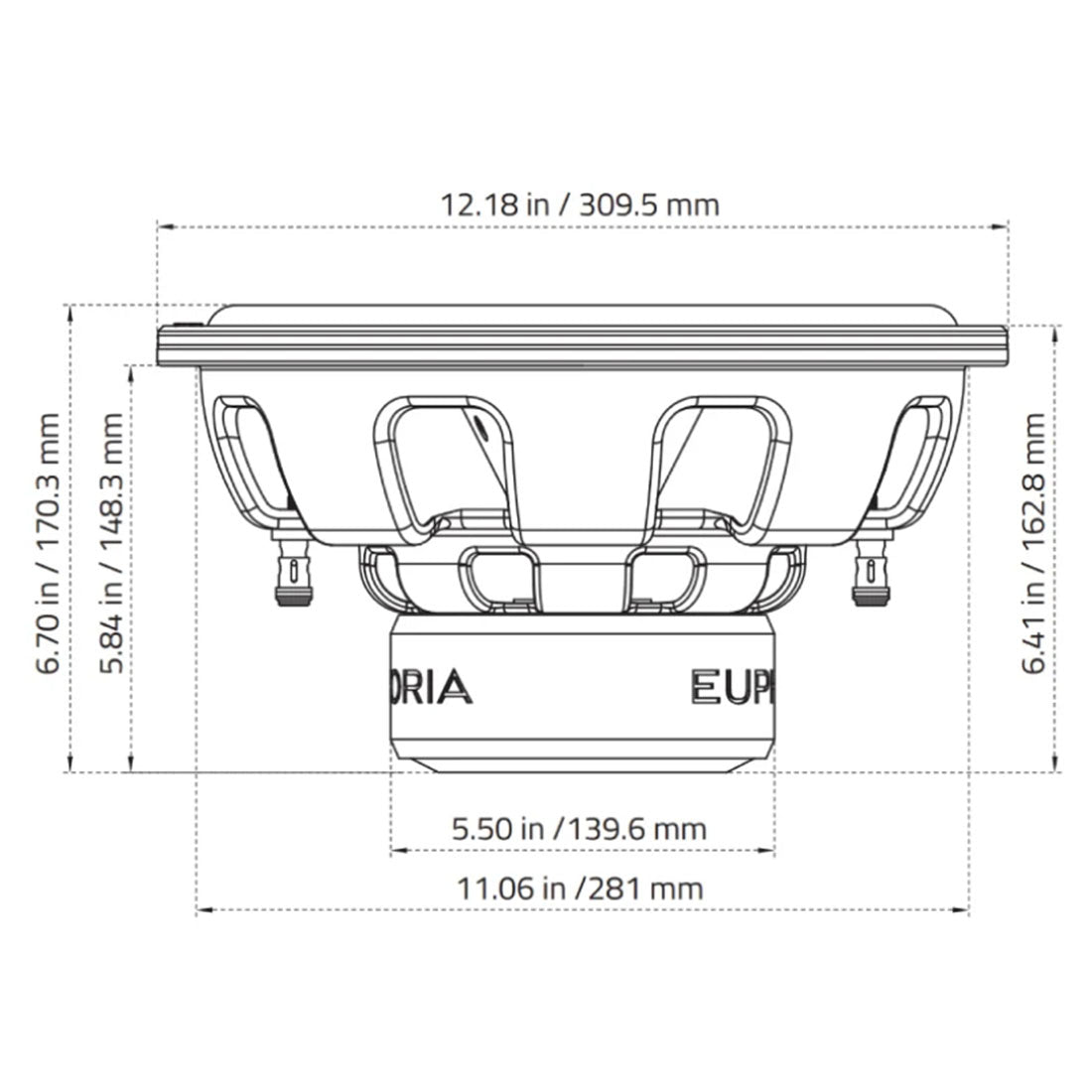

Despite its powerful 12-inch format, the EW3-12D4 has a mounting depth of 5.84 inches. The overall height is 6.70 inches, while the cutout diameter measures 11.06 inches. These dimensions give you the key measurements needed when planning around the woofer's physical size.

Specifications

• Subwoofer Size: 12"
• Voice Coil Configuration: Dual 4 Ohm
• RMS Power Handling: 250W
• Dynamic Power Handling: 750W
• Power Range: 50W - 250W RMS
• Woofer Diameter: 309.5mm / 12.18"
• Mounting Depth: 148.3mm / 5.84"
• Overall Height: 170.3mm / 6.70"
• Cut Out Diameter: 281mm / 11.06"
• Voice Coil Former: Vented KSV
• Voice Coil Wire: High Temperature
• Cone Material: Injection-Molded Polypropylene
• Surround: Acu-linear Foam / High Excursion Butyl Rubber
• Frame: Anti-Resonance Heavy-Gauge Solid Steel
• Speaker Terminals: Heavy-Duty Screw-On / Large Gauge Push Button
• Motor: Optimized Magnetic Drive Motor
• Ventilation: Radial Basket Vents
• Progressive Dampener: Extended Linear Roll
• Gasket: Stealth Gasket
• Magnet Protection: Proprietary Protective Magnet Band

The Euphoria EW3-12D4 combines a 12-inch woofer, dual 4-ohm voice coils, 250 watts of RMS power handling, and 750 watts of dynamic power handling in a durable subwoofer built around controlled bass performance. With its optimized motor, ventilated voice coil structure, polypropylene cone, progressive dampener, and heavy-gauge steel frame, it is designed to bring deeper impact and accurate low-frequency response to your audio system.

FAQs

1. What size subwoofer is the Euphoria EW3-12D4? The Euphoria EW3-12D4 is a 12-inch subwoofer with a woofer diameter of 12.18 inches.
2. How much power does the Euphoria EW3-12D4 handle? It handles 250 watts RMS and up to 750 watts of dynamic power.
3. What voice coil configuration does the Euphoria EW3-12D4 use? It features dual 4-ohm voice coils.
4. What type of cone does the Euphoria EW3-12D4 have? It uses a proprietary injection-molded polypropylene cone.
5. How deep is the Euphoria EW3-12D4? The mounting depth is 5.84 inches, with an overall height of 6.70 inches.
