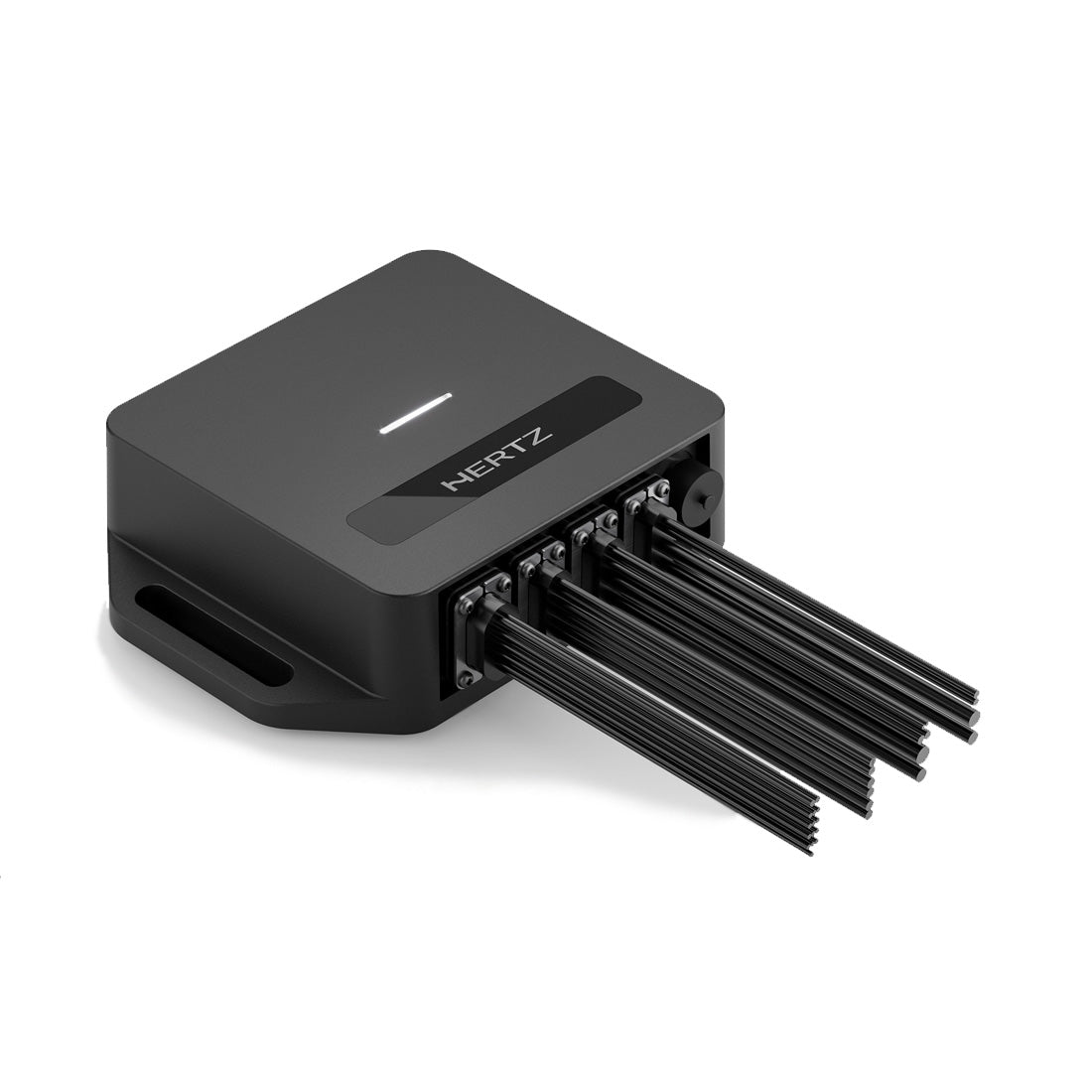

Hertz CAPRI HBB Marine Source Unit (CAPRIHBB)

Hertz CAPRI HBB Marine Source Unit (CAPRIHBB)

Built for serious marine audio control, the Hertz CAPRI HBB delivers high-resolution sound performance in a compact black box design made to stay hidden while doing all the heavy lifting. With flexible multi-zone control, advanced DSP processing, and wide connectivity options, this unit is designed for boats that need powerful audio without clutter.

System Snapshot

Designed without a built-in display, the Hertz CAPRI HBB focuses on streamlined control through remote interfaces, a mobile app, or NMEA 2000® integration. This approach keeps the helm clean while still giving full access to every function. It supports four independent audio zones, making it easy to manage different listening areas across a vessel.

High-Resolution Audio Performance

Inside the system, a native 24-bit/96 kHz DSP engine powers hi-res playback with an extended audio band up to 40 kHz. This ensures detailed, dynamic sound reproduction across all zones. An 8-band digital equalizer per zone, along with 8 preset tuning profiles created by Hertz engineers, allows fast and precise sound shaping.

Multi-Zone Control System

Four independent zones are managed with dedicated stereo outputs and subwoofer control. Each zone can be tuned separately using high-pass and low-pass filters, giving full control over how sound behaves in different areas. This setup allows fully customized audio across the entire vessel.

Connectivity Options

The Hertz CAPRI HBB features Bluetooth® 5.1 streaming with LDAC, AAC, and aptX HD support, which ensures high-quality wireless playback. USB input, AM/FM RDS tuner, and DAB+ readiness expand listening options. Digital integration is handled through S/PDIF inputs and outputs, plus an A2B® digital bus for advanced system connectivity.

Audio Inputs & Outputs

Each zone features RCA line outputs and dedicated subwoofer outputs with selectable crossover settings. AUX inputs and digital interfaces allow flexible system configuration. Camera input support and a battery voltage gauge help with system monitoring.

Marine-Grade Durability

Engineered for harsh marine environments, the Hertz CAPRI HBB features IP66 front panel protection along with UV and salt fog resistance standards. This ensures consistent performance in demanding conditions with constant exposure to water, sun, and salt.

Control & Remote Integration

System control is handled through compatible remotes such as HMC HD1 and HMC U1, supporting up to four zones depending on configuration. Optional accessories expand functionality, including NMEA 2000® volume control integration for seamless onboard operation.

Key Specifications

• 4 x 70W Class-D output
• 4-zone independent control
• IP66 marine protection
• Bluetooth® 5.1 high-res audio
• 24-bit/96 kHz DSP processing
• Dedicated subwoofer outputs per zone
• 8-band EQ + presets per zone
• AM/FM, Weather, DAB+, SiriusXM Ready
• S/PDIF + A2B® digital connectivity
• USB, camera input, voltage monitoring

Built for Demanding Marine Audio Systems

With advanced DSP processing, flexible multi-zone control, and rugged marine-grade construction, the Hertz CAPRI HBB delivers precise audio control in tough environments. From high-resolution playback to deep system customization, it combines performance and durability in a compact hidden-unit design built for life on the water.

FAQs

1. What audio quality does the Hertz CAPRI HBB support? It delivers 24-bit/96 kHz high-resolution audio with an extended frequency response up to 40 kHz, ensuring clean and detailed sound across every zone.
2. How many zones can be controlled? Up to four independent zones can be managed, each with its own dedicated outputs and tuning for a fully personalized onboard audio setup.
3. Does the Hertz CAPRI HBB support wireless streaming? Yes, Bluetooth® 5.1 is included with LDAC, AAC, and aptX HD support for smooth, high-quality wireless playback.
4. Can each zone be tuned separately? Each zone features its own 8-band EQ and preset options, allowing precise sound adjustments depending on the area and listening preference.
5. What digital connections are included? The Hertz CAPRI HBB includes S/PDIF inputs and outputs, USB connectivity, and an A2B® digital bus system for flexible integration with modern marine audio setups.
