iDatalink Maestro HRN-HRR-MA1 T-Harness for Select Mazda Vehicles with Steering Wheel Control Retention

Product Description

iDatalink Maestro HRN-HRR-MA1 Plug and Play T-Harness for Mazda Vehicles

The iDatalink Maestro HRN-HRR-MA1 Plug and Play T-Harness for Mazda Vehicles is an installation harness designed for use with Maestro RR or RR2 modules in select Mazda vehicles. It allows installation of a new receiver with an iDatalink port while retaining the use of steering wheel audio controls and factory amp.

Retain Factory Vehicle Features

Use the HRN-HRR-MA1 to connect a new receiver in compatible Mazda applications while retaining steering wheel audio controls and the factory amp. Rear-view camera retention depends upon aftermarket radio inputs, while iDatalink-ready car stereos also retain front, side, and 360 cameras.

  • Allows installation of a new receiver with iDatalink port in select Mazda vehicles
  • Retains steering wheel audio controls and factory amp
  • Retains rear-view camera, depending upon aftermarket radio inputs
  • iDatalink-ready car stereos also retain front, side, and 360 cameras

Touchscreen Engine Performance Data

With select Alpine, JVC, Kenwood, Sony, and Pioneer receivers, the harness supports display of engine performance data on the receiver touchscreen.

  • Touchscreen engine performance data display with select compatible receivers
  • Compatible receiver brands include Alpine, JVC, Kenwood, Sony, and Pioneer

Harnesses for the Installation

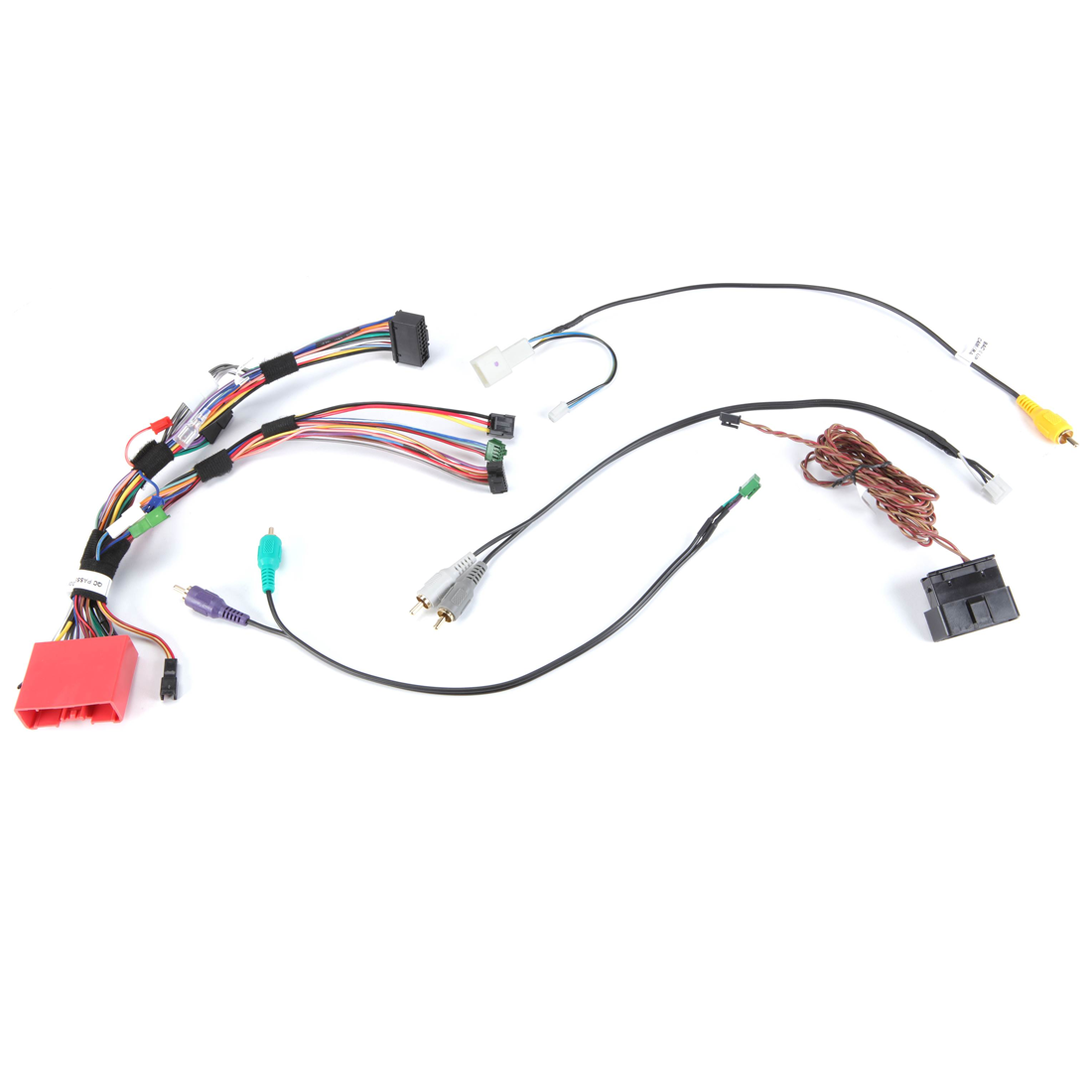

The HRN-HRR-MA1 comes with the harnesses needed for vehicle/interface, speaker preout, backup camera, and OBDI connections. Optional head unit adapters are available for most major brands radios for a simplified installation.

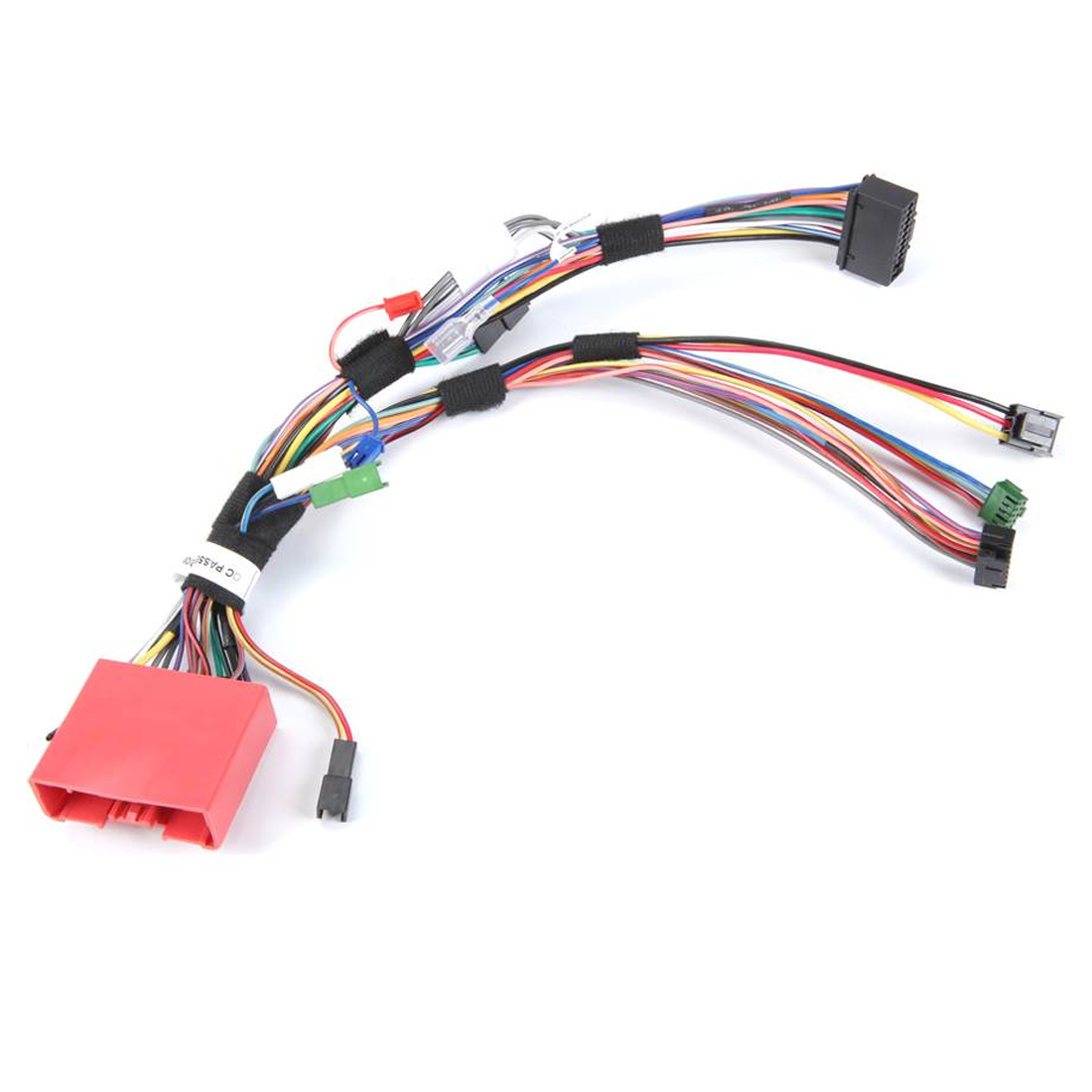

  • Vehicle/interface installation harness included

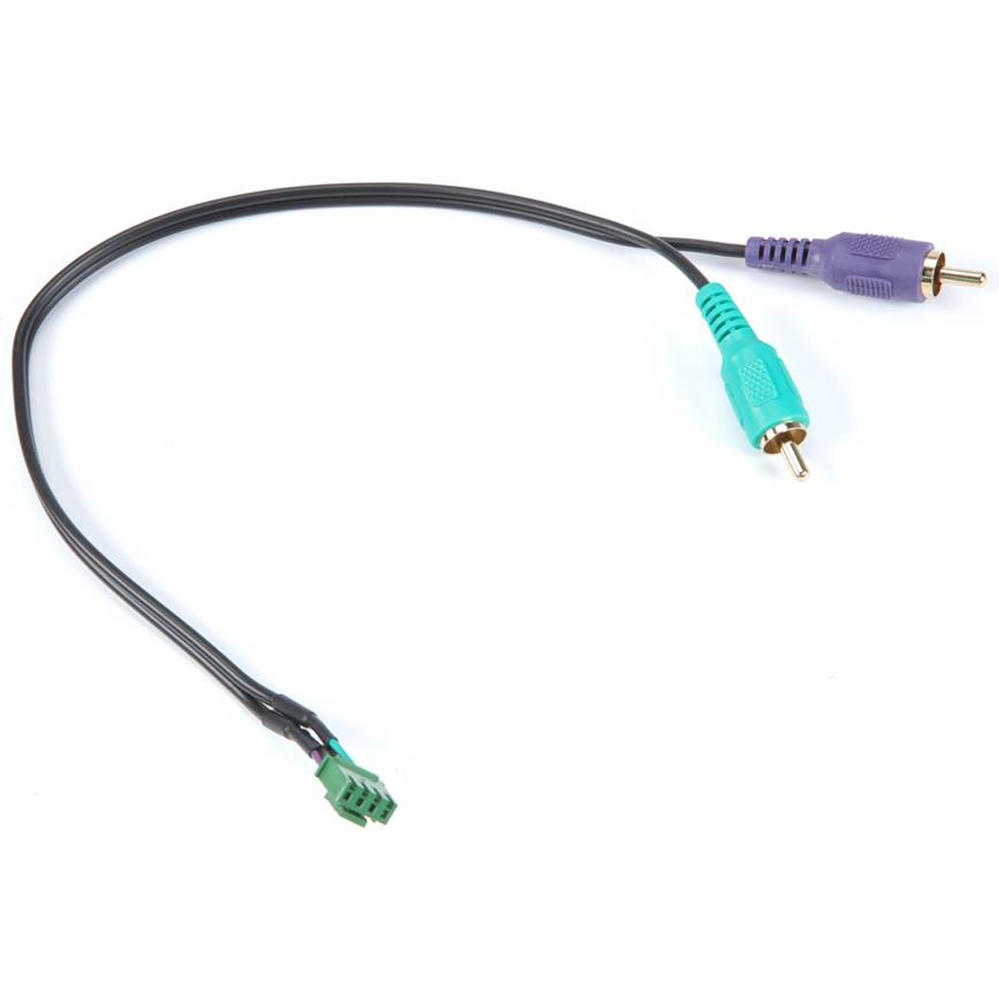

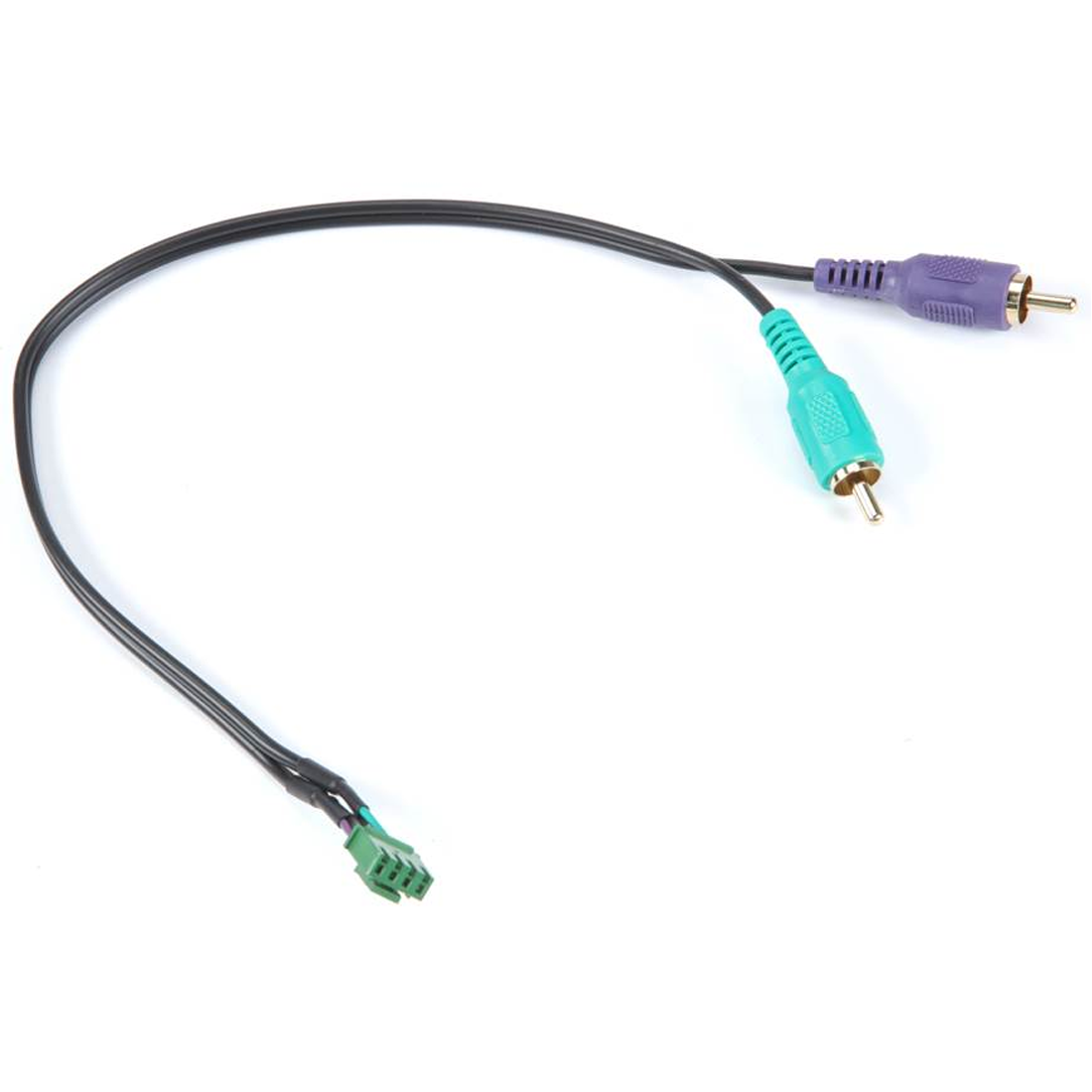

  • Front speaker preout harness included

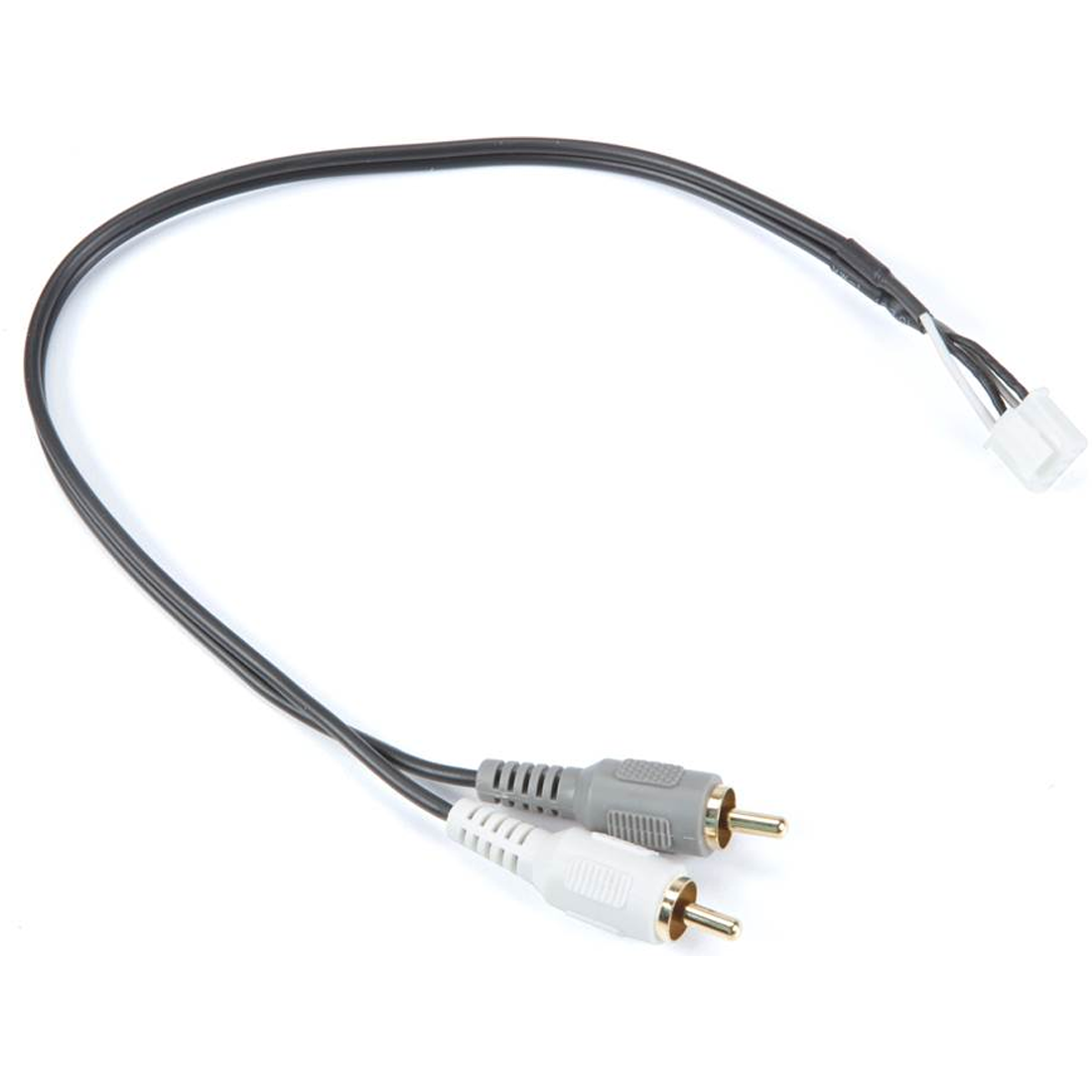

  • Rear speaker preout harness included

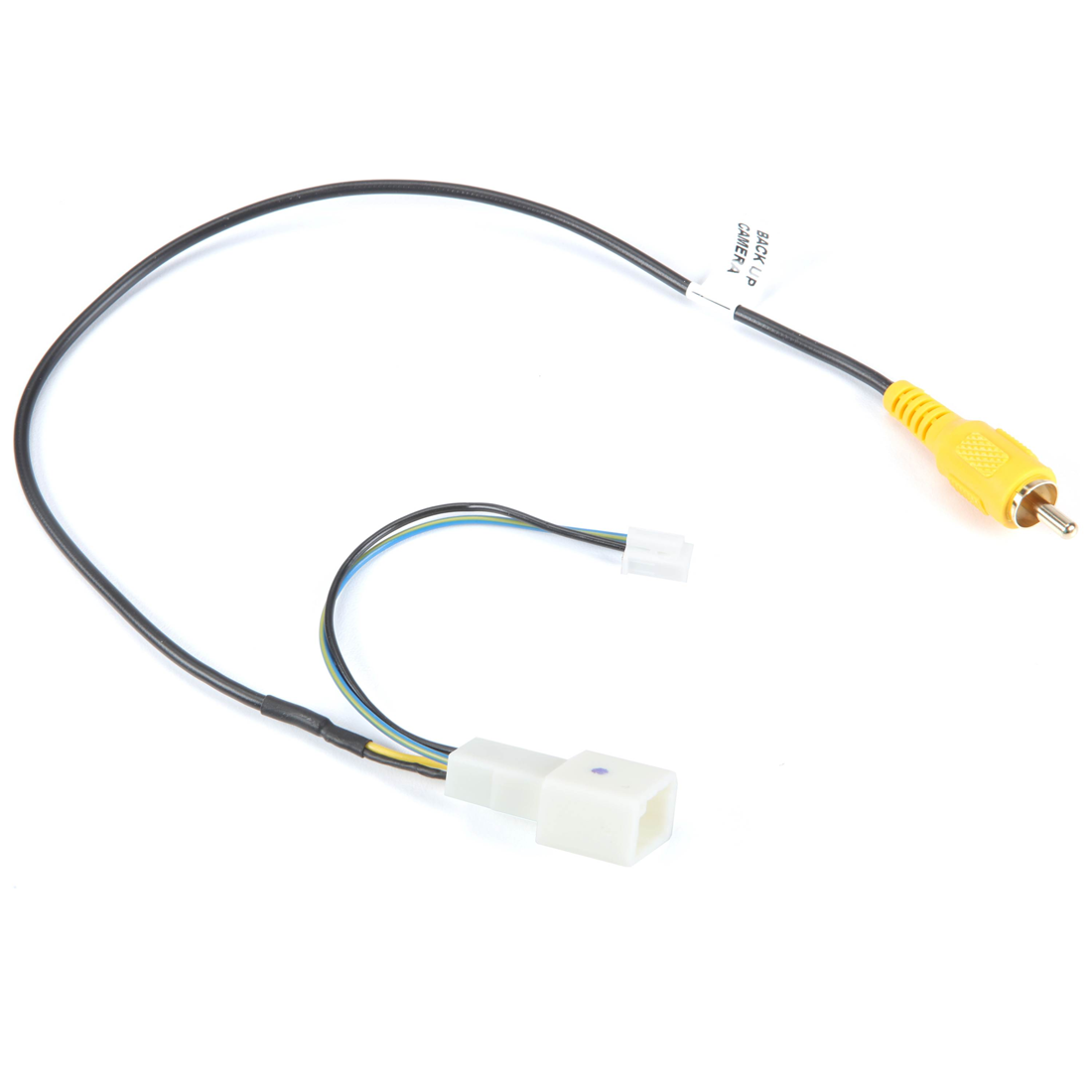

  • Backup camera harness included

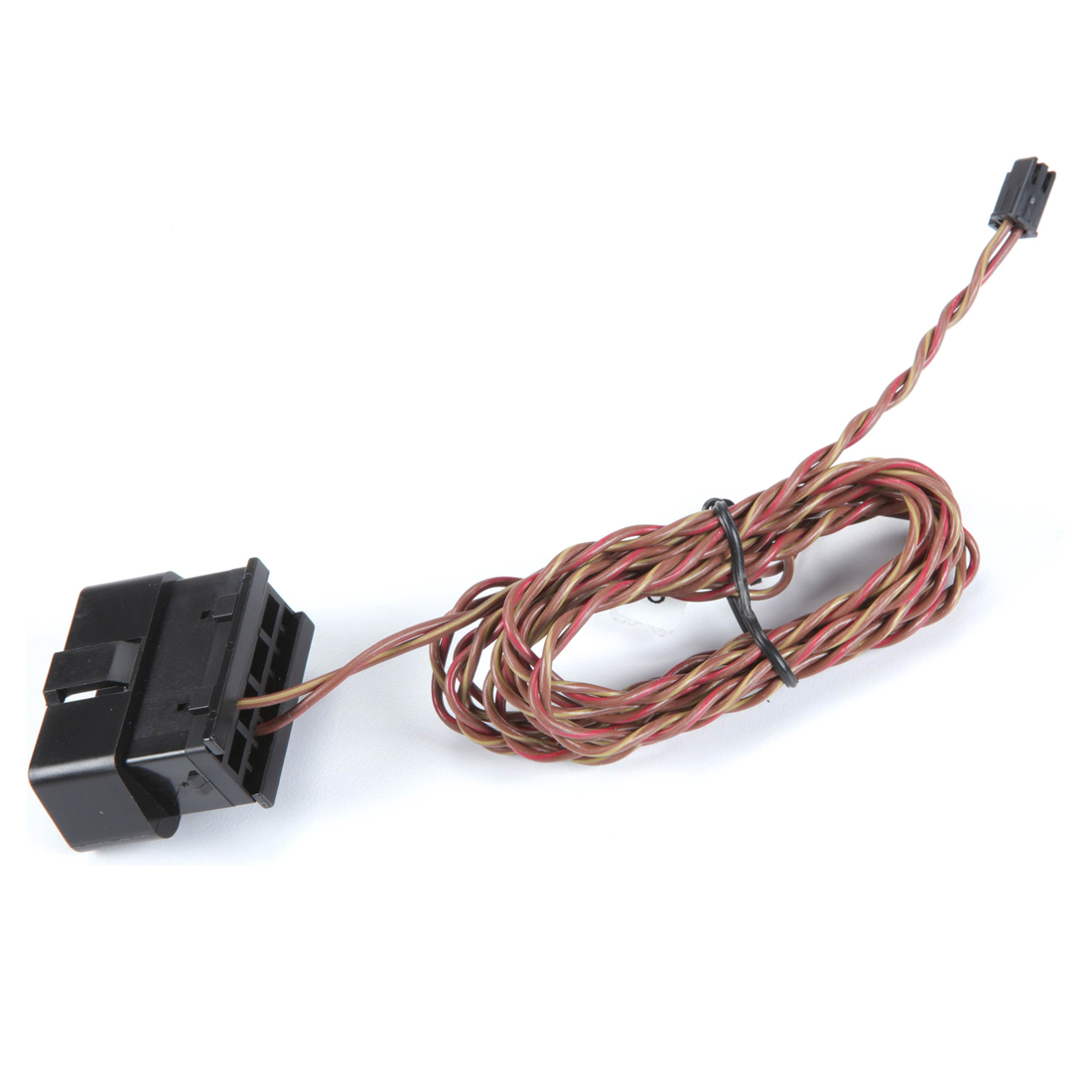

  • OBDI connector harness included

Frequently Asked Questions

  • Does this T-Harness require a Maestro module?

    Yes. It also requires the Maestro ADS-MRR or ADS-MRR2 module.

  • Will it retain my Mazda steering wheel audio controls?

    Yes. It retains the use of steering wheel audio controls in select Mazda vehicles.

  • Will it retain my factory cameras?

    It retains the rear-view camera depending upon aftermarket radio inputs. iDatalink-ready car stereos also retain front, side, and 360 cameras.

  • How can I confirm vehicle-specific feature coverage?

    Please refer to the vehicle fit guide for vehicle-specific feature coverage.

Ready to connect a new car stereo? Add the iDatalink Maestro HRN-HRR-MA1 T-Harness to your cart today. Additionally, retain steering wheel audio controls and the factory amplifier. Finally, contact Gibbys Electronic Supermarket for help matching Maestro RR or RR2 modules, compatible receivers, and accessories.

Features & Specs

General

  • Product: iDatalink Maestro HRN-HRR-MA1
  • Product Type: Plug-and-play T-harness
  • Vehicle Compatibility: Select Mazda vehicles, 2003–2020
  • Required Module: Maestro ADS-MRR or ADS-MRR2
  • Head Unit Compatibility: Radios with an iDatalink port; optional head unit adapters available for most major brands

Retained Functions

  • Steering Wheel Audio Controls: Retained
  • Factory Amplifier: Retained
  • Rear-view Camera: Retained, depending on aftermarket radio inputs
  • Front, Side and 360 Cameras: Retained with iDatalink-ready car stereos
  • Engine Performance Data: Displayed on touchscreen with select Alpine, JVC, Kenwood, Sony and Pioneer receivers

Vehicle Applications

  • Mazda 2: All, 2011–2014
  • Mazda 3: All, 2004–2009; base without Bluetooth, 2010–2013; with or without Bluetooth, 2010–2013; without touchscreen, 2014–2018
  • Mazda 5: All, 2006–2010; with or without Bluetooth, 2011–2017
  • Mazda 6: All, 2003–2008; with or without Bluetooth, 2009–2014; without touchscreen, 2016–2017; without touchscreen with or without Bluetooth, 2015
  • Mazda CX-3: Without touchscreen, 2016–2020
  • Mazda CX-5: 7-inch touchscreen, 2016; all, 2012–2015; without touchscreen, 2017–2020
  • Mazda CX-7: All, 2007–2009; with or without Bluetooth, 2010–2012
  • Mazda CX-9: All, 2010–2012; with or without Bluetooth, 2007–2009; without Bose, 2013–2015
  • Mazda MX-5: With or without Bluetooth, 2006–2015; without touchscreen, 2016–2018
  • Mazda RX-8: All, 2009–2012

In the Box

  • Included Harnesses: Vehicle/interface installation harness
    Front speaker preout harness
    Rear speaker preout harness
    Backup camera harness
    OBDI connector harness

Documents

Warranty

iDatalink Maestro Canada offers a 1 year Limited Warranty
SKU: HRN-HRR-MA1
