JBL Apex PA1502 2-Channel Powersports Amplifier with Class D Power - Black
Product Description
Product Description

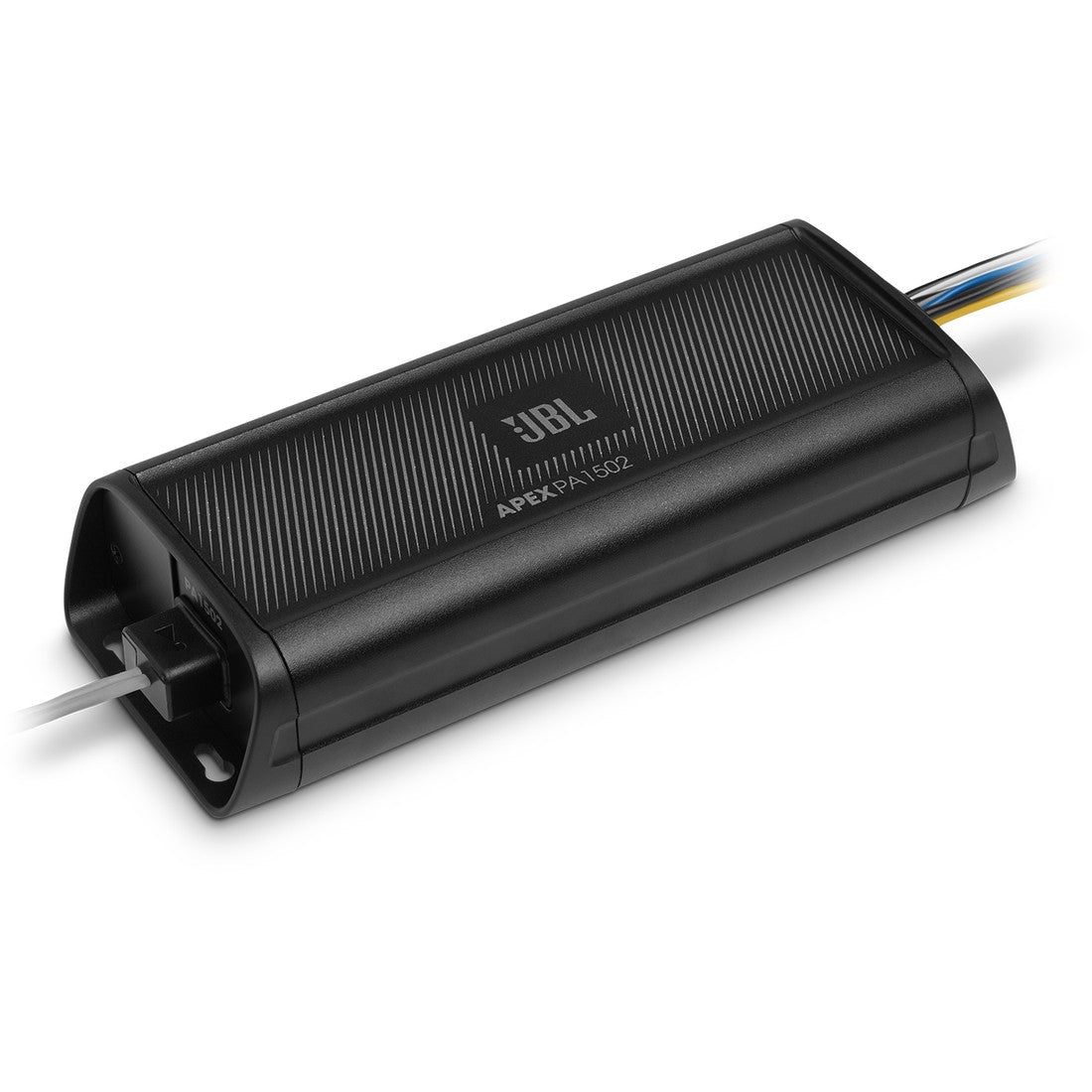

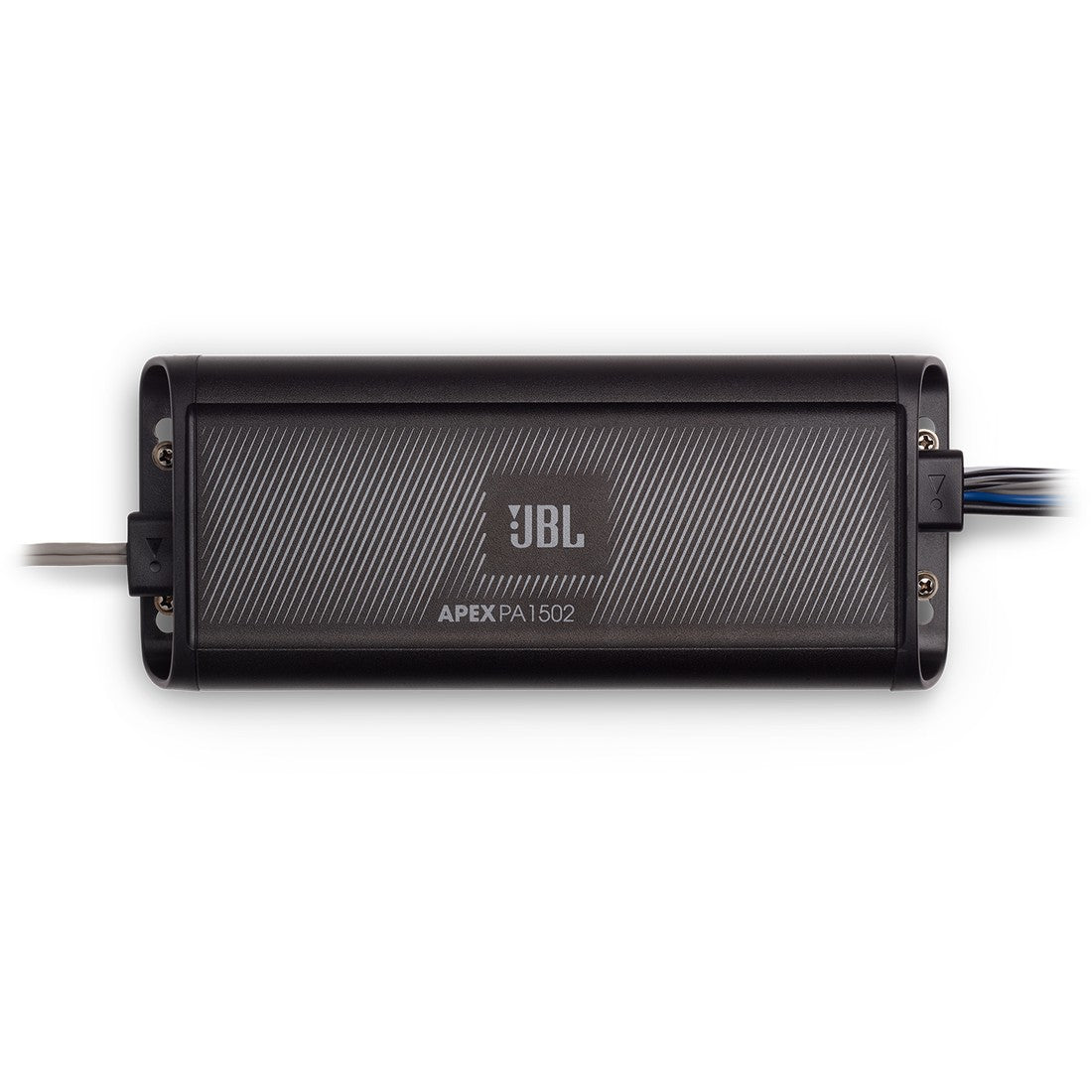

JBL Apex PA1502 2-Channel Powersports Amplifier with Class D Power - Black
The JBL Apex PA1502 is a compact 2-channel powersports amplifier designed to deliver efficient Class D power in demanding outdoor environments. Its ultra-compact aluminum chassis fits into tight spaces, while marinized circuitry helps maintain dependable performance through harsh conditions. With up to 750 watts of peak power, flexible crossover settings, and multiple input options, it packs substantial audio capability into a small footprint.
Powerful Class D Performance in a Compact Design
The JBL Apex PA1502 delivers up to 750 watts of peak power while using efficient Class D amplification. It produces 150 watts RMS x 2 at 2 ohms and 100 watts RMS x 2 at 4 ohms, both rated at less than 1% THD+N.
Need more concentrated output from a single channel? The amplifier can also deliver 300 watts RMS x 1 when bridged at 4 ohms. Think of it as fitting substantial power into a much smaller shell, making it particularly useful when available space is limited.
Key JBL Apex PA1502 Specifications
- 750W maximum peak power
- 150W RMS x 2 at 2 ohms, less than 1% THD+N
- 100W RMS x 2 at 4 ohms, less than 1% THD+N
- 300W RMS x 1 bridged at 4 ohms, less than 1% THD+N
- Selectable all-pass, high-pass, and low-pass filters
- 60Hz, 80Hz, or 120Hz crossover settings at 12dB per octave
- Selectable 0dB, 6dB, or 12dB bass boost at 45Hz
- 20Hz to 20kHz frequency response
- Greater than 75dB full-range signal-to-noise ratio
- 25A fuse rating

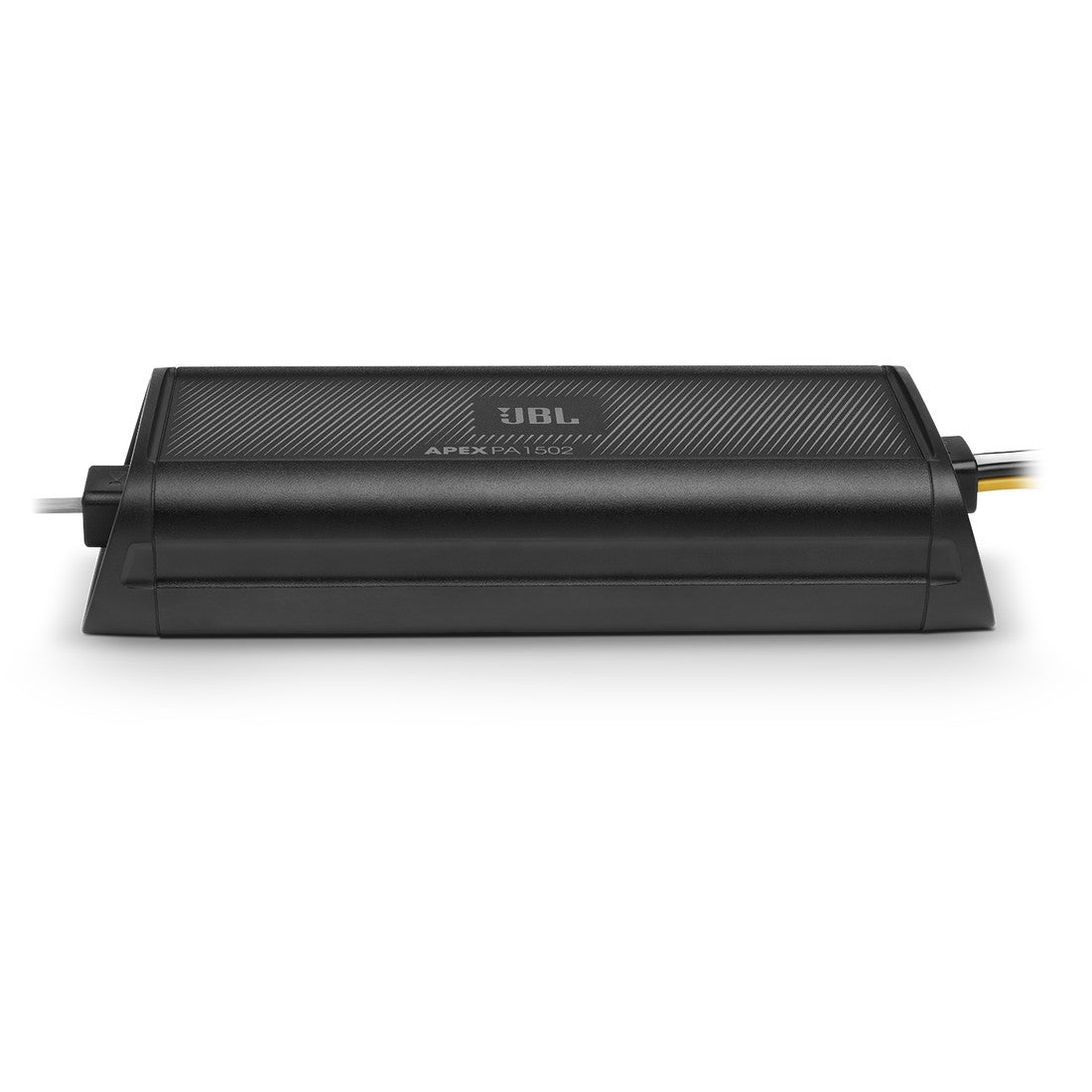

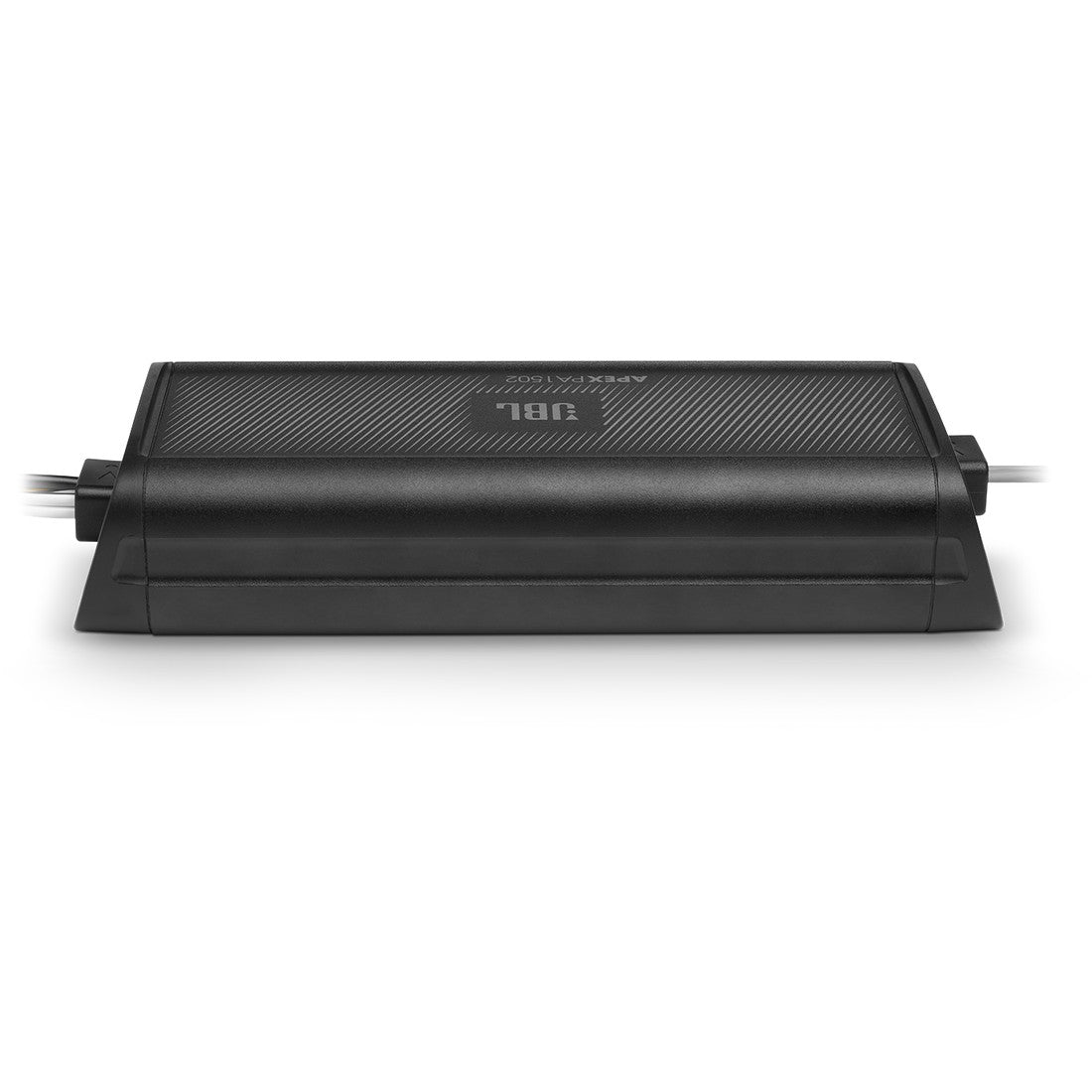

Ultra-Compact Aluminum Chassis
The JBL Apex PA1502 uses an ultra-compact aluminum chassis with a small footprint designed for tight powersports applications. Instead of demanding a large amount of room, its streamlined body keeps the amplifier hardware compact while still providing useful output.
JBL also designed the exterior with appearance in mind. When the amplifier remains visible, its industrial styling enhances the vehicle's aesthetic without drawing attention away from it.
Conformal-Coated Circuit Board for Harsh Conditions
The JBL Apex PA1502 features fully marinized circuit boards with a conformal coating designed to withstand challenging environments. This protected internal construction helps support reliable power delivery year after year.
Harman Standard Reliability Testing
The JBL Apex PA1502 handles demanding powersports environments and, therefore, meets Harman Standard Reliability Testing requirements. Additionally, JBL freezes, bakes, and shakes the amplifier while exposing it to ultraviolet light and salt spray. Finally, JBL drives it at full power for days to further evaluate durability under demanding conditions.
Why put an amplifier through such extreme testing? These procedures are designed to verify that Apex amplifiers can continue operating under the harsh conditions commonly associated with outdoor applications.

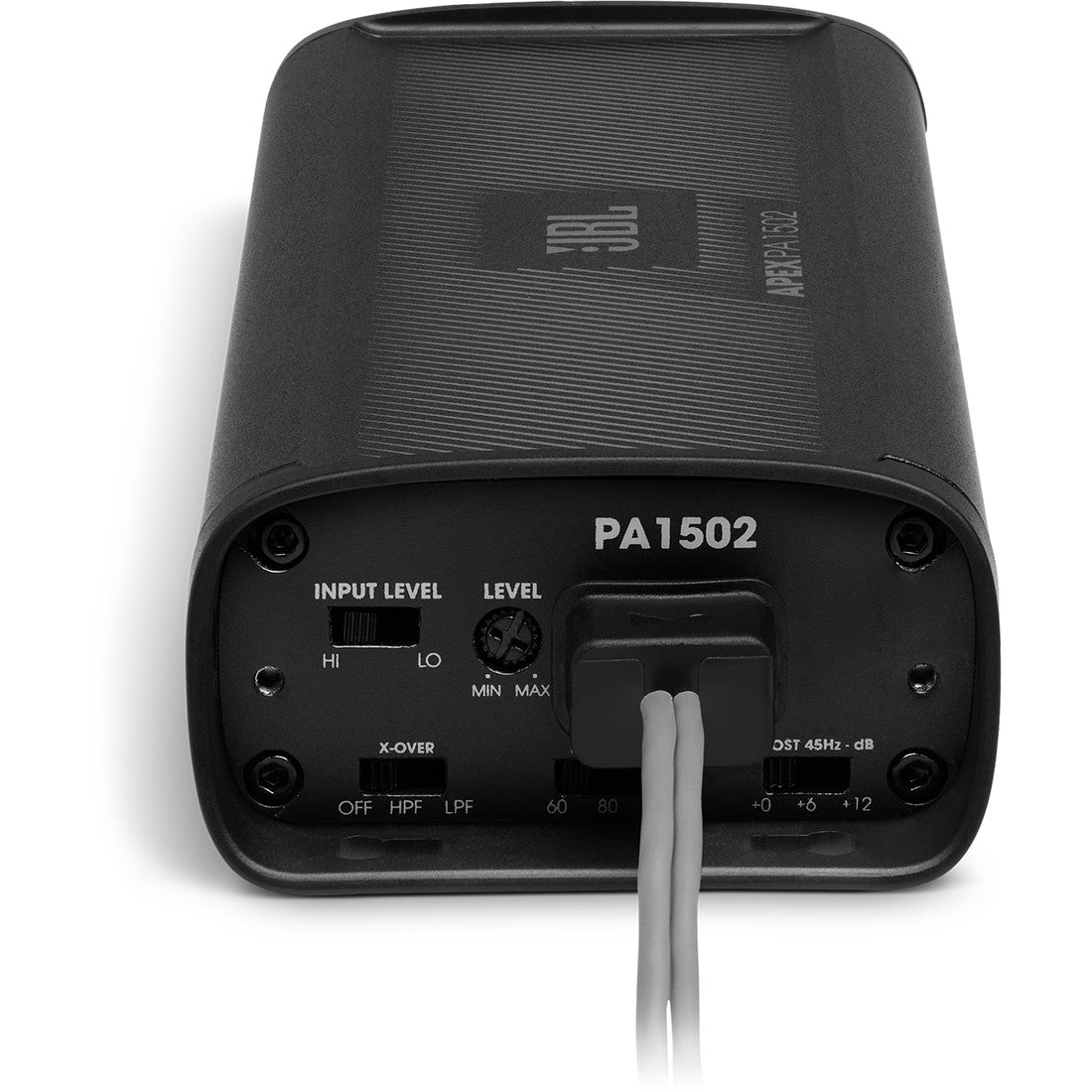

Selectable Full-Range Crossovers
The JBL Apex PA1502 gives you selectable all-pass, high-pass, and low-pass crossover filters. Its electronic crossover can be set to 60Hz, 80Hz, or 120Hz, with a 12dB-per-octave slope.
These selectable settings give you practical control over the frequencies directed through the amplifier. Rather than locking you into one configuration, the crossover section provides several options for matching the amplifier to different audio system requirements.
Selectable Bass Boost at 45Hz
The JBL Apex PA1502 also includes selectable bass boost settings of 0dB, 6dB, or 12dB at 45Hz. This gives you another level of control when adjusting low-frequency output within your system.
Moreover, the bass boost works with selectable crossover controls, making the amplifier more adaptable to car, marine, and powersports systems.
High-Level and Low-Level Inputs
The JBL Apex PA1502 supports both speaker-level and low-level inputs, helping it work with a wide range of audio sources. That flexibility makes the amplifier less restrictive when connecting it with different types of systems.
20Hz to 20kHz Frequency Response
The JBL Apex PA1502 provides a frequency response from 20Hz to 20kHz. Its full-range signal-to-noise ratio is greater than 75dB when referenced to 1 watt of output at 4 ohms.
Its full-range capabilities work alongside the selectable crossover controls, allowing the amplifier to handle a broad audio range or focus its output through the available filtering options.
Designed for JBL Car, Marine, and Powersports Products
The JBL Apex PA1502 is designed to provide dynamic Class D output matched to the needs of JBL car, marine, and powersports products. Its compact dimensions, rugged construction, and flexible controls make it suitable for audio systems where durability and available space both matter.
Instead of focusing on power alone, JBL combines output, environmental protection, input flexibility, and tuning controls in one amplifier designed specifically for demanding applications.
What's Included in the Box?
The JBL Apex PA1502 comes with one amplifier, stainless steel mounting hardware, two high-level input adapters, four zip ties, one spare fuse, two JBL stickers, and one quick start guide.
Compact Power Built for Demanding Environments
The JBL Apex PA1502 brings together 750 watts of peak power, efficient Class D amplification, selectable crossovers, adjustable bass boost, flexible inputs, and marinized internal construction. Its ultra-compact aluminum chassis keeps the footprint small, while Harman reliability testing supports its outdoor-focused design. For a 2-channel amplifier built around power, flexibility, and rugged construction, it offers a practical combination of features in one compact package.
Frequently Asked Questions
What is the maximum power output of the JBL Apex PA1502? The amplifier is rated for up to 750 watts of peak power.
How much RMS power does it produce at 2 ohms? It delivers 150 watts RMS x 2 at 2 ohms with less than 1% THD+N.
Can the JBL Apex PA1502 operate in bridged mode? Yes. It delivers 300 watts RMS x 1 when bridged at 4 ohms with less than 1% THD+N.
What crossover frequencies are available? The amplifier offers selectable 60Hz, 80Hz, and 120Hz settings with a 12dB-per-octave electronic crossover slope.
What bass boost settings does the JBL Apex PA1502 provide? It offers selectable bass boost settings of 0dB, 6dB, or 12dB at 45Hz.
