JBL Club 64CSQ Component Speakers with Carbon Fiber Woofers - Black - Pair

JBL Club 64CSQ Component Speakers with Carbon Fiber Woofers - Black - Pair

The JBL Club 64CSQ delivers stronger output, while providing accurate detail and smooth sound across the frequency range. Additionally, carbon fiber woofers and Plus One cone architecture support clear, powerful performance. Moreover, silk dome tweeters help produce smoother high frequencies. Finally, 95 watts RMS power handling adds capable output for a refined listening experience.

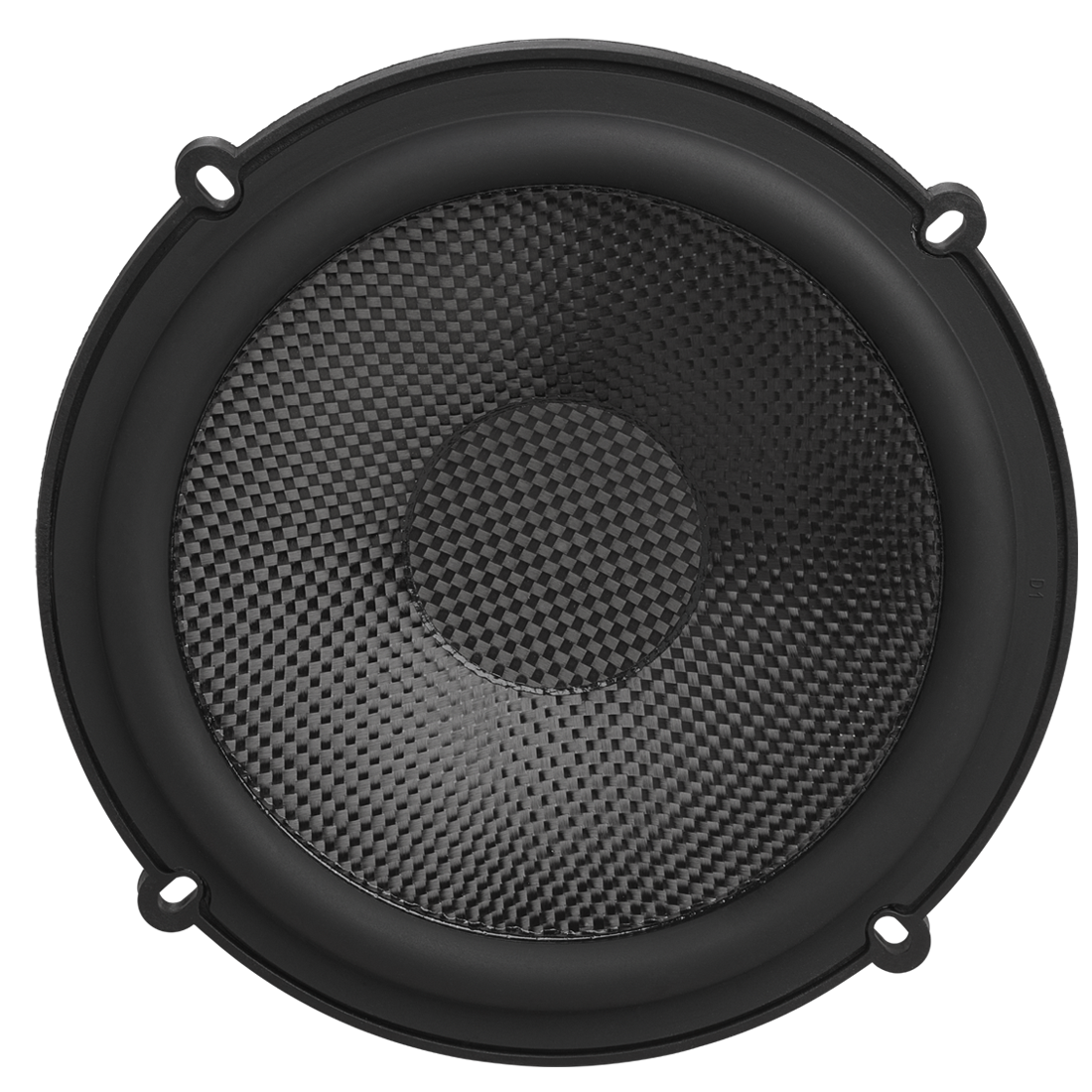

Carbon Fiber Woofers with Plus One Architecture

At the heart of the JBL Club 64CSQ is a carbon fiber woofer designed for accuracy and a clear musical character. JBL combines this material with its patented Plus One cone architecture, which provides more speaker-cone area than conventional speakers of the same size.

Why does that extra cone area matter? More usable surface area helps the woofer move more air, resulting in louder bass output. Think of it as giving the speaker a larger working surface without increasing its overall size.

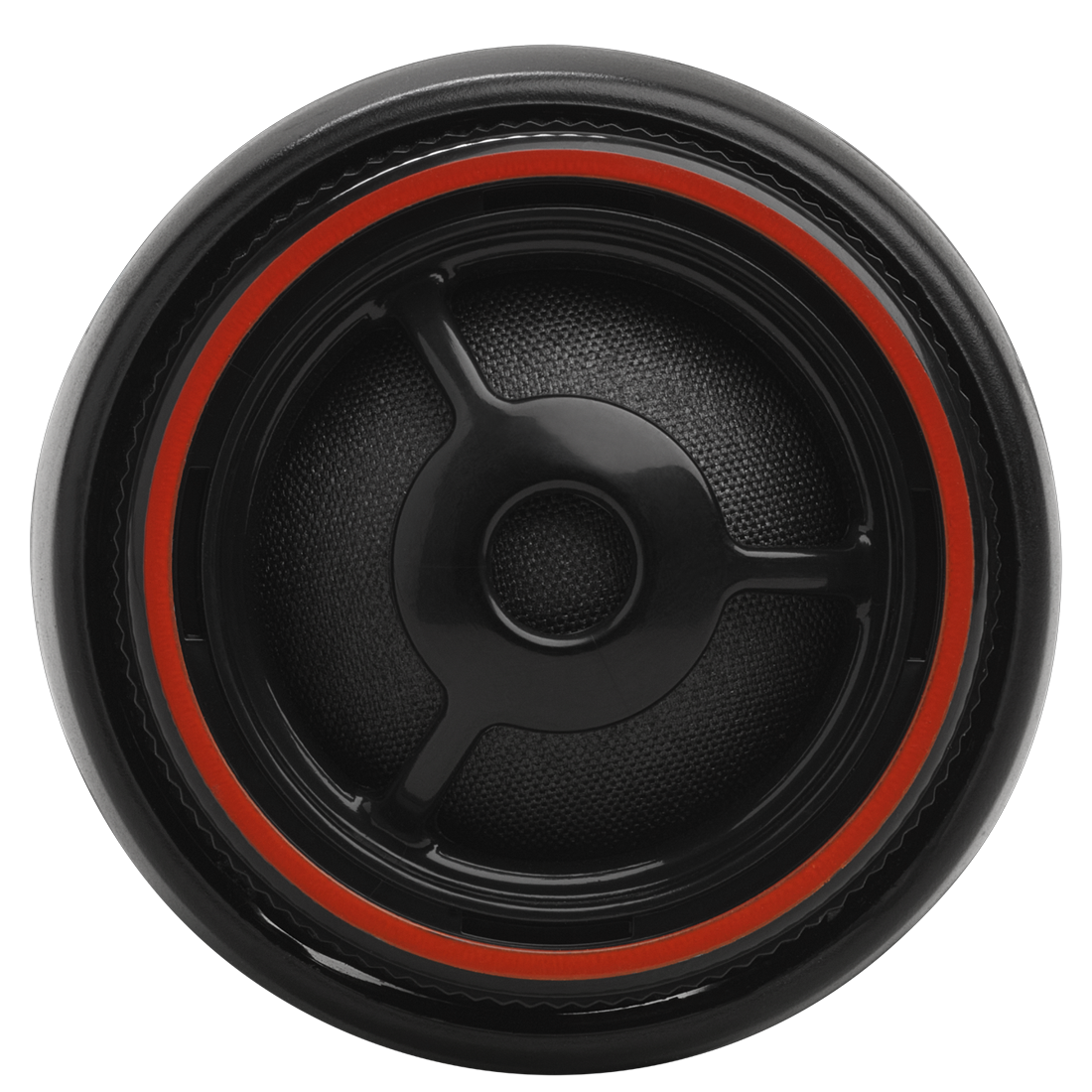

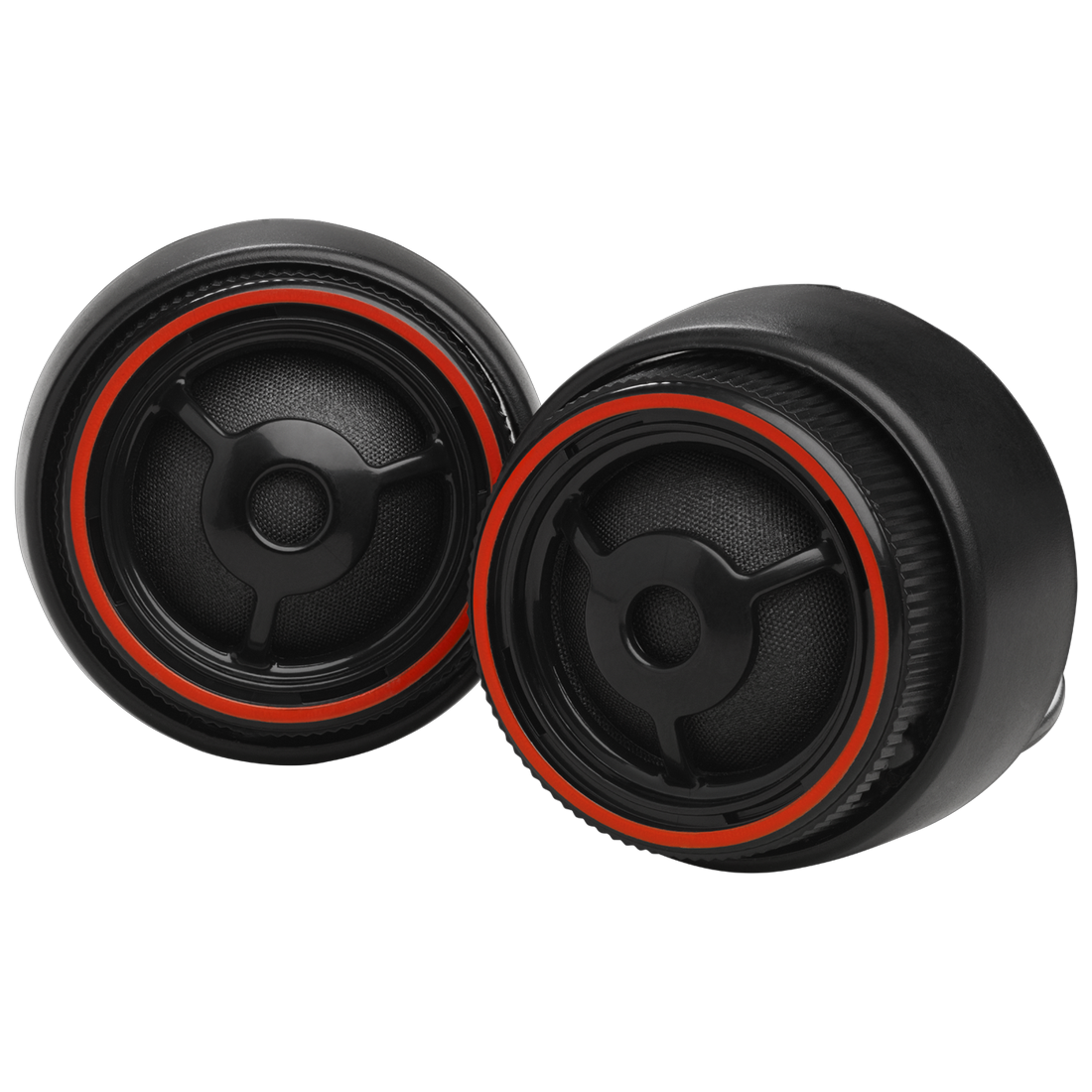

Edge-Driven Silk Dome Tweeters

The JBL Club 64CSQ uses edge-driven silk dome tweeters to handle high frequencies. Compared with more commonly used W-dome designs, these tweeters produce a broader and smoother high-frequency response.

Additionally, JBL designed the tweeters to maintain a smooth character even as output increases. That gives the system a balanced upper range without introducing an overly harsh presentation.

Adjustable Tweeter Output Level

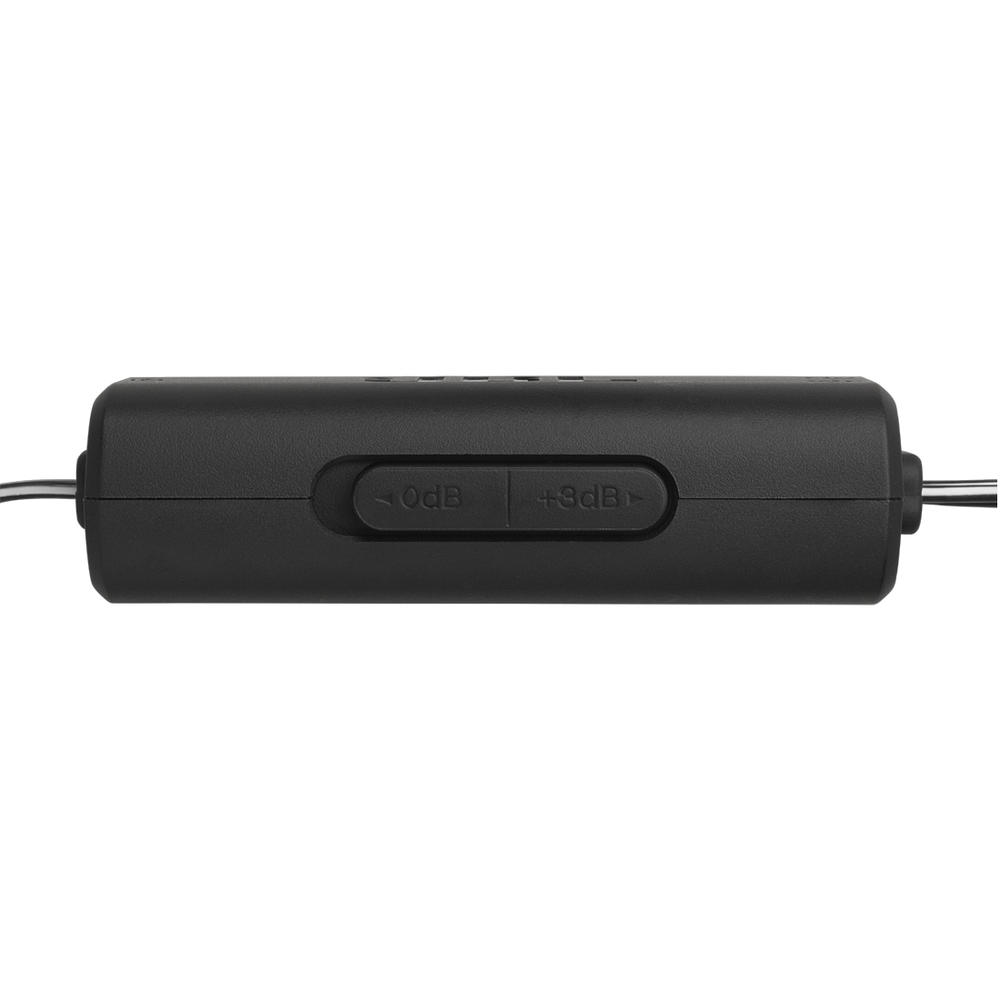

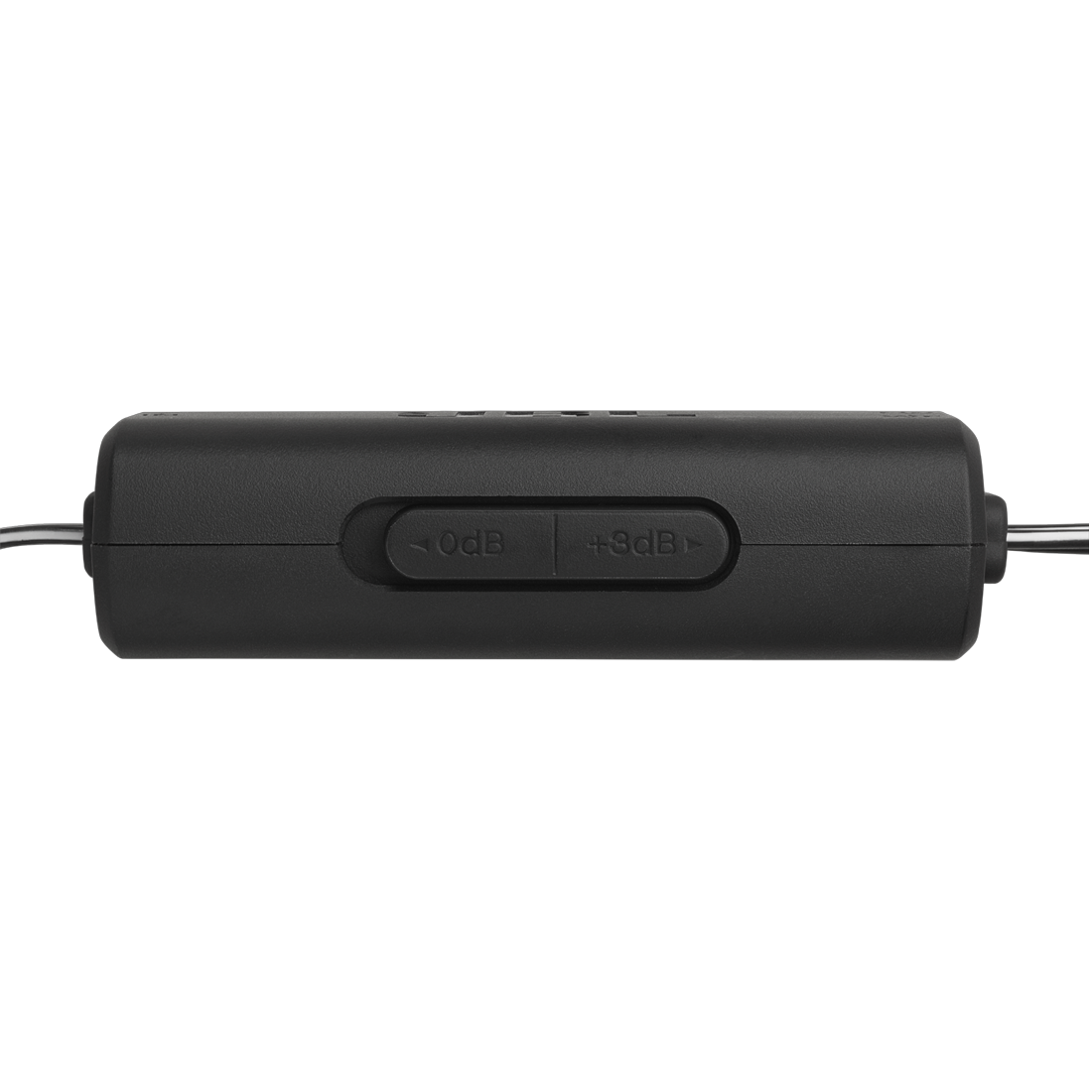

Different tweeter positions can affect how high frequencies reach your ears. Therefore, the JBL Club 64CSQ includes selectable tweeter output levels of 0dB or +3dB.

This adjustment helps optimize system linearity based on tweeter placement. As a result, you can better match the high-frequency output to the particular configuration of your audio system.

Y40 Ferrite Magnet for Higher Sensitivity

The JBL Club 64CSQ uses a Y40 ferrite magnet rather than the more commonly used Y30 ferrite magnet. According to JBL, this magnet design contributes to higher speaker sensitivity.

Combined with a rated sensitivity of 93dB at 2.83V, the speaker system is designed to produce strong output while maintaining its focus on sound quality.

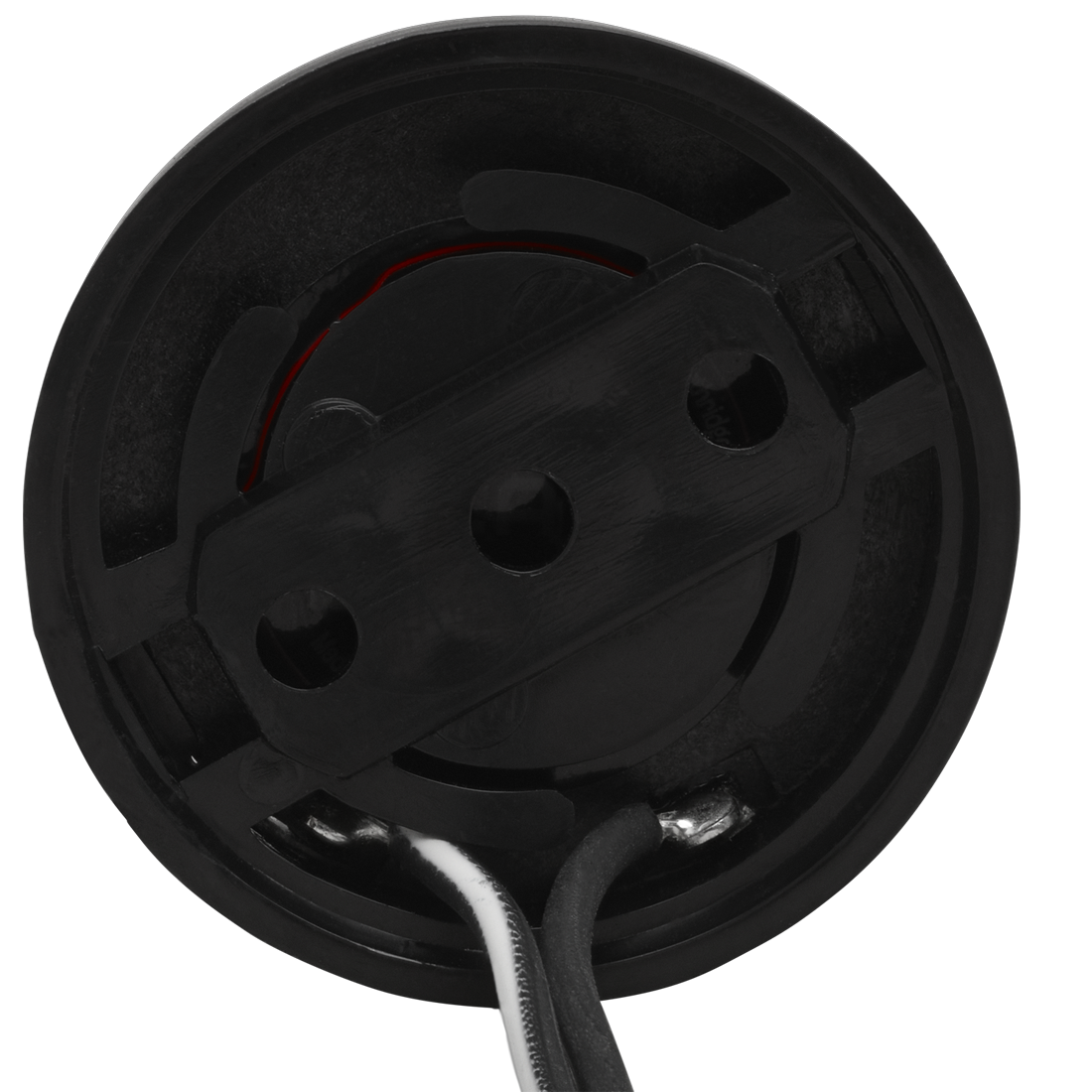

Flexible Starfish Tweeter Mounting Adapter

The included Starfish tweeter mounting adapters offer flexible placement, while giving the JBL Club 64CSQ multiple configuration options. Additionally, each adapter features six break-off mounting tabs for added versatility. Therefore, the adapters can accommodate a variety of tweeter mounting configurations.

The tweeter can also be surface-mounted or flush-mounted. Furthermore, the Starfish adapter allows placement behind factory grilles and in areas such as an A-pillar while keeping the tweeter accessible for servicing.

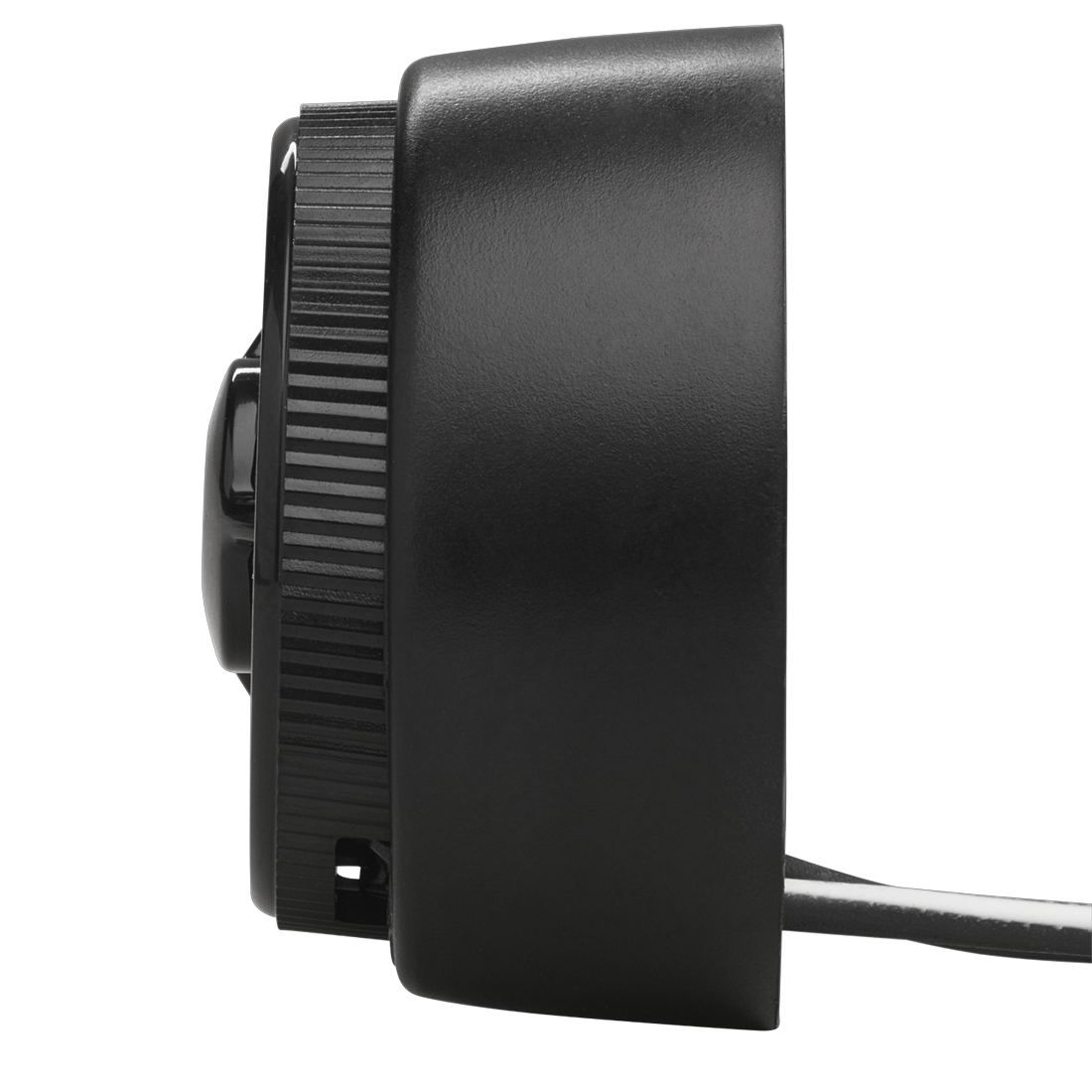

I-Mount Tweeter Mounting System

JBL also includes its patented I-Mount tweeter mounting system for additional flexibility. The system includes flush-mount and surface-mount hardware, giving you more control over tweeter positioning.

For flush mounting, the system uses a 1-3/4-inch cutout and requires a 1-inch mounting depth. Moreover, the tweeter can be angled up to ±40 degrees, helping direct high frequencies toward the preferred listening position.

Included locknuts keep the assembly secure, while the design also allows the tweeter to be replaced without removing the entire assembly.

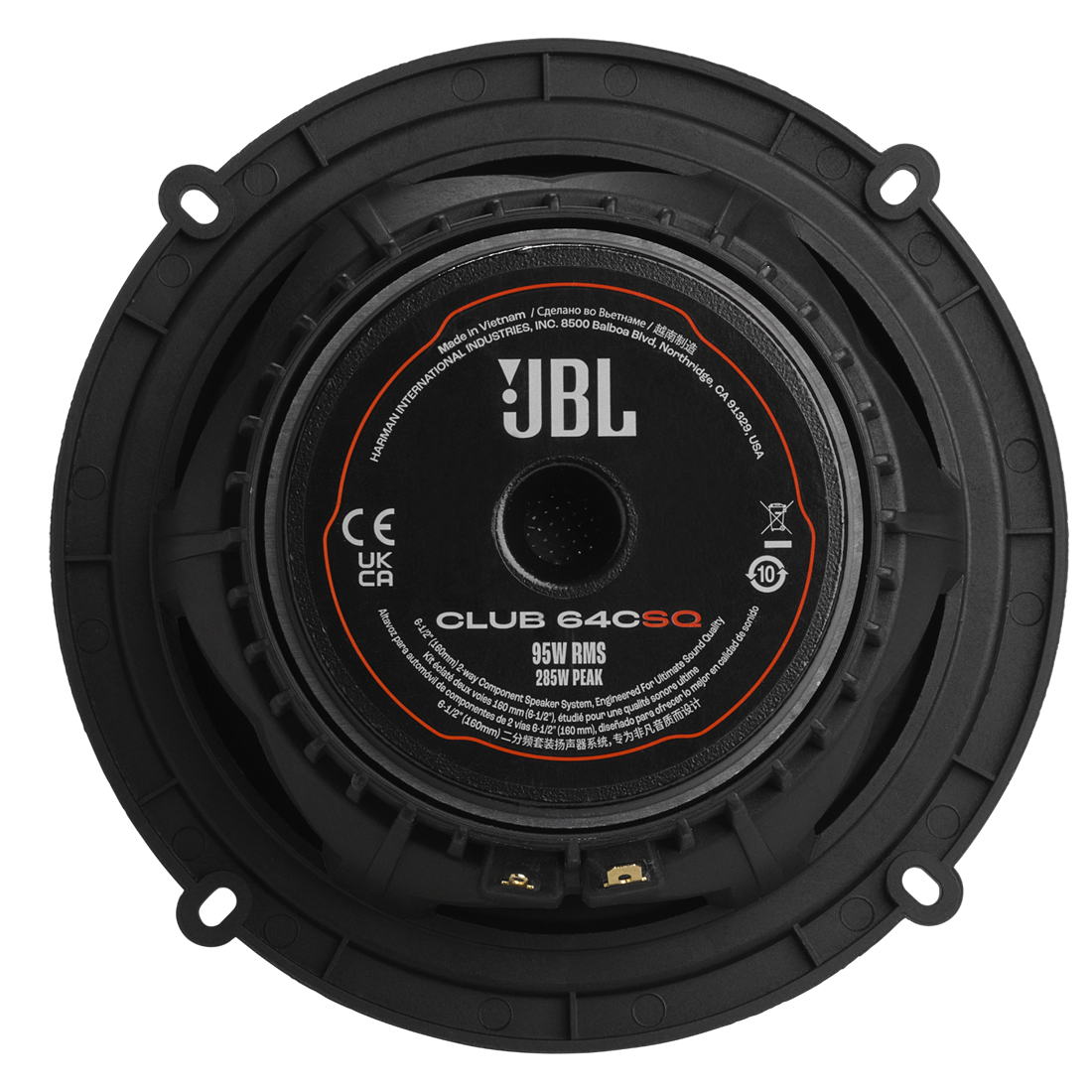

95W RMS Power Handling

The JBL Club 64CSQ handles up to 95 watts RMS and 285 watts peak power. This rating gives the component system substantial power capability while its carbon fiber woofers and silk dome tweeters divide the work across different frequency ranges.

Its nominal impedance is rated at 3.0 ohms, while the frequency response extends from 48Hz to 21kHz.

JBL Club 64CSQ Specifications

• Power Handling: 95W RMS, 285W peak
• Sensitivity: 93dB at 2.83V
• Frequency Response: 48Hz – 21kHz
• Nominal Impedance: 3.0 ohms
• Woofer Material: Carbon fiber
• Woofer Technology: Plus One cone architecture
• Tweeter Type: Edge-driven silk dome
• Tweeter Output Adjustment: 0dB or +3dB
• Magnet Type: Y40 ferrite

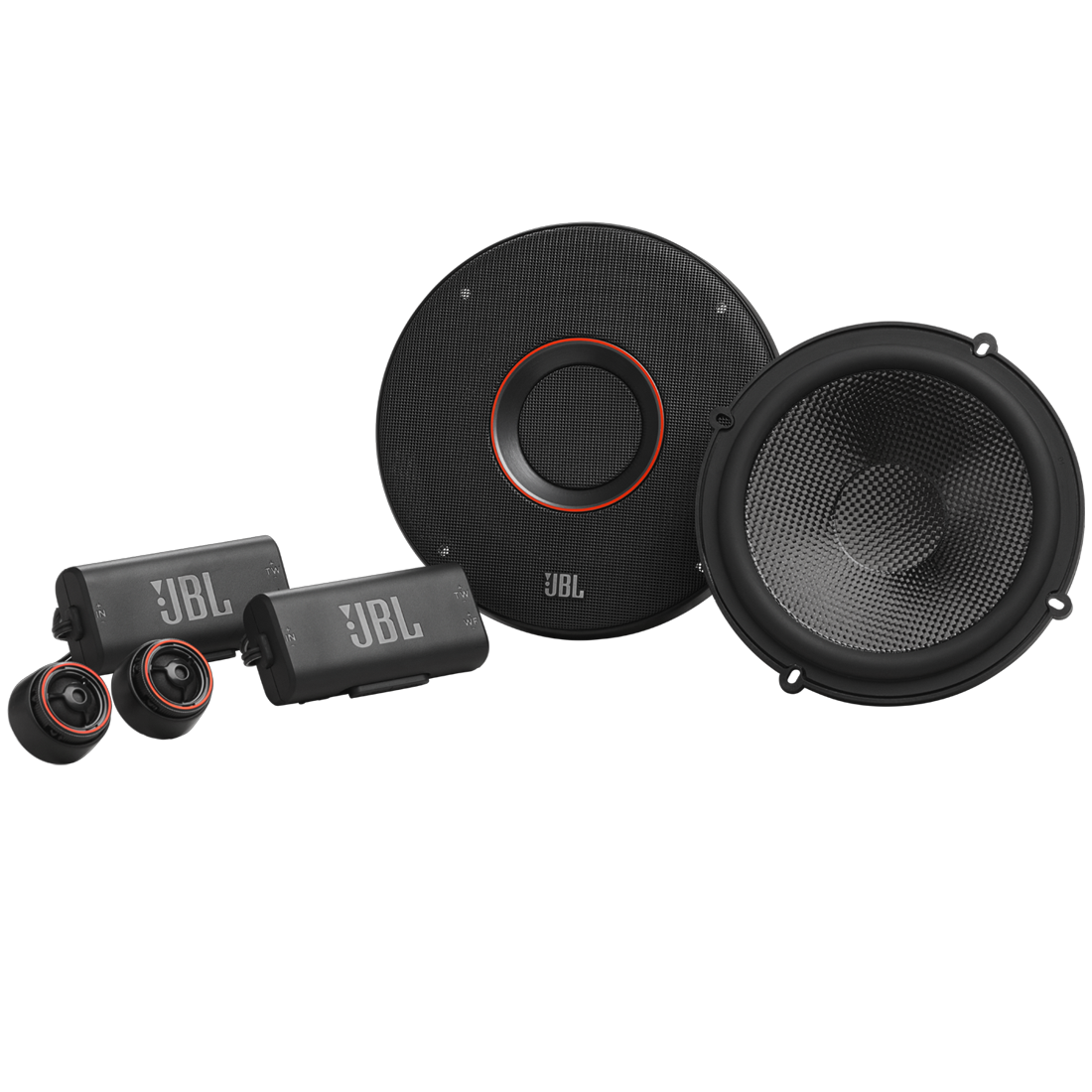

What's in the Box?

• 2 x Speakers

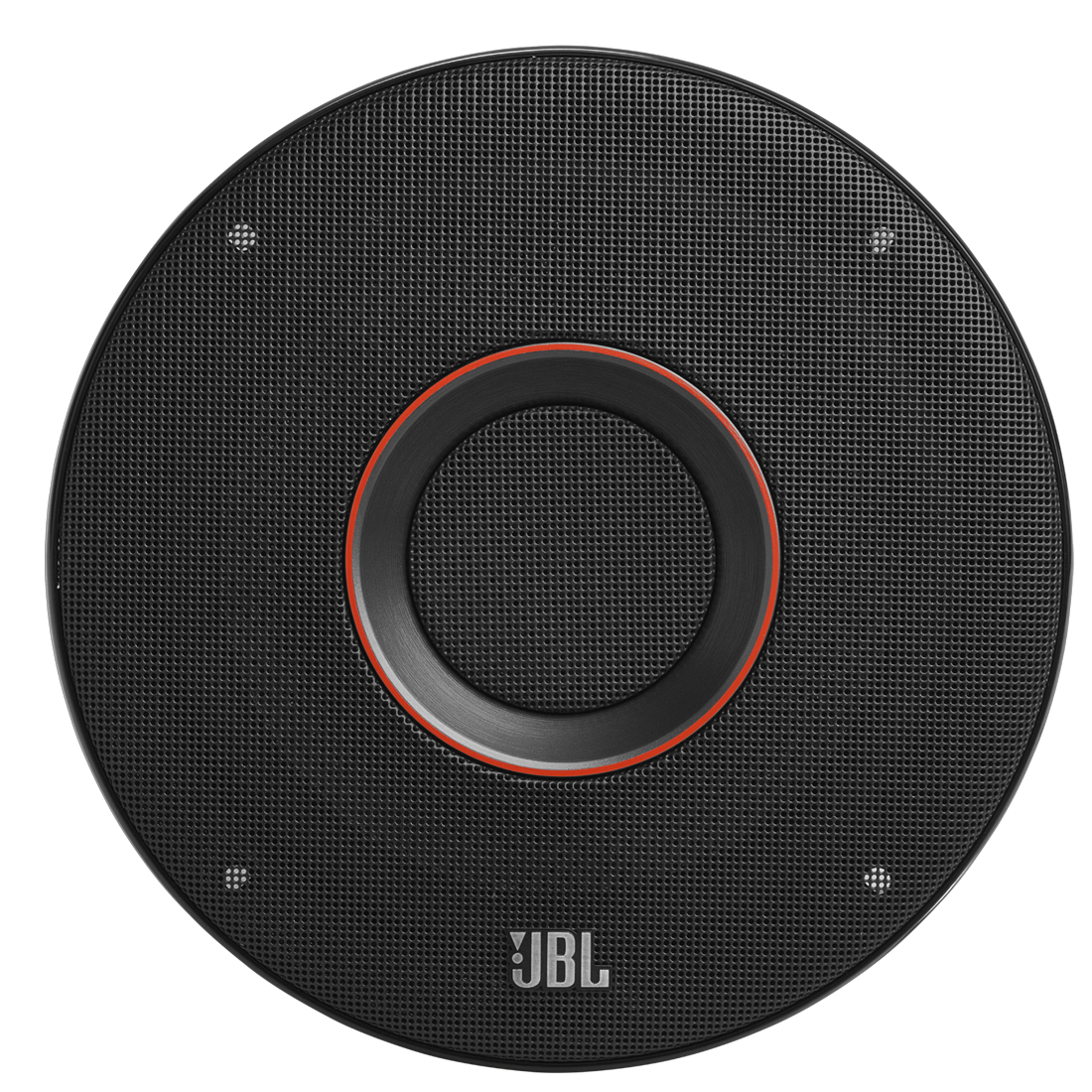

• 2 x Grilles
• 2 x Plastic multi-hole adapter rings
• 1 x Foam gasket

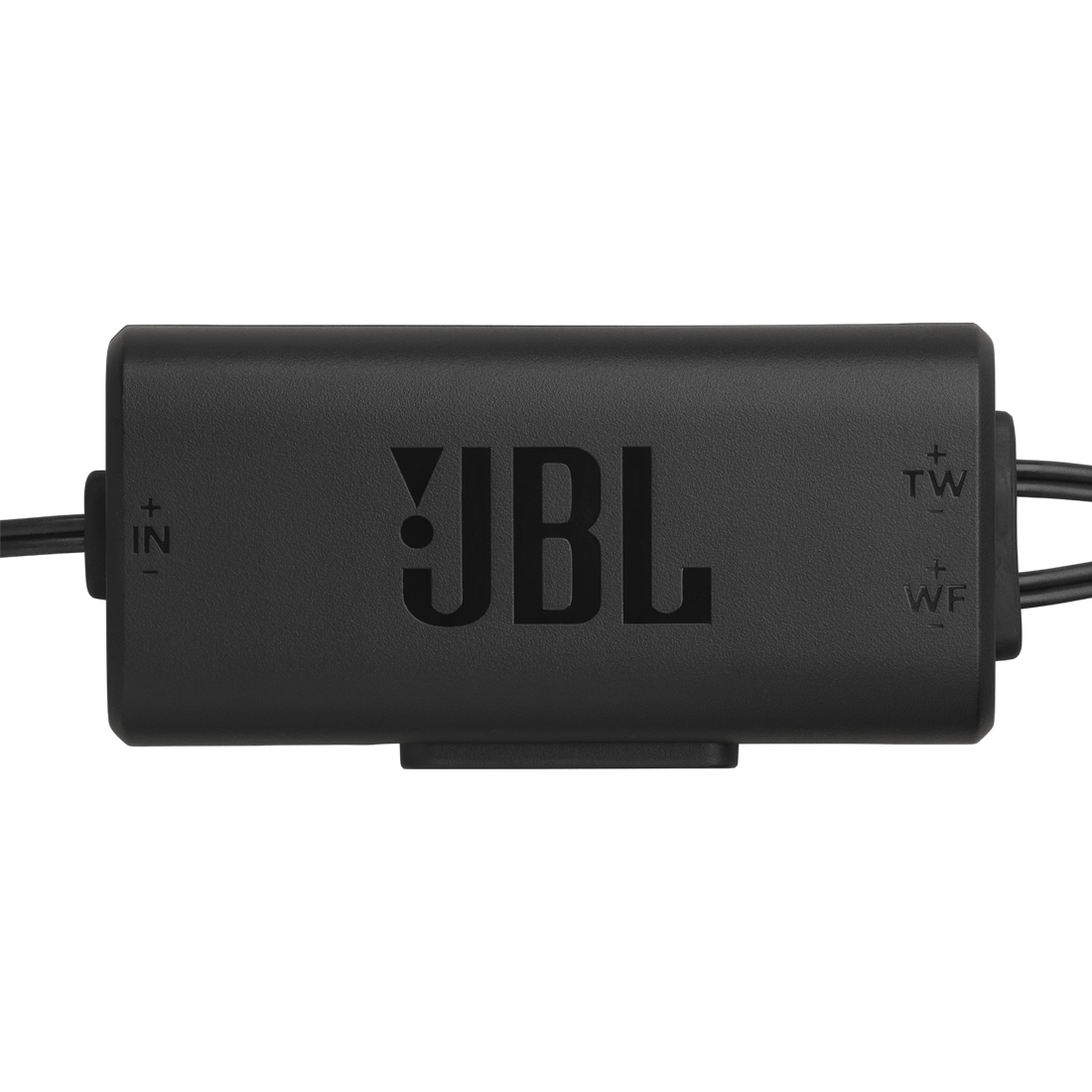

• 2 x Crossovers
• 2 x Tweeters
• 2 x Flush-mount cups
• 2 x Threaded flush-mount adapters
• 2 x Surface-mount cups
• 2 x Starfish tweeter mounts
• 2 x Plastic locking nuts
• 22 x Screws
• 8 x Speed clips
• 2 x Spacers
• 2 x Washers
• 2 x JBL logo badges

A Component System Focused on Sound Quality

The JBL Club 64CSQ combines a carbon fiber woofer, while Plus One cone architecture expands the usable cone area. Additionally, edge-driven silk dome tweeters support smooth high-frequency performance. Moreover, adjustable tweeter output provides added flexibility for system tuning. Finally, 93dB sensitivity, a Y40 ferrite magnet, and included crossovers support accurate, clear, and balanced sound.

Frequently Asked Questions

How much power can the JBL Club 64CSQ handle? The speakers are rated for 95 watts RMS and up to 285 watts peak power.

What material does the JBL Club 64CSQ use for its woofer? It uses a carbon fiber woofer designed to provide accuracy and a clear musical character.

What is the frequency response of the JBL Club 64CSQ? The component speaker system has a rated frequency response of 48Hz to 21kHz.

Can the tweeter output be adjusted? Yes. The tweeter output can be set to either 0dB or +3dB to help optimize system linearity.

What type of tweeter does the JBL Club 64CSQ use? It uses an edge-driven silk dome tweeter designed for a broader and smoother high-frequency response.
