JBL Club A1000 Mono Car Amplifier 1000W RMS Class D Amp

JBL Club A1000 Mono Car Amplifier 1000W RMS Class D Amp

The JBL Club A1000 delivers powerful subwoofer performance through an efficient Class D amplifier design. It produces up to 1000 watts RMS at 2 ohms while keeping current draw under control, making it a strong choice for upgrading your vehicle’s bass system.

Powerful Class D Performance

The JBL Club A1000 produces 600 watts RMS at 4 ohms and 1000 watts RMS at 2 ohms, while maintaining the efficiency of its Class D design. With a maximum output of 2000 watts, it also provides your subwoofer with the power needed to deliver deep, controlled bass. Think of it as the engine behind your low frequencies, supplying steady power without taking over your vehicle’s electrical system.

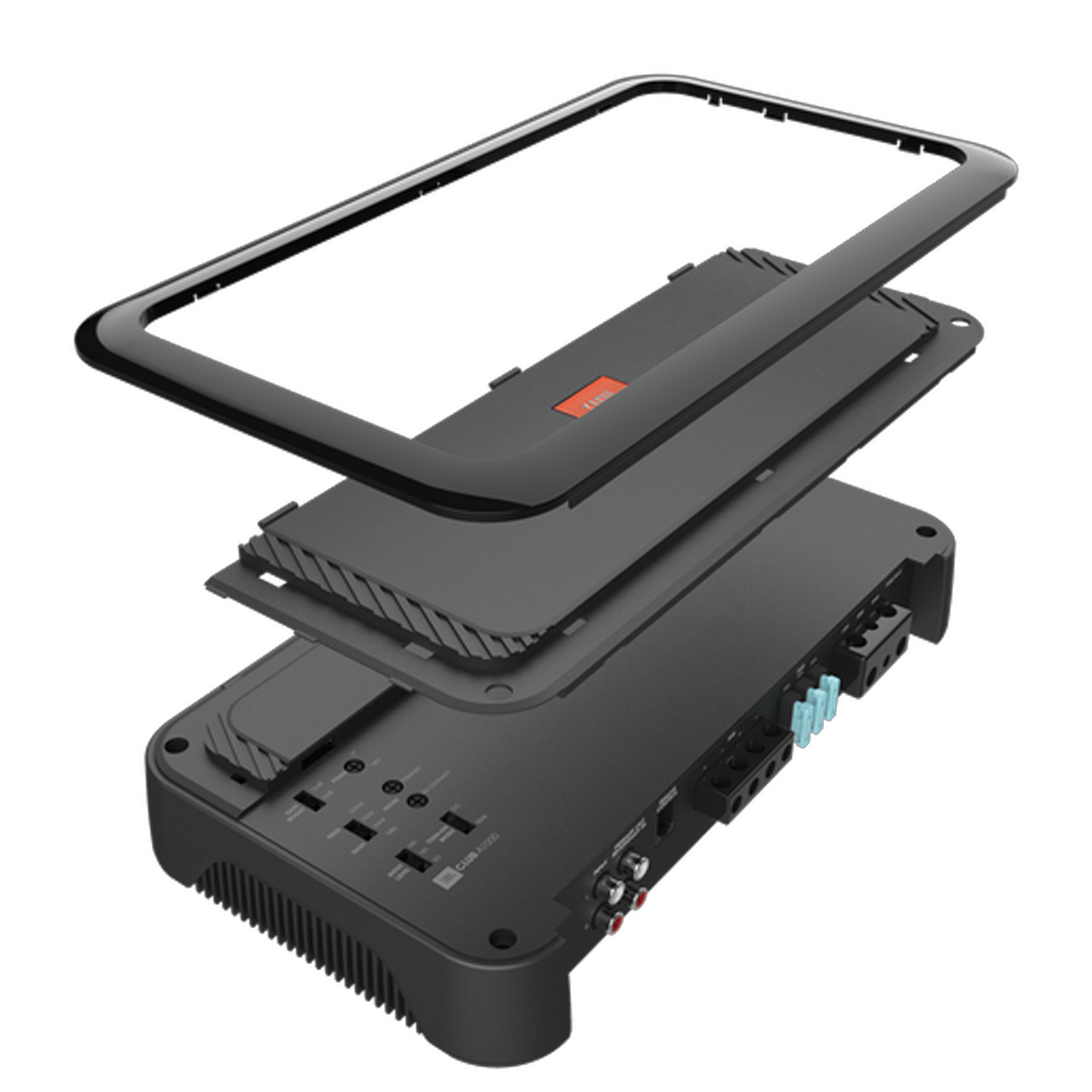

Compact Design for More Vehicles

Available space can be limited inside a vehicle, so the JBL Club A1000 uses a low-profile chassis with a compact footprint. Measuring 320mm wide, 51.3mm high, and 180mm deep, it can fit into more setups without requiring a large mounting area.

Variable Crossover and Bass Boost

Want more control over how your subwoofer sounds? The JBL Club A1000 includes a variable low-pass filter that adjusts from 32Hz to 320Hz at 12dB per octave. Its variable bass boost also lets you add between 0dB and 12dB at 45Hz, helping you fine-tune the system based on your subwoofer and enclosure.

Adjustable Input Sensitivity

The input level control helps the JBL Club A1000 work with different audio sources. When using low-level inputs, sensitivity can be adjusted from 200mVrms to 2.0Vrms. With high-level inputs, the adjustment range extends from 2Vrms to 20Vrms.

Phase Control for Better System Integration

A built-in phase switch lets you select either 0 or 180 degrees. This allows the JBL Club A1000 to match the bass response with your full-range speakers more effectively, especially when enclosure type and placement affect how the sound reaches the listening position.

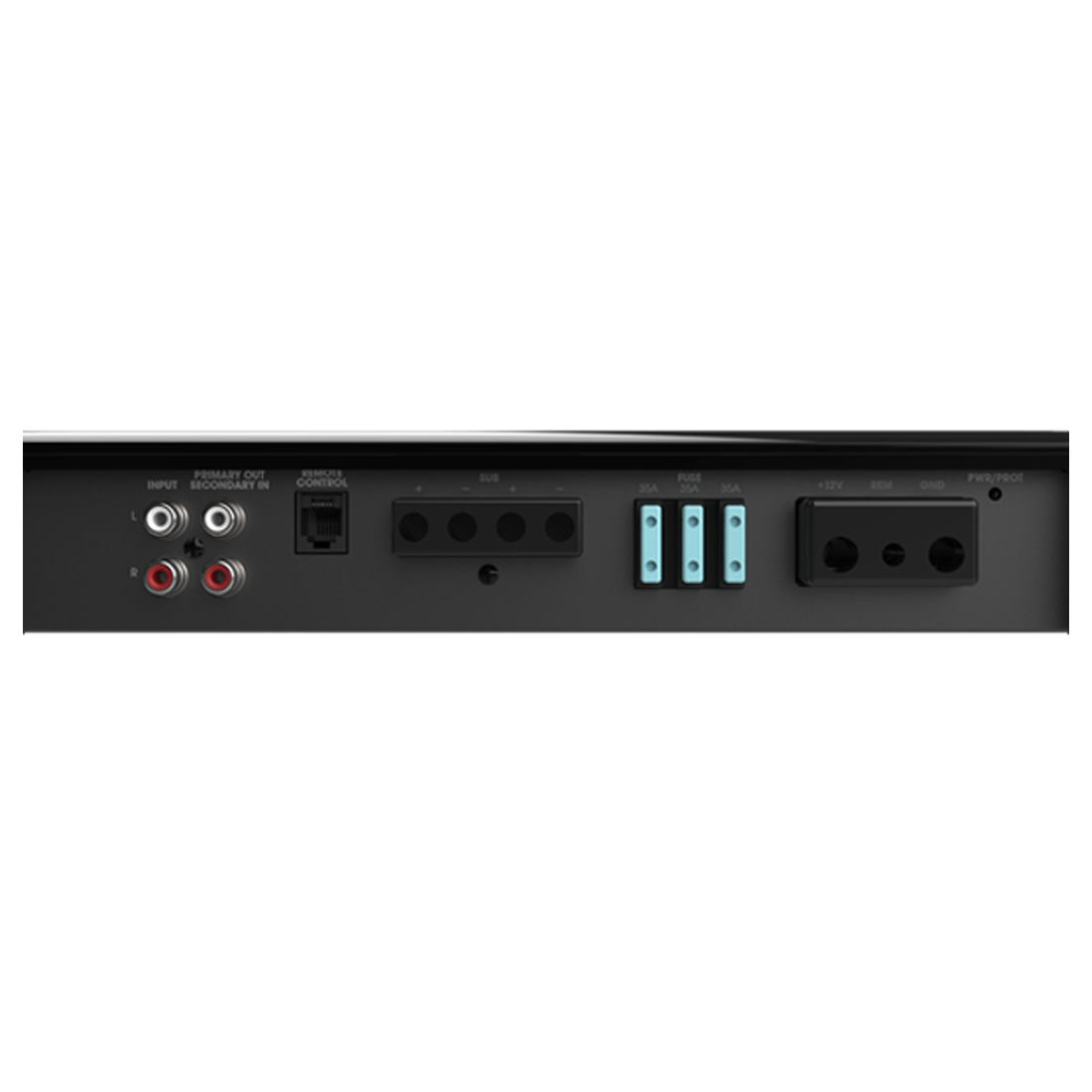

Compatible with Factory and Aftermarket Systems

High-level and low-level inputs allow the JBL Club A1000 to connect with both factory radios and aftermarket car stereo systems. Speaker wire-to-RCA adapters are included, giving you additional flexibility when connecting the amplifier to an existing setup.

Strappable for Additional Power

Two JBL Club A1000 amplifiers can be strapped together to provide up to 2000 watts of power at 4 ohms. As a result, the primary amplifier manages the secondary amplifier's crossover points, gain, and remote level settings for simplified system control.

Low Noise and Distortion

Balanced Differential Inputs help the JBL Club A1000 maintain low noise and distortion, even when operating at high output levels. This design also reduces susceptibility to radiated engine noise that may enter through the signal lines.

Built-In Protection

On-board protection circuitry safeguards the JBL Club A1000 against short circuits, high temperatures, overvoltage, and undervoltage. An LED indicator alerts you when one of these protection conditions is present.

Convenient Wired Bass Control

The included RBC wired remote gives you convenient control over the amplifier’s output from the driver’s seat. It comes with a 16.5-foot remote control cable fitted with RJ-25 plugs on both ends.

General Specifications

• Amplifier type: Mono Class D subwoofer amplifier
• Power output at 4 ohms: 600 watts RMS x 1
• Power output at 2 ohms: 1000 watts RMS x 1
• Maximum power output: 2000 watts
• Frequency response: 10Hz–320Hz
• Variable low-pass filter: 32Hz–320Hz, 12dB per octave
• Variable bass boost: 0–12dB at 45Hz
• Phase switch: 0 or 180 degrees
• Low-level input sensitivity: 200mVrms–2.0Vrms
• High-level input sensitivity: 2Vrms–20Vrms
• Inputs: Preamp and speaker-level
• Outputs: Preamp outputs
• Fuse rating: 35A x 3
• Recommended power and ground leads: 4-gauge
• Dimensions: 320mm x 51.3mm x 180mm
• Dimensions: 12-5/8" x 2-1/16" x 7-1/8"

What’s in the Box?

• 1 x JBL Club A1000 mono subwoofer car amplifier
• 6 x 35A ATO fuses, including 3 installed and 3 spare
• 2 x Bare wire-to-RCA adapters
• 1 x Remote bass control module
• 1 x 16.5-foot remote control cable with RJ-25 plugs
• 2 x Self-tapping remote screws, M3 x 15mm
• 4 x Mounting screws, M4 x 53mm
• 2 x JBL stickers
• 1 x Owner’s manual

Controlled Power for Your Subwoofer

The JBL Club A1000 combines strong Class D output, flexible signal connections, detailed tuning controls, and built-in protection in a compact chassis. Whether you are connecting it to a factory radio or an aftermarket system, it provides the control needed to shape powerful bass that blends smoothly with the rest of your music.

Frequently Asked Questions

How much RMS power does the JBL Club A1000 produce? It produces 600 watts RMS at 4 ohms and 1000 watts RMS at 2 ohms.

Can the amplifier connect to a factory car radio? Yes, its speaker-level inputs allow it to integrate with factory car stereo systems.

What does the variable bass boost control do? It lets you adjust the bass boost from 0dB to 12dB at 45Hz to fine-tune subwoofer performance.

Can two Club A1000 amplifiers be connected together? Yes, two amplifiers can be strapped together to provide up to 2000 watts of power at 4 ohms.

Does the amplifier include a remote bass control? Yes, it includes an RBC wired remote and a 16.5-foot remote control cable.
