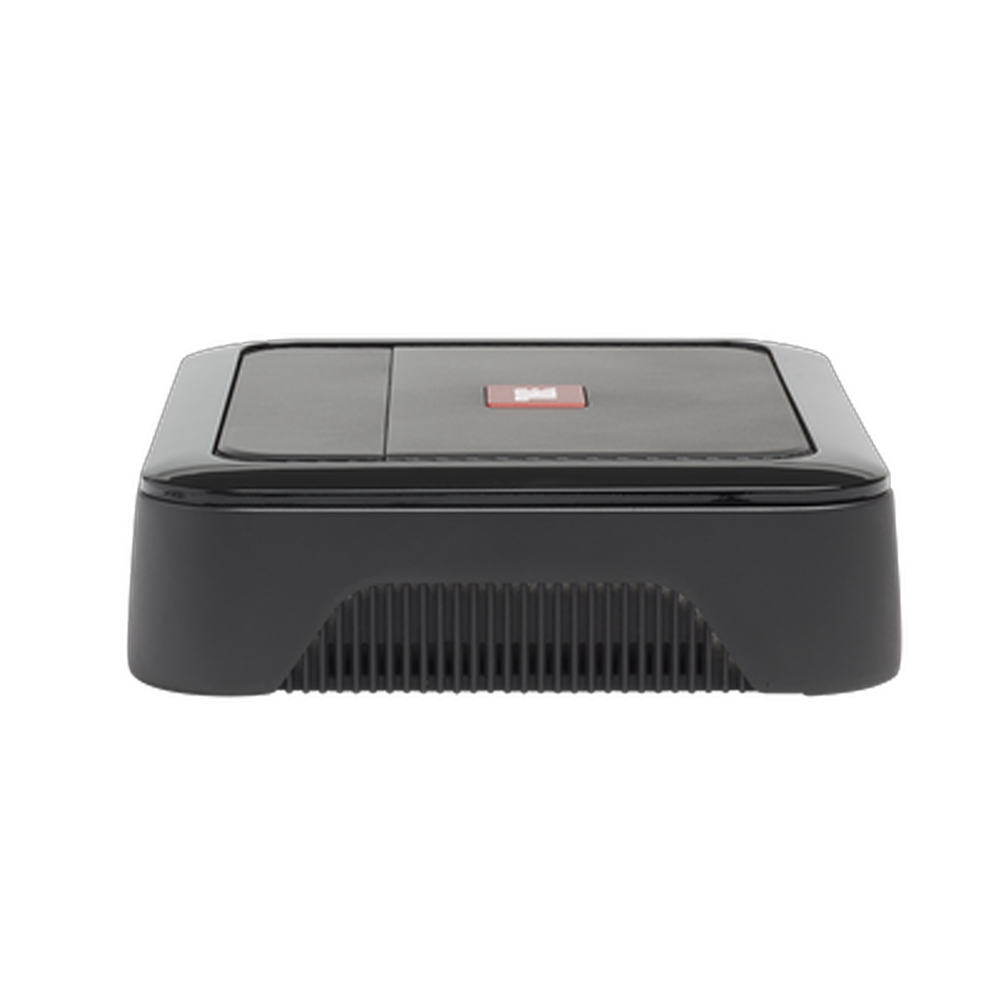

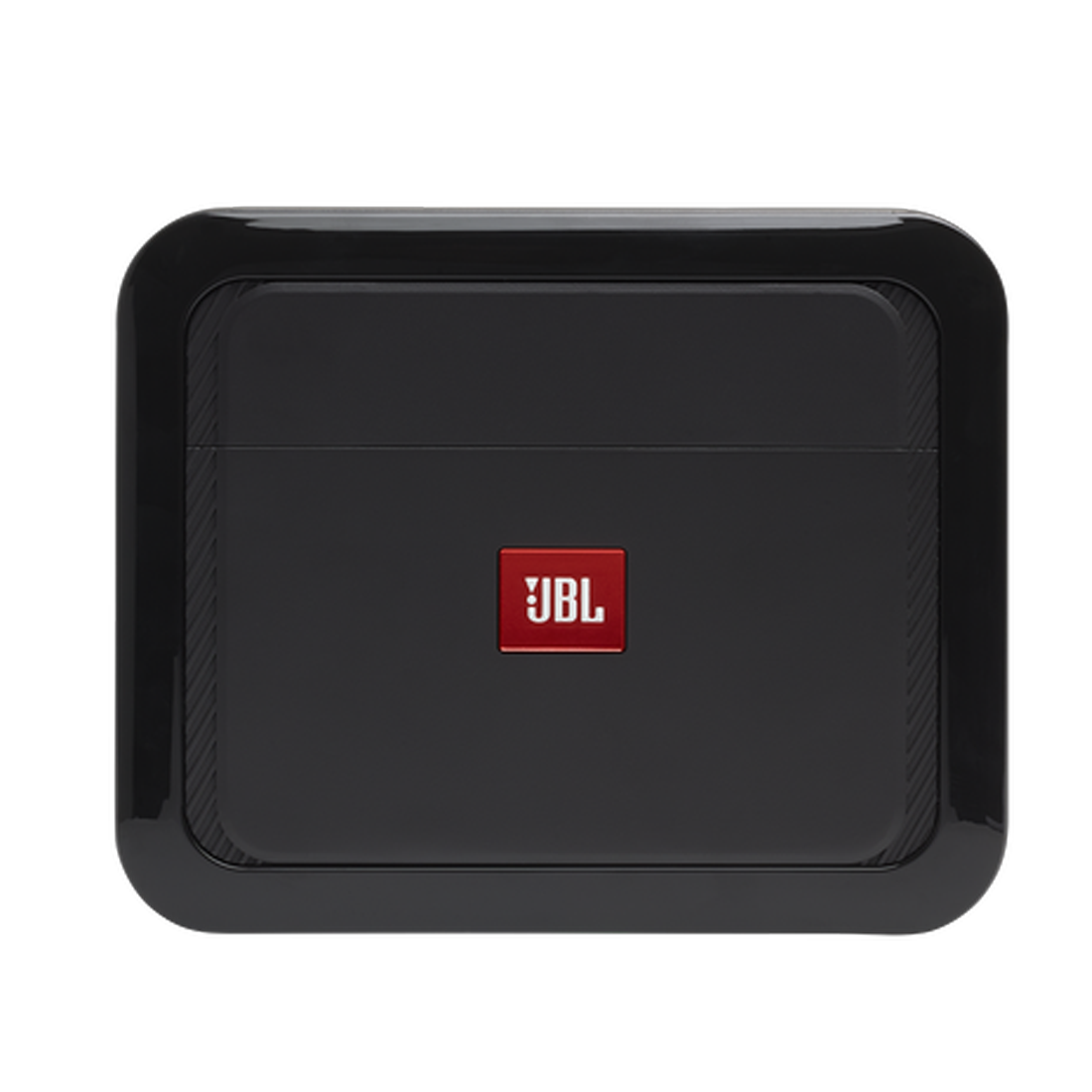

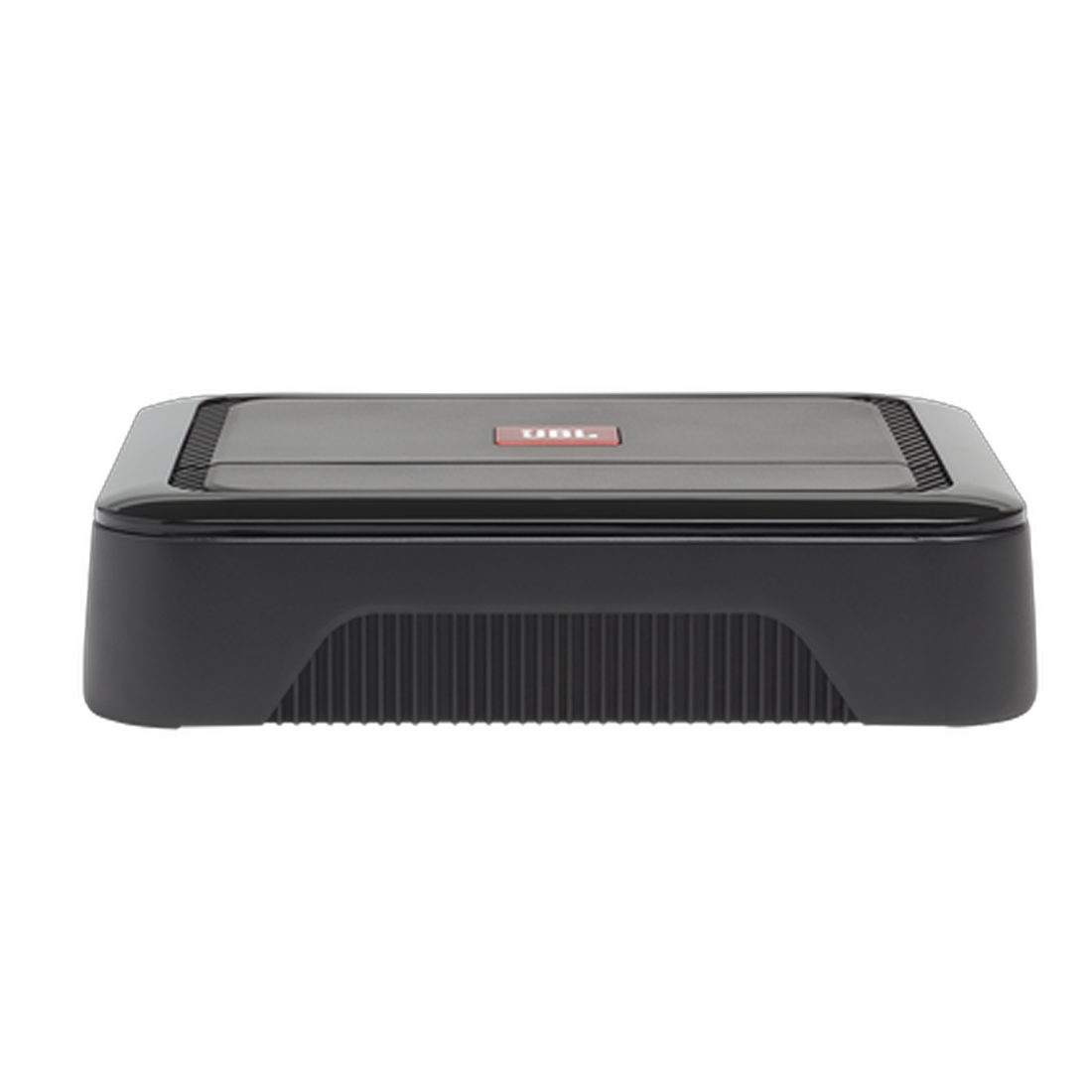

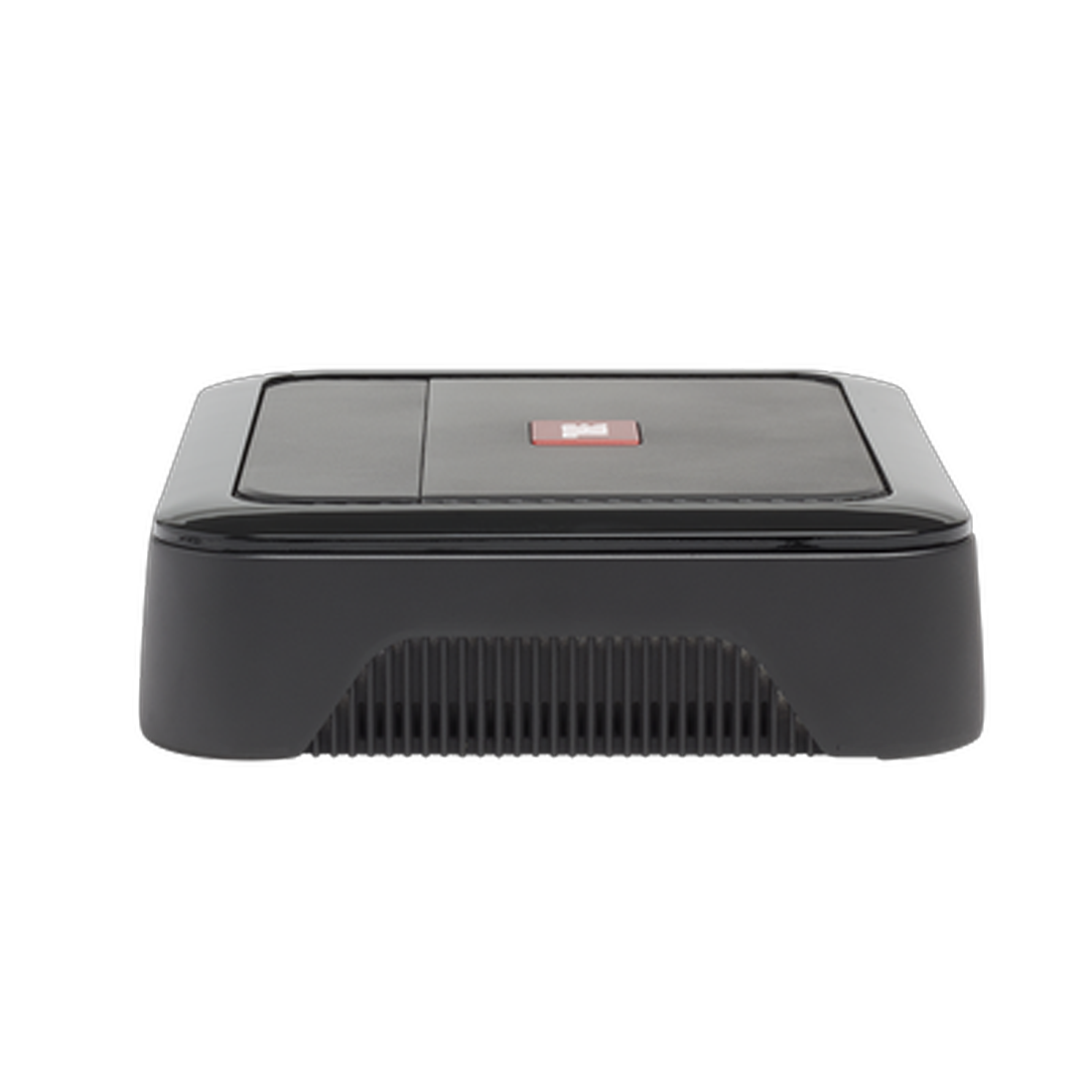

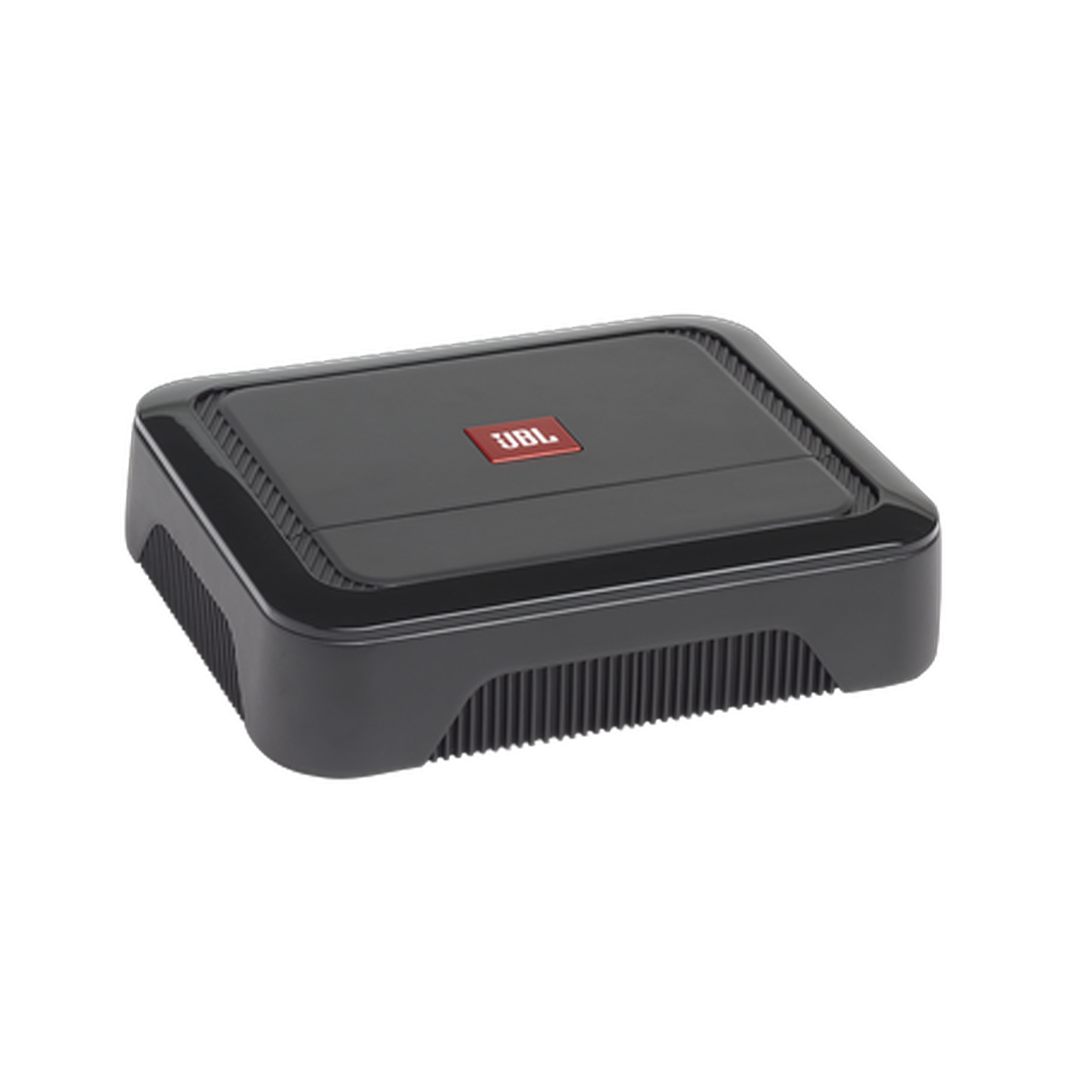

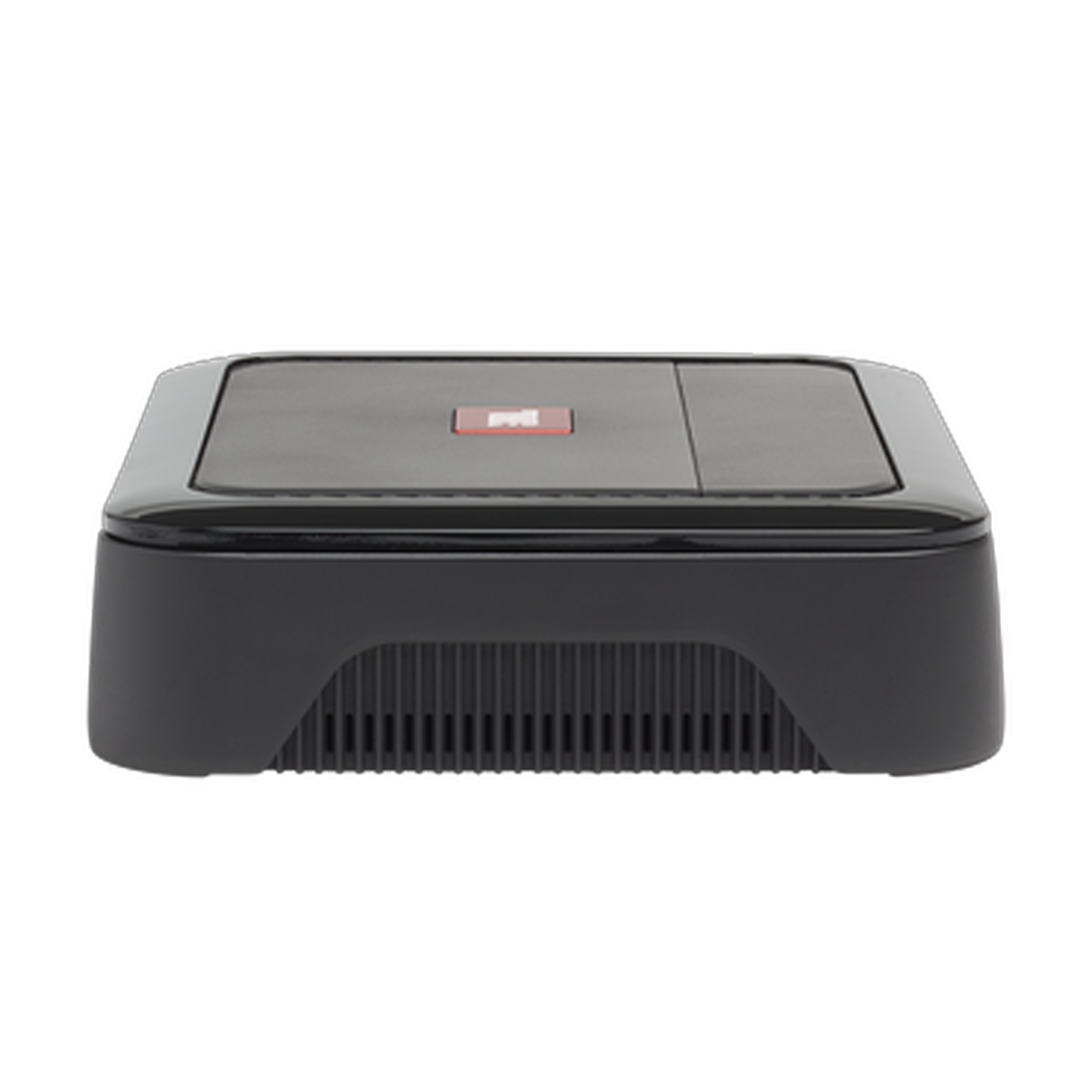

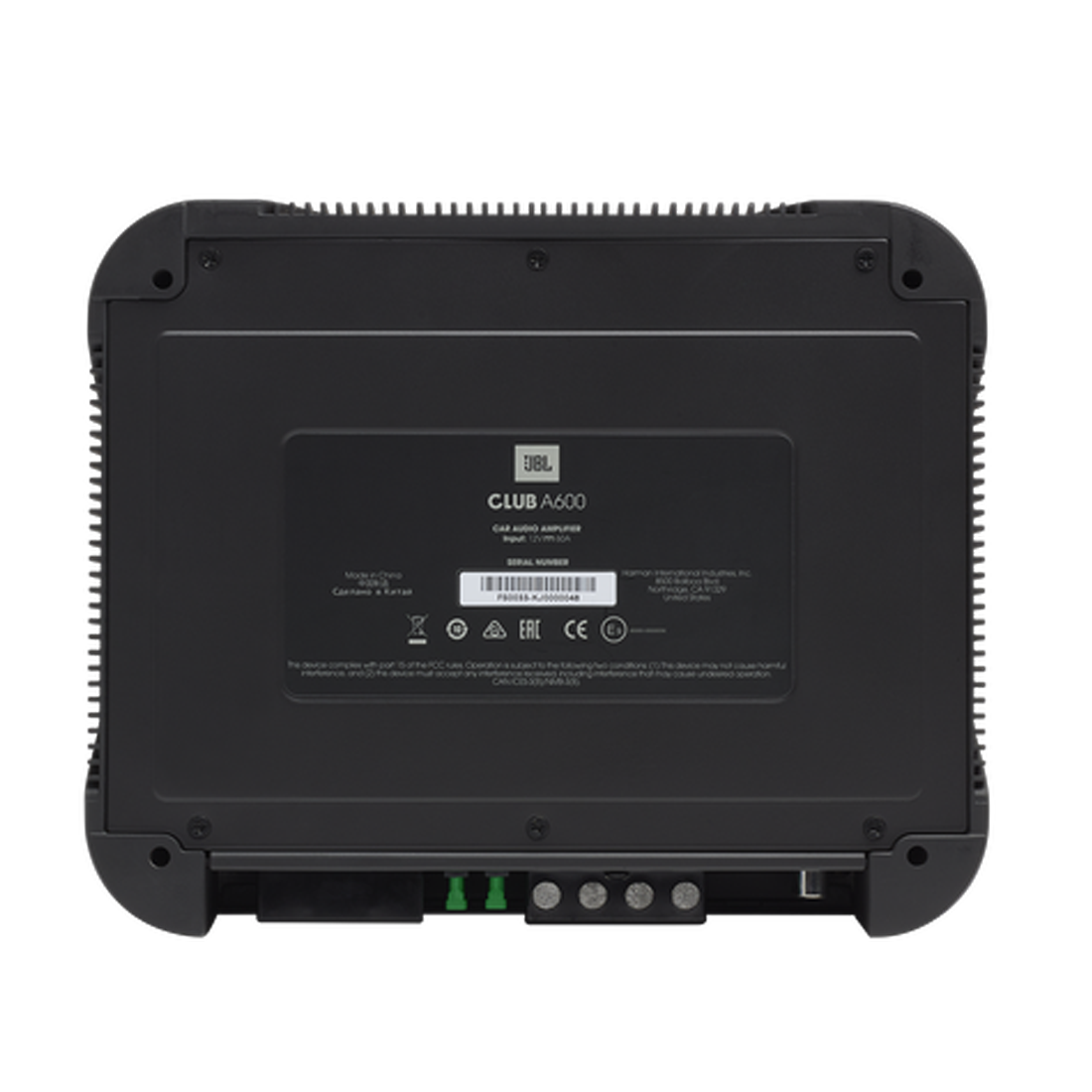

JBL Club A600 Mono Car Amplifier 600W RMS Class D

JBL Club A600 Mono Car Amplifier 600W RMS Class D

Compact Power for More Vehicles

The JBL Club A600 features a low-profile chassis with a small overall footprint. As a result, it can fit into more vehicle layouts without taking up unnecessary space. Despite its compact size, the JBL Club A600 delivers up to 600 watts RMS and 1200 watts of maximum output for impressive subwoofer performance.

Strong Class D Performance

The JBL Club A600 delivers 350 watts RMS at 4 ohms and 600 watts RMS at 2 ohms, while efficient Class D amplifier technology helps maximize performance. This mono amplifier is built to power a car subwoofer while maintaining dependable performance at high output levels.

Variable Low-Pass Crossover

he JBL Club A600 includes a variable low-pass filter adjustable from 32Hz to 320Hz at 12dB per octave, so you can fine-tune your subwoofer's performance. This control lets you decide which frequencies reach your subwoofer, helping it blend more naturally with the rest of your car audio system. Why settle for fixed settings when you can tune the response to your setup?

Adjustable Bass Boost

A variable bass boost circuit provides adjustment from 0dB to 12dB at 45Hz. Therefore, you can add extra impact to the lower frequencies without changing the entire sound profile. The control works like a precision dial rather than a simple on-and-off switch, giving you more control over bass performance.

Flexible Input Level Control

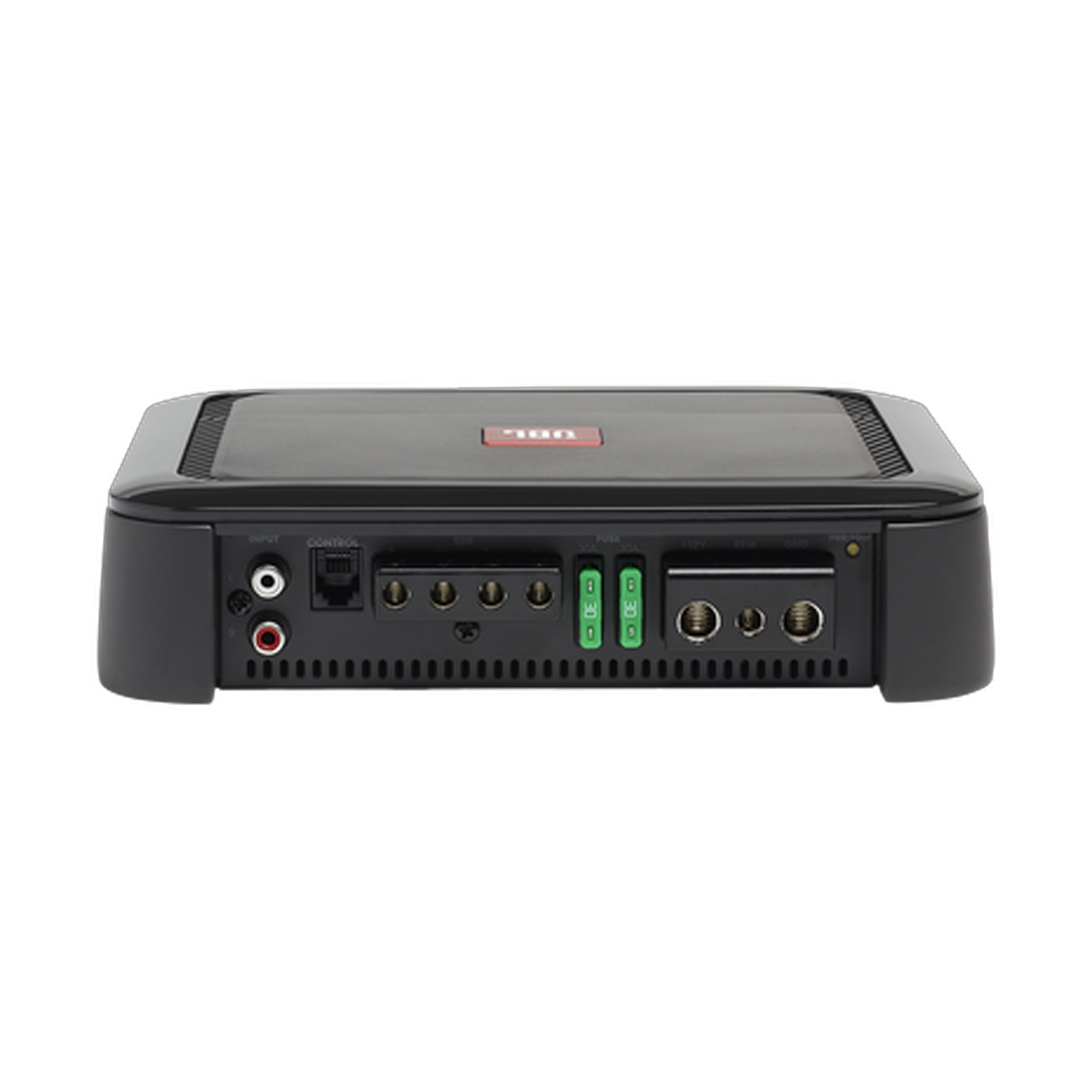

The JBL Club A600 supports both low-level and high-level input signals. When using low-level inputs, the sensitivity can be adjusted between 200mVrms and 2.0Vrms. With high-level inputs, the adjustment range extends from 2Vrms to 20Vrms, allowing the amplifier to match a wide range of source outputs.

Compatible with Factory and Aftermarket Stereos

Speaker-level and low-level inputs allow the JBL Club A600 to integrate with both factory-installed and aftermarket car stereo systems. Bare wire-to-RCA adapters are also included, providing additional flexibility when connecting the amplifier to your existing audio setup.

Phase Control for Better System Tuning

The built-in phase switch changes the input phase between 0 and 180 degrees, allowing for more precise system tuning. This can help improve bass response based on the subwoofer enclosure type and its position inside the vehicle. A simple phase adjustment may help the subwoofer work more effectively with the other speakers instead of competing against them.

Low Noise and Distortion

The JBL Club A600 uses Balanced Differential Inputs to reduce unwanted noise and distortion, even at high output levels. This design also makes the amplifier less susceptible to line-induced engine noise, helping your bass remain cleaner and more controlled while driving.

Built-In Protection Circuitry

Full onboard protection helps safeguard the JBL Club A600 against short circuits, excessive temperatures, overvoltage, and undervoltage, ensuring reliable operation under a variety of driving conditions.An LED indicator alerts you when one of these conditions is detected, making it easier to identify when the protection system is active.

Wired Remote Bass Control

The included RBC wired remote lets you adjust the bass level from the driver's seat, while the included 16.5-foot remote control cable and mounting screws make it easy to position the controller within convenient reach.

JBL Club A600 Specifications

• Amplifier type: Mono subwoofer car amplifier
• Amplifier technology: Class D
• Power output: 350 watts RMS x 1 at 4 ohms
• Power output: 600 watts RMS x 1 at 2 ohms
• Maximum power output: 1200 watts
• Variable low-pass filter: 32Hz–320Hz (12dB/octave)
• Variable bass boost: 0–12dB at 45Hz
• Phase switch: 0° / 180°
• Low-level input sensitivity: 200mVrms–2.0Vrms
• High-level input sensitivity: 2Vrms–20Vrms
• Preamp and speaker-level inputs
• Fuse rating: 30A x 2
• Recommended wiring: 8-gauge power and ground leads (not included)
• Dimensions: 220mm x 51.3mm x 180mm (8-11/16" x 2-1/16" x 7-1/8")

What's in the Box?

• 1 x JBL Club A600 mono subwoofer car amplifier
• 4 x 30A ATO fuses (2 installed, 2 spare)
• 2 x Bare wire-to-RCA adapters
• 1 x Remote bass control module
• 1 x 16.5' remote control cable (RJ-25 plugs on both ends)
• 2 x Self-tapping screws for remote (M3 x 15mm)
• 4 x Mounting screws (M4 x 53mm)
• 2 x JBL stickers
• 1 x Owner's manual

Compact Design, Powerful Results

The JBL Club A600 combines a space-saving design with powerful Class D performance, while giving you precise control over your subwoofer without taking up valuable space.Its adjustable crossover, variable bass boost, low-noise circuitry, and built-in protection provide the control needed to fine-tune your car audio system.

Frequently Asked Questions

Does the JBL Club A600 support both factory and aftermarket stereos?
Yes. Speaker-level and low-level inputs allow it to work with both factory-installed and aftermarket audio systems.

How much power does the JBL Club A600 produce?

Can I adjust the bass output?
Yes. The amplifier includes a variable bass boost from 0dB to 12dB at 45Hz, while the variable low-pass filter adjusts from 32Hz to 320Hz for more precise bass tuning.

What does the phase switch do?

Does the amplifier include a remote bass controller?
Yes. The JBL Club A600 provides a variable bass boost from 0dB to 12dB at 45Hz, together with a variable low-pass crossover adjustable between 32Hz and 320Hz.
