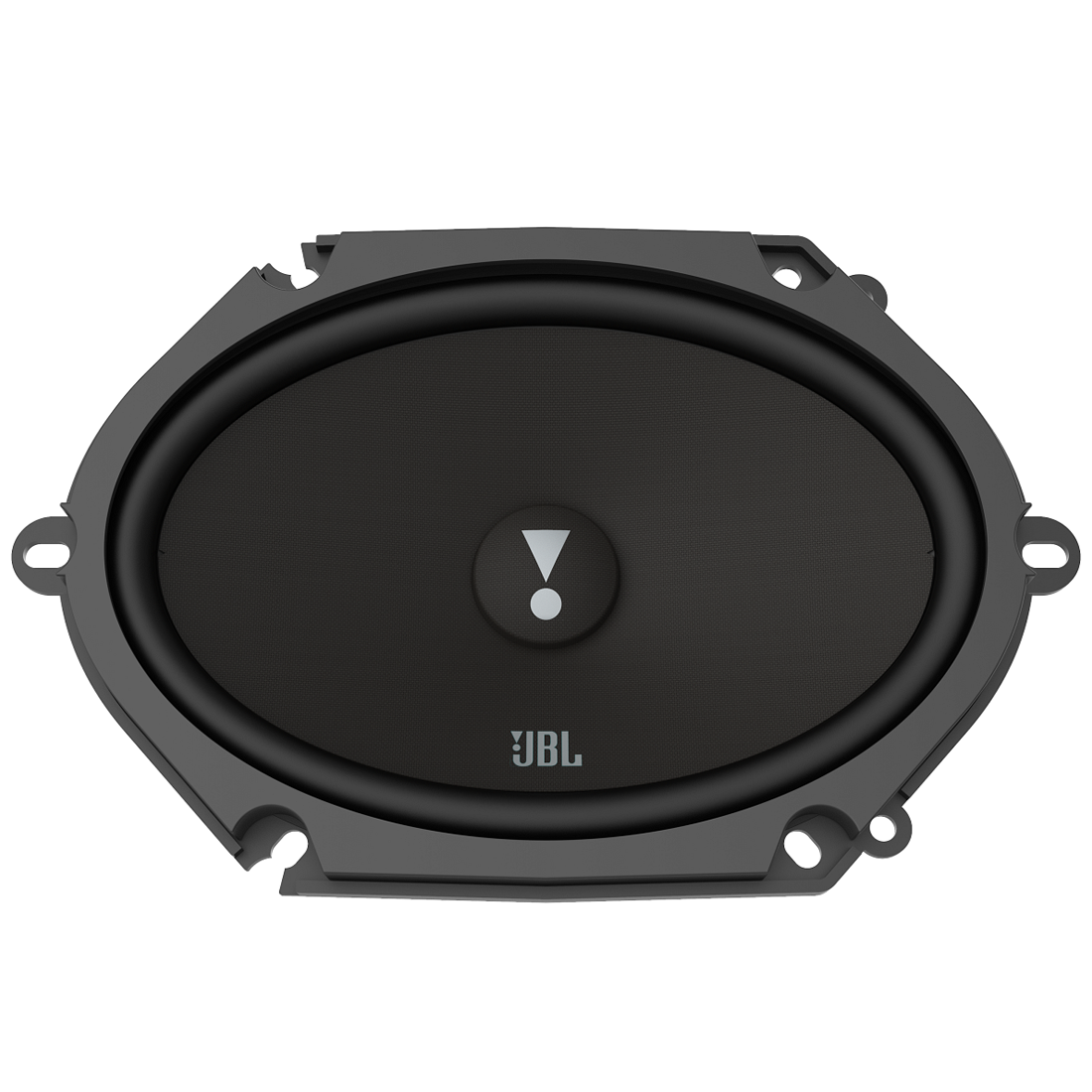

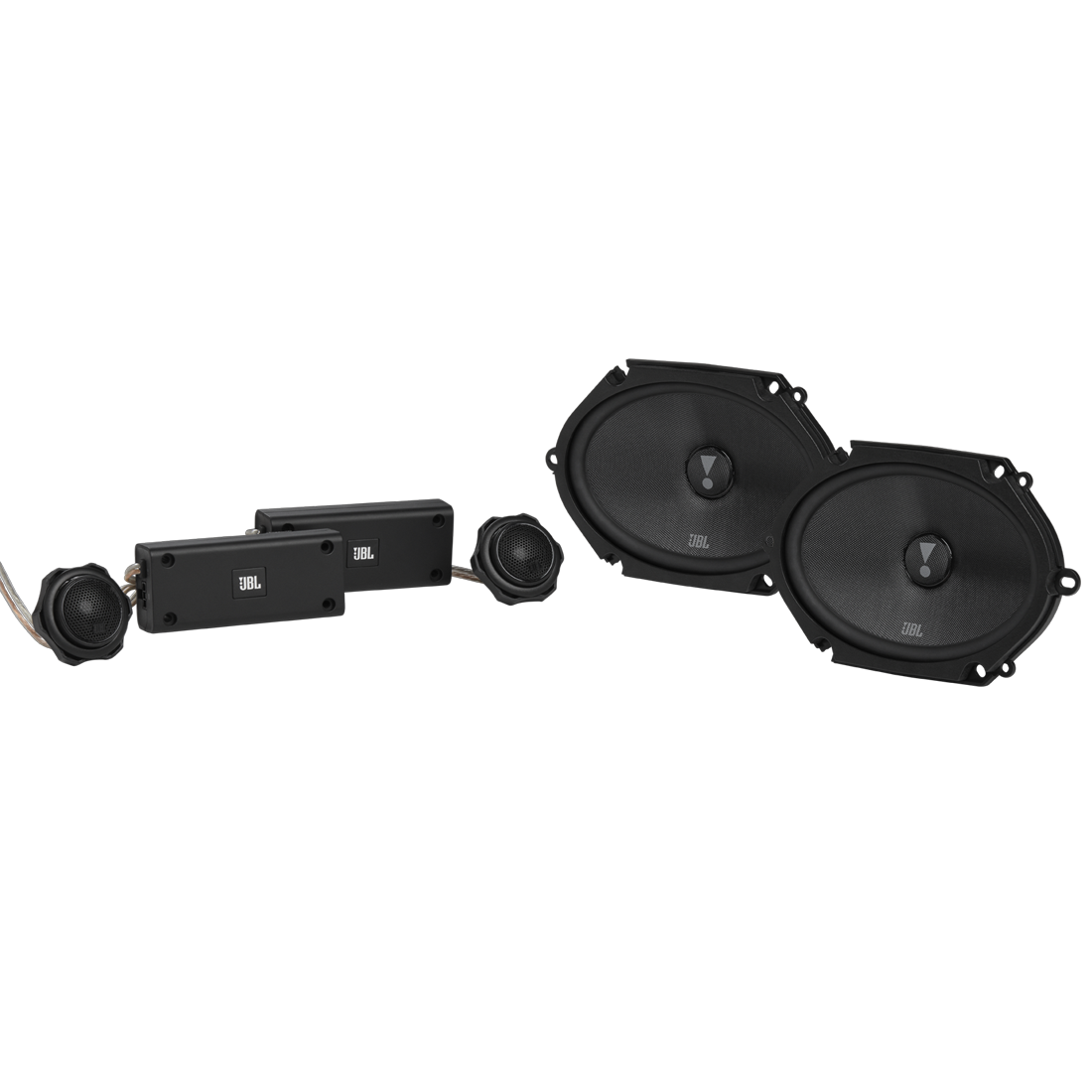

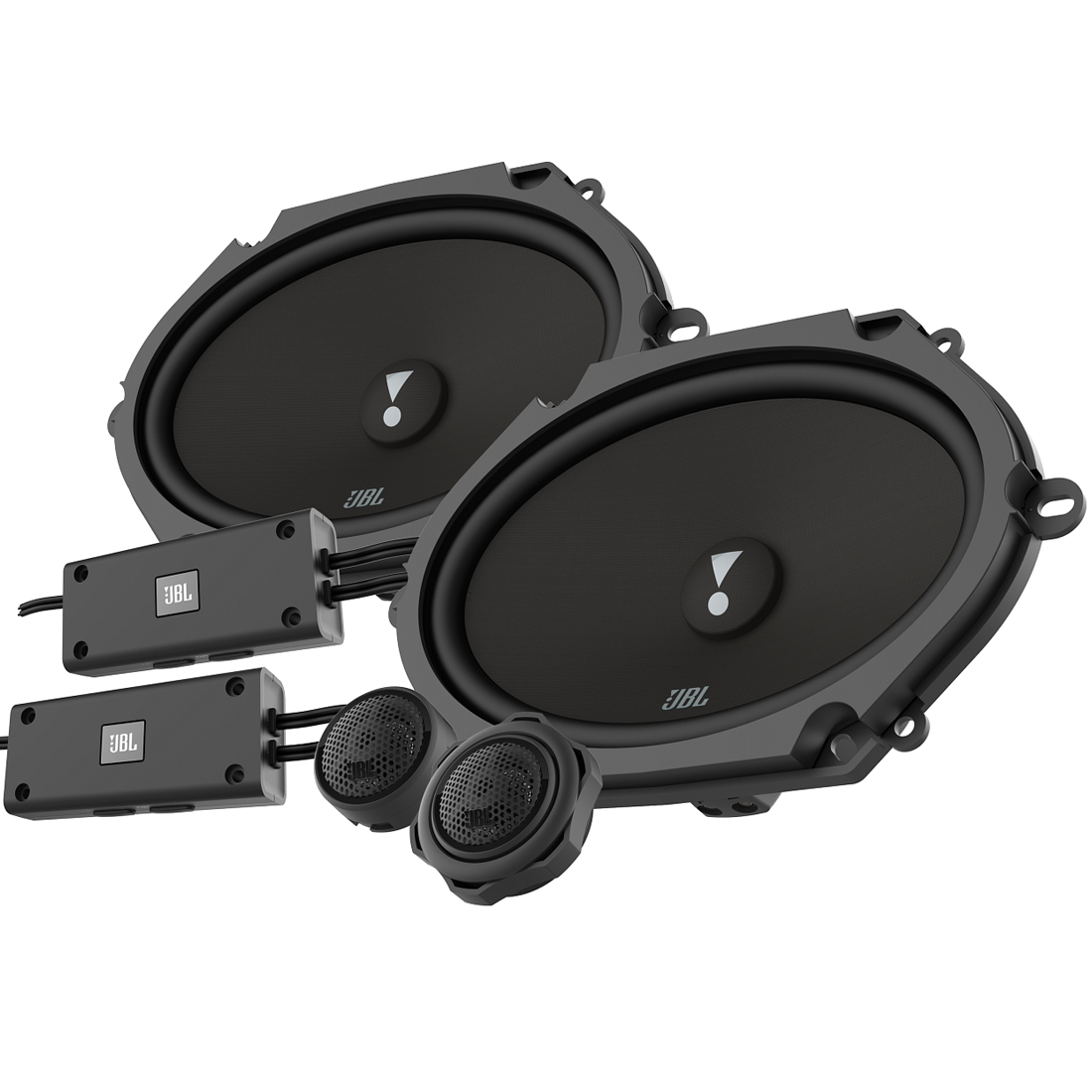

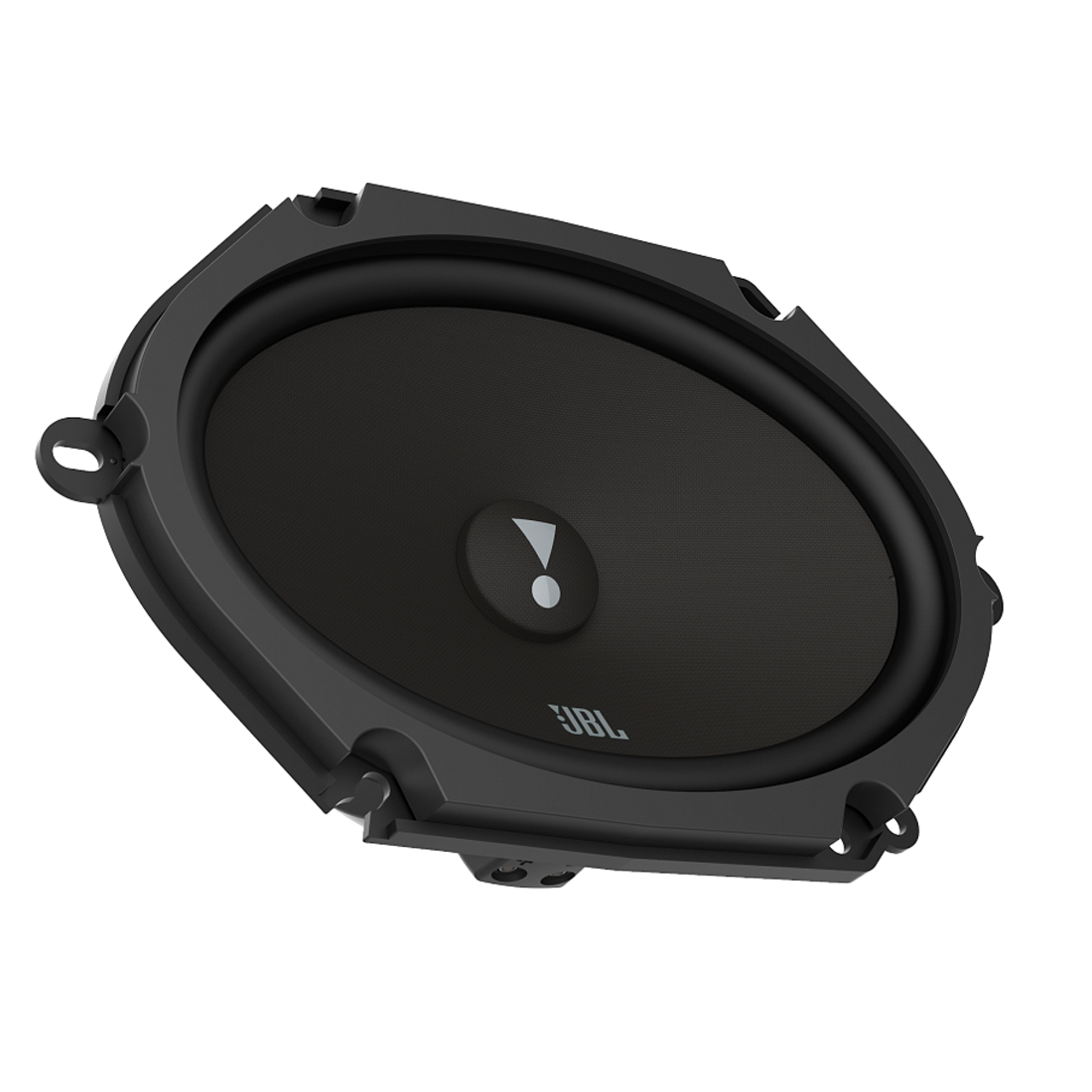

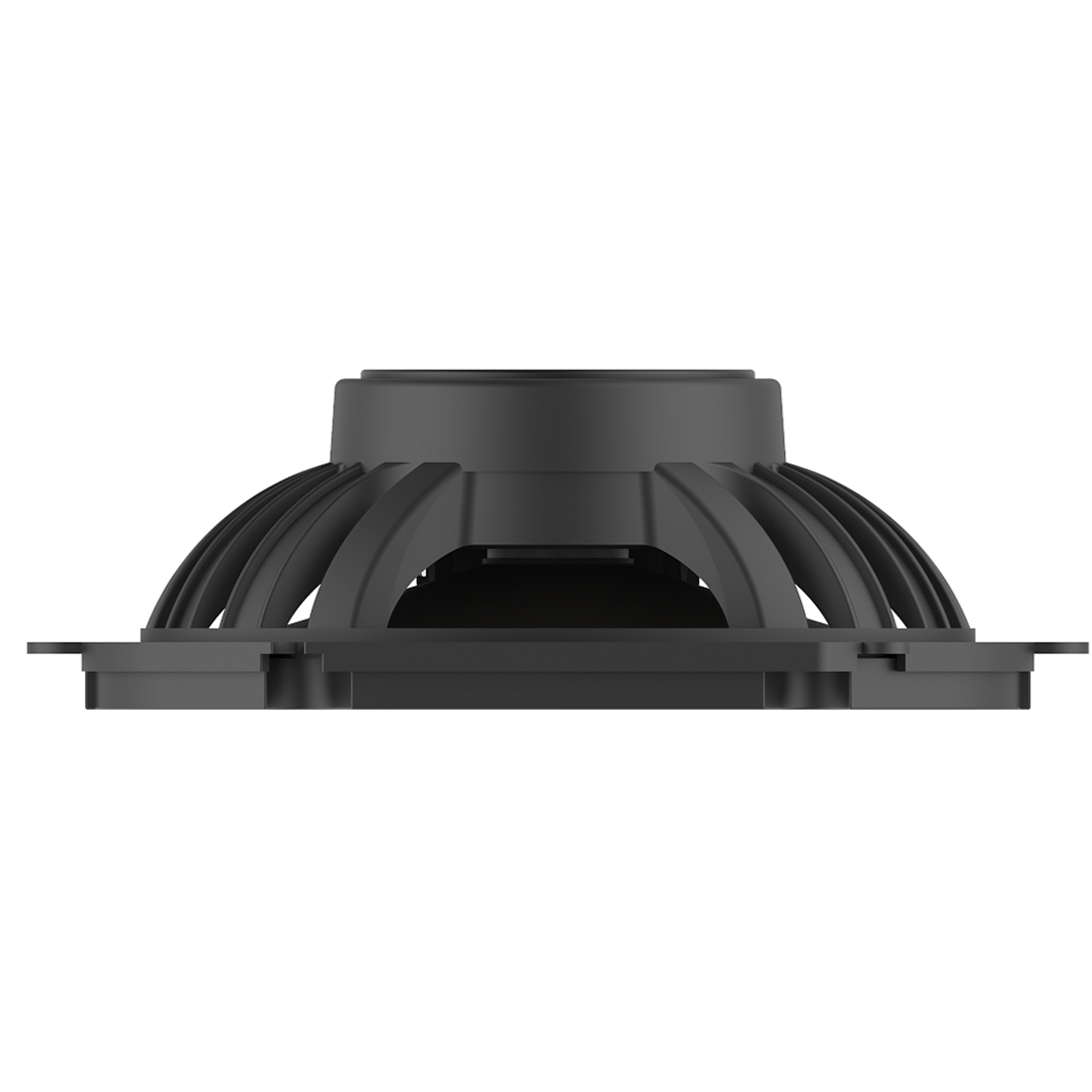

JBL Stadium 862CF 6 x 8" 2-Way Component Speaker System with 120 W RMS

JBL Stadium 862CF 6 x 8" 2-Way Component Speaker System with 120 W RMS

The JBL Stadium 862CF brings JBL’s 75-year audio pedigree into your vehicle with a powerful 6 x 8-inch 2-way component speaker system. With 120W RMS power handling, Plus One fiberglass woofers, high-resolution tweeters, and a frequency response reaching 40kHz, this system delivers deep bass and detailed highs for a more engaging drive.

High-Resolution Aluminum Dome Tweeters

The JBL Stadium 862CF features edge-driven aluminum dome tweeters with oversized voice coils. They deliver high-resolution performance up to 40kHz while providing impressive thermal power handling. Want your music to feel more open and detailed? These tweeters help bring the upper frequencies forward, turning your vehicle into a more immersive listening space.

Patented Plus One Glass Fiber Woofers

JBL equips the JBL Stadium 862CF with patented Plus One fiberglass woofer cones. Their lightweight yet stiff construction helps produce high-output, deep, and robust bass. Think of the woofer cone as the foundation of the sound: its construction helps give your music the weight and impact you can feel as well as hear.

Adjustable Tweeter Output Level

The JBL Stadium 862CF gives you more control over the tweeter output. A push-button allows you to select either 0dB or -3dB, helping optimize system linearity depending on the tweeter location. This flexibility lets you better balance the high frequencies with the rest of your audio system.

Ready for a 3-Way System Upgrade

Thinking about expanding your system later? The JBL Stadium 862CF crossover includes both 2-way and 3-way selections. You can add an optional 2-inch or 3-inch midrange speaker while maintaining tonal balance. This gives the component system room to grow without changing its core setup.

Slim and Smart Crossover Design

The JBL Stadium 862CF includes slim crossovers designed to take up less space. Each crossover also includes a connection cable and a push-button tweeter level control with 0dB and -3dB settings. The compact design keeps the system organized while giving you useful control over its high-frequency output.

Sleek Design with Premium Sound

The JBL Stadium 862CF combines its audio performance with a sleek design made to complement a wide range of vehicle interiors. Rather than choosing between appearance and performance, you get a speaker system designed to provide both while filling your car with JBL Stadium Series sound.

120W RMS Power Handling

The JBL Stadium 862CF delivers 120W RMS and 360W peak power, while providing strong output from its 6 x 8-inch design. Additionally, its 93dB sensitivity helps support efficient audio performance. Moreover, the 3.0-ohm impedance complements its overall specifications. Finally, a 40Hz–40kHz frequency response supports both deep lows and detailed highs.

JBL Stadium 862CF Specifications

• Speaker type: 6 x 8" 2-way component speaker system
• Power handling: 120W RMS
• Peak power handling: 360W
• Sensitivity at 2.83V: 93dB
• Frequency response: 40Hz–40kHz
• Impedance: 3.0 ohms
• Patented Plus One fiberglass woofer cones
• High-resolution tweeters with response up to 40kHz
• 0dB or -3dB tweeter output level control
• 2-way and 3-way crossover selections

What's in the Box?

The JBL Stadium 862CF package includes the speakers, tweeters, crossovers, mounting accessories, hardware, and documentation needed for the complete component system.

• 2 x STADIUM 862CF speakers
• 2 x Spacers
• 2 x Foam gaskets
• 2 x Crossovers
• 2 x Tweeters
• 2 x Threaded flush-mount adapters
• 2 x Plastic locking nuts
• 2 x Surface-mount cups
• 2 x Starfish tweeter mounts
• 22 x Screws
• 16 x Speed clips
• 1 x Allen head bit (2.5mm)
• 2 x JBL logo badges
• 2 x Brand stickers
• 1 x Owner’s manual

A Flexible Component System for JBL Sound

The JBL Stadium 862CF handles 120W RMS while combining Plus One fiberglass woofers with high-resolution tweeters. Additionally, adjustable tweeter output helps you fine-tune the sound to suit your listening preferences. Moreover, 3-way upgradability gives you flexibility to expand the 6 x 8-inch system later.

Frequently Asked Questions

What is the RMS power handling of the JBL Stadium 862CF? The JBL Stadium 862CF handles 120W RMS and up to 360W peak power.

What is the frequency response of this speaker system? It has a frequency response of 40Hz to 40kHz.

Can the tweeter output level be adjusted? Yes. The system provides 0dB and -3dB tweeter output level settings to help optimize system linearity.

Can this 2-way component system be upgraded to a 3-way system? Yes. The crossover includes 2-way and 3-way selections, allowing an optional 2-inch or 3-inch midrange speaker to be added.

What is the impedance of the JBL Stadium 862CF? The speaker system has a rated impedance of 3.0 ohms.
