Jensen CAR1013-R 10.1" Floating Touchscreen Digital Multimedia Receiver

Jensen CAR1013-R 10.1" Floating Touchscreen Digital Multimedia Receiver

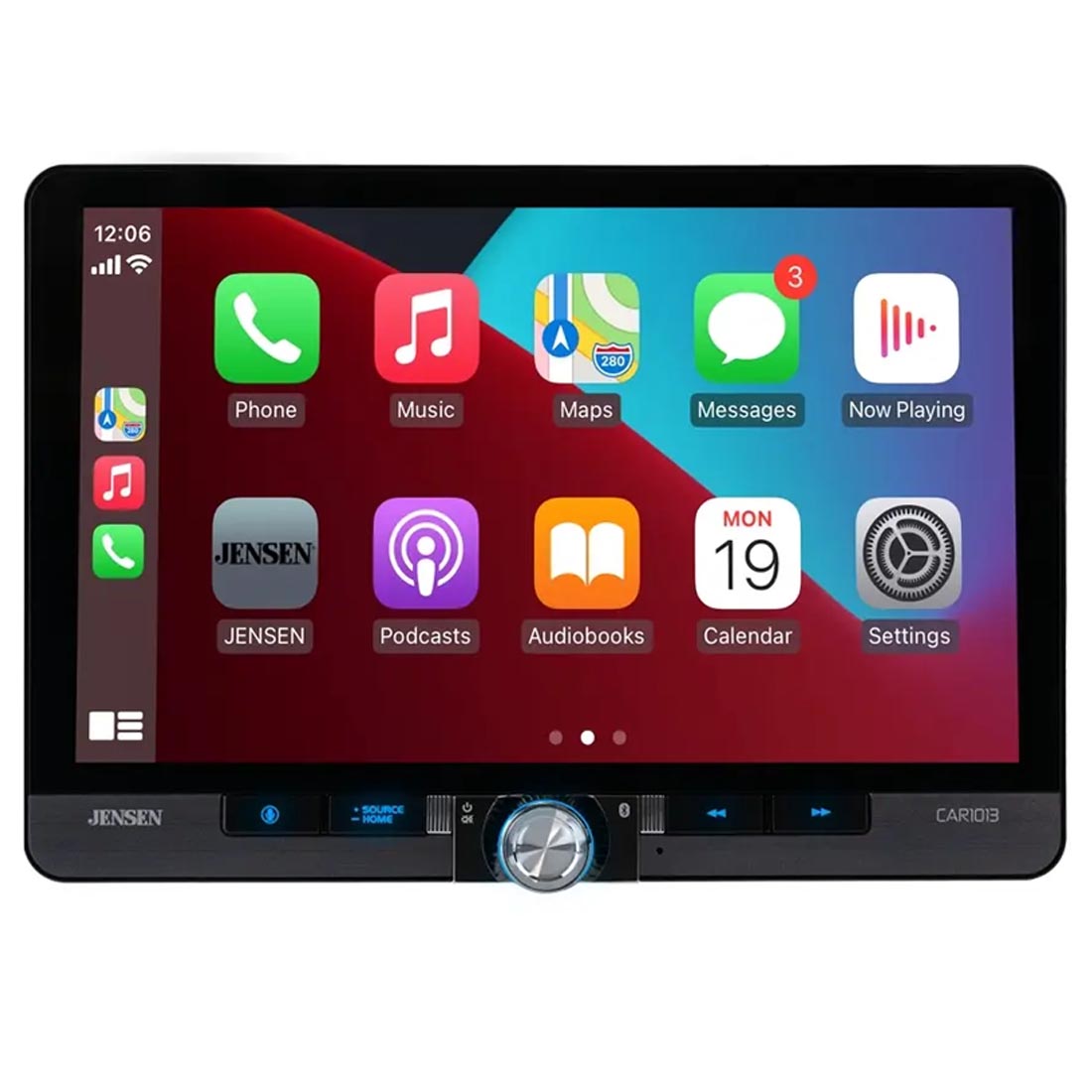

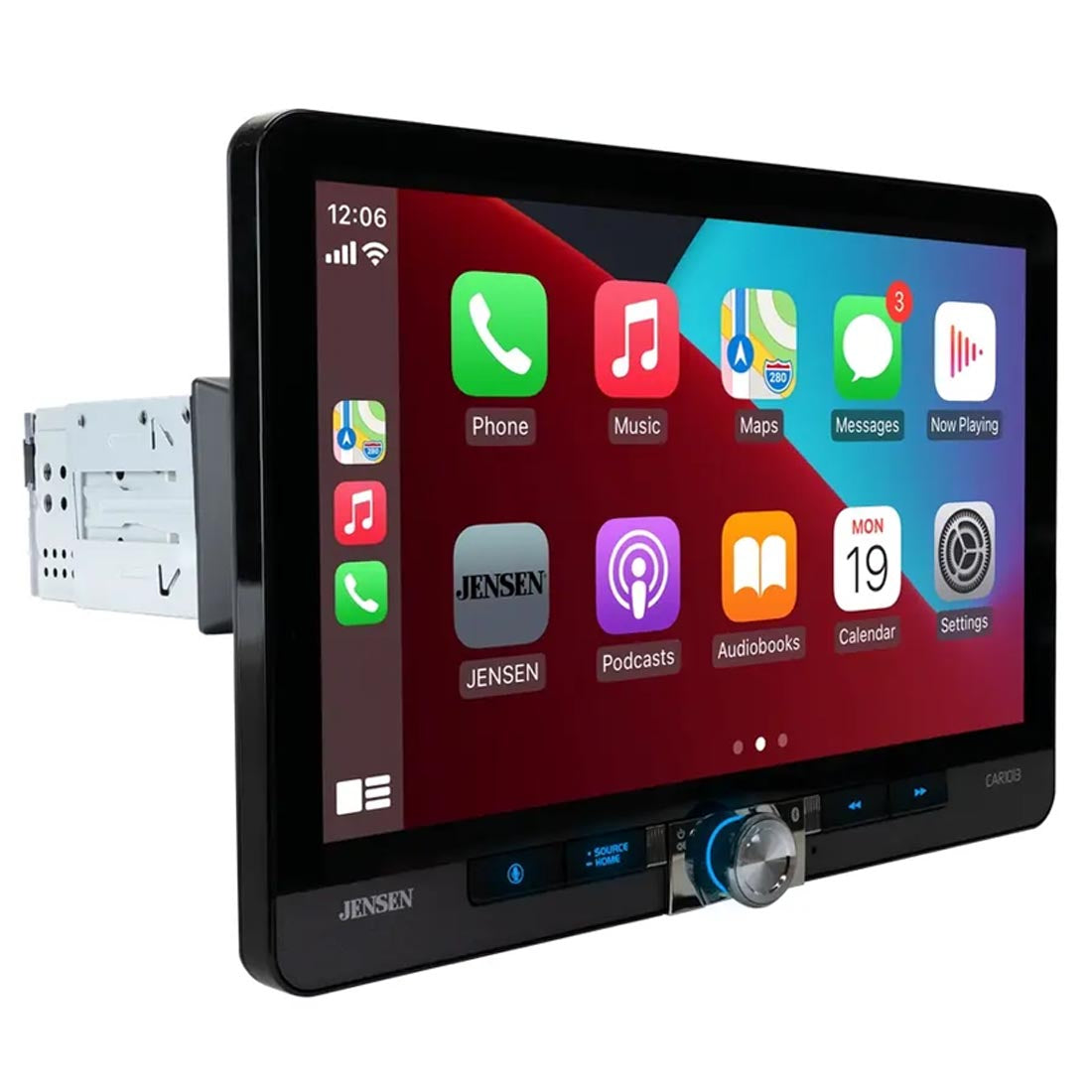

The Jensen CAR1013-R 10.1" Floating Touchscreen Digital Multimedia Receiver brings a large, adjustable display, wireless Apple CarPlay and Android Auto, and customizable audio controls to your vehicle. Its 10.1" capacitive touchscreen sits on a slim 4.5" single-DIN chassis, with an included adapter for double-DIN installation. The floating design features height, tilt and pivot adjustments, making it easy to position the screen for comfortable viewing across a wide range of dashboards.

10.1" Floating Touchscreen with Customizable Lighting

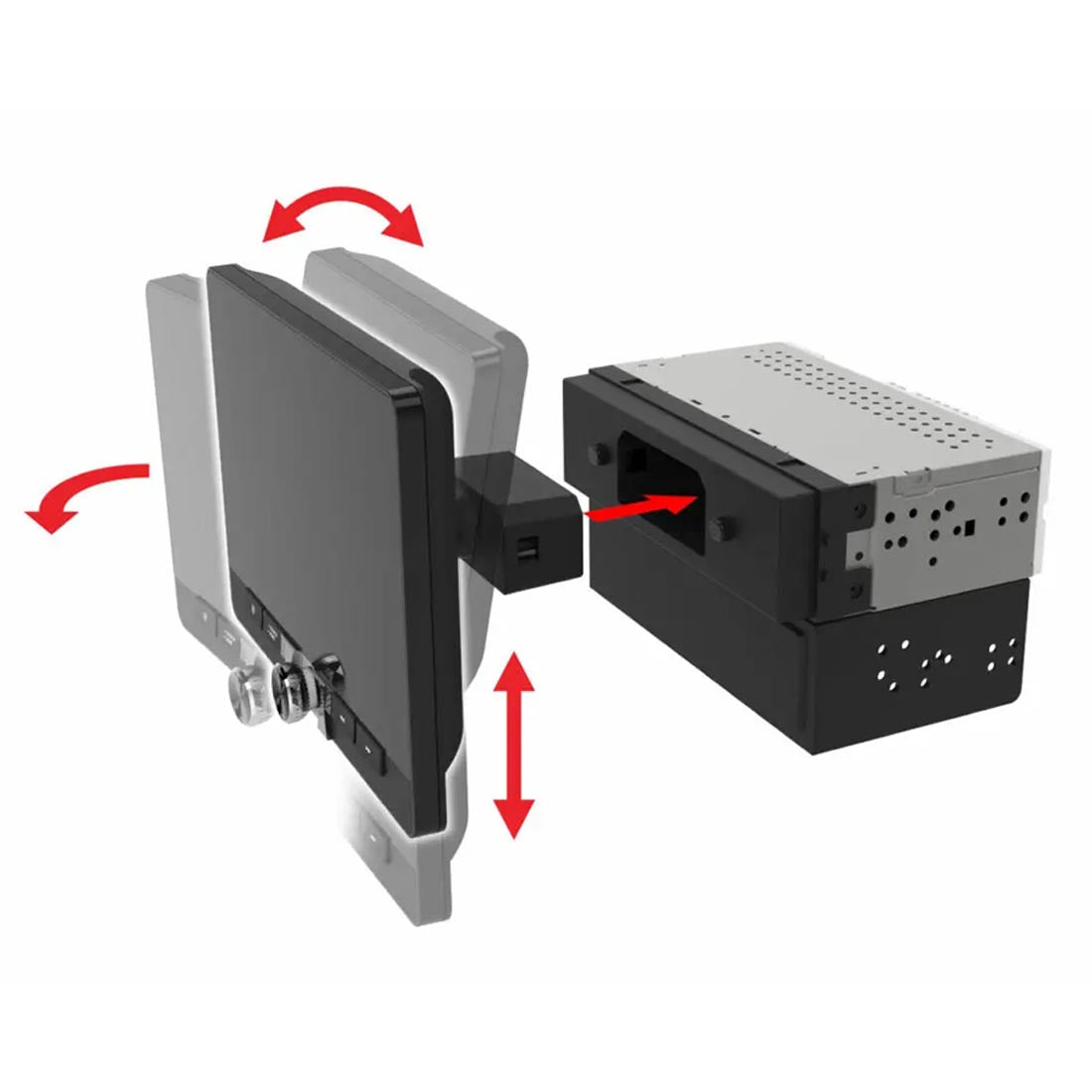

The Jensen CAR1013-R features a high-resolution 10.1" touchscreen that puts your favourite apps and media within easy reach. Its adjustable display lets you fine-tune the height, tilt and pivot to find a comfortable viewing angle. For a distinctive look, Jensen's IllumiNITE LED edge-lit light ring surrounds the screen with six preset colours, while three selectable wallpapers let you personalize the display.

Wireless Apple CarPlay and Android Auto

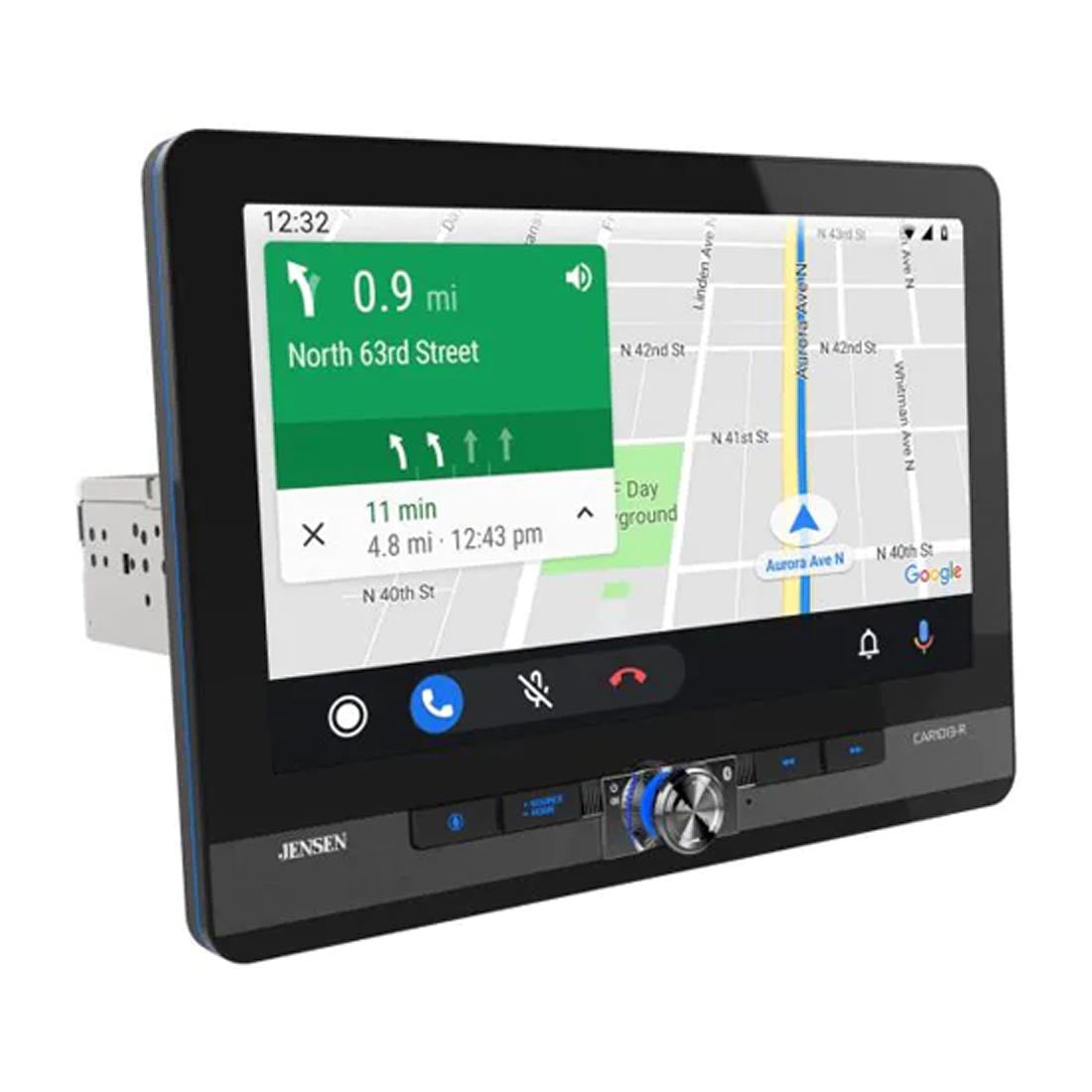

Stay connected with wireless and wired Apple CarPlay and Android Auto. Connect a compatible smartphone to access maps, messages, music and other supported phone features directly through the receiver's touchscreen or voice control. Both platforms launch when a compatible phone connects wirelessly or through USB, giving you flexible options for accessing your favourite features while driving. A dedicated push-to-talk button also lets you interact with your smartphone's voice assistant.

Bluetooth Hands-Free Calling and Audio Streaming

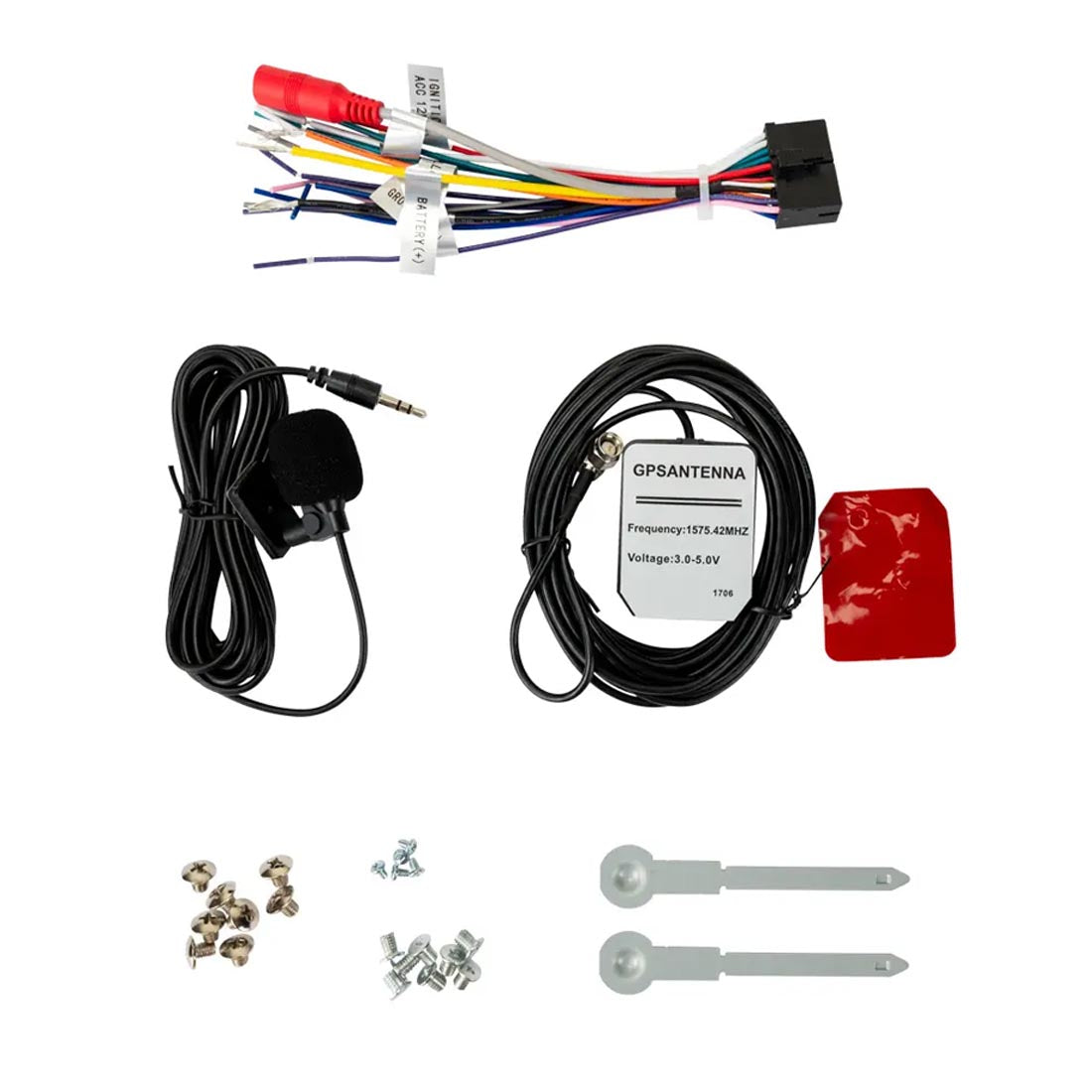

Built-in Bluetooth makes it easy to handle calls and stream audio from a compatible smartphone. The included external microphone supports hands-free calling, while phonebook support helps you access your contacts through the receiver. Whether you're answering a call or listening to your favourite playlists, the Jensen CAR1013-R keeps essential communication and audio functions accessible from the dash.

Customizable Audio with a 10-Band Equalizer

Fine-tune your listening experience with the 10-band equalizer and seven preset EQ curves: Pop, Jazz, Rock, Flat, Classic, Beat and User. Source-level volume control helps balance audio levels between different sources, while the built-in subwoofer crossover offers settings of Off, 50 Hz, 80 Hz, 120 Hz and 160 Hz. Dedicated subwoofer gain control provides additional flexibility when adjusting your system's bass output.

Amplifier-Ready Connectivity and Powerful Output

With 240 watts of peak power (60 watts x 4) from its MOSFET amplifier, the Jensen CAR1013-R delivers built-in power for your car audio setup. For those looking to expand their system, three pairs of 4 V preamp outputs provide dedicated front, rear and subwoofer connections for external amplifiers. This flexible output configuration makes it easier to build a more advanced audio system around your preferred components.

Front and Rear Camera Inputs

Improve visibility around your vehicle with front and rear camera inputs. Connect compatible cameras to display the surrounding area when manoeuvring or reversing, adding another useful function to the receiver's large touchscreen. The separate camera inputs provide flexibility for configuring your vehicle's camera setup.

USB Playback, Charging and AM/FM Radio

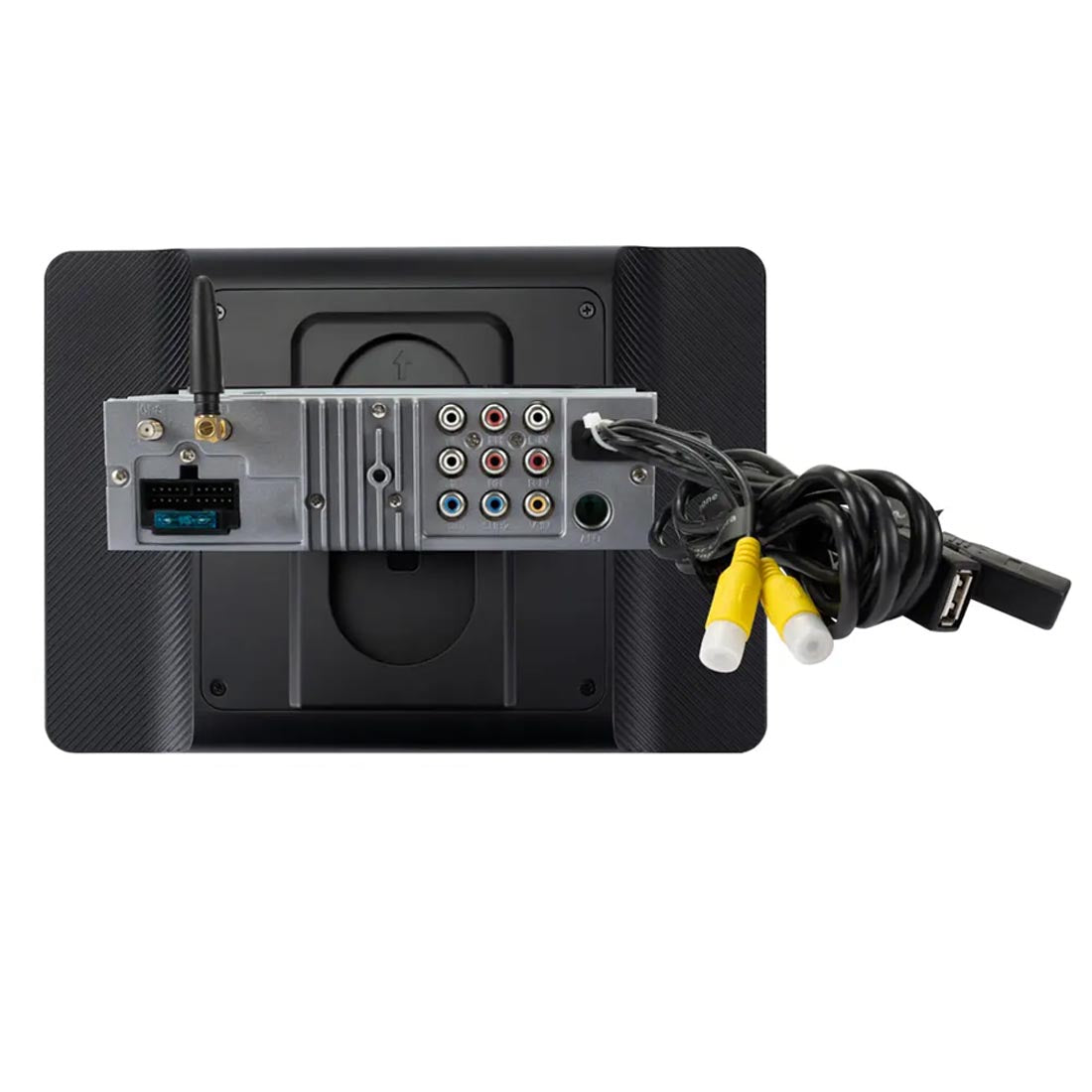

Two rear USB ports provide 2.1 A charging and support MP3 and FLAC audio playback from compatible USB devices. The Jensen CAR1013-R also includes an AM/FM tuner with 30 station presets, comprising 18 FM and 12 AM stations, so you can keep your favourite radio stations close at hand. A rear audio/video input adds another connection option for compatible external sources.

Flexible Single-DIN and Double-DIN Compatibility

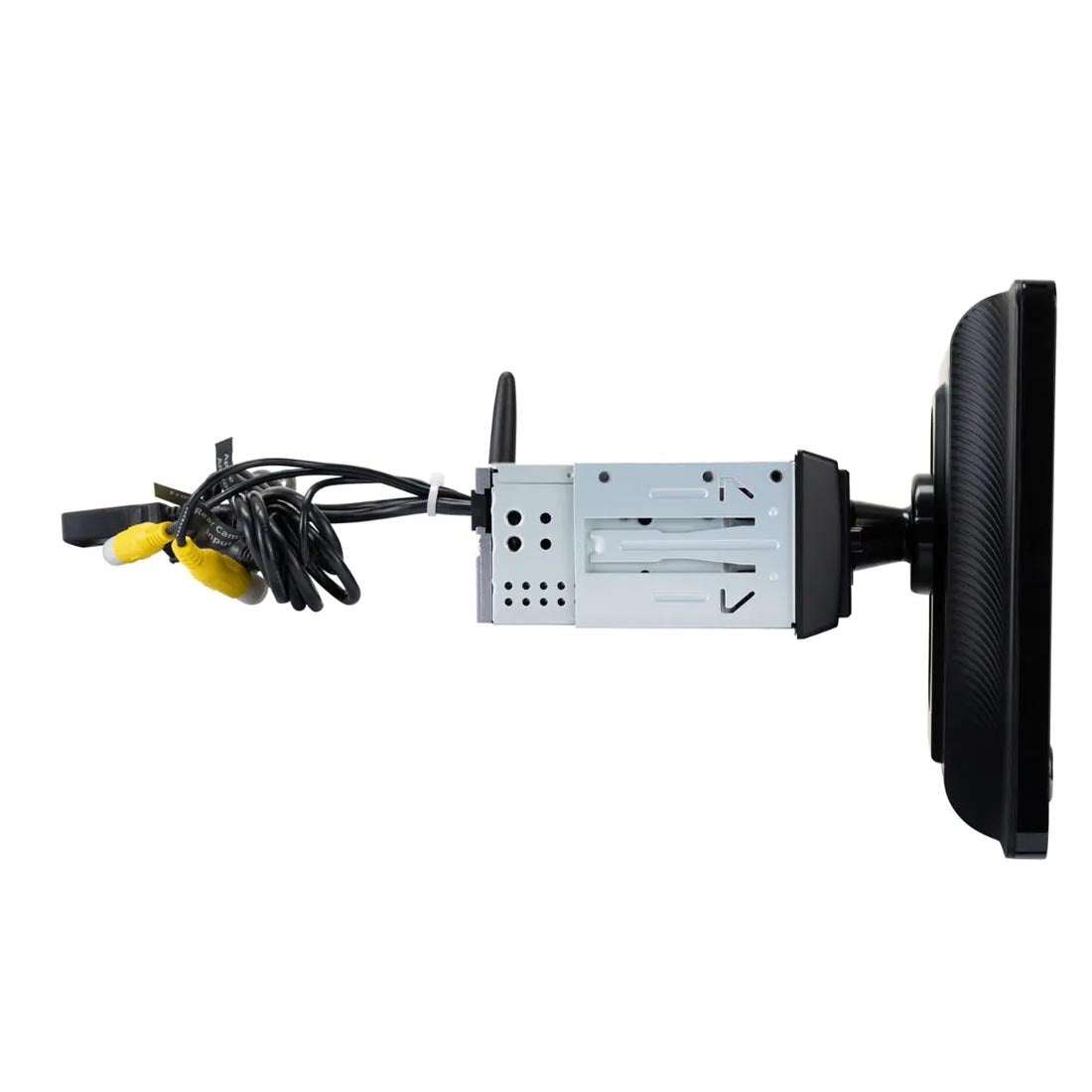

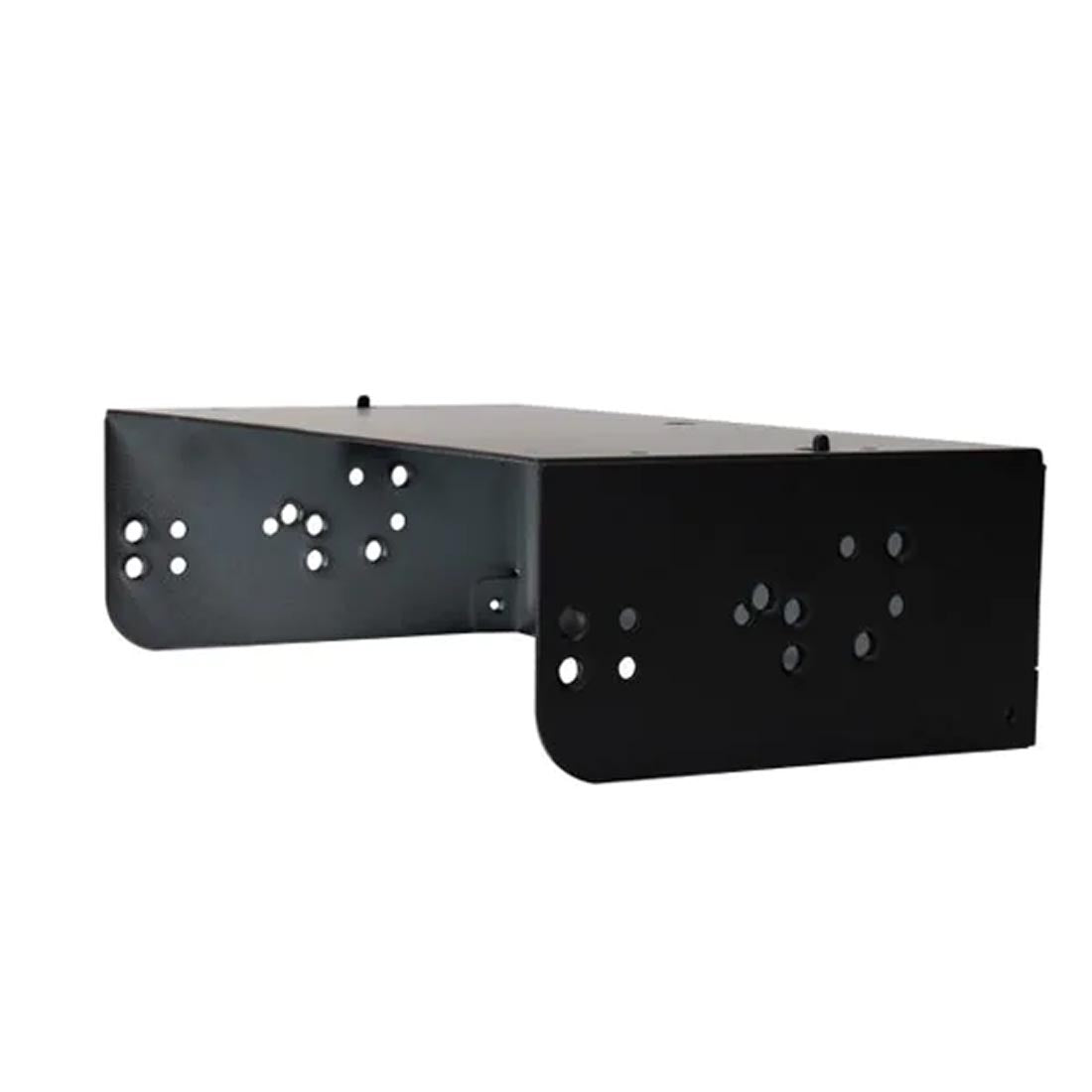

Despite its large 10.1" display, the Jensen CAR1013-R uses a slim 4.5"-deep chassis designed for flexible dashboard configurations. It supports single-DIN and double-DIN installation, with the included adapter accommodating either mounting format. Steering wheel control compatibility is also available with a required adapter, helping you retain convenient access to compatible vehicle controls.

With its oversized adjustable touchscreen, wireless smartphone integration, Bluetooth connectivity and flexible audio expansion options, the Jensen CAR1013-R is a versatile multimedia upgrade for compatible vehicles. From everyday navigation and hands-free calls to customized sound and camera connectivity, it brings essential entertainment and convenience features together in one floating-screen receiver.

FAQs

1. Does the Jensen CAR1013-R support wireless Apple CarPlay and Android Auto? Yes, it supports both wireless and wired Apple CarPlay and Android Auto with a compatible smartphone.
2. Can the Jensen CAR1013-R fit a single-DIN dashboard? Yes, it features a slim 4.5"-deep single-DIN chassis and includes an adapter for double-DIN installation.
3. Can I connect an external amplifier to the Jensen CAR1013-R? Yes, it has three pairs of 4 V preamp outputs for front, rear and subwoofer connections.
4. Does the Jensen CAR1013-R support backup cameras? Yes, it includes both front and rear camera inputs for connecting compatible cameras.
5. What audio formats can the Jensen CAR1013-R play through USB? It supports MP3 and FLAC audio playback through its two rear USB ports.
