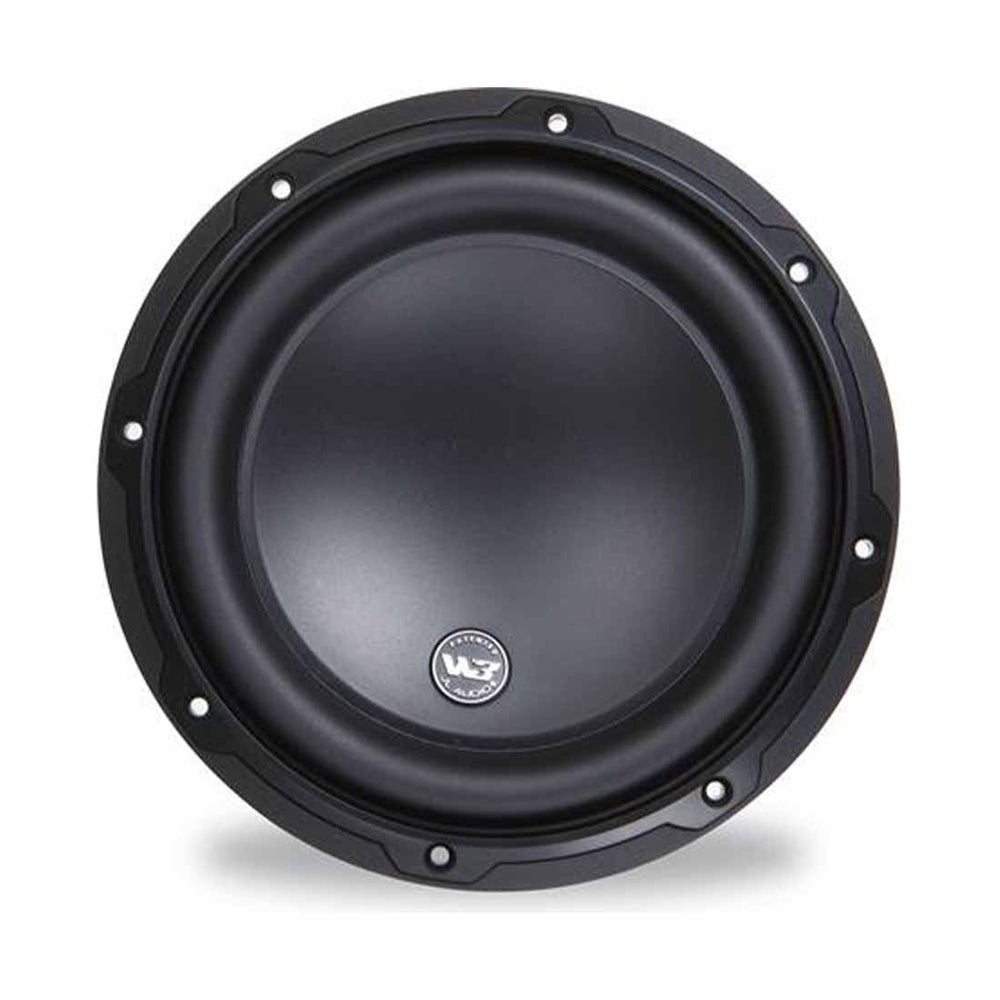

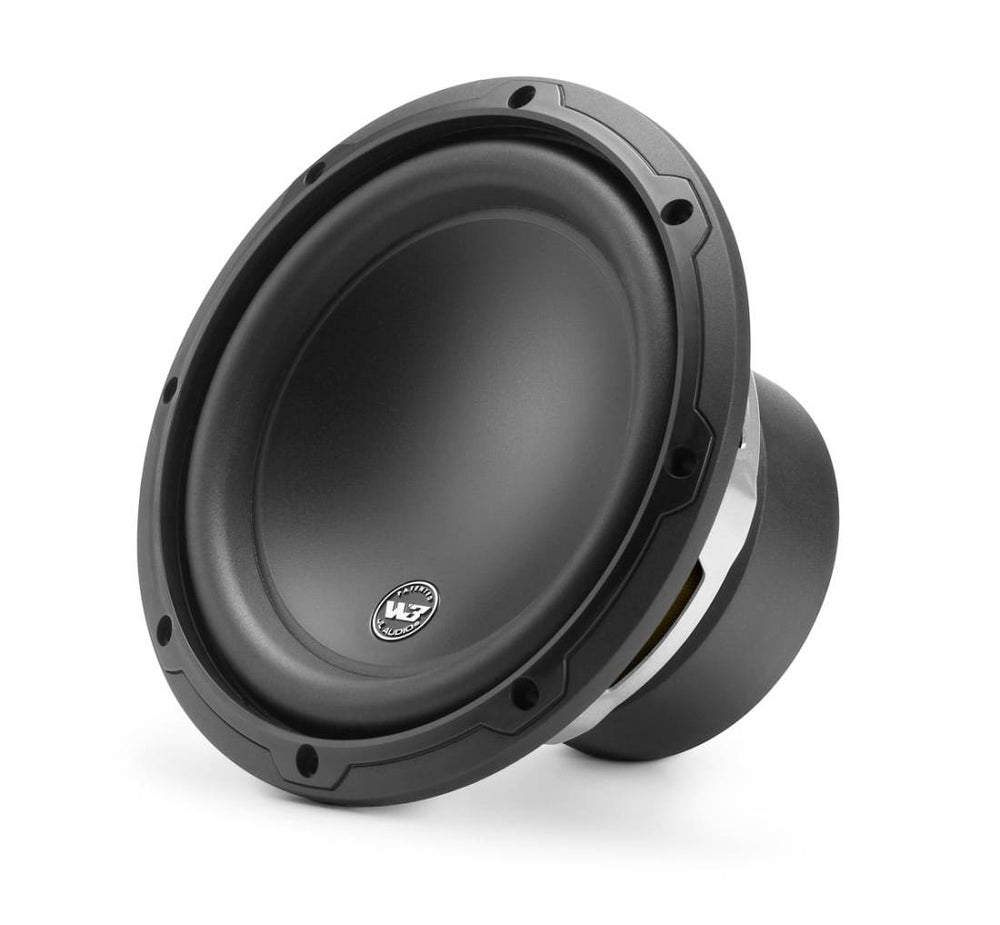

JL Audio 8W3v3-4 8" 250 Watt 4 Ohm Subwoofer – #92148

Product Descriptions

JL Audio 8W3v3-4 250 Watt 8" Subwoofer - #92148

8W3v3-4 8-inch Subwoofer (250 W, 4 ?) If you need an 8-inch subwoofer that can create outstanding bass in extremely small enclosures, the 8W3v3 will do the job and surprise you with its power and accuracy. It employs the same technologies as its larger diameter brethren to deliver a whopping 0.375 in. (10 mm) of controlled, one-way, linear excursion. The 8W3v3-4 is best used with amplifier power in the 75W - 250W range and is optimized to operate in a tiny 0.30 cu. ft. (8.5 l) sealed enclosure, or a 0.35 cu. ft. (9.9 l) ported enclosure.

Detailed enclosure recommendations can be found in the "Specifications" tab. If you need an 8-inch subwoofer that can create outstanding bass in extremely small enclosures, the JL Audio 8W3v3-4 will do the job and surprise you with its power and accuracy. It employs the same technologies as its larger diameter brethren to deliver a whopping 0.375 in. (10 mm) of controlled, one-way, linear excursion. The JL Audio 8W3v3-4 is best used with amplifier power in the 75W - 250W range and is optimized to operate in a tiny 0.30 cu. ft. (8.5 l) sealed enclosure, or a 0.35 cu. ft. (9.9 l) ported enclosure. Detailed enclosure recommendations can be found in the "Features & Specs" tab.

Remarkably realistic bass

JL Audio designed their JL Audio 8W3v3-4 subwoofers to deliver powerful, accurate bass with a medium-power amplifier. Their extensive motor assembly research resulted in a design that ensures smooth, precise cone movement at any power level. Exclusive cooling features shunt heat away from the sub's internal motor structure for long term durability and reduced distortion. The W3v3 sub works well in a sealed or ported enclosure.

Well-rounded performance

The JL Audio 8W3v3-4 subwoofer boasts an 8" mineral-filled polypropylene cone with a distinctive metallic JL Audio medallion. A patented design eases the stress felt by the rubber surround during cone movement, for increased reliability and consistent bass output. The removable, customizable trim ring accepts optional JL Audio grilles, and can be painted to enhance your installation.

8W3v3-4 Dimensions

Nominal Diameter 8.0 in / 200 mm
Overall Diameter (A) 8.54 in / 217 mm
Mounting Hole Diameter (B) 7.09 in / 180 mm
Bolt Hole Circle Diameter (C) 7.85 in / 199 mm
Motor Outer Diameter (D) 4.75 in / 121 mm
Mounting Depth (E) 4.63 in / 118 mm
Driver Displacement 0.03 cu ft / 0.85 L
Net Weight 8.2 lb / 3.7 kg

Documents

Warranty

SKU: 8W3V3-4 UPC: 699440921480
$449.95
or

Payment as low as

$37.49/mo
Info icon

This monthly payment does not include any applicable tax or interest

Lowest Price GuaranteeLowest Price Guarantee

Ships directly from alternative warehouse, ships within 2-3 business days

  • power range: 50-250 watts RMS
  • peak power handling: 500 watts
  • frequency response: 28-250 Hz
  • sensitivity: 83.24 dB

30-day Return Policy
Info icon

Does not apply to special order items.

Lowest Price Guarantee

Product Descriptions

JL Audio 8W3v3-4 250 Watt 8" Subwoofer - #92148

8W3v3-4 8-inch Subwoofer (250 W, 4 ?) If you need an 8-inch subwoofer that can create outstanding bass in extremely small enclosures, the 8W3v3 will do the job and surprise you with its power and accuracy. It employs the same technologies as its larger diameter brethren to deliver a whopping 0.375 in. (10 mm) of controlled, one-way, linear excursion. The 8W3v3-4 is best used with amplifier power in the 75W - 250W range and is optimized to operate in a tiny 0.30 cu. ft. (8.5 l) sealed enclosure, or a 0.35 cu. ft. (9.9 l) ported enclosure.

Detailed enclosure recommendations can be found in the "Specifications" tab. If you need an 8-inch subwoofer that can create outstanding bass in extremely small enclosures, the JL Audio 8W3v3-4 will do the job and surprise you with its power and accuracy. It employs the same technologies as its larger diameter brethren to deliver a whopping 0.375 in. (10 mm) of controlled, one-way, linear excursion. The JL Audio 8W3v3-4 is best used with amplifier power in the 75W - 250W range and is optimized to operate in a tiny 0.30 cu. ft. (8.5 l) sealed enclosure, or a 0.35 cu. ft. (9.9 l) ported enclosure. Detailed enclosure recommendations can be found in the "Features & Specs" tab.

Remarkably realistic bass

JL Audio designed their JL Audio 8W3v3-4 subwoofers to deliver powerful, accurate bass with a medium-power amplifier. Their extensive motor assembly research resulted in a design that ensures smooth, precise cone movement at any power level. Exclusive cooling features shunt heat away from the sub's internal motor structure for long term durability and reduced distortion. The W3v3 sub works well in a sealed or ported enclosure.

Well-rounded performance

The JL Audio 8W3v3-4 subwoofer boasts an 8" mineral-filled polypropylene cone with a distinctive metallic JL Audio medallion. A patented design eases the stress felt by the rubber surround during cone movement, for increased reliability and consistent bass output. The removable, customizable trim ring accepts optional JL Audio grilles, and can be painted to enhance your installation.

8W3v3-4 Dimensions

Nominal Diameter 8.0 in / 200 mm
Overall Diameter (A) 8.54 in / 217 mm
Mounting Hole Diameter (B) 7.09 in / 180 mm
Bolt Hole Circle Diameter (C) 7.85 in / 199 mm
Motor Outer Diameter (D) 4.75 in / 121 mm
Mounting Depth (E) 4.63 in / 118 mm
Driver Displacement 0.03 cu ft / 0.85 L
Net Weight 8.2 lb / 3.7 kg

Documents

Warranty

JL Audio 8W3v3-4 8" 250 Watt 4 Ohm Subwoofer – #92148

JL Audio 8W3v3-4 8" 250 Watt 4 Ohm Subwoofer – #92148

$449.95

Key Points

  • power range: 50-250 watts RMS
  • peak power handling: 500 watts
  • frequency response: 28-250 Hz
  • sensitivity: 83.24 dB
