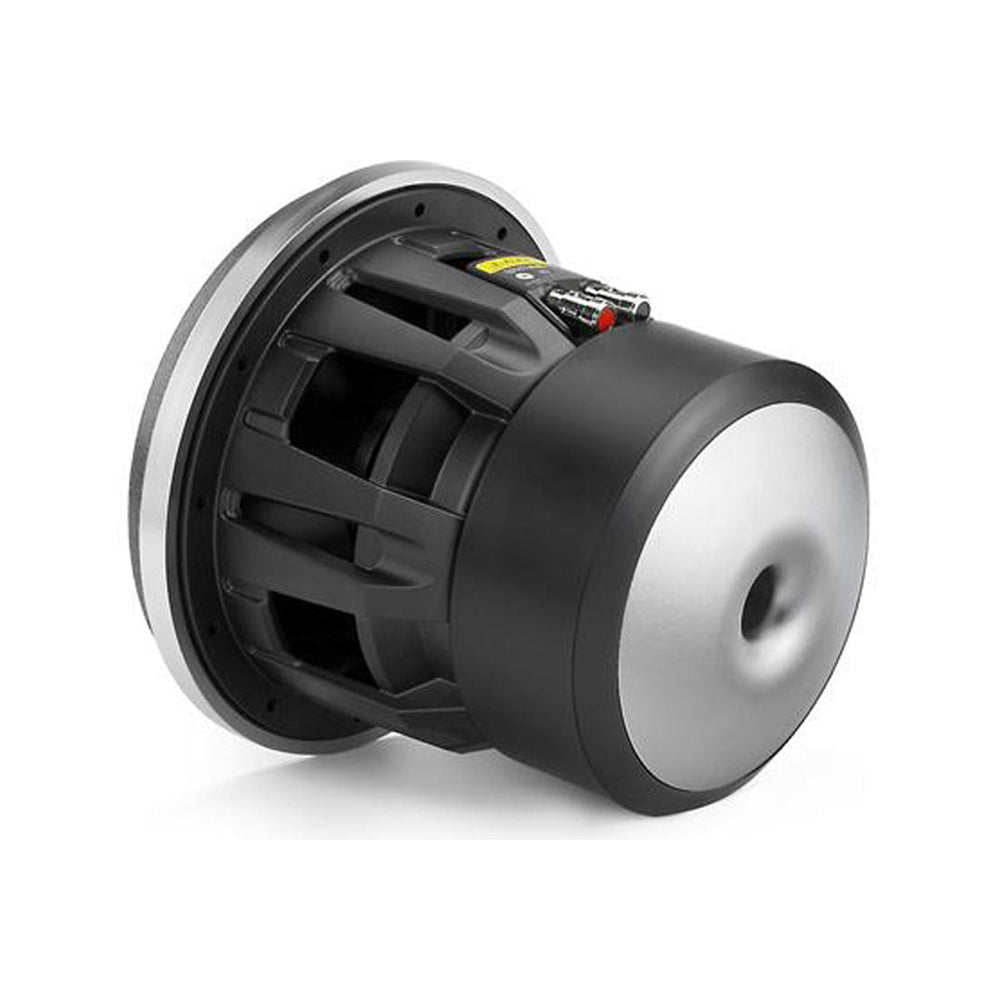

JL Audio 8W7AE-3 8" 500 Watt 3 Ohm Subwoofer – #92117

Product Descriptions

JL Audio 8W7AE-3 Edition W7 Series 8" 3-ohm Subwoofer - #92117

10th Anniversary Edition - 8W7AE-3 8-inch Subwoofer (500 W, 3 ?) This Subwoofer has been called the "best damn 8-inch subwoofer ever made" for its remarkable performance capabilities and design attributes. An impressive linear excursion envelope that exceeds 0.75 in. (19 mm) one-way allows it to deliver impact well beyond the range of other 8-inch Subwoofers. The 8W7AE-3 is best used with amplifier power in the 200W - 500W range and is optimized to operate in a 0.875 cu. ft. (24.8 l) sealed enclosure, or a 1.0 cu. ft. (28.3 l) ported enclosure. 8W7AE-3 (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but are they distinguished by the following cosmetic differences:

  • Satin-Black Powder coated Baskets
  • Bright Anodized Surround Clamp Ring
  • Anniversary Edition Cone Badge
  • Anniversary Edition Terminal Label

Celebrating 10 years of unrivaled bass performance

Ten years ago, JL Audio redefined low-frequency reproduction with their masterful, designed-from-scratch W7 subs. Now, the Anniversary Edition W7 Series 8W7AE-3 8" subwoofer features the latest refinements to this ground breaking design, highlighted by a satin-black frame, silvery anodized trim ring, and special anniversary logo.

Innovative design for impressive performance

Six patented technologies help this W7 sub deliver unmatched performance:

  • W-Cone™: a dish-shaped outer cone is supported by a second W-shaped inner cone attached to the sub's voice coil structure. This design creates a super-rigid, lightweight cone that responds rapidly for accurate bass without unwanted coloration.
  • OverRoll™: an innovative mounting method lets the surround wrap around the outside of the mounting flange. This method allows for more useable cone area than conventional surrounds, so this sub moves more air for deeper lows.
  • Floating Cone Attach Method (FCAM™): precision engineering aligns the voice coil, and woofer cone for incredibly linear woofer movement, which means you'll hear exceptionally accurate bass.
  • Plateau-reinforced spider attachment: a collar on the voice coil eases stress on the spider for extended excursion and improved reliability.
  • Elevated frame cooling and cross-drilled pole-piece: cone movement pumps air through vents in the frame and machined holes in the pole piece. Your voice coils stay cooler, even when you're pushing your system.

Profound bass for the music-lover

Each W7 sub is built to meticulous standards at JL Audio's factory in Miramar, Florida. JL Audio put 30+ years of sonic expertise into their legendary W7 subwoofers, so you can expect smooth, powerful bass that enhances your favorite music.

8W7AE-3 Physical Dimensions:

Nominal Diameter 8.0 in / 200 mm
Overall Diameter (A) 8.5 in / 216 mm
Mounting Hole Diameter (B) 6.94 in / 176 mm
Bolt Hole Circle Diameter (C) 7.39 in / 188 mm
Motor Outer Diameter (D) 5.79 in / 147 mm
Mounting Depth (E) 6.83 in / 173 mm
Driver Displacement 0.06 cu ft / 1.7 L
Net Weight 17 lb / 7.8 kg

8W7AE-3 Features

W-Cone: The JL Audio W7AE subwoofers utilize a patented W-Cone design; the unit-body cone assembly maximizes cone stiffness with minimal mass. The shape also provides torsional rigidity, critical to maintaining voice coil alignment at the suspension limits. Two lightweight mineral-filled polypropylene skins are bonded together at the perimeter and the center of the assembly. The lower skin's cross-section is shaped like a W and the upper skin is the part of the cone visible from the top. OverRoll Surround: OverRoll Surround technology allows JL Audio to make use of the entire footprint of the speaker, placing the surround further to the outside than in a conventional woofer. This means the oversized surround can support greater x-max without sacrificing cone area. An added benefit is that the mounting holes are sealed by the surround, resulting in an improved box seal. Ultra-Long Voice Coil: The W7AE subwoofers feature an ultra-long voice coil to enhance linear excursion, power handling and control. The large surface area of the coil offers excellent heat dissipation, while the winding height provides the necessary motivational force to achieve the excursion of the W7AE design. Floating Cone Attachment Method (FCAM): JL Audio's patented FCAM technology is an innovative method of bonding the surround/cone assembly to the voice coil/spider assembly. This assembly technique ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment. Dynamic Motor Analysis (DMA): DMA is JL Audio's proprietary analysis method aimed at improving dynamic motor behavior. As a result of DMA optimization, W7AE motors remain linear in motor force over a long range of excursion, and also maintain a stable fixed magnetic field in the gap over a wide power range. This leads to reduced distortion, faithfully reproduced transients, and tight, clean, articulate bass. Forced Air Cooled: The elevated frame design of the W7AE delivers cool air through slots directly above the top-plate to the voice coil. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression. Radial Cross-Drilled Pole Piece: This venting system enhances heat dissipation and power handling by directing air flow onto the voice coil former, working in conjunction with the Forced Air Cooling technology. Progressive-Roll Spider: The large, progressive-roll spider provides precise control and motor/voice coil alignment without limiting excursion prematurely. Plateau-Reinforced Spider Attachment: A derivative of JL Audio's VRC technology, this suspension attachment relieves stress from the spider material at high excursions for enhanced reliability. Co-Extruded Double Lead Wires: The extruded casing and carefully engineered attachments ensure controlled lead-wire behavior under the most extreme excursion demands. Two conductors are used per connection for ample current carrying capability.

8W7AE-3 Enclosure Compatibility

Sealed Box: The recommended sealed box volume is 0.875 cubic feet; a diagram is provided in the owner's manual for a sealed box with external dimensions of 14.0" W x 11.875" H x 14.0" D, assuming 3/4" thick box material (If you are using 5/8" thick materials, you should subtract 1/4" from each dimension). Ported Box: The recommended ported box volume is 1.0 cubic feet; a diagram is provided in the owner's manual for a slot ported box with external dimensions of 27.0" W x 10.0" H x 12.0" D, assuming 3/4" thick box material (If you are using 5/8" thick materials, you should subtract 1/4" from each dimension). A slot port is recommended with the following dimensions:

  • Slot Width: 1.5"
  • Slot Height: 8.5"
  • Slot Length: 26" (a right angled port with a 13.25" extension)

Warranty

JL Audio Canada 1 Year Limited Warranty.

SKU: 8W7AE-3 UPC: 699440921176
