JL Audio MLC-RW Marine lighting controller works with your JL Audio LED speakers to give you total control over the light show on your boat. This compact, two-piece unit fits almost anywhere and lets you choose from fixed lighting colors or control the color and intensity of the lighting.

Use your phone

You can control the LEDs using the rotary encoder or you can control the lighting with your phone, using the built-in Wi-Fi connection and the LiteWave app you download to your compatible smartphone. The MLC-RW produces up to 30 amps, which is more than enough to power an ambitious light system. It's equipped with plenty of onboard safety features, too, including automatic over-current and short-circuit protection, plus voltage and temperature monitoring.

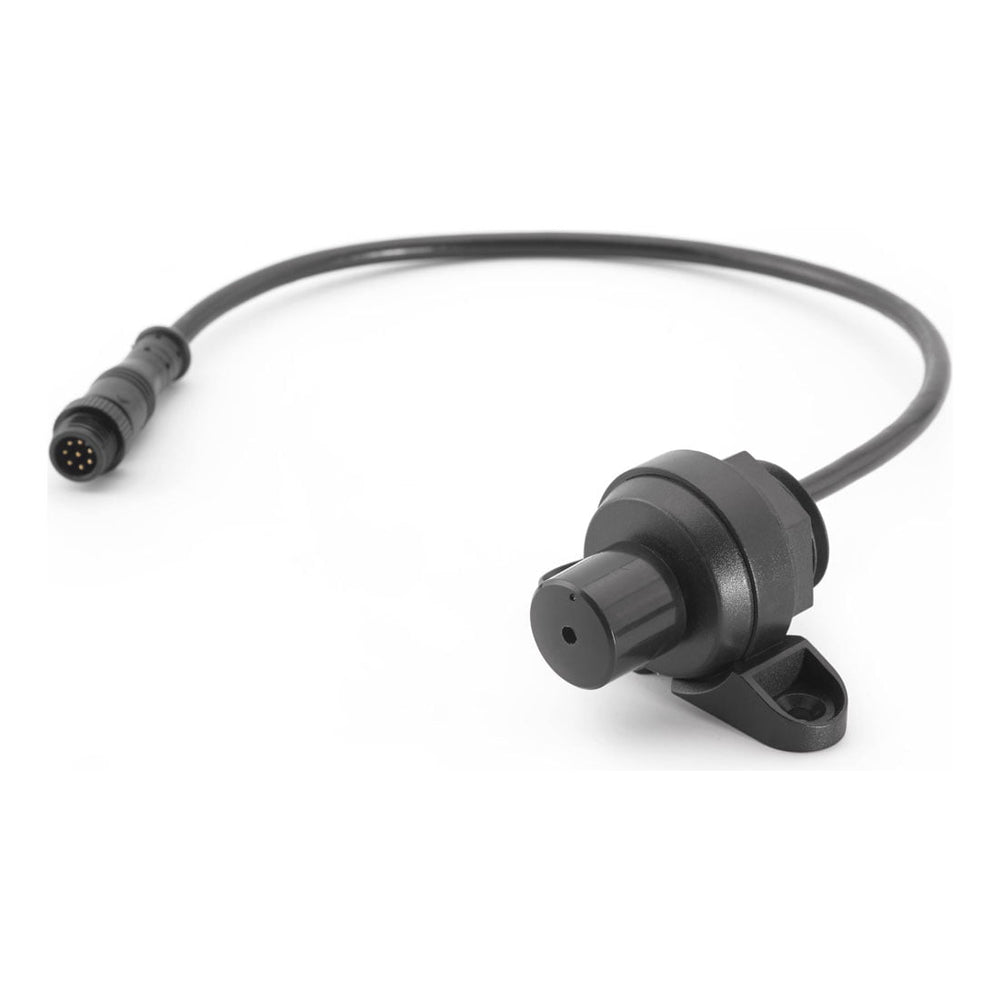

Rotary Encoder

The MLC-RW features a dash-mountable rotary encoder for operating and adjusting the LED lighting (sold separately). The encoder features a continuous rotary control with push-button functionality. A multi-colored LED indicator inside the rotary control is provided for easy reference to the Mode or function currently being accessed.

Mounting

The rotary encoder includes its own mounting bracket for attaching it underneath a dash or console; it can also be panel-mounted by removing the mounting bracket and using the threaded locking collar to secure it in place (a 1" diameter hole will need to be drilled for this type of mount). Functions: Powering On/Off, changing the Color Spectrum, adjusting the Brightness and Color Cycle rate. It can also be used to reset the built-in WiFi function.

WiFi

Control of the MLC-RW can also be done from your compatible smartphone using the LiteWave ITI app, available from the Apple App and Google Play Stores. After downloading the app, the smartphone can then connect to the MLC-RW's network ("LiteWave_xxxx", default password is: password). When the app is launched, the lighting control can then be configured and operated via the app.

Safety Features

The MLC-RW includes built-in safety features, including over-current and short-circuit protection, as well as voltage and temperature monitoring.

Technology: Built-in U.S.A. with Global Components

JL Audio’s Miramar, Florida loudspeaker production facility is one of the most advanced in the world.

  At a time when most audio products are built overseas, JL Audio’s commitment to in-house loudspeaker production continues to grow. To pull this off in a competitive world market, JL Audio’s production engineering team has created one of the world’s most advanced loudspeaker assembly facilities and established a global network of quality component suppliers who build to our specifications.

This, combined JL Audio’s commitment to state-of-the-art assembly technology, allows skilled workforce to efficiently build JL Audio products to extremely high quality standards, right here in the U.S.A. Since most of JL Audio’s premium loudspeakers incorporate proprietary, patented technologies requiring specific assembly techniques, JL Audio find it is vital that the people who designed them have close access to the people manufacturing them. The following JL Audio products are built in Miramar, Florida factory, with global components.
