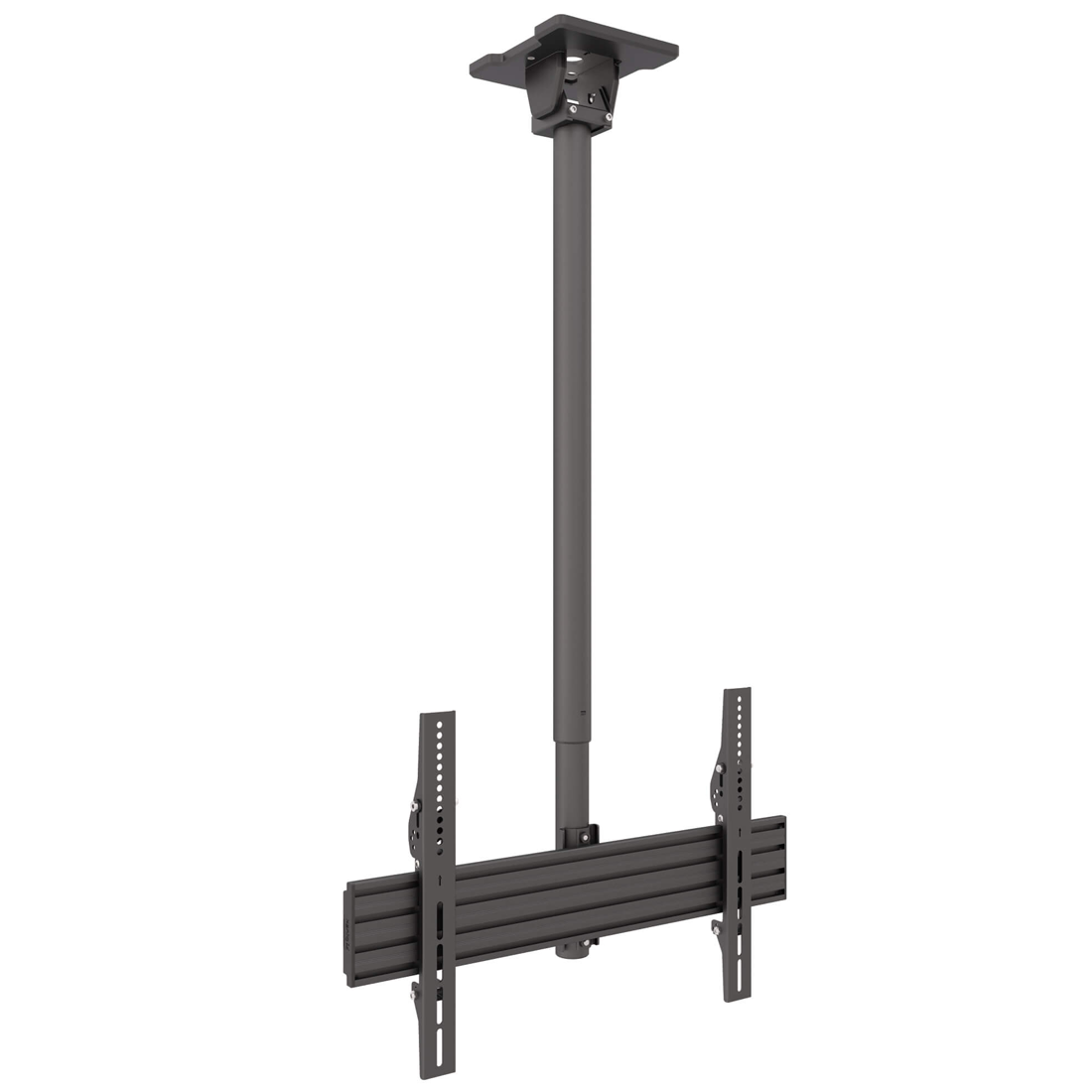

Kanto CM600SG Outdoor Ceiling TV Mount for 37–70" TVs

Kanto CM600SG Outdoor Ceiling TV Mount for 37–70" TVs

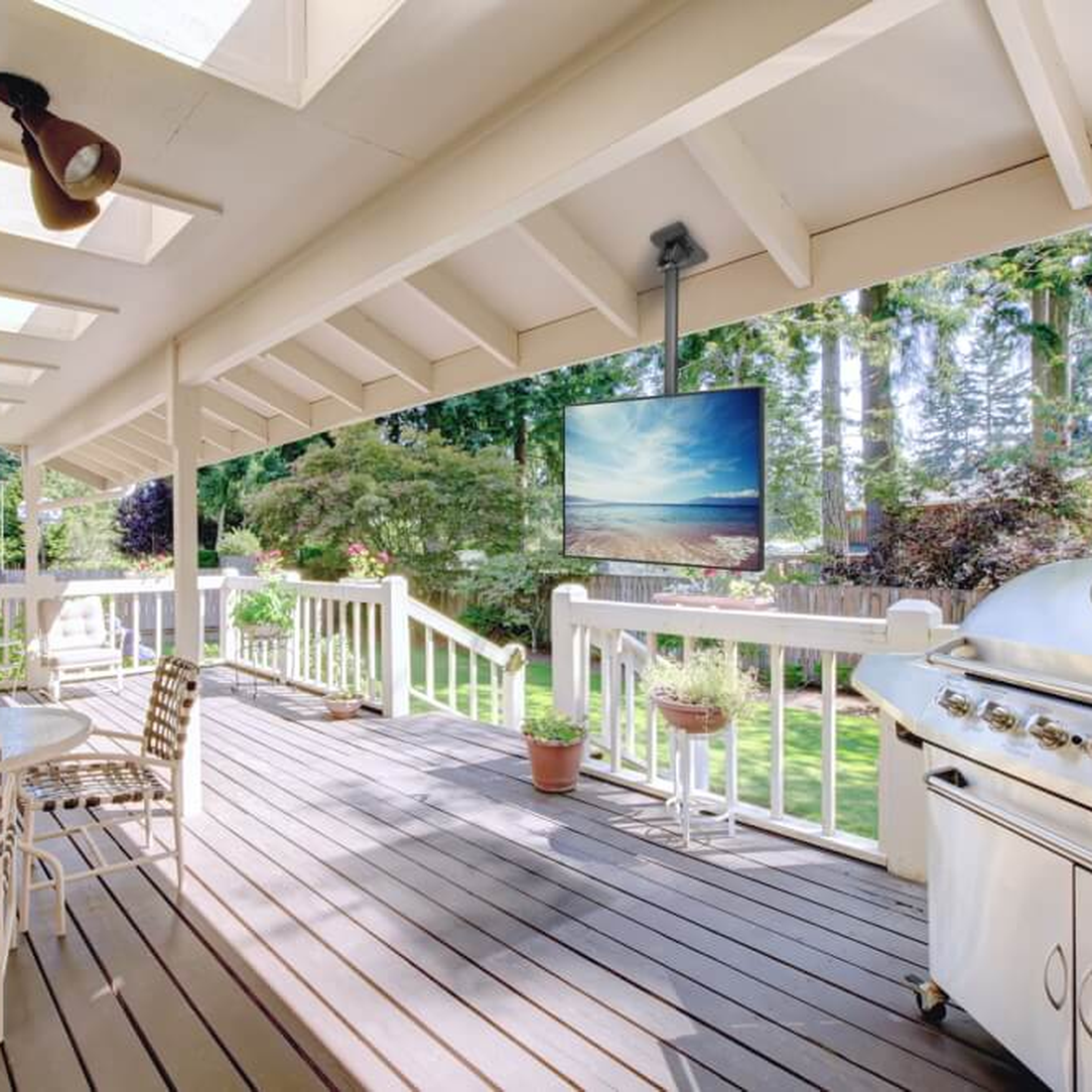

The Kanto CM600SG gives you a durable way to mount a compatible TV outdoors while keeping flexible positioning within reach. Designed for 37" to 70" TVs weighing up to 110 lb, this stainless steel outdoor ceiling TV mount combines corrosion-resistant construction, adjustable height, 360° rotation, and multiple tilt positions. Whether your screen sits poolside or under a covered outdoor area, it is built to handle demanding environments.

Built for Outdoor Environments

The Kanto CM600SG uses solid galvanized steel construction with stainless steel hardware to stand up to outdoor conditions. Additionally, its powder-coated and UV-resistant finishes help protect the mount against rust, corrosion, and increased outdoor wear.

Think of the exterior finish as a protective shell around the mount. Instead of treating outdoor use as an afterthought, the Kanto CM600SG is specifically designed for spaces exposed to changing weather conditions.

Supports TVs from 37" to 70"

The Kanto CM600SG supports compatible TVs measuring from 37" to 70" and weighing up to 110 lb, or 50 kg. Furthermore, its broad VESA range from 75x75 to 600x400 gives you flexibility when pairing the mount with different compatible displays.

Need to make small positioning corrections after mounting your screen? Adjustable horizontal leveling helps you fine-tune the TV's position for a cleaner finished setup.

Flexible Height Adjustment

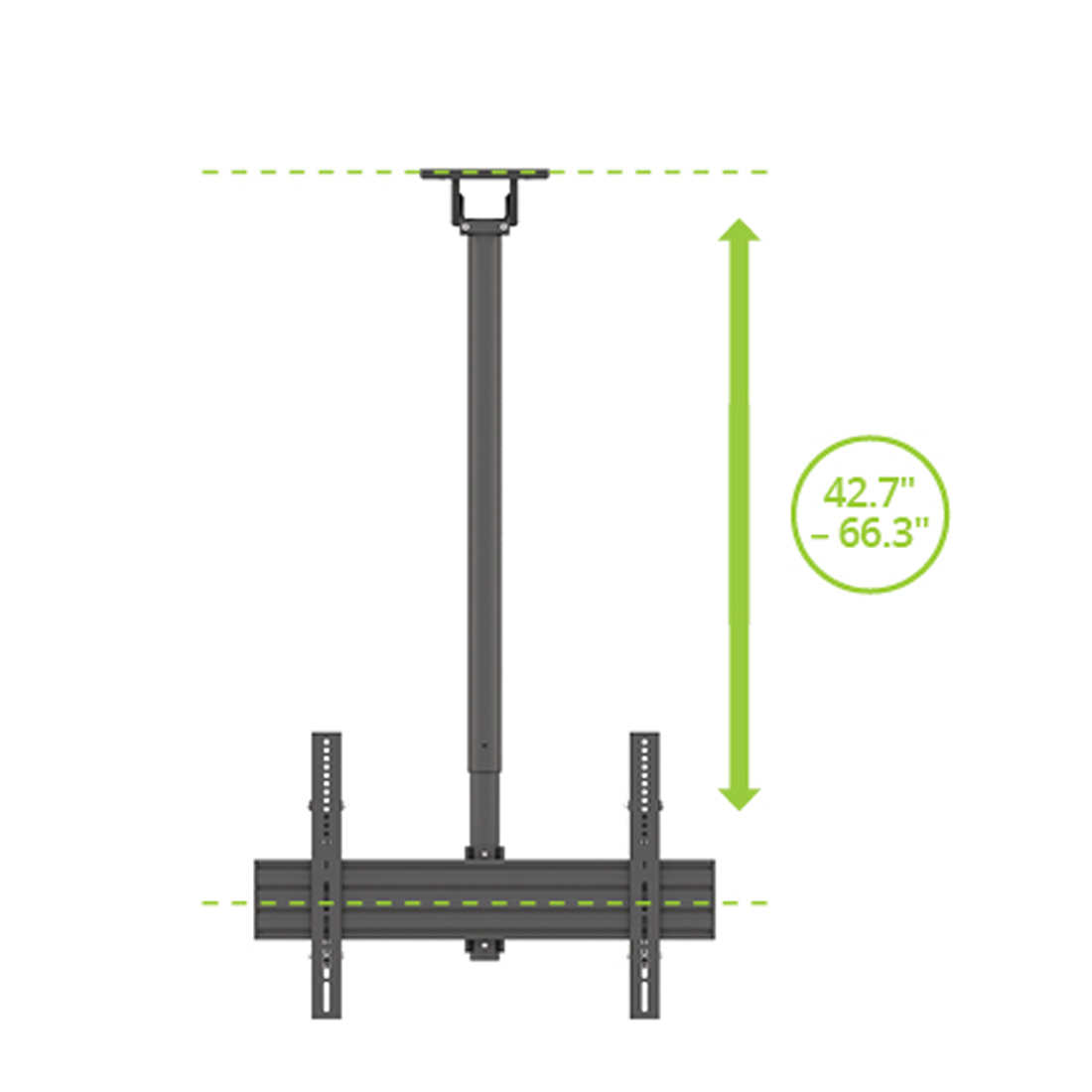

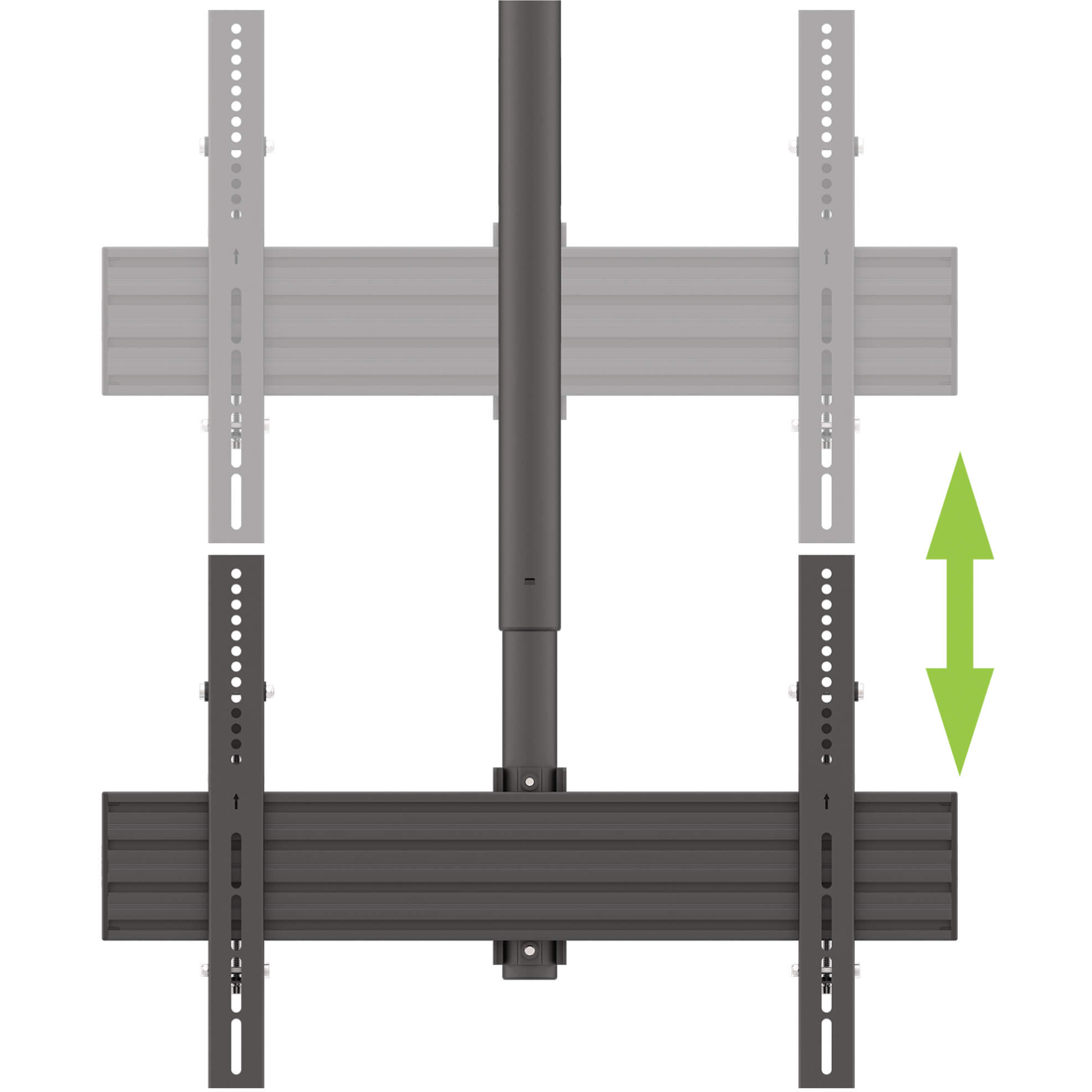

The Kanto CM600SG positions your TV center from 42.7" to 66.3" from the ceiling, therefore offering flexible placement. Additionally, 2-inch height increments let you fine-tune the screen position to better match your viewing area.

That flexibility can make a noticeable difference outdoors, where ceiling heights and seating arrangements can vary considerably from one space to another.

Works with Flat, Angled, and Vertical Surfaces

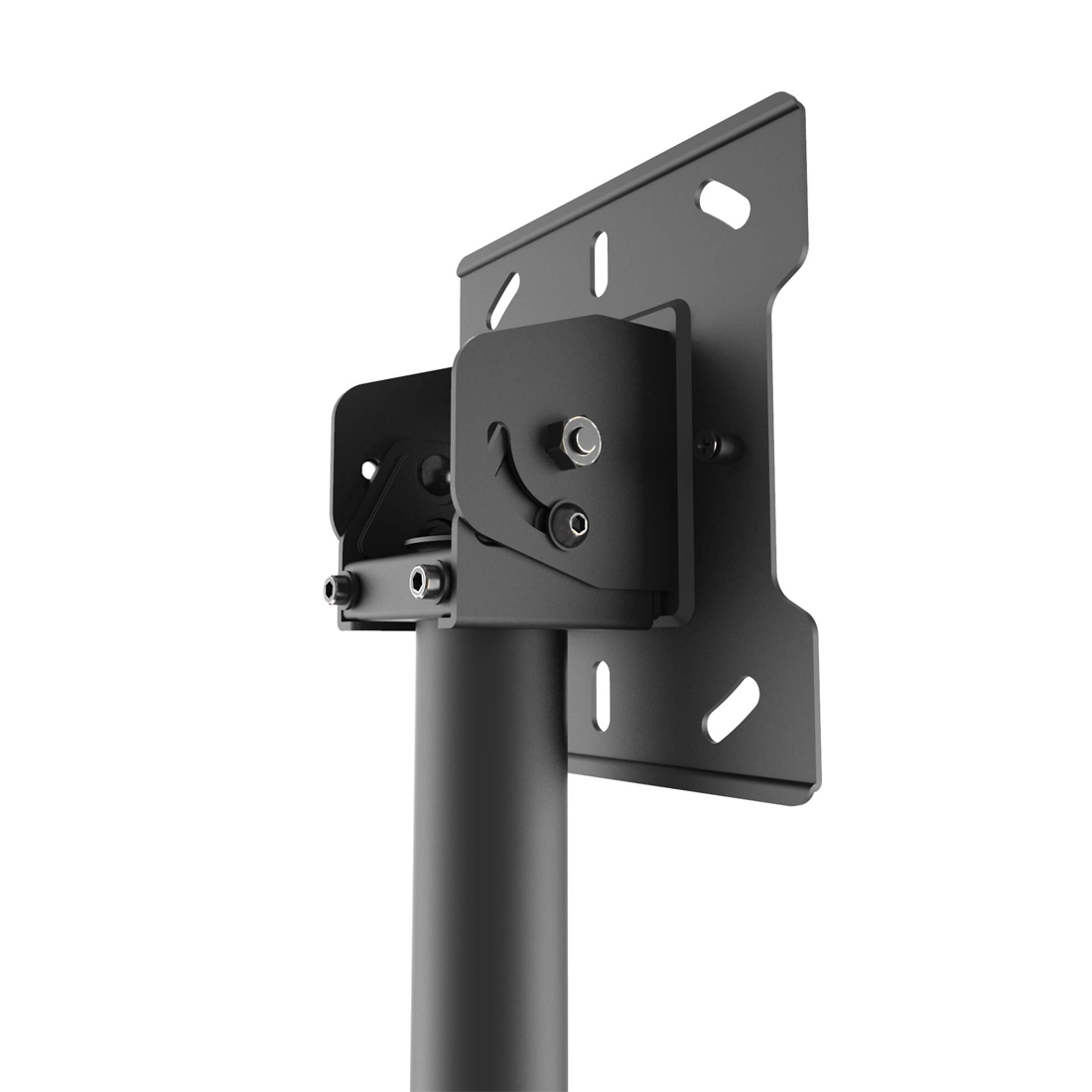

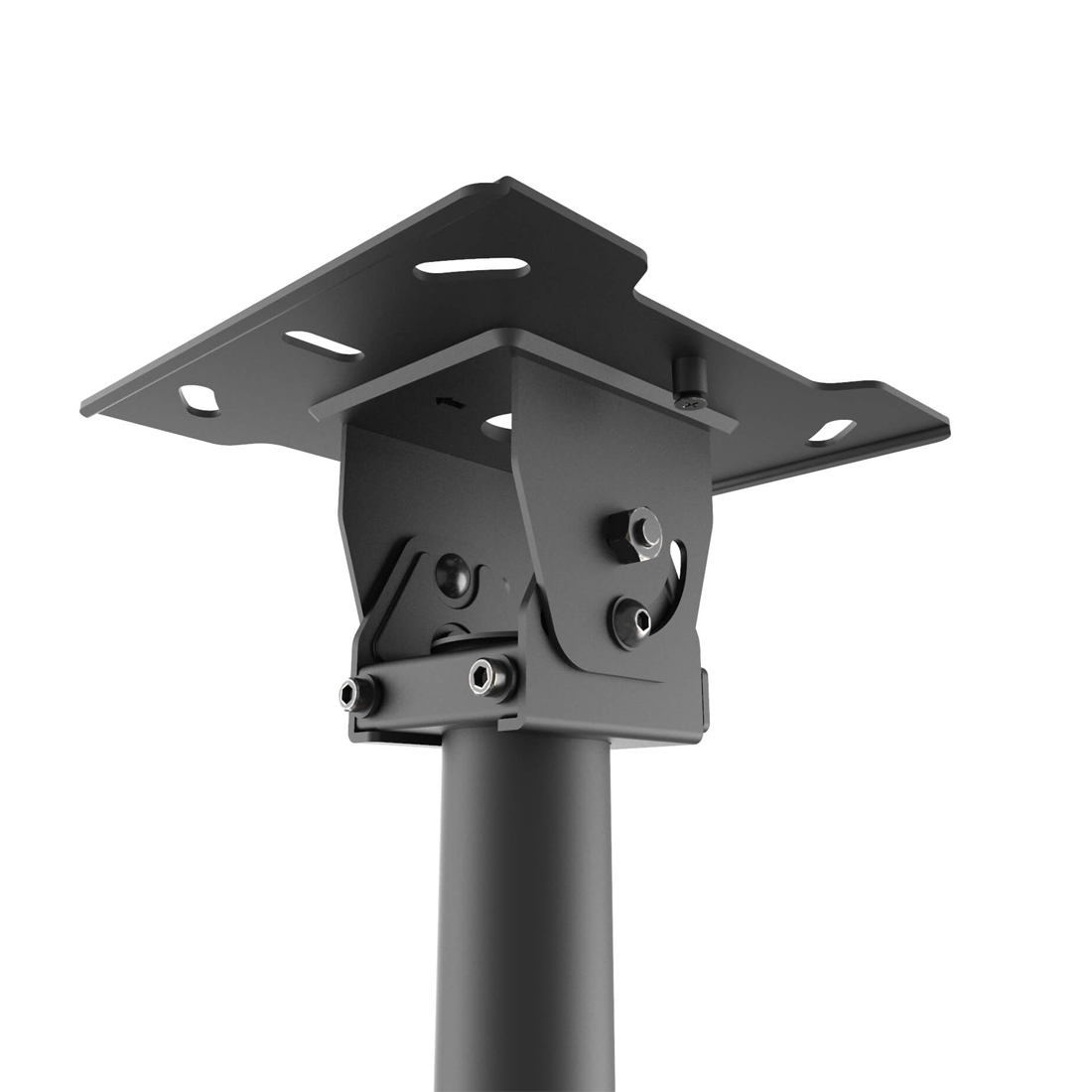

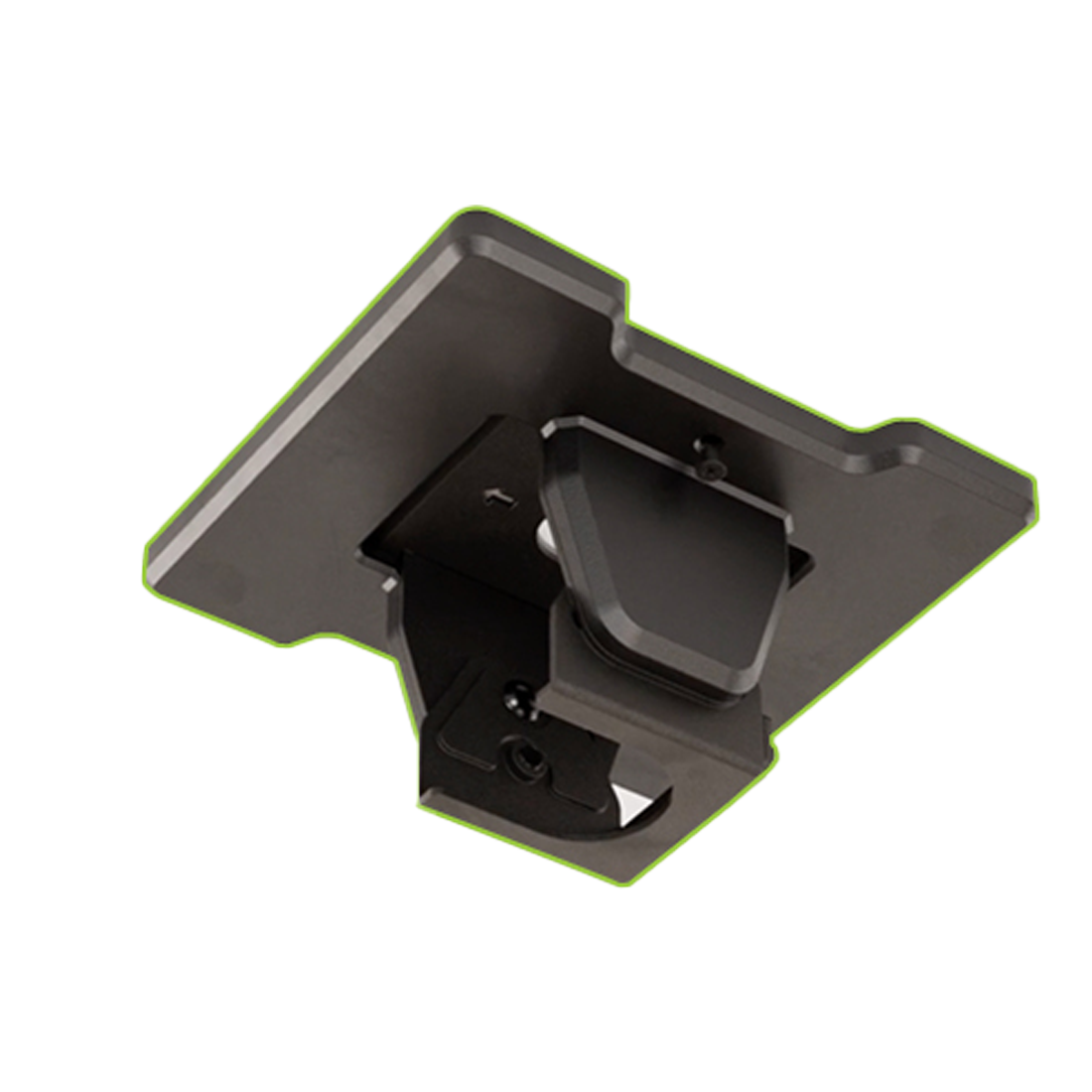

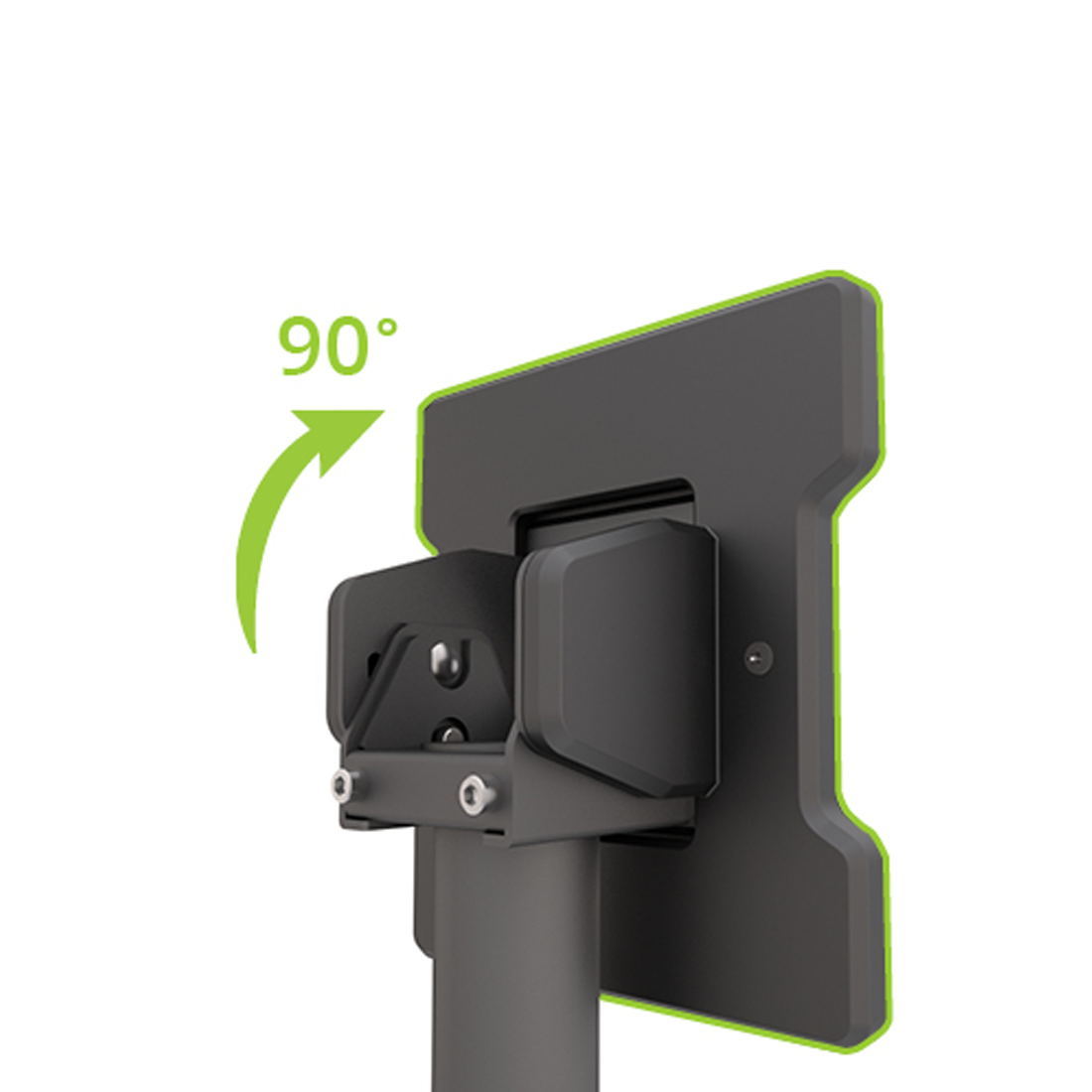

Not every outdoor ceiling is flat, so the Kanto CM600SG uses a pivoting mounting plate for added flexibility. Additionally, its extension pole swings up to 90 degrees to accommodate angled or vertical mounting surfaces.

This design allows the mount to accommodate flat ceilings, sloped ceilings, and support beams. Moreover, the 90-degree swing means the mount can also be positioned on a wall when needed, giving you more options for challenging spaces.

360° Rotation and Adjustable Tilt

The Kanto CM600SG provides 360 degrees of rotation, allowing you to change the direction your TV faces. Meanwhile, four fixed tilt positions provide additional control over the viewing angle.

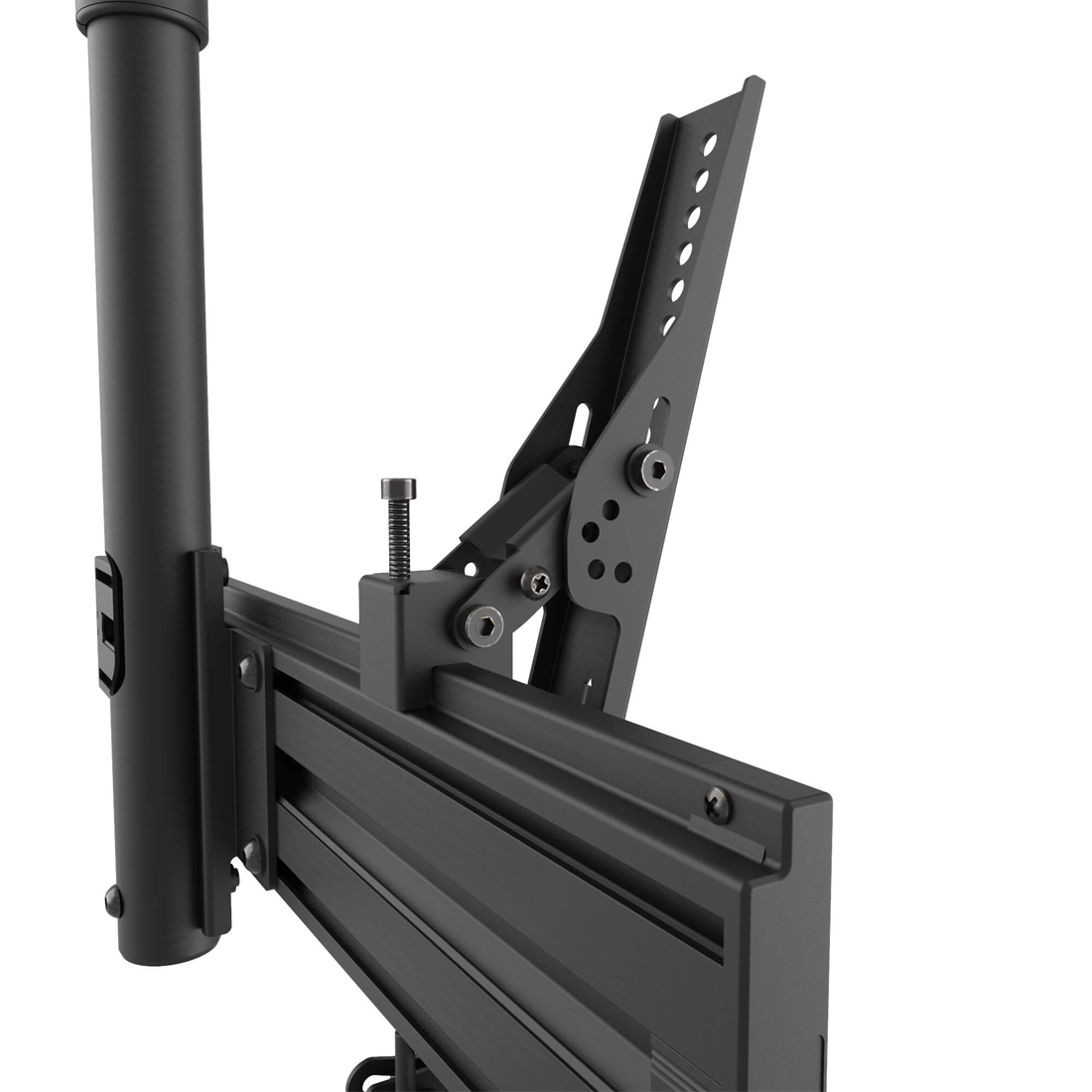

You can tilt the TV forward up to 15 degrees in 5-degree increments to improve your line of sight. Alternatively, the brackets can tilt 6 degrees backward to compensate for potential screen lean.

Security-Focused Hardware

Outdoor displays may be installed in more exposed locations, so the Kanto CM600SG includes stainless steel Security Torx TV screws designed to help prevent tampering. Combined with its fixed tilt increments, the mount keeps adjustments controlled while helping protect your setup.

Integrated Cable Management

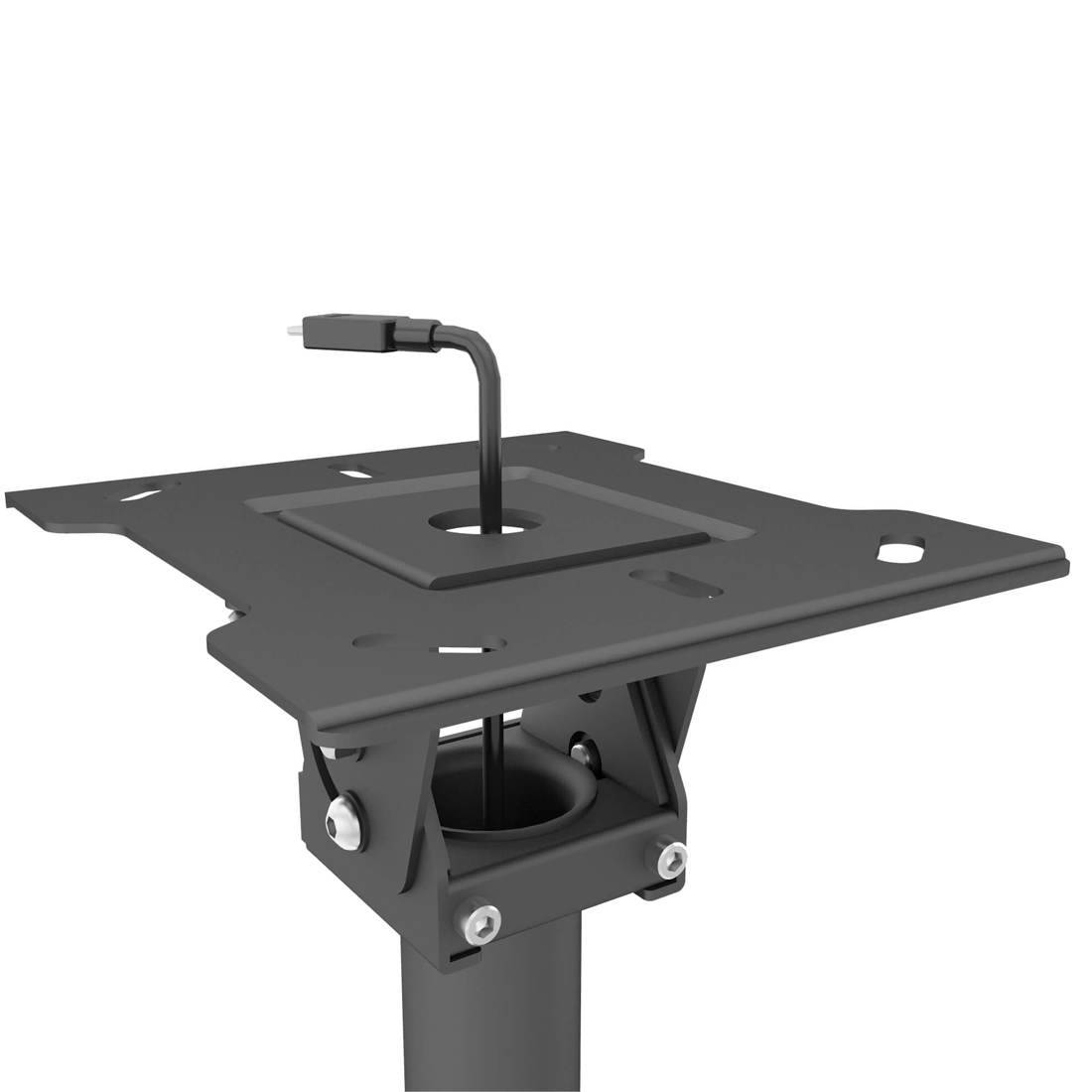

A clean outdoor entertainment area should not be dominated by loose cables. Therefore, the Kanto CM600SG uses a hollow extension pole that provides an internal path for routing your cables.

An opening in the mounting plate also lets cables continue through the ceiling. As a result, you can keep wiring less visible and create a more professional-looking setup.

Designed for Straightforward Installation

The Kanto CM600SG uses a detachable mounting plate; therefore, it secures easily to a wood stud or concrete ceiling. Next, slide the extension pole into position and secure it firmly to complete the setup.

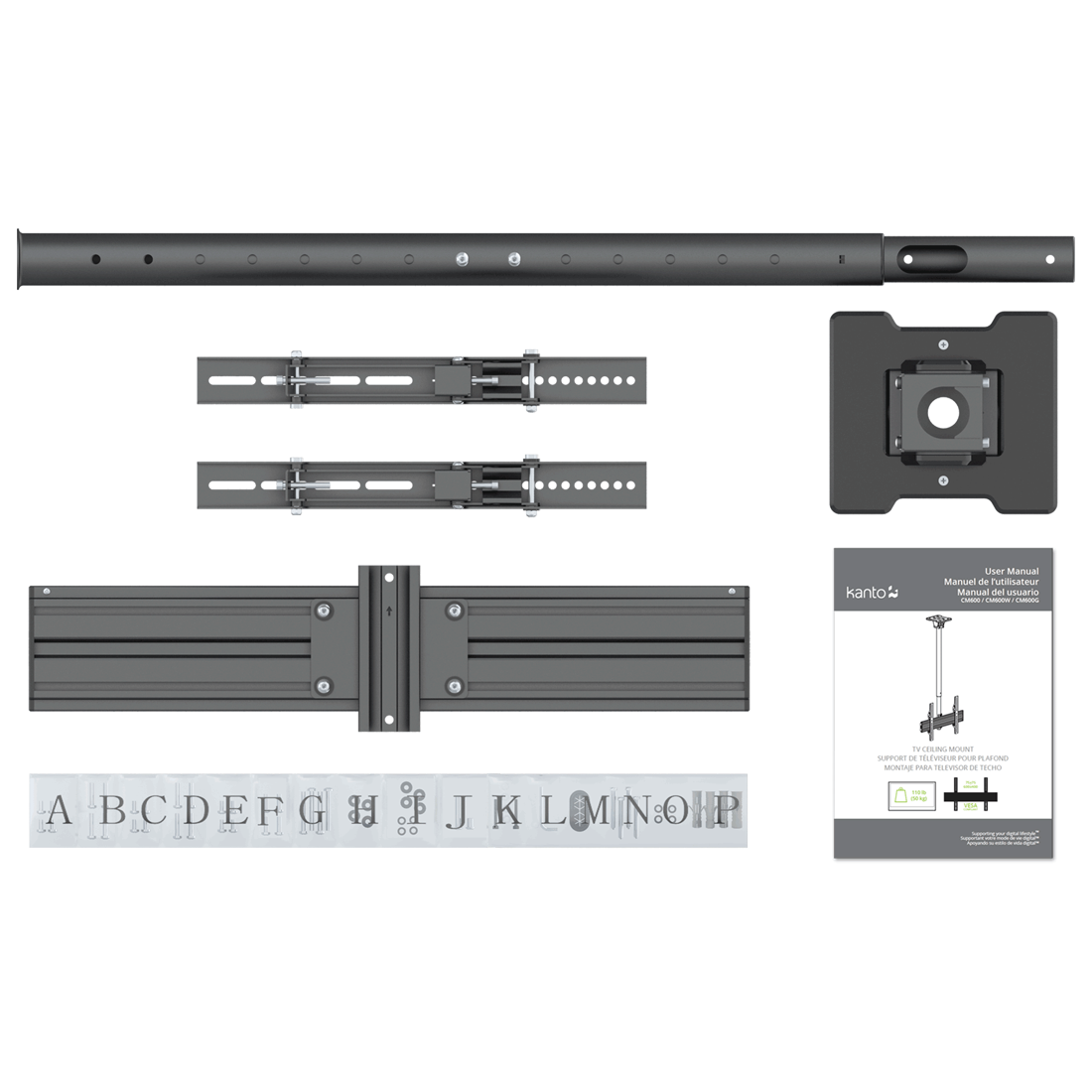

The package includes the installation manual and mounting hardware required for wood stud and concrete installation.

Kanto CM600SG Specifications

• TV size compatibility: 37" to 70"
• Maximum weight allowance: 110 lb (50 kg)
• VESA compatibility: 75x75 to 600x400
• Tilt range: +15° to -6°
• Rotation: 360°
• Extension pole swing: Up to 90°
• TV center height: 42.7" to 66.3" from the ceiling
• Height adjustment: 2" increments
• Adjustable horizontal leveling
• Internal cable management
• Material: Solid galvanized steel with stainless steel hardware
• Product weight: 18.3 lb (8.3 kg)
• Shipping box weight: 20.9 lb (9.5 kg)
• Shipping box dimensions: 43.3" x 8.8" x 4.2" (110 x 22.4 x 10.7 cm)
• UPC: 800152721118

A Flexible Mount for Outdoor Viewing

The Kanto CM600SG brings together outdoor-ready materials, broad TV compatibility, adjustable height, flexible ceiling positioning, and useful viewing controls. Its galvanized steel frame, stainless steel hardware, 360-degree rotation, multiple tilt settings, and internal cable management make it a practical choice for compatible outdoor TV setups where both durability and positioning matter.

Frequently Asked Questions

What TV sizes does the Kanto CM600SG support? The Kanto CM600SG is designed for compatible TVs ranging from 37" to 70".

How much weight can the mount support? It supports TVs weighing up to 110 lb, or 50 kg.

Can the TV height be adjusted? Yes, and the TV center adjusts from 42.7" to 66.3" from the ceiling. Additionally, 2" increments let you fine-tune the viewing height.

Can the Kanto CM600SG rotate and tilt? Yes; moreover, it offers 360° rotation, 15° forward tilt, and 6° backward tilt.

What VESA patterns are compatible with this mount? The Kanto CM600SG supports VESA patterns from 75x75 to 600x400, therefore covering multiple compatible TV configurations.
